Formation of Stripes and Channels Structure of DPPC Langmuir Blodgett Monolayer at Middle Surface-Pressure

Zhonghui Xue1*, Ning Xue2

1Shanghai Publishing and Printing College, Shanghai, China

2Northeastern University, Qinhuangdao, China

Copyright © 2019 by author(s) and Open Access Library Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

http://creativecommons.org/licenses/by/4.0/

Received: June 18, 2019; Accepted: August 4, 2019; Published: August 7, 2019

ABSTRACT

Monolayers of L-α-Dipalmitoylphosphatidylcholine (DPPC) on the air-water interface have been transferred at a middling applied surface-pressure onto the mica substrates using the Langmuir-Blodgett (LB) technique. AFM was applied to observe the formation of morphology of DPPC. Our results show that the Langmuir-Blodgett monolayers of DPPC on mica substrates generate a structured surface with periodic channels and stripes. The LB monolayers obtained at a surface pressure correspond to 20 mN/n. We take into account several explanations to understand the observed surface topological views. On the other hand, a lot of lipids, their Langmuir monolayer and Langmuir-Blodgett monolayer are excellent models of half-layer biological membranes, which can provide closer biological environment. Therefore, using the lipid Langmuir-Blodgett or Langmuir monolayer as prototype, one can simulate further biological environment and make further investigation on biomineralization mechanism of template-controlled.

Subject Areas:

Analytical Chemistry

Keywords:

Langmuir Monolayers, Stripes, Channels, DPPC

1. Introduction

Phospholipid bilayers are the matrix of biological membranes. It is well known that phospholipid, owing to amphiphilic character, is able to form stable monolayers at the air-water interface [1]. Therefore, phospholipid monolayers can be considered as a simple model system for biological membranes to study the biomembrane mimetic systems [2]. For example, phospholipid Langmuir monolayers or Langmuir-Blodgett monolayers can be used as a template to control the growth of inorganic materials [3]. A structure characterization of the LB monolayers is essential in order to use them in model studies or as functional templates. From these reasons, phospholipid monolayers, both Langmuir monolayers and Langmuir-Blodgett monolayers, have been widely characterized using a variety of techniques [4] - [10]. Among of them, AFM has been shown as a powerful tool in providing molecular scale topographic views of a variety of materials ranging from solid surfaces to organic thin films and biological systems [11] [12].

Nano-lath lattices consisting of stripes and channels can be produced by using physical or chemical methods, such as microcontact printing [13] [14] [15] , micromachining [16] , photolithography [17] [18] , and vapor depositon [19]. Another strategy for introducing anisotropic texture is based on the use of the intrinsic material properties of stretched ultrathin polymer coatings [20]. At 1992 years Riegler H. et al., 1996 years Yuan Chunbo et al. and 2000 years M. Gleche et al. respectively produced stripes domain structure and stripes and channels with periodic structure of L-α-Dipalmitoylphosphatidylcholine Langmuir-Blodgett monolayer film [21] [22] [23]. Riegler H. et al. added the dye molecules into the DPPC chloroform solution observed by fluorescence microscopy, finding, Yuan Chunbo et al. made use of Lanthanide ion to induce formation of stripes domain structure, and M. Gleche et al. applied rapidly (60 mm/min) withdrawing a mica by LB technique at very low surface pressure (about 3 mN/m) without adding any ion to the subphase solution. Here, we study the topology of DPPC Langmuir-Blodgett monolayers at surface-pressures equal to 20 mN/m with the pure water subphase, the results show that the DPPC could form a surface structure consisting of stripes and channels with a slowly (5 mm/min) withdrawing a mica substrate from the interface of monolayers-water at middle surface pressure. In this paper, the surface structure of the DPPC LB monolayers is studied by atomic force microscopy (AFM) at dynamic force mode.

2. Experiment

L-α-Dipalmitoylphosphatidylcholine (DPPC, Sigma Co.) monolayer was spread from chloroform solution (1 mM∙L−1) into aqueous triply distilled de-ionized water in a KSV 5000 Langmuir-Blodgett trough (KSV Instruments, Finland). The pH of the subphase solution is about 5.8 - 6.0. The temperature was maintained at 25˚C with an accuracy of ±0.5˚C. The surface pressure (Ps) was measured with a precision of 0.1 mN∙m−1. The DPPC monolayer was compressed at a controlled rate to a pre-specific surface pressure and transferred to a freshly cleaved, hydrophilic mica substrate by vertical dipping at a speed of 5 mm∙min−1. Transfer ratios were approximately unity monitored by the computer system.

AFM measurements were carried out by using a commercial system (SPA400, Seiko. Instruments Inc., Japan) in the dynamic force mode in air. The scanner used is 100 µm. Soft cantilever is long with an integrated pyramidal silicon tip, exhibiting a spring constant of 17.5 N/m.

3. Results and Discussions

3.1. Formation of Films in Aqueous Solution

Figure 1 displays the pressure-area isotherm curves of the DPPC monolayer spreading on a subphase of distilled water. The pressure-area isotherm of DPPC is coincident with previously published results [24] [25]. Obviously, with the increasing the pressure, the compressibility of LB monolayers decrease gradually. When the surface-pressure is equal to 20 mN/m, the DPPC Langmuir-Blodgett monolayers stand in a liqiud-condensed (LC) phase.

In this case, the Langmuir monolayers have a little compresibility, therefore, the monolayers have a stable state, which provides a good condition to withdraw the DPPC Langmuir monolayers to form a compact LB monolayers from the interface of monolayers/water.

3.2. AFM Characterization

Figure 2 shows a series of AFM images of a DPPC monolayer transferred onto mica substrate, which is obtained at two different scales respectively. We have observed a superstructure consisting of stripes and channels with periodicity at the larger scale as shown in Figure 2(a). These images clearly show two distinct height regions. The higher regions are brighter and can be designated the solid

Figure 1. Surface pressure-area (Π-A) isotherms of the DPPC monolayers on triply distilled water.

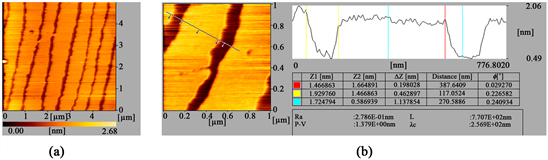

Figure 2. Series of AFM images of DPPC monolayer transferred onto mica substrates with different scale pressure. Corresponding to 5 μm (a); 1 μm (b) including the height profile respectively.

phase, while the dark regions represent the liquid phase. From the alternant regions of light and shade, surface topography inspections with an atomic force microscopy reveal regular channels of about 120 nm in width, which are separated by regular stripes of about monolecular height and a latitude of about 400 nm as shown in Figure 2(b). These stripes are more closely packed than that observed at low pressures (data no given). Using AFM we can measure the height difference between the stripes regions and channels region in a monolayer. The measurement results show that their height difference is about 1.2 nm, which is less than the length of DPPC molecule 2.8 nm. Also, we note that the atomic level flat mica substrate used here has no effect on this height measurement. Thus, it can be inferred that the molecules in solid phase are standing straight up, while those in the liqiud phase are not lying close to substrate surface but forming a tilt angle with both alkyl-chains on the water surfaces.

How can we understand the stripes and channels deposition? The answer can be found in how the equilibrium meniscus height is related to the surface pressure, the various interfacial energies and the electrostatic interactions et al. In equilibrium, the meniscus height is given by the competition between minimizing the interfacial energies and the hydrostatic energy. In details, several explanations have to be taken into account to understand the observed periodic two-dimension lattices consisting of stripes and channels. It is well known that monolayers of an amphiphilic organic molecule spread at air-water interface can be tranferred during a constant vertical upstroke of a solid substrate immersed in the subphase (hydrophilic deposition). The transfer behaviour of monolayers onto solid substrates depends strongly on the interaction of amphiphilic molecule with the substrate [26]. The strongly interaction will result in a repid adherence of the molecules, causing a reduction in the surface energy [21] and an increase of the contact angle as described by the well known Young’s equation. Thus, these alterations are caused by monolayer/substrate interactions which facilitate the condensation of the monolayer into a higher ordered phase. As a consequence, in a stationary configuration the equilibrium meniscus height is lowered. On the other hand, the meniscus height will tend to increase due to the continuous solid substrates motion (upstroke) resulting in an acceletated molecular adsorption on the sbustrate [27]. Thus, the dynamic behaviour of the miniscus height is controlled by two counteracting processes, which may induce the Langmuir-Blodgett to form a nano-lath lattices consisting of stripes and channels when it was transferred onto the hydrophilic mica substrates. Additionally, it is well known that anisotropic domain growth at air-water interface can also lead to stripe patterns at a high-pressure, which can be understood in the terms of a lowered line tension competing with the dipole-dipole interactions [28]. Moreover, long-range electrostatic dipole repulsion between DDPC molecules have led these nano-stripes to repel one another and form a superstructure phase with regular nano-channels [22]. Finally the interfacial binding energies between the monolayers/water is more than that of between the monolayers/mica substrates. Thus, it is proposed that monolayer/substrates interactions can lower the free energy of monolayers compared to the aqueous subphase, and thus facilitate its condensation onto the substrates. By reviewing of the above factors, we consider the surface structure consisting of stripes and channels was controlled by several factors through their interactions each other.

This structured surface can be used as template to control the inorganic growth, such as calcium carbonate, calcium phosphate and the other inorganic materials by electrostatic interactions and capillary et al. Our group will further study the potential use of the nano-lath lattices in our followed work.

4. Conclusions

We have used AFM to investigate the surface structure of L-α-Dipalmitoylphosphatidylcholine LB monolayers on mica substrates. The formation of nano-lath lattices consisting of stripes and channels was observed. The height difference between the stripes and channels (about 1.2 nm) shows that the DPPC molecules in the solid phase are standing straight up, while those in the liquid phase are not lying down. The calculating results show that the channels form a tilt angle through the interaction between the head group of DPPC with mica substrates. We concluded that the several factors play an important role in the transferring process, such as the interfacial energy, electrostatic interactions and interactions of dipole-dipole between DPPC molecules. Consequently, surface structure consisting of stripes and channels was formed on the mica substrates.

Finally, we consider that withdrawing Langmuir-Blodgett monolayers on mica substrate is a displacement and competing process. Transferring the monolayers onto the mica substrate from the interface between water and monolayers is as important as persuading the adsorbed water to keep away from the monolayers there.

Acknowledgements

This work was supported by the National Science Foundation of China, Grant No. 21203055 and Start-up funds for high-level introduction of talents for scientific research in Shanghai Publishing and Printing College.

Conflicts of Interest

The authors declare no conflicts of interest regarding the publication of this paper.

Cite this paper

Xue, Z.H. and Xue, N. (2019) Formation of Stripes and Channels Structure of DPPC Langmuir Blodgett Monolayer at Middle Surface-Pressure. Open Access Library Journal, 6: e5552. https://doi.org/10.4236/oalib.1105552
