Installation of a Riparian Forest by Means of Soil Bio Engineering Techniques―Monitoring Results from a River Restoration Work in Southern Brazil

Hans Peter Rauch1, Fabricio Sutili2, Stephan Hörbinger1

1Department for Civil Engineering and Natural Hazards, University of Natural Resources and Life Sciences, Institute of Soil Bioengineering and Landscape Construction, Vienna, Austria

2Departamento de Ciências Florestais, Universidade Federal de Santa Maria, Santa Maria, Brazil,


Copyright © 2014 Hans Peter Rauch et al. This is an open access article distributed under the Creative Com- mons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, pro- vided the original work is properly cited. In accordance of the Creative Commons Attribution License all Copy- rights © 2014 are reserved for SCIRP and the owner of the intellectual property Hans Peter Rauch et al. All Copyright © 2014 are guarded by law and by SCIRP as a guardian.

Soil bioengineering has been applied more and more in different regions of Brazil in recent years. The study in hand presents the installation of “new” riparian forest based on soil bioengineering techniques. This riverbank restoration work was implemented in the year 2010 and two onsite vegetation surveys, one shortly after the construction, and one in 2013. Besides that, the structures of reinforcement work, and its effectiveness were evaluated. By means of the vegetation survey, the applied species were examined for their ability to establish the riverbank in an environmentally sustainable way. Most notably, the species Calliandra brevipes Benth. (Fabaceae, Mimosoideae), Phyllanthus sellowianus Müller Arg. (Euphor- biaceae), Salix humboldtiana Willd. (Salicaceae), Bauhinia forficate Link (Leguminosae), Inga marginata Willd. (Mimosoideae) and Ateleia glazioveana Baill. (Leguminosae, Papilionoideae) showed a good growth development. The proportion of spontaneous vegetation increased significantly, with Pennisetum purpureum Schumach. becoming a dominating species. Resulting from that, the intervention can be as- sessed as functional and safe, but the strong increase of spontaneous vegetation is undesirable due to less flood resistance. The vegetated riprap could be the best to meet the expectations of the construction elements. Partly, the anchored willows showed as well a good growth development whereas the species used for the hedge brush layer could not develop as expected in large parts of the construc- tion.

Keywords: Soil Bioengineering; Riverbank Restoration; Riparian Forest; Rio Grande do Sul


In the recent past, soil bioengineering projects carried out in Brazil were done in the region of Rio Grande do Sul within river stabilization works, to protect agricultural land of small regional farmers. The soil bioengineering techniques, which are the use of living plant material for civil engineering structures, can be a helpful instrument for civil engineers taking into ac- count not only technical but also ecological, sustainable and socio-economical aspects. These methods have meanwhile regained worldwide recognition for their use in river and civil engineering projects (Howell, 1999; Acharya et al., 2005; Durlo et al., 2005; Li et al., 2002; Lammeranner et al., 2005; Wu et al., 2006; Petrone et al., 2008; Petrone et al., 2010). The principle of biological engineering constructions is based on the combi- nation of dead and living materials and the emerging positive synergistic effects. The dead auxiliaries (stone, wood, etc.) protect the living plants until they undertake technical func- tions. After several years, a part of the auxiliary material rots and the stabilization of the bank is secured by the plants (Gerstgasser, 2000; Schiechtl, 1980; Howell, 1999; Florineth,

2002; Durlo et al., 2005; Zeh, 2007; AMEC Environment & In- frastructure, 2012; Sutili et al., 2012; Acharya et al., 2008).The riparian vegetation has a major role in the river-bank’s protec- tion, through the roots system and the plant cover, improving the soil particles aggregation in a low cohesion situation, re- ducing the runoff and resulting in a lower erosion rate and se- dimentation of the river channel (Holanda & Pinheiro da Rocha, 2010). Previous research already assessed some potentially useful plants for soil bioengineering works. Several studies have already been performed to investigate native, riparian species, their biological and technical properties, and soil bio- engineering structures for their applicability in restoration works in Rio Grande do Sul (Altreiter & Plunger, 2004; Sutili et al., 2004; Durlo & Sutili, 2005; Florineth et al., 2006; Denar- di, 2007; Vargas, 2007; Monteiro, 2009; Rauch, & Sutili, 2009). The acquired knowledge can be applied to the spreading area of the plants and in this way, it can be useful in various regions. This case study presents an intervention applied at the end of 2010, at the River Pardinho in the state of Rio Grande do Sul. The riverbank restoration became essential due to a combina- tion of hydraulic induced erosion and bank mass failure. Bank mass failure resulted from fluvial erosion at the toe of the bank with a continuous removal of bank material, affecting a change in the bank slope by over deepening the bank and altering its angle. Additionally to the forces of the running water, sur- charge from the weight of trees on the top of the slope accele- rated the erosion process. Surcharge and near-surface moisture are, according to Simon and Collison (2002), destabilization effects that can affect slope stability. The objective of this study was 1) to document the implementation of soil bioengineering techniques and 2) to perform a comprehensive vegetation sur- vey in combination with an assessment of the slope stability, examining the midterm effect and functionality of dense vege- tation on slope reinforcement and the durability of soil bioen- gineering constructions. It is of high interest to analyze the vegetation after a certain period and evaluate the used species in order to be able to draft up efficient plant strategies for future riparian restoration works on degraded river embankments. Only in recent years, soil bioengineering has become more applied in Brazil. The research process in this field of study has been highlighting clear uncertainties in developing soil bioen- gineering standards from an engineering as well as from an environmental point of view.

Materials and Methods


The River Pardinho, a tributary to the River Jacuí, is located in the watershed of the River Pardo, in the central region of the state of Rio Grande do Sul. The section where the intervention was realized is situated downstream of a reservoir dam which provides the water supply for the municipality of Santa Cruz do Sul with 119.057 inhabitants (Heuser, 2013).The Pardo River basin is comprised of areas with a difference in altitude of up to 500 m. Approximately 40% of its total area applied to the mid- dle portion of the basin, where the municipal seat of Sinimbu is located, with altitudes ranging from 200 m to 500 m. The downstream (lower part) of the basin, where Santa Cruz do Sul is located, is characterized through flat areas with a slightly undulating relief (Commitê Pardo, 2011). According to Moreno (1961), the local climate is subtropical, with humid climatic conditions, hot summers and rainfall during all seasons. How- ever, in months of high temperatures, hydrological deficits can occur. During the rainy season, the area is sometimes prone to extreme flash flood conditions. The slope reinforcement con- struction was implemented at an actively eroding bank section at the left side of the river with more than 80 m in length (see Figure 1).

The Causing of the Eroding Process

The instability of the bank resulted from a continuous pro- cess of erosion, landslide, collapse and remove a lot material due to the action of the watercourse (see Figure 2).

The latter has shifted its axes outwards on this slightly curv- ing river section. The instability of the embankment was exac- erbated by the steep angle of the embankment, preventing the vegetation from spontaneous establishment. Additionally, the vegetation that was planted initially along the river at the top of the margin (trees of Enterolobium contortisiliquum (Vell.) Mo- rong) did not have any stabilization effect on the site. Actually quite the reverse occurred. This vegetation formed an overhead

Figure 1.(a) The location of Santa Cruz do Sul in the state of Rio Grande do Sul and the states big watercourses; (b) The location where the river restoration work was implemented.

Received December 1st, 2013; revised January 6th, 2014; accepted January 26th, 2014

Figure 2.

Sectional view, illustrating the eroding process.

in the vertical axes, shifting its center of gravity in a less stable position. It captures and transmits wind power to the slope, creating a lever that certainly amplifies the dynamics of land- slides, triggered by the current of the stream (Durlo & Sutili, 2005).

Methodology of Vegetation Survey and Evaluation of Construction

In the end of November 2010, two months after the last inter- ventions had been completed; a vegetation survey was carried out in order to analyze the growth pattern of the plant stand. Therefore, 10 stripe-shaped transects where staked out along the riverbank. Each parcel had an area of 2 m in width and 15 m in length, extending from the water level to the highest point of the slope. By dividing the transects into sub-sampled por- tions of 1 m × 2 m, it was possible to recognize the variation along each parcel. In this way, it facilitated the interpretation of the data according to their variation along the gradient of the slope and individualize their analysis in accordance to the con- struction. Additionally to the classification of the plant indi- viduals, the stem diameter at base and the plant height were measured.

At the end of January 2013, a second vegetation survey was carried out in order to examine the long term effects of the ri- verbank restoration and the development of species with their actual distribution. For this survey, the same methodology as for the first one was used in order to be able to compare the results of each parcel and sub parcel with the previous data. Supplementary, in the second survey the crown diameter and the number of shoots were measured, the coverage rate by us- ing the method of “Braun Blanquet” was estimated and a clas- sification of the plant’s vitality, in four classes, was performed. An integral assessment method was developed to evaluate the status and the effectiveness of the constructions four classifica- tion classes were each defined (see Table 1).


Intervention-Application of Soil Bioengineering Methods

The presented intervention was composed of two comple- mentary and inseparable parts: the physical actions and the implementation of vegetation. The physical constructions and first vegetative interventions were done from January to Febru-

ary in 2010. The intervention was executed in the following sequence: Firstly, the vegetated riprap was realized by using Calliandra brevipes Benth. and hardwood cuttings of Salix humboldtiana Willd. Above, hedge brush layers of the species Terminalia australis Cambess. Schinus molle L., Schinus terebentifolia Raddi. and Pouteria salicifolia (Spreng.) Radlk. were installed. In the upper portion, trees of Salix humboldtiana were anchored to the slope, using wooden poles and steel wires. Even further up, in the same way, trees of Enterolobium contortisiliquum were anchored to the slope but without the expectation of sprouting. As a final measure, the top angle of the slope was corrected and seedlings and hardwood cuttings of Phyllanthus sellowianus Müll. Arg. were fielded on its middle portion. After heavy rainfalls, a second vegetative intervention was implemented to ensure the physical integrity of the margin. Its purpose was to support the vegetated riprap, the hedge brush layer and the anchored willows. Particularly as the anchored trees of Enterolobium contortisiliquum had been removed dur- ing the heavy-rainfalls, an additional action became necessary. The aim is to enhance the biodiversity on site, but also for test- ing various species in terms of their applicability for soil bioen- gineering interventions a wide range of species was used. Fig- ure 3 shows a technical sketch with all the applied soil bioen- gineering techniques and the used plants. The plant material consisted of 1550 seedlings of 32 native species.

Species Observed in Each Section of the Construction

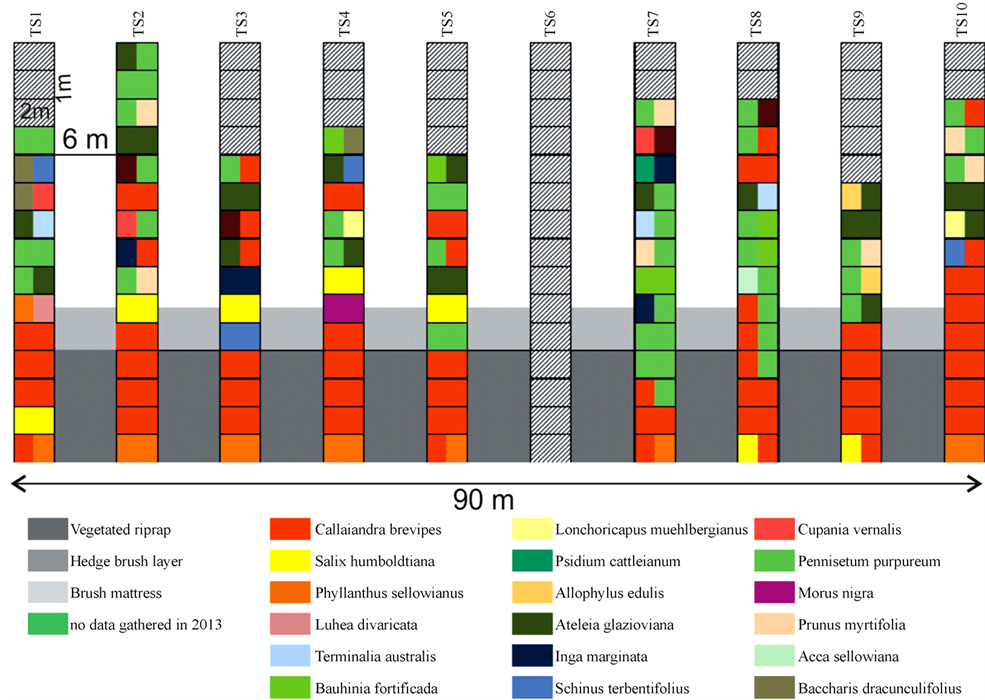

The vegetation surveys were conducted in 2010 and 2013 as described in the methodology chapter. Figure 4 shows an over- view of all sections.

Section 1―Vegetated Riprap

In the segment of the vegetated riprap, three kinds of species were observed in the first survey, namely: Calliandra brevipes

Sectional view, illustrating the interventions taken at the embankment.

Sectional view, illustrating the interventions taken at the embankment.

(51% of specimens), Salix humboldtiana (43% of specimens) and some plants which had emerged from the cuttings of Phyl- lanthus sellowianus (6% of specimens). These species have an average density of 2.6 plants per square meter. Compared to an initial density of 3.5 plants per square meter planted during the first intervention, 28% of seedlings had been lost in the first 8 months. These losses had occurred mainly in the segment clos- est to the mean water level, caused by long periods of submer- sion or by the flow. In the second plant survey the presence of the species was as follows; Calliandra brevipes (82% of speci- mens), Phyllanthus sellowianus (10% of specimens), Salix humboldtiana (5% of specimens) and Terminalia australis (5% of specimens). The density, now being 3.3 plants per square meter, shows that the plants could reproduce distinctly, in be- tween the first- and second survey. In the lower part of the ri- prap, the dominating species were Calliandra brevipes (cover- age rate [cr] of 39%) and Phyllanthus sellowianus ([cr] 11%) with some presence of Salix humboldtiana ([cr] 5%). It can be assumed that these species can best support the hydraulic shear stress. With a coverage rate of 55%, the uncovered area was extensive. Spontaneous vegetation was scarcely observed in this part. In the upper portion of the riprap, a strong dominance of Calliandra brevipes ([cr] 91%) was noticeable. Just a few other individuals had been able to emerge in this section. Namely; Salix humboldtiana, Terminalia australis and some spontaneous vegetation, like Pennisetum purpureum Schumach., Sida sp. and Xanthium strumarium L. Only [cr] 2% of the area was uncovered.

Section 2―Hedge Brush Layer and Brush Mattress

In the first vegetative survey, the following plants were ob- served in the sections of the hedge brush layer and anchored willows; the sprouting of Salix humboldtiana was prevalent, accounting for 59%, and concentrated on the central portion. Terminalia australis, Morus nigra L. and Schinus terebentifolia were only found point wise. There was no sprouting of the hedge brush layer or the brush mattress in the transects 7, 8 and 9. In this portion, mainly the shrubs Schinus molle, Schinus te- rebentifolia and Pouteria salicifolia, which did not produce any shoots, had been used. The vegetation survey in 2013 showed the following situation in this section; Salix humboldtiana had diminished to a proportion of 31%, still concentrating more in the central portion ([cr] 34%). Terminalia australis completely disappeared. Morus nigra and Schinus terebentifolia still were observed only point wise. Calliandra brevipes ([cr] 10%) had been able to spread in each part of the construction. Spontane- ous vegetation had emerged over the whole length of the inter- vention and was partly dominant. Frequently, Poaceae sp. was found besides Pennisetum purpureum ([cr] 29%) and constituted the second most prevalent group of spontaneous vegetation. The uncovered area was [cr] 9%.

Section 3―Plantations in the Upper Parts of the Slope

The plants fielded in the second vegetative intervention in October 2010 showed mortality rate of only 2.6% two months after being fielded. In total, 273 plants were observed in the first survey. This number had decreased to 127 plant individu- als in 2013. In the upper portion of the embankment, the great- est variety of species was found, although it had diminished distinctly from the first to the second survey. The diameter, as well as the plant height, had increased noticeably in this period of time. The vitality analysis showed that most of the species had developed very well. The amount of spontaneous vegeta- tion was very high in this portion. As can be seen in Figure 4 and from the high coverage rate of 41%, Pennisetum purpu- reum was dominant in several parts of the section. Other spe- cies with a considerable coverage rate are Ateleia glazioveana ([cr] 26%), Calliandra brevipes ([cr] 9%) and Bauhinia forfi- cata ([cr] 4%). The uncovered area was [cr] 7%.

Development of Species

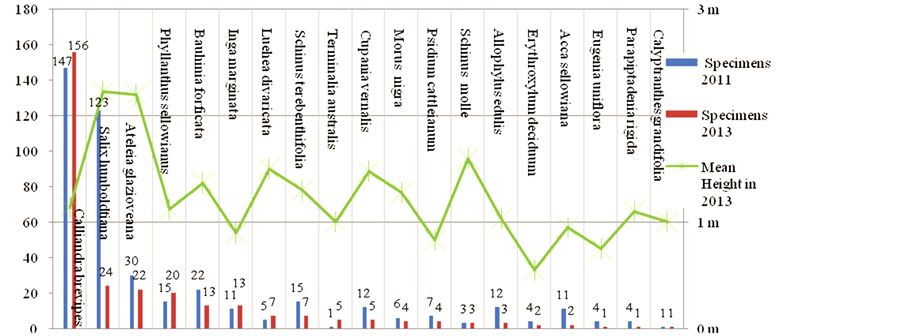

In Table 2, the species, which were found in the plant sur- vey in 2011 but disappeared until 2013, are listed. Particularly strong losses were seen with the species Machaerium para- guariense Hassl., Eugenia myrcianthes Nied. and Myrcianthes pungens Berg. Legr. In Figure 5, the species, which were found in both vegetation surveys plus their mean plant height are shown. The species which developed best are Calliandra brevipes, Phyllanthus sellowianus, Ateleia glazioveana, Salix humboldtiana, Bauhinia forficata Link and Inga marginata Willd. In Figure 6, the growth development of these species is illustrated. Salix humboldtiana, showed great losses in the number of individuals. However, it grew very strong and high- est of all species in the plant stand. The second highest grown species is Ateleia glazioveana. Its mean vitality was classified as 1 and only a few losses of plant individuals occurred. During the period of the monitoring, the plant individuals of Phyllan- thus sellowianus increased and showed significantly the best growth along the mean water level. The plant individuals of Bauhinia forficata showed a good development. The same ap- plies to Inga marginata, which could even increase the number of plant individuals. As well, Luehea divaricata Mart. and Inga marginata showed to be able to emerge on river embankments, as its number of individuals increased. Pouteria salicifolia, which was used in the hedge brush layer completely disappeared. Further species of the hedge brush layer are Morus nigra and Ter- minalia australis.

They were observed in the second survey but only in small number. Calliandra brevipes had the most significant increase of all applied species. The habitus is a small grown shrub, which pro- duces many shoots. It can be assessed as a very dominating species, with the ability to grow on extreme conditions. Species which showed a good development but occurred only in a small number of individuals are Schinus terebentifolia, Schinus molle, Cupania vernalis Cambess. and Psidium cattleyanum Sabine.

Evaluation of Structures

In Figure 6, the evaluation of the structures in terms of ef- fectiveness and status is shown. As a whole, the intervention can be assessed as functional and safe. The effectiveness of the structures in conjunction with the present vegetation is rated in the classification classes 1 or 2. This means that the embank- ment is well protected and no imminent failure should be ex- pected. Analyzing the structures separately showed some issues with the intervention. Only the vegetated riprap developed as it was supposed should have. In several spots, the implemented vegetation material did not or just sparsely emerge. Especially in the hedge brush layer and in the upper portion, where a wide range of species was fielded, the desired development was only partly achieved. The anchored willows showed a good devel- opment in half of the intervention, where high, vital brushes developed, making a major contribution to slope reinforce. In the other half, from transect 6 on, the brush mattresses could not develop at all. In the parts where the implemented vegeta- tion did not develop as desired, spontaneous vegetation over- took the role of erosion protection, and therefore erosion just occurred point wise. Since the anchored trees of Enterolobium contortisiliquum were swept away shortly after planting, that intervention was classified with the category “destructed”. Figure 7 shows the embankment before the restoration work in 2010 and after the monitoring in 2013.

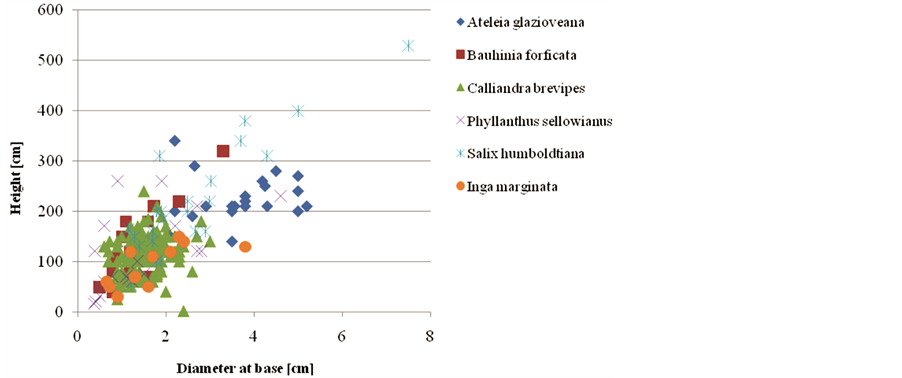

Growth development of the species after 3 years of intervention.

Growth development of the species after 3 years of intervention.

Discussion on the Applicability of Most Remarkable Species for Riverbank Restoration Works

The installation of “new” riparian forest depends on the tech- nique of soil bioengineering method as well as on the used plants. Furthermore, the applied structures and some of the species, which are most decisive for the development of the embankment are discussed.

Discussion of Applied Structures

The installed vegetated riprap, was the most effective and stable construction applied. Realized by using relatively big basalt blocks, it is the less natural related construction of the applied structures. However, it provides considerably more ha- bitats then in case of solid bank constructions. As the study shows, several species could emerge in the interstices of the basalt blocks. Through the changing of the temperature condi- tions and the position along the mean water level, it is a habitat for plants, tolerating extreme growth conditions. Moreover, its major contribution to the protection of the embankment enables an establishment of the plant stand above. In the hedge brush layer, it was observed that many species had diminished or disappeared.

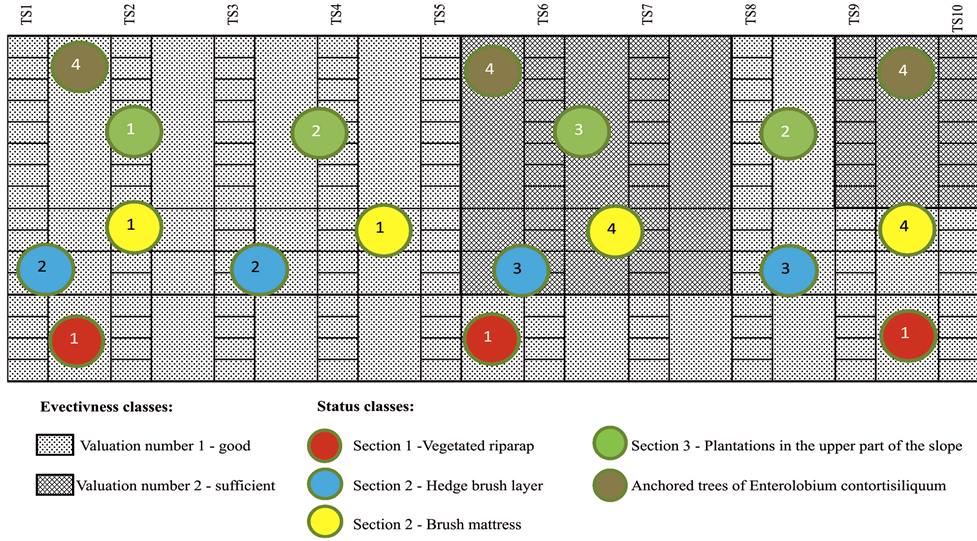

Evaluation of structures.

Although slope reinforcement was obtained, the high propor- tion of spontaneous vegetation plus uncovered areas might endanger the stability in the long term. Implemented species which significantly diminished or disappeared completely are not recommendable for further slope reinforcement construc- tions. The brush mattress showed in half of the construction very good development and seems therefore to be an appropri- ate construction for the use in soil bioengineering works. How- ever, in view of its large application along the whole construc- tion, the assertiveness against other species seems to be rela- tively low due to the partial occurrence of Salix humboldtiana, This fact should be considered in further applications of brush mattresses using Salix humboldtiana. In the upper part of the slope, which is only prone to extreme flow conditions in case of flooding, the increase of spontaneous vegetation was partly very high and several fielded species could not develop as ex- pected. This provides important information about the asser- tiveness of the species used. The sweeping away of the anc- hored trees of Enterolobium contortisiliquum might be a result of the one-sided anchoring to the slope. A double-sided anchoring might prevent floating in case of flooding.

Discussion of Species

The strong dominance of Calliandra brevipes shows that it has very good properties to resist against hydraulic shear stress and is applicable to locations with extreme growth conditions like ripraps. Through its very dense growth and production of many shoots, its contribution to soil coverage and consequently to erosion protection is very high. It could also prevail in the upper section of the embankment and is the only species which was present in all portions. Due to its dense growth pattern, no other plants could develop, which is a major reason for its do- minance. It proved to be very appropriate for slope reinforce- ment interventions projects, but its dominant characteristics should be considered for further works. As it is both an orna- mental brush and a very robust species, it has great potential to be applied at different riverine landscapes.

Phyllanthus sellowianus established best along the mean water level and is compatible with extreme growth conditions, for example temporary submersions. Rauch and Sutili, 2009, already ascertained Phyllanthus sellowianus as a very flexible plant because of a high percentage of gelatinous fibers. By bending, it protects the margin of the river and is very rapture resistant. Moreover, Hörbinger (2013) showed by means of a pull-out test its high pullout resistance and favorable root ar- chitecture in terms of root anchorage ability. In the present study, it was confirmed that Phyllanthus sellowianus can deal with hydraulic shear stress and shows very good properties for soil anchorage. It was hardly present above the riprap and it can therefore be assumed that it is a specialist on extreme growth conditions and not very dominating.

Salix humboldtiana proved to be very appropriate to be used in embankment restoration works since it showed a good growth on extreme site conditions. It was, along with Phyllan- thus sellowianus, the only species which established at the mean water level. However, the small number of individuals in the riprap shows that Salix humboldtiana could not prevail against the highly dominating Calliandra brevipes. In the upper portion, where Salix humboldtiana could prevail and form shoots, high brushes developed which contributed strongly to the slope reinforcement. The fact that it could not emerge in half of the construction points to a minor assertiveness of the species. Florineth et al. 2006 investigated, among others, Salix humboldtiana, Phyllanthus sellowianus, Calliandra brevipes, Mo- rus nigra, Terminalia australis and Pouteria salicifolia for their ability to sprout from shoots and to produce adventitious roots.

The best properties showed Phyllanthus sellowianus and Sa- lix humboldtiana with a satisfying production of adventitious roots and sprouting from shoots. The other mentioned species have not shown the desired results. In the present study, Ter- minalia australis and Pouteria salicifolia where used in the hedge brush layer and did not show any, or just weak sprouting. Pouteria salicifolia had already completely disappeared at the first performed survey and seems to be ineligible for the use in river restoration works. The number of plant individuals of Terminalia australis increased until the second performed sur- vey, however for the use in a hedge brush layer this species seem to be inapplicable.

Ateleia glazioveana was, in the upper portion of the em- bankment, the species which had the strongest increase in the plant stand. It can become a tall tree which might be the reason for the strongest increase of the stem diameter of all species. A big stem diameter can be unfavorable in terms of embankment protection because these plants rather break than bend in case of flooding. In the early stage, the plant continues to contribute to the protection of the slope because it is still flexible. However, main- tenance work is necessary to prevent an overly strong growth of that species. If maintenance work is neglected, Ateleia glazi- oveana will become a high grown tree and put shade pressure onto other plant individuals. Moreover, it can cause slope insta- bilities by its own weight. Morus nigra, not a native species in Brazil, could establish in the section of the hedge brush layer. However, because of the small number of individuals it was not a suppressing species. The spontaneous grass which emerged widely in the hedge brush layer and in the section of the brush mattress constituted of not native species.

Pennisetum purpureum was noticeably the most assertive species of the spontaneous vegetation. The question arises if Pennisetum purpureum with less flood resistance will provide long term slope reinforcement. It seems that some of the im- plemented vegetation was pushed back by the highly dominat- ing P. purpureum. Once the established vegetation has reached a certain height, no further pushing back by P. purpureum has to be expected. It is, however possible that P. purpureum will be pushed back again in further succession of the plant stand. This, as well as the long term slope reinforcement effect, should be a task for further surveys on site.


Figure 8 shows an overview of the situation before the in- tervention (2010) and after 3 years of plant development (2013). The “new” riparian forest based on the application of soil bio- engineering techniques fulfills technical as well as ecological functions. The generated forest provides bank protection against erosion and creates new ecological habitats. Further- more, the project shows that soil bioengineering techniques are

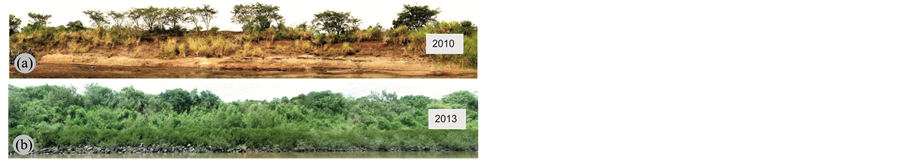

(a) Embankment before implementation of reinforcement works (Sutili, 2010); and (b) two years after its completion (Hörbinger, 2013).

suitable for engineering purposes supposing that both the tech- nique and the local plants are taking into account in the plan- ning and implementation procedure.


  1. Acharya, M. S., & Rauch, H. P. (2008). Pullout test of willows to estimate the mechanical effects of roots [Konferenz]. 2nd International Conference on Ground Bio- and Eco-Engineering―The Use of Ve- getation to Improve Slope Stability, Beijing, 14-18 July 2008.
  2. Altreiter, W., & Plunger, K. (2004). Ingenieurbiologische Maßnahmen am Rio Guardamor in Südbrasilien. Wien: Diplomarbeitan der Uni- versitätfür Bodenkultur,.
  3. Raymond, P. (2012). AMEC environment & infrastructure design guide- lines for erosion and flood control project for streambank and ripar- ian stability restoration [Bericht]. Calgary: City of Calgary.
  4. Bressan, D. A., Durlo, M. A., & Sutili, F. J. (2004). Potencialbiotécnico do sarandibranco (Phyllanthussellowianus Müll. Arg.) e vime (Salix viminalis L.) para revegetação de margens de cursos de água. Ciência Florestal, Santa Maria, 14, 13-20.
  5. Comitê Pardo (2012). A bacia hidrográfica do rio pardo.
  6. Denardi, L. (2007). Anatomia e Flexibilidade do Caule de Quatro Es- pécies Lenhosas Para o Manejo Biotécnico de Cursos de Água. 2007. 111 f. Tese (DoutoradoemManejoFlorestal)―Universidade Federal de Santa Maria, Santa Maria.
  7. Durlo, M. A., Florineth, F., & Sutili, F. (2006). Endbericht KEF Projekt 121-Ingenieurbiologische Uferschutzmaßnahmen an Bächen und Flüssen in Südbrasilien. Wien: Kommission für Entwicklungsfragen Österreichische Akademie der Wissenschaften.
  8. Durlo, M. A., & Sutili, F. J. (2005). Bioengenharia: Manejobiotécnico de cursos de água. Porto Alegre: EST Edições, 198.
  9. Florineth F. (2002). Stabilisation of land slides using soil bioen- gineering methods. Erosion control (pp. 32-38). Santa Barbara: IECA, Official Journal of the International Erosion Control Associ- ation.
  10. Gerstgasser, C. (2000). Ingenieurbiologische Bauweisen an Fliessge- wässern. Grundlagen zum Bau, Belastbarkeit und Wirkungsweisen. Österreichischer Kunst und Kulturverlag, Wien.
  11. Heuser, S. E. (2013). FEE―Fundação de Economia e Estatística.
  12. Holanda, F. S. R., & Pinheiro da Rocha, I. (2010). Streambank Soil Bio- engineering Approach to Erosion Control. InTechopen. Universidade Federal de Sergipe, Brazil.
  13. Hörbinger (2013). A pull out test of Phyllanthussellowianus and Sebas- tianiaschottiana and development of soil bioengineering construc- tions in Southern Brazil. Master Thesis, Vienna: University of Natu- ral Resources and Life Sciences.
  14. Howell, J. (1999). Roadside bio-engineering. Kathmandu: His Majes- ty’s Government of Nepal.
  15. Lammeranner, W., Laaha, G., & Rauch, H. P. (2005). Implementation and monitoring of soil bioengineering measures at a landslide in the Middle Mountains of Nepal. Plant and Soil, 278, 159-170.
  16. Li, M.-H., & Eddleman, K. E. (2002). Biotechnical engineering as an alternative to traditional engineering methods. A biotechnical stream- bank stabilization design approach. Landscape and Urban Planning, 60, 225-242.
  17. Monteiro, J. S. (2009). Influência do ângulo de plantionapropagação- vegetativa de espéciesutilizadasemengenharia natural. 2009. 111f. Dissertação (mestradoem Manejo Florestal). Santa Maria: Univer- sidade Federal de Santa Maria.
  18. Moreno, J. A. (1961). Clima do Rio Grande do Sul. Secretaria da agri- cultura, Porto Alegre, 42.
  19. Petrone, A., & Preti, F. (2010). Soil bioengineering for risk mitigation and environmental restoration in a humid tropical area. Hydrological Earth System Sciences, 14, 239-250.
  20. Petrone, A., & Preti, F. (2008). Suitability of soil bioengineering tech- niques in Central America: A case study in Nicaragua. Hydrological Earth System Sciences, 12, 1241-1248.
  21. Rauch, H. P., & Sutili, F. (2009). Project 159: Plants for civil engineering structures, final report. Vienna: Comission for Development Studies attheOeAD―GmbH.
  22. Schiechtl, H. M. (1980). Bioengineering for land reclamation and con- servation [Buch]. Edmonton: University of Alberta.
  23. Simon, A., & Collison, J. C. A. (2002). Quantifiying the mechanical and hydrological effects of riparian vegetation on stream banks stability. Earth Surf Process Landforms, 27, 527-546.
  24. Sutili, F. J. et al. (2012) Flexuralbehaviour of selectedriparian plants understaticload. Vienna: Ecological Engineering.
  25. Vargas, C. O. (2007). Característicasbiotécnicas de Phyllanthussellowia- nus Müll. Arg., Salix x rubensScharank e Sebastianiaschottiana (Müll. Arg.) Müll. Arg. 2007. 84f. Dissertação (Mestradoem Manejo Florestal). Santa Maria: Universidade Federal de Santa Maria.
  26. Zeh, H. (2007). Soil bioengineering. Construction type manual [Buch]. Zürich: vdfHochschulverlag AG, ETH Zürich, 448.
