**Open Access Library Journal**

Vol.05 No.09(2018), Article ID:87638,11 pages

10.4236/oalib.1104895

A Snapshot of a Homogeneous Spinning Universe

Barbaro Quintero-Leyva^{ }

Independent Work, Miami FL, USA

Copyright © 2018 by author and Open Access Library Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

http://creativecommons.org/licenses/by/4.0/

Received: September 10, 2018; Accepted: September 26, 2018; Published: September 29, 2018

ABSTRACT

A snapshot of the circular speed as a function of the radius in a spinning-homogeneous spherical universe was obtained using a mass-dependent characteristic-acceleration in the Modified Newtonian Dynamics (MOND paradigm as a modified 2^{nd} law of Newton) with and without considering the impact of the relativistic speed. To consider the impact of the relativistic speed the Extended Newtonian Theory (ENET), previously developed by the author, was used. The corresponding kinetic energy equation for ENET is however reported in this work for the first time. The speed profile shows a non-linear trend with features that has been experimentally noted before. It was shown that the Hubble law (for circular speeds) can be inferred from the results for a distance range close to the experimental results of the Hubble telescope key project. The calculation considering the impact of the relativistic speeds yields a very distinctive tail towards the edge of the universe that has been noted before. It is striking that a spinning universe model yields (without any reference to dark matter or dark energy) observed features of a universe which, based on photometric and spectral line measurements, is currently interpreted as radially expanding at an accelerated rate.

**Subject Areas:**

Classical Mechanics, Classical Physics, Modern Physics

**Keywords:**

Celestial Mechanics, Newtonian Gravitation, Newton’s 2^{nd} Law, Theory of Relativity, Perihelion Precession, Cosmology

1. Introduction

In 1929 Hubble [1] found a linear correlation between galaxies’ receding velocities and distance; he emphasized that the linear relation “is a first approximation representing a restricted range in distance”. The same year Zwicky [2] published an analysis covering the finding of Hubble and assessed the potential processes behind the spectral shifts representing the apparent velocities of recession of the galaxies. Among the potential explanation for the observations he makes detail remarks on the gravitational drag of light and developed a corresponding model for preliminary calculations. In 1998 Riess et al. [3] found evidences for an interpretation of an accelerating universe based on measurement of photometric and spectral data of 10 type Ia supernovae with redshift between 0.16 and 0.62. These results are the reason for the frequently mentioned concept of dark energy.

In 1933 Zwick [4] , to explain the observed discrepancy between the velocity dispersion measured in the Coma cluster and the velocity dispersion obtained from the virial theorem (using the luminosity mass), inferred as one possibility the presence of dark matter. In the 1970s the need for dark matter in the outer part of galaxies and well beyond their optical edge was reported [5] and references there in].

A rotating universe could be an alternative to a radially expanding universe. Ideas in this direction could be dated back to the 1940’s [6] [7] [8] and references therein].

Note that it is widely believed (as stated frequently in the scientific literature) that the receding velocities of the galaxies are the result of an expanding space and the existence of a vacuum energy and that as mentioned before the discrepancy between measured velocities and the calculated ones based on Newtonian theory is due to the presence of dark matter. These interpretations are not assumed in the present work.

In this work a snapshot of the circular speed as a function of the radius in a spinning-homogeneous spherical universe was obtained using a mass dependent-characteristic acceleration in the MOND paradigm (applied on the 2^{nd} law of Newton) with and without considering the impact of the relativistic speed. The impact of the relativistic speed was considered using the Extended Newtonian Theory previously developed by the author. The corresponding kinetic energy equation for that theory is presented here.

The rest of this work is structured as follows: Section 2 makes an introduction to the concept of critical density from energy and force point of view. In section 3 a mass dependent-characteristic acceleration equation is fitted to acceleration data obtained from binned experimental data set of galaxies and galaxy clusters. That correlation is used to determine the circular speed as a function of distance using the so extended MOND paradigm (HYB model) without considering the impact of the relativistic speeds. In section 4 the circular speed calculation is made by modifying the HYB model with the equation of ENET to consider the impact of the relativistic speeds. In section 5 remarks are made related to the results and methods of previous sections. Section 6 shows the summary and the concluding remarks.

2. On the Concept of Critical Density

The Newtonian energy balance of a self-gravitating universe can approximately be written as

$E=T+U=\frac{1}{2}M{\stackrel{\dot{}}{R}}^{2}-\frac{4}{3}\text{\pi}G\rho \cdot {R}^{2}M$ (1)

where

T: kinetic energy

$U\approx -\frac{G{M}^{2}}{R}$ : Potential energy

G: Newton’s gravitational constant

M: Mass of the observable universe

$R,\stackrel{\dot{}}{R}$ : Radius to the edge of the observable universe and its time derivative

$\rho $ : Volumetric mass density of the universe (assumed to be a constant in large scale)

Defining a critical density as the one which makes $E=0$ (static universe!) implies

${\rho}_{c}=\frac{3}{8\text{\pi}G}\frac{{\stackrel{\dot{}}{R}}^{2}}{{R}^{2}}$

Assuming that $\stackrel{\dot{}}{R}$ and R could be correlated with the Hubble law for galaxies, the critical density can be written as

${\rho}_{c}=\frac{3{H}_{0}^{2}}{8\text{\pi}G}\approx 9.7\times {10}^{-30}\text{g}/{\text{cm}}^{3}$ for ${H}_{0}=2.32\times {10}^{-18}\text{\hspace{0.17em}}{\text{s}}^{-1}$

This equation is frequently found in the literature.

Note that in order for E (in Equation (1)) to be zero in a radially expanding universe $\stackrel{\dot{}}{R}$ cannot be zero so the universe cannot be static therefore contradicting the assumption used to obtain ${\rho}_{c}$ . However for a rotating universe (where the cosmic structures are moving with elliptical orbits for example) the contradiction disappears.

The baryonic mass density (based on the observed and predicted abundance of light element formed in the early universe) is about ${\rho}_{b}\approx 2\times {10}^{-31}\text{g}/{\text{cm}}^{3}$ which is about two orders of magnitude smaller than the critical density. The current postulate of the non-baryonic dark matter and dark energy is frequently based on this discrepancy.

A different equation can be obtained from the balance between the Newtonian gravitational force and Newton’s 2^{nd} law:

$\frac{G\frac{4}{3}\text{\pi}\cdot {R}^{3}\rho M}{{R}^{2}}=M{a}_{0}$ ${a}_{0}$ : Apparent radial acceleration of the universe (azimuthal acceleration for a rotating universe)

If ${a}_{0}=c{H}_{0}$ , $\Rightarrow $ ${\rho}_{c}=\frac{3c{H}_{0}}{4\text{\pi}GR}=\frac{3{H}_{0}^{2}}{4\text{\pi}G}\approx 1.9\times {10}^{-29}\text{g}/{\text{cm}}^{3}$ which is about twice the value based on energy balance.

Note also that using the definition of a self-gravitating sphere is [9] $U=-{\displaystyle \underset{0}{\overset{R}{\int}}\frac{GV\text{d}m}{r}}$ (V is the volume and dm is the mass differential) the critical density based on energy balance is ${\rho}_{c}=\frac{5{H}_{0}^{2}}{8\text{\pi}G}\approx 1.6\times {10}^{-29}\text{g}/{\text{cm}}^{3}$ which is closer to the force-balance value.

3. A Spinning Universe Neglecting the Impact of Relativistic Speeds

A snapshot (circular speed as a function of the radius) of a spinning spherical universe can be obtained by solving the equation obtained in [10] (2017a):

${\text{v}}^{4}-GM\frac{{\text{v}}^{\text{2}}}{r}-GM{a}_{0}\left(M\right)=0$ (2)

In that reference it was hypothesized that the characteristic acceleration of MOND [11] was not a constant and that it is a function of the mass of the system in question (e.g. galaxy, galaxy clusters, super-clusters, universe). It was also reported there that a function of the form ${a}_{0}\left(M\right)={k}_{0}+{k}_{1}M+{k}_{2}\sqrt{M}$ (M: mass in units of the mass of the universe, $\underset{i}{\sum}{k}_{i}}\approx {a}_{0}\left({M}_{U}\right)$ , ${k}_{0}\approx {a}_{\text{0MOND}}\approx {a}_{0}\left({M}_{U}\right)/6$ ) fits adequately the values of the acceleration calculated from the binned experimental data published in [12] . That equation however does not go monotonously from ${k}_{0}$ to ${a}_{0}\left({M}_{U}\right)$ . The following function (Asymmetrical Sigmoidal)

${a}_{0}\left(M\right)={k}_{0}+\frac{{k}_{1}-{k}_{0}}{{\left(1+{\left(\frac{M}{{k}_{2}}\right)}^{{k}_{3}}\right)}^{{k}_{4}}}$ (3)

however fits adequately the acceleration values and does go monotonously from ${k}_{1}$ ( $\approx {a}_{\text{0MOND}}$ ) to ${k}_{0}$ ( ${a}_{0}\left({M}_{U}\right)$ ). The parameters are: ${k}_{0}=6.972813\times {10}^{-10}$ , ${k}_{1}=1.791984\times {10}^{-10}$ , ${k}_{2}=8.819503\times {10}^{-11}$ , ${k}_{3}=1.150579$ , ${k}_{4}=4.626816\times {10}^{-01}$ . These parameters are the result of an empirical modification of the initial fit of the regression performed in [13] . The initial values of ${k}_{0},\cdots ,{k}_{4}$ were multiplied by factors of 1.365, 1.5, 220, 2 and 2 respectively (see Figure 1 and Table 1 for details).

Note in Equations (2) and (3 )that M is a function of the radius and it extends from magnitudes corresponding to galaxies to magnitudes comparable to the whole visible universe. For a given mass, the corresponding radius is determined

assuming a constant volumetric mass density of the universe so $r={\left(\frac{3M}{4\text{\pi}\rho}\right)}^{1/3}$ .

Even though Equation (2) can be solved exactly in terms of its coefficients, it was solved iteratively (for a better comparison with the results of the next section) isolating the speed in the quartic term. For verification purpose Equation (2) was also solved by evaluation every 1 m/s in search for sign changes.

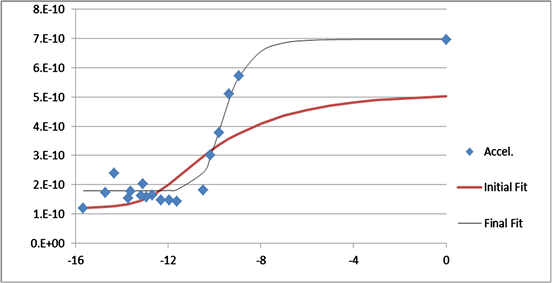

Figure 1. Fits to the acceleration (m/s^{2}) vs. Log10 of mass (relative to the mass of the universe).

Table 1. Fits to the circular acceleration vs. mass data.

The mass was considered an input expanding from 2E11 to 2.45E21 solar masses, the baryonic mass density used was ~1.1E−28 kg/m^{3} (~1.1E−31 g/cm^{3}).

Figure 2 (see Table 2 also) shows the circular speed calculated from Equation (2) as a function radius (from 9.52E22 m (~3 Mpc) to 2.192E26 m (~7087 Mpc)) for the Kepler model ( ${a}_{0}=0$ , $\text{v}=\sqrt{GM\left(r\right)/r}$ ), for MOND model ( ${a}_{0}\approx c{H}_{0}/6$ ) and for the HYB model ( ${a}_{0}$ calculated from Equation (3)). The upper curve is to be discussed in the next section. From that figure can be seen that the speed profile of the MOND model is significantly greater (about twice as large at the edge) than the Kepler model. The HYB model speed profile is even larger (about 3 times as large at the edge). Notice that in terms of the classical-kinetic energy the ratios are even larger (about 4 and 9 for MOND and HYB respectively) because of the quadratic dependence on the speed. It is noted that experimental confirmation of non-linear redshift-distance law has been reported before (see for example ref [14] ). Note also that the Kepler model yields a true linear relation (as expected) between circular speed and distance but the slope is more than 10 times smaller than ${H}_{0}$ .

The degree of the polynomial in each model of Figure 2 was determined based on the minimum degree that yields a coefficient of determination (R^{2}) equal or greater than 0.998 and that visually touches at least the last 10 points with a monotonous behavior. Note that the coefficient of the linear term of the HYB model is close to H_{0}, which suggests that a linear model for some region of the curve could be consistent with the Hubble law. In fact a linear fit between ~50 Mpc and ~500 Mpc yields
${H}_{0}\approx 1.0\text{E}-\text{18}\text{\hspace{0.17em}}{\text{s}}^{-\text{1}}$ with R^{2} = 0.995. Similar

results could be derived directly from eq. 2 by neglecting the term containing
$\frac{{v}^{2}}{r}$ :
$v={\left(\frac{4}{3}\text{\pi}G\rho {a}_{0}\right)}^{1/4}{r}^{3/4}$ which when it is developed in Taylor series (up to the linear term) around r_{0}, the slope can be written as
$s=\frac{3}{4}{\left(\frac{4}{3{r}_{0}}\text{\pi}G\rho {a}_{0}\right)}^{1/4}$ . For
${r}_{0}=10\text{\hspace{0.17em}}\text{Mpc}$
$\Rightarrow $
$s\approx 2.2\text{E}-\text{18}\text{\hspace{0.17em}}{\text{s}}^{-\text{1}}$ . For
${r}_{0}=50\text{\hspace{0.17em}}\text{Mpc}$
$\Rightarrow $
$s\approx 1.5\text{E}-\text{18}\text{\hspace{0.17em}}{\text{s}}^{-\text{1}}$ . It is

noted that for the slope calculation the value of a_{0} was assumed to be 6.97E−10 for both values of r_{0}. This assumption does not significantly impact the results because a_{0} does not change much in this range.

The results just discussed shows that the Hubble law can be inferred from the HYB model using only a characteristic acceleration and a proper distance range.

4. A Spinning Universe Considering the Impact of Relativistic Speeds

It is noted from Figure 2 that at least the last 8 points representing the HYB model involve relativistic speeds. To consider the impact of the relativistic speed on the inertial acceleration, ref [15] modified the Newtonian acceleration in a way that it correctly yields the intrinsic (relativistic) perihelion precession of the planets (e.g. ~ 43 “/cy for Mercury). The acceleration was modified by applying two consecutive boosts of time dilation and length contraction. This modification

Table 2. Circular speed vs. distance (m).

Figure 2. Circular speed (m/s) vs. distance (m).

is called ENET (Extended NEwtonian Theory). Ref. [10] (2017b) applied that correction to the HYB model (Equation (2)) and obtained:

$-\frac{\text{1}}{{c}^{6}}{\text{v}}^{\text{10}}+\frac{\text{3}}{{c}^{4}}{\text{v}}^{\text{8}}-\frac{\text{3}}{{c}^{2}}{\text{v}}^{\text{6}}+{\text{v}}^{\text{4}}-GM\frac{{\text{v}}^{\text{2}}}{r}-GM{a}_{0}=0$ (4)

It is emphasized that Equation (4) is the result of three modifications (assuming the establishment of a circular acceleration) to the 2^{nd} law of Newton when it is equated to Newton’s gravitational law: 1) MOND model (as a modified 2^{nd} law of Newton); 2) HYB model (use of a mass dependent a_{0} (Equation (3)) in MOND); 3) ENET model (application of two consecutive boosts to the classical concept of time and space interval in the Newtonian concept of inertial acceleration).

Equation (4) was solved iteratively by isolating the speed in the quartic term and by straight forward evaluation for verification. The results of the calculations are shown in Figure 2 (see also Table 2). From that figure can be seen that from about 8E25 m (~2505 Mpc) the ENET-HYB model (Equation (4)) starts significantly deviating (increasing) with respect to the HYB model, at the top of the tail the speed is about 4.6 the speed yielded by the KEPLER model (the square of the ratio of the speeds is about 21.6).

It is noted that significant non-linear speed-distance law (the tail in Figure 2) for very large distances has been reported before and alternative fundaments for this behavior have also been proposed (see for example Ref. [16] and references therein).

5. Additional Remarks

It is remarkable that Equation (4), which neither assumes a radially accelerating universe (dark energy) nor dark matter, yields many features of the universe as:

・ The Baryonic Tully-Fisher (BTF) law for spiral galaxies (asymptotically flat rotation curve:
$\text{v}\ll c$ and
$\frac{{\text{v}}^{\text{2}}}{r}\ll {a}_{0}$ ), a_{0} could effectively be considered a statistical constant (from rotation curve fits) or a galaxy-dependent parameter from the galaxy’s surface gravity [10] (2017b).

・ The BTF for galaxy clusters (
$\text{v}\ll c$ and
$\frac{{\text{v}}^{\text{2}}}{r}\ll {a}_{0}$ , a_{0} could effectively be determined from Equation (3)).

・ The Hubble law (
$\text{v}\ll c$ ,
$\frac{{\text{v}}^{\text{2}}}{r}\ll {a}_{0}$ , and r_{0} of the order of 10 to 500 Mpc, a_{0}

could effectively be determined from Equation (3)). Note that if the inferred (from photometric and spectral line measurements) velocity (magnitude and direction) as function of distance is not accurate enough there could be room for a circular speed interpretation (or a mixture of circular and radial speed) instead of just a radial speed interpretation (radial accelerating expansion or just radial expansion).

・ The very steep non-linear speed-distance relation (the tail in Figure 2) towards the edge of the universe.

Perhaps the concept of critical density should not be the figure of merit to address the dark matter/energy problem. Even the use of the kinetic energy as a figure of merit could be dubious considering that the derivation of the kinetic

energy from ${E}_{k}={\displaystyle \underset{0}{\overset{r}{\int}}F{f}_{r}\left(v\right)\text{d}r}$ with $F=m{f}_{a}\left(\text{v}\right)\frac{\text{dv}}{\text{d}t}$ could yield very different

numerical results and trends for speeds comparable to the speed of light. For example,

for Newtonian acceleration ( ${f}_{a}\left(\text{v}\right)={f}_{r}\left(r\right)=1$ ) ${E}_{k}=\frac{1}{2}m{\text{v}}^{\text{2}}$ ,

for Einstein’s STR ( ${f}_{a}\left(\text{v}\right)={\left(1-\frac{{\text{v}}^{\text{2}}}{{c}^{2}}\right)}^{-1}$ , ${f}_{r}\left(\text{v}\right)={\left(1-\frac{{\text{v}}^{\text{2}}}{{c}^{2}}\right)}^{-1/2}$ ) ${E}_{k}=m{c}^{2}\left[{\left(\text{1}-\frac{{\text{v}}^{\text{2}}}{{c}^{2}}\right)}^{-1/2}-1\right]$ ,

for ENET ( ${f}_{a}\left(\text{v}\right)={\left(1-\frac{{\text{v}}^{\text{2}}}{{c}^{2}}\right)}^{3}$ , ${f}_{r}\left(\text{v}\right)={\left(1-\frac{{\text{v}}^{\text{2}}}{{c}^{2}}\right)}^{1/2}$ ) ${E}_{k}=\frac{1}{9}m{c}^{2}\left[\text{1}-{\left(\text{1}-\frac{{\text{v}}^{\text{2}}}{{c}^{2}}\right)}^{9/2}\right]$ .

The direct measurement of the Newtonian velocities and/or acceleration could perhaps be a better figure of merit to assess the predictability of a theory if the measurements’ uncertainties are sufficiently small to differentiate between different theories.

6. Summary and Concluding Remarks.

A snapshot of the circular speed as a function of the radius in a spinning-homogeneous spherical universe was obtained using a variable characteristic acceleration (mass dependent) in the MOND paradigm (applied on the 2^{nd} law of Newton) with and without considering the impact of the relativistic speed. To consider the impact of the relativistic speed the Extended Newtonian Theory, previously developed by the author, was used. The corresponding kinetic energy equation for that theory was however reported in this work for the first time.

The speed profile shows a non-linear trend with some features that has been experimentally noted before. It was shown that the Hubble law (in a circular speed context) can be inferred (with fits or Taylor series) from the results for a distance range close to the experimental results of the Hubble telescope key project. The calculation considering the impact of the relativistic speeds yields a very distinctive tail towards the edge of the universe that has also been noted before.

It is remarkable that a spinning universe model yields many observed features of a universe which, based on measurements, is currently interpreted as radially expanding at an accelerated rate.

It could be worthy to measure, as far as possible, the correlation of mass vs. radius (no assumption of constant mass density) of rotationally linked cosmic structures to see, for example, if the characteristic acceleration can be determined from the corresponding surface gravity.

Acknowledgements

I would like to thank the anonymous reviewer for comments on the presentation of this work

Conflicts of Interest

The authors declare no conflicts of interest regarding the publication of this paper.
