Introduction: Oxygen supplementation increases physical performance during strenuous work, as known for more than 100 years. There is no widespread use among athletes, which could be due to logistical challenges with gas supply when breathing over 200 L/min. We hypothesized that a positive effect could be reached with a moderate increase in alveolar PO₂. If so, a technical solution here called “Oxelerator” could be constructed combining intermittent gas supply with oxygen concentrators running of electricity and a small bottle. Methods. This study describes the theoretical details regarding gas flow and consumption as well as a practical test of the Oxelerator when used during intense exercise by two athletes with high VO₂ and work capacity. Results: The Oxelerator generates a peak gas flow of 32 L/min dosed intermittently in 400 - 700 ms boluses adjusted to the inspiratory phase of breathing, mixing oxygen with surrounding air. Theoretical calculations show that 1 liter tank suffice for 20 - 40 minutes of high intensity exercise and hyperoxic FEO₂ while breathing above 200 L/min. The first subject ran on a treadmill at a VO₂ of 4.64 L/min, RER 0.94. Then intermittent oxygen supplementation was initiated, and FEO₂ reached 25.96% after 1 minute. The second subject rowed an ergometer at 330 W. VO₂ stabilized at 5.67 L/min, with RER 0.91. After 1 minute of oxygen supplementation mixed expired FEO₂ was 22.58% suggesting that inspired FO₂ averaged 28 - 31%. Conclusions: A portable technical solution is proposed that enable intermittent O₂ supplementation enough to increase end-expiratory FO₂ during intense workloads. This will enable hyperoxic exercise for athletes.

Keywords:

Hyperoxia, Device, Training

1. Introduction

Oxygen supplementation has been known to increase performance during strenuous work for more than 100 years [1] ; it is thought that hyperoxia increases the oxygen content of the blood thus increasing VO₂ [2] . Although Roger Bannister experimented with oxygen-enriched gas during training prior to running the first four-minute mile [3] as far back as the 1950s, since then there have been large variations regarding the effects of oxygen on physical performance in the literature. Many studies have examined the effect of inspired oxygen fractions varying from 0.26 - 1.00, with most using 0.6 or above [4] - [9] , for the acute effects of hyperoxia on maximal VO₂, and also on peak workload and time to exhaustion. Others have investigated the effect of oxygen supplementation during exercise programs with evaluations of performance pre and post [5] [10] [11] . In general the results are positive but varying, and there are currently at least three theories regarding the mechanism of the effect on physical performance: increased VO₂ [6] , the effect on peripheral loading [8] and also the effect on the central nervous system [12] [13] .

There are also studies showing beneficial effect of exercising with increased inspiratory oxygen fractions during a training regime [5] , while it has also been shown that during hypoxic conditions at altitude, a modest oxygen supplementation would enable the “sleep high-train low” model [14] without the need of traveling to lower altitude. There are studies where athletes used oxygen in training during recovery between sessions [9] [15] and anecdotal reports of use in competition between sessions. However, there is no widespread, proven use of these types of techniques, despite their promising results in the literature.

The technical and logistical challenges in administering oxygen supplementation have to be considered as an explanation to this lack of use; an athlete ventilates 100 - 300 liter/minute (L/min) during intense exercise, so an estimate of the gas usage during a training session, dependent on session length could be around 5000 L of gas (25 min × 200 L). That is equivalent to half of a 50 L tank of premixed gas (standard size). It could be further assumed that an athlete would consume 1 tank/week if two training sessions were carried out on oxygen, a considerable amount. There are also logistical issues related to accessing medical grade oxygen (the quality needed for human breathing) as well as concerns regarding risk of fire when oxygen is used or stored indoors.

Recently, the medical technology market has developed oxygen concentrators capable of producing around 93% oxygen (O93) continuously using household electricity, to be used by patients with increased oxygen requirements [16] . This technology is usually employed to provide a continuous flow of oxygen (93%) of between 5 - 10 L/min, or in combination with a compressor to fill a small (portable) tank with gas. This technology would solve the challenge of oxygen production/delivery to the athlete or training facility, but if it used as manufactured, it would require 10 - 30 such units running simultaneously to supply an athlete during intense exercise.

Powers [6] showed that 26% FIO₂ was enough to increase SaO₂ in highly trained athletes exhibiting exercise induced arterial hypoxemia EIAH [17] . If 26% is enough, could a moderate hyperoxia be enough to enhance an athlete’s training performance? Also, bearing in mind that too great a hyperoxia (PO₂) might not be beneficial, as the exercise becomes too easy and so reduces the load needed to stimulate adaptation. We have recently shown that a moderate hyperoxia (FIO₂ 31%) during moderate exercise (below lactate threshold) increased fat oxidation by 52% [18] . It also showed that maximal exercise performance increased by 2.4% in Watts, with a similar time to exhaustion at 80% of max [18] . Thus; if we hypothesize that a moderate hyperoxia would be enough to benefit the elite athlete and that the limited use of oxygen supplementation in sports training is due to the current logistical challenges, then the following hypothesis could be of use.

The Oxelerator is a device that detects breathing and heart rate, and then doses an appropriate bolus of gas for inspiration during intense exercise. In this way, mixing around 10 - 20 L/min of oxygen into 100 - 200 L of room air will increase the mixed inspired gas to approximately 26% - 30% oxygen (described in detail below). The aforementioned commercially available oxygen concentrators are capable of delivering an average flow of up to 10 L/min, with an instantaneous flow in excess of 30 L/min. A 1 L cylinder tank filled to 200 ATA contains 186 L of oxygen, if produced with O93 [16] . This is enough to produce hyperoxia for at least 20 minutes of intense interval training, and would more likely last for around 30 - 40 minute for an average athlete.

Thus, a portable device comprising a 1 L tank, a facemask and a dosing device called the Oxelerator [19] could be made available to deliver oxygen supplementation to an athlete. An oxygen concentrator could replenish the oxygen store either continuously (in stationary mode) or after the training session, refilling the tank overnight. This would make exercising while breathing hyperoxic gas possible in a practical manner for athletes where an extra 1 - 2 kg load is acceptable. This would include most skiers, cyclists, rowers, hockey players and many runners (in addition to exercise on treadmills or other stationary ergometers).

This study aims to describe the theoretical details of gas flow and consumption as well as a practical test of the Oxelerator when used during intense exercise by athletes with high VO_2max and work capacity. The aim was to show that a portable solution to hyperoxic exercise is technically feasible.

2. Methods

Ethics and subjects: The study was conducted in conformity with the principles of the Declaration of Helsinki and was approved by the Ethical Review Board of the Karolinska Institute. To test the performance of the Oxelerator device, two tests were executed in the laboratory. Two elite athletes (one runner and one rower) that often participate in regular physiological testing were recruited as participants for this study. The physiological capacity of these athletes was well established, as they were tested at least twice a year as a part of their training regimen. Thus prior knowledge was available regarding their likely performance and the workload necessary to produce a high VO₂ that they could maintain without accumulating lactate. Both subjects gave their written informed consent before participation. The runner was tested for VO₂max on an ergometer bike (Monark 828E, Monark Exercise AB, Varberg Sweden) within three weeks of this study and his results were 5.68 L/min, 75.3 mL/kg/min. The rower was tested six weeks prior to the study when his results were 6.70 L/min, 63.7 mL/ kg/min.

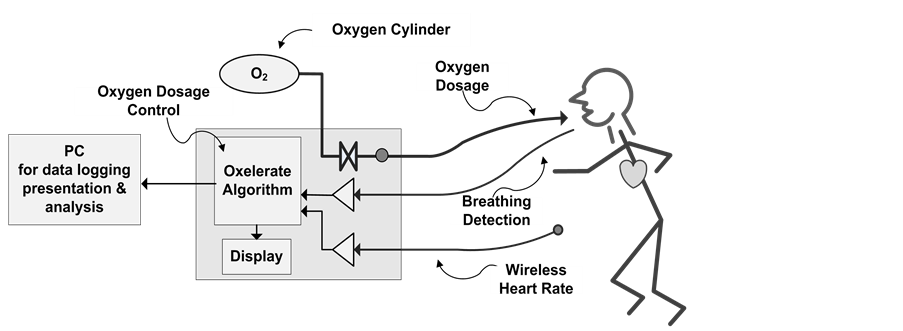

Technical description of the system (Figure 1(a) and Figure 1(b)):

A complete Oxelerate mobile system consists of the following sub units:

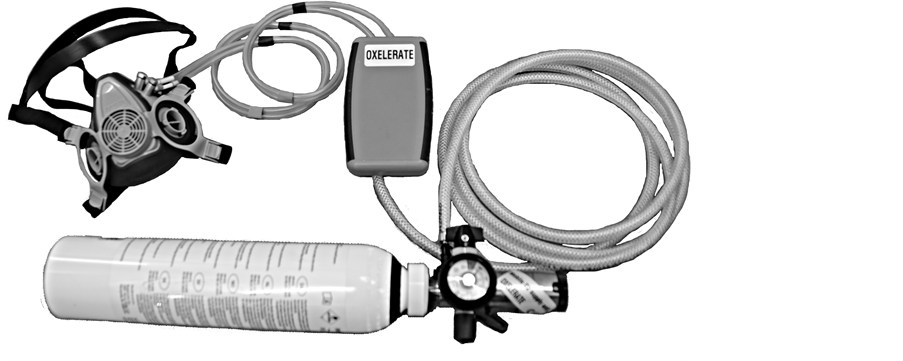

A) An mask made by Oxelerate (modified from an MSA gasmask) with dosage tube connections and dosage tubes connected (Figure 1(a)).

B) A Heart rate monitor and strap, currently using Polar™ technology.

C) The Oxelerate Athlete Unit (Figure 1(a)).

The computerized unit controls and supervises the oxygen supplementation and includes a USB interface for optional communication, setup and charging.

One length of tubing supplies the pressurized oxygen to the device and two narrower diameter tubes are used for respiratory sensing and dosing.

D) An oxygen tank of around 1 L volume, and 200 ATA pressure, with an integrated pressure regulator delivering 300 kPa pressure absolute (2 BAR driving pressure) and a flow of 32 L/min (Figure 1(a)).

E) A Backpack to house the Oxygen cylinder and Oxelerate Athlete Unit during exercise.

F) Oxelerate software running on a PC computer. The Software allows the set- up and supervision of the system as well as data recording. The Oxelerator system can be used without the USB connection to the PC; during the tests the PC software was used to store test data, to monitor the test, and to control the oxygen supplementation.

G) The Oxygen supply subsystem based on an oxygen concentrator, for example the Philips EverFlo, and a tank filler, Phillips UltraFill. Another supplier also tested with this system is the Invacare Homefill system that includes both a concentrator and tank filler.

3.1. Experimental Protocol

Running: the participant (75.4 kg) ran on a high precision treadmill (Rodby Innovision, Sweden) at a 2% inclination at a speed of 15 km/h. After three minutes, data was collected for one minute as steady state values. Thereafter, boluses of O₂ were added to each inspiration with 700 ms duration.

Rowing: The participant (105.1 kg) rowed an ergometer (Model D, Concept II, Inc. US) at 330 W. After three minutes’ work, data was collected for steady- state oxygen uptake for one minute. Thereafter boluses of O₂ were added to each inspiration with 400 ms duration.

In order to enable analysis of exhaled gas, the subject wore a Combitox face mask (Dräger Safety AG, Lübeck, Germany) with the two hoses from the oxelerator inserted into a purpose-built adapter in front of the mouth, but upstream (closer to the mouth) of the flowmeter. The exhaled gas was analyzed with an Oxycon Pro, metabolic analyzer in the mixing chamber mode (CareFusion GmbH, Höchberg, Germany), validated by Foss & Hallén, [20] . Measurements included ventilation (V_E), expired oxygen fraction (FEO₂) and expired carbon dioxide fraction (FECO₂) with online calculation of VO₂, VCO₂, respiratory exchange ratio (RER), ventilation and breathing frequency.

The addition of oxygen boluses disabled this apparatus VO₂ calculation, since its calculations are dependent on the subject inspiring room air, with only the exhaled gases measured. Therefore, two Douglas bags were collected during each test for mixing and analysis of expired FO₂ and FCO₂. The gases were analyzed by means of separate O₂ and CO₂ sensors (Mod. 17518A and 17515A, Vacumed, Ventura CA, US).

3.2. Calculations

Theoretical calculations were made using Microsoft Office Excel and standard equations for gas exchange and exercise physiology.

4. Results

4.1. Theoretical Calculations for Estimated Gas Consumption and Alveolar PO₂

When activated, the Oxelerator delivers a flow of 32 L/min (approx. 0.5 L/s). The bolus volume (V_bolus) delivered to the athlete will thus be controlled by the set opening time:

Equation V_bolus [L] = duration of opening (the set bolus time) [s] * 32 [L/min]/60 [s/min].

So for example at a bolus duration of 500 ms, the volume of gas will be 500/1000 * 32/60 * 1000 ml = 267 mL.

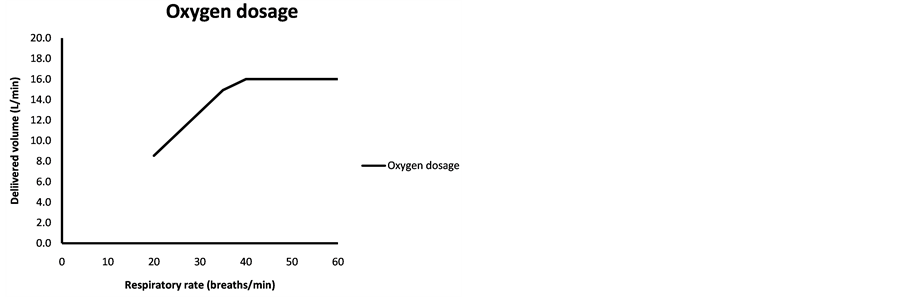

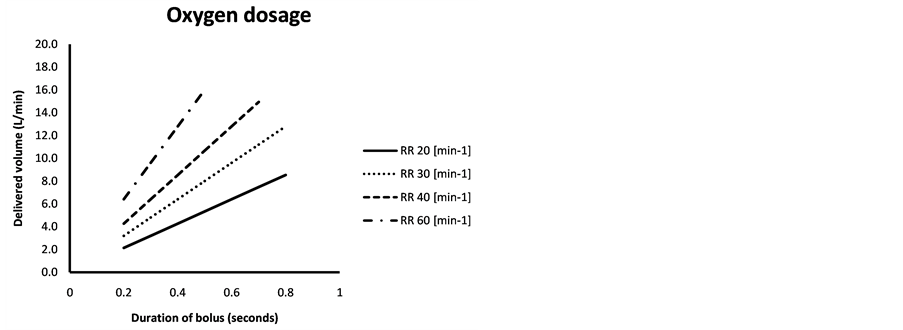

Thus the oxygen consumption (delivered volume) can be calculated using the breathing frequency and the bolus duration (Figure 2(a)) when it is set to a specific valve opening time at the beginning of a breath. Figure 2(a) could also be

used to determine gas consumption spending on settings and breathing frequency. It could also be used to roughly adjust settings or the oxygen store in order to make it last for the designated exercise session.

The duration of the bolus could also be adapted to the breathing frequency in order to vary the oxygen delivered according to breathing frequency, e.g. as “half the duration of the breath” where inspiration is considered to match expiration for duration (Figure 2(b)). If the valve opening duration is longer than inspiration, oxygen will be delivered during a pause or during expiration, i.e. wasting oxygen stored in the tank. This could be adjusted individually to the athletes’ preferences or to the experimental setup in question.

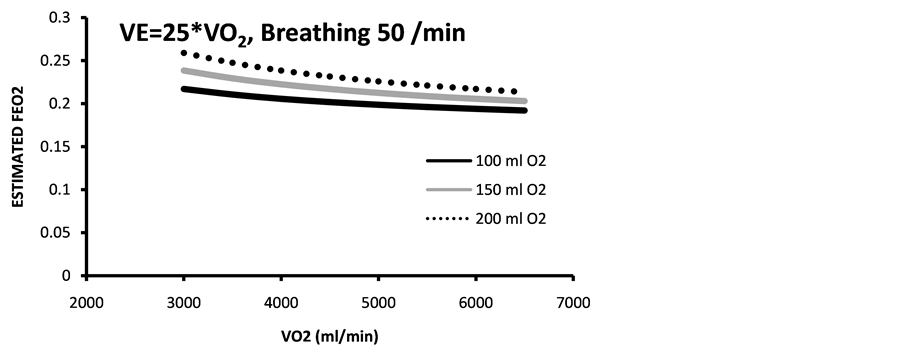

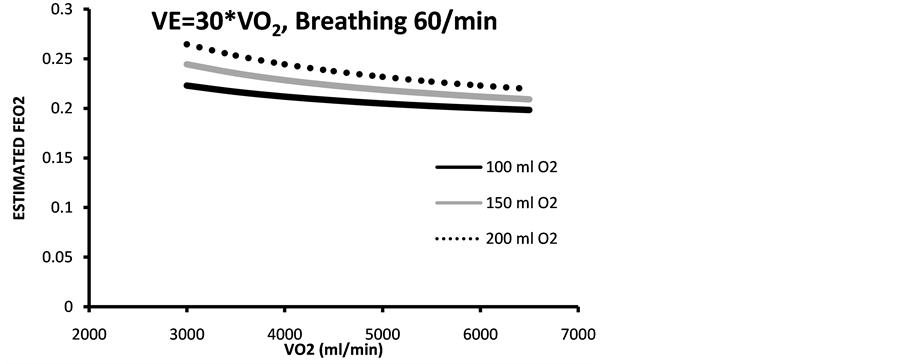

Inspired PO₂ will depend on tidal volume and the V_bolus of oxygen; Figure 3 show FIO₂ as a function of tidal volume for three bolus volums, 100, 150 and 200 ml. Estimations of alveolar PO₂ could be made from expired end-tidal PO₂, thus the fraction of expired PO₂ would estimate the actual hyperoxia affecting the athlete. Figure 4(a) and Figure 4(b) show estimations made for dry gas without changing temperature or humidity. Work is considered aerobic with an RER of less than or equal to 1.

4.2. Laboratory Testing of the System

The treadmill test: The steady-state reading gave values of-VO₂ 4.64 L/min, RER 0.94 with a V_E of 120.75 L/min and a breathing frequency (BF) of 38.3. FEO₂ was 16.25% and FECO₂ was 4.49%. After another minute, the values were

VO₂ 4.75 L/min, RER 0.95, V_E 121 L/min, BF 38.1, FEO₂ 16.15% and FECO₂ 4.60 %. Oxygen supplementation was then initiated, which added O₂ in boluses of 700 ms to each inspiration. After one minute the test started with collection of expired air into two Douglas bags for a period of one minute each. The value of V_E after the first minute was 107.81 and BF 33.52, with FEO₂ 25.96% and FECO₂ 4.93%. The second minute V_E was 111.76 l/min, BF 34.8 and FEO₂ 26.26% and FECO₂ of 4.81%. The total test duration was eight minutes.

In the second test, the subject rowed an ergometer at 330 W. After three minutes VO₂ stabilized at 5.67 L/min, with RER 0.91 and V_E 139.3 L/min. FEO₂ and FECO₂ was 16.02% and 4.56% respectively and the BF was 43.9 breaths/min. After four minutes, steady state levels were considered, and data was averaged over the last minute: VO₂ was 5.77 L/min, RER 0.91 and V_E 142 l/min. FEO₂ was 16.03% and FECO₂ 4.57%. Breathing Frequency 46.5 breaths/min.

At this workload, the Oxelerator was turned on, which added O₂ in boluses of 400 ms to each inspiration. After one minute, collection of gas in Douglas bags started for two separate minutes. BF was 45.4 for the first minute and 43.2 for the second. Mixed expired FEO₂ was 22.58% and FECO₂ 4.56% for the first minute and 22.54% and 4.66% for the second minute. VE was 132.27 for the first and 132.51 for the second. The machine was then turned off and after a minute, data was averaged for 30 seconds, which gave a VO₂ of 5.73 l/min with an RER of 0.97 and an FEO₂ of 16.01%. Total test duration was 8 min 44 sec. Both tests were made at an ambient temperature of 20 degree Celsius, with 55% relative humidity and at 1002 hPa pressure.

Data show that the portable Oxelerator system was able to supply boluses of oxygen enough to increase Alveolar O₂ to a level that gave an expired O₂ of 26 and 23% respectively, suggesting (expired +5%) that inspired FO₂ averaged 28% - 31%.

5. Discussion

The main focus of this paper was to calculate the possible performance of the Oxelerator device, as well as testing it during exercise with a substantial VO₂ uptake in high workloads to evaluate whether it would deliver (as hypothesized) enough O₂ to increase pulmonary FO₂.

5.1. Calculations

Calculations show that a small increase in intrapulmonary PO₂ (5 - 10 kPa) and a hyperoxic FEO₂ could be achieved with a modest supplementation of oxygen, even in athletes with high ventilatory capacity and VO₂ during exercise. This was achieved using an intermittent supplementation of 8 - 16 L/min of O₂ to inspired air that yielded this increase without using premixed gas tanks.

5.2. Testing

The setup was tested in connection with various sporting activities such as ergometer exercise on a bike, skating and roller skiing, as well as outdoor running or rowing with success according to the athletes’ subjective experience. However, to collect a set of scientific quality data, we recruited two athletes with known high VO₂ to be able to stress the system in an accurate testing protocol such as treadmill running and ergometer rowing. In these two tests only one setting was used for each subject, so the system was not individualized or optimized any more than to show that the Oxelerator was able to increase PAO₂ enough to give an expired oxygen fraction above 21% during work with a VO₂ of near 5 and 6 L/min. These two subjects (as well as others) had previously been tested on the system during development of the apparatus.

5.3. Methodological Considerations

Dead space: The oxygen supply could be extended further also if some basic respiratory physiology is considered; if the oxygen is supplemented to the inspired air only during the first part of the inspiration, this oxygen will mix with and result in an increased alveolar pressure of O₂, while none of the oxygen will be left in the dead space thus using all the supplemented gas effectively.

Humidity issues: gas produced and stored in high-pressure tanks is dry to prevent corrosion and ice buildup. When breathing such gas, water has to be added by the mucus membranes in the airways to saturate the gas before reaching alveoli. In patient care, when supplemental oxygen is given at a flow of 5 - 15 l/min (resting) the gas is often pre-humidified to reduce humidity loss of the airway, usually by simply bubbling the gas through a water column. While a patient may breathe 5 - 10 liters of gas per minute, some elite athletes may reach 250 - 300 L/min during intense workloads.

In an exercising athlete, breathing from a humidity-free gas source will often cause discomfort due to the dry airway. If the oxygen supplementation is made by adding a relatively small bolus to ambient (i.e. already partially humidified) air, the effect on the average inspired humidity is less and the discomfort reduced or eliminated.

Fire hazard: using an oxygen tank indoors could increase the ambient oxygen fraction, which would increase the risk of fire in a poorly ventilated area. This risk is reduced significantly by the fact that the athlete will expire only about 25% Oxygen and the normal conditions for heavy exercise, which include ventilation to reduce CO₂ in the room. This risk is reduced even further if the Oxelerator is connected to a concentrator that draws oxygen from the same room as it delivers it, i.e. the total O₂ will not increase in the room.

If oxygen is to be used as a training aid for competitive sports, then the World Anti-Doping Agency (WADA) rules have to be considered. Of course, oxygen is not to be used during competition, but according to the latest WADA statement, supplemental oxygen is not considered an inappropriate training method. The WADA 2017 prohibited list clearly states that supplemental oxygen during training is excluded from this list:

M1. Manipulation of blood and blood components

The following are prohibited:

2: Artificially enhancing the uptake, transport or delivery of oxygen. Including, but not limited to: Perfluorochemicals; efaproxiral (RSR13) and modified haemoglobin products, e.g. haemoglobin-based blood substitutes and microencapsulated haemoglobin products, excluding supplemental oxygen by inhalation.

Actually, the last words “by inhalation” were added to the 2017 list to clarify a recent discussion on this topic.

The breathing of hyperoxic gas mixtures has possible negative effects on pulmonary function, as recognized from the fields of diving and hyperbaric medicine [21] where high oxygen partial pressures may be experienced for extended durations. In general, studies show that a PO₂ of less than 50 kPa (50% O₂ at atmospheric pressure) does not damage the lung even when used for extended duration in e.g. diving [21] [22] [23] . There are other markers for oxidative stress that could be used to elucidate whether the proposed training method could increase oxidative stress: In a study on hematological and urinary markers for oxidative stress during high intensity exercise, it was shown that FIO₂ of 0.6 at moderate altitude did not produce higher values than inspiration of air or FIO₂ of 0.26 [14] . At that altitude (1800-1900m) an FIO₂ of 0.6 would equal a pressure at sea level corresponding to a FIO₂ of 0.48, which is higher than that of the presently suggested training method.

5.4. Perspectives in Use and Practical Issues

Hyperoxic training has almost only been performed in laboratory conditions due to the high volumes of gas needed. The proposed methodology would solve a practical problem, combining an oxygen concentrator and filler developed for medical purposes to a newly developed apparatus (the Oxelerator), which handles dosing volumes required for an exercising athlete, thus enabling he or she to exercise with oxygen wherever needed.

It is also possible to use this technology indoors together with a treadmill, rowing ergometer or cycle ergometer. In this case it would be preferable for the device to be connected to the exercise equipment with the hoses to the facemask suspended from the ceiling to the athlete. In most cases a suitable oxygen concentrator may be used continuously with such exercise, supplying the extra oxygen needed for the Oxelerator device (i.e. the tank may not be needed).

If we hypothesize that moderate supplemental oxygen is of benefit during intense work, and monitor breathing and heart rate, we can make a device with an algorithm supplementing small boluses of oxygen to inspiration during high- intensity interval training, while keeping the gas consumption at 8 - 16 liters/ minute. The delivery system may be set to deliver gas according to individual preferences in breathing and heart rate, to optimize the oxygen delivered, and make the oxygen store portable for a wide range of training methods.

Acknowledgements

Thomas Lindberg for assisting with physical tests on athletes. This technology is patent pending [19] , and currently developed by a start-up company. The authors P.L., Å.L., and O.F. currently hold part of the patent rights, and the technology has been developed with support from the Karolinska Institutet and Kungliga Tekniska Högskolan (Royal School of Technology).
