Open Journal of Composite Materials
Vol.09 No.02(2019), Article ID:92094,2 pages
10.4236/ojcm.2019.92010
Erratum to “Improvement on Adhesion Properties of Insert Injection Molding Composites: Effect of Inserted Parts, Adhesive Lengths and Injection Conditions” [Open Journal of Composite Materials (2017) 197-206]
Badin Pinpathomrat, Hiroyuki Hamada
Department of Advanced Fibro-Science, Kyoto Institute of Technology, Kyoto, Japan
Copyright © 2019 by author(s) and Scientific Research Publishing Inc.
This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).
http://creativecommons.org/licenses/by/4.0/
Received: June 5, 2017; Accepted: July 24, 2017; Published: July 27, 2017
The original online version of this article (Pinpathomrat, B. and Hamada, H. (2017) Improvement on Adhesion Properties of Insert Injection Molding Composites: Effect of Inserted Parts, Adhesive Lengths and Injection Conditions. Open Journal of Composite Materials, 7, 197-206. https://doi.org/10.4236/ojcm.2017.74013) unfortunately contains several mistakes in Figures 1-4, and Figure 6. The authors wish to correct the errors to:

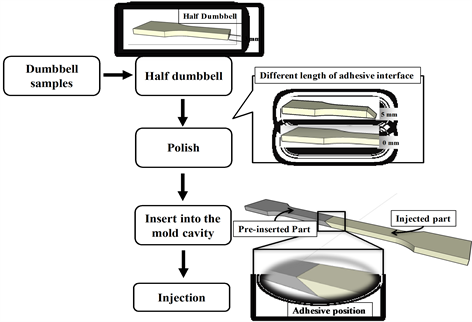

Figure 1. Preparation of the insert-injection molded.

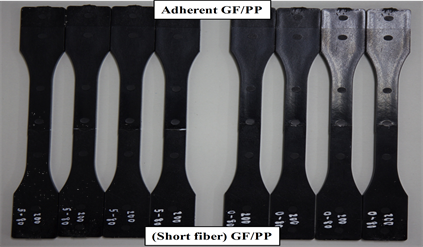

Figure 2. Photographs of the insert-injection molded (front view).

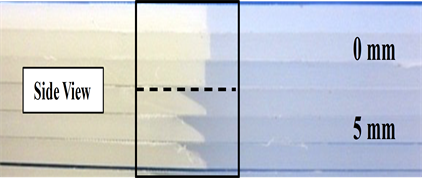

Figure 3. Photographs of the insert-injection molded (side view).

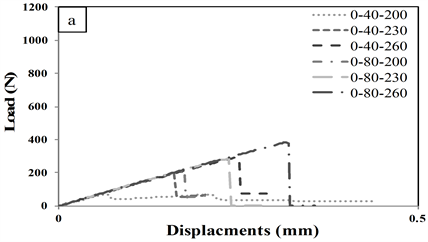

Figure 4. Load-displacement curves of adhesive samples at different barrel and mold temperatures. (a) Adhesive length 0 mm; (b) Adhesive length 5 mm.

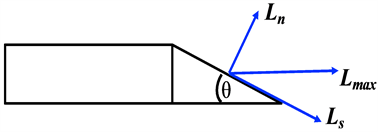

Figure 6. Schematic of load analysis at the adhesive interface.
