A New Method for Sensing Cognitive Radio Network under Malicious Attacker

Shaahin Tabatabaee, Vahid Tabataba Vakili

Department of Telecommunication, School of Electrical Engineering, Iran University of Science and Technology, Tehran, Iran


Received November 4, 2012; revised December 3, 2012; accepted December 17, 2012

Keywords: Cognitive Radio; LMS Algorithm; Fusion Center; Malicious User; SSDF Attack


Cognitive radio has been designed for solving the problem of spectrum scarcity by using the spectrum of primary users who don’t use their spectrum on that time. For sensing the spectrum, collaborative spectrum sensing has been utilized because of robustness. In this paper, a new collaborative spectrum method is proposed based on Least Mean Square (LMS) algorithm. In this scheme, the weights of secondary users were updated in time and finally the sensing results were combined in the fusion center based on their trusted weights. Simulation results show that the proposed scheme can significantly reduce the effects of Spectrum Sensing Data Falsification (SSDF) attackers, when they are smart malicious, and even percentage of malicious users are more than trusted users.

1. Introduction

The cognitive radio is a network to alleviate spectrum scarcity; cognitive radios (CRs) have attracted intensive research attention recently. In this network beside the licensed users (primary) who exclusively have frequency bands, CR users (secondary) are allowed to opportunistically access temporarily unused licensed bands (“white spaces”), but if the PUs come back to their frequency bands, Secondary Users (SU) have to leave the band to prevent from interference.

One of the most important challenges in cognitive radio is reliable spectrum sensing. It has attracted far-reaching attention recently. Spectrum sensing procedure can be accomplished individually or cooperatively. If spectrum sensing procedure is used by cooperative decision, it could be more reliable because there might happen something to several users and they couldn’t sense the spectrum well and their local decisions don’t be true.

In [1], a survey of spectrum sensing methodologies for cognitive radio is presented. Various aspects of spectrum sensing problem are studied through cognitive radio perspective; and multi-dimensional spectrum sensing concept is introduced. There are many methods for spectrum sensing such as energy detection, matched filter detection [1], cyclostationary feature detection [2], wavelet detection [3] and covariance detection [4]. Like other networks, CR networks have security problem in each layer, and because of spectrum sensing in physical layer, it needs more attention and research. In [5], the special characteristics of cognitive radio are described, and the current and potential security threats that are due to their characteristics are analyzed. In [6], the architecture of cognitive radio networks is analyzed and the various possible DoS attacks in cognitive radio networks in different protocol layers are discussed. A specific threat to spectrum sensing that is called primary user emulation (PUE) attacks is identified in [7], where a malicious user emulates characteristics of a primary user’s signal in order to reduce channel resources available to secondary users. In [8] Spectrum Sensing Data Falsification (SSDF) attacks have been defined; under SSDF attack some of the secondary users send false sensing information into the FC to make the final decision unclear regardless of the presence or absence of the PU.

In this paper, we only consider SSDF attack. A weighted decision fusion algorithm is proposed based on LMS algorithm. Using this scheme, the reliability of each secondary user is estimated when there no priori knowledge about secondary users. The performance of the collaborative spectrum sensing in fading environment is quantified by employing LMS algorithm.

The rest of the paper is organized as follows. In Section 2, the system model will be described. The proposed scheme is introduced in Section 3, and the numerical results are depicted in Section 4. Section 5 concludes the remarks.

2. System Model

2.1. Collaborative Spectrum Sensing

SUs may sense white space while the PU is present; it could happen because of fading and shadowing on environment, where SUs could experience deep fading or shadowing. In this system making an individual decision may cause interference with primary user in network, thus collaborative spectrum sensing is applied to make the decision more reliable. In collaborative spectrum sensing two methods could be used, data fusion or decision fusion. In data fusion method, secondary users send their sensing information such as power and then data fusion processes this information by using schemes like Maximum Ratio Combining (MRC) and after all final decision is made [9]. In decision fusion, secondary users sense the channel in each time slot and make local decision and send their reports to the fusion center in a way that one bit is used by control channel [10]. In fusion center final decision is made by using different methods such as OR, AND, M out of N, Majority and etc. Figure 1 demonstrates a typical network of cognitive radio using collaborate spectrum sensing.

Several types of spectrum sensing are utilized, in this paper, for simplicity, we use energy detection and also we assume that all users experience independent and identically distributed (i.i.d) fading with the same average Signal to Noise Ratio (SNR), and all users have the probability of false alarm Pf and probability of missed detection Pm. In [11], the relation between this probability and threshold of energy detection is provided.

We assume to have N secondary users, each of SUs sense the channel at the beginning of each slot and report their decisions to FC by one bit, H1(=1) and H0(=0) denote the presence and absence of a primary signal respectively. The signal power received by ith SU is given by:

Figure 1. A typical collaborate spectrum sensing in cognitive radio network.




where Si(t) is a primary signal, Hi(t) is a channel coefficient that is multiplied by signal and ni(t) is Additive White Gaussian Noise (AWGN). The threshold that is denoted by λ in Equation (2) can be defined by [11],


where Pf is the detection probability of false alarm in wireless environment, u is time-bandwidth product and  is a variance of noise.

2.2. SSDF Attack

Beside all the advantages of collaborative spectrum sensing, it has few disadvantages, like, It needs an station for gathering all information of SUs and some nodes could send false sensing data to FC and cause some problem. For these purposes these nodes send false data, first, they could send the false sensing data to make an interference with PUs, and second, they might make Denial of Service (DoS) attack and also use the idle spectrum as selfish users.

We assume that we have 3 types of malicious users in our system:

• Smart Malicious: These type of attackers sense the channel in each time slots and if the channel is occupied “1” they send “0” and vice versa.

• “Always Yes” Malicious: These malicious always send “1” to FC and they aren’t as smart as the first type. They don’t sense the channel and without any attention to the state of channel, always send H1. The purpose of these malicious is DoS attack.

• “Always No” Malicious: They are like always yes nodes and always send “0” to FC. The purpose of this type is to make interference with primary user in occupied bands.

2.3. Learning Algorithm

Learning algorithm which is used by neural network is explained in this section. Neural network is a pattern of human mind. Neurons in neural network mimic the properties of biological neurons in human mind. These neurons have interconnection with each other. Statistical estimation, optimization and control theory get benefit from neural network [12,13].

Neural network is used in different part of cognitive radio, such as dynamic channel selection, channel sensingspectrum prediction, learning and etc. In this paper the Least Mean Square algorithm is used as learning algorithm. The LMS algorithm was formulated by Widrow and Hoff for using in switching circuits, but, it was developed to adaptive equalization, adaptive signal detection, adaptive signal processing and etc. The LMS algorithm operates with a single linear neuron model. The design of the LMS algorithm is very simple [14], Figure 2, is a simple form of this algorithm.

In Figure 2, obviously each input has a special weight to participate in system. After each input that is multiplied by special weight, all of the results add with each other to compute the output.

3. Proposed Scheme

As it was mentioned in section 2, LMS algorithm has weight for any of inputs. We assume that each of these inputs is once spectrum sensing report of SUs in each time slots in CR network and also the Weights are trust value of each SUs. These trusted weights will be updated in each time slot. In Figure 3 the operation of LMS algorithm has been illustrated.

By using Wiener-Hopf equation, we can calculate the output.


The error of the system can be easily defined,




where Ri(k) and wi(k) are the kth report and weight of ith SU, t(k) is a desire target of kth slot, d(k) is a error of kth slot and J(k) is a mean square error of kth slot.

By substituting Equations (4) and (5), Equation (6) can be rewritten as:


The updated weight can be computed by:


where is a gradient of each weight, stands for updated weights and η is a positive constant called the learning rate parameter.

In Equation (7) we need to compute the correlation of SUs report and also the cross-correlation between SUs

Figure 2. Simple form of LMS algorithm.

Figure 3. Cognitive radio sensors use LMS algorithm.

report and desire target, but we don’t have any expression to compute these parameters. Using instantaneous estimation leads us to compute these parameters, where




Thus, Equation (8) can be rewritten,


where is a estimated weight of .

For our goal this algorithm needs to be modified, because by using this algorithm when is H0 (=0), the updated weight corresponded with the last weight, thus if the report is H1, one is the input number and if the report is H0, minus one is the input number of the algorithm.


where are the mapped-reports of the real report . But, with this mapping if the primary user is absent and a report of each secondary user is H0, the weight of this secondary user may be decreased. To solve this problem Equation (11) can be modified as:


We limit the weights between 0 and 1, because by increasing the iteration, our weights tend to infinity.

About “Always no” and “Always yes” users, they depend on the primary users pattern of usage, if the primary user occupies its spectrum more than 50%, the update weights of “Always no” users tend to zero, but the weight of “Always yes” users tend almost to one and vice versa. To solve this problem we can add a provision to our algorithm proposed in Algorithm 1, where Pe is probability of error in AWGN channel between secondary users and fusion center.

4. Simulation Results

We consider a group of N = 50 secondary users that cooperate together to sense primary user. The channel between primary users and secondary users is assumed to be small scale Rayleigh fading and the channel between

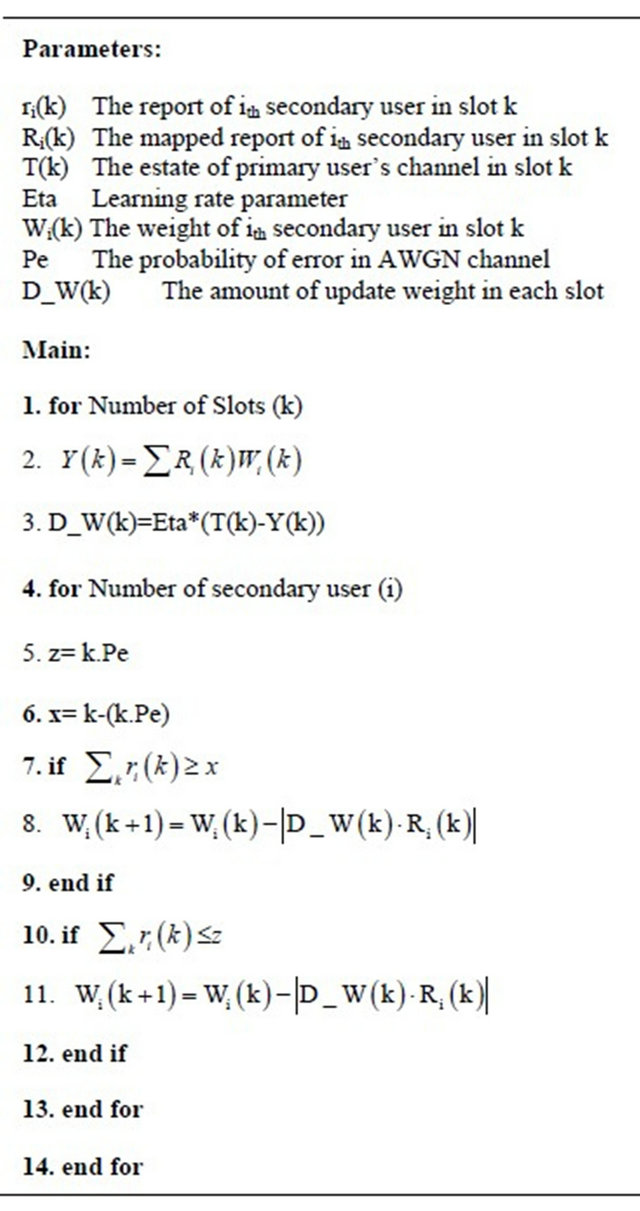

Algorithm 1. Weights correction.

secondary users and fusion center is assumed to be Additive White Gaussian Noise (AWGN) channel. Received mean SNR at the secondary users is considered to be 5 dBm. The probability of false alarm is determined 0.1 and time bandwidth product is assumed 5. The initial weights are set in 0.5 and η = 0.025. We assume that 20 percent of the secondary users are Smart Malicious, also 20 percent are “Always yes” users and 20 percent of the users are “Always no” users. We compare our algorithm with the majority of the decisions in the figures.

In Figure 4, the update weights of 5 samples of secondary users are given. Obviously, we can see that the weights of trusted users, during the number of slot, are increased and the weights of smart Malicious users are decreased. It could be seen that the weights of trusted users are not same, because they encounter different fading channel during time slots. It should be mentioned that this simulation is obtained after using Algorithm 1.

The effect of using algorithm 1 is illustrated in Figure 5, where the weights of both “Always no” and “Always

Figure 4. Update weight of 5 sample of users.

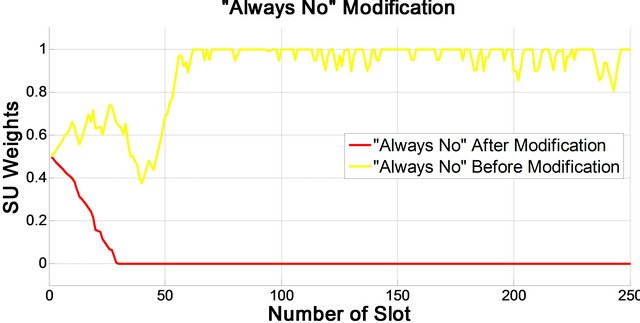

Figure 5. Malicious users modification. (a) “Always yes” users; (b) “Always no” users.

yes” tend to zero after several slots. If the Algorithm 1 is not applied to LMS algorithm, the weight of “Always no” or “Always yes”, depending on the pattern of primary user, will tend to 1.

Figure 6 shows the probability of correct sense during slots. You can see that the probability of correct sense using LMS algorithm after several slots is more than the probability of correct sense using majority decision (the reason for our simulations is the weights of secondary users, where after several slots, secondary user’s weights are optimized). For Figure 6 we apply Monte Carlo algorithm for 1000 iterations.

In Figure 7 the percentage of false sense, False alarm and missed detection are plotted. It is obvious that with LMS algorithm the probability of errors decrease.

The LMS algorithm is very simple and it doesn’t take time to compute updated weights. The number of calculations by increasing the number of secondary users grows with O(n) [15].

5. Conclusion

In this paper, a new cooperative spectrum sensing for cognitive radio based on LMS algorithm was proposed. In our proposed scheme the weights of secondary users were updated in time and finally the sensing results were combined in the fusion center based on their trusted weights. Simulation results show that our proposed scheme can significantly reduce the effects of SSDF attackers, even when they are Smart malicious, and the percentage of malicious users are more than trusted users. Moreover

Figure 6. Probability of correct sense.

Figure 7. Probability of incorrect sense, false alarm and missed detection.

the effect of fading channels can decrease by using our algorithm. The complexity of our algorithm is low and it can be operated in each time slot.
