Journal of Biomaterials and Nanobiotechnology
Vol.08 No.01(2017), Article ID:73655,13 pages

Hydrothermal Liquefaction of Lignin

Julia Schuler1, Ursel Hornung1, Andrea Kruse2, Nicolaus Dahmen1, Jörg Sauer1

1Karlsruhe Institute of Technology, Institute of Catalysis Research and Technology (IKFT), Karlsruhe, Germany

2University of Hohenheim, Stuttgart, Germany

Copyright © 2017 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: November 21, 2016; Accepted: January 17, 2017; Published: January 20, 2017


The majority of platform chemicals are currently provided through crude oil pro- cesses. Nevertheless, the substitution of the crude oil with biomass should be the ecological aim. Lignin, an aromatic macromolecule, may play an important role in that exchange, as it is the only bio based source of aromatic compounds. For instance, it could be a source of bifunctional aromatic molecules, like the monocyclic compounds catechol or guaiacol, or bifunctional oligomers. However, no process for the production of aromatics from lignin in technical scale has been established until now. Hence, the focus of this work is to clarify the chemical degradation mechanism under hydrothermal conditions, to liquefy lignin delivering high functional molecules and to increase the yield and selectivity of the cleavage towards bifunctional molecules like catechol. The combination of fast hydrolysis, thermal degradation reactions and hydrogenation drives the hydrothermal liquefaction; this gives the possibility to narrow down the product spectrum in comparison to other “dry” cleavage methods, towards a higher yield of e.g. catechols.


Lignin Liquefaction, Hydrothermal Cleavage, Chemical Use of Biomass

1. Introduction

Nowadays, platform chemicals are mostly provided through crude oil processes. The environmental influences accounted for by using crude oil are already visible. So, environmentally friendly alternates should be used now and in the future. Furthermore, alternatives should be investigated right now, when there is still time till crude oil sources dry out and as long as we can handle the situation. An environmental and carbon dioxide neutral carbon source for platform chemicals is wood based biomass. Wood based biomass contains mostly hemicellulose, cellulose and lignin. Lignin is one of the most common organic compounds in the world. It is the only bio based macro molecule which contains aromatic structures. Lignin is used in plants to build up solidifying structures and to resist environmental influences [1] [2] . On the one hand, this fact makes lignin a challenge for its conversion to produce chemicals and special treatments are necessary and need to be understood well.

On the other hand, lignin is a promising renewable resource available in large quantities, which could be used chemically. Currently, most of the directly useable lignin accrues at the paper industry as a byproduct in an amount of about fifty million tons per year. Most of this lignin is burned for energy production and hardly any of it is used as a raw material to produce chemicals like vanillin [3] [4] . Therefore, lignin provides a large potential source for the production of chemicals.

Bark is also a byproduct of huge amounts in the pulping industry and mostly not used. Hardwood bark, like beech bark, contains around 30% of lignin [5] . Previous measurements also show a lignin content of about 32%1. For using lignin as a source for platform chemicals, different studies with the overall target to find a process which delivers platform chemicals out of every applied biomass that accrue as waste, like bark or Kraft lignin from pulping, need to be performed. Producing renewable energies always depends on environmental influences like weather. With such a process, there would not be any influences by the weather or anything in regard of the use of renewable sources for energy. However, the different behaviors of the biomass must be looked at to understand the reaction and to create a process like that. For the chemical use of lignin to gain platform chemicals, a depolymerization step is necessary. Therefore, the hydrothermal liquefaction is considered to be a promising system, because the hydrothermal cleavage is showing auspicious results. The chemical degradation mechanism under hydrothermal conditions to liquefy lignin delivering high functional molecules is investigated in this work. It is also the aim to increase the selectivity and yield of the cleavage towards bifunctional molecules, e.g. catechol. Catechol has a high potential as a platform chemical because of two present hydroxy groups and can be used as a precursor to fine chemicals such as perfumes and pharmaceuticals or as a building block in the organic synthesis.

2. Hydrothermal Cleavage

2.1. Hydrothermal Treatment

In the beginning of the research work on chemical lignin utilization, the main idea was to produce phenol out of the lignin. However, a process for the technical production of phenol is still not established until now, because the phenol yield stagnates at a certain point and so just the production of phenol is not profitable [6] .

To understand that bottleneck, and to solve the problems of this special biomass, various reaction pathways have to be understood, before lignin can be used industrially.

Nevertheless, lignin could be a source for many monomeric and oligomeric compounds with more than one functional group. The idea of using lignin should therefore, be to generate more than one target molecule instead of just phenol as a product. The gained products depend on different depolymerization methods and used lignins [7] .

By using hydrothermal liquefaction methods functional groups can be maintained, in contrast for example to the hydrotreating process [8] . Around 200˚C and the corresponding pressure of water, hydrothermal carbonization takes place, above 600˚C supercritical water gasification. For the production of platform chemicals, a temperature ranging from 150˚C to 400˚C with the corresponding equilibrium pressures, delivers the best results. The desired hydrothermal liquefaction takes place between 280˚C - 380˚C (Figure 1) [8] .

In water, the selectivity towards keeping the functional groups is higher, as for example in ethanol [6] . Likewise, the biomass can be used without previous drying.

The special properties of water under these near and supercritical conditions offer special opportunities for gaining bifunctional aromatics (Figure 2). These special properties will be used in all the reaction to degrade lignin.

Figure 1. Hydrothermal treatment as a function of the pressure and temperature of water. Green area marks the conditions of the hydrothermal conversion to platform chemicals. The black circle marks the area of the hydrothermal carbonization, the dark red square the supercritical water gasification and the blue one the area of the hydrothermal liquefaction [8] .

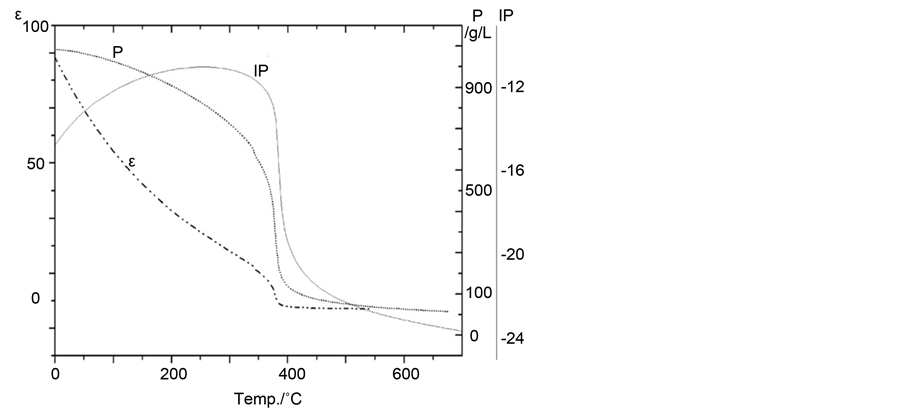

Figure 2. Properties of water as a function of temperature at the critical pressure 25 MPa (density ρ, ion product IP and relative static dielectric constant ε) [8] .

Under near or supercritical conditions water has a different density ρ, which leads to different solubilities for substances to be dissolved, different ion products IP, different relative static dielectric constant ε and hydrogen availability through the occurring water gas shift reaction [8] [9] .

2.2. Lignin Structure

In lignin, the macromolecule structure of aromatic rings is linked via different chemical groups and bond types (Figure 3) and besides this until now no detailed knowledge about the size of these structures could be acquainted [10] . Some forestry scientists even proposed that some trees might share the same molecule [11] .

Lignin consists of three basic monomeric units of which the distribution depends on the type of plant which produced the lignin (Figure 4) [12] . So, every plant delivers different lignin and also the separation process has a big impact on the structure of the

obtained lignin [7] [13] .

Figure 3. Possible structure of a lignin molecule with binding energies [10] .

Sinapyl alcohol, p-cumaryl alcohol and coniferyl alcohol are the basic monomeric units of lignin. Sinapyl alcohol leads to syringol as a product, while coniferyl alcohol leads to guaiacol by hydrothermal treatment. The most common bond in the lignin molecule is the β-O-4, which has a relative low bond energy and is hence one of the first bonds which are cleaved during the liquefaction process (Figure 3) [12] [14] .

The aromatic part of the lignin molecule is a precursor for phenolic monomers or oligomers. Methoxy groups lead to products like methane or methanol. Water soluble acids occur through alkene and alcohol side groups (Figure 5) [9] [13] .

Liquefaction products with two functional groups, like catechols, are promising molecules for the use as a platform chemical (Figure 6). They can be used as a monomer for the production of polymers or precursors to fine chemicals.

3. Experiments

3.1. Lignin-Indulin AT-Structure

A Kraft lignin produced by the Kraft pulping process using sodium sulfide for lignin dissolution was applied in these studies. Indulin AT is a lignin which contains mostly β-O-4 linkages and basic units of coniferyl alcohol [12] [13] .

The Indulin AT structure in this study contains mostly coniferyl alcohol, then p- cumaryl alcohol and no sinapyl alcohol units (Table 1). So, based on the structure

of this lignin type, the cleavage is presumed to deliver mostly guaiacol.

The units are linked mainly through β-O-4 bonds (59%), β-β bonds to 28% while the

Figure 4. Monomeric building blocks of lignin: Sinapyl alcohol, p-Cumaryl alcohol and Coniferyl alcohol.

Figure 5. Simplified illustration of the precursors for thermal degradation products of a lignin monomer unit.

Figure 6. Four of the favored monomeric products of lignin: Phenol, Catechol, Guaiacol and 4-Methylcatechol.

Table 1. Monomer units of Indulin AT*.

*With J. Schäfer, Department of Food Chemistry and Phytochemistry, KIT.

rest is linked via β-5 and ends partly with cinnamyl alcohol groups (Figure 7).

Experimental Procedure

The aim of this work was to investigate the catechol yield at different temperatures (250˚C, 300˚C, 350˚C, 400˚C and 450˚C), the resulting pressures out of these temperatures and reaction times (0.25 - 24 h) utilizing a homogenous catalyst (1 wt% potassium hydroxide KOH). The screening experiments were performed in batch micro reactors (10 - 25 ml). Lignin and the potassium hydroxide solution are put in the stainless steel (14,571) micro reactors under standard pressure. Figure 8 shows a scheme of the proceeding of the experiment.

The micro reactors (10.0 ml, 24.5 ml & 25 ml volume) are filled with the lignin-base-suspension and sealed. The oven used for the heating, is a GC oven with a heating rate of 40˚C/min. The reaction time starts after the target temperature is reached and an additional 15 min of heating have passed. After the reaction, the autoclaves are taken out of the oven and put under cold water to cool down and to stop the reaction.

Gas chromatography was mainly used for analyzing the gas and monomeric components in the product mixture. The gaseous samples are analyzed by an Agilent 7890 A GC-system with a 2 m Porapak Q column. An Agilent laboratory data system controls the measurement. For the detection of the compounds a flame ionization detector (FID) and a thermal conductivity detector (TCD) is applied. For the analysis of the liquid products a Hewlett Packard 5890-II GC system with a Hewlett Packard 5890 auto sampler equipped with a FID-detector. It is controlled by an HPChem laboratory data system. As column, a nonpolar 30 m RestekRtx 1 MS cross bond dimethylpolysiloxane column is used.

Figure 7. Different bond types of Indulin AT, (X1cinnamyl alcohol ending group)2.

Figure 8. Proceeding of the experiments.

3.2. Lignin Degradation

Likewise said, in other studies the phenol yield was found to stagnate at a certain level and for the investigated Kraft lignin the phenol amount was found to be limited to a maximum yield below 10 wt% [6] [15] .

Under the catalytical influence of Nickel, which was contained in the reactor material, the yield was found to be even lower. Figure 9 shows the phenol yields per g used lignin at 300˚C, at a KOH concentration of 1 wt% over different reaction times. After a certain time of 4 h the phenol yield remains at an amount below 3 wt%. This observation can be explained with the catalytic activity of Nickel, which amplifies the gasification of biomass and is therefore often used as a catalyst for gasification reactions. However, with the gasification of biomass as a competing reaction, the amount of the targeted bifunctional products decreases rapidly.

Besides this, higher temperatures, a longer reaction time and a higher amount of the catalysts shift the reaction towards the gasification (compare Figure 10 and Figure 11). Over 350˚C water is in near or supercritical conditions, which has special conditions and enhances the reaction in direction to gasification. At 250˚C the cleavage reactions are slow, but also gasification reactions are much less occurring. Only after longer reaction times liquefaction occurs.

On contrary, at 450˚C almost the complete reaction is turned towards gasification while the yield of the desired products is found to be nearly zero. To sum up, while below critical conditions (250˚C) the desired reactions are not happening, under supercritical conditions (450˚C) mostly gasification is occurring. However, this was expected, as other studies support these observations; compare Figure 1 [8] [9] [15] .

Figure 9. Phenol yields in mg per g used lignin at 300˚C and the resulting pressure out of this temperature, a KOH concentration of 1 wt% was applied for different reaction times (0.25 - 24 h). The dark blue squares show the yield obtained without a Ni-catalyst, the light blue dots by addition a Ni-catalyst, resulting out of the reactor material.

Figure 10. Concentrations of the obtained amount of methane in vol% over the different reaction times (0.25 - 24 h) at different temperatures (250˚C - 450˚C), the resulting pressure out of these temperatures and a KOH concentration of 1 wt%, biomass used for this was beech bark.

Figure 11. Concentrations of the obtained product catechol in mg per g used lignin over the different reaction times (0.25 - 24 h) and examined temperatures (250˚C - 450˚C), the resulting pressure out of these temperatures and 1 wt% KOH.

Based on guaiacol as an intermediate, the favored product catechol is expected to be formed [15] [16] [17] . Figure 12 shows the concentration profile of guaiacol and catechol as a function of the reaction time at 300˚C and a KOH concentration of 1 wt%.

However, this is just one of the reaction pathways towards catechol (also described in [17] ). In general, the highest amount of catechol could be achieved at 300˚C and a reaction time of 3 hours.

3.3. Reactivity of Indulin AT Compared to Beech Bark

As described before, not only lignin can be applied in this process, also bark can be directly used. Bark also contains cellulose, hemicelluloses and extracts besides the lignin [5] . So, the reactions are expected to be influenced by the different molecular components present inside of the bark.

Currently, different studies are performed to investigate the influence of glucose on the reaction, as the cellulose is cleaved directly to glucose under the liquefaction conditions applied. Besides this a more detailed look on the influence of tannins present inside of the bark is intended.

Therefore, in this study, beech bark was used having a lignin content of 32 wt%3 based on own measurements and literature data [5] . Taking this into consideration, the observed catechol yield is comparable to the yield observed when using Indulin AT as a starting material, see Figure 13.

The yields of the other observed products, namely syringol and guaiacol, lead to the assumption that the basic monomers of the bark have to be in a different composition than the one present in Indulin AT, because there is more syringol observed in the product mixture of the bark experiments than compared to the experiments with Indulin AT (compare Figure 4) [5] [12] [13] [14] .

Figure 12. Concentrations of the obtained products guaiacol (grey dots) and catechol (green triangles) in mg per g used lignin over the different reaction times (0.25 - 24 h) at 300˚C, the resulting pressure out of this temperature and a KOH concentration of 1 wt%.

Figure 13. Concentrations of the obtained product catechol in mg per g used lignin (dark green dots) and lignin in the used bark (light green squares) over the different reaction times (0.25 - 24 h) at 300˚C, the resulting pressure out of this temperature and a KOH concentration of 1 wt%.

4. Outlook

Previous work indicated an influence on the liquefaction reaction results, if there is back mixing in the reactor. In a continuous reactor with back mixing the products can interact with the unreacted feed and intermediately formed products [16] [18] . Repolymerization reactions may be hindered through the back mixing leading to a higher amount of bifunctional monomers. Furthermore, bifunctional oligomers may be available through a new process design which leads to the setup of a new reactor (Figure 14) set-up which is currently under construction.

Through the use of a loop reactor, the reactions shall be driven towards bifunctional components. These new influencing variables, the variable back mixing and number of cycles shall give a better control of the reactions. With this continuous system, the identification of important key components and their kinetics are possible.

Figure 14. Scheme of the built loop reactor. 1 & 2: Feed; 3: Reactor (1 l); 4: Gas products; 5: Liquid products; A & B: Pumps; C: Heating system; D: Heat exchanger; E: Phase separator.

5. Conclusions

Different lignin types need to be investigated separately, because they are found to generate a different product range. Furthermore, different types of biomass like bark need to be investigated more closely, because the different lignin composition leads to other reactions and thus, products.

The product spectra themselves are highly various, so the downstream processes need to be investigated in the future to build a sustainable process. A suitable separation technique must be found that the different platform chemicals can be gained out of the process in high qualities for further applications and conversions. Besides this, the mixture could be investigated in different areas where already phenolic mixtures are used. Until now, the down streaming has been hardly investigated; hence, the liquefaction process is not viable and ecological. Nevertheless, with the right down streaming processes and a suitable use of the products, it should be possible to develop an ecological and economical feasible process.

As a matter of fact, both feedstocks have a high potential as a source for platform chemicals. In regard to bio economy even more, as both are waste streams of the high volume pulping industry and which are used mostly not chemically by now. This work has a focus on the development of a whole new value chain, but the basic reactions need to be understood well before. Hydrothermal liquefaction appears as a reasonable conversion technology because functional groups remain in the product molecules. In particular, the oligomeric compounds which aren’t investigated in detail until now are promising products for a chemical use. With different reaction times, temperatures and catalysts, the reaction towards bifunctional molecules can be influenced. This could lead to a higher earned value for the wood and paper sector.


We acknowledge support by Deutsche Forschungsgemeinschaft and Open Access Publishing Fund of Karlsruhe Institute of Technology. This work by Julia Schuler was supported by a grant from the Ministry of Science, Research and the Arts of Baden- Württemberg. Az: 200007 as part of the BBW ForWerts Graduate Program. B. Rolli, S. Habicht, H. Köhler and A. Lautenbach are acknowledged for the analyses of the organic and aqueous products. J. Schäfer, Department of Food Chemistry and Phytochemistry KIT, is acknowledged for the analysis of the lignin structure. Thanks go to M. Fleckenstein, University of Göttingen, Wood Biology & Wood Products, for the combined measurements of the bark.

Cite this paper

Schuler, J., Hornung, U., Kruse, A., Dahmen, N. and Sauer, J. (2017) Hydrothermal Liquefaction of Lig- nin. Journal of Biomaterials and Nanobiotechnology, 8, 96-108.


  1. 1. Sitte, P., Weiler, E., Kadereit, K., Bresinsky, A. and Korner, C. (2002) Lehrbuch der Botanik für Hochschulen, 35. Auflage, Spektrum Akademischer Verlag, Heidelberg.

  2. 2. Lüttge, U., Kluge, M. and Bauer, G. (1994) Botanik, 2. Auflage, VCH, Weinheim.

  3. 3. Puls, J. (2009) Lignin—Verfügbarkeit, Markt und Verwendung: Perspektiven für schwefelfreie Lignine. Gülzower Fachgesprache, 31, 18-41.

  4. 4. Glasser, W. (2009) Lignin-Retrospect and Prospect. Gülzower Fachgesprache, 31, 42-44.

  5. 5. Feng, S., et al. (2013) Valorization of Bark for Chemicals and Materials: A Review. Renewable and Sustainable Energy Reviews, 26, 560-578.

  6. 6. Forchheim, D., Hornung, U., Kruse, A. and Sutter, T. (2014) Kinetic Modelling of Hydrothermal Lignin Depolymerisation. Waste and Biomass Valorization, 5, 985-994.

  7. 7. Dorrestijn, E., Kranenburg, M., Poinsot, D. and Mulder, P. (1999) Lignin Depolymerization in Hydrogen-Donor Solvents. Holzforschung, 53, 611-616.

  8. 8. Kruse, A. and Dahmen, N. (2015) Water—A Magic Solvent for Biomass Conversion. The Journal of Supercritical Fluids, 96, 36-45.

  9. 9. Wang, X. and Rinaldi, R. (2012) Solvent Effects on the Hydrogenolysis of Diphenyl Ether with Raney Nickel and Their Implications for the Conversion of Lignin. ChemSusChem, 5, 1455-1466.

  10. 10. Personal Communication with Member of University of Gottingen, Wood Biology & Wood Products.

  11. 11. Donaldson, L. (2013) Softwood and Hardwood Lignin Fluorescence Spectra of Wood Cell Walls in Different Mounting Media. IAWA Journal, 34, 3-19.

  12. 12. Bunzel, M. and Ralph, J. (2006) NMR Characterization of Lignins Isolated from Fruit and Vegetable Insoluble Dietary Fiber. Journal of Agricultural and Food Chemistry, 54, 8352-8361.

  13. 13. Faravelli, T., Frassoldati, A., Migliavacca, G. and Ranzi, E. (2010) Detailed Kinetic Modeling of the Thermal Degradation of Lignins. Biomass and Bioenergy, 34, 290-301.

  14. 14. Jegers, H.E. and Klein, M.T. (1985) Primary and Secondary Lignin Pyrolysis Reaction Pathways. Industrial and Engineering Chemistry Process Design and Development, 24, 173-183.

  15. 15. Wahyudiono, Sasaki, M. and Goto, M. (2008) Recovery of Phenolic Compounds through the Decomposition of Lignin in Near and Supercritical Water. Chemical Engineering and Processing: Process Intensification, 47, 1609-1619.

  16. 16. Forchheim, D. (2013) Optimization of the Reaction Parameters of a CSTR and a PFR (Batch) for the Recovery of Phenol from Hydrothermal Biomass Liquefaction.

  17. 17. Tekin, K., Karagoz, S. and Bektas, S. (2014) A Review of Hydrothermal Biomass Processing. Renewable and Sustainable Energy Reviews, 40, 673-687.

  18. 18. Wahyudiono, Sasaki, M. and Goto, M. (2011) Thermal Decomposition of Guaiacol in Sub- and Supercritical Water and Its Kinetic Analysis. Journal of Material Cycles and Waste Management, 13, 68-79.


1With M. Fleckenstein, University of Göttingen, Wood Biology & Wood Products.

2With J. Schäfer, Department of Food Chemistry and Phytochemistry, KIT.

3With M. Fleckenstein, University of Göttingen, Wood Biology & Wood Products.
