Rhodium Nanoparticle-Loaded Carbon Black Electrocatalyst for the Glycerol Oxidation Reaction in Alkaline Medium
Binh Thi Xuan Lam, Masanobu Chiku, Eiji Higuchi, Hiroshi Inoue
Department of Applied Chemistry, Graduate School of Engineering, Osaka Prefecture University, Osaka, Japan
Copyright © 2016 by authors and Scientific Research Publishing Inc.
This work is licensed under the Creative Commons Attribution International License (CC BY).
Received 31 December 2015; accepted 12 February 2016; published 15 February 2016
ABSTRACT
Rhodium nanoparticle-loaded carbon black (Rh/CB) was prepared by a wet method, and its activity and durability for glycerol oxidation reaction (GOR) in alkaline medium were compared with Pt, Pd and Au nanoparticle-loaded CB (Pt/CB, Pd/CB and Au/CB). In the cyclic voltammogram of the Rh/CB electrode, the redox waves due to hydrogen adsorption/desorption and the surface OH monolayer formation/reduction were observed at more negative potentials than the Pt/CB and Pd/CB electrodes. The onset and peak potentials of the GOR current densities for the Rh/CB electrode were ca. −0.55 and −0.30 V vs. Hg/HgO, respectively, which were 0.10 and 0.20 V more negative than the Pt/CB electrode whose GOR activity was the best, indicating that Rh was a fascinating metal for reducing the overpotential for GOR. In the electrostatic electrolysis with the Rh/CB and Pt/CB electrodes, the decrease in the GOR current density in the former with time was suppressed compared to that in the latter, suggesting that the tolerance to poisoning for the Rh/CB electrode was superior to that for the Pt/CB electrode.
Keywords:
Glycerol Oxidation Reaction, Direct Glycerol Fuel Cell, Rhodium, Nanoparticle
1. Introduction
Biodiesel fuel (BDF) attracts attention as a carbon-neutral fuel as well as bioethanol. As the production of BDF increases, the production of the glycerol byproduct is also increasing. Glycerol is used for pharmaceuticals, cosmetics, food additives, synthetic raw materials, and antifreeze. However, it is important to develop new uses for glycerol to cope with the mass production of BDF. Direct alcohol fuel cells (DAFCs), in which methanol and ethanol are used as fuels, have attracted considerable interest because they have a high energy density and advantages of easy handling, storage, and transportation compared with pure hydrogen [1] - [4] . The use of glycerol as a fuel for DAFCs is promising, because direct glycerol fuel cells are expected to produce electricity with a low environmental load and to be energy-efficient.
So far, pure metal electrocatalysts such as Pt, Au and Pd [5] - [11] have been applied for GOR. In general, active catalysts have the more negative onset potential (Eonset) and peak potential (Ep) of the GOR current, and the higher peak GOR current density per unit electrochemical surface area (ECSA) (jp). Pt has the most negative Eonset among pure metal electrocatalysts reported previously, whereas Au has the highest jp. However, Pt is insufficient for the Ep and jp, whereas Au is inferior to Pt in the Eonset and Ep.
Ethanol, ethylene glycol and glycerol have one or more C-C bonds. For completely oxidizing the alcohol molecules to CO2, the C-C bonds need to be broken in addition to the oxidation of hydroxy group. So active catalysts to rapidly break the C-C bonds are required. Rhodium has been reported to break the C-C bond of an ethanol molecule to enhance the selective production of CO2 [12] , and Pt-Rh-Sn ternary catalysts succeeded in facilitating the C-C bond cleavage [13] [14] . In this way Rh is a promising metal to catalyze the C-C bond cleavage of a glycerol molecule and facilitate GOR. However, to our knowledge, the catalysis of pure Rh and Rh-based alloys for GOR has scarcely been investigated. There are many synthetic approaches of metal nanoparticle catalysts such as the hydrothermal method, sol-gel process, templating method, and polyol synthesis [15] . In these wet methods, stabilizers are often required to suppress the aggregation of nanoparticles and control the particle size distribution; however, they must be removed by heat treatment and anodic oxidation [16] [17] to enhance the utilization of the catalyst. It is desirable to avoid the additional purification process to reduce costs and energy use. We also have developed a wet method to prepare metal nanoparticle-loaded carbon black (CB), in which rhodium chloride was reduced by KBH4 in presence of tetraoctylammonium bromide (N(Oct)4Br) as stabilizer [18] . It is noteworthy that the stabilizer was easily removed by washing [18] , which can overcome the above-mentioned problem. Therefore, in this study, pure Rh nanoparticle-loaded carbon black (Rh/CB) catalyst was prepared by our wet method at room temperature, and in order to investigate the intrinsic catalysis of Rh nanoparticle catalyst for GOR in an alkaline medium. Its catalytic activity and stability for GOR were evaluated, and compared with the other metal catalysts.
2. Experimental
2.1. Reagents
Rhodium chloride trihydrate (RhCl3∙3H2O-Wako, Japan), platinum chloride (PtCl2-Wako, Japan), potassium chloroaurate (KAuCl4-Sigma-Aldrich, USA) and palladium acetate (Pd (CH3COO)2-Wako, Japan) as precursors to prepare Rh, Pt, Au and Pd nanoparticles, respectively, were used as received. N(Oct)4Br (Wako, Japan) as stabilizer, potassium tetrahydroborate (KBH4-Sigma-Aldrich, USA) as reducing agent, Ketjenblack (Lion, Japan) as carbon black (CB) were used as received. All other reagents were purchased from Wako, Japan, and used as received.
2.2. Preparation and Characterization of Nanoparticle-Loaded Carbon Black
The Rh/CB was prepared according to ref. [18] . Briefly, a solution of KBH4 (4 mmol) in H2O (1.5 mL) was slowly added dropwise to a vigorously stirred solution containing RhCl3∙3H2O (1 mmol) and N(Oct)4Br (4 mmol) in tetrahydrofuran (THF, 150 mL) at 30˚C in an Ar atmosphere. The reaction mixture was stirred for 30 min, resulting in a blackcolloidal suspension. The suspended solid was isolated by suction filtration in air and washed with excess H2O, acetone, and ethanol at room temperature, yielding a black waxy solid. The black solid was redispersed in ethanol. Ketjen black (67 mg) was added in the dispersion and sonicated for 10 min. After suction filtration, the residue was redispersed in aqueous 0.1 M HClO4 (300 mL) and then sonicated for 10 min. After suction filtration, the residue was washed with excess H2O, acetone, and ethanol at room temperature. The Pt/CB, Au/CB and Pd/CB for comparison were also prepared in the same procedure as the Rh/CB by using 1 mmol of PtCl2, KAuCl4 and Pd (CH3COO)2, respectively.
Thermogravimetry (TG) was performed in air (Thermo plus TG8120, Rigaku) by heating from room temperature to 800˚C at a rate of 1 Kmin−1. From TG, the loading in each catalyst was evaluated as 52 wt% for Rh/CB, 50 wt% for Pt/CB, 58 wt% for Pd/CB and 58 wt% for Au/CB. The structure and average size of Rh, Pt, Au and Pd nanoparticles for the Rh/CB, Pt/CB, Au/CB and Pd/CB were determined by X-ray diffractometry (XRD, XRD-6100, Shimadzu) equipped with a CuKα source (λ = 0.1541 nm, 40 kV, 30 mA, 1 Kmin−1) and by electron dispersive X-ray (EDX) spectroscopy, respectively. The chemical state of Rh, Pt, Au or Pd was measured by X-ray photoelectron spectroscopy (XPS, ESCA-3200, Shimadzu). The X-ray source was MgKα with 1253.6 eV operating at 10 kV and 20 mA. The base pressure of the system was 1.3 × 10−7 Pa.
2.3. Preparation and Electrochemical Characterization of Nanoparticle-Loaded Carbon Black Electrodes
The modification of each catalyst on a glassy carbon (GC) substrate (5mmϕ) was performed according to our previous paper [16] . The catalyst loading per unit geometric surface area of GC was adjusted to wCB = 4.9 μg∙cm−2 (wCB: amount of CB loaded on GC), whereas the amount of each catalyst loaded on the GC was 12.8 μg∙cm−2. A 0.05 wt% Nafion solution (Aldrich) in ethanol (10 μL) was cast on the dried catalyst layer, and then dried in air at 120˚C for 1 h, resulting in a catalyst electrode thinly coated with 0.1-mm-thick Nafion film. A Pt plate and an Hg/HgO/KOH electrode were used as the counter and reference electrodes, respectively. The GOR activity and stability of each electrode were evaluated in 1 M KOH solution containing 0.5 M glycerol at room temperature by cyclic voltammetry (ALS730C, BAS) and potentiostatic electrolysis (ALS730C, BAS).
To evaluate the ECSA of each metal nanoparticle, cyclic voltammogram (CV) was measured in 1 M KOH solution at a sweep rate of 20 mV∙s−1. The ECSA of Pt and Rh nanoparticles loaded on CB was evaluated as 0.36 and 0.79 cm2 from the electric charge for the desorption of adsorbed hydrogen, assuming a charge density of 210 and 221 μC∙cm−2 for polycrystalline Pt [19] and Rh [20] , respectively. The ECSA of Pd and Au was evaluated as 0.36 and 0.072 cm2 from the electric charge for the reduction of the PdO and AuO monolayers, assuming a charge density of 424 and 493 μC∙cm−2 for polycrystalline Pd and Au, respectively [21] .
3. Results and Discussion
3.1. Rhodium, Platinum, Palladium and Gold Nanoparticles-Loaded Carbon Black Catalyst Structure
Figure 1(a) shows XRD patterns for Rh/CB, Pt/CB, Pd/CB, and Au/CB. Each XRD pattern contained a small broad diffraction peak at 2θ = 20˚ - 25˚, which was assigned to the (002) plane of CB with a hexagonal structure

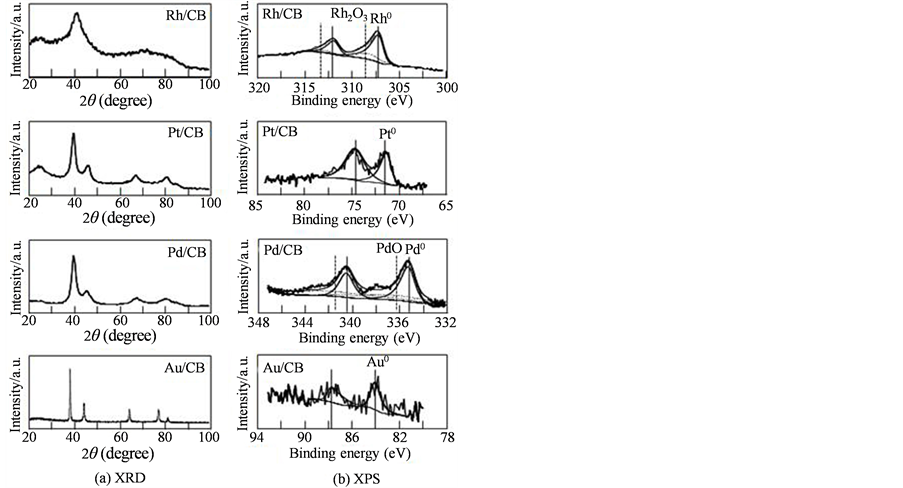

Figure 1. (a) X-ray diffraction patterns and (b) Rh3d, Pt4f, Pd3d and Au4f core level spectra for Rh/CB, Pt/CB, Pd/CB and Au/CB.
[16] . Each catalyst had the largest diffraction peak around 38˚ - 41˚ for the (111) plane of the face-centered cubic (fcc) structure [22] . For Pt/CB, Pd/CB and Au/CB, the (200), (220) and (311) peaks, which were also characteristic of the fcc structure [10] [23] , were observed in Figure 1(a), whereas for Rh/CB the diffraction peaks were not distinctly observed. The crystallite size of each metal nanoparticle loaded on CB was estimated by inserting the full width at half maximum of the (111) peak in each XRD pattern of Figure 1(a) into Scherrer’s equation. The average crystallite size was 1.6 nm for Rh/CB, 3.8 nm for Pt/CB, 3.6 nm for Pd/CB and 21 nm for Au/CB.
XPS analyses for all catalysts did not show any peaks in N1s, and Br3d core level, suggesting that in all cases the N(Oct)4Br stabilizer was completely removed by thoroughly washing with H2O, ethanol and acetone and HClO4 solution. The Rh3d, Pt4f, Pd3d and Au4f core level spectra for Rh/CB, Pt/CB, Pd/CB and Au/CB are shown in Figure 1(b), respectively. For Rh/CB, the Rh3d spectrum contained doublets assigned to the 3d5/2 and 3d3/2 peaks of metallic Rh and small shoulders assigned to Rh2O3 at higher binding energies [24] . For the other catalysts, each core level spectrum contained doublets assigned to metallic Pt, Pd or Au. For Pd/CB, weak doublets assigned to PdO [25] were also detected.
3.2. Electrochemical Properties and Glycerol Oxidation Reaction Activity for Rhodium, Platinum, Palladium and Gold Nanoparticles-Loaded Carbon Black Catalyst
Figure 2(a) shows the CVs of Nafion-coated Rh/CB, Pt/CB, Pd/CB and Au/CB electrodes in an Ar-saturated 1 M KOH solution. The CVs of the Pt/CB, Pd/CB and Au/CB electrodes were consistent with the previous result [10] . For the Pt/CB electrode, two couples of redox waves due to hydrogen adsorption/desorption were observed in the potential range between −0.75 and −0.5 V vs. Hg/HgO [10] , whereas the oxidation current due to the adsorbed OH (Pt-OHad) formation began to flow around −0.45 V in the forward sweep and its reduction current began to flow around 0 V in the backward sweep. In the CV of the Pd/CB electrode, the redox waves owing to hydrogen adsorption (absorption)/desorption were observed in the potential range below −0.4 V, whereas the oxidation current caused by the surface Pd-OHad formation [8] [26] began to flow around −0.15 V in the forward sweep and its reduction current had a peak around −0.18 V in the backward sweep. In the CV of the Au/CB electrode, the gold oxide reduction peak was observed atca. 0.13 V in Au/CB [11] . On the other hand, in the CV of the Rh/CB electrode, the redox waves due to hydrogen adsorption/desorption were observed in the potential range less than −0.6 V vs. Hg/HgO. And the oxidation current due to the surface Rh-OHad formation began to flow around −0.55V in the forward sweep and its reduction current had a peak around −0.47 V in the backward sweep, indicating that the formation and reduction of Rh-OHad occurred at more negative potential than those of Pt-OHad.
Figure 2. CVs in an Ar-saturated 1 M KOH solution (a) without and (b) with 0.5 M glycerol for Nafion-coated Rh/CB, Pt/CB, Pd/CB and Au/CB electrodes. Sweep rate = 20 mV s−1.
Figure 2(b) shows CVs of Nafion-coated Rh/CB, Pt/CB, Pd/CB and Au/CB electrodes in an Ar-saturated 1 M KOH solution containing 0.5 M glycerol. All current densities in each voltammogram are represented as current per unit ECSA of each metal. Among the Pt/CB, Pd/CB and Au/CB electrodes, the onset and peak potentials of GOR at the Pt/CB electrode (ca. −0.45 V and −0.1 V) were more negative than those at the Pd/CB electrode (ca. −0.3 V and −0.05 V) and the Au/CB electrode (ca. −0.25 V and 0.3 V). In terms of the GOR current density, the Au/CB electrode was greater than the Pt/CB and Pd/CB electrodes. These trends were in agreement with the previous literatures [8] -[10] . On the other hand, the onset and peak potentials of the GOR current densities for the Rh/CB electrode were ca. −0.55 and −0.30 V, respectively, which were 0.10 and 0.20 V more negative than the Pt/CB electrode. From the comparison in the onset potential between the Rh/CB and Pt/CB electrodes, the Rh/CB electrode was 0.10 V smaller in overpotential for GOR than the Pt/CB electrode whose GOR activity was the best, indicating that GOR occurred more easily on the Rh surface. The onset potential of GOR at the Rh/CB electrode was close to that of oxide formation as well as the Pt/CB and Pd/CB electrodes, suggesting that the GOR on the Rh surface followed bi-functional mechanism [27] [28] . However, the GOR current density at the Rh electrode was much smaller than that at the Pt electrode. In the ethanol oxidation reaction, Rh was not catalytically active, but PtRh binary electrocatalyst was more active than Pt because Rh facilitated the breaking of the C-C bond to improve the catalytic activity of Pt [29] . Therefore, the GOR current density will be improved by the alloying of Rh with the second elements such as Pt, Ag and Ni.
The oxidation current in the backward sweep would scarcely appear if the poisoning carbonaceous intermediates were completely removed in the forward sweep, so the ratio of peak current densities in the forward sweep (if) and backward sweep (ib) is a measure of how clean the catalyst surface is or how high the tolerance to poisoning species is [30] . The ib/if ratios for the Rh/CB, Pt/CB, Pd/CB and Au/CB electrodes were evaluated to be 0.30, 0.42, 0.32 and 0.90, respectively. The ib/if ratio for the Rh/CB electrode was smaller than the Pt/CB and Au/CB electrodes and comparable to the Pd/CB electrode, suggesting that Rh/CB as well as Pd/CB was tolerant to poisoning species.
Figure 3 shows time courses of oxidation current density at various potentials in an Ar-saturated 1.0 M KOH solution containing 0.5 M glycerol for the Rh/CB, Pt/CB, Pd/CB and Au/CB electrodes. For the Rh/CB electrode, the GOR current density at −0.35 V, which was more negative than the peak potential of GOR (−0.30 V), was larger than that at −0.25 V, which was more positive than the peak potential, even after 60 min. In contrast, for the Pt/CB electrode the oxidation current densities at −0.1 and 0 V, which were much more positive potentials than those for the Rh/CB electrode, significantly decreased with time. The decrease in the oxidation current

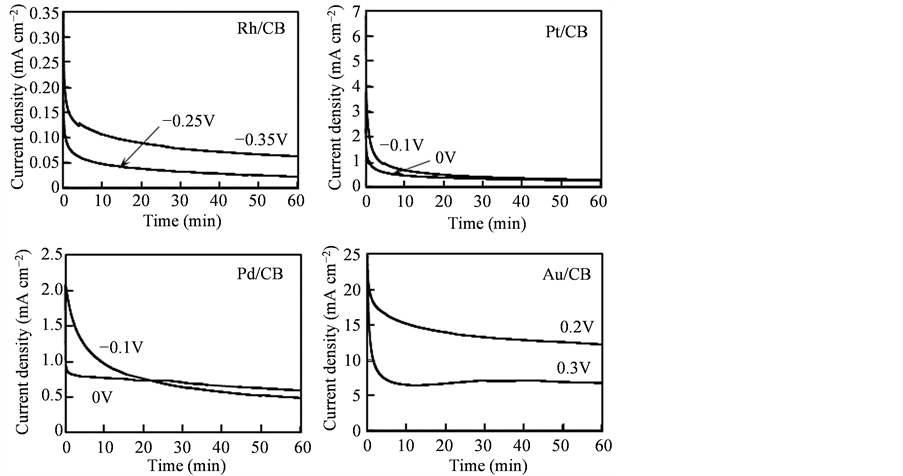

Figure 3. Time courses of the oxidation current density in electrostatic electrolysis at various potentials for Nafion-coated Rh/CB, Pt/CB, Pd/CB and Au/CB electrodes. Electrolyte: 1 M KOH containing 0.5 M glycerol.
density is closely related to the deterioration of catalyst, so the ratio of oxidation current density at 60 and 5 min (i60/i5) can be evaluated as an indicator of the catalyst deterioration. The i60/i5 values at −0.35 V for the Rh/CB electrode and at −0.1 V for the Pt electrode were 0.50 and 0.29, respectively, indicating that the deterioration of Rh/CB was suppressed more effectively. It is concluded that Rh/CB was more tolerant to poisoning species than Pt/CB.
4. Conclusion
Rh/CB was prepared by a wet method at room temperature. The N(Oct)4Br stabilizer was easily removed by thorough washing. In the CV of the Rh/CB electrode, the redox waves due to hydrogen adsorption/desorption and the surface OH monolayer formation/reduction were observed at more negative potentials than the Pt/CB and Pd/CB electrodes. The onset and peak potentials of GOR current densities for the Rh/CB electrode were ca. −0.55 and −0.30 V vs. Hg/HgO, respectively, which were 0.10 and 0.20 V more negative than the Pt/CB electrode whose GOR activity was the best, indicating that the Rh electrode was fascinating metal for reducing the overpotential for GOR. The GOR current density at −0.35 V was larger than that at −0.25 V even after 60 min, whereas the Pt/CB electrode exhibited a rapid decrease in oxidation current density at −0.1 and 0 V, suggesting that Rh/CB had a higher tolerance to poisoning species than Pt/CB. The GOR current density for the Rh electrode was smaller than that for the Pt electrode, but it will be improved by the alloying of Rh with the second elements such as Pt, Ag and Ni.
Acknowledgements
This work was partially supported by JSPS KAKENHI Grant Number 15H04162.
