Solution of the Third Kind Boundary Value Problem of Laplace’s Equation Based on Conformal Mapping

Fuqian Wang^{ }

Hope College, Southwest Jiao Tong University, Chengdu, China

Copyright © 2019 by author(s) and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

http://creativecommons.org/licenses/by/4.0/

Received: August 20, 2018; Accepted: March 11, 2019; Published: March 14, 2019

ABSTRACT

In order to overcome the difficulty in solving the boundary value problem of electrostatic field with complex boundary and to give a new method for solving the third boundary value problem of Laplace’s equation, in this paper, the third boundary value problem of Laplace’s equation is studied by combining conformal mapping with theoretical analysis, the several analytical solutions of third boundary value problems of Laplace’s equation are gives, the correctness of its solution is verified through computer numerical simulation, and a new idea and method for solving the third boundary value problem of Laplace’s equation is obtained. In this paper, the boundary condition of the solving domain is changed by the appropriate conformal mapping, so that the boundary value problem on the transformed domain is easy to be solved or be known, and then the third kind boundary value of the Laplace’s equation can be solved easily; its electric potential distribution is known. Furthermore, the electric field line and equipotential line are plotted by using the MATLAB software.

**Keywords:**

The Third Kind Boundary Value Problem, Laplace’s Equation, Conformal Mapping, The Electric Potential Distribution

1. Introduction

For the third kind boundary value problem of Laplace’s equation, if only a single boundary condition is found on the same boundary line, the separation variable method can be used [1] . The separation variable method cannot be used directly for the case with different types of boundary conditions on the same boundary line. If a proper conformal transformation is used, the boundary condition of the boundary line is converted into a single type, which makes the boundary value problem in the domain of after transformation easy to handle or even to be known. Then it is easy to get the solution of the Laplace’s equation’s third boundary value problem of after transformation. Then the solution of the original third kind boundary value problem of Laplace’s equation can be obtained through the transformation function relation.

The third boundary value problem of Laplace’s equation is studied by using functional variations, and it is proved to be equivalent to an extreme value problem of functional variations in literature [2] ; the third boundary value problem of Laplace equation is studied with an example of ship motion at sea, and its numerical solution is given in literature [3] ; a Monte Carlo method for solving the third boundary value problem of Laplace’s equation is proposed in literature [4] ; the algorithm provides a possibility to construct unbiased estimators of solutions. However, the research on the analytical solution of the third boundary value problem of Laplace’s equation has not been mentioned in the relevant literature. In this paper, the third boundary value problem of Laplace’s equation is discussed by combining to conformal mapping and theoretical analysis; a new method for solving the third boundary value problem of Laplace’s equation is given and its analytical solution is obtained.

2. The Electric Field Distribution in a Semi-Infinite Domain above a Charged Plane

Figure 1 shows a cross section of a charged plane, in which the electric potential equal to zero within $x<-1$ on coordinate axis x, and the normal derivative of electric potential equal to zero within $-1<x<1$ on coordinate axis x, also the electric potential equal to ${U}_{0}$ within $x>1$ on coordinate axis x. Now let us solve aforementioned electric potential distribution above the charged plate. This boundary value problem can be written as

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {x}^{2}}+\frac{{\partial}^{2}\phi}{\partial {y}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(-\infty <x<+\infty ,y>0\right)\\ \phi \left(x,0\right)=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(x<-1\right);\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\phi \left(x,0\right)={U}_{0}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(x>1\right)\\ \frac{\partial \phi}{\partial y}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(y=0,-1<x<1\right)\end{array}$ (1)

Figure 1. The boundary of solution domain with different types boundary conditions.

This is the third kind boundary value problem of the Laplace’s equation, and there are two different boundary conditions on one of its boundary ( $y=0$ ). It is difficult to solve the electric potential distribution directly. In order to solve this boundary value problem easily, first of all, the following transformation function [5] is used

$\zeta =arc\mathrm{sin}\left(z\right)$ (2)

Thus, the upper half plane of z plane is mapped onto a semi-infinite strip domain of $\zeta $ plan by using above transformation function, and the boundary condition of the bottom of the semi-infinite strip domain is change into the

second kind of boundary condition, that is $\frac{\partial \phi}{\partial y}=0$ , as shown in Figure 2.

After the mapping function (2), the Equation (1) becomes

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {\xi}^{2}}+\frac{{\partial}^{2}\phi}{\partial {\eta}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(-1<\xi <1,\eta >0\right)\\ {\phi |}_{\xi =-\text{\pi}/2}=0;\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{\phi |}_{\xi =\text{\pi}/2}={U}_{0}\\ \frac{\partial \phi}{\partial \eta}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(-1<\xi <1,\eta =0\right)\end{array}$ (3)

Because $\frac{\partial \phi}{\partial \eta}=0$ on the of the bottom of the semi infinite strip domain, and

other two sides of the semi infinite strip domain are parallel, so the electric field inside this domain is a uniform field, then the electric potential function of Equation (3) is obviously

$\phi =\frac{{U}_{0}}{2}+\frac{{U}_{0}}{\text{\pi}}\xi $ (4)

Now let us express $\xi $ using x and y. Because of the inverse function of the Equation (2) is $z=\mathrm{sin}\left(\zeta \right)$ , therefore

$x=\mathrm{sin}\left(\xi \right)\mathrm{cosh}\left(\eta \right),\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}y=\mathrm{cos}\left(\xi \right)\mathrm{sinh}\left(\eta \right)$ (5)

when $0<\xi <\text{\pi}/2$ , $\mathrm{sin}\left(\xi \right)$ or $\mathrm{cos}\left(\xi \right)$ are not equal to zero, then we get the following formula form the formula (5)

Figure 2. The solving domain transformed with single type boundary condition on each boundary.

$\frac{{x}^{2}}{{\mathrm{sin}}^{2}\left(\xi \right)}-\frac{{y}^{2}}{{\mathrm{cos}}^{2}\left(\xi \right)}=1$ (6)

For each changeless $\xi $ , the focus of the hyperbola (6) is

$z=\pm \sqrt{{\mathrm{sin}}^{2}\left(\xi \right)+{\mathrm{cos}}^{2}\left(\xi \right)}=\pm 1$ (7)

The horizontal axis length of the hyperbola (6) is $2\mathrm{sin}\xi $ , the absolute value of the difference in distance of the from the point $\left(x,y\right)$ to the two focal points of the hyperbola on the first quadrant is

$\sqrt{{\left(x+1\right)}^{2}+{y}^{2}}-\sqrt{{\left(x-1\right)}^{2}+{y}^{2}}=2\mathrm{sin}\left(\xi \right)$ (8)

By substituting Equation (8) into Equation (4), the electric potential distribution function in the semi-infinite domain above the charged plane is expressed as

$\phi =\frac{{U}_{0}}{2}+\frac{{U}_{0}}{\text{\pi}}\mathrm{arcsin}\left[\frac{\sqrt{{\left(x+1\right)}^{2}+{y}^{2}}-\sqrt{{\left(x-1\right)}^{2}+{y}^{2}}}{2}\right]$ (9)

In order to give an intuitive image of the distribution of the electric field in the semi-infinite domain above the charged plane, and to verify the correctness of the conclusion of the results of the above research, next, the electric field line and the equipotential line diagram of the electric field in the semi infinite region above the charged plane are plotted by the mathematical software MATLAB, as shown in Figure 3. It can be seen that the electric field lines are perpendicular to the surface of the conductor and the equipotential lines and neither electric field lines emit from the boundary of the second kind of boundary condition (i.e.

$\frac{\partial \phi}{\partial y}=0$ ) nor electric field lines terminate on it. All of the above are the expected results, this shows that the research method in this paper is correct and its conclusion is reliable.

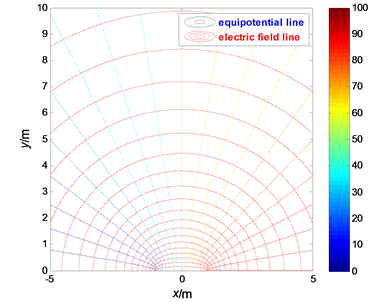

Figure 3. The electric field lines and equipotential lines of the electric fields in a semi infinite domain above a charged plane.

3. The Electric Field of a Charged Right Angle Domain

Figure 4 shows a cross section with an infinite long charged right angle domain, in which the electric potential equal to zero within $y=0$ on coordinate axis x, the electric potential equal to ${U}_{0}$ within $-1<y<1$ on coordinate axis y, and the normal derivative of electric potential equal to zero within $y>1$ on coordinate axis y. Now let us solve aforementioned electric potential distribution in a charged right angle domain. This boundary value problem can be written as

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {x}^{2}}+\frac{{\partial}^{2}\phi}{\partial {y}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(x>0,y>0\right)\\ \phi \left(x,0\right)=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(x>0\right);\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\phi \left(0,y\right)={U}_{0}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(0<y<1\right)\\ \frac{\partial \phi}{\partial x}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(\text{}x=0,y>1\right)\end{array}$ (10)

This boundary value problem is the third kind boundary value problem of Laplace’s equation, and there are two different boundary conditions on one of its boundary (i.e. $x=0$ ). It is difficult to solve the electric potential distribution directly. In order to solve this boundary value problem conveniently, first of all, the following transformation function [6] is used

$w=u+iv=i/z$ (11)

By transformation (11), the domain on the z plane, shape like the quadrant, as shown in Figure 4, is mapped to the quadrant domain on the w plane, as shown in Figure 5, then Equation (10) becomes

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {u}^{2}}+\frac{{\partial}^{2}\phi}{\partial {v}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(u>0,v>0\right)\\ \phi \left(0,v\right)=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(v>0\right);\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\phi \left(u,0\right)={U}_{0}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(1<u<+\infty \right)\\ \frac{\partial \phi}{\partial v}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(v=0,0<u<1\right)\end{array}$ (12)

Reusing the conformal transformation function as follows

$\zeta =\mathrm{arcsin}\left(w\right)$ (13)

Thus, the domain on the w plane, shape like the quadrant, is mapped to a semi infinite strip domain on the $\zeta $ plane, and after the mapping, the boundary conditions at the bottom of the semi infinite strip domain be changed into

the second kinds of boundary conditions, that is $\frac{\partial \phi}{\partial \eta}=0$ , as shown in Figure 6. By transformation (13), Equation (12) becomes

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {\xi}^{2}}+\frac{{\partial}^{2}\phi}{\partial {\eta}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(\eta >0,0<\xi <\frac{\text{\pi}}{2}\right)\\ {\phi |}_{\xi =0}=0;\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{\phi |}_{\xi =\text{\pi}/2}={U}_{0}\\ \frac{\partial \phi}{\partial \eta}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(\eta =0,0<\xi <\frac{\text{\pi}}{2}\right)\end{array}$ (14)

Figure 4. The cross sectionof a charged right angle domain and its boundary condition.

Figure 5. The solvingdomain mapped and its boundary condition.

Figure 6. The solving domain remapped and its boundary condition.

Because $\frac{\partial \phi}{\partial \eta}=0$ on the bottom of the semi infinite strip domain, and the

other two sides of the semi infinite domain are parallel, so the electric field inside this domain is a uniform field, therefore, the electric potential function of the Equation (14) is obviously

$\phi =\frac{2{U}_{0}}{\text{\pi}}\xi $ (15)

Now let us express $\xi $ by using x and y. Because of the inverse function of the Equation (13) is $z=\mathrm{sin}\left(\zeta \right)$ , by using the same way of calculation as from formula (5) to (8), we obtain

$\sqrt{{\left(u+1\right)}^{2}+{v}^{2}}-\sqrt{{\left(u-1\right)}^{2}+{v}^{2}}=2\mathrm{sin}\left(\xi \right)$ (16)

and by using formula (11), we get

$u=\frac{y}{{x}^{2}+{y}^{2}};\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}v=\frac{x}{{x}^{2}+{y}^{2}}$ (17)

By substituting Equations (16) and (17) into Equation (4), hence the electric field distribution of the infinite long charged right angle domain is expressed as

$\phi =\frac{2{U}_{0}}{\text{\pi}}\mathrm{arcsin}\left[\frac{\sqrt{{x}^{2}+{y}^{2}+2y+1}-\sqrt{{x}^{2}+{y}^{2}-2y+1}}{2\sqrt{{x}^{2}+{y}^{2}}}\right]$ (18)

In order to give an intuitive image of the electric field distribution in the charged right angle domain, and to verify the correctness of the conclusion of the above research, the electric field line and the equipotential line diagram of the electric field in the infinite long charged right angle domain are plotted by the mathematical software MATLAB, as shown in Figure 7. It can be seen that the electric field line is perpendicular to the surface of the conductor and the equipotential lines and neither electric field lines emit from the boundary of the

second kind of boundary condition (i.e. $\frac{\partial \phi}{\partial y}=0$ ) nor electric field lines terminate on it, as shown in Figure 7. All of the above are the expected results, this shows that the research method in this paper is correct and the conclusion is reliable.

4. The Electric Field in a Strip Region of Charged Condition and Insulated Condition

Figure 8 shows the boundary condition of an infinite long strip domain. Now let us solve the electric potential distribution in an infinite long strip domain. This boundary value problem can be written as

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {x}^{2}}+\frac{{\partial}^{2}\phi}{\partial {y}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(-\infty <x<+\infty ,0\le y\le 1\right)\\ \phi \left(0,y\right)=-{U}_{0}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(-\infty <x<0,y=1\right);\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\phi \left(\pi ,y\right)={U}_{0}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(-\infty <x<0,y=0\right)\\ \frac{\partial \phi}{\partial y}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(0<x<+\infty ,y=0\right);\left(0<x<+\infty ,y=1\right)\end{array}$ (19)

This boundary value problem is the third kind boundary value problem of Laplace’s equation, and there are two different boundary conditions on the boundary. It is difficult to solve the potential distribution directly. In order to solve this boundary value problem conveniently, the following transformation function [7] is used

$\zeta =\mathrm{arcsin}\left(-{\text{e}}^{-\text{\pi}z}\right)$ (20)

Thus, the infinite long strip domain on the z plane is mapped to a semi-infinite long strip domain on the $\zeta $ plane, and the boundary condition at the bottom of the semi-infinite strip domain mapped are second kind of boundary

conditions (i.e. $\frac{\partial \phi}{\partial \eta}=0$ ), as shown in Figure 9. By using transformation function (20), Equation (19) becomes

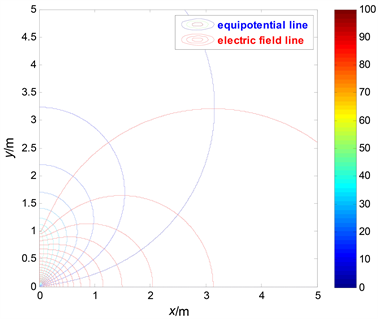

Figure 7. The electric field line and the equipotential line diagram in the infinite long charged right angle domain.

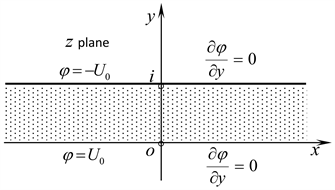

Figure 8. The charged strip domain and its boundary condition.

Figure 9. The solving domain mapped and its boundary condition.

$\{\begin{array}{l}\frac{{\partial}^{2}\phi}{\partial {\xi}^{2}}+\frac{{\partial}^{2}\phi}{\partial {\eta}^{2}}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(\eta >0,0<\xi <\text{\pi}\right)\\ {\phi |}_{\xi =0}={U}_{0};\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}{\phi |}_{\xi =\text{\pi}}=-{U}_{0}\\ \frac{\partial \phi}{\partial \eta}=0\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.17em}}\left(\eta =0,0<\xi <\text{\pi}\right)\end{array}$ (21)

Because $\frac{\partial \phi}{\partial \eta}=0$ on the bottom of the semi-infinite strip domain, and the

other two sides of the semi-infinite domain are parallel, so the electric field inside this domain is a uniform field, therefore, the electric potential function of the Equation (21) is obviously

$\phi =-\frac{2{U}_{0}}{\text{\pi}}\xi $ (22)

Form Equation (20), we obtain [8]

$\begin{array}{l}\zeta =i\mathrm{ln}\left(-{\text{e}}^{-\text{\pi}z}+\sqrt{{\text{e}}^{-2\text{\pi}z}+1}\right)\\ =-\frac{1}{2}\mathrm{arctan}\left\{\frac{\sqrt[4]{{\text{e}}^{-4\text{\pi}x}+2{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\cdot \mathrm{sin}\left[\frac{1}{2}\mathrm{arctan}\left(\frac{{\text{e}}^{-2\text{\pi}x}\mathrm{sin}\left(2\text{\pi}y\right)}{{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\right)\right]-{\text{e}}^{-\text{\pi}x}\mathrm{sin}\left(\text{\pi}y\right)}{\sqrt[4]{{\text{e}}^{-4\text{\pi}x}+2{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\cdot \mathrm{cos}\left[\frac{1}{2}\mathrm{arctan}\left(\frac{{\text{e}}^{-2\text{\pi}x}\mathrm{sin}\left(2\text{\pi}y\right)}{{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\right)\right]+{\text{e}}^{-\text{\pi}x}\mathrm{cos}\left(\text{\pi}y\right)}\right\}\\ \text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}+\frac{i}{2}\mathrm{ln}\{{\text{e}}^{-2\text{\pi}x}+\sqrt{{\text{e}}^{-4\text{\pi}x}+2{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\begin{array}{c}\\ \end{array}\\ \text{\hspace{0.17em}}\text{\hspace{0.17em}}\text{\hspace{0.05em}}\text{\hspace{0.05em}}-2{\text{e}}^{-\text{\pi}x}\sqrt[4]{{\text{e}}^{-4\text{\pi}x}+2{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\cdot \mathrm{cos}\left[\left(\frac{-{\text{e}}^{-2\text{\pi}x}\mathrm{sin}\left(2\text{\pi}y\right)}{{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\right)+\text{\pi}y\right]\}\end{array}$ (23)

By substituting the real part of the Equation (23) into Equation (22), hence the electric field distribution of the infinite long strip domain is expressed as

$\phi \left(x,y\right)=\frac{{U}_{0}}{\text{\pi}}\mathrm{arctan}\left\{\frac{\sqrt[4]{{\text{e}}^{-4\text{\pi}x}+2{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\cdot \mathrm{sin}\left[\frac{1}{2}\mathrm{arctan}\left(\frac{{\text{e}}^{-2\text{\pi}x}\mathrm{sin}\left(2\text{\pi}y\right)}{{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\right)\right]-{\text{e}}^{-\text{\pi}x}\mathrm{sin}\left(\text{\pi}y\right)}{\sqrt[4]{{\text{e}}^{-4\text{\pi}x}+2{e}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\cdot \mathrm{cos}\left[\frac{1}{2}\mathrm{arctan}\left(\frac{{\text{e}}^{-2\text{\pi}x}\mathrm{sin}\left(2\text{\pi}y\right)}{{\text{e}}^{-2\text{\pi}x}\mathrm{cos}\left(2\text{\pi}y\right)+1}\right)\right]+{\text{e}}^{-\text{\pi}x}\mathrm{cos}\left(\text{\pi}y\right)}\right\}$ (24)

In order to give an intuitive image of the electric field distribution in the finite long charged strip domain, and to verify the correctness of the conclusion of the above research, the electric field line and the equipotential line diagram of the electric field in the infinite long charged strip domain are plotted by the mathematical software MATLAB, as shown in Figure 10. It can be seen that the electric field lines are perpendicular to the surface of the conductor and the equipotential lines and neither electric field lines emit from the boundary of the second

kind of boundary condition (i.e. $\frac{\partial \phi}{\partial y}=0$ ) nor electric field lines terminate on it as shown in Figure 10. All of the above expected results, shows that the research method in this paper is correct and the conclusion is reliable too.

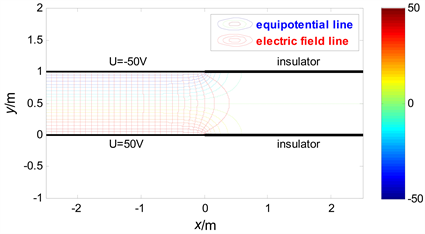

Figure 10. The electric field line and the equipotential line diagram in the electric field in a strip domain of the charged condition and insulated condition.
