Wireless Sensor Network, 2011, 3, 241-261
doi:10.4236/wsn.2011.37026 Published Online July 2011 (http://www.SciRP.org/journal/wsn)
A High-Level Architecture for Intrusion Detection on
Heterogeneous Wireless Sensor Networks: Hierarchical,
Scalable and Dynamic Reconfigurable
Hossein Jadidoleslamy
Department of Information Technolo gy, Anza li International Branch , The University of Guilan, Ra sht, Iran
Received May 23, 2011; revised June 2, 2011; accepted June 22, 2009
Abstract
Networks protection against different types of attacks is one of most important posed issue into the network
and information security domains. This problem on Wireless Sensor Networks (WSNs), in attention to their
special properties, has more importance. Now, there are some of proposed solutions to protect Wireless Sen-
sor Networks (WSNs) against different types of intrusions; but no one of them has a comprehensive view to
this problem and they are usually designed in single-purpose; but, the proposed design in this paper has been
a comprehensive view to this issue by presenting a complete Intrusion Detection Architecture (IDA). The
main contribution of this architecture is its hierarchical structure; i.e. it is designed and applicable, in one,
two or three levels, consistent to the application domain and its required security level. Focus of this paper is
on the clustering WSNs, designing and deploying Sensor-based Intrusion Detection System (SIDS) on sensor
nodes, Cluster-based Intrusion Detection System (CIDS) on cluster-heads and Wireless Sensor Network
wide level Intrusion Detection System (WSNIDS) on the central server. Suppositions of the WSN and Intru-
sion Detection Architecture (IDA) are: static and heterogeneous network, hierarchical, distributed and clus-
tering structure along with clusters’ overlapping. Finally, this paper has been designed a questionnaire to ver-
ify the proposed idea; then it analyzed and evaluated the acquired results from the questionnaires.
Keywords: Wireless Sensor Network (WSN), Security, Intrusion Detection System (IDS), Hierarchical,
Distributed, Scalable, Dynamic Reconfigurable, Attack, Detection
1. Introduction
Wireless Sensor Networks (WSNs) are homogeneous or
heterogeneous systems consist of many small devices,
called sensor nodes, that monitoring different environ-
ments in cooperative [1,2], i.e. sensor nodes cooperate to
each other and combine their local data to reach a global
view of the operational environment; they also can oper-
ate autonomously. In WSNs there are two other compo-
nents, called “aggregation points” (i.e. cluster-heads and
CIDSs’ deployment locations) and “base station” (i.e. the
central server and the WSNIDS’s deployment location),
which have more powerful resources and capabilities
than normal sensor nodes [1,3]. As shown in Figure 1,
aggregation points collect information from their nearby
sensor nodes, aggregate and forward them to the base
station to process gathered data [4]. Factors such as
wireless, unsafe, unprotected and shared nature of com-
munication channel, untrusted and broadcast transmis-
sion media, deployment in hostile and open environ-
ments, automated and unattended nature and limited re-
sources, make WSNs vulnerable and susceptible to many
types of attacks [1]; therefore, in attending to the WSNs’
constraints, their requirements and unusable traditional
network security techniques on WSNs, security is a vital
and complex requirement for these networks [2,5]. Also,
the defensive-security mechanism that can guarantee the
normal functionalities of these networks must be consis-
tent to the WSNs’ autonomous mechanisms. This paper
is following a complete security mechanism to cover and
establish different basic security dimensions of WSNs,
like confidentiality, integrity, availability and authentic-
ity. Our proposal is adding an another defensive line,
called Intrusion Detection System (IDS), as a new defen-
sive-security layer to the WSNs’ security infrastructure;
which it can

H. JADIDOLESLAMY 242
Figure 1. WSNs’ communication architecture.
detects unsafe activities and unauthorized access; also,
when attacks occurred, even new attacks such as anoma-
lies, it can get notify by different warnings and perform
required actions (mainly predefined actions). Therefore,
the main purpose of this paper is presenting, discussing
and solving the intrusion detection problem in WSNs.
This paper is including:
 An overview of WSNs and their security;
 Discussing Intrusion Detection System (IDS) as a
new aggressive-defensive security layer for WSNs
(consider the basic architecture of IDSs and IDS’s
requirements for WSNs);
 Suggestion a comprehensive, hierarchical and uncen-
tralized Intrusion Detection Architecture (IDA) and
IDS architecture for WSNs (SIDS, CIDS and
WSNIDS architectures);
This paper makes us enable to identify the existent
security challenges in WSNs and we can almost solve the
intrusion detection problem on these networks; besides,
we also can detect and manage WSNs’ attacks and react
to them, appropriate to attacks’ type and their nature. The
rest of this paper is organized as follows: in Section 2 an
overview of WSNs and their different security dimen-
sions are presented; Section 3 is mainly focused on IDS,
it’s importance and different dimensions, and IDS’s re-
quired properties for WSNs; Section 4 considers the in-
trusion detection issue on WSNs, including design chal-
lenges and IDS requirements in these networks; Section
5 will describe the proposed Intrusion Detection Archi-
tecture (IDA) and suggested IDSs for WSNs; Section 6
prepares a questionnaire to verifying the IDA; it also
expressed the reached results from analyzing question-
naires; Section 7 presented conclusion; and finally future
works, are drawn in Section 8.
2. An Overview of WSNs
Sensor is a tiny device which detects and measures
amount of physical parameters, or an event occurrence,
or an object existence; then, it converts that value to elec-
trical signal; finally, if necessary, it actuates a special
operation by using electrical actuators [1,6]. WSN is a
computer network with following major features:
 Infrastructure-less [1,2,3];
 No public address, often (data-centric network, thus
sensor nodes do not have identification code) [2,7];
 Consists of many (hundreds or even thousands) tiny
sensor nodes [2,8,9] (small size, low-cost and
low-power);
 High-density of nodes distribution [3,10];
 Insecure radio links;
 Application-oriented;
 Central or distributed management;
 Different communication models [1,2,11], including:
hierarchical/distributed WSNs or homogenous/heter-
ogeneous WSNs;
 Limited resources of sensor nodes [2,3,12] (radio
communication, bandwidth, energy, memory and pro-
cessing capabilities) [7,10,13];
 Having decision making capability to react to the
events, including: automated structure (local decision
making), semi-automated (decision making by base-
station) and combinational (clustering structure);
 Main application domains of WSNs are: monitoring
and tracking (as shown in following figure, Figure
2(a)); therefore, some of the most common applica-

H. JADIDOLESLAMY243
(a)
(b)
Figure 2. WSN’s applications.
tions of these networks are: military, medical, environ-
mental monitoring, industrial, infrastructure protection,
disaster detection and recovery, agriculture, intelligent
buildings, law enforcement, transportation and space
discovery (as shown in Figure 2(b)).
The taken approach into the WSN is a combinational
model; i.e. hierarchical, distributed and heterogeneous;
since, sensor nodes, cluster-heads and the central server
are different than each other and each one of them have
special and different capabilities, hardware and software
specifications than others.
In continue of this section, it will be presented an out-
line of different aspects of WSNs, such as their charac-
teristics, vulnerabilities and different security dimen-
sions.
2.1. Vulnerabilities and Challenges of WSNs
WSNs are vulnerable against many kinds of attacks;
some of the most common reasons are:
 Theft [1] (reengineering and replicating) [3,5];
 Limited capabilities and resources [2,5];

H. JADIDOLESLAMY 244
 Random deployment [7];
 Deployment on dynamic/hostile environments [2,10];
 Insider attackers;
 Inapplicable traditional network’s common security
techniques [2,5] (due to limited devices and their re-
sources and interaction to physical environment);
 Requirement to redesigning security architectures and
protocols (distributed and self-organized);
 Unreliable communications [2] (connectionless pac-
ket-based routing  unreliable transfer, channel’s
broadcast nature  conflicts, multi-hop routing and
network congestion and node processing  Latency);
 Vulnerability against eavesdropping (since using
unique communication frequency into the WSN);
 Unattended nature and operation [1,2];
 Dynamic structure, unpredictable topology and self-
organization [1,3];
 Sensor nodes’ selfishness [2,12];
 Requiring to forwarding and routing sensed informa-
tion to a shared destination, called sink;
 Existence redundancy in gathered traffic;
 Fault tolerant [1,12];
 Cost of sensor nodes’ development and their produc-
tion [2,6];
 Size and precision of sensor nodes;
2.2. Security in WSNs
As WSNs’ application areas are growing, intrusion tech-
niques in these networks also are increasing; there are
many methods to disrupt these networks and every day,
new techniques are representing to destruct WSNs [1,2].
Besides, in attending to the vital WSNs’ vulnerability
against many types of attacks [5,11] and necessity of
data accuracy and network health and fault tolerant, con-
fidential and sensitive applications of WSNs, security is
a vital requirement in these networks and it must be es-
tablished according to their constraints to can solve secu-
rity problems and weaknesses of these networks. Also,
there are three security key points on WSNs, including
system (integrity, availability), source (authentication,
authorization) and data (integrity, confidentiality). Thus,
security in WSNs is an important, critical issue, necessity
and vital requirement, due to:
 Correctness of network functionality [1,2];
 Unusable typical networks protocols [2,7];
 Limited resources and untrusted sensor nodes [1,8];
 Requiring trusted center for key management, to au-
thenticate nodes to each others, preventing from ex-
istent attacks and selfishness [1,10,13] and extending
collaboration [2];
 Broadcast and wireless nature of transmission media
[1,5];
 Sensor nodes deploy on hostile environments [1,6,12]
(unsafe physically);
 Unattended nature and operation of WSNs [1,2,9];
Some of most important dimensions of WSNs have
been shown in following figure (Figures 3(a) and (b))
by star spangled. As Figure 3(a) shows, in this paper we
have emphasize on goals, obstacles and constraints of
WSNs’ security aspects. Also, Figure 3(b) is showing
which this paper has been emphasized on intrusion de-
tection approach from security mechanisms (by star
spangled).
3. Intrusion Detection System (IDS)
Intrusion, i.e. unauthorized access or login (to the system,
or the network or other resources) [14]; intrusion is a set
of actions from internal or external of the network, which
violate security aspects (including integrity, confidential-
ity, availability and authenticity) of a network’s resource
[15,16]. Intrusion detection is a process which detecting
contradictory activities with security policies to unau-
thorized access or performance reduction of a system or
network [14]; the purpose of intrusion detection process
is reviewing, controlling, analyzing and representing
reports from the system and network activities. Intrusion
Detection System (IDS), i.e.:
 A hardware or software or combinational system,
with aggressive-defensive approach to protect infor-
mation, systems and networks [17,18];
 Usable on host, network [19] and application levels;
 For analyzing traffic, controlling communications and
ports, detecting attacks and occurrence vandalism, by
internal users or external attackers;
 Concluding by using deterministic methods (based on
patterns of known attacks) or non-deterministic [18,
19] (to detecting new attacks and anomalies such as
determining thresholds);
 Informing and warning to the security manager [16,
17,20] (sometimes disconnect suspicious communi-
cations and block malicious traffic);
 Determining identity of attacker and tracking him/
her/it;
There are three main functionalities for IDS, including:
monitoring (evaluation), analyzing (detection) and react-
ing (reporting) [15,17] to the occurring attacks on com-
puter systems and networks. If IDS be configured, cor-
rectly; it can represent three types of events: primary
identification events (like stealthy scan and file content
manipulation), attacks (automatic/manual or local/remote)
and suspicious events.
3.1. IDS Categorization Based on Their
Architecture
According to the Figure 4, Intrusion Detection Systems

H. JADIDOLESLAMY245
Security in WSNs
Goals** Obstacles** Constraints**
Very limited
resources
Unattended
operation
Untrusted
communica-
(a)
(b)
Figure 3. Security in WSNs.
(IDSs) attending to the information gathering source and
input data supplier, divide into three categories, as fol-
lows.
3.1.1. Host-Based Intrusion Detection System (HIDS)
HIDS installs on a computer system [15,18]; it uses proc-
essor and memory of that system and protects only the
hosting system [15,21]. It has an abnormal detector part
which using statistical methods to detect abnormal be-
havior of users in comparison to their behavioral records
[21,22]; also, it has an expert system part that detects the
security threats and describes the vulnerabilities of the
system, but independent from behavioral records of users;
of course, it uses a rules-base, too.
Standard Unique
Confidentiality
Integrity
Authenticity
Availability
Data freshness
Self-organization or
self-healing
Time synchronization
Secure localization
Wide applications
Cost-effective
Node
constraints
Physical
constraints
Network
constraints
Energy
Unattended
after
deployment
Memor
y
Stora
g
e
Remotely
managed
Processin
g
Unreliable, ad-hoc and
wireless communications
Collisions/latency
Lack of physical infra-
structure
Security in WSNs
Security
threats
Security
classes
Security
mechanisms
Interruption
Data
inte
g
rit
y
Authentication Confidentiality
Availability
Interception
Modifica-
Forgery
Deletion
Modification High-level Low-level
Fabrication
Secure group
management Key establishment and
trust setu
p
Replay Intrusion
detection
Secrecy and authentica-
tion
Secure data
aggregation
Privacy
Secure
broadcasting
and multi-
casting Robustness to commu-
nication DoS
Secure routing
Resilience to node
capture

H. JADIDOLESLAMY 246
Figure 4. Different categorizations of IDSs.
3.1.2. Network-Based Intrusion Detection System
(NIDS)
NIDS is a software process which installs on a special
hardware system [16,20]; in many cases, it operates as a
sniffer and controls passing packets and active commu-
nications, then it analyzes network traffic in sophisti-
cated, to find attacks [18,19,22,]. NIDS can identify at-
tacks, on network level; thus, it includes following steps:
 Setting up the Network Interface Card (NIC) on pro-
miscuous mode and eavesdropping total network traf-
fic [16];
 Capturing the transmitting network packets [19];
 Extracting requirement information and properties
from them (the packets);
 Analyzing properties and detecting statistical devia-
tion from normal behavior and known patterns (using
pattern matching);
 Producing and logging proper events;
3.1.3. Distributed Intrusion Detection System (DIDS)
Most important characteristics of DIDS are:
 Combination of HIDS, NIDS and central manage-
ment system [23];
 Sending the reports of distributed IDSs (HIDSs and
NIDSs) to the central management system;
 Based on distributed and heterogeneous resources
[14,15,20];
 High complexity, variable specifications and agent-
based.
In WSNs, most attackers are targeting routing layer,
since they can control passing information into the net-
work. Besides, WSNs mainly are based on sensor nodes’
reporting to the base station; so, disrupting and violating
from this process leads to success attacks. As a result, for
such networks, most proper architecture for IDS will be
NIDS. A NIDS using network raw data packets as data
source; it eavesdrops and listens to the network traffic,
captures packets in real-time, then controls and tests
them to detect attacks.
There is a SIDS on each sensor node to detect attacks
on sensor-level wide; mainly, physical attacks. Also, in
the proposed architecture, sensor nodes are partitioned as
some clusters; each cluster has a cluster-head and any
cluster-head (CIDS) should monitor the traffic of its as-
sociated cluster nodes. But, in some cases (about bound-
ary nodes), a single cluster-head can not solve the “trust
no node” requirement; thus, neighboring and corre-
sponding cluster-heads have to cooperate to each others
to complete the intrusion detection process. They can use
the simple majority vote rule to make an appropriate de-
cision. In other cases, a human agent or the WSNIDS
(deployed IDS on the central server) is completing the
intrusion detection process.
Intrusion Detection Sys-
tem (IDS)
Architecture Detection
Methods
Decision
making
Response or
Reaction
Approaches
HIDS NIDS DIDS
Cooperative
Anom-
aly-Based
Sys-Log Traffic
Anal
y
zer
File-Finger-
Printing Signa-
ture-Based
or
Traffic
Accountin
g
Active
Misuse
Detection
Passive
System
Integrity
Checks Virtual
honey
-
pots
Sys-trace
3.2. IDS Classification Based on Detection
Method
IDSs must be able to differentiate between normal and
abnormal activities, to detect malicious efforts, in real-
time. As Figure 4 shows, IDSs be partitioned into two
categories, based on data analysis and detection method
[15,17]. In following sections, they will be considered.
3.2.1. Anomaly Detection Systems
Anomaly Detection Systems are focused on normal be-
havioral patterns [18,20]. According to the expert sys-
tems are not able to timous update patterns, we will need
automatic devices to extract new attacks’ patterns [14,
15,20]. It is possible to using some techniques such as
threshold detection (fully heuristic and static), statistical
criteria, act/rule-oriented criteria, clustering methods,
neural networks, expert systems, machine learning and
data mining, to detecting abnormal behaviors [12,24]; for
example, measuring the changes in volume, direction and
pattern of communication traffic, can indicate and dif-
ferentiate attack traffic, easily. In this approach, it is pos-
sible to detecting new attacks and also internal attackers;
including following steps:
 Identifying normal behaviors [20,22] (they have de-
terministic properties) and finding especial rules for
them (describing normal behaviors by automated
learning, usually);
 Forming some views from normal behaviors of the
system, network, users and user groups;
o Behaviors that following these patterns  normal
behaviors;
o Activities which have excessive deviation from de-
fined statistical values of these patterns  abnor-
mal behaviors and intrusion efforts;

H. JADIDOLESLAMY247

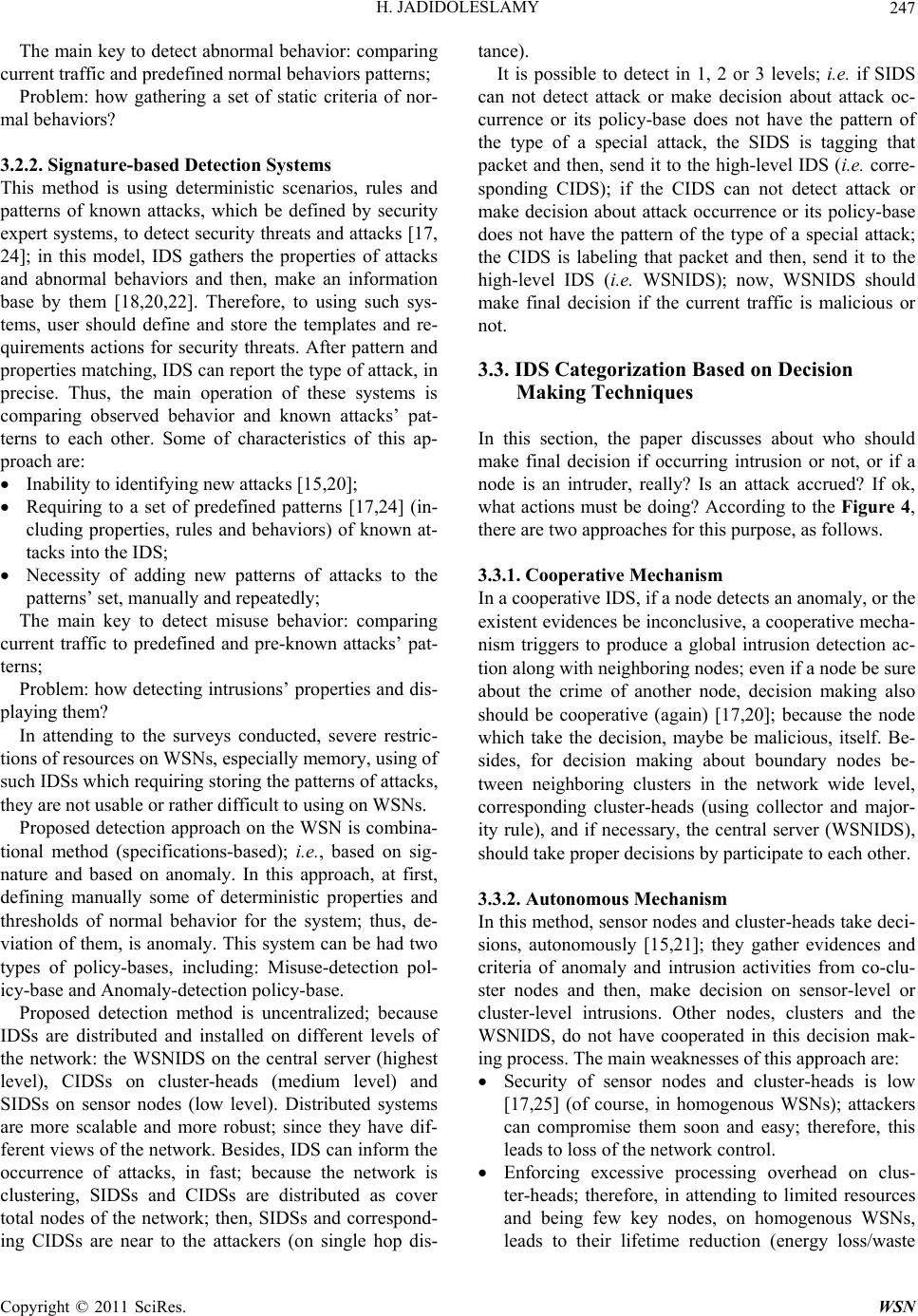

The main key to detect abnormal behavior: comparing
current traffic and predefined normal behaviors patterns;
Problem: how gathering a set of static criteria of nor-
mal behaviors?
3.2.2. Signature-based Detection Systems
This method is using deterministic scenarios, rules and
patterns of known attacks, which be defined by security
expert systems, to detect security threats and attacks [17,
24]; in this model, IDS gathers the properties of attacks
and abnormal behaviors and then, make an information
base by them [18,20,22]. Therefore, to using such sys-
tems, user should define and store the templates and re-
quirements actions for security threats. After pattern and
properties matching, IDS can report the type of attack, in
precise. Thus, the main operation of these systems is
comparing observed behavior and known attacks’ pat-
terns to each other. Some of characteristics of this ap-
proach are:
 Inability to identifying new attacks [15,20];
 Requiring to a set of predefined patterns [17,24] (in-
cluding properties, rules and behaviors) of known at-
tacks into the IDS;
 Necessity of adding new patterns of attacks to the
patterns’ set, manually and repeatedly;
The main key to detect misuse behavior: comparing
current traffic to predefined and pre-known attacks’ pat-
terns;
Problem: how detecting intrusions’ properties and dis-
playing them?
In attending to the surveys conducted, severe restric-
tions of resources on WSNs, especially memory, using of
such IDSs which requiring storing the patterns of attacks,
they are not usable or rather difficult to using on WSNs.
Proposed detection approach on the WSN is combina-
tional method (specifications-based); i.e., based on sig-
nature and based on anomaly. In this approach, at first,
defining manually some of deterministic properties and
thresholds of normal behavior for the system; thus, de-
viation of them, is anomaly. This system can be had two
types of policy-bases, including: Misuse-detection pol-
icy-base and Anomaly-detection policy-base.
Proposed detection method is uncentralized; because
IDSs are distributed and installed on different levels of
the network: the WSNIDS on the central server (highest
level), CIDSs on cluster-heads (medium level) and
SIDSs on sensor nodes (low level). Distributed systems
are more scalable and more robust; since they have dif-
ferent views of the network. Besides, IDS can inform the
occurrence of attacks, in fast; because the network is
clustering, SIDSs and CIDSs are distributed as cover
total nodes of the network; then, SIDSs and correspond-
ing CIDSs are near to the attackers (on single hop dis-
tance).
It is possible to detect in 1, 2 or 3 levels; i.e. if SIDS
can not detect attack or make decision about attack oc-
currence or its policy-base does not have the pattern of
the type of a special attack, the SIDS is tagging that
packet and then, send it to the high-level IDS (i.e. corre-
sponding CIDS); if the CIDS can not detect attack or
make decision about attack occurrence or its policy-base
does not have the pattern of the type of a special attack;
the CIDS is labeling that packet and then, send it to the
high-level IDS (i.e. WSNIDS); now, WSNIDS should
make final decision if the current traffic is malicious or
not.
3.3. IDS Categorization Based on Decision
Making Techniques
In this section, the paper discusses about who should
make final decision if occurring intrusion or not, or if a
node is an intruder, really? Is an attack accrued? If ok,
what actions must be doing? According to the Figure 4,
there are two approaches for this purpose, as follows.
3.3.1. Cooperative Mechanism
In a cooperative IDS, if a node detects an anomaly, or the
existent evidences be inconclusive, a cooperative mecha-
nism triggers to produce a global intrusion detection ac-
tion along with neighboring nodes; even if a node be sure
about the crime of another node, decision making also
should be cooperative (again) [17,20]; because the node
which take the decision, maybe be malicious, itself. Be-
sides, for decision making about boundary nodes be-
tween neighboring clusters in the network wide level,
corresponding cluster-heads (using collector and major-
ity rule), and if necessary, the central server (WSNIDS),
should take proper decisions by participate to each other.
3.3.2. Autonomous Mechanism
In this method, sensor nodes and cluster-heads take deci-
sions, autonomously [15,21]; they gather evidences and
criteria of anomaly and intrusion activities from co-clu-
ster nodes and then, make decision on sensor-level or
cluster-level intrusions. Other nodes, clusters and the
WSNIDS, do not have cooperated in this decision mak-
ing process. The main weaknesses of this approach are:
 Security of sensor nodes and cluster-heads is low
[17,25] (of course, in homogenous WSNs); attackers
can compromise them soon and easy; therefore, this
leads to loss of the network control.
 Enforcing excessive processing overhead on clus-
ter-heads; therefore, in attending to limited resources
and being few key nodes, on homogenous WSNs,
leads to their lifetime reduction (energy loss/waste

H. JADIDOLESLAMY 248
and cluster-heads destruction). Processing the infor-
mation of other nodes and then, taking appropriate
decision on results of intrusion efforts (if leads to an
attack or not), enforcing excessive processing over-
head and finally, can be leading to energy loss/waste
and exhaustion of decision maker nodes (clus-
ter-heads).
The proposed IDA for WSNs, can take combinational
decision making approach (autonomously, but often co-
operative) by using clustering manner; thus, SIDSs make
decision about intrusion occurrence on sensor node level;
if necessary they referenced to the corresponding CIDSs;
also, cluster-heads make decision about intrusion occur-
rence and proportional actions on cluster level; if neces-
sary, they cooperate to each others (for example, about
boundary nodes). i.e. , the WSN’s nodes be clustering and
forming clusters; in each cluster, sensor nodes collect
data from environment, cluster-heads gather data from
corresponding cluster’s nodes, then form and mainte-
nance a machine state for any one of them; then, clus-
ter-head (CIDS) can take proper decision if the node be
compromised or not; or if any node disclosure informa-
tion or not; of course, by attention to the nodes’ reports.
Therefore, in each cluster, SIDSs make decision on in-
trusion to the local host nodes; also, corresponding clus-
ter-head make decision on intrusion to its co-cluster
nodes. So, in some cases (about boundary nodes),
neighboring cluster-heads cooperate to each other to de-
tect intrusions. Besides, in cases of anomaly detection,
special attacks or inapplicability majority rule, the cen-
tral server (WSNIDS) or human agents make final deci-
sions about attack occurrence and proper reactions.
In suggestion approach, at first level, sensor nodes
make decision on attack occurrence to local host sensor
node; at second level, cluster-heads make decision on
attack occurrence to associated clusters’ sensor nodes
and then, cluster-heads of boundary nodes cooperate to
each other about intrusion occurrence and proportional
actions (cooperative decision making); finally, the
WSNIDS take decision on anomalies and difference
cases between cluster-heads.
We can establish a combinational decision making
mechanism by using this actual that whole sensor nodes
deploy in associated cluster-heads and the WSNIDS ra-
dio range; also, cluster-heads deploy in each other and
the central server (WSNIDS) radio communication range;
it means that cluster-heads (to each other) and WSNIDS
have communicate to each others; thus, each cluster-head
can listen to the transmitted messages of its neighboring
cluster-heads and the WSNIDS. Therefore, these nodes
can advertise their warnings to each other, easily;
through produce and broadcast a single message. In sus-
picious cases of boundary nodes can have a safer and
more reliable conclusion by using the majority rule:
“If more than half of a node’s corresponding clus-
ter-heads warn, then that node is a compromised node
and it should be turning off or the central server must be
notified and take proper decision about it”.
It means, if a boundary node has been n corresponding
cluster-heads, if the collector receives at least ((n/2) + 1))
warnings, also include the warning of the collector (it-
self), it can conclude which that node is a compromised
node. Therefore, in cooperative approach, we have to
select one of associated cluster-heads as collector, to
gather warnings and ideas of other associated clus-
ter-heads and enforce the majority rule; then, the final
conclusion and decision making do by collector.
For enforcing the majority rule, we have to determine
a cluster-head as collector, to gather warnings from other
cluster-heads analyze them and take the final decision.
Problem 1: compromising collector: attacker can con-
trol intrusion result, easily. To avoid from this scenario,
other cluster-heads must impose the majority rule on the
received warnings, too; then, they have to check, con-
sider and compare reached result to the collector’s report.
Problem 2: compromising a few cluster-heads: in at-
tending to majority rule, if a cluster-head compromised
and broadcasts a false warning, and tries to cancel an
authorized node or does not broadcast a warning for a
malicious node; this is almost ineffective; because most
of cluster-heads are win and non-compromised, yet.
3.4. IDS Categorization Based on Response
Method
IDSs using events’ information and patterns analysis of
attacks to react them; including:
3.4.1. Active Response
These responses prevent from the attackers’ activities,
directly [13,16]; for example, session disconnection [19],
dynamic reconfiguration of the network, using Honeypot
and setting thresholds again (in attention to the user skill,
network speed, expected network connections, work load
of security manager, sensor sensitivity, security policy,
vulnerabilities, information and system sensitivity and
fault importance).
3.4.2. Passive Response
These kinds of responses do not prevent from the attack-
ers’ activities, directly [15,17,18]; like: shunning, log-
ging, notifying [15] through cell phone, email and mes-
sage to SNMP console [18,20].
The proposed response approach for the WSN: using
combinational method; i.e. active and passive responses
by each others, depending on conditions, type and nature

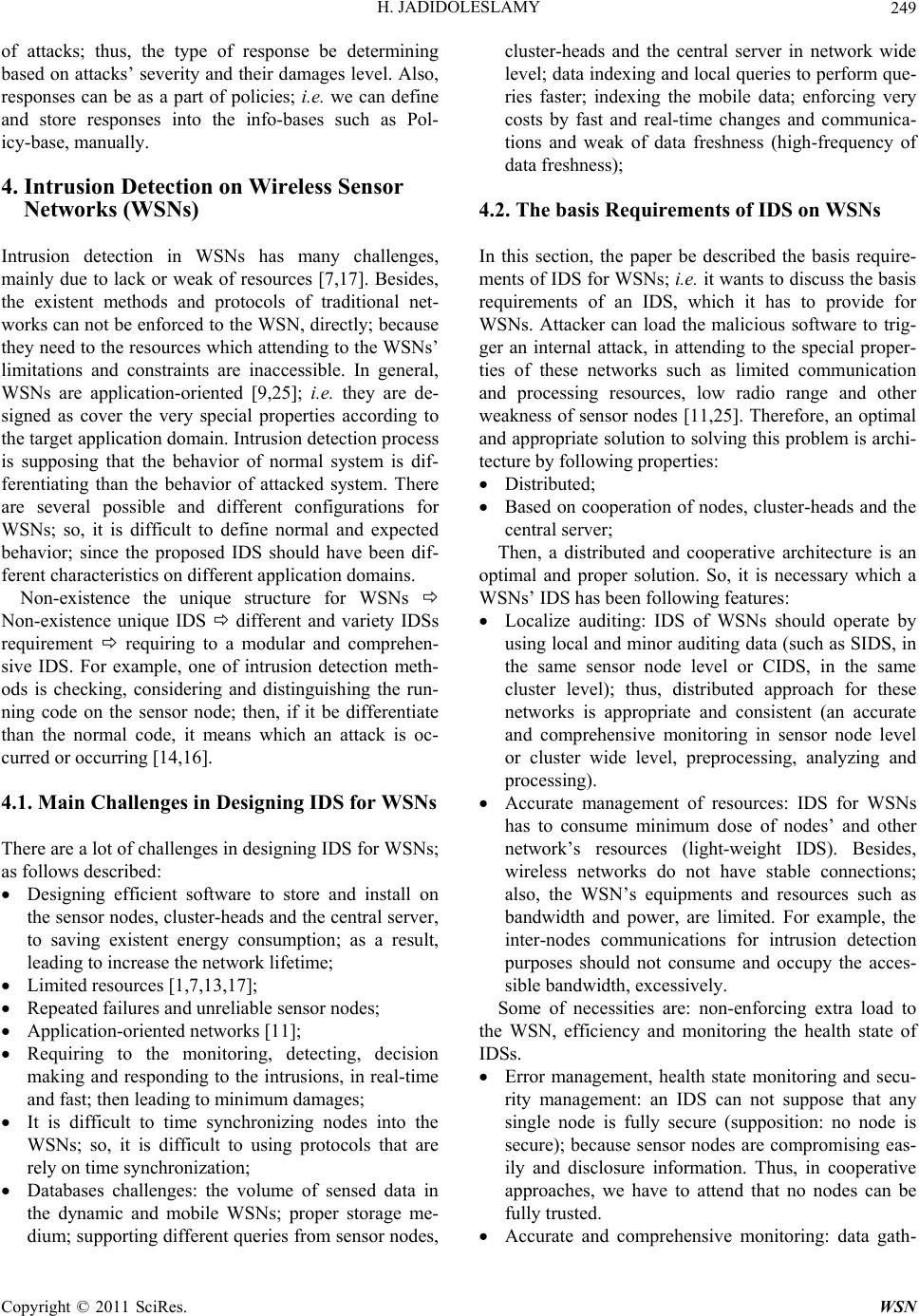

H. JADIDOLESLAMY249
of attacks; thus, the type of response be determining
based on attacks’ severity and their damages level. Also,
responses can be as a part of policies; i.e. we can define
and store responses into the info-bases such as Pol-
icy-base, manually.
4. Intrusion Detection on Wireless Sensor
Networks (WSNs)
Intrusion detection in WSNs has many challenges,
mainly due to lack or weak of resources [7,17]. Besides,
the existent methods and protocols of traditional net-
works can not be enforced to the WSN, directly; because
they need to the resources which attending to the WSNs’
limitations and constraints are inaccessible. In general,
WSNs are application-oriented [9,25]; i.e. they are de-
signed as cover the very special properties according to
the target application domain. Intrusion detection process
is supposing that the behavior of normal system is dif-
ferentiating than the behavior of attacked system. There
are several possible and different configurations for
WSNs; so, it is difficult to define normal and expected
behavior; since the proposed IDS should have been dif-
ferent characteristics on different application domains.
Non-existence the unique structure for WSNs 
Non-existence unique IDS  different and variety IDSs
requirement  requiring to a modular and comprehen-
sive IDS. For example, one of intrusion detection meth-
ods is checking, considering and distinguishing the run-
ning code on the sensor node; then, if it be differentiate
than the normal code, it means which an attack is oc-
curred or occurring [14,16].
4.1. Main Challenges in Designing IDS for WSNs
There are a lot of challenges in designing IDS for WSNs;
as follows described:
 Designing efficient software to store and install on
the sensor nodes, cluster-heads and the central server,
to saving existent energy consumption; as a result,
leading to increase the network lifetime;
 Limited resources [1,7,13,17];
 Repeated failures and unreliable sensor nodes;
 Application-oriented networks [11];
 Requiring to the monitoring, detecting, decision
making and responding to the intrusions, in real-time
and fast; then leading to minimum damages;
 It is difficult to time synchronizing nodes into the
WSNs; so, it is difficult to using protocols that are
rely on time synchronization;
 Databases challenges: the volume of sensed data in
the dynamic and mobile WSNs; proper storage me-
dium; supporting different queries from sensor nodes,
cluster-heads and the central server in network wide
level; data indexing and local queries to perform que-
ries faster; indexing the mobile data; enforcing very
costs by fast and real-time changes and communica-
tions and weak of data freshness (high-frequency of
data freshness);
4.2. The basis Requirements of IDS on WSNs
In this section, the paper be described the basis require-
ments of IDS for WSNs; i.e. it wants to discuss the basis
requirements of an IDS, which it has to provide for
WSNs. Attacker can load the malicious software to trig-
ger an internal attack, in attending to the special proper-
ties of these networks such as limited communication
and processing resources, low radio range and other
weakness of sensor nodes [11,25]. Therefore, an optimal
and appropriate solution to solving this problem is archi-
tecture by following properties:
 Distributed;
 Based on cooperation of nodes, cluster-heads and the
central server;
Then, a distributed and cooperative architecture is an
optimal and proper solution. So, it is necessary which a
WSNs’ IDS has been following features:
 Localize auditing: IDS of WSNs should operate by
using local and minor auditing data (such as SIDS, in
the same sensor node level or CIDS, in the same
cluster level); thus, distributed approach for these
networks is appropriate and consistent (an accurate
and comprehensive monitoring in sensor node level
or cluster wide level, preprocessing, analyzing and
processing).
 Accurate management of resources: IDS for WSNs
has to consume minimum dose of nodes’ and other
network’s resources (light-weight IDS). Besides,
wireless networks do not have stable connections;
also, the WSN’s equipments and resources such as
bandwidth and power, are limited. For example, the
inter-nodes communications for intrusion detection
purposes should not consume and occupy the acces-
sible bandwidth, excessively.
Some of necessities are: non-enforcing extra load to
the WSN, efficiency and monitoring the health state of
IDSs.
 Error management, health state monitoring and secu-
rity management: an IDS can not suppose that any
single node is fully secure (supposition: no node is
secure); because sensor nodes are compromising eas-
ily and disclosure information. Thus, in cooperative
approaches, we have to attend that no nodes can be
fully trusted.
 Accurate and comprehensive monitoring: data gath-

H. JADIDOLESLAMY 250
ering and analyzing them doing at some of specific
location (such as cluster-heads).
Some of necessities are: non-enforcing extra load to
the special components such as sensor nodes or clus-
ter-heads into the WSN, using detection mechanism,
audit trial, warning dependence, distributed and collec-
tive response at the level of the whole WSN.
 Robustness and fault tolerant: IDS must be robust and
resistant against attacks [17,20]. Compromising one
or more sensor node (their associated SIDSs) or even
a cluster-head and controlling the behavior of its em-
bedded CIDS, should not able attackers to remove an
authorized node from the WSN or prevent from de-
tecting another attacker or malicious node.
Some of necessities are: error management, keeping
configuration information and security management.
 Secure and under-control inter-modules (internal parts
of IDSs) and inter-components (between the WSN’s
components on different levels) data communications;
 Scalability;
 Reaction and tracking capabilities;
 Ease of use;
4.3. Intrusion Detection Approaches on WSNs
There are two major approaches for intrusion detection
in this domain, as follows:
 Centralized approach: for applications with accessible
nodes and possible to manage them, in centralize [15,
18]; but, this kind of architecture threats the entire
system security.
 Distributed approach: in this approach, it is possible
to have one IDS per each sensor node (SIDS); so,
sensor node usually makes decision autonomously
about sensor node level’s attacks (mainly, physical
attacks); also, there is one IDS per each cluster of
nodes (CIDS); in this case, cluster-heads usually
make decisions autonomously and independently
about their associated and co-cluster sensor nodes; in
some cases about boundary nodes, they cooperate to
each others for intrusion detection; so, they take deci-
sions, cooperatively. Thus, they using a cooperative
mechanism to take proper decisions and then, they
combine the local view of neighboring cluster-heads
to each other. In clustering method, all cluster-heads
that place in the radio range of a node, can surveil-
lance on that node, to identify malicious nodes accu-
rately by using the majority rule; even though chain-
ing destruction.
The proposed approach is combinational; i.e. at first,
the existent sensor nodes be classified in subsets, called
cluster; then, a cluster-head be selected per each cluster.
Now, in low level, a series of distributed IDS, called
SIDS, be installed on sensor nodes; in medium level, a
series of distributed IDS, called CIDS, be installed on
cluster-heads; these IDSs have communicate to each other
and corresponding cluster nodes; also, they have commu-
nicate to the central server (high level IDS: WSNIDS).
Besides, there is a centralized and comprehensive IDS on
highest level of the WSN intrusion detection architecture
which has been installed and deployed on the powerful
central server, calling the WSNIDS.
5. The proposed Intrusion Detection
Architecture (IDA) for WSNs
As Figure 5 is showing, the suggested architecture has a
combinational (distributed, in two low levels and cen-
tralized, in highest level) and hierarchical structure; thus,
the proposed approach can be used in 1, 2 or 3 levels of
IDSs, including SIDSs (on sensor nodes), CIDSs (on
cluster-heads) and the WSNIDS (on the central server).
5.1. Sensor-Based Intrusion Detection System
(SIDS: Sensor Node Level IDS)
In low level of the proposed architecture (sensor nodes),
there is a simple IDS or Sensor-based IDS (SIDS/HIDS)
per each sensor node. In each sensor node, there is a
small policy-base that is including most common attacks
in this domain along with special and limited preproc-
essing capabilities such as extracting the required data
fields from the network packet. This IDS is signa-
ture-based; if an attack be detected, according to the de-
termined response into the corresponding policy and se-
curity rule, it be responded (autonomous and independ-
ent decision making). If the traffic was not on intrusion
or there is not a matched policy in the sensor-based pol-
Figure 5. The proposed Intrusion Detection Architecture
(IDA) for WSNs.

H. JADIDOLESLAMY 251
icy-base (SBPB), it be labeled and it will be send to the
high-levels of the IDA (other IDSs) (cooperative deci-
-sion making), to considers more. Some of most impor-
tant features of SIDS are:
 There is a SIDS on each typical sensor node; so, in
this case, nodes besides performing the common
functions of typical sensor nodes like sensing and
gathering information, routing packets into the WSN
and retransmission, doing also intrusion detection
functionalities (operating as IDS, too).
 Architecture: HIDS;
 Detection method: signature-based;
 Response approach: hybrid;
 Decision making: almost independent and autono-
mous;
 Some of common operations of each SIDS are: pre-
processing, extracting the properties and fields of
packets, processing, enforcing rules and comparing
policies to the current traffic by attending to the ap-
plication area, type and nature of the WSN and possi-
ble attacks, decision making and finally, reacting by
proper actions;
 Fields of data packets must be selected as be inte-
grated, unique and low-size and low volume; besides,
they should be optimal on processing, energy con-
sumption, response time and delay; to leading to high
performance. Some of most important fields are:
Source: node-id, Next hop, Previous hop, Data type,
Destination (CIDS/WSNIDS-id), Data and Sequence
number (optional).
 SIDSs mainly are focused on detecting physical at-
tacks of WSNs;
 Gathering data in intervals times, comparing them to
the predefined thresholds and assigning a state label
to them such as notification, warning or normal;
 In this approach, in attending to the distributed design
for intrusion detection on WSNs, each sensor node
only operates by using accessible local and partial
information on the sensor node level; of course, it
also using a distributed design for intrusion detection.
 In homogenous WSNs, SIDSs are same exactly on
entire sensor nodes; they can broadcast, eavesdrop
and listen to the messages (for example, messages
that come from other neighboring sensor nodes). The
communication between nodes, cluster-heads and the
central server, provide possibility of using a distrib-
uted mechanism to take the final decision about in-
trusion threat.
 In heterogeneous WSNs, SIDSs are different than
each others (since the systems and data types are dif-
ferent).
 The main properties of SIDSs are:
o Using local and minor information for intrusion de-
tection (localize auditing);
o Low error rates;
Each sensor node in the WSN should have been a
SIDS by following functionalities (according to Figure
6):
 Network monitoring: each sensor node monitors its
immediate neighboring and nearby nodes to gathering
audit data;
 Decision making: sensor node using gathered audit
data (on previous step) to make decision on intrusion
threat level based on node and appropriate responses;
if necessary, it shares its findings with associated
cluster-head (s) to take proper decision, in collective.
 Reaction: each sensor node has responding mecha-
nisms which allow it to react to the intrusion situa-
tions.
 Internal components and modules which are existing
into the SIDS’s architecture are (as shown in Figure
6):
 local packet monitoring: gathering, auditing and fil-
tering raw data for local detection engine module;
these data usually are gathering by listening to the op-
erating environment and transmissions of neighboring
nodes (in promiscuous);
Figure 6. High-level architecture of the SIDS.

H. JADIDOLESLAMY 252
 Independent and local detection engine: analyzing
and comparing audit data, in attending and consider-
ing to the properties, given limitations and predefined
rules and enforcing detection techniques; this com-
ponent stores, imposes and operates rely on signa-
ture-based detection method which describes attacks’
patterns;
 Local decision making;
 local response module: it is possible to divide re-
sponses into two categories, according to the attacks’
nature; i.e.: direct response and indirect response;
once an intrusion occurred, compromised node will
be detected and this module will trigger proper ac-
tions; including: disconnecting session, isolating in-
truder and compromised node, preventing the mali-
cious/suspicious node from entire network’s routes,
network recovery, improving the used routing proto-
col, producing and using new cryptography keys, no-
tifying to the associated cluster-head (s), reducing the
quality estimation of the link to that node. According
to the independent and autonomous behavior of
WSNs, these functions must be doing without human
agent intervention and in finite time.
Communication mechanism: this module is using to
establish communication between sensor node (SIDS),
cluster-heads (CIDSs) and the central server (the
WSNIDS).
5.2. Cluster-Based Intrusion Detection System
(CIDS: Cluster-Level IDS)
CIDSs place on the medium level of the proposed archi-
tecture (according to the Figure 7); i.e. they install and
deploy on the heterogeneous cluster-heads. There is a
cluster-head per each cluster of sensor nodes which it
covers its radio range sensor nodes; so, the intrusion de-
tection process does by cluster-heads. There is a small
and low-size policy-base (Cluster-Based Policy Base:
CBPB) on each cluster-head that includes the most
common patterns of attacks on this domain, along with
some preprocessing capabilities such as requirement data
field extraction from the network packets and packets
filtering. If an attack detects, according to the predefined
actions into the policy-base and the corresponding secu-
rity rule-base, the IDS is responding to it. In this level,
decision is making in combinational; so, if the current
traffic be from the internal of the cluster, the proper de-
cision takes autonomously and independently; also, if the
current traffic be from the boundary nodes (between dif-
ferent neighboring clusters), the collector be selected and
then, the collector enforces the majority rule to takes the
final decision; finally, if the current traffic not be about
an intrusion or the collector can not take a decision (if
the majority rule be inefficient), for more consideration,
that traffic labeled (for example, rely on the attack esti-
Figure 7. High-level architecture of the CIDS.

H. JADIDOLESLAMY253
mation severity by current node) and will forward to the
central server (centralized-cooperative decision making
by CIDSs and the WSNIDS). Some of most common
properties of CIDS are:
 A cluster-head node, besides performing the common
functions of typical sensor nodes like sensing and
gathering information, routing packets into the WSN
and retransmission, doing also intrusion detection
functionalities.
 Some of common operations of each CIDS are: pre-
processing, filtering, reducing unsuitable data, extract-
ing the properties and fields of packets, processing,
enforcing rules and comparing policies to the current
traffic by attending to the application area, type and
nature of the WSN and possible attacks, decision
making and finally, reacting by appropriate actions;
 Gathering events in intervals time, comparing them to
the predefined thresholds and assigning a state label
to them such as notification, warning or normal;
 In this approach, each cluster-head can operate only by
using accessible local information on the cluster-wide
level; in other words, it can make decision about intru-
sion occurrence of its cluster nodes, autonomously; of
course, it also using a distributed design for decision
making on intrusion detection between sensor nodes,
cluster-heads and the central server, provide possibility
of using a distributed mechanism to take the final deci-
sion about intrusion threat.
 In homogenous WSNs, CIDSs are same exactly on
entire cluster-heads or sensor nodes and other WSN’s
components; they can broadcast, eavesdrop and listen
to the messages (for example, messages that come
from other cluster-heads).
 In heterogeneous WSNs, CIDSs are different than
each others and other WSN’s components (since the
hosting systems and data types are different).
 The main properties of CIDS are:
o Using local information for intrusion detection (lo-
calize auditing);
o Low error rates (due to existing comprehensive Info-
bases);
Each cluster-head in the WSN should has been a CIDS
by following functionalities (according to the Figure 7):
 Cluster-based monitoring: each cluster-head monitors
its immediate neighboring and nearby nodes (mem-
bers of its associated cluster) to gather auditing data;
 Decision making: cluster-head using audit data that
gathered on previous stage, to make decision on in-
trusion threat level based on node, based on cluster
and appropriate responses; if necessary, it shares its
findings with other neighboring cluster-heads to take
proper decision, in collective.
 Reaction: each sensor node and cluster-head has re-
sponding mechanisms which allow it to react to the
intrusion situations.
Internal components and modules which are existing
into the CIDS’s architecture are (as shown in Figure 7):
 Cooperative and local monitoring: gathering, auditing
and filtering primary data for detection engine mod-
ule; audit data of a CIDS is communication activities
into its radio range; these data usually are gathering
by listening to the transmissions of corresponding
cluster nodes and neighboring cluster-heads (CIDSs);
 Independent and local detection engine (cluster-head
level): analyzing and comparing audit data, in at-
tending and considering to the properties, given limi-
tations and predefined rules and enforcing detection
techniques; this component stores, imposes and oper-
ates rely on specification-based detection method
which describes correct operations;
 Collective detection engine: collector and the major-
ity rule enforcement; if there was a document rely on
intrusion; this module broadcast the information of
local detection process state to the neighboring nodes.
The same module in any cluster-head is gathering this
information from entire neighboring cluster-heads
and enforcing the majority rule to concluding if an
intrusion is occurred or not (for taking requirement
decisions on boundary nodes).
 Decision making module: including local decision
making and cooperative decision making;
 Response module: it is possible to divide responses
into two categories, according to the attack nature; i.e.:
direct response and indirect response; once an intru-
sion occurred, node or compromised area will be de-
tected and this module will does proper actions; in-
cluding: disconnecting session, isolating intruder and
malicious area (compromised nodes), preventing the
malicious/suspicious node from entire WSN’s routes,
network recovery, improving the used routing proto-
col, producing and using new secret keys, notifying to
the WSNIDS and associated node by corresponding
cluster-head (s), reducing the quality estimation of the
link to that node. According to the independent and
autonomous behavior of WSNs, these functions must
be doing without human agent intervention and in
limited time.
Communication mechanism: this module is using to
establish communication between inter-cluster sensor
nodes, neighboring cluster-heads and the central server.
5.3. Wireless Sensor Network-Based Intrusion
Detection System (WSNIDS: WSN Wide
Level IDS)
The WSNIDS place on the highest level of the proposed
architecture; i.e. it installs and deploys on the heterogene-

H. JADIDOLESLAMY 254
ous central server and management part. As Figure 8
shows, this is a comprehensive IDS which has some of
complete info-bases including a series of comprehensive
and integrated policy-bases along with some agents to
distinguishing anomalies. Also, the hosting system and
deployment location of this IDS is a powerful system
which has high software and hardware equipments and
capabilities.
Figure 8 represents the basic architecture of the
WSNIDS in form of existent main modules and proce-
dures into the system (WSNIDS); this system is doing
many activities, such as: distinguishing the referral traffic
from cluster-heads, full processing, analyzing and detect-
ing, logging, performing associated and appropriate re-
sponses, and then, tracking and forensic analysis (ac-
cording to Figures 8 and 9).
Following figure (Figure 10) is showing the data flow
into the WSNIDS, in more detailed.
As shown Figures 8-10, the WSNIDS is based on
analyzing audit data, detected events by cluster-heads
and inference the WSN’s behaviors. The taken approach
in the WSNIDS has following features:
Figure 8. The basis architecture of the WSNIDS.
Figure 9. The WSNIDS work flow.

H. JADIDOLESLAMY255
Figure 10. The WSNIDS data flow.
 Using an agent and policy-based platform;
There are four different layers, including: acquisition
and preprocessing traffic layer, processing and analyzing
layer, decision making and response layer and tracking
and forensic analysis layer; also, it has a user interface in
different layers.
5.4. The Major Properties of the Proposed
Architecture
The suggested system has following features:
 Distributed, hierarchical and cooperation-based struc-
ture (based on participation of sensor nodes, cluster-
heads and the central system to each others);
 Efficiency, high performance, optimal energy con-
sumption and increase the WSN lifetime and its sta-
bility;
 Independent and autonomous SIDSs;
 Independence and autonomous CIDSs; they do not
have any dependency to each other, or they have
minimum dependency (else about decision making on
boundary sensor nodes); however, each CIDS does its
functions independently, almost entirely. Most of
times, it also takes decisions, itself/alone (else about
boundary nodes).
 Ease of extensibility, too much scalability and high
flexibility;
 Powerful detection process (since there are SIDSs on
sensor nodes, CIDSs on the cluster-heads, WSNIDS
on the central server, appropriate policies and rules
and comprehensive info-bases);
 IDSs based on agent and policy;
 It allows to use authentication and authorization me-
chanisms for different levels of the proposed archi-
tecture; for example, SIDSs to the associated CIDSs
and CIDSs to the WSNIDS, to establishing secure
communications between different existent IDSs and
preventing from intrusion of unauthorized systems;
 Providing information to tracking attackers (support-
ing forensic analysis, detecting and finding attackers

H. JADIDOLESLAMY 256
on cyber space for preventing from electronic crimes);
 The performance of the proposed model is depending
on response time (time consumed to search and find-
ing appropriate pattern for query matching into the
info-bases like policy-base);
 Fault tolerant and dynamic reconfiguration:
o Using backup network equipments, such as sensor
nodes in low level and cluster-heads in medium level
of the proposed architecture; i.e. there are some
backup sensor nodes and backup cluster-heads;
o Using backup agents into the IDSs;
o Clusters overlapping (increased stability);
o Existing dynamic reconfiguration agents for each
SIDS, CIDS, and the WSNIDS;
o Updating resources and info-bases in manual or
automatic; for example, by using new patterns of at-
tacks, or dynamic and manual/automatic change of
thresholds, but in attending to the current conditions
of the WSN; or changing the response type once an
event occurred;
 Security considerations:
o IDS protection (monitoring the health state of IDSs
and their hosting systems, continuously);
o The architecture is dependence to the network data
flow;
o Existence logging capabilities;
o Using cryptography and secret key to exchange in-
formation between sensor nodes and associated clus-
ter-heads, and between cluster-heads and the central
server (WSNIDS), to preventing from intrusion and
avoiding from establishing unauthorized direct com-
munication to IDSs through unauthorized systems.
6. Results
This paper has been designed a questionnaire to verify
the proposed system. The prepared questionnaire is in-
cluding some questions about different aspects and prop-
erties of the IDA; it also discusses the high-level and
general requirements of IDSs, which focused on IDSs’
performance and functionality. The properties and their
associated questions are classified into 6 categories, in-
cluding: processing and managing properties, operational,
output, technical and finally, special and high-level
properties. The questionnaire is presented to some ex-
perts in WSN and IDS areas (almost 50 people). Then,
the acquired result has been analyzed and evaluated in
form of following tables and figure.
6.1. Preprocessing and Processing Properties
As Table 1 is showing, the proposed architecture sup-
ports different dimensions of IDSs’ processing properties.
For example, the IDA’s monitoring level is almost 98.7
percent; i.e. it covers the WSN’s components such as
sensor nodes, cluster-heads and the central server, almost
completely. Also, the extendibility capability of the IDA
is about 84.9 percent. Besides, the IDA has dynamic
re-configurability capability about 75.6 percent. The
suggested system is supporting local/remote control and
distributed databases capabilities. It is evaluated the IDA
is including the properties of processing and managing
category of IDSs’ requirements about 86.4 percent, in
average.
6.2. Operational Properties
Table 2 is representing the different aspects of the IDA’s
operational requirements. According to the following
table, the IDA supports real-time detection property al-
most 82.3 percent. Also, it has the content-based (body
of a packet) detection and context-based (header of a
packet) detection capabilities about 94.5 and 66.8 percent,
in order. The proposed system is independent of used
platform and Operating System (OS); in other words, it
is supporting multiple platforms and multiple OS. The
suggested system supports hierarchical reporting struc-
ture and it reacts to the attacks, automatically; i.e. into
the IDA, sensor nodes report and communicate to the
cluster-heads and cluster-heads report and communicate
to the central server. Finally, the IDA is included the
properties of this IDSs’ requirement category about 81.2
percent, in total.
Table 1. Processing properties of the IDA.
Functional properties Non-Functional properties
No. Question
Yes No In percentage (0 - 100) : Total average
1 Monitoring level ― 98.7
2 Extendibility and flexibility ― 84.9
3 Dynamic re-configurability capability ― 75.6
4 Local and remote control capabilities Yes ―
5 Distributed databases capabilities Yes ―
Average (percentage) ― 86.4

H. JADIDOLESLAMY257
Table 2. Operational properties of the IDA.
Functional propertiesNon-Functional properties
No. Question Yes No In percentage (0 - 100) : Total average
1 Gathering intrusion detection and vulnerability data in
real-time and non real-time ― 82.3
2 Content-based detection capability ― 94.5
3 Context-based detection capability ― 66.8
4 Supporting multiple platforms and multiple OS Yes ―
5 Hierarchical reporting structure Yes ―
6 Automatic reaction to the intrusions Yes ―
Average (percentage) ― 81.2
6.3. Output Requirements
Following table (Table 3) shows the IDA has different
characteristics in output requirement area, including: it
can make attackers profile, security profile and system
profile; of course, by attending and using the logged in-
formation and data flow into the WSN.
6.4. Technical Requirements
Table4 is representing and questioning the IDA’s tech-
nical properties. For example, ease of implementation of
the proposed system is evaluated about 91.2 percent; the
IDA has fault tolerant, scalability, robustness and safety
capabilities, each one almost 83.4, 95.1, 72.5 and 78.6
percent, in order. Also, the suggested system can using
cryptography and digital signature, key management,
authentication and authorization mechanisms to estab-
lishing secure connections between different levels of the
WSN’s components. Besides, the IDA is an efficient
system; since it does not enforce extra load to the WSN
resources and its normal functionalities. As a result, the
proposed architecture supports different properties of this
IDSs’ requirement category about 84.2 percent, in aver-
age.
6.5. Special and High-Level Properties of the
IDA
Following table (Table 5) represents and considers the
required especial and high-level properties of the IDA.
As the acquired result of the questionnaires shows, the
proposed system has distributed and hierarchical archi-
tecture, based on cooperation of sensor nodes, cluster-
heads and the central server to each others; also, the
CIDSs are independent than each others (about 84.5 per-
cent). The IDA is included centralized management on
the WSN resources (such as info-bases) and its compo-
nents. The proposed system supports localize auditing
capability; i.e. SIDSs and CIDSs can operate by using
partial and local auditing data, in sensor-level and clus-
ter-head level (almost 94.7 percent). This system is in-
cluded minimize resources property; i.e. It has attention
to the minimize resources property, in the design phase
and it tries to consume energy, in appropriate (90.3 per-
cent). This architecture supports accurate management of
resources, non-enforcing extra load to the WSN and
monitoring the health state of IDSs and the WSN com-
ponents. The IDA is including truly distributed property;
i.e. it is gathering and analyzing data in some determined
locations, such as cluster-heads; also, it does not enforce
extra load to the some determined nodes (it is using dis-
tributed approach about 82.2 percent). The proposed
system is a secure architecture; i.e. it is resistant and ro-
bust against attacks (almost 79.8 percent); so, if one or
more sensor node (their SIDSs) or a cluster-head and
associated CIDS be compromised, it should not be leads
to missing the control on the WSN; for example, re-
moving an authorized node from the network or
non-detection of an attacker node. The IDA has central-
ized control on inter-components data communications
and interactions from the central server, by user. The
level of interaction between different network compo-
nents in its different levels to each others in the same or
different levels of the network (between sensor nodes
and CIDSs, between CIDSs to each others, between
CIDSs and the WSNIDS) is almost 93.5 percent. This
system can detect chaining attacks by using powerful
detection process and audit trial mechanisms (about 65.8
percent). The IDA is evaluated as an optimal system in
energy consumption; since, it is attending to the energy
consumption in designing step (almost 81.4 percent). The
strength of detection process on the proposed system is
evaluated about 96.9 percent (because there is strong and
big info-bases and hierarchical detection process). The
IDA has attention to taking back-up designs; i.e. it sup-
ports the back-up components and performs operations
such as buffering. The IDA’s efficiency and its func-
tionality are depending on to the network data flow; its
dependability is evaluated almost 86.5 percent. The sug-
gested architecture is consistent to the centralized and
autonomous operations in different levels of WSNs; its
consistency is evaluated about 89.3 percent. The pro-
posed system is providing the possibility of updating
and configuring network components from different con-
trol locations; i.e . it is possible to configure sensor nodes

H. JADIDOLESLAMY 258
Table 3. Output properties of the IDA.
Functional properties Non-Functional properties
No. Question Yes No In percentage (0 - 100) : Total average
1 Making attackers profile Yes ―
2 Providing security profile Yes ―
3 representing the system profile Yes ―
Average (percentage) ― ―
Table 4. Technical properties of the IDA.
Functional propertiesNon-Functional properties
No. Question Yes No In percentage (0 - 100) : Total average
1 Ease of implementation ― 91.2
2 Fault tolerant capability ― 83.4
3 Scalability ― 95.1
4 Robustness ― 72.5
5 Safety (against unauthorized access) ― 78.6
6 Possibility of using key management and authentication
mechanisms
Yes ―
7 Enforcing extra load to the WSN No ―
Average (percentage) ― 84.2
Table 5. Special and high-level properties of the IDA.
Functional propertiesNon-Functional properties
No. Question Yes No In percentage (0 - 100) : Total average
1 Distributed and hierarchical architecture, based on
cooperation Yes ―
2 Undependability of CIDSs ― 84.5
3 Centralized management on the WSN Yes ―
4 Localize auditing capability ― 94.7
5 Minimize resources property ― 90.3
6 Accurate management of resources and monitoring the
health state of IDSs and the WSN components Yes ―
7 Truly distributed ― 82.2
8 The IDA security ― 79.8
9 Centralized control on inter-components data
communications Yes ―
10 Interaction level between different network components ―
93.5
11 Ability to detecting chaining attacks ― 65.8
12 Attending to the energy consumption ― 81.4
13 Strength of detection process ― 96.9
14 Possibility to taking back-up designs Yes ―
15 Data flow dependability ―
86.5
16 Consistency to the centralized and autonomous
operations of the WSN
―
89.3
17 Existing different control locations Yes ―
18 Ease of updating ― 84.9
19 Possibility to updating the IDSs (SIDSs, CIDSs and the
WSNIDS)and operational using of them, simultaneously Yes ―
20 Combinational decision making technique Yes ―
Average (percentage) 85.8
from cluster-heads and the central server; or configuring
cluster-heads from the central server. Ease of updating
and integrating new capabilities and new functionalities
to the proposed system is almost 84.9 percent. It is also
possible to update the IDSs (SIDSs, CIDSs and the
WSNIDS) and operational using of them, simultaneously.
The proposed system supports combinational decision
making technique; i.e. it is possible to making decisions
autonomously (by SIDSs and CIDSs) and if necessary,
taking cooperative decisions (by CIDSs, collector and
the WSNIDS). As a result, the IDA is included different
properties of this IDSs’ requirement category almost
85.8 percent, in total.
7. Conclusions
The purpose of this paper is discussing the intrusion de-
tection problem on WSNs and designing an Intrusion
Detection Architecture (IDA) for these networks, of
course by attending to their constraints. The suggested

H. JADIDOLESLAMY259
system depends on situations, the WSN’s application
area, the requirement security level and other things such
as its cost, can be used and implemented in 1, 2 or 3 lev-
els; including: SIDSs (monitoring the local host) on the
sensor nodes, CIDSs (surveillance, monitoring and con-
trol in cluster-level) on cluster-heads and the WSNIDS
(monitoring and control in the WSN-wide level) on the
central management system. The main attributions of the
suggested architecture are as following:
 The IDA properties: hierarchical, distributed, scalable
fault tolerant, robustness and clustering;
o Distributed systems are more scalable and more
robust;
 The proposed IDSs (SIDS, CIDS and WSNIDS)
properties: based on agent and policy, independent
and autonomous agents, strong and comprehensive
info-bases, dynamically reconfigurable, scalable,
component-based and modular, fault tolerant and ro-
bustness, high-flexibility, host-based (SIDS) and
network-based (CIDS and WSNIDS) architectures;
 Detection method:
o Combinational (specification-based);
o Uncentralized (detection in 1, 2 or 3 levels); be-
cause these networks are application-oriented;
 Decision making approach: combinational;
o About each sensor node, the associated SIDS makes
decision, independent and autonomously;
o About each cluster, the corresponding cluster-head
(CIDS) makes decision, independently and
autonomously;
o About anomaly occurrence or boundary nodes, as-
sociated SIDSs and CIDSs, collector and the
WSNIDS make final decision, cooperatively;
o About some cases of anomalies, existent informa-
tion is presented to the human agent;
 Response method: combinational; i.e. active response
and passive response, depending on to the conditions
and the attack’s nature;
 Fast and real-time detection process and response:
reducing the response time by using caching and
buffering techniques to preventing from scrolling the
entire file for a repeated event or using better mecha-
nisms for query in policy-bases; besides, SIDSs and
CIDSs are very near to attackers;
 Comparative and multi-agent detection process to
detecting attacks along with low error rate;
 The heterogeneous WSN and IDSs;
 Consistent with automatic, autonomous and inde-
pendent mechanisms of WSNs;
 Possibility of centralized management on systems and
resources by using the WSNIDS;
 Focused on routing layer, mainly;
 According to the Tables 1, 2, 4 and 5, the following
table (Table 6) is representing integrated average
values of different IDSs’ requirement classes.
 According to the Table 6, following figure (Figure
11) is formed. Figure 1 is showing the sum average
values of different IDSs’ properties categories; in
other words, the IDA supports different categories of
IDSs’ required properties (as Figure 11 shows).
 As above figure shows, the processing and managing
properties of the suggested system has been assessed
almost 86.4 percent, in average; i.e. the IDA supports
different aspects of this requirement category about
86.4 percent. Also, the supported operational and
technical properties by the proposed architecture have
been evaluated about 81.2 and 84.2 percent, in order.
The proposed system is included especial and high-
level required properties of IDSs almost 85.8 percent,
in general. As a result, the proposed system is in-
cluded different IDSs’ requirement categories almost
84.3 percent, in total average.
In summarize, the posed model in this paper is a com-
prehensive model which has some main properties such
as robustness, scalability, responsively, extensibility and
incremental matching along with environment changes
and its new conditions. Also, the IDA is focused on inte-
grating the accessible tools in security area of computer
networks (like IDSs, logging, tracking and forensic
analysis systems). This model is a distributed model for
intrusion detection on WSNs, which it is designed as
even it can operates by only using minor and local acces-
sible information in each sensor node, cluster and clus-
ter-head; i.e. it can uses from the local sensor-level and
cluster-wide information to detects intrusions by SIDSs
or CIDSs. Also, if necessary, sensor nodes, cluster-heads
and the central server cooperate to each others to take an
appropriate decisions about if an attack occurred, or not;
in other words, they share their information to each oth-
ers, with associated CIDSs, collector and if necessary,
with the WSNIDS, to detect and make final decision on
detected anomaly. It is hoped to this research able us to
Table 6. Total average value of different properties category.
No. Properties class Total average value (in percentage)
1 Preprocessing, processing, assessing and managing properties86.4
2 Operational properties 81.2
3 Technical properties 84.2
4 Special and high-level properties 85.8
Average value (in percentage) 84.3

H. JADIDOLESLAMY 260
86.4
81.2
84.2
85.8
84.3
78
79
80
81
82
83
84
85
86
87
Total average
value
Category of properties
Sum average values of different IDSs' properties categories
Processing category86.4
Operational category81.2
Technical category84.2
Special and High-level85.8
Total Average84.3
Processing OperationalTechnicalHigh-levelTotal
Average
Figure 11. The sum average values of different IDSs’ properties categories.
improving the security level of WSNs.
8. Future Works
Some of research areas in this domain to improve and
extend the proposed model capabilities are:
 Improving response scheduling, priority responses
and having more control on response production
mechanism;
 Providing higher level of security, fault tolerant and
robustness for suggested architecture;
 Centralizing more detailed information about system
activities for forensic analysis;
 Efficient data management;
 Developing user friendly interfaces which allow dy-
namic reconfiguration of systems (the SIDSs, CIDSs
and the WSNIDS) and representing the activities of
these systems, in graphical;
 Approaches for data aggregation in WSNs’ different
protocols;
 Techniques for using of mobile nodes in WSNs;
Work in this area always is growing and as the WSNs
are changing, and their utility, performance and applica-
tion are increasing, the security threats also are increas-
ing; so, architectures and IDSs to protecting WSNs
against different types of attacks will be required, more
and more.
9. References
[1] S. Mohammadi, R. A. Ebrahimi and H. Jadidoleslamy,
“A Comparison of Routing Attacks on Wireless Sensor
Networks,” International Journal of Information Assur-
ance and Security, Vol. 6, No. 3, 2011, pp. 195-215.
[2] S. Mohammadi and H. Jadidoleslamy, “A Comparison of
Link Layer Attacks on Wireless Sensor Networks,” In-
ternational Journal of Information Security, Vol. 2, No.
2, 2011, pp. 69-84.

H. JADIDOLESLAMY261
[3] S. Mohammadi and H. Jadidoleslamy, “A Comparison of
Transport and Application Layers Attacks on Wireless
Sensor Networks,” International Journal of Information
Assurance and Security, Vol. 6, 2011, pp. 331-345.
[4] B. Krishnamachari, D. Estrin and S. Wicker, “The Im-
pact of Data Aggregation in Wireless Sensor Networks,”
International Workshop on Distributed Event-Based Sys-
tems, Vienna, July 2002, pp. 457-458.
[5] K. Sharma and M. K. Ghose, “Wireless Sensor Networks:
An Overview on Its Security Threats,” International
Journal of Computers and Their Applications, Vol. 1,
Special Issue on “Mobile Ad-hoc Networks”, 2010, pp.
42-45.
[6] S. Mohammadi and H. Jadidoleslamy, “A Comparison of
Physical Attacks on Wireless Sensor Networks,” Interna-
tional Journal of Peer to Peer Networks, Vol. 2, No. 2,
2011, pp. 24-42. doi:10.5121/ijp2p.2011.2203
[7] M. Saxena, “Security in Wireless Sensor Networks: A
Layer-based Classification,” Department of Computer
Science, Purdue University, 2011.
https://www.cerias.purdue.edu/apps/reports_and_papers/v
iew/3106
[8] T. A. Zia, “A Security Framework for Wireless Sensor
Networks,” Doctor of Philosophy (PhD) Thesis, The
School of Information Technologies, University of Syd-
ney, 2008.
[9] A. Perrig, R. Szewczyk, V. Wen, D. Culler and D. Tygar,
“SPINS: Security Protocols for Sensor Networks,” Pro-
ceedings of 7th Annual International Conference on Mo-
bile Computing and Networks, Rome, July 2001.
[10] Z. Li and G. Gong, “A Survey on Security in Wireless
Sensor Networks,” Department of Electrical and Com-
puter Engineering, University of Waterloo, Canada, 2011.
http://www.cacr.math.uwaterloo.ca/techreports/2008/cacr
2008-20.pdf
[11] J. Yick, B. Mukherjee and D. Ghosal, “Wireless Sensor
Network Survey,” Elsevier’s Computer Networks, Vol.
52, No. 12, 2008, pp. 2292-2330.
doi:10.1016/j.comnet.2008.04.002
[12] A. Dimitrievski, V. Pejovska and D. Davcev, “Security
Issues and Approaches in WSN, Department of computer
science,” Faculty of Electrical Engineering and Informa-
tion Technology, Skopje, 2011.
http://ict-act.org/ICTInntions.../ictinnovations2009_subm
ission_21.pdf
[13] C. Karlof and D. Wagner, “Secure Routing in Wireless
Sensor Networks: Attacks and Countermeasures,” Pro-
ceedings of the 1st IEEE International Workshop on Sen-
sor Network Protocols and Applications, Alaska, 11 May
2003, pp. 113-127.
[14] R. A. Kemmerer and G. Vigna, “Intrusion Detection: A
Brief History and Overview,” Computer Society, Vol. 35,
No. 4, 2002, pp. 27-30.
doi:ieeecomputersociety.org/10.1109/MC.2002.10036
[15] Ch. Krügel and Th. Toth, “A Survey on Intrusion Detec-
tion Systems,” TU Vienna, Austria, 2000.
[16] A. K. Jones and R. S. Sielken, “Computer System Intru-
sion Detection: A Survey,” University of Virginia, 1999.
[17] K. Scarfone and P. Mell, “Guide to Intrusion Detection
and Prevention Systems (IDPS),” NIST 800-94, Feb
2007.
[18] G. Maselli, L. Deri and S. Suin, “Design and Implemen-
tation of an Anomaly Detection System: an Empirical
Approach,” University of Pisa, Italy, 2002.
[19] S. Northcutt and J. Novak, “Network Intrusion Detection:
An Analyst’s Handbook,” New Riders Publishing, Thou-
sand Oaks, 2002.
[20] V. Chandala, A. Banerjee and V. Kumar, “Anomaly De-
tection: A Survey, ACM Computing Surveys,” University
of Minnesota, September 2009.
[21] J. Molina and M. Cukier, “Evaluating Attack Resiliency
for Host Intrusion Detection Systems,” Information As-
surance and Security Journal, Vol. 4, 2009. pp. 1-9.
[22] S. Zanero and S. M. Savaresi, “Unsupervised Learning
Techniques for an Intrusion Detection System,” Proceed-
ings of ACM Symposium on Applied Computing, New
York, 2004, pp. 412-419. doi:10.1145/967900.967988
[23] S. Selliah, “Mobile Agent-Based Attack Resistant Archi-
tecture for Distributed Intrusion Detection System,” MSc
Thesis, College of Engineering and Mineral Resources at
West Virginia University, 2001.
[24] O. Depren, M. Topallar, E. narim and M. K. Ciliz, “An
Intelligent Intrusion Detection System (IDS) for Anomaly
and Misuse Detection in Computer Networks,” Expert
Systems with Applications, Vol. 29, No. 3, 2005, pp. 713-
722.
[25] V. Handziski, A. K’opke, H. Karl, C. Frank and W. Dryt-
kiewicz, “Improving the Energy Efficiency of Directed
Diffusion Using Passive Clustering,” Proceedings of 1st
European Workshop on Wireless Sensor Networks, Ber-
lin, 2004, pp. 172-187.
