Piezoelectric Vibration Harvesters Based on Vibrations of Cantilevered Bimorphs: A Review

Anam Khalid1, Amit Kumar Redhewal1, Manoj Kumar1, Anupam Srivastav2*

1Mechanical Engineering Department, IFTM University, Moradabad, India

2Middle East College, Knowledge Oasis Muscat, Sultanate of Oman

Email: *

Copyright © 2015 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

Received 27 May 2015; accepted 26 September 2015; published 29 September 2015


With the advancement in the technologies around the world over the past few years, the micro- electromechanical systems (MEMS) have gained much attention in harvesting the energy for wireless, self-powered and MEMS devices. In the present era, many devices are available for energy harnessing such as electromagnetic, electrostatic and piezoelectric generator and these devices are designed based on its ability to capture the different form of environment energy such as solar energy, wind energy, thermal energy and convert it into the useful energy form. Out of these devices, the use of a piezoelectric generator for energy harvesting is very attractive for MEMS applications. There are various sources of harvestable energy including waste heat, solar energy, wind energy, energy in floating water and mechanical vibrations which are used by the researchers for energy harvesting purposes. This paper reviews the state-of-the-art in harvesting mechanical vibrations as an energy source by various generators (such as electromagnetic, electrostatic and piezoelectric generators). Also, the design and characteristics of piezoelectric generators, using vibrations of cantilevered bimorphs, for MEMS have also been reviewed here. Electromagnetic, electrostatic and piezoelectric generators presented in the literature are reviewed by taking into an account the power output, frequency, acceleration, dimension and application of each generator and the coupling factor of each transduction mechanism has also been discussed for all the devices.


Piezoelectric Generator, Micro Electromechanical Systems (MEMS), Power Output, Frequency, Voltage

1. Introduction

Over the past few years, the use of energy harvesting devices for harvesting the useless surrounding energy has grown tremendously for empowering small portable as well as importable units. Many researchers have focused on the different available environmental energy sources including wind energy, solar energy, thermal gradients and mechanical vibrations [1] . Among these sources, solar energy was the first to be considered as alternative source, but it is available in environments where large and extended illumination is available. Also, it requires large area for installation of devices/plants. Other resources also have their demerits. Therefore mechanical vibration is a potential energy source for MEMS applications [2] [3] . Commonly occurring vibrations are potentially useful method of powering MEMS devices. Although vibrations are available only in certain environments, there are a substantial number of application areas in which sufficient vibration energy exists. Applications areas include spaces with industrial equipment such as manufacturing or automated assembly floors, certain locations in buildings such as the heating and cooling ducts, small appliances, large exterior windows, automobiles and aircraft [4] . Many techniques are available for converting mechanical vibration into the usable electrical energy such as electromagnetic (for instance, see [5] ), electrostatic (for instance, see [6] ), and also piezoelectric generators (for instance, see [7] ). Among these techniques piezoelectric generator is considered as a potential technique of energy conversion for MEMS application.

Electromagnetic generators employ electromagnetic induction arising from the relative motion between a gradient and a conductor whereas electrostatic generators employ the relative motion between electrically isolated charged capacitors plates to generate energy and piezoelectric generators employs piezoelectric materials that generate a charge when subjected to external load. Piezoelectric generators have the advantage that they can be more easily implemented with MEMS technology. Generators using piezoelectric materials can be called either as actuators, when the design of the device is optimized for generating stress or strain using the converse piezoelectric effect, or as sensors when the design of the device is optimized for the generation of an electric signal by employing the direct piezoelectric effect, in response to the mechanical input [8] .

This review article is about energy harvesting concepts, different types of harvesting generators which convert mechanical movement (energy) present in the application environment into usable electrical energy. It also discusses the design and characterization of piezoelectric vibration in electricity converters.

2. Theory of Energy Harvesting Devices

2.1. Energy Harvesting

Energy harvesting refers to the generation of energy from sources such as ambient temperature, vibration or air flow, solar energy and wind energy. As shown Figure 1, there are various sources and different types of losses during energy conversion.

Converting the available energy from the environment allows a self-sufficient energy supply for MEMS devices. Energy harvesting requires a transduction mechanism to generate electrical energy from motion and the generator will require a mechanical system that couples environmental displacements to the transduction mechanism. The design of the mechanical system should maximize the coupling between the energy source and the transduction mechanism and will depend entirely upon the characteristics of the environmental motion. The transduction mechanism itself can generate electricity by exploiting the mechanical strain or relative displacement occurring within the system. The strain effect utilizes the deformation within the mechanical system and typically employs piezoelectric materials whereas in case of relative displacement, either the velocity or position

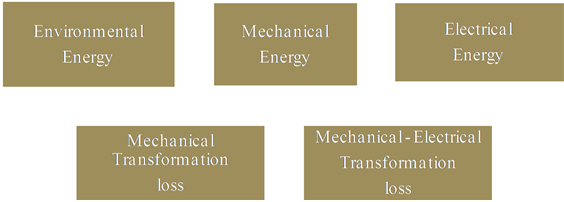

Figure 1. Actual process of energy harvesting.

can be coupled to a transduction mechanism. Velocity is mainly associated with electromagnetic transduction while relative position is associated with electrostatic transduction [9] .

2.2. Energy Harvesting Devices

Energy harvesting devices are those which are used for converting the available surrounding energy, which may go waste as shown in Figure 2, into the usable electrical energy. Electromagnetic, electrostatic and piezoelectric generators are some of the widely used energy harvesting devices. Electromagnetic generator is an inductive energy scavenger that transforms mechanical energy into electrical energy, using the interconnected principles of magnetism and electricity. The process by which an electromagnetic generator produces current or electricity is known as electromagnetic induction, which basically means that an electric current is induced within a conductor through the use of a magnet. Most of the electromagnetic generators work on electromagnetic induction, and some of these use renewable sources such as water power and wind power to create the initial mechanical energy. Mechanical energy can basically be thought of as kinetic energy or movement energy [10] . However, nearly all the reported electromagnetic (EM) micro power generators are silicon based devices. Therefore these harvesters result in poor scavenging performance. In order to improve the performance, the most common printed circuit board material, FR4 (Flame Retardant 4) is used as an alternative element for energy harvesting applications. Hatipoglu [11] presented the use of FR4 as the most commonly used PCB material for body worn sensors and intelligent tire sensors instead of silicon MEMS devices. Kim [12] presented two types of EM power generators exploiting direct conversion of airflow into mechanical vibration.

An electrostatic generator is a generator that produces static electricity, or electricity at high and low current. These generators can be operated through manual power to transform mechanical work into the electrical energy. Electrostatic generators develop electrostatic charges of opposite signs rendered to two conductors, using only the electric forces, and the work done by using the moving plates, drums, or belts to carry electric charge to a high potential electrode. The charge is generated by one of two methods: either by using the triboelectric effect (friction) or electrostatic induction. Electrostatic converters have the advantage that they can be more easily implemented with MEMS technology. Meninger et al. [13] have designed an electrostatic converter fabricate with MEMS technology. Their simulations result shows that 8.6 µW can be converted from a device of 1.5 cm × 1.5 cm in size. Roundy [14] focused on electrostatic vibration to electricity converter made by using MEMS technology; their simulations result shows that an output power density of 116 µW/cm3 is possible from input vibrations of 2.25 m/s2 at 120 Hz. Electrostatic machines are typically used in science classrooms to safely demonstrate the electrical forces along with high voltage phenomenon. The elevated potential differences achieved have been also used for a variety of practical applications, such as operating X-ray tubes, medical applications, sterilization of food, and nuclear physics experiments [15] .

When the piezoelectric ceramics, activated mechanically with pressure or vibration it has the capacity to generate electric voltages sufficient to produce spark across an electrode gap. The advantage of the piezoelectric energy harvester is that it has high energy density and can be integrated with electronic devices by MEMS technology. The voltage of the output energy harvester can be more than 10 volts, so up-conversion is not necessary. The disadvantage is that the resonant frequency of the piezoelectric energy harvester is higher than that of the

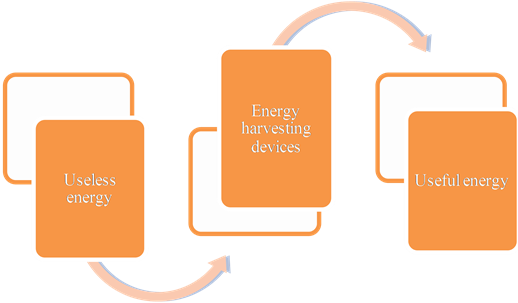

Figure 2. General concept of energy harvesting.

ambient vibration sources normally available when the energy harvester is miniaturized. The latter has a typical value below 200 Hz, and the former is well above 1 kHz. Also the PZ material is brittle, so long term mechanic wear out may limit the lifetime of the energy harvester. Two common applications of piezoelectric generators are in the push button cigarette lighters and gas barbecue grills. In these applications, pressing a button causes a spring-loaded hammer to apply a mechanical force to a rod-shaped single-layer piezoelectric ceramic. As a result of the piezoelectric effect, the ceramic element produces a voltage that passes across a small spark gap causing the fuel source to ignite. Electrical energy in a rod-shaped single-layer piezo generator is released very quickly, is very high voltage, and very low current. Piezoelectric ignition systems are small and simple, long lasting and require little maintenance. Multilayer piezo generators consist of a stack of very thin (sub-millime- ter-thick) piezoelectric ceramics alternated with electrodes. The electrical energy produced by a multilayer piezo generator is of a much lower voltage than is generated by a single-layer piezo generator. On the other hand, the current produced by a multilayer generator is significantly higher than the current generated by a single-layer piezoelectric generator. Because they do not create an electromagnetic interference as multilayer piezo generators are excellent solid-state batteries for electronic circuits. Due to advancements in micro-electronic systems many consumer devices have decreased in size. Smaller electronic systems require less power to operate. As a result, the solid state multilayer piezoelectric generators have become a feasible power source for some applications. Current applications for multilayer piezo generators are energy sources for munitions and wireless sensors, such as sensors that monitor tire pressure in automobiles [16] .

3. Electromagnetic Generators

Electromagnetic generators works on the principle of electromagnetic induction which was first discovered by Faraday in 1831, is the generation of electric current in a conductor located within a magnetic field. The conductor typically takes the form of a coil and generates electricity because of the change in the magnetic field or due to the relative movement of the magnet and coil. The amount of electricity generated within a coil depends upon the strength of the magnetic field, number of turns in a coil and the velocity of the relative movement between the magnet and the coil. One of the most effective methods for energy harvesting is to produce electromagnetic induction by means of permanent magnets, a coil and a resonating cantilever beam [17] . Williams [18] describes an electromagnetic transducer of size around (5 mm × 5 mm × 1 mm) and the harmonic analysis was undertaken in order to assess the viability of the device. For a typical device, the predicted power generation was 1 µW for an excitation frequency of 70 Hz, and 100 µW at 330 Hz. Shearwood et al. [19] have fabricated a generator which comprises of a flexible circular membrane, which was bulk micromachined on a GaAs substrate coated with a 7 µm layer of polyimide. A SmCo magnet, having a mass of 2.4 × 10−3 Kg, was attached to the underside of the membrane. The planar Au coil had 13 turns and was patterned on a separate wafer. The device was tested and generated 0.3 µW at excitation frequency of 4.4 kHz. El-Hami describes the simulation, modeling, fabrication and characterization of a vibration based electromechanical power generator which is shown in Figure 3. The device comprises a cantilever beam fixed at one end and supporting a pair of NdFeB magnets on a c-shaped core at the free end. The coil is made up of many turns of enameled copper wire and is fixed in position between the poles of the magnets. The device is shown below. It was found that power generation in excess of 1 mW for a volume of 240 mm3 at a vibration frequency of 320 Hz was obtained [19] .

4. Electrostatic Generators

An electrostatic generator, shown in Figure 4, work on the principle of electrostatic induction and the basis of

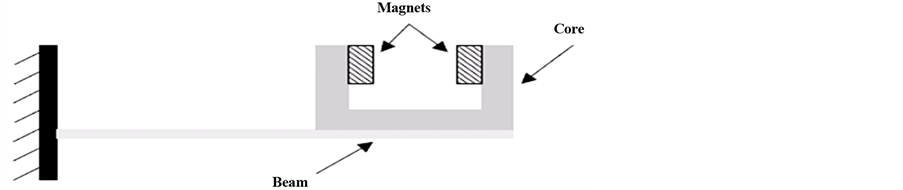

Figure 3. The electromagnetic generator proposed by El-Hami [19] .

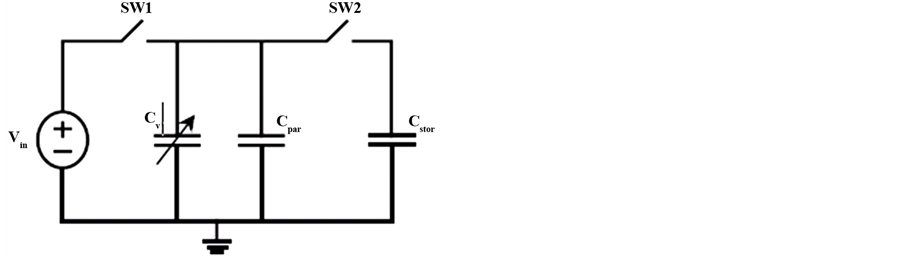

Figure 4. Simple circuit representation for an electrostatic converter.

electrostatic energy conversion is the variable capacitor. The variable capacitance structure, which will be fabricated with MEMS technology, is driven by mechanical vibrations and oscillates between a maximum capacitance (Cmax) and a minimum capacitance (Cmin). If the charge on the capacitor is constrained, the voltage will increase as the capacitance decreases. If the voltage across the capacitor is constrained, charge will move from the capacitor to a storage device or to the load as the capacitance decreases. In either case, mechanical kinetic energy is converted to electrical energy [20] . Meninger [21] gives a good explanation of the merits of charge constrained conversion versus voltage constrained conversion. A summary characteristic of various electrostatic generators is given in Table 1.

5. Piezoelectric Generators

Piezoelectric generators have been used for many years to convert mechanical energy into electrical energy. The following sections describe the range of piezoelectric generators described in the literature to date. For the purposes of this review, piezoelectric generators have been classified by its size, power output, voltage and its applications on both macro scale and micro scale It begins with a brief description of piezoelectric theory in order to appreciate the different types of generator and the relevant piezoelectric material properties.

5.1. Piezoelectricity

Piezoelectric generator works on the principle of piezoelectricity or piezoelectric effect developed by Pierre Curie brothers in 1880 which describes a relationship between stress and voltage. Piezoelectric materials can becomes electrically polarized or undergoes a change in polarization when subjected to a stress, as shown in Figure 5, because the slight change in the dimension of a piezoelectric material results in the variation in bond length between cations and anions caused by stress. Conversely, a piezoelectric material will have a change in dimension when it is exposed in an electric field. This inverse mechanism is called electrostriction. Those devices utilizing the piezoelectric effect to convert mechanical strains into electricity are called piezoelectric generators [25] .

5.2. Generator Design

Size constraints play an important role in the selection of a piezoelectric generator configuration. Hence, it is necessary to specify the size first while selecting a configuration. A bending element is considered as the basis for a generator because of two reasons: a) low resonance frequency and b) can attained higher strains. A bending element can be mounted in several ways to form a generator; a cantilever structure having piezoelectric material attached to the top and bottom surfaces along with a center shim layer is an attractive geometry for harvesting energy from mechanical vibrations. This configuration of a generator has been chosen for two reasons: a) cantilever configuration provides highest possible strain and the power output is directly proportional to the strain and b) cantilever configuration results in low resonance frequency which is essential for low frequency target vibrations. Roundy [26] developed a piezoelectric cantilever beam generator as shown in Figure 6, where the cantilever used was of constant width which simplifies the modeling and fabrication of the beam but results in an unequal distribution of strain along the length of the generator. A prototype generator was fabricated by attaching a

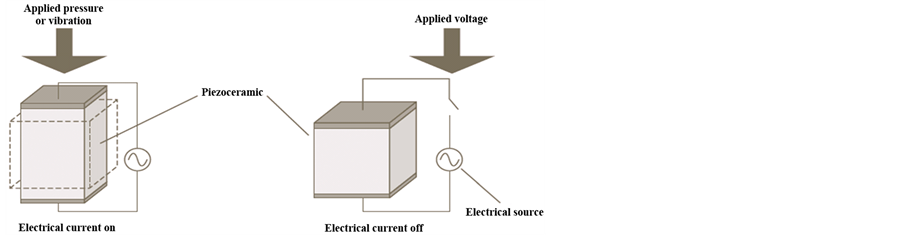

Figure 5. Schematic diagrams of piezoelectric effect [26] .

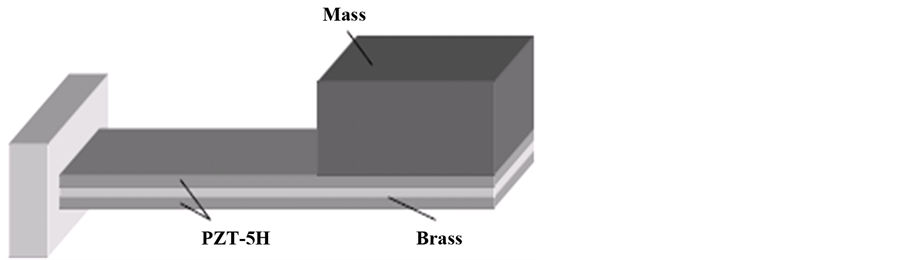

Figure 6. Cantilever based piezoelectric generator developed by Roundy [26] .

Table 1. Summary of electrostatic generators.

PZT-5A shim to each side of a steel center beam with a cubic mass made from an alloy of tin and bismuth was attached to the end of the generator and allowed to resonate at 120 Hz, it was shown that the prototype produced a maximum power output of nearly 80 µW with 2.5 m/s2 input acceleration. Lee [27] presented the development of two piezoelectric MEMS generators “31” mode and “33” mode for scavenging mechanical energy of ambient vibrations and converting it into the useful electrical energy. The two piezoelectric MEMS generators were of cantilever type made by a silicon process and can transform mechanical energy into electrical energy through its piezoelectric PZT layers. A PZT deposition machine was developed which uses an aerosol deposition method to fabricate the high quality PZT thin film efficiently. The result shows that “31” mode generator possesses a maximum open circuit voltage of 2.675 Vp-p and a maximum output power of 2.765 µW with 1.792 Vp-p output voltage excited at a resonant frequency of 255.9 Hz under a 2.5 g acceleration level and the “33” mode device possessed a maximum open circuit output voltage of 4.127 Vp-p and a maximum output power of 1.288 µW with 2.292 Vp-p output voltage at its resonant frequency of 214 Hz at a 2 g acceleration.

Junhui [28] proposed a piezoelectric generator to increase its vibration energy harvesting capability based on a cantilever beam which not only uses the strain change of piezoelectric components bonded on a cantilever beam but also employs the weight at the tip of the cantilever beam to hit piezoelectric components located on the two sides of weights. It shows that the piezoelectric components operating in the hit mode can substantially enhance the energy harvesting of the piezoelectric generator based on a cantilever beam. Two methods were suggested for increasing vibration energy harvesting capability of a piezoelectric generator. In one of them the DC voltages from rectifiers are connected in series and hence the total DC voltage is applied to a capacitor. As a result it was found that 22.3% of the harvested energy is wasted in case of series connection but in another connection, the DC voltage from each group is applied to different capacitors and in this case the total output electric energy could be 43 nJ for one vibration excitation applied by spring with initial vibration amplitude of 18 mm and frequency of 18.5 Hz.

White [29] presented an approach for modeling and designing of vibration generator, in which a thick film micro generator was described and the corresponding test was performed. In this paper, the micro generator used is a resonant mechanical structure based on a cantilever beam design, seismic mass and piezoelectric ceramic PZT-5H. It was shown that the proposed generator produces the maximum power output of about 2 µW which is too small for actual applications F Lu presented a simple design modeling and analysis of the “31” transverse mode type piezoelectric micro generator for MEMS applications. The output power and energy conversion efficiency of laminated type micro-generators using PZT-PIC 255 and single crystal PZN-8% PT was tested for comparison. It was found that optimal external resistance gives the maximum output power. Furthermore, increasing the frequency of the vibration can improve the output power. While beyond a certain value, further improvement cannot be achieved by simply increasing the vibration frequency. At the higher frequency, single crystal PZN-8% can achieve much higher output power in comparison to piezoelectric material PZT-PIC 255. The performance of PZN-8% PT was more sensitive to operational frequency and that of PZT-PIC 255 was more sensitive to external resistance [30] .

5.3. Coupling Mode

Coupling modes employed for piezoelectric generators, as shown in Figure 7 are of two types: a) “31” coupling

mode and b) “33” coupling mode. “31” coupling mode implies that the direction of the applied force or strain is perpendicular to the polarization axis whereas “33” coupling mode indicates that the direction of the applied force or strain is parallel to the polarization axis. Conventionally, the “31” mode has been the most commonly used coupling mode. Baker [31] shows that “31” mode has a lower coupling coefficient as compared to “33” mode (Table 2). By comparing a piezoelectric stack operating in “33” mode to a cantilever beam operating in “31” mode, it was observed that, although the stack was more robust and had a higher coupling coefficient, the cantilever produced more power when subjected to the same force. It was concluded that in a small force environment “31” mode proved most efficient, but in a high force environment “33” mode would be more durable and produce useful energy., Yang et al. [32] have shown that analytically, for a piezoelectric plate operating in the “33” mode, the power output is directly proportional to the coupling coefficient as well as dielectric constant. It means that the devices with higher coupling coefficient will produce more power Roundy [26] concluded that the resonant frequency of a system operating in “31” mode is much lower, making the system more likely to be driven at resonance in a natural environment, thus providing more power.

Figure 7. “33” and “31” coupling mode [33] .

Table 2. Summary of various piezoelectric geometries investigated.

5.4. Commonly Used Vibration Sources for Piezoelectric Generator

Commonly used vibration sources, as given in Table 3 include the casing of a microwave oven, base of a milling machine, drilling machine, bearing test bed, A/C compressor, washing machine, cloth dryer etc. Other vibration sources measured include a notebook computer casing, cooling ducts, large exterior windows, mobile phones, the floor in high traffic areas of office buildings, and several household appliances.

5.5. Summary of Piezoelectric Generators

Table 4 summarizes the dimension, material used, configuration, coupling mode, etc. of different piezoelectric vibration harvesters, reported in literature.

Table 3. Vibration sources withmaximum acceleration and frequency [33] .

Table 4. Summary of piezoelectric vibration harvesters.
