ABSTRACT

Batch adsorption techniques were used to study the biosorption of Lead and Nickel from aqueous solutions by Flame of the forest pods. The effects of optimum pH, contact time, metal ion concentration, biosorbent dose, biosorbent particle size and the presence of sodium, calcium and magnesium interfering ions on the sorption were investigated. Experimental results showed that Delonix regia biomass was effective in removing these metals from aqueous solutions as the equilibrium biosorption of both metals was attained within 60 minutes of interaction with 98% of the metals removed within this period. Sorption of these metals was dependent on pH as maximum removal was attained at pH 4 and pH 5 for Lead and Nickel ions respectively. Adsorption experiments showed that the process followed the pseudo second order kinetic model with high r² (0.9999) and the equilibrium data fitted well with Langmuir and Freundlich isotherm models. The presence of competing ions impacted negatively on the sorption process irrespective of the type used. 27% and 36% of lead (II) were recovered from the spent biosorbents with 1 M HCl and disodium salt of EDTA solutions respectively.

1. Introduction

The presence of heavy metals over permissible levels in drinking water may cause adverse effects on human physiology. Metals such as Pb, Ni, Cd, Hg, Cu are known to be major anthropogenic pollutants in water with permissible limits for Lead and Nickel in drinking water being 0.01 mg/L and 0.02 mg/L respectively [1]. These metals may come from different sources such as electroplating, textile, smelting, mining, glass and ceramic industries as well as storage batteries, metal finishing, petroleum, fertilizer, pulp and paper industries [2,3]. Lead can cause several unwanted effects, including disruption of the biosynthesis of hemoglobin, anemia, rise in blood pressure, kidney damage, subtle abortions, birth defects, disruption of nervous systems, brain damage, decline fertility of men through sperm damage, diminished learning abilities of children, abdominal pains, adrenal insufficiency, blindness, cardiovascular disease, Liver dysfunction, and a host of others diseases [4-6]. Nickel also pose health hazard to certain individuals causing serious health problems including: anorexia, kidney dysfunction, apathy, disruption of hormone and lipid metabolismmuscle tremors, fever, intestinal cancer, heart attack, headache, nausea, oral cancer, skin problems and vomiting [7,8]. The use of conventional methods for the removal of heavy metal can be expensive, prohibitive for developing economics and most times do not work well for low concentration of the polluting metals [9-11], thus it becomes imperative to search for alternatives.

Biosorbents lately have become of considerable interest. The use of indigenous biodegradable resources for treating hazardous waste would be less expensive and more effective [12]. Various low cost adsorbents such as onion skin [13], tea leaves [14], Black Oak bark, Redwood bark, Chistosan, Rice hull, Zeolite, Bentonite, Xanthate, Sawdust, Formaldehyde-polymerised peanuts skins [9,15] are known to adsorb heavy metal ions from solutions in their native state and with suitable chemical treatment, the adsorption capacity can be significantly enhanced [16]. The aim of this work is to investigate the adsoption capacity of Lead and Nickel from aqueous solutions by Flame of the Forest (Delonix regia) pods (Figure 1).

The Flame of the Forest (Delonix regia), a medium sized tree, growing from 20 - 40 feet high is a member of legume family which produces brown woody seed pods

that lengths up to 60 cm and 5 cm wide with trunk that is usually crooked and twisted with irregular braches and rough grey bark [17]. The effects of pH, contact time, biosorbent dose, biosorbent particle size, adsorbate concentration and the presence of interfering ions were also studied.

2. Materials and Methods

Lead trioxonitrate (V) and Nickel chloride hexahydrate were used for the preparation of stock Pb(II) and Ni(II) solutions respectively. Calcium tetraoxosulphate (VI), magnesium tetraoxosulphate (VI) heptahydrate and sodium chloride were used for ionic strength study. The adjustment of pH was done with hydrochloric acid and ammonia solution where necessary. Desorption of adsorbed metal from the biomass was done with sodium salt of ethylene diamine tetraacetic acid and hydrochloric acid.

2.1. Sorbent Preparation

The matured dried pods of the biomass, Delonix regia were harvested in April (dry season period) from The Federal University of Technology, Akure. The dried biomass parts were thoroughly washed with distilled water, chopped into small pieces and oven dried at 90˚C - 105˚C for three days, then it was grounded and milled to powdered form. The powder was sieved through a set of 2000 µm, 1400 µm, 1180 µm and 850 µm mesh sizes to obtain four different particle sizes to be used for subsequent experiments. All the different particle sizes were washed with 0.1 M HCl by vortexing and subsequent washing with distilled-deionized water was done several times until the pH of the wash water became virtually neutral.

2.2. Sorption Experiments

2.2.1. Uptake Kinetics

Determination of the optimum pH for biosorption is paramount to the success of further investigation. From the prepared biomass, 10 mg/mL suspension was made in designated glass beakers and stirred to give a homogeneous mixture. The suspensions in these beakers were adjusted to pH values 1 - 6, each was equilibrated for 15 minutes, centrifuged at 760 rpm for 5 minutes and the supernatants discarded. 50 ml of individual metal solutions of 100 ppm were added, stirred and allowed to stay. Contacting and stirring were done for 6 hours after which the suspensions were filtered, the filtrates were then transferred to clean sample bottles for metal analysis. All other batch experiments were then conducted at pH 4 for Pb and 5.0 for Ni as their observed optimum pH respectively. The influence of various experimental parameters such as contact time, initial concentration of metal ion, ionic strength, mass of Delonix regia used and particle size on the kinetics of Pb and Ni removal was studied in order to optimize the process.

The initial solutions concentration of 100 ppm for both metals was used for all experiments except for that carried out to examine the effect of initial concentration of the metals. In order to study the metal-removal kinetics, 0.5 g of Delonix regia was contacted with 50 ml of metal solution agitated vigorously. At the appropriate time intervals (5, 15, 30, 60, 90, 120, 180, 240, 300 and 360 min), the solutions were filtered and analyzed to determine residual metal concentration in aqueous solutions.

2.2.2. Uptake Isotherm

The equilibrium isotherms were determined by contacting constant mass (0.50 g) of the biosorbent with 50 ml metal solutions of different concentration (10, 20, 40, 100, 200 ppm). Aliquots were taken from the suspensions and transferred to clean tubes at the optimum time and subsequently analyzed for metal content.

The study of effect of ionic strength on the metal removal, sodium, calcium, and magnesium ions at different concentrations (50, 100, 200, 300, 500, 750 and 1000 ppm) was carried out.

2.3. Desorption Studies

Recovery of lead and nickel ions adsorbed on the biosorbent was done with different concentrations (0.1, 0.5, 0.75 and 1.0 M) of hydrochloric acid and disodium salt of ethylenediamine tetraacetic acid. The desired volume of 50 ml of 200 ppm of metal solution of adjusted pH was poured into designated beakers for each concentration of desorbing agents. These metal solutions were contacted with 0.5 g of the biomass for the optimum contact time after which they were filtered, the filtrate was discarded and the spent biomass were contacted with the appropriate concentration of the desorbing agent for the optimum contact time; at the end of which the contents were filtered and the filtrates collected were analyzed for metal content.

3. Results and Discussion

3.1. pH Profile Studies

The effects of pH on Pb and Ni ions adsorption by the dried pods of flame of the forest is presented in Figure 2. The results show that the biosorption of Pb(II) and Ni(II) is pH dependent, increasing gradually from 1.0 to 4.0 for lead and from 1.0 to 5.0 for nickel. Maximum percentage adsorption of 99% was observed at pH 4.0 for lead, the sorption reduced to about 96% at the pH of 4.8.

Nickel attained maximum sorption at pH 5.0, as the percentage uptake increased from 86% at pH 1.0 to 98% at pH 5, after which the percentage uptake reduced gradually. One reason for the low adsorption of metals at lower pH is due to the increased availability of hydrogen ions which are known to compete with metal ions for binding sites on the biosorbent [18]. The adsorption process is limited considerably by precipitation of most heavy metal ions which occur at pH greater than 6 [19].

3.2. Effect of Contact Time

The uptake of lead and nickel ions by the biosorbent at different contact times is shown in Figure 3.

An ideal biosorbent should rapidly adsorb high concentration of the heavy metals; this is evident from the result of the study conducted using Delonix regia biomass. Sorption of Pb²⁺ and Ni²⁺ by this biomass was very rapid with about 95% Ni²⁺ and >95% Pb uptake within the first five (5) minutes of interaction. This notwithstanding, contact times of up to 360 minutes were investigated. Sorption of lead ions was relatively the same after 60 minutes of contact time. It was observed that Ni sorption was increased to 98.76% at 60 minutes contact time, thereafter intermittently increasing and decreasing due to desorption and re-adsorption of the sorbate ions [20].

3.3. Kinetics of Lead and Nickel Sorption

The kinetics of the biosorption data were evaluated using pseudo first order, second order kinetic, Elovich and Intra particle diffusion models.

According to [21], the Lagergren pseudo first order model is given as Equation (1):

(1)

The integrated form of the first order equation is given as Equation (2):

(2)

where Qe and Qt are the amount of metal adsorbed per unit weight of biosorbent at equilibrium and at any time t respectively (mg/g), K₁ is the rate constant of pseudo first order sorption (min⁻¹). The rate constant for the first order reaction can be obtained from the slope of the plot of versus time (t). Linear plots having high values of coefficient of correlation (R²) show that this kinetic model is applicable. From Table 1 and Figure 4, it is observed that the rate constant and coefficient of correlation were negative, thus the biosorption of both metal ions by flame of the forest biomass were not well fitted to pseudo first order kinetic model.

The pseudo second order kinetic model equation given as:

(3)

The linearized form is:

(4)

where K₂ (gmg⁻¹∙min⁻¹) is the second order rate constant for the sorption, Qe and Qt are the amount of biosorbent at equilibrium and at any time t, respectively (mg/g).

Qe is derivable from the plot of t/Qt versus t.

The main assumption of pseudo second order kinetic model is that the rate limiting steps may be chemical sorption involving forces through exchange or sharing of electrons between the metal ions and the biomass [22].

Table 1. Kinetic parameters for metal sorption onto Delonix regia.

From Table 1 and Figure 5, it is evident that kinetics of sorption for Pb²⁺ and Ni²⁺ by Delonix regia with high correlation coefficient followed Lagergren second order kinetic model. The estimated Sorption Capacity Qe of 9.82 mg/L for Ni²⁺ tallied with the obtained value of 9.88 mg/L. Sorption Capacity of Pb²⁺ was 9.99 mg/L as against the Second Order estimation of 9.97 mg/L.

The Elovich model equation is another rate equation based on the biosorption capacity of biosorbents. It is generally expressed as:

(5)

where α is the initial adsorption rate mg∙g⁻¹∙min⁻¹, β is the adsorption constant in g∙mg⁻¹ during any one experiment.

The Integrated form is represented as:

(6)

The Elovich equation is simplified by Chien and Clayton in 1980 by assuming that and by applying boundary conditions of Q = 0 at t = 0 and Q = Q at t = t, then, the integrated form of the Elovich equation becomes:

(7)

The Elovich kinetic constants (α and β) could be deduced from the slope and intercept of the linear plots of Qt against ln(t). From Table 1 and Figure 6, it can be deduced that sorption of Pb²⁺ and Ni²⁺ by Delonix regia can be predicted with Elovich kinetic model with coefficient of correlation factor of 0.873 for Pb²⁺ and 0.689 for Ni²⁺. These values however are not very good fit compared to the 0.999 obtained from the pseudo second order model.

3.4. Intra Particle Diffusion

Contributions of intra particle diffusion mechanism were also examined using the Weber and Moris equation [22].

(8)

Kid is the intra-particle diffusion rate constant (mg∙min^−1/2∙g⁻¹), and Qt is the amount of solute adsorbed (mg/g) at any time, (min⁻¹).

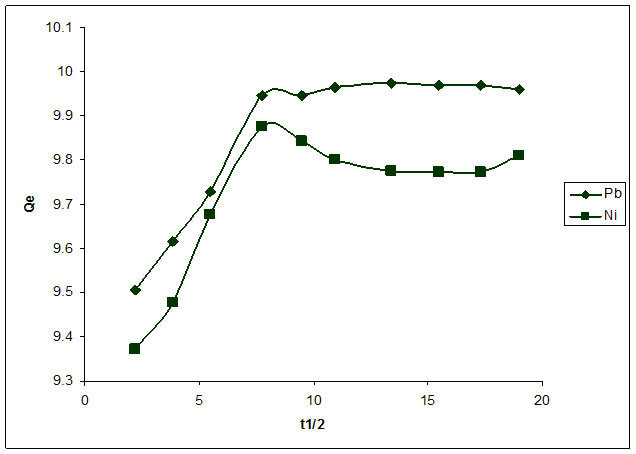

According to the equation for intra particle diffusion mechanism, the plot of Qt versus t^1/2 should be linear if intra-particle diffusion is the only mechanism applicable. Figure 7 shows that for both Pb²⁺ and Ni²⁺, the plots are not linear and do not pass through the origin implying that intra particle diffusion mechanism is not the only mechanism involved in the sorption of Pb²⁺ and Ni²⁺. It can be deduced therefore that the sorption of both metals by Delonix regia involve both physisorption and chemisorption Processes.

3.5. Effects of Metal Ion Concentration on Sorption Process

Sorption of heavy metal ions by flame of the forest biosorbent depended largely on the initial concentration of metal ions in the solution. The effect of different concentrations of the metal ions on the biosorption process is shown in Figure 8. It was observed that for both lead and nickel the total amount of metal ions removed increased with increasing concentration but the percentage removal per gram of biosorbent was reduced.

When 20 ppm of metal ions was used, adsorption ca-

pacity of 1.984 and 1.978 were recorded for Pb²⁺ and Ni²⁺ respectively, at 80 ppm; 7.88 and 7.89 were obtained

and at 100 ppm; 9.84 and 9.87 were obtained. At higher concentrations, more lead and nickel ions were left unadsorbed in solution due to the saturation of binding sites. This appears to be due to the increase in the number of ions competing for the available binding sites in the biomass [23].

3.6. Sorption Isotherms

The Langmuir, Freundlich and Temkin models were used to describe adsorption isotherms and are presented in Figures 9-11 respectively. It can be deduced from Table 2 that the adsorption process of flame of the forest pods for the metals investigated followed both the Langmuir and Freundlich models. Although the Freundlich model with a higher R² (0.99) for both metals is better to explain the process.

Langmuir’s model which is valid for monolayer adsorption onto a surface containing equivalent sites is based on the assumption that maximum adsorption corresponds to a saturated monolayer of solution molecules on the adsorbent surface. On the basis of this assumption, the Langmuir equation can be expressed as:

(9)

where Qo and b, the Langmuir constants are adsorption capacity and adsorption energy respectively, Qe is the amount of adsorbate adsorbed per unit weight of biosorbent and Ce is the metal final concentration in the solution.

Freundlich preposition of multilayer adsorption is represented as Equation (10)

(10)

where n and Kf are constants related to adsorption efficiency and adsorption capacity respectively; Qe is amount of adsorbate adsorbed per unit weight of biosorbent and

Table 2. Isotherms model parameters estimated for Pb(II) and Ni(II) ion sorption.

Ce is the final metal concentration in the solution.

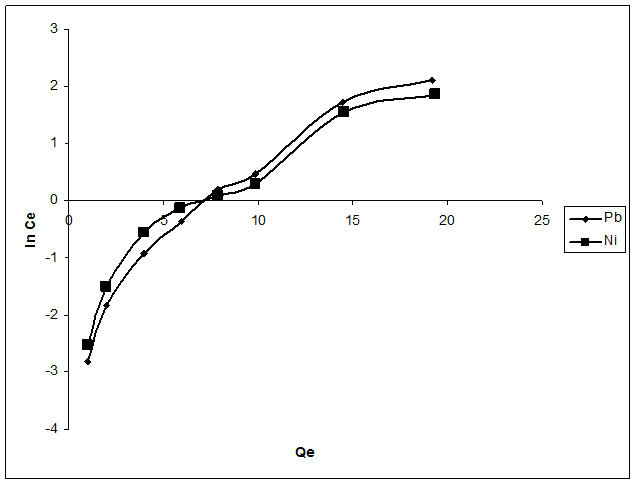

The Temkin isotherm model given by Equation (11) takes into account the indirect adsorbate-adsorbate interactions on adsorption isotherms.

(11)

where C = Concentration of adsorbate in solution at equilibrium (mg/L).

Qe = Amount of metal adsorbed per unit weight of adsorbent (mg/g), a and b are constants related to adsorption capacity and intensity of adsorption which can be calculated from the plots of Qe against ln C.

In indirect interactions, the adsorbate changes the surface around the adsorbed sites, which in turn affects the adsorption of other adsorbate molecules nearby.

3.7. Effect of Biosorbent Dose and Particle Size

Biosorbent dose is an important parameter because it determines the capacity of the adsorbate. The amount of lead and nickel ions adsorbed by the biomass increased by increasing the dose of biosorbent from 0.25 g to 1.5 g; the adsorption capacity of the biosorbent increased from 9.04 to 9.973 for Pb²⁺ and from 9.68 to 9.92 for Ni²⁺. Though the total metal uptake increased with the increased dose of biosorbent, the metal uptake per gram of biosorbent had been drastically decreased due to the interference of inter-particle cohesive forces and interference of binding site [24].

Study carried out using Delonix regia of different particle sizes (850, 1180, 1400 and 2000 µm) showed that milling the biosorbent to a particle size of 850 µm would be most suitable for the biosorption process. The removal of the metal ions increased with a decrease in particle size, probably because of the larger surface area available. The mechanism of the metal ions uptake is one of adsorption onto the external sites of a non-porous adsorbent [25].

3.8. Interference Study

The sorption of metal ions in the presence of other common ions may be affected due to competition for the sorption sites [26]. For the determination of any interference caused by other cations on the biosorption of lead and nickel ions by the biomass, calcium, magnesium and sodium ions were used as ionic medium, the effect of the cations on the metal uptake are demonstrated in Figure 12. The results show a reduction in the uptake of lead and nickel ions by the biomass in the presence of each of the cations used. Lead which, without interference recorded 98% adsorption to Delonix regia biomass was reduced to 89%, 85% and 78% with 200 ppm calcium, magnesium and sodium ions respectively. Similarly, a negative impact was observed for nickel as its removal was reduced from 97% to 85, 84 and 89 percent by each

of these cations at the same concentration of interfering ions as used for lead. Reduction in metal removal percentage due to the increase of sodium ions was attributed to presence of competing ions for metal binding [27]. The decrease observed with calcium and magnesium however can be explained on the basis of the abundant ions from the calcium tetraoxosulphate (VI) and magnesium tetraoxosulphate (VI). These ions could easily attach to the lead and nickel free ions hence reducing the available metal ions for adsorption to the biosorbent.

3.9. Adsorption Capacity

In order to establish the capacity of the biosorbent for the uptake of Ni²⁺ and Pb²⁺ an adsorption capacity experiment was conducted in a ten cycle mode. In the first cycle, Pb(II) ions adsorbed were about 95%, but the percentage bound gradually reduced from the 1st cycle as should be expected and at the 10th cycle about 70% of Pb(II) ions were adsorbed.

Likewise at the first cycle, 98% of Ni(II) ions were adsorbed, whereas at the 10th cycle about 94% of Ni(II) was bound to the biomass. As the binding sites get filled up, the amount of metal bound decreased. It should be noted that the fact that this biomass could remove as much as 70% of lead and 94% of nickel is an indicator of its viability as a good source of material for water treatment purposes. Considering the results obtained from this study, it is evident that the flame of the forest biomass could take more cycles of the metal ions and still be very viable.

3.10. Desorption Study

To make the adsorption process more economical, it is necessary to regenerate the spent biosorbent. The desorption and regeneration for Pb²⁺ and Ni²⁺ was done with different concentrations of sodium salt of EDTA and HCl (Tables 3). From the results it was observed that the percentage of Pb recovered with 0.1M HCl was only 22.19% while 27.12% Pb was desorbed by 1 M HCl.

With 0.1 M disodium salt of EDTA, 27.79% of Pb was recovered while 1 M was able to recover 35.8%. For Ni

Table 3. Desorption of adsorbed metals from Delonix regia using 1 M HCl and 0.1 M EDTA.

the percentage metal recovered was 7.0% and 1 M desorbed 9.7%. Using 0.1 M EDTA sodium salt of, 6.3% was desorbed while 1 M desorbed 11.75% were desorbed with disodium salt of EDTA thus shows that the bond responsible for the biosorption process is not only physical adsorption but chemical sorption of the metal ions (Pb and Ni) onto the biosorbent binding sites. These results are in agreement with what was earlier reported by [28]; where wheat bran was used for the removal of Pb(II) from wastewater.

4. Conclusion

The result of this investigation has shown that Delonix regia biosorbent has a great potential for the removal of lead and nickel from contaminated water. The biosorption of both metals on the adsorbent was rapid as over 90% of the metals were removed within the first 5 minutes of interaction and was found to follow pseudo-second order kinetic model. It was observed that the biosorption which fitted better to the Freundlich Isotherm model strongly depends on parameters such as pH of the solution, contact time, initial concentration of the metal ions, biosorbent dose and particle size. The presence of sodium, magnesium and calcium interfering ions reduced the binding efficiency of lead and nickel especially at higher concentration of these interfering ions. The result obtained from the desorption study show that the adsorption process could be both physisorption and chemisorption Processes.
