Received 3 March 2015; accepted 6 April 2015; published 10 April 2015

ABSTRACT

The abundance, distribution trends and significance of the major oxides in the host rocks in Vizianagarm Manganese Ores Belt (A.P.) (between N latitude 18˚12' and 18˚30' and E longitudes 83˚20' and 83˚45'), 15 samples of host rocks from different localities of the area under study were collected and analyzed for major oxides. We describe here in major oxides geochemistry of host rocks and manganese ore deposits associated with Precambrian Khondalite and Charnockite in Vizianagarm Manganese Ores Belt (A.P.): 1) Preponderance of SiO₂ over Al₂O₃; 2) Dominance of K₂O and CaO over Na₂O; 3) Abnormally high concentration of phosphorus and a positive relationship of P₂O₅ with CaO and Ti contents; 4) Manganese increases with increases of iron, lime and soda and vice versa, 5) CaO increases with the increases of Al₂O₃, Ti, K₂O and vice versa. High P₂O₅ content in these manganese ores appears to be the result of precipitation from secondary manganese rich solutions containing dissolved phosphorus from the P₂O₅ enriched host rocks. Another source of P₂O₅ may be the associated granitic and pegmatitic intrusions. Elements like K, Na, Ca, Mg, Co, Ni, Pb and Zn etc. appear to be mostly concentrated in the Mn-minerals viz. psilomelane, cryptomelane, hollandite and pyrolusite and related secondary phases [1] and [2] . Stratigraphically, the study area includes within a thick succession of Precambrian Group belonging to the Khondalite and Charnockite Groups of Dharwar Supergroup, that form a part of Eastern Ghat Complex of India. The manganiferous rocks that have been encountered in the Vizianagarm Manganese Ores Belt (A.P.) India are known as Kodurites.

Keywords:

Vizianagarm, Manganese Ores, Major Oxides, Khondalite, Charnockite, A.P., Geochemistry, Eastern Ghat, Dharwar Supergroup

1. Introduction

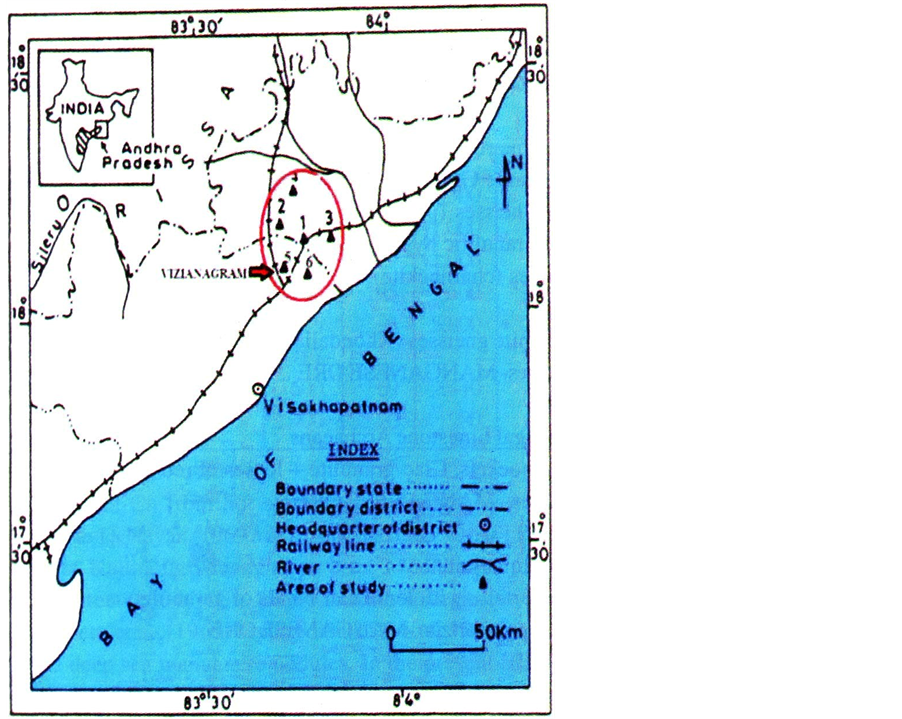

A large number of manganese deposits occur in the Precambrian Eastern Ghats complex of Andhra Pradesh, India. These are dominantly low to medium grade metamorphic deposits with high iron, phosphorus and silica. These manganese bands (deposits) are generally syngenetic and syntectonic with metasedimentry country rock of Khondalite, quartzite and calc-granulites [3] .

Manganese ores are widely distributed throughout the Peninsular India. Stratigraphically, these are mainly confined to the Precambrian terrain and are encountered in the Sausar Group and Aravalli Supergroup of central and western India, Iron ore Group and Gangpur Group of eastern India. In Andhra Pradesh, there are major occurrences of manganese ores in Srikakulam-Visakhapatnam Manganese ores belt. The deposit is in this belt over an area of 50 kms in length and 20 km in width. The study area lies 150 km NE of Visakhapatnam and includes Garividi, Garbham and Chipurupalle areas (Figure 1). Systematic geochemical study of these manganese ores in the present study area was not carried out by earlier workers. Fifteen samples of host rocks were selected from different localities of the study area. They were analysed for number of major oxides and trace elements.

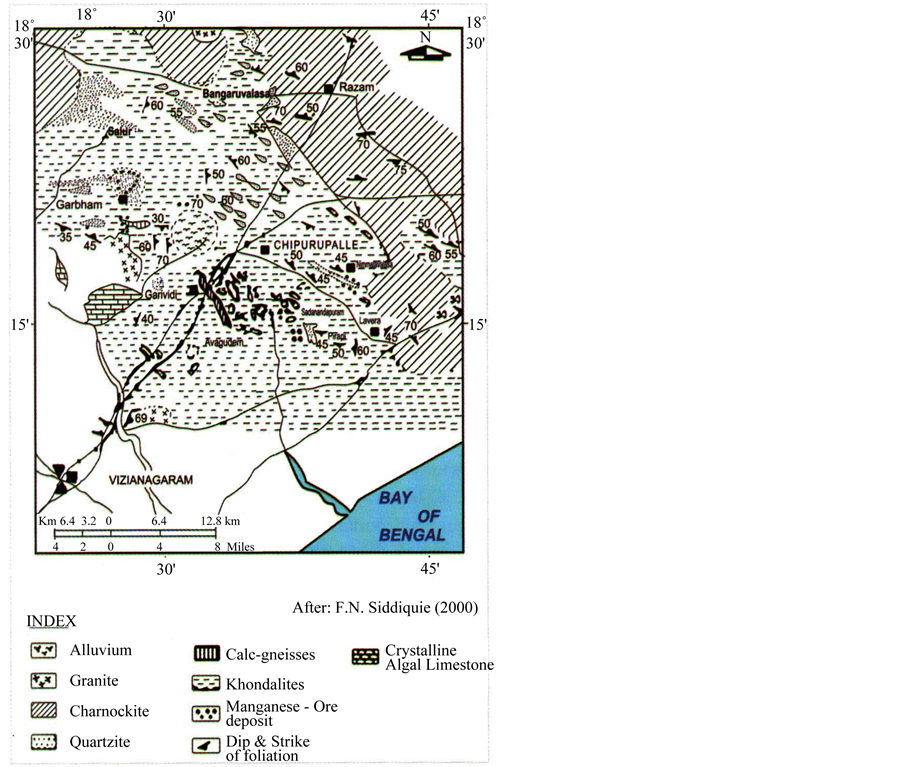

2. General Geology and Stratigraphy

The manganiferous rocks that have been encountered in the Srikakulam-Visakhapatnam manganese belt of Andhra Pradesh belongs to Kodurite Series which is typically exposed at Koduru (18˚16': 83˚36') a locality about 80 km north of Visakhapatnam, the rock series which constitutes an integral part of the Eastern Ghat complex of India. The rock series is composed of an intimate assembalges of metamorphosed argillaceous (garnet-sillimanite gneisses) as at Chipurupalle, Rayagada and Garbham, Arenaceous (Quartzite and garnetiferous

quratzite) as at Garbham, Koduru, Perapi and Avagudem and calcareous sediments (calc-granulites and gneisses) as at Koduru and Gadabavalasa areas, this sequences belonging to granulite facies.

The manganese ores in the area occur primarily in association with calc-granulites, less often with quartzite and still less with the quartz garnet ± sillimanite graphite gneiss. According to [4] who made radiometric determination of the Precambrain rocks of India, the Eastern Ghat Complex was included in the Precambrain-II (2500 - 3000 m.y.) of the classification of Indian Precambrain rocks. The calc-granulite, quartzite and Khondalites being syn-sedimentary rock bodies, are conformable and co-folded with the associated lithic units such as garnetiferous quartzite, gneisses and garnet-sillimanite gneisses, etc. [5] . Subsequently, granitic and migmatitic activities of different intensities played their respective roles on these metasediments transmuting their earlier textural and mineralogical characters. However, their impact on quartzite and manganese ore is minimal, probably because these units are considered to be the resisters during migmatisation [6] . At places hypersthene gneisses (Charnockite) occur as intrusive bodies in the synsedimentary rock units. All these rocks have in turn been intruded by granite, pegmatite and quartz veins [7] .

[8] recongized several rock types ranging from ultrabasic to acidic in the mineralogical composition of Kodurite and ascribed them to differentiation prior to intrusion. [9] indicated that the Kodurite series might be due to hybridism on a large scale in which a granitic intrusion bodily assimilated the manganese of the Khondalites. [10] observed that by and large the manganese ore occurs associated either with quartzite (East Garbham) or with calc-granulite (Sadanandapuram).

However, the geological association in Saibaba main, Saibaba Central, Jai Bhavani-Kottakarra quaries is not clear owing to the highly weathered nature of the rocks. [11] suggested the following stratigraphic succession of the area under study and consider the granites to be intrusive bodies into the Khondalite and Kodurite series.

These rocks at places exhibit relict banding. The Garbham main quarry and the Srinavasa quarry at Garbham show weathered calc-granulite-quatzo-feldslpathic rock underlying quartzite. The rock formation and associated manganese ore deposits belonging to the Khondalite and Charnockite suit of metasediments are of the Archaean age [7] . The generalised stratigraphic sequence of the rock formations of Srikakulam area which has been suggested by [7] and supported by [12] is presented as follows:

Granite, pegmatitie and quartz vein

Hypersthese-gneisses (Charnockites?)

Crystalline algal limestone belonging to Knondalite Group (Archaean) [13] - [17] and gritty sandstone (Miocene?) in the form of rubble and laterite capping are also observed.

The present authors finds no evidence to differ from the suggestion made by [7] and [18] , regarding the stratigraphic succession in Srikakulam except that the occurrence of crystalline algal limestone and shales (red and green) which did not find place in their classification. The modified sequence is presented [13] - [17] as follows:

Some of the earlier workers have also made an attempts to classify and establish the sequence of rock formations encountered at Garividi, Garbham and Chipurupalle areas (Table 1 and Figure 2). They are as follows:

Garividi area [10]

Soil

Laterite-pisolites and concretions of

Mn-ore and calc-tufa

Pegmatite and quartz veins

Granites/garnetiferous biottie gneiss

Garnet-sillimanite gneiss (with or without graphite)

Calc-granulite and lenticles of crystalline limestone

Manganese ore and garnet granulites

Quartz-feldspar rock with occasional incidence of apatite

Garnet-sillimanite gneiss interlayered with quartzite and occasional lenticles of crystalline limestone

Garham Area [10]

Soil

Laterite-calc tufa calcreta

Charnockite

Garnet-sillimanite gneiss with or without graphite

Calc-granulite with manganese ore associated with bands and pockets of lithomarge and highly kaolinised

Two horizons were not reported by earlier workers, reported for the first time [15] and [19] .

quartzo-feldspathic apatite rock, the latter in the majority of cases seen underlying the Mn-ore zone.

Calc-granulite highly weathered with intermixture of quartz-feldspar-apatite rock

Manganese ore with chert and lemonite quartzite

Garnet-sillimanite gneiss (with or without graphite) interlayered with quartzite

Chirpurupalle area [20]

3. Major Oxides in Host Rocks

General Statement

In the area of study, the host rocks for manganese mineralization, are mainly Khondalite and Charnockite Group of rocks.

Fifteen samples of host rocks were selected out of a large number of samples collected for their chemical analysis out of which ten samples were of Khondalites and remaining five of Charnockites. The samples were analysed chemically for the determination of their major oxides―SiO₂, Al₂O₃, TiO₂, MnO, Fe₂O₃, FeO, P₂O₅, MgO, CaO, Na₂O, K₂O and H₂O⁺ and some trace elements which are discussed [21] . The relative variation trends of various major oxides are shown in Figure 3. The analytical data are presented in Table 2.

4. Distribution of the Major Oxides

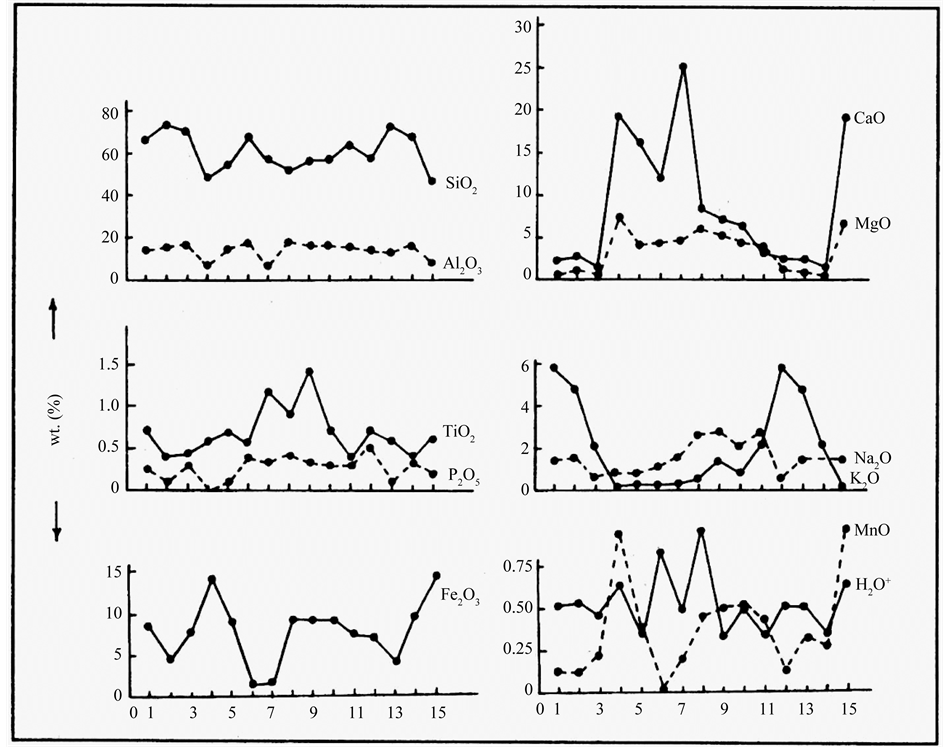

The abundance and variation range with average (wt%) of different major oxides of Khondalites and Charnockites are given in (Table 2 and Table 3) and the distribution of various major oxides are discussed as below:

4.1. Silica (SiO₂)

The quantitative variation trend of silica in the host rocks from 47.84 percent to 70.45 percent and gives an average value of 61.81 percent (Table 3, Figure 3). Khondalite, Charnockite rocks have wide variation of silica (Table 3). [22] reported 58.04% to 74.38% SiO₂ from Srikakulam area, [11] reported 58.4% from Garividi, [23] reported 67.10% and 69.90% respectively from Charnockites of Tamil Nadu and Karnataka. The histogram (Figure 4(a)) represents frequency percent distribution, showing polymodal nature of SiO₂ in the host rocks. The maxima is at 65 - 70 percent class. The typical mode of SiO₂ falls between 65 - 70 percent.

KD = Khondalite; CK = Charnokite; n.d. = Not Detectable.

4.2. Alumina (Al₂O₃)

The quantitative variation trend of Alumina in the host rocks of the study area ranges 6.32 percent to 17.42 percent and gives an average value of 13.07 percent (Table 3).

Khondalite and charnockite rocks show wide variation of Al₂O₃ (Table 3). [22] reported 9.65% to 20.64% Al₂O₃ from Srikakulam area. [24] reported 14.08% from feldspar garnetiferous granite-gneiss of Peddapantu- palli, and [23] reported 14.10% and 15.10% from Charnockites of Tamil Nadu and Karnataka. The histogram (Figure 4(b)) represents frequency percent distribution, showing polymodal nature of Al₂O₃. The maxima is at 12 - 14 and 16 - 18 percent classes.

4.3. Manganese (MnO)

The quantitative variation trend of manganese monoxide in the Khondalite and Charnockite rocks ranges from 0.12 percent to 0.94 percent and gives an average value of 0.36 percent (Table 3).

[22] reported 0.09% to 3.70% from the Srikakulam area whereas Khondalites of Sri Lanka consist 0.18% MnO [25] , [23] reported 0.05% and 0.02% from Charnockites of Tamil Nadu and Karnatka.

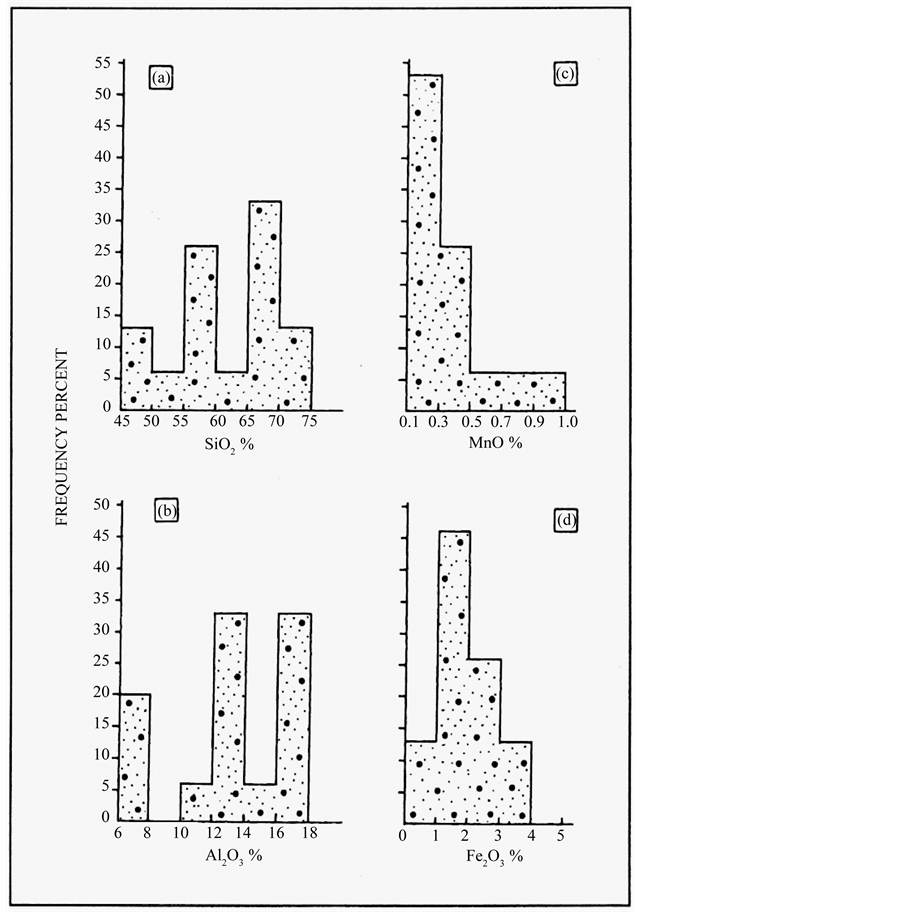

The histogram (Figure 4(c)) represents frequency percent distribution, showing unimodal positively skewed nature of MnO. The maxima is at 0.1 to 0.3 percent class and the typical mode of MnO also lies in the same class.

4.4. Ferric Oxide (Fe₂O₃)

The quantitative variation trend of Fe₂O₃ in the host rocks ranges from 0.44 percent to 3.36 percent and gives an average value of 1.45 percent (Table 3).

[22] reported 0.86% to 3.76% from Srikakulam area. [24] reported 1.22% from feldspar garnetiferous granite-gneiss of Peddapantupalli area, [23] reported 4.36% and 2.36% from the Charnockite of Tamil Nadu and Karnataka (Table 3 and Table 4).

The histogram (Figure 4(d)) represents frequency percent distribution, showing unimodal positively skewed nature of Fe₂O₃. The maxima is at 1 to 2 percent class and the typical mode also lies in the same class.

4.5. Ferrous Oxide (FeO)

The quantitative variation trend of FeO in the host rocks ranges from 1.20 percent to 13.11 percent and gives and average value of 5.79 percent (Table 3 and Table 4).

The Khondalites and Charnockites having higher concentration of FeO as compared to Fe₂O₃ (Table 3 and Table 4), [22] reported 1.12% to 8.04% from same area, [26] reported 9.98% from hypersthene-granulite of Narasimhunipeta, [11] reported 8.04% from Khondalites of Garividi and [23] reported 3.60% and 1.30% from Charnockites of Tamil Nadu and Karnataka (Table 3 and Table 4).

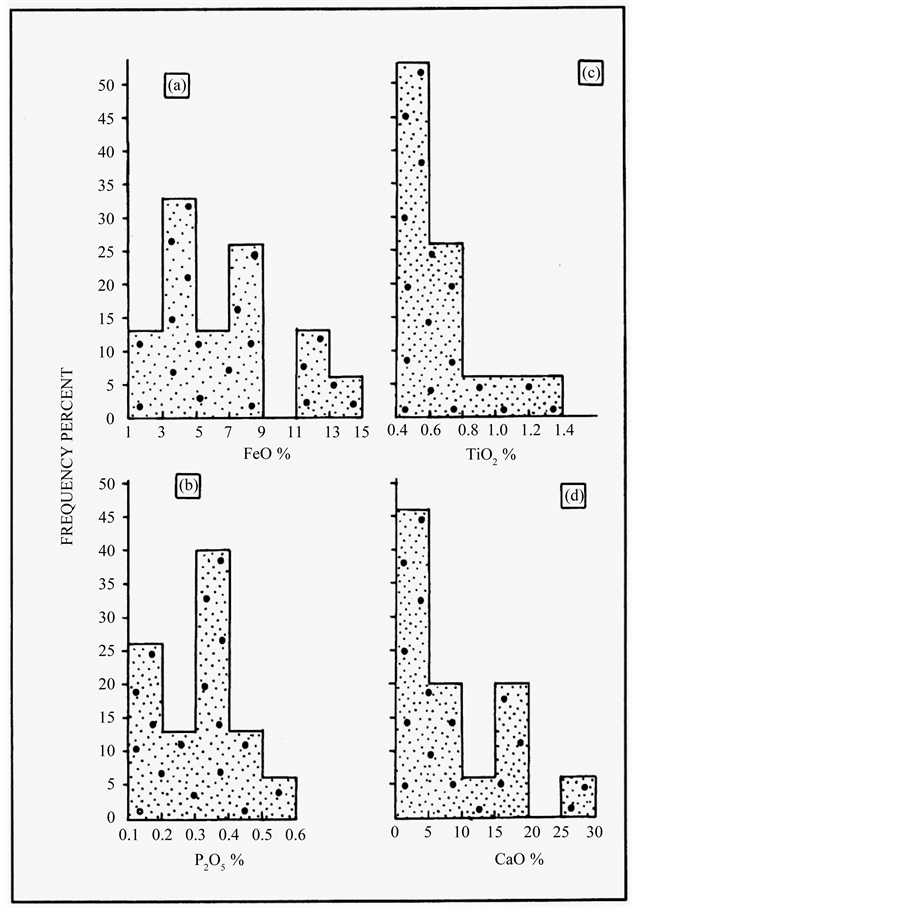

The histogram (Figure 5(a)) represents frequency percent distribution, showing polymodal nature of FeO. The maxima is at 3 to 5 percent class and typical mode also lies in the same class.

4.6. Phosphorus (P₂O₅)

The quantitative variation trend of P₂O₅ in the host rocks ranges from 0.10% to 0.51% and gives an average value of 0.27 percent (Table 3, and Table 4).

The concentration of P₂O₅ is abnormally on the higher side in the manganese ores as well as in the host rock of the study area, whereas [22] reported 0.18% to 1.01% from the various areas of Srikakulam district, [11] reported 0.75% from Khondalites of Garividi, and [24] reported 0.24% from feldspar garnetiferous granite-gneiss of peddapantupalli (Table 3 and Table 4).

The histogram (Figure 5(b)) represents frequency percent distribution, showing bimodal nature of P₂O₅. The maxima is at 0.3% to 0.4% class. The typical mode of P₂O₅ is also lies between 0.3 percent to 0.4 percent class.

4.7. Titania (TiO₂)

The quantitative variation trend of TiO₂ in the host rocks ranges 0.40 percent to 1.45 percent and gives an average value of 0.70 percent (Table 3).

[24] reported 0.73% from feldspar garnetiferous granite-gneiss of Peddapantupalli, Khondalite of Sri Lanka shows 0.65% TiO₂ [25] . [11] reported 1.65% from Khondalite of Garividi and [23] reported 0.80% and 0.41% from Charnockites of Tamil Nadu and Karnataka.

The histogram (Figure 5(c)) represents frequency percent distribution showing unimodal, positively skewed nature of TiO₂. The maxima is at 0.4 to 0.6 percent class and the typical mode also lies between 0.4 to 0.6 percent class.

4.8. Lime (CaO)

The quantitative variation trend of calcium oxide in the host rocks of the study area ranges from 1.25 percent to 25.61 and gives and average value of 8.80 percent (Table 3 and Table 4).

The CaO in the Khondalites and Charnockites of the study area shows a wide variation range from 1.25% to 25.61% (Table 3 and Table 4), Rao, K.V.R. (1955) reported 5.10% from hypersthene-granulite from the Narasimhunipeta and Krishnan (1934) reported 9.43% CaO in Khondalites of Sri Lanka (Table 3 and Table 4).

The histogram (Figure 5(d)) represents frequency percent distribution, showing bimodal nature of CaO. The maxima is at 1 percent to 5 percent class. The typical mode lies between 1 percent to 5 percent class.

4.9. Magnesia (MgO)

The quantitative variation trend of MgO in the host rocks ranges from 0.86 percent to 7.90 percent and gives and average value of 3.52 percent (Table 3 and Table 4).

Rao, K.V.R. (1955) reported 3.26% from hypersthene-granulite of narasimhunipeta, [11] reported 5.90% from Khondalites of Garividi and [23] reported 2.31% from Charnockites of Tamil Nadu (Table 3 and Table 4).

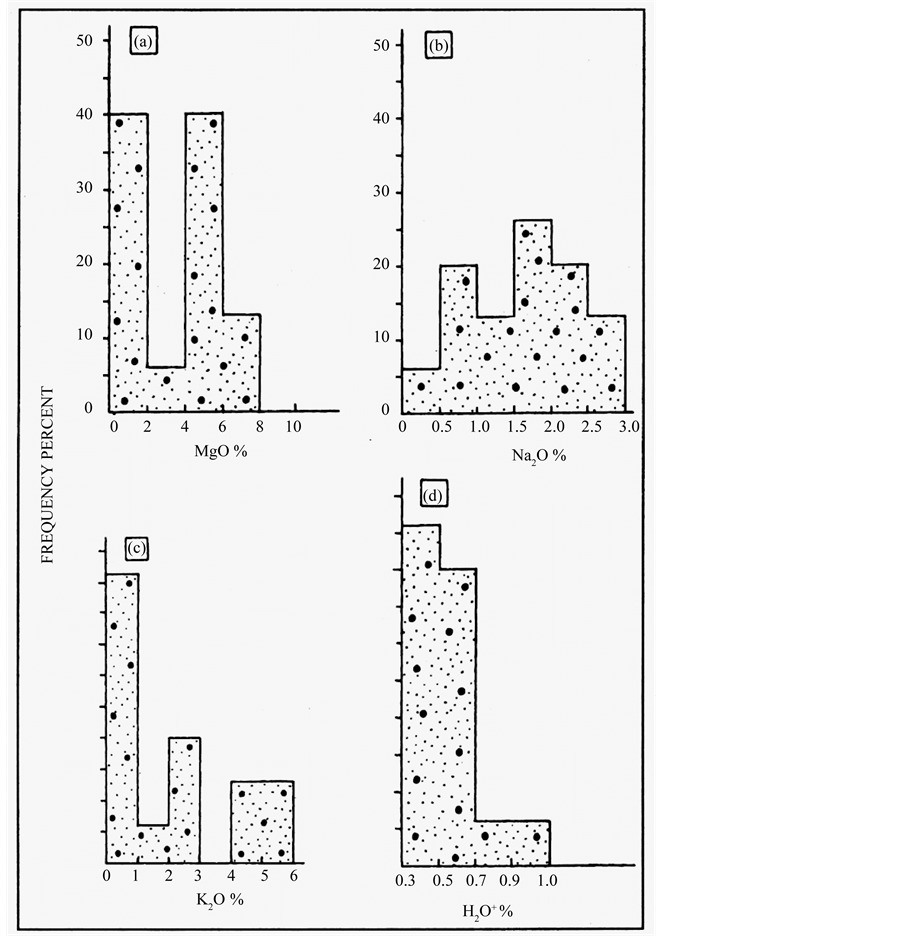

The histogram (Figure 6(a)) represents frequency percent distribution, showing bimodal nature of MgO. The typical mode of MgO and maxima lie between 0 to 2 and 4 to 6 percent classes.

4.10. Soda (Na₂O)

The quantitative variation trend of Na₂O in the host rocks ranges from 0.34 percent to 2.84 percent and gives an average value of 1.55 percent (Table 3 and Table 4).

Rao, K.V.R. (1955) reported 2.62% from hypersthene granulite of Narasimhunipeta, 2.59% reported in Khondalites of Sri Lanka Krishnan (1934), and [23] reported 3.91% and 4.79% from Charnockites of Tamil Nadu and Karnataka (Table 4).

The histogram (Figure 6(b)) represents frequency percent distribution, showing polymodal nature of Na₂O. The maxima is at 1.5 percent to 2.0 percent class, and the typical mode also lies in the same class.

4.11. Potash (K₂O)

The quantitative variation trend of K₂O in the host rock ranges from 0.02 percent to 5.49 percent and gives an average value of 2.12 percent. [24] reported 5.93% from feldspar garnetiferous granite-gneiss of peddapantupalli, 3.06% reported from Khondalites of Sri Lanka [25] .

[11] reported 3.24% from Khondalites of Garividi, and [23] reported 2.23% from Charnockites of Tamil Nadu (Table 4).

The histogram (Figure 6(c)) represents frequency percent distribution, showing polymodal nature of K₂O. The maxima is at 0 to 1 percent class and typical mode also lies in the same class.

The Khondalites and Charnockites have wide variation of potassium oxide. This higher amount of K₂O is due to the presence of potash feldspar and micaceous mineral in these rocks. The high potash contents in Khondalites and Charnockites are possibly due to the migmatisation, which took place by the injection of feldspathic (K-feldspar) fluid. The megacrystic K-feldspar in them crystallised from the injected fluid and also by the segregation of the neo-mobilised feldspathic components during migmatisation. According to [27] , the main supply of alkalies came probably from the intrusive igneous rocks, another probable source might be the quartz with its numerous fluid inclusion.

4.12. Water (H₂O⁺)

The quantitative variation trend of H₂O⁺ in the host rocks ranges from 0.30% to 0.96% and gives an average value of 0.52 percent.

[24] reported 0.44% from feldsdpar garnetiferous granite-gneiss of peddapantupalli, [26] reported 0.51% from hypersthene-granulite of Narasihunipeta, and [23] reported 0.47% from Charnockites of Tamil Nadu.

The histogram (Figure 6(d)) represents frequency percent distribution, showing unimodal positively skewed nature of H₂O⁺. The maxima is at 0.3 to 0.5 percent and typical mode also lies in the same class.

5. Mutual Relationship

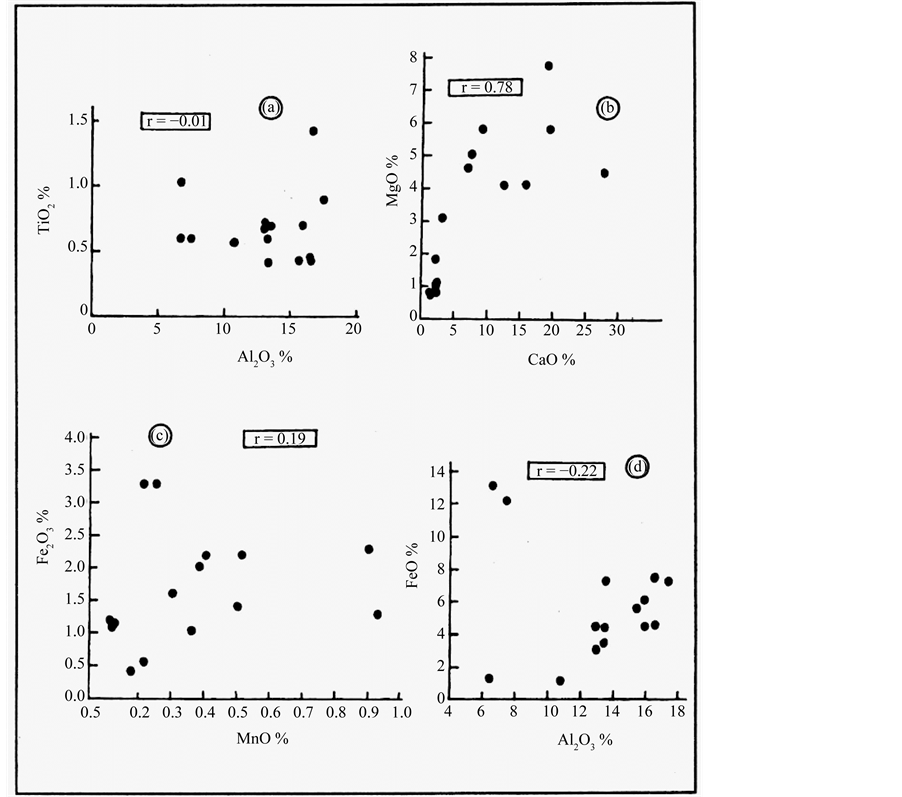

An attempt has been made to determine the geochemical relationship of MnO with SiO, Al₂O₃, FeO, K₂O, Na₂O, CaO (Figures 7(a)-(f)), and Fe₂O₃ in Khondalite and Charnockite Groups of Garividi, Garbham and Chipurupalle areas, Srikakulam-Visakhapatnam Belt (A.P.). The mutual relationships of significant oxides are plotted in various diagrams and discussed as follows:

5.1. Silica (SiO₂)

The computed correlation coefficient of silica shows strongly antipathetic relationship with MnO (Figure 7(a)) and FeO (relationship of SiO₂ with Fe₂O₃ and FeO and Al₂O₃ with Fe₂O₃ in Khondalite and Charnockite Groups of Garividi, Garbham and Chipurupalle areas, Srikakulam-Visakhapatnam Belt (A.P.)) and MgO and shows slightly negative relationship with TiO₂, Na₂O and H₂O⁺ (Table 5).

These relationships reveal that with the increase of SiO₂ there is correspondingly decrease in MnO, FeO, TiO₂, CaO, MgO, Na₂O and H₂O⁺ and vice versa. The negative relationship of silica with manganese and FeO probably indicates that manganese and FeO are the substitutes of silica. It appears that the negative relationship of MnO with silica is possibly due to the alteration of manganese bearing minerals into silicate minerals. The highly variable silica/alumina ratio (Table 6) and sympathetic relationship of silica with Al₂O₃, Fe₂O₃ and K₂O favours the coexistence of quartz and aluminosilicate minerals in the Khondalite and Charnockite rocks. The

higher concentration of silica is due to the presence of quartz and other siliceous minerals a characteristic feature of the original pellitic sedimentary rocks. Furthermore the high concentration of silica in the rocks of study area is possibly due to the presence of scapolite.

Silica shows a sympathetic relationship with Al₂O₃, Fe₂O₃, P₂O₅ and K₂O (r = 0.732) (Table 6). The positive relationship of silica with these elements is possibly due to the presence of potash feldspar and other alumino-silicate minerals.

5.2. Alumina (Al₂O₃)

The alumina is negatively but insignificantly related with MnO (Figure 7(b)), FeO (Figure 7(c)), TiO₂, MgO, and H₂O⁺ and strongly antipathetic with CaO (r = 0.79. As evident from the (Table 6), alumina shows positive relationship with SiO₂, Fe₂O₃ (r = 0.73, P₂O₅, Na₂O and K₂O). However, a strong positive relationship appears between Al₂O₃ & Fe₂O₃ (r = 0.73). By correlation coefficient it therefore appears that like other few oxides, e.g., FeO, TiO₂, MgO, H₂O⁺, the alumina is also not significantly related with MnO. Further the positive relationship of alumina with silica, Fe₂O₃, Na₂O and K₂O indicates the presence of sillimanite, kyanite, andalusite, orthoclase, microcline. The high Al₂O₃/Fe (total iron) ratio (Table 6) in both Khondalite and Charnockite is identical to that found in alumino-silicate minerals.

The abnormally high Al₂O₃ content is some samples of host rocks may be due to the presence of white specks of kaoline, found in cleavages and cracks of garnet [11] . These specks appear to be the cause of these abnormally high values. The abundance of alumina and silica can be assigned to the argillaceous nature of the parent rocks.

The generally high concentration of alumina is possible due to the presence of alumina-silicate minerals, i.e., feldspar, micaceous minerals and sillimanite (in garnet-sillimanite gneisses). In feldspar Si⁴⁺ (radius 0.42 Å) is replaced by Al³⁺ (radius 0.50 Å) in Si-O tetrahedra [28] .

5.3. Manganese (MnO)

The MnO shows strong antipathetic relationship with SiO₂ (r = −0.84) and K₂O (Figure 7(d)), whereas it shows feebly negative relationship with Al₂O₃ and P₂O₅.

As evident from Table 4, the MnO, in the Khondalite and Charnockites of the present area have strong positive relationship with FeO (r = 0.93) and MgO (r = 0.79) and slightly positive relationship with Fe₂O₃, TiO₂, Na₂O (Figure 7(e)), Cao (Figure 7(f)) and H₂O⁺, MnO/CaO ratio is constant. The positive relationship of MnO with Fe₂O₃, FeO and the constant MnO/Fe (total iron) (Table 6) ratio indicate that iron and manganese were delivered in the same proportion. The constant MnO/Fe ratio suggests coprecipitation of Mn and Fe under fairly oxidizing condition. The small quantity of manganese determined from the country rocks has most probably been derived from the manganese silicate minerals like manganese bearing garnets, pyroxenes, and other Mn bearing minerals presents in the host rocks ( [14] [29] - [31] ) possibly in association of ferruginous magnesium rich calc-granulite and garnet sillimanite gneiss and hypersthene gneisses.

5.4. Iron Oxides

The relationship of Fe₂O₃ with TiO₂, CaO, MgO, K₂O and H₂O⁺ is negative as Fe₂O₃ increase with the decrease of these elements or vice versa.

The antipathetic relationship of Fe₂O₃ with MgO in Khondalite and Charnockite rocks may be explained by the replacement of Fe³⁺ (0.67 Å) by Mg²⁺ (0.66 Å) [32] . The higher FeO/Fe₂O₃ values is Khondalite from the Ea- stern Ghat granulite belt of India indicate lower oxidation conditions in Early Proterozoic [33] . In Eastern Ghat granulite belt of India the variation in FeO/Fe₂O₃ ratio from one area to the other suggests that these sediments were deposited in different basins with different pH. Eh conditions of deposition [33] . The Khondalite and char- nockite rocks of the area under study, exhibit composition variation in iron (total iron), ranging from 1.64% to 14.41% and exhibit high MgO values. Random variation is also observed in K₂O, Na₂O and iron in ternary diagram showing high and random distribution of MgO in Khondalites (Δ) and Charnockites (•) of Garividi, Garb- ham and Chipurupalle areas, Srikakulam-Visakhapatnam Belt (A.P.) Fe₂O₃ (Total Iron), (Table 7 and Table 8).

The significant relationship between various other oxides are also taken into consideration for example relationships of Al₂O₃ with TiO₂ (Figure 8(a)), CaO with MgO (Figure 8(b)) and Fe₂O₃ (Figure 8(c)) and FeO (Figure 8(d)).

5.5. Titania (TiO₂)

Titanium oxide shows positive correlation with MnO, FeO, P₂O₅, CaO, MgO and Na₂O whereas SiO₂, Al₂O₃ (Figure 8(a)), Fe₂O₃, K₂O and H₂O⁺ are negatively correlated with TiO₂. The positive correlation of TiO₂ with CaO (r = 0.34), MgO (r = 0.37) and Na₂O (r = 0.26) clearly indicates that much of the TiO₂ contains in Khondalite and Charnockite rocks were possibly derived from the titanium bearing minerals like sphene.

5.6. Lime (CaO)

The graph and computed correlation coefficient of calcium show positive relationship with MnO in relationship of MnO with SiO₂, Al₂O₃, FeO, K₂O, Na₂O and CaO in Khondalite and Charnockite Groups of Garividi, Garbham and Chipurupalle areas, Srikakulam-Visakhapatnam Belt (A.P.), FeO, TiO₂ and H₂O⁺ and strongly positive relationship with MgO (r = 0.78), (Figure 8(b)). CaO show antipathetic relationship with Fe₂O₃, P₂O₅ and Na₂O and strongly antipathetic relationship with SiO₂ (r = 0.78), Al₂O₃ (r = −0.79) and K₂O (r = 0.726). The ratio of CaO and MnO is constant. The Khondalite and Charnockite rocks of the study area having fairly high concentration of CaO (range from 1.25% to 25.61%). Furthermore diopside, wollastonite, anorthite, scapolite, piedmontite and calcite also contributed varying proportion of CaO to the Khondalite and Charnockite rocks. The lime content seems to be of migmatitic origin [38] . The relationship between various other oxides are also taken into consideration for example relationships of Fe₂O₃ (Figure 9(a)), SiO₂ with FeO (Figure 9(b) and Figure 9(c)) and in these host rocks of Garividi, Garbham and Chirpurupalle areas.

5.7. Phosphorus (P₂O₅)

The concentration of P₂O₅ is abnormally on the higher side in the manganese ores as well as in the host rocks of the study area. However, P₂O₅ shows insignificant negative relationship with MnO, FeO, CaO and MgO.

The ratio of MnO and P₂O₅ is variably low and high. Whereas P₂O₅ shows positive relationship with SiO₂, Al₂O₃, Fe₂O₃, TiO₂, Na₂O, K₂O and H₂O⁺. The positive relationship of P₂O₅ with SiO₂, Al₂O₃ and K₂O appears

Fe₂O₃ total iron.

to be due to the presence of alumino-phosphate minerals probably leucophosphate formed by the reaction of phosphate rich solutions with clay minerals. The chemical reaction which indicates the formation of leucophosphate as given by [34] is as follows:

Further the positive relation of P₂O₅ with Fe₂O₃ clearly indicates the ferruginous nature of phosphate minerals. According in [1] [27] [31] [35] , the source of phosphorus in the original manganiferous rocks is apatite and spessartite which are the common constituent of the rocks associated with gondite and Kodurite types.

[36] reported up to 4.10 percent P₂O₅ in spessartite. The presence of apatite in the host rocks indicates that they were subjected to metamorphism in a more hydrous environment as also suggested by [37] .

The manganese silicate-carbonate, clay and silica. In few mines as in Avagudem the manganese carbonate was either deposited in the form of carbonate or formed through diagenesis of manganese oxide [39] .

5.8. Magnesia (MgO)

The present study reveals that MgO is positively correlated with FeO, CaO, MnO, TiO₂, Na₂O and H₂O⁺ whe- reas it is negatively correlated with Al₂O₃, Fe₂O₃, P₂O₅, SiO₂ and K₂O (Figures 9(a)-(c)).

The Khondalites and Charnockites of the study area show higher concentration of MgO (ranges from 0.86% to 7.90%). [33] also reported higher concentration of MgO in Khondalites from the Eastern Ghat granulite belt of India.

These Khondalite with high MgO content can be compared with Late-Archaean-Early Proterozoic metapelites. In the area under study the Khondalite and Charnockite rocks exhibit compositional variations (Table 9 and

Table 10) in MgO (ranges from 0.86% to 7.90%), K₂O (ranges from 0.02% to 5.94%) and Na₂O (ranges from 0.34% to 2.84%). The ternary diagram (Figure 10) shows wide scatter distribution of MgO, K₂O and Na₂O.

The concentration of magnesium oxide is possibly due to the presence of garnet, spinel, hornblende, magnesium rich pyroxenes and biotite in the rocks of the study area. All these minerals pointing to the argillaceous nature of the original sediments which gave rise to these rocks.

5.9. Soda (Na₂O)

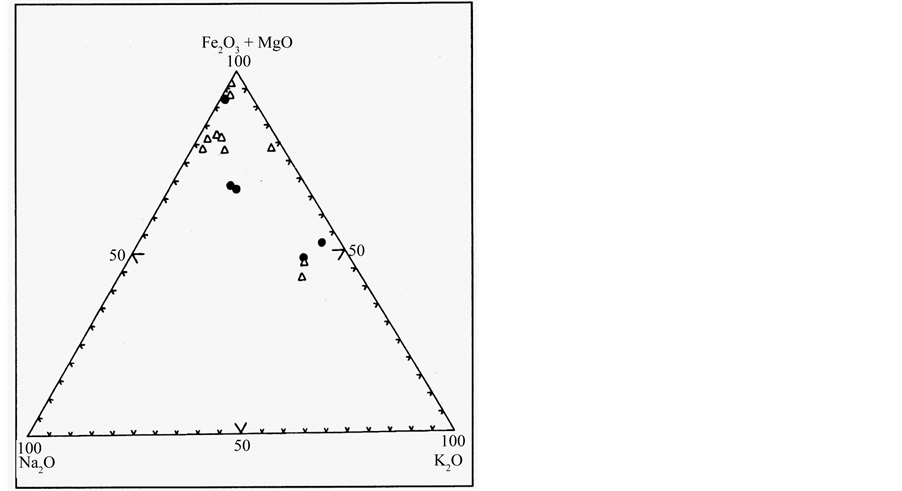

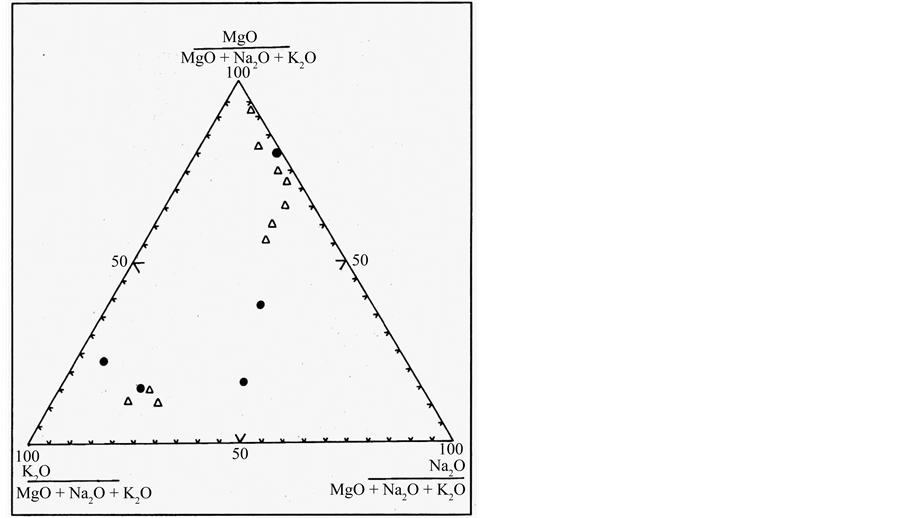

In the Khondalite and Charnockite rocks soda shows positive relationship with Al₂O₃, MnO in relationship of MnO with SiO₂, Al₂O₃, FeO, K₂O, Na₂O and CaO in Khondalite and Charnockite Groups of Garividi, Garbham and Chipurupalle areas, Srikakulam-Visakhapatnam Belt (A.P.), Fe₂O₃, FeO, P₂O₅ and TiO₂.

These rocks in few samples show exceptionally high Na₂O/K₂O ratio. The ternary diagram (Figure 11) shows wide scatter distribution of K₂O and Na₂O.The presence of soda is due to the presence of feldspar and also due to the presence of scapolite in the Khondalites of study area [11] . The main supply of alkalies probably came from the igneous intrusion which cut across the Khondalite and Charnockite rocks. The high soda concentration in these rocks suggests the existence of predominantly tonalite/trondhjemite rocks in the source area. A study of granitic/gneissic episodes of the South Indian shield [40] - [42] indicates that the Early Archaean.

Post-greenstone granitic and gneissic episodes of the stable craton are mostly tonalitic/trondhjemitic in nature and K-rich granites appeared only in Late Proterozoic which explains better the high soda content in Proterozoic Khondalites of the Eastern Ghats. Predominance of soda rich tonalites and trondhjemites in Early Archean crust is also reported from other shield areas [43] [44] . Wide distribution in Na₂O from area to area may indicate to different temperatures of Na-rich and mafic source material indifferent basins [33] .

5.10. Potash (K₂O)

K₂O shows insignificant negative relationship with CaO, MgO, MnO in relationship of MnO with SiO₂, Al₂O₃, FeO, K₂O, Na₂O and CaO in Khondalite and Charnockite Groups of Garividi, Garbham and Chipurupalle areas, Srikakulam-Visakhapatnam Belt, Fe₂O₃, FeO, TiO₂, Na₂O and H₂O⁺. However, it shows strongly positive relationship with SiO₂ and slightly positive relationship with Al₂O₃ and P₂O₅ (Table 4). The dominance of K₂O over Na₂O is characteristic of parametamorphic rocks [20] and these rocks have exceptionally high and variable Na₂O/K₂O ratio. Potassium and sodium also show close coherence with aluminium, which is possibly due to the presence of soda and potash feldspar in these rocks.

5.11. Water (H₂O⁺)

Water shows positive relationship with MnO, FeO, P₂O₅, CaO and MgO and negative relationship with SiO₂, Al₂O₃, Fe₂O₃, TiO₂, Na₂O and K₂O.

6. Conclusions

The analysis of 15 host rocks samples reveals that:

¾ Silica increases with the increases of Al, phosphorous and potash and vice versa.

¾ Alumina increases with the increases of SiO₂, P₂O_5, Na₂O and K₂O and vice versa.

¾ Mn increases with the increases of Fe and vice versa.

¾ MnO also shows strong sympathetic relationship with MgO and Na₂O.

¾ Phosphorous decreases with increase of MnO and vice versa.

¾ Ti increases with the increases of Mn and vice versa.

¾ Lime increases with the increases of Mn and vice versa.

¾ Mg increases with the increases of MnO and vice versa.

¾ Soda increases with the increases of both Mn and Fe and vice versa.

¾ Potash decreases with the increases of both Mn and Fe and vice versa.

The geochemical behavior of the host rocks indicate that the evolution of the ores took place in two different stage.

In first stage, sediments were rich in Mn, deposited in a basin during typical condition of oxidation. The chemical alteration and metamorphism of these sediments gave rise to the formation of primary metamorphic

Mn minerals. In the later stages these metasediments suffered metasomatism due to intense igneous intrusions which caused hybridization at places.

In the second stage, the previously formed Mn ores and Mn-silicates of the country rocks like Mn-rich garnets and pyroxenes which played an important role in the formation of secondary Mn minerals viz. psilomelane-cry- ptomelane, hollandite, pyrolusite and wad etc. by the alteration. The meteoric water rich in CO₂ played an important role in solution, transportation, precipitation, concentration and finally redeposition of the secondary Mn ores.

The concentration and redeposition have largely taken place from colloidal state or solution in oxidizing environment. It is assumed that Mn and Fe are in colloidal state. The anions and cations of minor and trace elements are adsorbed on the surface of negatively charged Mn(OH)₄ and positively charged Fe(OH)₃ particles. The high K₂O/Na₂O, CaO/MgO and Co/Ni ratios in these ores are due to high adsorption capacities of K₂O, CaO and Co then Na₂O, MgO and Ni:

Presumably the Mn and Fe solutions first form in feebly acidic medium with at pH value around 7. However with an increase in alkalinity Mn²⁺ and Fe²⁺ they are converted to colloidal Mn(OH)₄ and Fe(OH)₃. The solubility of SiO₂ also increases with the increase pH (about 9), the Al₂O₃ dissolves into solution. The addition of Al(OH)₃ into solution causes drastic changes in character of Mn(OH)₄ colloids which are precipitated as oxide ores. Originally the Mn deposits have been derived from sources on the bordering Cratons, which are also the probable provinces for the sediments in this part of the basin.

Acknowledgements

The authors are grateful to Prof. M. Rahimullah, Chairman Department of Geology and Dean Faculty of Science, AMU Aligarh. To Director National Institute of Oceanography, Dona Paula, Goa for providing research facilities.
