Cold Acid Postmortem Blood Most Probably Formed Pinkish-Red Heme-Madder Lake on Madder-Dyed Shroud of Turin

Adrie A. M. van der Hoeven

Utrecht, The Netherlands

Copyright © 2015 by author and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

http://creativecommons.org/licenses/by/4.0/

Received 8 October 2015; accepted 27 November 2015; published 30 November 2015

ABSTRACT

The Turin Shroud was extensively scientifically investigated in 1978. In its pinkish red bloodstains, normal features of human blood were found, but also seemingly anomalous ones. In the present study, hitherto unnoticed details of the data are presented, Shroud data and more modern reference data are compared, and the results of a few experiments with linen, madder dye and blood are shown. It turns out that the Shroud’s ‘anomalous’ data are strong consistent evidence that its bloodstains contain acid heme-madder lake, of which the heme derived from cold acid postmortem blood and the madder had been applied to the Shroud at manufacture. It implies that the bloodstains were formed on the Shroud before the still not reproduced body-image was. Several other ‘red-color’ hypotheses for the Shroud’s bloodstains are discussed and dismissed.

Keywords:

Turin Shroud, Blood, Madder, Forensic Medicine, Spectroscopy

1. Introduction

The Shroud of Turin is a 4.4 × 1.1 m linen cloth that is kept in Turin, Italy, and that is at least six centuries old and bears the frontal and dorsal image of a man and apparent bloodstains in the areas of the hands, feet, side, head, and small of back, and also burn holes and scorch marks and water stains and creases (see e.g. [1] ). It is believed by many to be the burial cloth of Jesus Christ. In 1978 a multidisciplinary group of scientists, among which many of the Shroud of Turin Research Project (STURP), examined the cloth using several methods among which UV-vis, UV-fluorescence and X-ray fluorescence spectrometry and later their samples were also subjected to FT-IR spectrometry and other tests. It was found that the bloodstains on the Shroud show a number of normal human blood features such as the presence of red blood cells [2] - [4] , hemoglobin [4] [5] , porphyrin [3] [6] [7] , iron [8] , serum albumin [7] , primate immunoglobin [3] [9] [10] , and erythrocyte antigens A and B [3] . However, also a number of anomalies were found: most bloodstains are pinkish-red, as seen in the color-cali- brated photos made in 2008 [11] (Figure 1), their UV-vis spectra lack a Soret peak [12] , X-ray fluorescence failed to detect potassium in the red stains [8] , microscopy showed only very few red blood cells [2] [13] , and the FT-IR spectra of loose “blood globs” from the Shroud are not typical of dried blood [14] . The survival―and even splendid condition―of the cloth and its bloodstains after at least six centuries of microbial attack also is exceptional. As the Turin Shroud is not accessible for hands-on scientific research at the moment, this study sought to find an explanation of these anomalies by a detailed analysis and comparison of available data, the testing of hypotheses against these data, and the performance of a few experiments to physically test some hypotheses, especially the only remaining plausible one. In this manner, this paper presents a new and consistent explanation of the anomalies that also accounts for the observed anomalous fluorescence of the cloth [15] and for the FT-IR spectra of samples from various non-image areas [16] [17] . The three new concepts that together constitute this explanation are that the Shroud bloodstains contain a pinkish-red complex of acid heme dimers and madder (Section 2), of which the acid heme dimers derived from cold acid postmortem blood (Section 3), and of which the madder was already uniformly present on the Shroud since it was starched and dyed with yellow acid madder dye at manufacture (Section 4). A few experiments show how cold blood clots can imprint Shroud-like pinkish stains and fluorescent serum margins on starched and madder-dyed linen (Section 5).

2. Bloodstains Contain Madder Lake

2.1. UV-Vis Spectra of Red Blood Material

Three kinds of blood material were subjected to UV-vis spectrometry. The first was a microscopic red-brown translucent crystal that, while still stuck to the sticky-tape by which it had been lifted from the surface of the Shroud, yielded a clear Soret peak at 405-410 nm in UV-vis transmission, and which further UV-vis spectrum was not published but led to the identification of “old acid methemoglobin” ( [9] p. 147). The second kind were 6 mm × 3 mm areas of bloodstains on the cloth. Their UV-vis reflectance spectra were ratioed to those of clear background areas of the Shroud, and four of the resulting relative reflectance spectra were then averaged to obtain the mean relative reflectance spectrum of the bloodstains. All four published bloodstain spectra plus the mean reflectance spectrum (Figure S1) [12] show a broad, more or less flat band from ca. 340 to 525 nm with no suggestion of a Soret band, an absorbance peak at ca. 630 nm, and especially the mean reflectance spectrum also shows small bands at 280 nm and 725 nm. The absorbance peak at ca. 630 nm could be interpreted as the charge transfer peak of acid methemoglobin (cf. Figure S2) [18] , but the lack of a clear Soret peak was studied further by Pellicori [19] . He found that much of the clear contrast of a Soret peak, measured in transmission mode, is

Figure 1. Bloodstain in forehead area of the Shroud. Color-calibrated photo by Haltadefinizione®Image Bank [11] . Copyright Arcidiocesi di Torino.

lost when measured in reflectance mode, and that ageing of bloodstains on linen also reduces the contrast of the Soret peak (Figure S3). The third kind of red material were microfibers with red stains on part of their length, also still stuck to their sampling sticky-tape. A UV-vis absorbance curve from ca. 405 to 650 nm, measured in transmission, of one of these fibers shows a clear peak at ca. 450 nm with a ca. 530 nm shoulder, but no (charge transfer) peak at ca. 630 nm (Figure S4) [6] .

As bilirubin, a substance which concentration in the blood is elevated in a heavily traumatized body, has a broad absorbance peak at ca. 450 nm, Adler hypothesized, until his death in 2000, that the presence of a very high bilirubin level in the blood caused both the disappearance of the Soret peak in the mean bloodstain spectrum and the appearance of the high peak at 450 nm in the fiber spectrum [13] [15] . However, the UV-vis spectrum he published of a mixture of whole blood and bilirubin in albumin [14] is unlike either of the above mentioned Shroud blood spectra, and there are many other contradictive arguments and characteristics of the Shroud blood materials (Section 2.4 and Section 4.10).

In 2006, a new type of blood product was discovered: the aqueous heme π-π dimer [20] . It is a product of acid denaturation of (met) hemoglobin and has a Soret band at 340 - 400 nm that is rather flat and much smaller than in acid methemoglobin or in hemichrome [21] or even in free heme or in the heme µ-oxo dimer, also in comparison to the 500 nm peak, especially at low (acid) pHs, and it has a small band at ca. 725 nm (Figure S5 and Figure S6). When in acidic conditions, e.g. at pH 5.5, it would also have the charge transfer peak at 630 nm (pers. commun., 25-07-2013, with the corresponding author of [20] ). The near flatness of the mean reflectance spectrum of the Shroud bloodstains from 340 to 525 nm therefore can be explained by the presence of this acid heme dimer plus the presence of yellow acid madder dye, absorbing at 450 nm, and pink/red madder lake, absorbing at 525 nm and 280 nm (cf. Figure S7 and Figure S8) [22] [23] . While the color of madder dye changes with pH―this is its acidichromism― [24] (Figure S9), the color of a madder lake, i.e., a stable complex of madder dyestuffs and a mordant, is a fixed color and pink when the mordant is iron [25] (Figure S10).

In order to compare the UV-vis spectrum of madder lake in Kubelka-Munk values (k/s) (Figure 2) with the Shroud bloodstain data, the mean relative k/s spectrum of the bloodstains is calculated by first multiplying the published mean relative reflectance values of the bloodstains by the published mean absolute reflectance val-

Figure 2. UV-visible absorption spectra of red lakes in Kubelka-Munk (k/s) values; madder P = prepared from plant root extract, R and F = prepared from extract of dyed wool samples. From [147] , with permission from Springer Science and Business Media.

ues of the background areas [12] in order to regain the absolute reflectance values of the bloodstains, and then calculating the k/s value

(1)

from these absolute reflectance values (R) for both bloodstain and background, and finally calculating the so-called “percent relative post-color number” (PRO) [26] of their k/s difference relative to the k/s value of the background:

(2)

In the plot of these calculated PRO values (Figure 3), the 525 nm peak is dominant, just as in the k/s spectra of madder lake (cf. Figure 2 and Figure 3). In the stains’ calculated PRO plot the bands typical of acid heme dimers are retained, as is the 450 nm band assignable to yellow acidic madder dye. Also the ca. 450 nm and 530 nm peaks in the UV-vis spectrum of the partly red microfiber from the Shroud (Figure S4) can be explained as the 450 nm absorbance peak of acid yellow madder dye, present all around the fiber, and the ca. 525 nm absorbance peak of red madder lake, formed where acid heme mordanted the surface of the dye pinkish red and then largely abraded from the microfiber on the Shroud surface. The bloodstains on the cloth, on the other hand, would have retained more blood material between and underneath the surface fibers, while the cloth, which probably was starched before it was dyed (Section 4), also carries relatively less madder dye than a single surface fiber. Before abrasion, the blood deposits on the cloth would have protected the yellow madder dye underneath the deposits from degradation during body-image formation and ageing, which may explain the 450 nm band in the spectrum of the bloodstains relative to the aged unprotected background.

2.2. UV Fluorescence of Shroud Bloodstains

In 1978, UV fluorescence photography of the Shroud was performed with filters that effectively separated the UV excitation (335 - 375 nm) from the recorded visible fluorescence (~410 nm and higher) [27] . Its report says that, in the obtained photos, the bloodstains look dark compared to the greenish yellow fluorescing background. Yet, some of the bloodstains also look red in fluorescence (e.g. Figure 4 and Figure S11).

Blood is not fluorescent under the applied conditions [28] [29] . Madder lake’s maximum fluorescence emission is at ca. 620 nm, in the visible red [30] . The main constituents of a madder root extract are the colorants alizarin and purpurin, in a ratio dependent on the type of madder and the extraction method and further treatment and history [30] . Although the aluminum lakes of alizarin and purpurin show a mutually slightly different fluorescence emission maximum near 620 nm, both alizarin and purpurin lakes have an excitation minimum at ca. 365 nm, exactly in the excitation range used for the UV fluorescence photography in 1978 (Figure S12) [30] .

Figure 3. Possible composition of the calculated PRO spectrum (relative absorbance based on k/s values) of Shroud bloodstains relative to background areas of the Shroud.

This, plus the quenching of any madder lake fluorescence by remaining heme deposits, may explain the darkness of the bloodstains’ red fluorescence. Legrand and others have reported that the Shroud’s bloodstains, when seen in sunlight, look redder than when seen in the cathedral or behind a glass plate [31] . Sunlight’s UV components beyond the mentioned excitation minimum would make madder lake fluoresce more brightly red. As also the fluorimetry of the Shroud was done with 365 nm excitation [12] , a contribution of madder lake’s red fluorescence would not have been conspicuous.

Nevertheless, the published fluorescence spectra of the various different areas of the Shroud (e.g. Figure 5) [12] show that, while all spectra are dominated by a ca. 435 nm band―probably caused by the ca. 435 nm fluorescence emission of lignin [32] in the linen cloth―, the bloodstains fluoresce redder than the background areas and the image areas: the published fluorescence intensities (F) at 450 nm and at 600 nm―closest to madder lake’s 620 nm maximum―were read from the spectra and ratioed. The results (F450/F600) are represented in Table S1 and Figure 6. The smaller ratio―representing a redder color―in the bloodstain fluorescence is thus made clear. The smaller ratio in the scorch areas corresponds to the reported visibly reddish fluorescence of light scorches [27] .

2.3. FT-IR Spectra of Shroud Blood Globs

In 2002, FT-IR spectra of microsamples from various Shroud areas were published [14] . The three published FT-IR spectra of microscopic particles, called ‘blood globs’, found on the sticky-tape samples, are quite similar to each other and therefore probably quite reproducible (Figure 7). They are also quite similar to FT-IR spectra of madder lake, both qualitatively (Figure 7 and Figure S13) and numerically; the FT-IR spectrum of heme (Figure S14) [33] also appears to be compatible with the Shroud ‘blood globs’ FT-IR spectra [34] .

Figure 4. Wrist area of the Shroud in reflected light photo (top, from [1] ) and ultraviolet-fluorescence photo (bottom, ©1978 Vernon Miller, Fair Use).

Figure 5. Smoothed fluorescence curves of three bloodstains of the Shroud. From [12] .

Figure 6. Distribution of the F450/F600 ratios of fluorescence intensity of Shroud areas listed in Table S1.

Figure 7. Rough qualitative comparison of FT-IR spectra of Shroud ‘blood globs’ (from [14] ) and madder lakes, adapted for alignment and covered with lath; centre plot: FT-IR spectra of three madder lakes (from [148] 2011 ©John Wiley and Sons); bottom plot: same FT-IR spectrum of madder lake as in Figure S13, but 2013 edition (from [149] , with permission from the Infrared & Raman Users Group). Abscissas: wavenumbers in cm−1.

2.4. Not a Bilirubin Excess or Nitrosoheme or CO-ligand or UV-Exposure

Bilirubin is not light-stable and fluoresces green [35] , so could not give bloodstains a stable red color and fluorescence, and would give separate serum a green color, if present at an excess level [31] [36] . In 2002, both a UV-vis and a FT-IR spectrum of a simulation of Adler’s hypothesized Shroud blood―made by adding a bilirubin-albumin mixture to whole blood―was published [14] . The UV-vis spectrum is unlike any of the Shroud blood spectra, and qualitatively and numerically the ‘simulated’ FT-IR spectrum is less compatible with the Shroud ‘blood globs’ FT-IR spectra than those of madder lake (Figure 8) [34] . This also holds for the FT-IR spectra of nitrosoheme―both fresh and aged by photo-oxidation [33] ―, a species that was hypothesized by Berry [37] as having been painted on the Shroud. Also the UV-vis spectrum of nitrosoheme [33] is quite different from that of heme and that of the Shroud bloodstains (Figure S15). CO is not a light-stable ligand to the heme of hemoglobin (Hb) [38] and also the UV-vis spectrum of HbCO is very different from those of metHb or the Shroud [39] . Prolonged UV-irradiation of bilirubin produces lumirubin, which under UV-containing light might give a temporary red color to brown blood (cf. [40] ); the lighting of some previously UV-exposed, red-looking, experimental bloodstains produced by Goldoni [31] is not specified [41] . Besides, there are red bloodstains in non-image areas of the front and reverse of the Shroud, and there are a few brown parts of bloodstains right beside red parts on the front.

Figure 8. Comparison of aligned FT-IR spectra of madder lake (from [149] , with the permission from the Infrared & Raman Users Group), Shroud ‘blood globs’, and a ‘simulated’ blood clot containing extra albumin and bilirubin (from [14] ). Abscissas: wavenumbers in cm−1.

2.5. Not Painted-On Madder Lake or Red Ochre

From this comparison of UV-vis, fluorescence and FT-IR data can be concluded that the most probable main constituent of the pinkish red bloodstains on the Shroud is a heme-madder lake formed from acid heme. The element iron was easily found in Shroud bloodstains by X-ray fluorescence spectrometry [8] and also in Shroud blood samples analyzed by Energy dispersive spectrometry (EDS), which found only very little aluminum there [6] [42] - [44] . The hypothesis that, for creating all bloodstains, a red iron-madder lake―or red ochre plus vermillion [44] ―was painted on, cannot account for the bloodstains’ 630 nm peak in UV-vis (cf. Figure 5 of [45] ), nor for the mentioned normal blood features found on the Shroud (Section 1). The sources for the heme-madder lake’s constituting acid heme and madder dye most probably were acid postmortem human blood (Section 3) and a madder-dye coating on the cloth (Section 4).

3. Cold Acid Postmortem Blood Caused Bloodstains

3.1. Blood pH below 6.8

Blood of a healthy person has a pH near 7.4, but in a person suffering from acidemia the blood pH is lower (the blood is more acidic). Acidemia can be caused by strenuous exercise and cramping, dehydration, respiratory failure or a prolonged agonal state [46] [47] . A blood pH below 6.8 is incompatible with life [48] . After death, blood rapidly becomes more acidic; e.g., a blood pH of 5.5 has been measured in a dead human body 20 hours postmortem [47] [49] . The UV-vis spectra of the Shroud bloodstains are compatible with their formation from liquid or wet postmortem acid blood as the observed pronounced charge transfer peak at 630 nm is only present when the pH of the solution is below 6 (Figure S1 and Figure S2) [18] , and ‘Soret-peak-lacking’ heme dimers are also only formed from an aqueous methemoglobin solution by acid denaturation at a pH below 6.8 [50] . In a dry methemoglobin film, on the other hand, its heme moieties―even after losing their connection with their surrounding globins due to ageing―cannot move to form heme dimers. Also the presence of an acid methemoglobin crystal on the Shroud can only be explained by the formation of the crystal from a drying acid solution.

3.2. X-Ray Fluorescence Spectra of Bloodstains Lack Potassium

The potassium that is present in normal whole blood predominantly resides inside the red blood cells. In acidemia, however, the potassium level in the red blood cells gradually decreases relative to its level in the blood plasma [51] . After death, potassium precipitously moves out of the cells, also in blood, where it moves into the plasma [52] . The potassium serum level even gets very high so quickly that it cannot be used as a measure for the length of the postmortem time interval in forensic investigations [53] .

Besides a number of background and body-image areas, also three 1.3 cm2 bloodstain areas of the observe side of the Shroud were subjected to X-ray fluorescence spectrometry, viz. two areas on the ventral half and one on the dorsal half [8] . In these bloodstain areas the detected iron (Fe) concentration was higher than in the background areas. In the bloodstain in the area of the “pierced” side of the body image, it was even a significant 30 - 40 µg∙cm−2 above background level, while the detected iron level in a stain of whole blood in Whatmann paper was only about 12.5 µg cm−2. However, in the Shroud bloodstains no potassium (K) was detected, while the whole blood in Whatmann paper did produce a detectable X-ray fluorescence signal of potassium. Even though microscopic blood samples, e.g. from the reverse of the Shroud, in some but not all cases yielded a small potassium signal in Energy dispersive spectrometry [5] [7] [42] - [44] , the X-ray fluorescence spectrometry of the macroscopic bloodstain areas on the observe side of the Shroud shows that the overall potassium level is remarkably reduced in these stains. This lack of potassium in a surplus of iron can be explained by the draining away of the potassium-rich serum from the potassium-poor and iron-rich red blood cells of postmortem blood.

3.3. Separate Golden-Yellow Serum

When whole blood is clotting on the skin of a living person, hardly any serum drains from it, as it dries too fast [54] . Recently, it was demonstrated that blood clotting on the skin of a living human body is dry after 15 min and does not make imprints on linen cloth after 30 min of exposure to air of ca. 24˚C [55] . Lavoie, Lavoie, Donovan, and Ballas reported that when whole blood is clotting on the relatively cold, unheated surface of non-absorbent plastic, serum readily drains away from the red clot when placed in a vertical position [54] . Recent photos of serum draining away from a blood clot on a glass plate at 18˚C - 19˚C are in Figure 9. Also blood

(a) (b)

Figure 9. Serum draining from a human blood clot on a glass plate that was placed from horizontal to vertical 30 min after the fresh whole blood straight from the finger dripped unto it and was left to clot in a room at 18˚C - 19˚C, 60% - 70% relative humidity. (a) clot 40 min old; (b) same clot 60 min old.

clotting on a horizontal relatively cold glass plate forms a ring of exuded serum around the clot, which ring and clot can be imprinted on linen. The fluorescence of this exuded and imprinted serum was photographed with ca. 365 nm Wood lamp excitation and a UV filter (420 nm cutoff wavelength) in front of the camera, and looks bright yellowish (Figure 10), comparable to the bright yellow-green UV fluorescence in the shape of a halo around the tip of the bloodstain on the wrist image of the Shroud (Figure 4). Fluorescence photography also shows that fresh liquid whole blood fallen on or applied to horizontal or vertical linen cloth does not form fluorescent serum haloes (Figure S16 and Figure S17). Golden-yellow coated microfibers, sampled from Shroud blood areas such as the tip of the wrist bloodstain, were subjected to FT-IR spectrometry [14] . The resulting FT-IR spectra are quite similar to those of human serum albumin [56] ―the main constituent of human serum― (Figure 11), also numerically [34] . Also the microchemical and immunochemical test results obtained from such Shroud fibers were consistent with the presence of human serum [7] [9] [10] . This separate golden-yellow serum apparently drained and took away the potassium from postmortem blood clotting on a cold surface, such as the skin of a dead person, before the clot and its still wet separate serum margin were imprinted on the Shroud (cf. Figure 12). The bloodstains outside the body image on the dorsal half of the Shroud may have lost their serum and potassium by serum-draining down through the interstices of the tight weave of the starched and therefore cold-water resistant Shroud, acting as a filter while lying on an absorbant bier, e.g., a Jewish bier of bare or cloth-covered wood (Lu 7:14; [57] [58] ). Photos of serum draining to the bottom of a narrow plastic container filled with whole blood are in Figure 13. The meandering but neat blood rivulets that flowed across the Shroud in the area of the small of the back [34] , can be explained by the rocking of the loaded bier while it was being carried, e.g. by the Jewish ‘shoulderers’ [58] , and while blood was flowing from the relocated and bleeding wrists to the elbows and the small of back of the dead body and then was dripping unto the Shroud.

3.4. Very Few Red Blood Cells and Survival of Bloodstains

The draining away of the cold serum would have enhanced the contact between the red blood cells of the postmortem blood and the surface of the Shroud. There, the saponins of yellow madder dye [59] [60] (Figure S9) on the Shroud (Section 4) would have lysed the red blood cells that touched the cloth’s surface and would have released their acid content, i.e. the hemolysate. This would have allowed the phenolic madder dyestuffs to denature more of the hemolysate’s (met)hemoglobin, and to form stable (pinkish red) complexes with the acid ferric heme, as in the ferric ion test for phenols and in other examples of purpurin and other phenolics binding to iron and heme [25] [61] - [64] . After the drying of the bloodstains and the separation of the body from the cloth and the abrasion of most of the red blood cells and dry hemolysate due to the handling of the cloth in its long history, the pinkish red heme-madder lake would finally be exposed (cf. Figure 12). In a small sticky-tape sample of the

(a)(b)(c)(d)(e)(f)

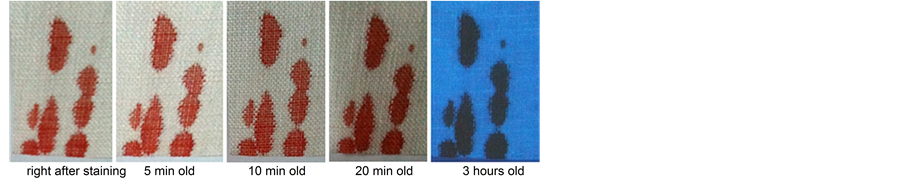

Figure 10. Imprints in pure (IVN-certified oxygen-bleached) linen and starched + washed + madder-dyed linen of horizontal blood clots formed during 1.5 hour of clotting of the same fresh whole human blood―straight from the finger―in ~23˚C, 60% - 70% relative humidity on a horizontal glass plate. (a) right before imprinting; (b) 7 min after; (c) 17 hours after; (d) 2 days after, under Wood lamp, L-42 UV filter (Hoya) in front of camera, no filter in front of Wood lamp (see blue specular reflection from plate), photo brightness-enhanced; (e) 8 days, contact side, most crusts removed; (f) 8 days, more crusts removed.

Figure 11. Comparison of aligned FT-IR spectra of Shroud ‘serum fibers’ (from [14] ), and FT-IR spectra of human serum albumin (HSA) (bottom curve: HSA in aqueous solution, top curve: dried HSA microcapsules) (mirrored figure, from [56] ©Elsevier). Abscissas: wavenumbers in cm−1.

forehead bloodstain (Figure 1), of the first 1500 particles examined by optic and petrographic microscopy, scanning electron microscopy, and X-ray microfluorescence, only 29 were red blood cells [2] , and also sticky-tapes from other blood areas showed very few, almost no red blood cells [13] [45] . Madder dye is not colorfast but when it is mordanted red, the mordant has a protecting activity against degradation [22] . For instance, the pinkish red madder lake in an ancient Egyptian painting [65] and in a 6th c. AD manuscript [23] and also some 7 - 9th c. AD red iron-mordanted madder-dyed cloths [66] have survived until today.

3.5. No Medieval Artwork

This consistent set of bloodstain data shows that the blood material that caused the bloodstains on the Shroud virtually must have been acid postmortem blood, of which some, before imprinting the serum-rimmed blood stains, had been clotting on a cold surface, such as a the skin of a dead body. Note that some postmortem blood would have flowed from Jesus’ dead body as a result of the removal of the nails and the crown of thorns and the handling of the body during the deposition from the cross. Also note that the Gospels say that Jesus’ body had already been wrapped in a linen cloth before it was laid in the tomb (Mt 27:58-60 Mk 15:46 Lu 23:53). Nevertheless, there may have been a time interval between the start of the freeing of the body from the cross, with its supposed subsequent deposition on the dorsal half of the cloth, and its being covered with the frontal half of the cloth, during which time interval Nicodemus may have brought his large amount of myrrh and aloes and arranged them beside Jesus on the dorsal half of the cloth (Jn 19:38-42). In this time interval, the newly issued postmortem blood on the front of Jesus’ body could have partly dried to serum-rimmed blood clots, like the one

Figure 12. Sketch of hypothesized vertical serum draining and hemolysis and madder lake formation on the Shroud.

Figure 13. Fresh whole human blood (volume = 1 ml) straight from the finger separating into serum and red material in a narrow plastic container, right after blood collection, 1.5 hour after, and 16 hours after, respectively.

imprinted on the wrist area of the Shroud. A medieval artist, on the other hand, did not know that serum fluoresces, so he would not have somehow taken acid postmortem blood to let it clot on a cold surface for making imprints on linen.

Another important observation is that, except at the tips of just a few blood-rivulet stains, the color of the Shroud bloodstains are all of the same pinkish red color, whether they are in a body-image area or in a non-image area [11] . Assuming that the bloodstains consist of acid heme-madder lake, both kinds of area must have had a yellow madder-dye coating before the acid postmortem blood got unto the Shroud; however, in bloodless image areas the image fibers do not contain dyes or phenols [7] [9] , which is confirmed by the yellow image color that is not altered or extracted by ethanol or methanol―solvents for madder dyestuffs― [7] [67] [68] , and by the assumed oxidative image formation process that would have oxidized the easily oxidizable madder dyestuffs (Section 4.4); so the blood must have got unto the Shroud before the image was formed. A medieval artist most probably would not have been able to imprint or paint the realistic-looking pinkish red bloodstains in the right anatomical locations on the cloth before he or she would somehow produce the still not reproduced body image [69] [70] . Besides, the artist would have to have used an ancient and most probably starched and madder-dyed fine linen cloth for this implausible procedure (Section 4). The medieval-looking result of the radio-carbon-dat- ing of the Shroud, performed on a single sample cut from a corner of the Shroud in 1988, is not an accurate result as the reported radiocarbon ages of the subsamples were statistically shown to be mutually inconsistent and even showed evidence for the presence of a strong linear trend [71] - [74] .

3.6. Hyperfibrinolysis at Postmortem Blood pH below 6.8―Body Not Washed

The Shroud shows a pattern of many very faint dumbbell-shaped pinkish red bloodstains, compatible with the wounds that would have been caused by an ancient Roman type of scourge [1] [75] . While postmortem blood that had flowed unto intact skin would have been drying, already dry blood clots on scourge wounds that had been inflicted while the person was still alive, may have slowly become moist again, after the person died, in a liquefying process called hyperfibrinolysis. In 1986, a forensic study [76] showed that, in rats, after several kinds of unnatural deaths, the hyperfibrinolysis process starts up at a blood pH below 6.8 (Figure 14)―a condition met by the blood that stained the Shroud (Section 3.1). The process induces the breaking of the fibrin mesh that binds the red blood cells in a clot that is in contact with the acid plasma. This hyperfibrinolytic plasma remoistens the blood clot and can eventually reliquify it [77] . If scourge wounds had been inflicted less than two days before death, as probably in Jesus’ case, the body would not have formed new tissue yet that separated the clots on the wounds from the plasma inside the body [78] .

Figure 14. Decreasing blood pH (=increasing acidity), 0, 1, 3, and 8 hours after a sudden death by various causes, versus the increasing concentration of fibrinogen degradation products. Data from a study on rats [76] , except the 3-hours values of ‘Oxygen deficiency’ and ‘Cold environment’ (these are interpolated from the values of [76] ) and the 360 µg/ml value at 8 hours after death by oxygen deficiency (this is the middle of the range given by [76] ).

The blood from Jesus’ scourge wounds would have been dry before burial [79] . The body apparently imaged on the Shroud probably was not washed before it would have been placed into the Shroud, as indicated by e.g. the faint bloodstains and the aragonite dirt―having a very good SIMS match to Jerusalem aragonite―found on the Shroud at a knee image (fact A79 of [69] ; [80] showing the SIMS spectra of [168] ; cf. [81] ), and by Zugibe’s demonstration [79] that rinsed and soaked, hours-pre-mortem wounds of a corpse do not make imprints and that washing of such wounds (apparently with removal of blood clots) causes an oozing down of blood rivulets, incompatible with the Shroud’s faint dorsal scourge bloodstains. However, the pre-mortem acidity of Jesus’ blood because of the crucifixion would have corresponded to an earlier and elevated fibrinolytic activity―eventually a hyperfibrinolytic one―before and after death (cf. [82] ; cf. [83] ), which could at long last have remoistened and acidified the blood clots on the scourge wounds just enough and just in time before evident putrifaction of the body would have set in. Putrifaction sets in ca. 40 hours after death but there are no signs of it on the Shroud [84] . Apparently, body and Shroud separated before prolonged hyperfibrinolysis would have caused larger quantities of blood to seep down from the dorsal wounds. That the dumbbell pattern is still intact and has no apparent smears on both halves of the Shroud and that there are no broken fibers in bloodstains where wet postmortem clots on intact skin would have dried up (facts A72 and A78 of [69] ), indicates that the separation of body and Shroud apparently took place in an extremely delicate way.

4. Shroud Cloth Is Most Probably Starch and Madder Coated

4.1. Ultrathin Strippable Surface Layer with Starch

The linen Shroud cloth, in which, according to textile expert Vial, faults in the preparation of the shafts point to a specifically ancient twill weave manufacturing method [85] [86] , is strong and supple and does not readily absorb water [9] [87] , even though pure linen cloth easily breaks at creases and is renowned for its rapid absorption of water. During the investigation of the STURP samples, it was learned that surface fibers from various areas of the Shroud―background, light scorch, and image―have an ultrathin (apparently 200 - 600 nm thick) colored surface layer that is all around these fibers and that can be removed from them by sticky-tape sampling even across linen fiber nodes, as a mold showing the form of the nodes in it [69] [88] . On body-image fibers this layer is straw yellow [89] , on non-image fibers it is pale yellow [7] , while the cores of both kinds of fibers are colorless [69] . Microchemical tests with iodine and pyrolysis/mass spectrometry (PMS) detected the presence of starch impurities on the surfaces of linen fibers from the Shroud (fact A15 of [69] ). An iodine-azide reagent gave a reddish color around fibers from blood areas, and traces of some starch fractions were observed on image fibers [87] [90] . Heller and Adler [7] found no starch or lignin or certain other organic species on main Shroud fibers from sticky-tapes, but emphasized that positive tests in some cases would have been more meaningful than the negative tests. Perhaps they counted only a blue-black color with iodine as a positive test for starch, for they wrote that the specimens were “tested by standard microchemical techniques”, and―although they gave a mistaken reference for their “iodine-iodide” test for starch―the positive result for this standard starch test is blue-black (p. 38, 54 of [7] ; e.g. [91] [92] ). Furthermore, on threads and superficial fibers from the corner that was radiocarbon-dated, a coating of starch―also here giving a red color with iodine―plus a yellow dye like madder was found; the cores of the threads were nearly colorless [87] [93] [94] .

4.2. Radiocarbon-Dating Corner with Retrograded Starch and Madder Dye Is Not a Repair

The arguments for a 16th century repair in the radiocarbon-dating corner [95] - [100] , and for any repair there from another era, can all be refuted, and there is strong evidence that disproves a repair (Table 1). Originally, the Shroud probably was an extremely fine first-century Jewish priest’s temple mantle (Mishnah, Middot 5:4)― with Pharisaic enlarged border (Mt 23:5 KJ21)―which was not allowed to be washed or be worn-out [101] , and thus could have a uniform dye on top of a washable starch coating [102] [103] . For its manufacture, an acid cooked starch paste, as mentioned by Pliny the Elder [104] [105] , probably was wiped on the surface of the threads as a lubricant during the weaving of the linen. After the weaving of the cloth and the retrogradation of the starch, most of this starch would have been washed off, with moderate-temperature re-gelatinisation and retrogradation, making the lower molecular weight fractions, like single-helical amylose which gives a blue color with iodine, leach out of the starch, and leaving a film of the higher molecular weight fractions of retrograded starch―double-helical aggregates of amylose and amylopectin which give a red color with iodine―intact around

Table 1. Evidence against a corner repair (descriptions in [34] and [103] ).

the surface fibers ( [87] [106] ; cf. [107] [108] ). The starch probably was not washed off completely deliberately because it would be a dirt repellent and fabric strengthener and lustrous finish, especially after polishing the cloth with a glass ball or slick stone. After washing, the cloth probably was dyed with an acidic madder root extract to give a more uniform color to the unevenly colored batches of linen that gave the cloth a banded appearance, undesirable for a fine mantle. Now that most madder dye probably has degraded, differently colored warp and weft bands are clearly visible on the lustrous Shroud (facts A21 and B14 of [69] ).

4.3. Reflectance of Shroud Background

The UV-vis raw reflectance scan of a background area of the Shroud looks quite irregular (Figure S18) [12] . In the average spectrum (referred to magnesium oxide) of five background areas (Figure S19) no 450 nm band of yellow madder dye is discernible [12] . However, the discernment of a reflectance band of yellow dye can be impossible due to ageing of a yellow-dyed cloth [109] . Nevertheless, the fact that Pellicori [19] , by artificial ageing (=baking), could not simultaneously give a pure linen cloth the same color and the same darkness as the Shroud (Figure S20), may be an indication for the presence of a remnant of yellow madder dye on the Shroud.

4.4. UV Fluorescence Photography of the Shroud

The UV fluorescence of the Shroud background is yellow green [27] , and this fluorescence is not typical of other known old linen cloths [15] . Clear evidence for the presence of a fluorescent coating on the whole Shroud is visible in its UV fluorescence photos [27] . After the Shroud had been partly burnt and scorched during the church fire in Chambery of 1532 AD, dousing water made water stains in the same symmetry pattern as the burn holes and scorch marks. The insides of some of these water stains―both on the frontal and dorsal half of the Shroud, mostly outside the body image―are lighter than the background in the ordinary light photos, but darker and bluer in the UV fluorescence photos (Figure 15). This phenomenon is not seen in the water stains of the

Figure 15. UV-fluorescence photos of the Shroud at 1532 AD water stains (cropped from figures of [27] ). P. 76: at the height of the dorsal calves, p. 78: at the height of the dorsal shoulders, p. 80: at the height of the dorsal top of the head, p. 81: at the height of the ventral shoulders, p. 83: at the height of the ventral knees. From [27] with permission from the Biocommunications Association, Inc. ©1981 Biocommunications Association, Inc.

other type, viz. the large diamond-shape water stains in another symmetry pattern, which are assumed to have been caused before 1532 by cold water [110] . Experiments show that pieces of oxygen-bleached linen that were coated with acid starch paste and dyed yellow with various types of acidic madder root extract, can take several different colors in UV fluorescence photography (Figure S21), also a color comparable to that of the Shroud’s UV fluorescence (cf. Figure 4 and Figure S11). As retrograded starch is insoluble in cold water but soluble in hot water, it is very plausible that the Shroud’s dousing water locally washed away the coating of starch and madder, where the cloth was still hot and/or the dousing water had become hot in the 1532 fire. Furthermore, STURP reported that the Shroud’s body-image―only constituted by a uniform straw yellow color of the whole circumference of the ultrathin strippable layer of superficial fibers in the image areas [69] ―is less fluorescent than the background, and that, in a few blueish fluorescent weave areas of the Shroud, the body-image is much less dense than expected, as if these particular weave areas were ‘no-print’ areas [12] [27] . These findings suggest that the body-image formation process, which according to Heller and Adler is best described as a dehydrating acid oxidation process [7] [9] [111] , degraded a fluorescent coating more easily than the actual linen. Madder’s main dyestuffs alizarin and purpurin are indeed easily oxidizable―they can even be explosive― [68] [112] [113] and would have been yellow and thus acid dyestuffs on a probably acid starch coating on the Shroud. Also, these hydroxy-anthraquinones would probably have lost fluorescence intensity if, during image formation, less (or more) benzene rings got fused in the straight chain than their original three and also if they lost their hydroxyl groups and thus would no longer be phenolics [114] . There are no phenolics or dyes on Shroud image fibers (Section 3.5).

4.5. UV Fluorescence Spectra of Shroud Background

The UV fluorescence spectra of the Shroud were measured with 365 nm excitation, and a typical raw fluorescence scan of a 6 mm × 3 mm background area (Figure 16) shows beside the broad 435 nm band of probably lignin [32] also a shoulder at 510 - 540 nm. This shoulder can be attributed to acid yellow madder dye, as this dye contains a variable ratio of alizarin and purpurin, of which the acid, protonated forms fluoresce near 500 and 575 nm, respectively [24] .

4.6. FT-IR and PMS Spectra of Main Shroud and Radiocarbon-Dating Corner

Four kinds of samples from the Shroud’s radiocarbon-dating corner were subjected to FT-IR analysis: 1) threads and a crust from a thread from the so-called ‘Raes sample’, i.e., the small triangle that in 1973 was cut from the very tip of a corner, 2) threads from the larger ‘Radiocarbon’/‘Riserva’ rectangle that was cut from the same corner in 1988 for radiocarbon dating (the ‘Riserva’ was retained in Turin, while the actual ‘Radiocarbon’ sample was examined by radiocarbon-dating labs) 3) fibers (later called ‘Riggi’ fibers) from a small piece of linen fabric from the Shroud right beside the area of the ‘Riserva’ [115] 4) fibers from a corner, either ‘Riggi’ fibers or fibers vacuumed from the reverse of a larger area around the radiocarbon-dating corner [116] , for no sticky- tape samples were taken from the corners in 1978 or 1988 (Figure 17).

Figure 16. Typical raw fluorescence scan of the Shroud background. From [12] .

(a)(b)

Figure 17. (a) Schematic sketch of the sample areas of a corner of the Shroud; (b) Configuration of comparable FT-IR spectra in this paper. The location of the ‘Riggi’ piece was deduced from G. Fanti’s statements that it is “the border of the Riserva” and that a 8-9th c. AD radiocarbon-date of the piece would confirm the linear trend indicated by the reported radiocarbon-ages of the 1988 subsamples ( [117] 14:00 to 19:53). Also, the piece contained a 12 mm-long weft thread (cf. [153] appendix and [154] ), and the hem was not trimmed off (cf. [163] ). Alas, G. Fanti was forced to be silent to some of my questions.

FT-IR spectra of a yellow-brown circular cocoon-shaped crust and the tight yellow-coated end of Raes thread #1 are very similar (Figure 17(b) and Figure 18(a)) and their ca. 1600 cm−1 peak is much more prominent in the crust. A part of an FT-IR spectrum of the ‘Riggi’ fibers, showing only the 4000 to 1300 cm−1 wavenumber region, is similar to an FT-IR spectrum of Raes thread #14, and both show the ca. 1600 cm−1 peak (Figure 19). Fanti said that the “fingerprint results” of some ‘Riggi’ fibers were “the same” as those of main Shroud ‘non- image’ FT-IR spectra ( [117] at 16:25-17:50). Some typical FT-IR spectra of fibers from a thread of the 1988 ‘Radiocarbon’/‘Riserva’ rectangle and from various areas of the main Shroud show that the ‘radiocarbon’ and ‘non-image’ spectra are similar (Figure 20). According to Adler, Selzer, and DeBlase [14] , the “radiocarbon” spectra have a peak at 1590 cm−1 and the ‘non-image’ spectra have one at 1593 cm−1. Another comparison, including a detailed wavenumber comparison [34] , of more of the spectra of Adler, Selzer, and DeBlase [14] showed that their ‘radiocarbon’ FT-IR spectra are indeed similar to their main Shroud’s ‘non-image’ spectra (Figure 21). The same holds for the FT-IR spectra of the Raes corner samples (Figure 18).

Here must be noted that the FT-IR-examined Raes threads, especially the yellow end of Raes thread #1, had a colored coating which was on all Raes threads and which contained starch, a gum―probably starch gum from starch that got roasted during the 1532 AD fire, cf. Table 1―and a yellow dye showing the same acidichromism as madder dye [87] (cf. Figure S9). A comparison of the peak wavenumbers of the FT-IR spectra of the Shroud with those of online reference FT-IR spectra of linen (new and old), starch, and madder, shows that the Shroud’s ‘non-image’, ‘radiocarbon’, and ‘Raes’ FT-IR spectra are not only compatible with the presence of these com- ponents but even seem to need the presence of the aromatic madder dyestuffs to explain all peaks, especially the 1600 cm−1 peak [34] , which is not present in FT-IR spectra of ancient linen from a mummy and of ancient linen from the Dead Sea area [118] , or in those of several linen cloths from 3500 BC to 1800 AD [119] . In 2015, seven more FT-IR spectra of non-image fibers from a corner and from the hands- and gluteal-image areas of the

Figure 18. Comparison (with added lath) of (a) FT-IR spectra of a large piece of the yellow- brown crust (upper curve) and the yellow-coated thin end (bottom curve) of Raes thread #1 (from [17] ©2009 Edizioni Libreria Progetto) to (b) the FT-IR spectra of main Shroud non-image fibers (from [14] ). Abscissas: wavenumbers in cm−1.

Figure 19. FT-IR spectra of (A) the ‘Riggi’ fibers from a piece of fabric right beside the ‘Riserva’ of the 1988 sample and of (B) Raes thread #14. From [118] .

Figure 20. Typical FT-IR spectra of various Shroud fiber samples, covered with lath. From [16] ©American Chemical Society. Abscissa: wavenumbers in cm−1.

Figure 21. Comparison of aligned plots of FT-IR spectra of fibers from an inner warp thread of the radiocarbon-dating sample and of main Shroud non-image fibers. From [14] . Abscissas: wavenumbers in cm−1.

(main) Shroud were published [120] ; these main Shroud fibers were probably vacuumed from the reverse of the Shroud, for the hands and gluteal areas were indeed vacuumed [116] , and STURP’s tape samples are identified by a code, e.g. STURP-1EB, in the same 2015 publication, and no STURP-tapes were taken from the gluteal area [121] . All four main Shroud spectra plus one ‘corner’ spectrum very clearly show the ca. 1600 cm−1 peak (Figure 22 and Figure S22(a)), and seem compatible with the previously published ‘non-image’ and ‘radiocarbon’ FT-IR spectra of the Shroud.

Recently, Bella, Garlaschelli, and Samperi [122] reported that there is no significant difference between two earlier published PMS spectra [99] , viz. of an image fiber from the main Shroud and―a partial spectrum not showing the base peak―of fibers from the Raes sample, respectively, after subtraction of the fragmentation pattern (a cluster of 14-mass-units-spaced peaks) of an aliphatic hydrocarbon-derived contamination from the latter. This contamination probably consists of the greasy handling dirt observed on the corners of the Shroud [123] , for e.g. palmitoleic acid, a major fatty acid (group) in human sebum (16:1∆9), has a mass spectrum that is quite similar to the reported (possibly partial) contamination pattern [124] (cf. [125] ).

4.7. Not a Saponaria Soap Residue or a Bioplastic Coating or Oils

The high solubility, brown-to-colorless acidichromism, blue color with iodine, and yellow lake color with Al3+ and Ca2+ of a Saponaria soap residue preclude that the presence of such a residue on the Shroud―hypothesized by Rogers and Arnoldi [87] ―is the cause of the pinkish-red color of the Shroud bloodstains; the low solubility, yellow-to-red-to-blue acidichromism, lack of color with iodine, and red and blue lake color with Al3+ and Ca2+, respectively, of yellow madder dye, on the other hand, fit the corresponding Shroud data very well (all respective references are in [34] ).

Garza-Valdes [4] hypothesized that the Shroud has a thin bioplastic coating produced by microorganisms. However, the proteins, sulfur compounds and photosynthetic pigments of such a coating were not detected on the Shroud by wet chemistry and PMS [87] [88] .

(a)(b)

Figure 22. FT-IR ATR spectra of non-image fibers from (a) a Shroud corner and (b) the Shroud’s gluteal-image area. From [120] . Abscissas: wavenumbers in cm−1.

That only oils constitute the Shroud’s strippable layer, is improbable, for oil is not soluble in hot water, so it would not have been removed in the hot-water stains, nor would it be strippable from linen fibers as molds showing the forms of linen fiber nodes. When oils or waxes are present on a linen cloth, its FT-IR spectrum shows sharp peaks at ca. 2925 cm−1 and 2850 cm−1 (cf. Figure S23) [126] [127] , but such peaks are not present in the FT-IR spectra of fibers from the main Shroud that were probably vacuumed from the reverse (Section 4.6) (Figure 22(b), cf. Figure S22(a)). The presence of such peaks in the top FT-IR spectrum of Figure 22(a) of a (vacuumed-off/cut-off) corner fiber, may be due to the greasy handling dirt observed on the corners of the Shroud [123] , just as the PMS-contamination pattern found there. When present on linen, perspiration plus skin oils, olive oil, and myrrh tincture are stable to the temperatures associated with proximate scorches [19] , and heating olive oil to 185˚C for 4 or 8 hours does not induce a position shift or a major intensity change of its 2925 and 2854 cm−1 aliphatic-CH2 peaks in FT-IR [128] . So, it is unlikely that such oils, if originally present on the main Shroud, would have become undetectable due to the 1532 AD fire. Although particles of myrrh and aloes were identified, some stuck to fibers, on Shroud samples by optical microscopy [129] [130] and by immunofluorescence, this last technique obtained a totally negative response for myrrh and for aloes from fibers (without particles) from a cut main-Shroud thread [131] . Neither myrrh nor aloes stains on linen cloth fluoresced under the excitation used for the Shroud’s fluorescence spectroscopy, an olive oil stain fluoresced a faint reddish gray color, and a perspiration plus skin oil stain fluoresced yellow; there was no fluorescence color or brightness difference between scorched and (adjacent) unscorched areas of these stains [19] . Therefore, these substances cannot account for the anomalous fluorescence of the Shroud’s background and hot-water stains. Besides, blood stains on linen soaked with myrrh, olive or sesame oil turn brown (Figure S24).

4.8. Not Just the Primary Cell Wall of Linen Fiber

The hypothesis that the strippable layer on the Shroud’s surface fibers is just a linen fiber’s primary cell wall (PCW) [132] was not presented with positive evidence: the width of a dark line at a border of the layer seen in light microscopy was measured (0.2 ± 0.2 µm), but the width of this line may not be the thickness of the layer, because the layer need not have been seen perpendicular to the focal plane. Besides, the thickness of a pure linen fiber’s PCW was not measured or cited, and it was not demonstrated that the PCW can be stripped from a linen fiber―even continuously across linen fiber nodes―by a sticky-tape. The presented arguments against a starch coating―i.e., that an evaporation residue of a starch ‘solution’ would not be all around the surface fibers (which seems correct) and that no references to the use of starch in antiquity were found―are countered in Section 4.2, above. Besides, the PCW of a linen fiber is not soluble in boiling water [133] and thus would not have been removed in the Shroud’s 1532 hot-water stains. Pectins, constituting the boiling-water-soluble ‘glue’ between neighboring PCW’s in a flax stem, are not fluorescent, for they have to be made fluorescent by labelling [134] , so they cannot account for the anomalous fluorescence of the Shroud’s hot-water stains or background either.

4.9. Preservative Madder Dye Washed off by Toluene and Xylene

The collective of data from the Shroud background areas allows the conclusion that the whole Shroud has an ultrathin hot-water soluble and strippable coating that most probably consists of retrograded starch and acid yellow madder dye. This coating would have functioned as a dirt-repellent and sealing fabric strengthener and brightener for the fine linen mantle, a water-resistant filter for the whole blood, a hemolysing saponin layer for the red blood cells, a substrate for heme adsorption and pinkish red lake formation, an acid substrate for acid oxidation in the probably oxidative image formation process, and finally a strong preservative for the Shroud’s conservation throughout its long history. Madder dye is antimicrobial, antifungal, and insecticidal [135] - [140] . That Shroud fibers from sticky-tape samples were flushed with xylene and toluene―solvents for madder’s main dyestuffs alizarin and purpurin [67] [68] [113] ―to free them from the sticky-tape’s adhesive before they were subjected to STURP’s microchemical spot tests [7] [9] [87] [141] , may explain why no madder dye or any other phenolic was reported as present on the Shroud. Xylene is not a solvent for a bioplastic coating [88] , but, like toluene, is a solvent for oils.

4.10. Not Madder on Top of Bloodstains on Pure Linen

If blood got unto a pure linen cloth, there would be no water-resistant starch layer filtering the blood, nor madder saponins lysing the red blood cells (RBCs), so there would be much more RBCs in plasma-bound clots in and on the cloth than found on the Shroud (cf. Section 3.4). The average diameter of a RBC is about 8 µm [142] , and aged bloodstains show a high preservation of RBC integrity [143] . Yet, many completely and smoothly red colored microfibers of 10 - 20 µm diameter were found in bloodstain areas of the Shroud, for instance in the ‘lance wound’ area (Figure 23), where also an acid heme’s charge transfer peak was found in UV-vis spectrometry (Figure S1) [12] . The red Shroud fiber shown in Figure 23 also gave an intense positive test for proteins, while both body-image and non-image fibers of the Shroud tested negative for proteins [7] [141] . Such a red fiber is hard to explain without hemolysate from saponin-induced hemolysis and heme-madder lake formation and abrasion of dried hemolysate and of broken RBCs.

That the red bloodstains would consist of red serum, hypothesized and described as a bilirubin-rich blood clot exudate by Adler [13] , is (further) contradicted by the presence of golden-yellow serum fibers on the Shroud (Section 3.3, cf. Section 2.4). Also, if brown or black bloodstains formed by cold acid postmortem blood on pure linen had been touched-up with red madder lake paint or red madder dye―but why? Also in medieval times people knew that real old bloodstains should look brown or black―, it would have been very hard to produce a contour-match not betraying the touch-up operation. Furthermore, if an iron-based madder lake paint was painted on bloodstains, besides brown/black RBCs, also the paint’s 0.5 - 1 µm Ø iron oxide particles and any larger red-ochre particles (iron hydroxide, sand, clay) would probably be discernible on the red fiber, as both red ochre and madder lake absorb much binder [144] - [146] . Conversely, if red madder dye was applied on old bloodstains on pure linen, besides that the resulting color would probably still be darker than the bloodstain color on the Shroud, there would be no or less free heme outside the clots for lack of saponin-induced hemolysis, and thus no or less heme-madder lake formation to account for the loose ‘blood globs’, varying in size from 5 to 50 µm [7] , with an FT-IR spectrum as of madder lake (Section 2.3).

5. Experimental Blood Clot Imprints

The results of a few experiments show that whole human blood is able to form pinkish red stains with a fluorescent serum margin on starched and madder-dyed linen (Figure 10 and Figure 24). These stains retained their pinkish color when simultaneously formed bloodstains on pure linen turned brown. Note that such pinkish red stains of normal―not postmortem―blood would not lack potassium or present a translucent acid methemoglobin crystal (cf. Section 3).

6. Conclusion

The anomalous features of the Shroud’s bloodstains, instead of being evidence against their authenticity, turn out to be very strong evidence for their authenticity, as these anomalies are the consistent specifics of cold acid postmortem blood that formed pinkish red heme-madder lake on a cold-water-resistant madder-dyed cloth such as, most probably, the Shroud. Beside the normal human blood features found in the Shroud’s bloodstains, the

Figure 23. Microscopic appearance of fibers from the ‘lance wound’ area of the ventral half of the Shroud. From [141] ©2004 Raymond N. Rogers collection, STERA, Inc.

(a)(b)(c)(d)

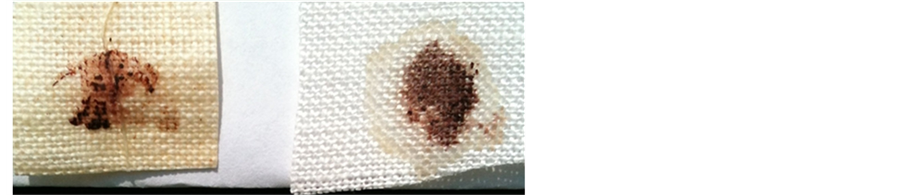

Figure 24. Vertical clot imprints on pure (oxygen-bleached) and starched-and-madder-dyed linen. (a) 1.5 hours-old human blood clots right before imprinting (placed vertical 30 min after blood was released from the finger on a horizontal glass plate in a room at 18˚C - 19˚C and 60% - 70% rel. humidity); (b) non-contact side, 1 day after imprinting; (c) contact side, most loose crusts removed, 15 days after imprinting; (d) idem, 28 days after imprinting. The red/brown flow away from the clot was caused by the manual turning around of the glass plate.

seemingly anomalous UV-vis, UV fluorescence and FT-IR spectra obtained, indicate that the most probable constituent of the pinkish red stains is an acid heme-madder lake. Microscopic and other observations preclude that a red madder lake or red madder dye was painted on to produce or retouch all bloodstains. Especially the fluorescent serum margins of some of the stains, the stains’ lack of potassium, and the apparent formation of acid heme-madder lake stains in the right anatomical locations of the body image before this image―consisting of madderless image fibers―was formed, render it highly unlikely that the stains and body image were produced by a medieval artist. Shroud stains containing acid heme and lacking potassium, for lack of reasonable alternatives, virtually must have been formed by acid postmortem blood of which some was clotting and exuding its potassium-rich serum on a relatively cold surface, such as the cold skin of a dead body, possibly that of Jesus Christ. The presence of a coating of retrograded starch and yellow madder dye on the Shroud, which would have filtered and hemolysed the blood, is most clearly evidenced by UV-fluorescence photos of some of the Shroud’s water stains, but also the UV-fluorescence color and spectrum of the Shroud background are consistent with the presence of a yellow madder dye. The FT-IR spectra of samples from the Shroud background, consistent with the presence of starch and madder, are similar to those from the Shroud corner that was otherwise shown to contain a coating of starch and a yellow dye with the same acidichromism as madder dye, and to be no repair area. A few experiments confirmed that much serum can drain from human blood on a cold surface and that human blood is able to form pinkish stains on starched and madder-dyed linen that remain pinkish while simultaneously formed bloodstains on pure linen turn brown. New scientific investigations on the Shroud of Turin with more modern methods and techniques may further corroborate these conclusions.

Acknowledgements

I am grateful to T.J. Egan, F.E.G. Guimarães, M.J. Melo, A. Boffi, and V. Bobbarala for answering my questions on the aqueous heme dimer, lignin fluorescence, alizarin and purpurin spectra, acid methemoglobin, and madder root extracts, respectively.
