Study of the porosity of the tiles out of vibrated mortar by microstructural analysis

Chakirou Akanho Toukourou1, Gontrand Comlan Bagan1, Adolphe D. Tchehouali1, Alain Vautrin2

1Laboratoire d’Energétique et de Mécanique Appliquée (LEMA/EPAC), Cotonou, Bénin

2Département Mécanique et Matériaux (M&M/ENS-ME), St-Etienne, France


Copyright © 2014 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

Received 5 April 2014; revised 13 May 2014; accepted 25 May 2014


The promotion and the popularization of the micro concrete tiles in any locality obligation with a will of durable development pass by a standard of quality, which is based on the results of scientific and technical research taking account of local specificities. This work proposes to study the porosity of the micro concrete by micro structural analysis. From this study, it comes out that the variation of porosity compared to the ratio of the fine gravels (s/(s + g)) is decreasing. Indeed more the granular ratio increases less low is the density of pores of material. The decrease of porosity according to the granular rate is not infinite; it tends towards a minimum starting from a rate of fine gravel close to 50%. The results obtained justify well the ratio of fine gravel practised by tileries.


micro concrete tile, porosity, micro structural analysis, G volume of fine gravel, S volume of sand

1. Introduction

Since about fifteen years, several projects of durable development are directed in the promotion and the popularization of the techniques and technologies of manufacture of the local materials, of which tiles. These last, introduced into many countries of Africa, Asia and America by the ILO, are supported by various projects of durable development.

Indeed used for the manufacture of these tiles according to recommendations’ of the ILO, the micro concrete has a formulation which can vary according to the nature of the raw materials [1] . Since the quality of material is dependent on the control of the parameters of implementation relating to the raw materials [2] [3] a study of porosity according to granulometry will make it possible to deduce the granular formulation to recommend [4] . Thus this work aims to define starting from a study of the microstructure of the micro concrete the ratios of sea sand and fine gravel making it possible to obtain less porous materials for the insurance of tiles of quality.

2. Material and method

2.1. The test-tubes

The micro concrete can be defined as being a concrete, whose diameter of the aggregates entering its composition do not exceed 10 mm [3] [5] . Indeed the maximum diameter of these aggregates is a function thickness of the tile. In case of need where the tiles have a 8 mm thickness, this dimension is 5.5 mm [1] . In addition to the aggregates, the micro concrete is composed of cement and water. The ratio cement/ aggregates/water used for the manufacturing of the test-tubes is 1/1/0.5 in volume. The aggregates, of which hygrometry is 75%, and sand equivalent is 95%, the density and the bulk density are respectively 2.55 and 1620 kg/m3 , result from two distinct sands of siliceous origin. One, of granular size varying between 0.08 and 2 mm is called fine sand or quite simply sand and is indicated by (s); the other of granular size ranging between 0.08 and 5.5 mm is called coarse sand or fine gravel and is indicated by (g). The distribution of the grains is illustrated by the grading curves of figure 1.

The test-tubes are different primarily by their granular composition gathered in table 1. The test-tube 2080 consists of 20% of sand and 80% of fine gravel; the 3070 consists of 30% of sand and 70% of fine gravel; the 4060 consists of 40% of sand and 60% of fine gravel; the 5050 consists of 50% of sand and 50% of fine gravel; the 6040 consists of 60% of sand and 40% of fine gravel; the 7030 consists of 70% of sand and 30% of gravel; the 8020 consists of 80% of sand and 20% of fine gravel.

First, confirm that you have the correct template for your paper size. This template has been tailored for output on the custom paper size (21 cm × 28.5 cm).

2.2. Preparation of the samples

The micro concrete samples were cut out starting from the test-tubes, coated and then polished thanks to a provided polishing machine discs. On the discs grains of diamonds of gauges were fixed varying from 400 to 0.4 microns.

2.3. Methods of characterization of the micro Concrete

The quantitative analysis is the method essential which makes it possible to describe a microstructure by a series of geometrical parameters, to control or validate a model, to compare and study the behaviors of a structure under various experimental conditions [6] .

The quantitative analysis of images relates to the morphological study of the structures as well as the quantification of this morphology with measurement of parameters. On the images to be analyzed, the objects to be identified were treated to then be able to select them and define measurable sizes making it possible to know their content, their size, their form [6] . The characterization was made by the method of analyses of image thanks to the optical microscope or the magnifying glass binocular, provided one or the other with a device of acquisition and image processing, the whole controlled by a computer. The device of acquisition and image processing is illustrated on figure 2 and figure 3.

Various types of analysis were carried out [7] :

・ the total analysis relates to the structure as a whole, such as for example the evolution of the various components;

・ the individual analysis on the contrary is carried out particle by particle, for example the determination of the form or of the size of a component. This analysis, in opposition to the total analysis, does not relate on an image which represents the whole of the structure, but to a fraction of this unit. In this case the window of analysis restricts the study with part of the sample, and thus account should be held to this parameter and to utilize statistical methods to extend the results to the whole of the structure. Indeed the probability for an element of being completely included in the window depends on its size. During this study of the micro concrete, the principle of total analysis is adopted, after a preliminary comparative study.

Any analysis of images corresponds to a program made up of a sequence of instructions which one visualizes

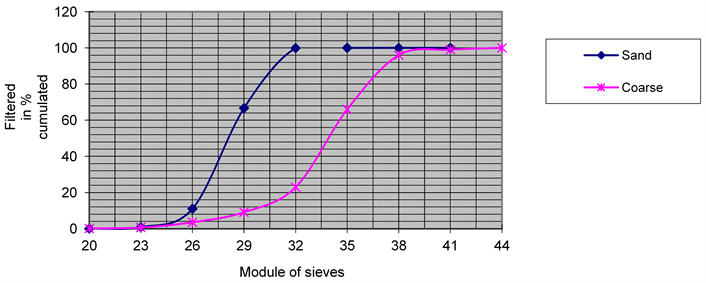

Figure 1. Distribution of the aggregates.

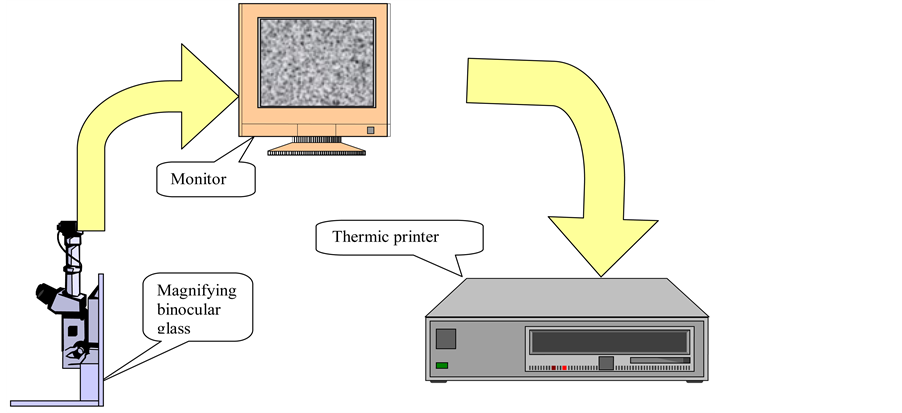

Figure 2. The device of image acquisition.

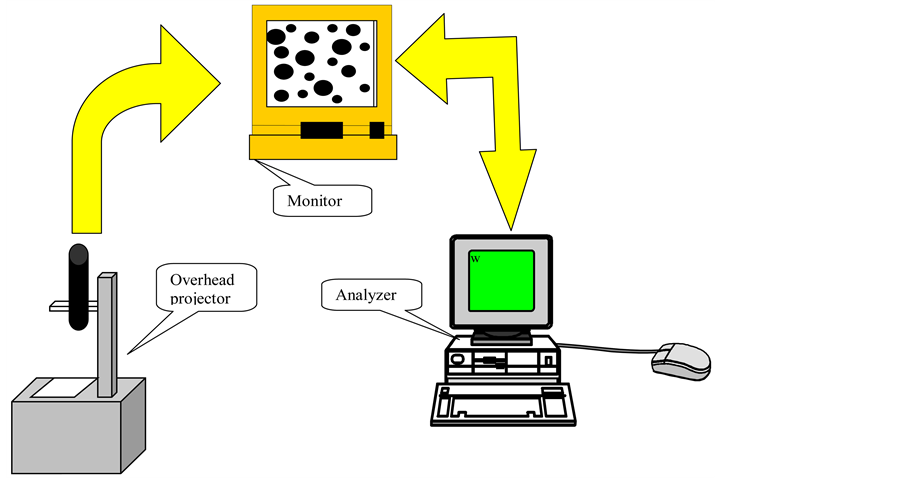

Figure 3. Device of image processing.

Table 1. Granular composition of the test-tubes.

on the screen of the analyzer. It breaks up into four essential stages:

・ frame grabbing,

・ selection of the zones of interest,

・ image processing and measurements,

・ the interpretation of the results.

The first stage of any analysis is the development and the frame grabbing. This one is carried out by means of a system of entry chosen according to the sample to analyze, of the studied parameters and the medium.

The software of analysis is connected to an optical microscope with reflexion or a binocular magnifying glass associated with a camera. The camera provides an analogical signal corresponding to the image of the object observed which is transmitted to the software of analysis like to the control screen. This system of entry makes it possible to acquire, store, and to restore the image of the object. This image is a two-dimensional representation of the object at one moment given with a precise enlargement. The recorded image is defined by a whole of points images (often 512 × 512) called pixels and with each one is associated a value representative of the level with gray of the image in this point. There are 256 levels of gray which vary between the value 0 corresponding with the black and value 255 with the white [7] .

If contrast would not allow an acquisition which makes it possible to distinguish the different part from the image, one proceeds initially by an impression, thanks to the camera fixed on the binocular magnifying glass. It is the copy of the printed image which makes it possible to carry out acquisition through the medium of an overhead projector (figure 3).

Three samples are used for each test.

3. Results and discussion

The pores appear black with a random distribution of size (figure 4). Let us note that each sample carries same designation that the test-tube from which it is cut out.

The results obtained after acquisition and image processing are represented in table 2 they are graphically illustrated by the curves of figure 5. These curves represent the distribution of the pores according to the equivalent diameter.

It is noted that the populations of pores of size ranging between 5 and 50 microns have a distribution quasi-normal. Table 3 gives their parameters characteristic with a threshold of 68.27% and one confidence coefficient equal to 1 [8] .

Through this table, it is important to realize that average diameter of samples increases when density of pores decreases with the proportion of fine gravel. This fact permits to suppose that vibration made in samples fabrication influences internal strength against micro concrete pastes viscosity, stressing fine gravels, which moves and divides the diameter of pores. So more proportions of fine gravel create more divided diameter and more density of pores.

The analysis of the density of pores compared to the rate (s/(s+g)) of fine gravel contained in the micro concrete according to the curve of figure 6.

This curve indicates that the number of pores of diameters ranging between 5 and 50 microns tends towards a constant value from 50%. The pores are responsible for micro concrete’s water suction. More pores result in permeability of this tile material. So minimizing the number of pores gives the warranty of non-permeability tile.

4. Conclusion

To be used for tile, the micro concrete must have hydrophobias. This property depends on the structure of this material, which under the optical microscope with a suitable enlarging reveals aggregates and a cementing net-

Figure 4. Morphology of the micro concrete.

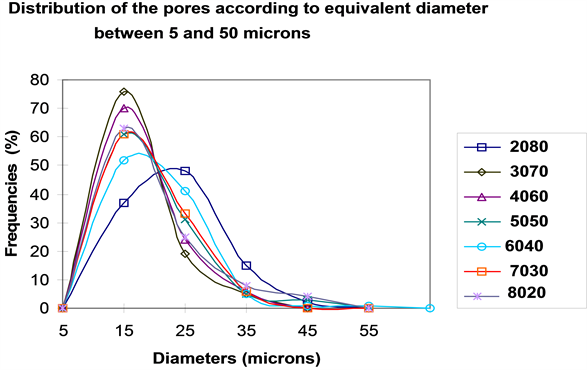

Figure 5. Distribution curves of the pores.

Figure 6. Variation of the density compared to the coarse sand rates.

work in which swarm a multitude with variable pores of dimensions.

This study made it possible to note that the population of pores of diameter ranging between 5 and 50 microns, responsible of capillary suction, is less and less dense when the rate of fine gravels increases.

Table 2. Distribution of the pores by sample.

Table 3. Parameters of distribution of the pores.

In the same way the results of this work show as this decreasing tends towards a limit from 50% of fine gravels. This is in perfect agreement with investigation of micro concrete structure through water absorption [9] , and with the rate of 2/3 used in tileries.


This research was carried out with the financial support of the POTEMAT/BENIN. Thanks are due to Dr. Emeruwa Edjikeme for his useful suggestions and fruitful discussions and Dr. SANDE Oladélé for technical support on experimental tests on concretes.


  1. SKAT, BIT (1992) Manuel de production, Tuiles en fibro et vibro-mortier. outil 22, Genève, 15, 33.
  2. Baron, J. and Sauterey, R. (1980) Le béton hydraulique, connaissance et pratique. Presses de l’école nationale des ponts et chaussées, Vincennes, 2-1, 2-15, 12-33, 12-36.
  3. Lemaitre, J. and Chaboche, J.-L. (1985) Mécanique des matériaux solides. Dunod, Paris.
  4. Lowel, S., Joan, E. and Schields, E. (1984) Powder Surface Area and Porosity. Deuxième Édition, Powder Technology Serie, London, 55, 86.
  5. Jouenne, C.A. (1984) Traité de céramique et matériaux minéraux. Edition Septima, A 2011-1, 2011-17, Paris.
  6. Zanutto, S. (1999) Caractérisation physique de la microstructure de composite ciment-verre. Rapport de stage IUT de St-Etienne France.
  7. Spiegel, M.R. (1972) Théorie et applications de la statistique. Série Schaum, New York, 122, 123, 156, 164.
  8. Document Normatif (1997) Tuiles en mortier vibré. Burkina Faso, 15, 25, 35, 44.
  9. Bagan, G. and Toukourou, C. (2001) Etude de la porosité des tuiles en mortier vibré ou micro béton par absorption hydrique. J. Rech. Sci. Univ. Benin (Togo).
