A User Proprietary Obfuscate System for
Positions Sharing in Location-Aware Social
Networks
Wei Cherng Cheng, Masayoshi Aritsugi
Computer Science and Electrical Engineering, Graduate School of Science and Technology, Kumamoto
University, Kumamoto, Japan
Received February 2015
Abstract
A user’s trajectory can be maliciously monitored by adversaries when they share the positions in
location-aware social networking applications which require users to update their own locations
continuously. An adversary infers user’s locations from the trajectories, and gleans user’s private
information through them via location-aware social networking applications and public available
geographic data. In this paper, we propose a user proprietary obfuscate system to suit situations
for position sharing and location privacy preserving in location-aware social network. Users
transform the public available geographic data into personal obfuscate region maps with pre-de-
fined profile to prevent the location leaking in stationary status. Our obfuscation with size restricted
regions method tunes user’s transformed locations fitting into natural movement and prevents
unreasonable snapshot locations been recorded in the trajectory.
Keywords
Location Privacy, Obfuscate Region Maps, Location-Aware, Positions Sharing
1. Introduction
The users’ physical locations are widely adopted by applications installed in mobile devices as fundamental in-
formation to enhance the services. Social networking application is one of the popular mobile applications in-
volved with location that Pew Research showed 28% of the mobile users utilize the application on a typical day
basis [1]. Existing social network applications, such as Facebook and Twitter, only provide users to turn on or
off of the location exposedness selection. Newly merged types of mobile social network applications are loca-
tion-aware social networks application, such as Foursquare and Beetalk, and users have to share the updated lo-
cations to enable the application service. With the new type of social network applications, users are able to
build up new social connections with strangers and friends, but then lose the permission control in location
sharing. Malicious adversaries and stalkers in the same social network applications can track and record others’
locations or movements with the mutual related distance provided by the application, and infer the physical lo-

W. C. Cheng, M. Aritsugi
8
cations or trajectory with public available geographic data. Today, people recognize visited locations as part of
personal identification, since the locations reflect user’s interests, habits, religious, political intention and other
privacy. Thus, while using the newly merged type of social network applications which required users to share
and update their own locations continuously, the location privacy preserving concerns are: “How to share a close
enough location in the social network applications, and still preserve the location privacy from the others?”
The statement points out two keynotes for location privacy challenges. First, sharing and updating user’s lo-
cations are needed in location-aware social network applications. Users have the needs to query and connect
with nearby others. Existing location privacy preserving approaches such as cryptographic techniques [2] [3]
encrypt the users’ actual location before sharing, and only authorized friends can decrypt it. The approach suits
in the check-in service but not location sharing in the location-aware social networking, since users attempt to
connect nearby strangers. Second, all mobile device users are not always staying in stationary, and they could be
in any locations. While they’re moving with velocity, the movement shall sustain undisclosed all the time.
Another location privacy preserving approach by Damiani et al. proposed a spatial obfuscating system [4], based
on user’s pre-defined sensitive semantic model, and user’s concerned locations will not be disclosed when they
move into the sensitive locations. The drawback of the approach is that when users move into undefined areas,
snapshot locations are able to be inferred from recorded movement [5] [6].
The approaches above did not consider both keynotes of location privacy protection at the same time. They
are locations sharing to all others and locations cloaking anywhere. Hence, we propose a system to transform
wider space of actual geographic data into correlated regions map in advance, and use regions’ coordinates to
substitute for actual ones. It conquers the two keynotes privacy concerns when sharing positions in loca-
tion-aware social network applications.
Our proposed system performs the obfuscate region map generation to provide the users’ privacy preserved
positions for sharing in location-aware social network applications. The generation progresses in two phases.
First is based on user proprietary privacy profile to transform publically available 3rd party geographic data into
undistinguished obfuscate region map in a separate server. The user proprietary privacy profile is the sensitivity
preferences of semantic locations which can be adjusted by user flexibly. The output of obfuscated regions then
satisfies the user’s location privacy need, and arbitrary region coordinates suit into the situations for positions
sharing anytime and anywhere in heterogeneous networks. Second, we take the scenario that users are in the
movement into consideration, and constrain the output region scale to make the movement normal. Thus, an at-
tacker in the same location-aware social network application cannot infer the user’s location with the shared po-
sitions. The contribution of this work can be summarized as follows:
• The users defined proprietary privacy profiles obfuscate the publically available 3rd party geographic data
into unextinguished region map to suit the position sharing anytime and anywhere in location-aware social
network applications.
• Two phases of the obfuscate region map generation protect user’s location privacy. First phase model pre-
serves user concerned sensitive semantic locations and second phase model suits the moving users’ positions
sharing with smooth movement.
• The obfuscate algorithms with different scenarios are evaluated. The regions size presents the arbitrariness of
the obfuscate result with the user’s location privacy preserved. And the distance between the actual location
and cloaked locations during movements demonstrates the approach is suitable for users to provide the posi-
tions sharing in location-aware social networks.
The rest of the paper is organized as follows. Section 2 overviews the related work. Section 3 proposes the
system architecture and defines the attacking model. In Section 4 we represent different types of obfuscate ap-
proach against the position sharing. Section 5 experimentally evaluates our solution, and Section 6 concludes the
paper and some future work.
2. Related Work
The lightweight design of mobile devices and speedy internet connectivity made the mobile social network ap-
plications outgrown the desktop ones [7]. Social networking applications executed by mobile devices can now
be in anywhere, stationary, or in the move. Users store and transmit personal sensitive information, such as ID
and the continuously updated location information [8] [9] to the applications, and the sensitive information is
potentially disclosed. Thus, the location privacy and security risks in mobile devices with social network appli-

W. C. Cheng, M. Aritsugi
9
cations have become an issue. The location-aware social networking applications allow users to create their own
social network by connecting with strangers and friends, but request users to provide locations to enable the ap-
plication service, and it leads to users’ location privacy preserving concerns.
Common approaches used in location privacy preserving are k-anonymity with spatial obfuscation and en-
cryption [10]. As a k-anonymity approach, Mokbel et al. [11] notated a user as center and anonymized other k-1
users’ locations in a region, or expanded the region size till the criteria of k users in the region fit, and thus all k
users were undistinguished from others. The method did not apply to the specific area where the total users are
not reaching k users or the regions become extra huge and fell out of searching range. Xue et al. [12] and Bamba
et al. [13] enhanced the k-anonymity technique with taking l number of different semantic type locations into
consideration when generating the cloak region. User’s privacy protection is insufficient with the solutions when
the adversaries are using the same geographic data. The spatial obfuscation approach devoted by Damiani et al.
[4] [14] adopted personal concerns as profile to protect individuals’ sensitive locations with Hilbert movement
algorithm. The approach expanded the map-aware obfuscation area in certain semantic locations, but users’ tra-
jectories are still insecurely monitored while users move into the non-cloaked regions. In a cryptography-based
technique, Wernke et al. [3] proposed to split-up user’s obfuscated location into n shares and separately distri-
buted them to different on-line processing servers before sharing them. The approach is costly with more in-
volved on-line processing servers guarantee better security level and does not suit to cases when there are fewer
location servers involved. Wei et al. [15] proposed to take telecommunication cellular towers as encryption
servers to perform and store users’ encrypted location data, and also generate fake users. Similarly, Wen et al. [2]
improved the idea by adding an extra symmetric key between cellular tower and user in transmission. However,
the assumption limits connections with cellular towers only but no other wireless protocols. Also, practically, a
cellular tower did not perform as a functional server for specific mobile applications. Moreover, Lin et al. [16]
used multiple transformations by categorizing users into different groups while moving, but it required all users
to be authorized, which did not suit the situation when users initially intend to query strangers. The work in [17]
employed the obfuscating approach with Hilbert curve movement to transform area map into region map before
sending the coordinates for sharing and querying in social networking application. It reduces the risk of user be-
ing tracked by adversary all the time when utilizing the application under location snapshot. However, the ran-
dom movement protection within large obfuscate regions in short timeframe is insufficient.
In this paper, we propose utilizing the obfuscate region map to act for user’s physical location when users are
in stationary status, and obfuscation based with restricted the region size solution to prevent the locations leak-
ing during movement. It suits to different network protocols, and is flexible for users to adjust the sensitive loca-
tions while sharing. It also overcomes the location leaking problem that users and adversaries use the same geo-
graphic database for both stationary status and in the move.
3. Architecture and Attack Model
The proposed system generates region map with user’s proprietary concerns about semantic locations. The re-
gion map’s coordinates then act as user’s physical positions to preserve user location privacy in location-aware
social network applications. As the user queries others in the applications, obfuscated positions are disclosed to
others, no matter users are moving or in the stationary status.
3.1. Service Model and Architecture
The application service model consists of four components, namely, mobile devices, obfuscate server, social
networking service server (hereafter, we use SNS server as abbreviation), and 3rd party location-based service
server (hereafter, we use LBS server as abbreviation). Figure 1 illustrates the service model’s architecture.
While using location-aware social network applications with mobile device, users obtain the initial physical
coordinates from satellite, Wi-Fi station or other cellular protocols infrastructure. Mobile devices are installed
with location-aware social network applications and users may choose to connect to SNS server directly or
through obfuscate server. SNS server is the application platform which provides the function for users to con-
nect with each other. Without location obfuscating, adversaries and stalkers in the same application are able to
track and glean target user’s privacy through the visited locations. We assume the obfuscate server is the trusted
location anonymity server selected by user between mobile devices and SNS server. According to user’s initial
location, and preference setting, it performs the region map generation with geographic data from public LBS

W. C. Cheng, M. Aritsugi
10

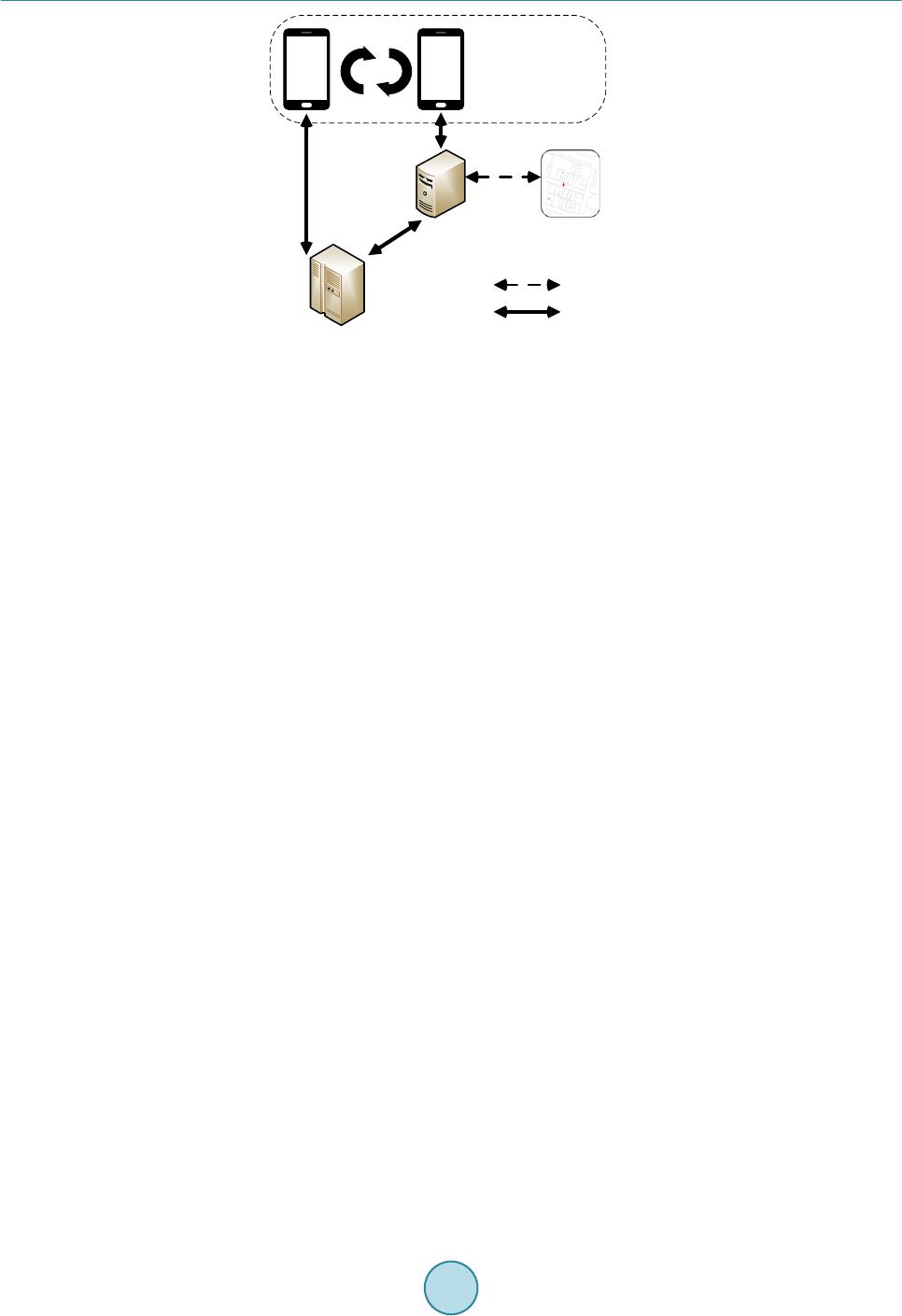

Figure 1. Service model architecture.
server. User’s correlative transformed region coordinates will then be sent to SNS server for users’ position
sharing purpose. Location-aware social network applications allow user to query and connect to all surrounding
nearby others with showing the Euclidean distance as pair wise distance.
The obfuscate server is the core component of the service in our proposal and it performs the following func-
tions:
1) User profile maintain: Mobile users register the initial locations and specify semantic locations’ sensitivity
level preference to conduct the user profile.
2) Geographic data obtain and obfuscate region map process: User’s initial location is needed for wider area’s
geographic data downloading. Location update from LBS server can be done periodically with longer inter-
val or when user is almost falling out of the area. Based on the user profile and downloaded geographic data
from LBS server, the obfuscate server then generates the user proprietary region map. The region map can be
stored in the obfuscate server or in mobile devices.
3) Region map’s coordinates substitution for position sharing: While running a location-aware social network
application, mobile users share the region map’s coordinates as their own positions with others in the same
application.
We promote to generate the obfuscate region map in a separated obfuscate server instead of building the func-
tion in device because in-device software is restricted by disadvantages, such as extra CPU, memory, and sto-
rage space consumption, device battery drained off by frequent location update, and consequently forced to up-
date due to mobile devices operation software upgrade. In addition, a separated server setup approach suits to
heterogeneous network.
3.2. Location Privacy Attack Model
In our proposal, user’s location privacy is preserved by obfuscate region. An obfuscate region’s coordinates will
act as user’s physical location while using the location-aware social network applications. In Figure 2(a), we
assume that area geographic data is gridded into small cells, and obfuscate server transforms the area into two
obfuscate regions OR1 and OR2. When the user is in stationary status or moving within the OR1, the OR1 coor-
dinates act as the user’s any positon within the region. In stalker’s view, the user does not change the location,
so the user is able to share the OR1 coordinates to query and connect with nearby others without leaking the ac-
tual locations.
However, let us consider a situation that a user is moving continuously from position l1 via l2 to l3 as shown in
Figure 2(b), and the stalker is close to user’s position l1. User’s obfuscated regions movement report as l’1 via
l’2 to l’3 at time t1, t2, and t3 to the stalker. Assume the user is moving with speed v and v is between average
walking speed 5 km/h [18] and riding bicycle speed 10 km/h. If the reported distance from stalker point of view,
Euclidean distance of (l’2 − l’1) is much greater than the distance of v ∙ (t2 − t1), then the stalker can infer either
OR1 or OR2 is a fake location. Following, the Euclidean distance of (l’3 − l’2) is greater than v ∙ (t3 − t2), then the
SNS Server
Obfuscate
Server
Public LBS
Server
Mobile
Users
Always Connect
Connect when needed

W. C. Cheng, M. Aritsugi
11

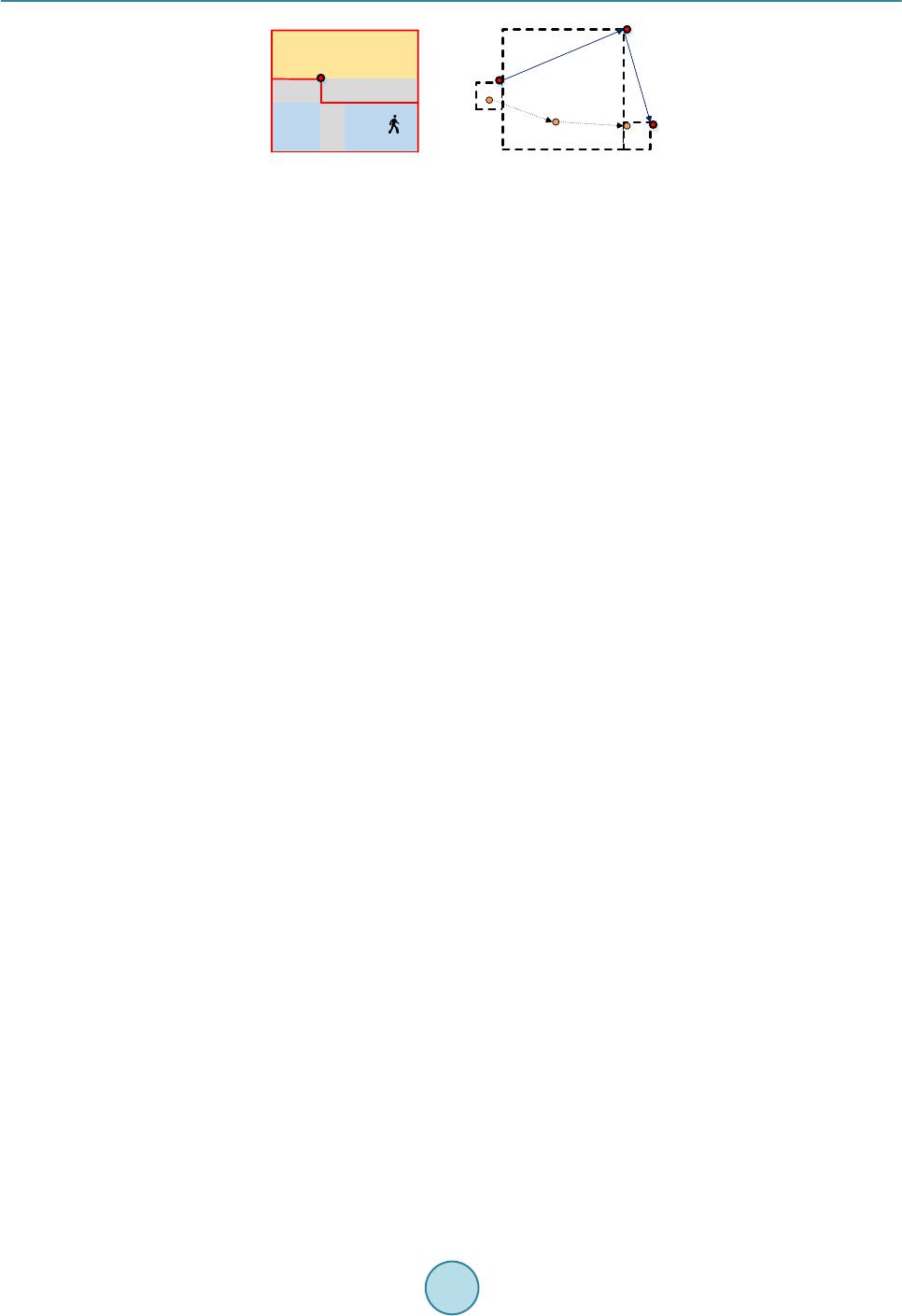

Figure 2. (a) Stationary user location in stalker’s view; (b)
User’s movement in stalker’s view.
stalker can confirm the obfuscate region OR2 coordinate is not real. In this case, when the obfuscate region OR1
size is small, user’s actual location can be identified.
In this proposal, we assume the user is either in stationary status or moving with velocity, and the obfuscate
region map will be applied to preserve user’s location privacy from stalkers in the same application.
4. Obfuscate Region Generation
We adopt the strategy of transforming public available area geographic data into obfuscate region map before
sharing the coordinates with SNS server. The approach allows us to process each individual’s personal map
based on user’s profile setting which includes the sensitivity level in different semantic types’ locations and
corresponding threshold value. We first introduce the sensitivity model defined in the paper, and then detail
three algorithms of the approach to aggregate the obfuscate regions from a reference space. A summary of nota-
tions used in this section is given in Table 1.
4.1. Sensitivity Model
The reference area is represented as a 2 dimensional bounded space, and we assume that it is fulfilled with dif-
ferent and disjoint spatial objects [19], such as road, hospital, restaurant, shop, parks, and varied constructions.
We describe those spatial objects as different features types. Users provide the sensitivity concerns for major
features types with values from 0 to 1 as their profiles. Sensitivity value 0 represents the feature type has no sen-
sitive concerns at all, and value 1 represents as extremely sensitive to user. The threshold value is introduced as
the comparison value. The feature type sensitivity value higher than threshold value implies that the corres-
ponding locations need be cloaked. The reference space Ω is gridded and subdivided into regular and sufficient-
ly small unit size cells, denoted as c and Ω = {c1,c2,…,cn} while two cells, ci and ci+1, are adjacent cells sharing
common border. In unit cell c, we define the feature density function D (ft, c) to quantitate the feature shares in
the unit area. The feature density function is used to judge the extent of the unit cell. We define sensitivity level
of feature types to be rated in value, and denote the sensitivity level as v (ft) where v (ft) has value between [0, 1],
and the greater value indicates users demand higher sensitive concerns when they are in the feature. For example,
unit cell c contains different features as a bank and a school in Figure 3(a). The feature density of c with respect
to bank and school is calculated, and denotes as D (Bank, c) and D (School, c). In Figure 3(a), within unit cell c,
bank density of cell c is greater than school density of cell c, i. e., D (Ba nk, c) > D (School, c). We then take fea-
ture bank’s sensitivity value v (Ban k) as sensitivity of unit cell c extent, denoted as E (Bank, c), in Figure 3(b).
A region r is a combination of common border cells with different sensitivity value, where c∈r. We denote S (r)
as the mean sensitivity value of a region to represent its sensitivity level.
Personal profile as our transformation variablesis proprietary to user and it makes the region map distinguish
one from others. Personal profile defined as profile, which includes a list of major concerned feature types FTs =
{ft1,…,ftn}, for example restaurant, school, hospital and bank, with respective sensitivity value V=
{v(ft1),…,v(ftn)}. An example of user defined feature types and corresponding sensitivity values table is listed in
Table 2.
A sensitivity threshold, T, needs to be decided by users as privatized basis to adjust the map. When feature
type’s sensitivity is greater than the threshold value, it implies user’s actual location needs to be cloaked in the
feature. The user profile takes the form of the tuples: <FTs, V, T>.
The approach of the obfuscation region map is implemented by aggregating the cells into regions from the
comparison result with threshold value. The formed regions are the expansion of user concerned sensitive loca-
OR
2
OR
1
v△t
OR
3
{l1, t1}
{l2, t2}{l3, t3}
{l’1, t1}
{l’2, t2}
{l’3, t3}
(a) (b)
D D D D D D
D D D D D D
R R R R R R
E E RE E E
E E RE E E
OR
2
OR
1
D: Department
store
R: Road
E: Dining
place

W. C. Cheng, M. Aritsugi
12
Figure 3. (a) Example of a bank and a school in the unit cell c;
(b) Bank sensitivity represents the sensitivity of unit cell c.
Table 1. Summary of notations.
Notation Definition
Ω Reference space
Ω' Reference space with Obfuscate Regions
ft features
c sufficient small unit cell
r combination of border connected unit cells
D (ft, c) feature density function in unit cell
v (ft) Feature’s sensitivity level value
E (ft, c) sensitivity of unit cell c extent with feature ft
S (r) mean sensitivity of region r
T Sensitivity threshold value defined by user
xmax Maximum region size
Table 2. Feature types and sensitivity values.
Item Feature Sensitivity Value
1 Hospital, and care center 0.7
2 Bank, post office 0.6
3 School 0.55
4 Traffic station 0.5
5 Entertainment location, shopping stores 0.45
6 Accommodations 0.4
7 Department store and mall 0.35
8 Dining restaurant 0.3
9 Religious location 0.25
10 Public facility (parks, tourist spots) 0.2
11 Residence and unclassified building 0.1
12 Mountain or unclassified land 0.09
13 Others (such as road, sidewalk, bridge) 0.09
14 Unreachable location 1
C C
Ban k
School
Ban k
(a) (b)

W. C. Cheng, M. Aritsugi
13
tions and combination of non-sensitive regions. Theoretically, wider obfuscate region leads to less positions ac-
curacy and better cloaked result. We experiment two aggregation methods in this paper. However, too wide re-
gion result is disadvantaged when users are in the moving among regions. Stalkers can track the unnatural
movement to infer the user’s actual location. Thus, in the third method, we restrict the each region’s maximum
size to xmax cells while generation with first method to prevent the long distance update in a short time period
during movement. In the summary, the approach with three algorithms are listed as below:
1) Hilbert Movement: The algorithm expands cells to regions by comparing the sensitivity with threshold value
following the Hilbert curve movement to create the arbitrary shape of regions. It suits to situations where us-
ers are in stationary status.
2) Pyr a mid Scan: The algorithm aggregates cells in the area as a region and divides the region into smaller sub
regions by comparing the mean region sensitivity value with threshold to create the arbitrary shape of regions.
It also suits in stationary status for positon sharing.
3) Hilbert Movement with Region Size Restriction: Based on the Hilbert movement algorithm, it constrains the
region size no greater than xmax cells in generation. The output is suitable for users in the movement.
4.2. Hilbert Movement
In the first algorithm, we choose the Hilbert curve movement as the moving route to generate the region maps.
In a 2 dimensional reference space gridded into unit cells, Hilbert curve movement will linearly run through all
cells without repeating. In the algorithm, cells with sensitivity values are compared with the threshold value T
following the Hilbert curve movement steps. The obfuscation region map is generated by Hilbert Movement
processes as follows:
1) Based on user defined profile with features type and sensitivity values, load the reference space of 2h × 2h
gridded cells with sensitivity values into the data set.
2) Follow the Hilbert curve route steps, and compare the unit cell’s sensitivity value with the threshold value. If
the unit cell sensitivity is greater than the threshold, the merge status update to start, and form a sensitive re-
gion by marking the next cell with same region identity. Calculate the region’s mean sensitivity value and
compare it with threshold value again. The merge process continues until the region mean sensitivity value is
less than the threshold value. Add the region to region map.
3) Cells with sensitivity values less than the threshold value and not merged to region will be marked with sep-
arate identity, and then pass to next cells.
4) Check and merge the cells in the reference space with separate mark and share the same border as regions.
Add the regions to region map.
Figure 4(a) shows the pseudo code for the Hilbert movement to generate the obfuscate region map. Figu re
4(b) shows an example that red mark cells are with sensitive value higher than threshold value, and initial result
from processes 1 to 3 generated four sensitive regions with identity from 0 to 3, and non-sensitive cells marked
identity −1. We remap those cells with valueless than threshold and shared border as a region in process 4. Final
result in Figure 4(c) shows that there is no sensitive regions or non-sensitive regions difference in the region
map.
4.3. Pyramid Scan
A level-based aggregation approach in Pyramid structure can also generate obfuscate region map for sharing
purpose. Considering reference space is gridded into 2h × 2h cells, where h indicates the level height of the space.
In Pyramid structure, Level h represents bottom level with 2h × 2h individual unit cells, and Level 0 indicates top
level, where all 2h × 2h cells are considered as one region. From the top level towards the bottom level, each re-
gion in a level of Pyramid structure is divided into 4 square sub-regions equally in the next level. In Figure 5(a),
we show an example of 8 × 8 grids space in Pyramid structure. Level height in the example is 3. Level 3 is the
bottom level with 23 × 23 individual cells, and level 0 is the top level is one region with 43 cells in it. In level 1,
four divided sub-regions are from level 0. Each of the region in level 1 contains 42 cells in it. Following the
same division rule, we take each region in level 1 as parent, we process further sub-region division in level 2. In
Figure 5(b), we show partially the region’s numbering after division. The approach of the Pyramid Scan
processes is as follows:

W. C. Cheng, M. Aritsugi
14

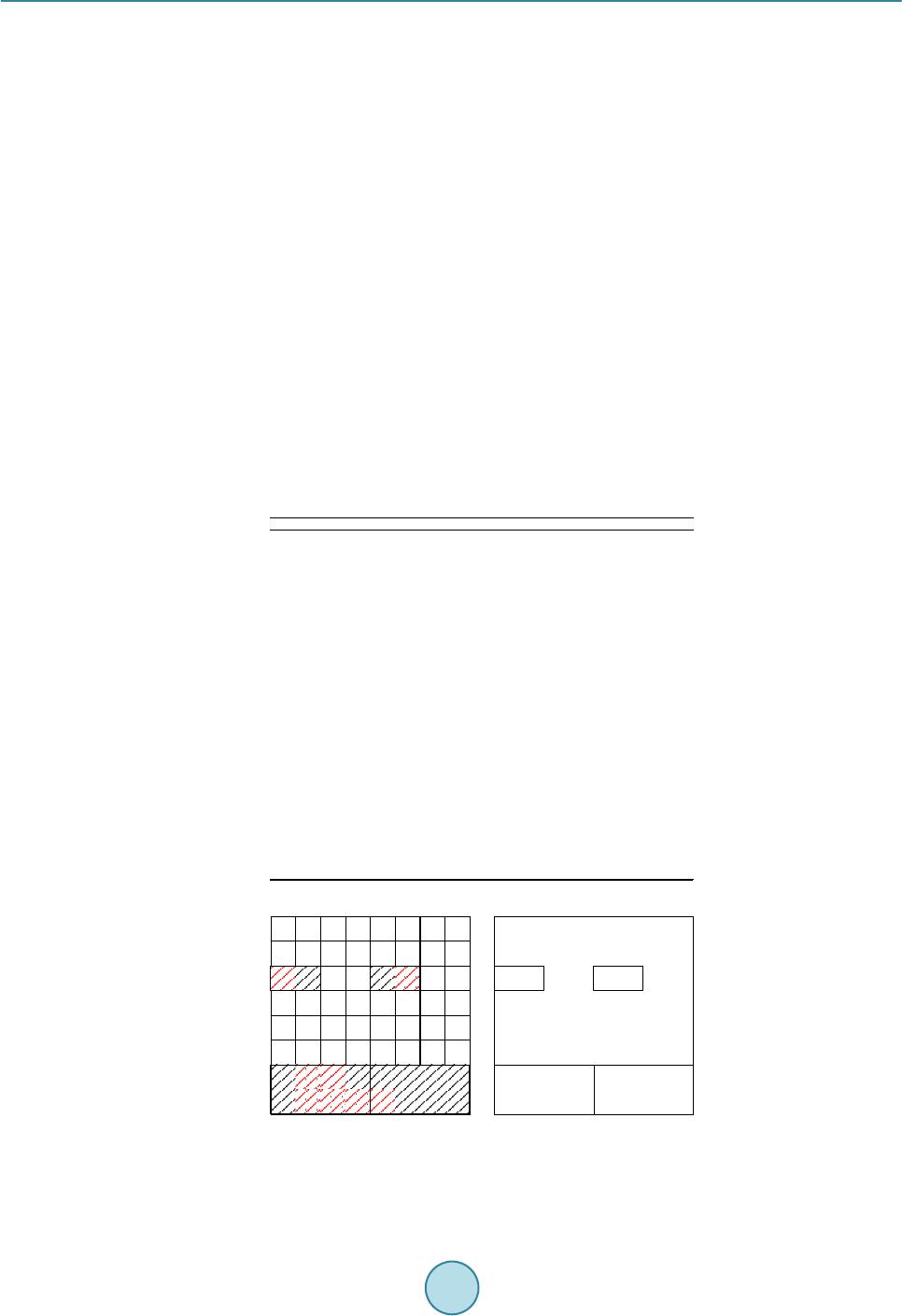

(a)
(b) (c)
Figure 4. (a) Pseudo code for Hilbert Movement; (b) Result
of sensitive regions generated; (c) Final obfuscate regions.
(a) (b)

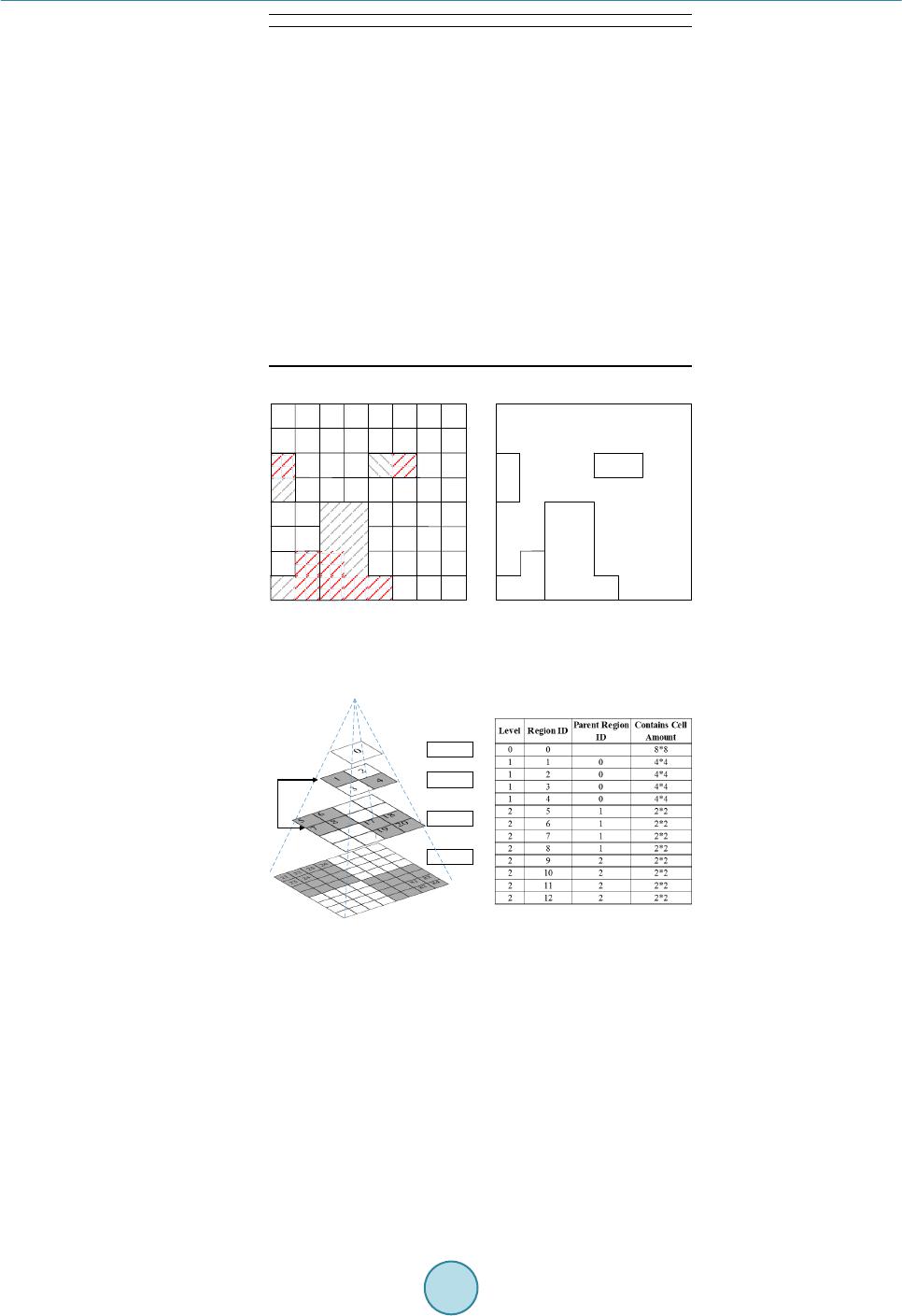

Figure 5. (a) Pyramid structure in 8 × 8 grid; (b) Sub region
break and region’s re-numbering.
1) Load the 2h × 2h gridded cells with user sensitivity values into the data set. Follow the division rule from
Level 0 towards Level (h − 1) that one region as parent in level i is divided into 4 square sub son_regionsas
in level i + 1. Number all regions with identity and calculate the regions’ mean sensitivity value.
2) Compare the region mean sensitivity with threshold value. In the same level, if the region mean sensitivity
value is greater than the threshold, it is merged with neighbor regions to form a new region. Add the region
to region map.
3) Regions with mean sensitivity value less than threshold and not merged with neighbors move to the next lev-
el for threshold comparison and follow merge process in process 2 until the bottom level.
Algorithm 1: Hilbert Movement
1
function Hilbert_Movement(grid, threshold)
2 bStart = false;
3 RegionMap = Ø
4
for idx = 0 to maxHilbertIdx(grid) do
5 i = cell[PosX, PosY];
6 if (!bStart && (i >= threshold))// Initial cell with sensitivity greater than
7 bStart = true;// threshold, start a region
8 iCount = 0;
9 sum = 0;
10 iRegionCount++;
11 if (bStart)// Calculate the mean sensitivity value of
12 iCount++;// the region
13 sum += i;
14 average = sum / iCount;
15 if (average < threshold)// If the mean value is less than threshold,
16 bStart = false;// the region ends
17 average = 0;
18 if (bStart)// New region start with new region id
19 cell[PosX, PosY].iRegion = (iRegionCount - 1);
20 cell[PosX, PosY].fSum = sum;
21 RegionMap = cell[PosX, PosY].iRegion// Add the formed region into Region Map
22 else
23 cell[PosX, PosY].iRegion = -1;// Mark cells with value less than threshold
24 cell[PosX, PosY].fSum = 0;
// as region id " -1 "
25 end for
26 Remap(cell)
// Combine the region id = -1 and with
27
return RegionMap// shared border as one region
28 end function
-1 -1 -1 -1 -1 -1 -1 -1
-1 -1 -1 -1 -1 -1 -1 -1
-1 -1 -1-1 -1
-1 -1 -1 -1 -1 -1 -1
-1 -1-1 -1 -1 -1
-1 -1-1 -1 -1 -1
-1
-1 -1 -1
-1 -1 -1 -1
3
0
2
1
Level 3
Level 1
Level 2
Level 0

W. C. Cheng, M. Aritsugi
15
4) Scan the cells in the bottom level, cells without merge and share the same border combined as regions. Add
the regions to region map.
Figure 6(a) shows the pseudo code of Pyramid scan to generate obfuscate regions. In Figure 6(b) shows an
initial result with Pyramid scan algorithm processes 1 to 3 from a grid space 8 × 8 cells with same sensitivity
conditions in red mark as Figure 4(b). Four sensitivity regions are generated. We then remap those cells with
sensitivity valueless than threshold and shared border as a region in process 4. A region map without distin-
guished between non-sensitive and sensitive regions by pyramid scan algorithm is generated as shown in Figure
6(c) .
4.4. Hilbert Movement with Region Size Restriction
In stationary status, users’ physical locations can be protected by region coordinates. However, in Section 3.2,
we described a stalker might sense target user’s cloaked locations to infer the physical ones when moving in or
out extra-large regions. To prevent the problem, we constrain a region size to maximum xmax cells in the region
during the generation.
Comparing the two algorithm results in the Figure 4(c) and Figure 6(c), the Pyramid scan result is lack of
variation and monotonous as a polygonal region map. In the third algorithm, we adopt the Hilbert movement as
a based algorithm to constrain the region size during region generation. The summary of the algorithm processes
describes as follows, and pseudo code is shown in Figure 7:
1) Load the 2h × 2h gridded cells with sensitivity values into the data set. The bState judgment indicates to start
a new region, and the iMax Cel l Count is cell’s amount included in the region. Follow Hilbert Curve route.
2) When the initial cell is with sensitivity value greater than the threshold, the State flag updates to indicate a
(a)
(b) (c)
Figure 6. (a) Pseudo code for Pyramid Scan; (b) Result of
sensitive regions generated; (c) Final obfuscate regions.
Algorithm 2: Pyramid Scan
1
func t ion Pyramid_Scan(level, threshold)
2 iCount = (4^(Level + 1) - 1) / (4 - 1);
3 for (i = 0; i < iCount; i++)
4 new RegionAverage[iCount];
5 Pyramid_Average(Level, 0, 0, 0);// Calculate region's mean sensitivity value in different level
6 Pyramid_Region(Level, 0, threshold); // Compare the region mean sensitivity value with theshold
7
func t ion Pyramid_Average(int level, int iRegionIndex, int iX, int iY)
8 if (level > 0)
9 for (s = 1; s < 4; i++)
10 Pyramid_Average(level - 1, ((iRegionIndex << 2) + s));// Number and calculate four sub son_regions'
11 RegionAverage[iRegionIndex].fAverage +=
// mean sensitivity value in level-1
12 RegionAverage[(iRegionIndex << 2) + s].fAverage / 4;//Region's mean sensitivity value calculation in level
13 else
14 RegionAverage[iRegionIndex].fAverage = Cell[iX, iY].fValue;
15
func t ion Pyramid_Region(int level, int iRegionIndex, threshold)
16 if (level > 0)
17 for (s = 1; s < 4; i++)// If sub son_region mean sensitivity value is greater than threshold
18 if (RegionAverage[(iRegionIndex << 2) + s].fAverage >= threshold)
19 f3 = Mean value of (RegionAverage[(iRegionIndex << 2) + s]) and 2 border connected neighbor regions;
20 f2h = Mean value of (RegionAverage[(iRegionIndex << 2) + s]) and it's horizontal connectted neighbor region;
21 f2v = Mean value of (RegionAverage[(iRegionIndex << 2) + s]) and it's vertical connectted neighbor region;
22 MarkRegion(f3, f2h, f2v, iRegionIndex); // Among f3, f2h, f2v value, select the greatest one, and
23 RegionMap = iRegionIndex // mark included neighbor regions with same region identity
24 if (RegionAverage[(iRegionIndex << 2) + s] is not marked as a region)
25 Pyramid_Region(level - 1, (iRegionIndex << 2) + s, theshold);
26 Remap(cell) // Combine cells which are not included in regions
27
re turn RegionMap// and with shared border as one region
28 end function
3
0
2
1

W. C. Cheng, M. Aritsugi
16
Figure 7. Hilbert movement with region size restriction.
sensitive region starts. Add next cells into the region by marking the cells with same identity until the region
mean sensitivity value is less than the threshold. If the iMax Cell Count reached the xmax value, the region
with xmax cells separates out as a region and add to region map. The iMax Cell Count counter is reset.
3) If the initial cell is with sensitivity value less than the thresh old, the bState flag updates as well and a non-
sensitive region starts. Add next cell into the region and mark the cells with same identity until next cell is
with sensitivity value greater than the threshold.
4) Check and merge the cells in the reference space with value less than the threshold and share the same border
as a region. Add the region to region map.
Thus, we now generate the obfuscate region map with concerning user’s sensitivity preference, and restrict
the region size up to xmax.
5. Experiment and Result
In this paper, we presented three algorithms to generate users’ proprietary obfuscate region maps. In this section,
we evaluate obfuscate results of the three algorithms. The experiment is divided into three parts. First, we eva-
luate the obfuscate results in terms of position sharing in stationary status with Hilbert movement (Algorithm 1)
and Pyramid scan algorithm (Algorithm 2). Second, we simulate the situation when users are in moving status,
and compare the obfuscated sharing positions in all three algorithms. Finally, we perform different settings for
xmax with Algorithm 3 to evaluate protection performance of sharing positions in different environment circums-
tances. With proper suggestion in the xmax size setting, the obfuscate system is able to prevent malicious tracking
of users in both stationary and moving modes.
5.1. Experiment Setup
The experiment reference space assumes to be surrounded by the Traffic Center of Kumamoto City in Japan for
10 km × 10 km square wide size, and we obtain the road and street data set from OpenStreetMap data [20],
which is assisted by commercial LBS companies. The rectangular unit cell is defined as 10 m × 10 m square size,
so the reference space city size is with 1024 × 1024 grids. Spatial grid map fulfills with features and replaces
with sensitivity value from user profile setting accordingly. All features types from geographic data are catego-
rized into 14 types, and the correlated sensitivity values are given previously in Table 2 as example settings. We
randomly pick upinitial locations within the reference space and move along with the actual road or street in 10
to 13 minutes, and sample the user’s snapshot locations every minute in the movement. Assume there are 50000
users randomly distributed in the reference space using the location-aware social network applications. We run
the experiment on a 64 bits Windows 7 desktop computer with Intel Core i7-3770K 3.5GHz CPU and 16G RAM.
Algorithm 3: Hilbert Movement with size restriction
1
functi on Hilbert_Movement4restrict(grid, threshold, x
max
)
2 RegionMap = Ø
3 bState = true;
4
for idx = 0 to maxHilbertIdx(grid) do
5 i=cell[PosX, PosY];
6 if (i >= threshold))// Initial cell with sensitivity greater than thresold,
7 bStart = true;// start a region
8 bState = true;
9 if (bStart)// Calculate the mean sensitivity value of the region
10 if (average < threshold)
11 bStart = false;
12 bState = true;
13 if (bState)// when new region start, the flag of
14 iMaxCellsCount = 0;
// bState update
15 iRegion4Count++;
16 bState = false;
17
if (iMaxCellsCount >= x
max
)// Within the region, if cells amount reached x
max
,
18 iMaxCellsCount = 0;// then new region conducts to region map
19 iRegion4Count++;
20 iMaxCellsCount++;
21 cell[PosX, PosY].iRegion4 = (iRegion4Count - 1);
22 cell[PosX, PosY].fAverage = average;
23 RegionMap = cell[PosX, PosY].iRegion4
24 end for
25 Remap(cell)// Combine cells which are not included in regions
26
return RegionMap// and with shared border as one region
28 end function

W. C. Cheng, M. Aritsugi
17
5.2. Result and Discussion
We verify the obfuscate effects by the region’s shape, amount, and size. Firstly, we demonstrate an example of
16 × 16 grids map from reference space in Figure 8(a). Based on user profile provided in Table 2, sets the
threshold value as 0.35, which means 7 types of feature are considered sensitive to user. Figure 8(b) and Figure
8(c) show the generated polygonal region map by Algorithms 1 and 2, respectively. The result shows that the
generated regions are arbitrary in region shape, size, and amount by different algorithms.
The less generated region’s amount means the average region size is wider, and the wider region size implies
the less position accuracy. In location-aware social network applications, we consider the users’ location privacy,
but not expect the users’ cloaked sharing positions are too far away from the actual locations, since it can cause
application mis-querying nearby others. In the 1024 × 1024 city reference space with the feature sensitivity val-
ue remain as Table 2, the result in Figure 9(a) shows Algorithms 1 and 2 perform similarly with higher thre-
shold values. But Algorithm 2 generates lower region amounts with low threshold value. The Pyramid scan al-
gorithm’s result is considered too fuzzy comparing to Hilbert movement in low threshold cases. In Figure 9(b),
region size over 50 cells (equal to 5000 m2) is 8% and 7% in T equal to 0.3, and 4% and 4% in T equal to 0.4 by
means of Algorithms 1 and 2, respectively. More than 90% of users’ sharing positions are protected within 50
cells. Both algorithms provide sufficient location cloaked area for stationary users.
Secondly, we evaluate the situation when users are in moving status with all three algorithms. The trajectory
is in downtown walking district, and we assume that a user has non-stop walk in 10 minutes. We set the thre-
shold value as 0.3, sensitivity feature value as in Table 2, and with different xmax values for evaluation. A stalker
refreshes user’s location every minute and considers normal moving speed is less than 10 km/h. User’s sharing
positions are regions’ coordinates according to the three algorithms. In Figure 10, Algorithm 1 and Algorithm 2
movement showed abnormal walking speed in time 1, 7, and 9. On the other hand, Algorithm 3 represents a
more constant and smooth speed in the movement (shown as curve). In the moving status, sharing the obfuscate
region position is possible to be detected as fake locations with Algorithms 1 and 2.
Finally, we simulate the region map with different xmax value from 10 to 50 in two different types of moving
trajectories, downtown and suburban. In downtown area, Figure 11(a) shows that the velocity is slightly over 10
km/h in some snapshots when xmax value sets to 10, 30, 40, and 50. In suburban area, Figure 11(b) shows the
(a) (b) (c)

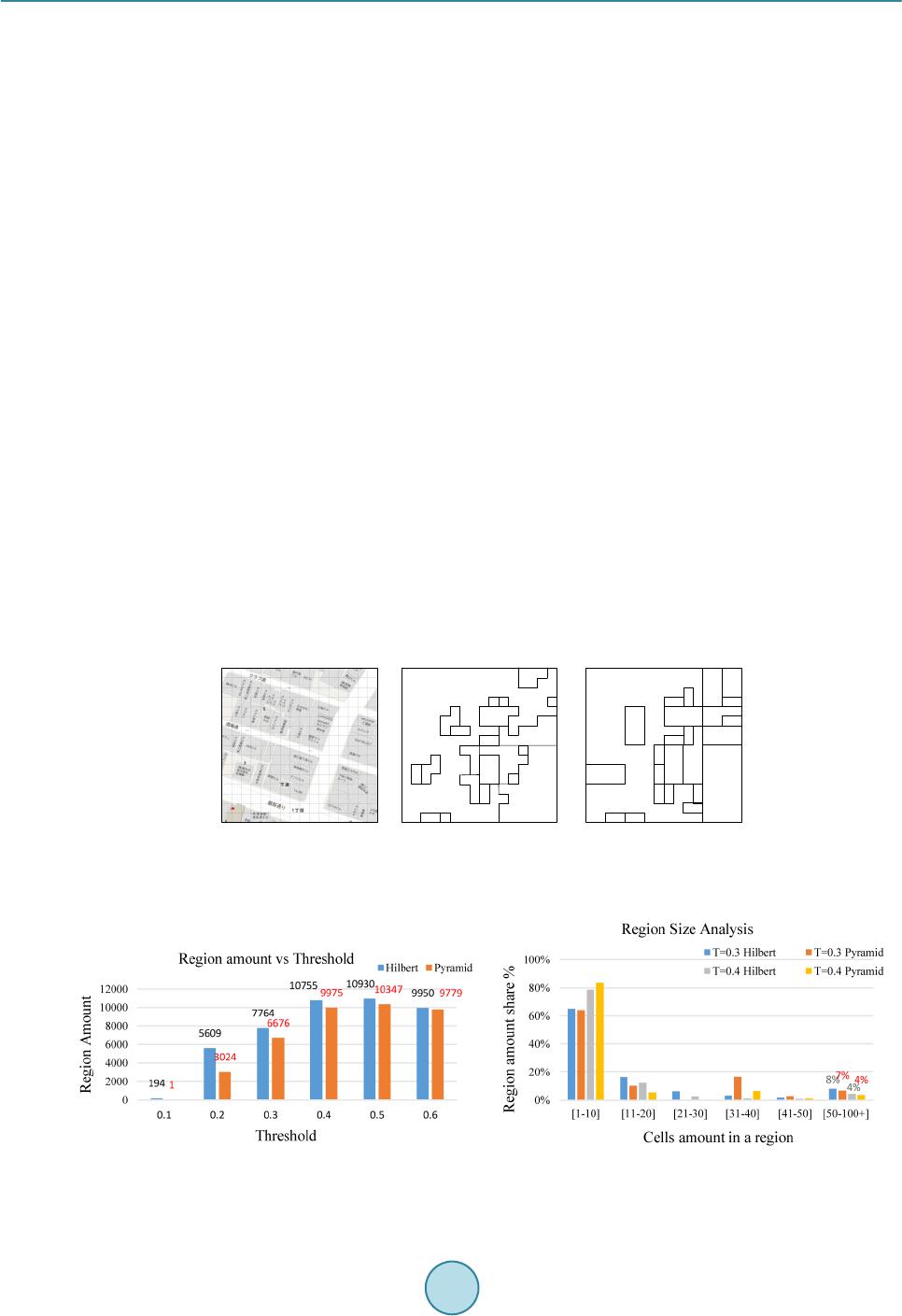

Figure 8. (a) 16 × 16 gird map; (b) Hilbert movement result; (c) Pyramid
scan result.
(a) (b)
Figure 9. (a) Obfuscate region amount with threshold; (b) Regions amount and region size.

W. C. Cheng, M. Aritsugi
18
Figure 10. A trajectory in downtown Kumamoto city (walk-
ing district only).
(a)
(b) (c)

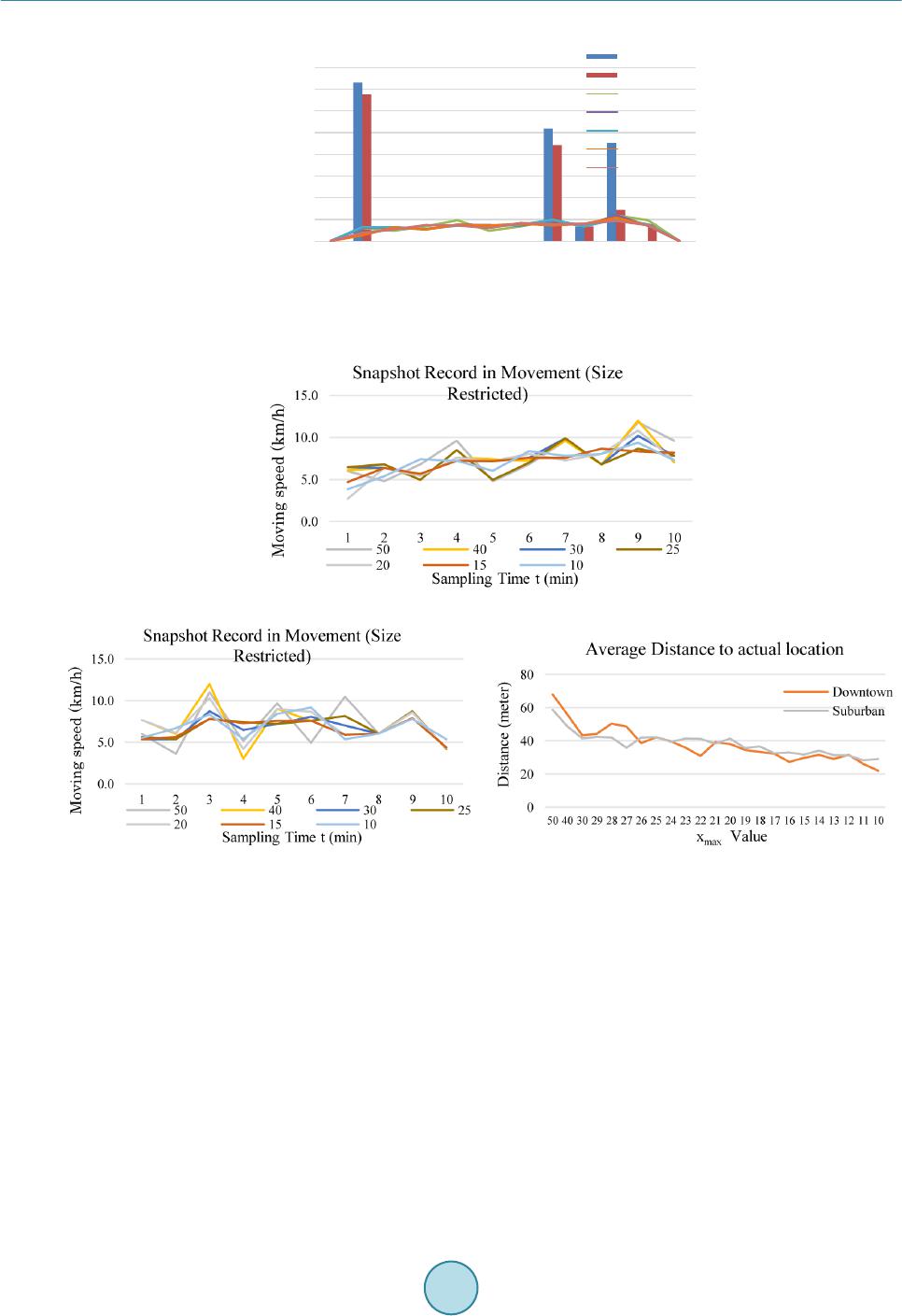

Figure 11. (a) Downtown snapshot record; (b) Suburban snapshot record; (c) Distance between actual and transformed loca-
tion.
abnormal speed happened at values 40 and 50. According to the experiment result, we propose the xmax value set
in between 10 to 30 shall be suitable for both downtown and suburban areas. In Figure 11(c), we show average
distance between the transformed sharing positions and user’s actual locations at every snapshot for downtown
and suburban areas. For xmax value between 10 and 30, the figure indicates the region maps provide 20 to 50
meters distance shifting for protecting user’s physical location. The curve slides down when the xmax value goes
smaller. It indicates that the transformed distance shifting rate is getting less, and the location protection will
tend to be insufficient when xmax value goes too small.
A general region size comparison in Table 3 shows in stationary status, the Hilbert movement and Pyramid
scan algorithms provide better obfuscate result with wider region size than Algorithm 3, and Pyramid scan algo-
rithm has wider obfuscate result than Hilbert movement for both downtown area and suburban area. However, it
might be a problem when users are in the downtown area and adopt the Pyramid scan algorithm to obfuscate the
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
0
1
2
3
4
5
6
7
8
9
10
Moving speed (km/h)
Sampling Time t (minute)
Snapshot Record in Movement
Pyramid Scan
Hilbert Movement
Xmax = 50
Xmax = 40
Xmax = 30
Xmax = 20
Xmax = 10

W. C. Cheng, M. Aritsugi
19
Table 3. Region size in different algorithm and xmax val ue.
Algorithm Downtown (cells) Suburban (cells)
Pyramid 192.7529 273.0667
Hilbert movement 51.3605 244.5373
Region size restriction
50 cells 29.8978 41.5838
40 cells 26.5133 34.7119
30 cells 20.2005 27.0810
20 cells 16.7184 18.9192
10 cells 9.4760 9.8639
actual location, since high degree of obfuscating the actual positions is not practical for searching nearby others
in location-aware social network applications. On the other hand, Hilbert movement algorithm and Hilbert
Movement with region size restriction algorithms are suitable for position sharing in location-aware social net-
work applications. The user proprietary profile creates the arbitrary shape of regions to distinguish one from
others with same geographic data. The Hilbert movement region map protects user’s sharing location in statio-
nary, and the region size restricted approach protects the user’s sharing positions in the move. The combination
of Algorithms 1 and 3 is suitable for location privacy protection and position sharing in location-aware social
network.
6. Conclusion and Future Work
In this paper, we have proposed a user proprietary obfuscate system with algorithms to safely guard user’s loca-
tion privacy for position sharing in location-aware social network applications. The experiment verified two al-
gorithms for protecting position sharing in stationary status and simulated protection with the third algorithm in
the movement with actual road and street data. We concluded that the obfuscate system is able to provide suffi-
cient location privacy protection and not impacting the continuous position sharing model in location-aware so-
cial network. The approach created the arbitrary polygonal regions to obfuscate the user’s actual location while
sharing the positions, but the possibility existed that a region was partially included in the search range and the
assigned coordinate of the obfuscate region was outside the range due to the region’s arbitrariness. It impacted
the searching accuracy. In the future, we attempt to improve the obfuscate system with algorithm enhancement
for the query accuracy purpose, and include more environmental data for analysis.
References
[1] Pew Research Center (2014) Social Networking Fact Sheet.
http://www.pewinternet.org/fact-sheets/social-networking-fact-sheet/
[2] Wen, M., Li, J., Lei, J.S. and Yang, J.J. (2012) A Lightweight Privacy-Aware Location Query Protocol in Mobile So-
cial Networks. Information and Computational Science, 9, 4429-4437.
[3] Wernke, M., D urr, F. and Rothermel, K. (2012) PShare: Position Sharing for Location Privacy Based on Multi-Secret
Sharing. IEEE International Conference on Pervasive Computing and Communications, Lugano, 19-23 March 2012,
153-161. http://dx.doi.org/10.1109/PerCom.2012.6199862
[4] Damiani, M.L., Bertino, E. and Silvestri, C. (2010) The PROBE Frame Work for the Personalized Cloaking of Private
Locations. Transactions on Data Privacy, 3, 123-148.
[5] Cho, E., Myers , S.A. and Leskovec, J. (2011) Friendship and Mobility: User Movement in Location-Based Social
Networks. Proceedings of the 17th ACM SIGKDD International Conference on Knowledge Discovery and Data Min-
ing, San Diego, 21-24 August 2011, 1082-1090. http://dx.doi.org/10.1145/2020408.2020579
[6] Krumm, J. (2007) Inference Attacks on Location Tracks. Proceedings of the 5th International Conference on Pervasive
Computing, Toronto, 13-16 May 2007, 127-143. http://dx.doi.org/10.1007/978-3-540-72037-9_8
[7] Jain, A.K. and Shanbhag, D. (2012) Addressing Security and Privacy Risks in Mobile Applications. IT Professional,
14, 28-33. http://dx.doi.org/10.1109/MITP.2012.72

W. C. Cheng, M. Aritsugi
20
[8] Ball, J. (2014) Angry Birds and “Leaky” Phone Apps Targeted by NSA and GCHQ for User Data.
http://www.theguardian.com/world/2014/jan/27/nsa-gchq-smartphone-app-angry-birds-personal-data
[9] Krishnamurthy, B. and Wills, C.E. (2010) Privacy Leakage in Mobile Online Social Networks. Proceedings of the 3rd
Workshop on Online Social Networks, Boston, 22-25 June 2010, 4.
[10] Wernke, M., Skvortsov, P., Durr, F. and Rothermel, K. (2014) A Classification of Location Privacy Attacks and Ap-
proaches. Personal and Ubiquitous Computing, 18, 163-175. http://dx.doi.org/10.1007/s00779-012-0633-z
[11] Mokbel, M.F., Chow, C.Y. and Aref, W.G. (2006) The New Casper: Query Processing for Location Services without
Compromising Privacy. Proceedings of the 32nd International Conference on Very Large Data Bases, Seoul, 12-15
September 2006, 763-774.
[12] Xue, M., Kalnix, P. and Pung, H.K. (2009) Location Diversity: Enhanced Privacy Protection in Location Based Ser-
vices. Proceedings of the 4th International Symposium on Location and Context Awareness, LoCA’09, 70-87.
http://dx.doi.org/10.1007/978-3-642-01721-6_5
[13] Bamba, B., Liu, L., Pesti, P. and Wang, T. (2008) Supporting Anonymous Location Queries in Mobile Environments
with Privacy Grid. Proceedings of the 17th International Conference on World Wide Web, Beijing, 21-25 April 2008,
237-246. http://dx.doi.org/10.1145/1367497.1367531
[14] Ghinita, G., Damia ni, M.L. and Silvestri, C. (2009) Preventing Velocity-Based Linkage Attacks in Location-Aware
Applications. Proceedings of the 17th ACM SIGSPATIAL International Conference on Advances in Geographic In-
formation Systems, Seattle, 4-6 November 2009, 246-255. http://dx.doi.org/10.1145/1653771.1653807
[15] Wei, W., Xu, F. and Li, Q. (2012) MobiShare: Flexible Privacy-Preserving Location Sharing in Mobile Online Social
Networks. 2012 Proceedings IEEE INFOCOM, Orlando, 25-30 March 2012, 2616-2620.
http://dx.doi.org/10.1145/1367497.1367531
[16] Lin, D., Bertino, E., Cheng, R. and Prabhakar, S. (2009) Location Privacy in Moving-Object Environments. Transac-
tions on Data Privacy, 2, 21-46.
[17] Cheng, W. C. and Aritsugi, M. (2014) A User Sensitive Privacy-Preserving Location Sharing System in Mobile Social
Networks. Procedia Computer Science, 35, 1692-1701. http://dx.doi.org/10.1016/j.procs.2014.08.262
[18] Carey, N. (2005) Establishing Pedestrian Walking Speeds. Project Report, Portland State University, ITE Student
Chapter.
[19] OGC Technical Committee (1999) Open GIS Simple Features Specification for SQL. Revision 1.1. Open GIS Consor-
tium.
[20] http://www.openstreetmap.org
