﻿ A method to calculate the acetabular cup anteversion after total hip replacement based on 3D coordinate system

Journal of Biomedical Science and Engineering
Vol.6 No.10(2013), Article ID:38265,3 pages DOI:10.4236/jbise.2013.610119

A method to calculate the acetabular cup anteversion after total hip replacement based on 3D coordinate system

Zhenhua Zhang, Fujie Sun, Jie Li, Hongbiao Li, Yiqi Deng, Guodong Yin

Department of Orthopedics, Huxi Hospital (Shanxian Central Hospital), Jining Medical University, Jining, China

Email: zhzhang197422@sina.com

Copyright © 2013 Zhenhua Zhang et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received 2 August 2013; revised 5 September 2013; accepted 15 September 2013

Keywords: Hip Joint; Replacement; Acetabular; Anteversion; Calculation Formula

ABSTRACT

Aim: To explore an accurate method to calculate acetabular cup anteversion after total hip arthroplasty. Method: 1) A 3D coordinate system was established with the center of the hip joint rotation center base as coordinate center. The acetabular exit plane and Pettersson formula acetabular anteversion and Riten Pradhan formula acetabular anteversion and acetabular true anteversion were drawn; 2) Determine the mathematical expression of Pettersson formula acetabular anteversion α and Riten Pradhan formula acetabular anteversion β in the coordinate system. The true acetabular anteversion is projection angle of Pettersson formula acetabular anteversion α on cross-section in the presence of acetabular abduction δ, determining mathematical expression of the acetabular anteversion θ by trigonometric functions. Results: Real acetabular cup anteversion θ = arctg (tgβ/cosδ). Conclusion: The true acetabular cup anteversion and Pettersson formula anteversion and Riten Pradhan for mula anteversion were quite different. The difference was increased with the acetabular cup abduction angle increased. The formula was simple and accurate and worthy of clinical reference.

1. INTRODUCTION

Good acetabular cup anteversion and abduction were the basis of prosthesis stability, which was a key of a successful operation. Bad position of acetabular prosthesis easily leads to prosthesis loose which could lead to femoral head prosthesis prolapse [1-3]. Determining the Prosthesis location was very important in guiding postoperative rehabilitation and expecting long-term effect. Acetabular prosthesis included cement and non-cemented: the former was with a metal ring at the edge of the cup oval in hip anteroposterior X-ray films, the latter could only be seen a metal arc, elliptical arc, the middle part was blocked by the femoral head prosthesis. Due to the difficulty in measuring acetabular cup anteversion, Pettersson formula acetabular cup anteversion [4] and Riten Pradhan formula acetabular cup anteversion [5] were not corresponding to theory, so we determined a mathematical formula of theoretical acetabular anteversion by establishing a three-dimensional coordinate system. These were presented below.

2. METHOD

Establishing a three-dimensional coordinate system: O was the hip rotation center, X-axis was coronal axis, Yaxis was vertical axis, Z-axis was sagittal axis, Plane EDQP was the acetabular opening plane. The plane OHIF was cross-section through the hip joint rotation center, IF was projection of OI in the coronal plane, Plane OMJS was the vertical section of the acetabular opening plane through the hip rotation center, JS was projection OJ in the coronal plane, Rectangular plane HIKL vertical plane OMJS and plane OHL, KF was projection of OK in the coronal plane, Rectangular plane AGBC was vertical plane of acetabular opening through 1/5 point A of elliptical most diameter (supposing elliptical most diameter was R, acetabular radius was r), BC was projection of AB in the coronal plane. The plane OHL was the coronal plane through the hip joint rotation center.

Acetabular abduction δ was angle of acetabular opening and sagittal plane in the coronal plane. That was 1 in Figure 1, acetabular anteversion θ was angle of acetabular opening and sagittal plane in the cross-sectional plane. That was OIH in Figure 1 [6], Pettersson formula [4] acetabular anteversion α was OJM in Figure 1, Riten Pradhan formula [5] acetabular anteversion β was ABG in Figure 1.

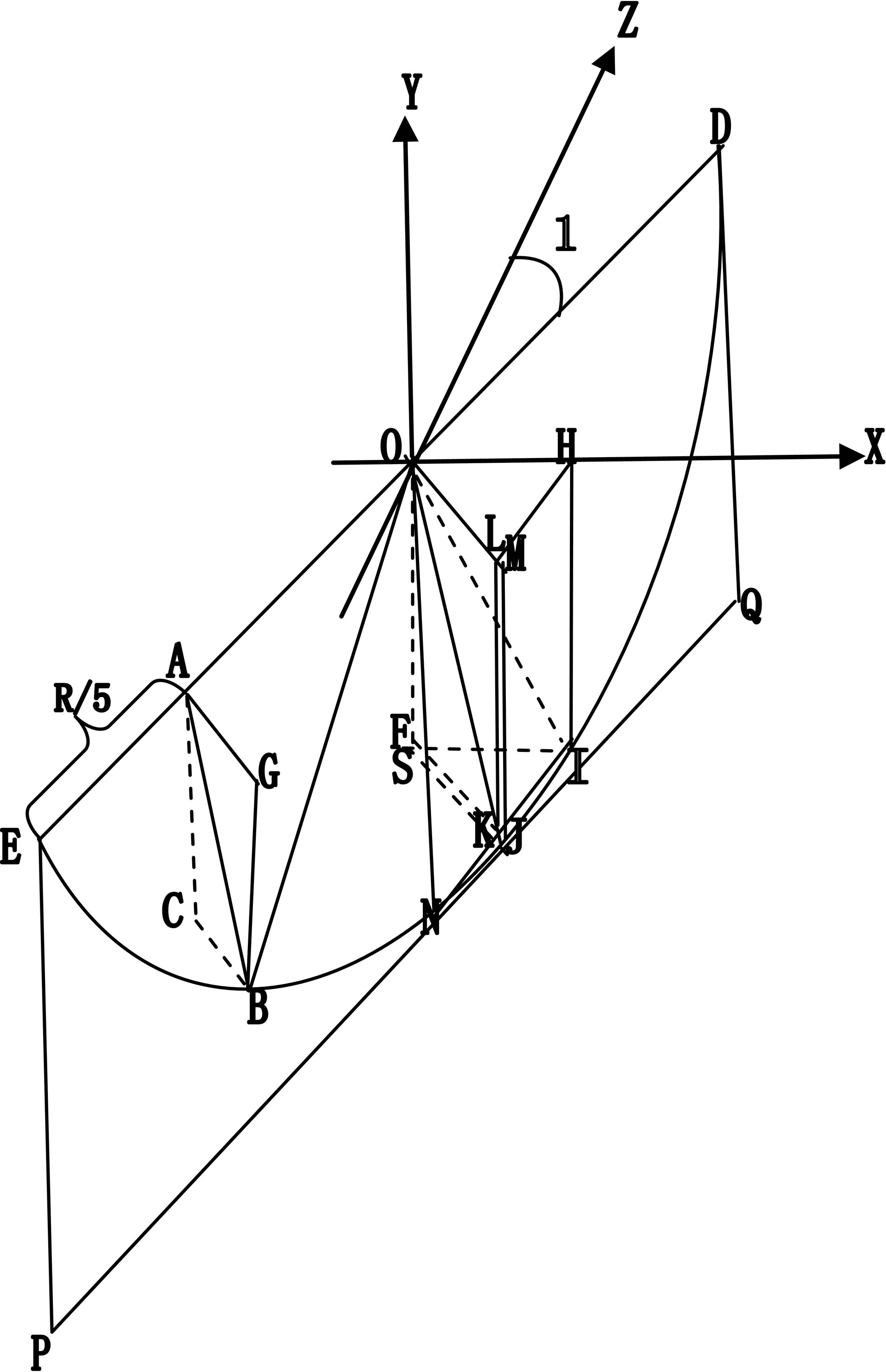

Figure 1. Diagram of true acetabular cup anteversion and Pettersson formula acetabular cup anteversion and Riten Pradhan formula acetabular cup anteversion in a 3D system.

In Figure 1: Pettersson formula acetabular anteversion (α) OJM = arcsin (2 OM/R) = arcsin (OM/r).

Riten Pradhan formula acetabular anteversion (β) ABG = arcsin (AG/AB) = arcsin (5 AG/2R) = arcsin (1.25 AG/r).

We can determine acetabular anteversion α = β.

Acetabular cup theoretical anteversion (θ) 1 = arctg

(OH/HI)

LK ∥ MJ

LKO = α = β

cosδ = OL/OH

OH = OL/cosδ

LK = HI

θ = 1 = arctg (OH/HI) = arctg [(OL/cosδ)/LK] = arctg [OL/(LK cosδ)] = arctg (tgβ/cosδ)

3. RESULT

The true acetabular cup anteversion and Pettersson formula anteversion and Riten Pradhan formula anteversion were quite different, the difference was increased with the acetabular cup abduction angle increasd. True acetabular cup anteversion θ = arctg (tgβ/cosδ).

4. DISCUSS

Good acetabular cup anteversion and abduction were the basis of prosthesis stability, which was a key of a successful operation. Bad position of acetabular prosthesis easily leads to prosthesis loose which could lead to femoral head prosthesis prolapse [1-3]. Determining the Prosthesis location was very important in guiding postoperative rehabilitation and expecting long-term effect. Acetabular prosthesis included cement and non-cemented: the former was with a metal ring at the edge of the cup oval in hip anteroposterior X-ray films, the latter could only be seen a metal arc, elliptical arc, the middle part was blocked by the femoral head prosthesis. Due to the difficulty in measuring acetabular cup anteversion, the fact that CT can not be used to measure acetabular cup anteversion, Pettersson formula [4] and Riten Pradhan formula [5] acetabular cup anteversion was not true. So the effect of acetabular abduction on anteversion was not taken into account and it was acetabular cup anteversion when the abduction was 0.

The results show: 1) Acetabular cup anteversion was impacted by the Acetabular cup abduction. There was a positive correlation between Acetabular cup anteversion and abduction. The anteversion was increased while the abduction was increased. Assumption for the Pettersson formula and Riten Pradhan formula acetabular cup anteversion was 20˚. When the abduction was 35˚, the real acetabular cup anteversion was 23.96˚. When the abduction was 45˚, the real acetabular cup anteversion was 27.24˚. When the abduction was 55˚, the true acetabular cup anteversion was 32.40˚; 2) When the abduction was 0, the true acetabular cup anteversion and Pettersson formula anteversion and Riten Pradhan formula anteversion were same; 3) When the acetabular abduction towards 90˚, the acetabular cup anteversion also tends to 90˚.

In short, the true acetabular cup anteversion and Pettersson formula anteversion and Riten Pradhan formula anteversion were quite different. The difference was increased with the acetabular cup abduction angle increased too. So intraoperation of total hip replacement placing acetabular cup needs to match abduction and anteversion, and taking the impact of acetabular abduction on acetabular anteversion into account, postoperation also needs to take the impact of acetabular abduction on acetabular anteversion into account in evaluating acetabular cup angle. The accuracy of Pettersson formula acetabular anteversion and Riten Pradhan formula acetabular anteversion had been confirmed. The formula was simple and accurate and worthy of clinical reference.

REFERENCES

1. Lewinnek, G.E., Lewis, T.L., Tarr, R., et al. (1978) Dislocations after total hip replacement arthroplastics. Journal of Bone and Joint Surgery, 60, 217-220.
2. Bader, R., Scholz, R., Steinhauser, E., et al. (2004) The influence of head and neck geometry on stability of total hip replacement: A mechanical test study. Acta Orthopaedica Scandinavica, 75, 415-421. http://dx.doi.org/10.1080/00016470410001178-1
3. Barrack, R.L. (2003) Dislocation after total hip arthroplasty: Impant design and orientation. Journal of the American Academy of Orthopaedic Surgeons, 11, 89-99.
4. Pettersson, H., Gentz, C.F., Hnberg, H.O., et al. (1982) Radiologic evaluation of the position of the acetabular component of the total hip prosthesis. Acta Radiologica: Diagnosis, 23, 259-263.
5. Pradhan, R. (1999) Planar anteversion of the acetabular cup as determined from plain anteroposterior radiograps. Journal of Bone and Joint Surgery, 81, 431-435. http://dx.doi.org/10.1302/0301-620X.81B3.9067
6. Zhu, T.Y. (1995) Dynamic measurement of the angles of acetabular abduction and anteversion and its clinical significance. Chinese Journal of Orthopaedics, 15, 497-499.
