A Comparison of Batch, Column and Heap Leaching Efficiencies for the Recovery of Heavy Metals from Artificially Contaminated Simulated Soil

Leonard U. Mgbeahuruike1, Judith Barrett1, Herman J. Potgieter1,2, Lizelle van Dyk2, Sanja S. Potgieter-Vermaak1,3

1Chemistry and Environmental Science Division, School of Science and the Environment, Manchester Metropolitan University, Manchester, UK

2School of Chemical and Metallurgical Engineering, University of the Witwatersrand, Johannesburg, South Africa

3Molecular Science Institute, School of Chemistry, University of the Witwatersrand, Johannesburg, South Africa

Copyright © 2019 by author(s) and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: January 30, 2019; Accepted: May 20, 2019; Published: May 23, 2019


This paper shows the effect of three different leaching processes and 4 different leaching agents on the extraction of five metals of interest from an artificially contaminated simulated soil (SS). For the first time, it is shown that these processes and extractants could be compared directly, as the soil was a constant variable. The interest of this study is that the recovery of metals that are of importance in the circular economy, have been demonstrated from an unusual resource, soil. Metal reserves are constantly decreasing worldwide and alternative resources becoming topical. Urban mining of contaminated land and/or waste sites, therefore, becomes an attractive choice for metal extraction/recovery. This study has shown that metal extraction of up to 50% efficiency could be achieved. Furthermore, EDTA proved to be the best overall extractant when used in batch leaching processes. However, different metals showed preferential recoveries with specific processes and extractants. Therefore the results suggest that the design of a contaminant-specific leaching process performed in a sequential manner could not only leach the metals, but also achieve reasonable separation of the metals.


Metals, Leaching, Chelants, Depletion, Extraction, Contaminants, Resource

1. Introduction

Urban mining is becoming more attractive as economically essential metals used for current and future green technologies are rapidly being depleted due to global industrialization and demand [1] [2]. Depletion in this context could imply that the amount of available metals is limited, due to extraction currently being either, economically prohibitive, or technically demanding. For example, copper (Cu) ore, is typically present in the earth’s crust as copper-iron-sulphide and copper sulphide minerals, e.g. chalcopyrite (CuFeS2), (CuS2) [3] [4]. However, reserves are such that, now it is rare to find a large copper deposit averaging more than 1% or 2% Cu, making their concentration in an ore body inevitably low [5]. Furthermore, there are predicted shortages in ore reserves for strategic metals playing a significant role in technological progression, thereby making metallurgical process potentially demanding. Numerous scholars in the likes of Keser [1] and Gordon et al. [2] have voiced concern over the availability of the critical metals and their economic and technological importance. However, this shortfall can be overcome by utilizing waste repositories. Studies by Sapsford et al. [6] have shown that many of these metals are present in significant concentrations in the wastes residue amenable to leaching, as well as in contaminated soils [6] [7]. Presently, approximately 2 million potentially polluted sites have been identified in Europe and in the United States, with 40% - 50% of these sites [8] impacted with heavy metals. In Sweden alone, more than 80,000 historically contaminated industrial sites have been reported [9]. Research reported steep increases (up to 2040%) of heavy metals in soils and dumpsites in Nigeria and other African countries [10]. In Ghana, Odai et al. [11] emphatically reported levels of Cd and Pb far higher than the WHO/FAO recommended values. Contrary to past practices of simply remediating soils, this figure, although of environmental concern, offers a potential “resource hub” for future recovery. The recovery of metal resources from secondary sources is regarded as a beneficial approach, extending the efficient use of metals [12] , reducing pressure on virgin resources [1] [13] and resulting in major energy savings relative to the level of energy inputs required to produce metals from primary sources [14]. The effectiveness of any recovery process is usually characterized by the ability of the chemical reagent to potentially solubilize and extract the elements bound in, or associated with, a particular soil phase. This is commonly simulated in the laboratory through dynamic (column and heap) and static (batch) [15] [16] studies.

In static studies, mixtures are vigorously stirred during the entire reaction time to enhance homogeneity and reactivity. This method has been noted for its ease of operation and provides qualitative predictive information on the leaching behaviour of metals from the soil matrix [17] [18] on a larger scale. However, the efficiency of the batch approach is somewhat compromised because the soils are often subjected to excessive mobilization of dissolved organic carbon and/or colloids that is uncharacteristic of field scenarios [19] [20]. Dynamic studies involve a percolation process that is characterized by a continuous flow of liquid through a fixed bed of feedstock (soil), invariably presents a better simulation to a leaching process, that occur under field conditions [21] [22].

In this study, two dynamic (column and heap) leaching systems, as well as a batch system, are used as potential techniques to investigate the leaching of heavy metal from polluted simulated soil (SS) with various organic solvents. We have reported in Potgieter-Vermaak et al. [23] what the influence on leaching profiles of synthetically contaminated individual soil components and its composite (a simulated soil) are, using a batch approach. The objective of this investigation is to evaluate metal leaching behaviour as influenced by the selected extractants (EDTA (C10H14N2O8Na2∙H2O); Citric acid (CA-(CH2)2(COOH)3COH); EDDS (C10H16N2O8); Acetylacetone (Hacac-C5H8O2)), the process of leaching (batch, column or heap) and the combined interactive effects of these two factors. These findings will feed into the third phase of this investigation, during which the processes will be applied to industrially impact environmental samples, to evaluate its use as predictive tool.

2. Experimental

2.1. Chemicals and Materials

To minimise variabilities associated with heterogeneity in the real soil scenario during this comparative study, use was made of a simulated soil (SS), consisting of kaolinite clay (KC), peat moss (PM) and quartz sand (QS) (all sourced from local shops) mixed in a ratio of 70:20:10 for a QS:BC:PM ratio prepared according to the ‘‘recipe’’ described in the guidelines of the Organization for Economic Cooperation and Development (OECD) [24] [25]. The reference soil was composed of the following: Bentonite, 20%; quartz sand, 70%; peat moss, 10%. OECD soil may not exactly mimic the behaviour of a natural soil; however, it was used as a simple model. The SS was contaminated with Cd, Cu, Ni, Pb and Zn atomic absorption standard solutions (1000 mg∙dm3) purchased from Sigma Aldrich. Leaching agents: EDTA (C10H14N2O8Na2∙H2O), Citric acid (CA-(CH2)2(COOH)3COH); EDDS (C10H16N2O8); Acetylacetone (Hacac-C5H8O2); were purchased from Sigma Aldrich, Innospec and Alfa Aeser. All mineral acids used in the analysis were of analytical or spectral grade.

2.2. Experimental Methods

The SS was analysed for its physical and chemical properties, using standard techniques and approaches. In a nutshell, the total organic carbon (TOC), pH, cation exchange capacity ( CEC ), specific surface area (SSA), particle size distribution, mineralogy, and baseline metal profile were determined as described in Potgieter-Vermaak [23]. All metal concentrations were determined by ICP-OES and sample concentrations were corrected for matrix effects by procedural blanks, normalized to sample mass and reported as mg∙kg1 dry weight. A 4-point calibration (plus blank) was undertaken using a multi-element standard solution (100 mg∙dm3) which was matrix-matched for each calibration curve. This yielded a calibration coefficient of ≥0.9995 for each of the concentration of the metals analysed. The LOD for the ICP-OES according to the analysed elements were Cd (0.0001), Cu (0.0022), Ni (0.0009), Pb (0.0008), and Zn (0.0027) mg∙dm3.

2.3. Experimental Methodology

2.3.1. Contamination Protocol

Accurately weighed (20 g ± 0.0005 g) SS was contaminated with a multi-metal (MM) solution containing Cd, Cu, Ni, Pb and Zn of concentrations 50, 570, 650, 1590, 2160 mg∙kg1, respectively. These concentrations are three times the intervention values set as regulatory limits by the Department of Petroleum Resources in Nigeria [26]. The motivation behind these concentrations was to simulate heavily contaminated land in Nigeria, with the specific aim of showing the potential of the 3 methods of washing/leaching and the 4 leaching agents, discussed further on in this paper, to remediate the soil and recover the metals of interest in an economically sustainable way. The metals investigated in this study were chosen based on their potential to generate revenue when recovered, as well as their toxicity potential to both the environment and humans. SS was used is to minimise the variability that a natural or industrially impacted soil will create in the data set so that the data could be used as predictive tool. The MM loading achieved was 96% ± 2.37%.

2.3.2. Batch Leaching Test

A standard batch leaching test at liquid-to-solid ratio (L/S) of 10:1 was used to determine the leaching potential of the metals in the contaminated SS. For this purpose, 20 g ± 0.0003 g of dried contaminated SS was accurately weighed in triplicate and placed in three different polypropylene tubes of 500 cm3 capacity containing 200 cm3 of leaching solution (EDTA at 0.034 mold∙m3 or EDDS at 0.034 mold∙m3 or Hacac at 3.0 mold∙m3 or CA at 0.026 mold∙m3) maintaining a solid/liquid ratio of 1:10. These concentrations ensured an excess of extractant. The change in pH upon exposure to the leaching agent was monitored. The mixtures were agitated with the use of a horizontal shaker for 30, 60, 90, 120 and 150 minutes after which it was centrifuged for 15 minutes at 3000 rpm. A procedural blank was carried out by using deionized water as extractant on all substrates, to determine the contribution of the respective leaching agents. The pH of the supernatant was measured after 150 min of contact time to establish any changes therein. After each run, an aliquot of the supernatant (1 cm3) solution was filtrated with a syringe filter (0.45 µm) into a plastic vial of 15 cm3 capacity and later made up to 10 cm3 with deionized water (or industrial methylated spirit in the case of Hacac). Subsequently, the filtrates were analysed by ICP-OES and the selected metal concentrations retained in the adsorbent phase (mg∙kg1) were calculated. The percentage of metal leached from the soil was calculated using Equation (1).

% metal leached = mass ofmetal in supernatant mass of metal originally loaded on substrate × 100 (1)

To ensure repeatability, this procedure was carried out in triplicate. Procedural blanks and matrix-matched standards ensured rigorous QA and QC.

2.3.3. Column Leaching Test

To compare the in-situ leaching with a dynamic process, a column leaching approach was used. For this purpose, a glass chromatographic column (dimensions: Internal diameter 2 cm and 30 cm in height) with a sintered disc frit was used, so that the flow rate could be controlled. Preliminary experimental set-ups were tried and tested (not shown here) and a preferred set-up (not shown here) delivered the best results. The soil was packed using a slurry technique as is customary for chromatographic column packing as this enabled the most uniform packing and would be the more convenient method to use in a plant operation also. The SS was sandwiched between two layers of sand (0.5 cm each). The sand bed on the frit was to ensure no clogging or loss of sample and at the top it ensured that the introduction of the sample did not disturb the soil bed. The SS column volume was 8 cm. By gently tapping the column with a rubber rod uniform packing was ensured, thereby minimising any band broadening effect. After packing, the column head was brought to a minimum before the leaching agent (EDTA, EDDS, Hacac, CA) was introduced. The leaching agent was introduced using a separating funnel as a reservoir and ahead of 10 cm3 was maintained by regulating the flow rate of the separating funnel and synchronising it with that of the column. The flow rate was maintained at 0.8 cm3∙min1. The leachate was collected every 30 minutes over a total leaching time of 150 minutes and the volume measured to the nearest 0.5 cm3. The Cd, Cu, Ni, Pb, and Zn concentrations leached from the SS by the different leaching agents were determined using ICP-OES as described elsewhere, after the pH of the leachate was measured. Each extractant was run in triplicate.

2.3.4. Heap Leaching Test

Heap leaching, as a dynamic process, was also considered for comparison to the column and in-situ leaching methods. This involves stacking of metal-bearing soil into a heap on an impermeable pad, irrigating it with a chemical solution for an extended period to dissolve the preferred metals, and collecting the leachate as it percolates from the base of the heap [27] [28]. However, in order to mimic this approach for a laboratory study, the heap configuration was simulated in a heap set up (not shown here) to achieve a dynamic leaching process. The set-up involved, a perforated Buchner funnel (70 mm) with a filter paper (0.45 um) was used to basically contain the heap and facilitate collection of the leachate over time for metal analysis. The irrigation was affected using a watering can rose of which some of the perforations were blocked to control the flow rate. The supply of extractants to the rose was ensured by a continuous flow from a reservoir, for which a 250 ml separating funnel has been used.

The Buchner funnel was charged with 20 g ± 0.0004 g of soil and then irrigated with the different chelating agents described elsewhere. An average flow rate under gravity of 11.2 cm3∙min1 was maintained and the leachate collected over time (30, 60, 90, 120, and 150 min). The leachate was analysed for Cd, Cu, Ni, Pb, and Zn. Each extractant run was done in triplicate. The pH measurements of the leachate samples were taken before metal analysis on the ICP-OES.

3. Results and Discussions

3.1. SS Characteristics

The ultimate goal of the work reported here is to use artificially contaminated simulated soil (SS) of known composition as a model to determine leaching efficiencies of impacted environmental samples. The following pedological properties of the SS used in the experiment were: specific surface area (SSA) 9.8 m2/g, organic matter 14%, pH 9.44, cation exchange capacity (CEC) 19 meq∙100 g1. The morphology of SS appear to be light grey in colour, with colour notation of 2.5Y 7/2 as described by [29] and can be classed as sandy loam. The soil contained 0.2 ± 0.1 mg∙kg1 Cd, 9.6 ± 1.1 mg∙kg1 Cu, 1.7 ± 0.7 mg∙kg1 Ni, 12.4 ± 0.1 mg∙kg1 Pb and 55 ± 2.4 mg∙kg1 Zn. The measured values were compared with those reported for natural soils in literature. The measured pH, CEC and organic matter are similar to those reported by Chen [30] ; Sun [31] and Koleli and Demir [32] reporting 9.6, 17.6 meq∙100 g1 and 18%, respectively. By contrast, the value of SSA as reported by Kovo et al. [33] was significantly higher (55.8 m2/g) than that measured for SS. Montmorillonite and quartz were identified as the dominant minerals in the SS sample but the presence of additional minerals were identified using micro Raman spectroscopy, which may influence the metal leaching. The trace metal concentrations contained in the SS were considerably below the threshold values of the Department of Petroleum Resources [26] Nigeria. The degree of metal contamination was in the descending order Zn Cu > Pb > Ni Cd. Zn was present in a much higher concentration (140 compared to 0.2, 9.6, 1.7, and 12.4 mg∙kg1 for Cd, Cu, Ni, and Pb, respectively) and higher than that reported in literature for natural soils [31].

3.2. Batch Process

The leaching behaviour of the 5 metals of interest was investigated by subjecting the solid SS sample to an in-situ leaching process that is characteristic of a batch configuration. The leaching trend for these metals was monitored over leaching time intervals of 30, 60, 90, 120, and 150 min using selected extractants (EDTA, EDDS, Hacac and CA). The results (indicating the mass of metal per kg SS extracted after 150 min, as well as the % extraction efficiency for each metal) are summarised in Table 1. From the data it is evident that specific metals reported different extraction efficiencies across the 4 extractants investigated.

For Cd the order of leaching efficiency was EDTA = CA > EDDS Hacac, with an average efficiency of 24.4% (range: 34.6 - 4.4). EDTA and CA leached the most Cd (17 mg∙kg1), followed by EDDS (12 mg∙kg1) and Hacac (2.1 mg∙kg1). EDTA and EDDS are strong chelating agents that form multidentate ligands with metal cations. It is expected that molecules with more carboxyl groups have higher extracting capacity than a molecule with fewer carboxyl

Table 1. Extractability of Cd, Cu, Ni, Pb, and Zn in artificially contaminated SS by a batch extraction with selected extractants. The standard deviation on the values reported are in the range ± (0.03 - 3.05) (n = 3).

groups [34] , which could explain the higher efficiency for EDTA and CA (four and three carbonyl groups, respectively). However, this would suggest that EDDS (4 carbonyl groups) should behave similar to the EDTA, which is not the case (12 mg∙kg1). This phenomenon could partly be attributed to the influence of acid dissolution in the CA. CA will reduce soil pH (by releasing hydrogen ions by substitution and forming soluble complexes by a complexation reaction) [35]. In our study, we have shown that CA lowered the pH to 3.64 in comparison to 5.45 and 5.54 by EDTA and EDDS respectively. [36] and [37] also reported a higher extraction efficiency for Cd during the application of CA and EDTA. In addition, higher mobilisation of targeted metals is observed for EDTA than EDDS [38] [39]. The effectiveness is related (or part related) to the fact that the metal complexes with EDDS are somewhat lower in stability than the corresponding complexes with EDTA.

For Cu the order of extraction efficiency was completely different to that of Cd (Hacac > EDTA > EDDS > CA; with an average efficiency of 30.1% and a range of 41.8% to 11.7%). The Hacac leached the highest amount of Cu (226.8 mg∙kg1), followed by EDTA (204 mg∙kg1) and EDDS (131 mg∙kg1). CA leached only 65 mg∙kg1 of Cu. The high extraction of Cu leached by Hacac over other extractants was observed before [23] and was expected, as Hacac is known to preferentially form complexes with Cu ion [40]. Cu mobilisation by EDDS was significantly lower than what was observed for EDTA, even though EDTA (LogK = 18.8) is about similar to EDDS (LogK = 18.4) (Table 2). According to [41] , the metal complexes with EDDS are somewhat lower in stability than the corresponding complexes with EDTA. This phenomenon could be attributed to the dissociative tendency of CuEDDS to exchange its metal in the complex and readsorb onto the soil surface [42].

The Ni had a very similar profile to Cu and only differed slightly in that the EDDS and CA exchanged places in the order of extraction efficiency. The average extraction efficiency percentage for Ni was 27.1% (37.3 - 16.4). EDTA leached the highest (227.7 mg∙kg1), followed by Hacac (215.1 mg∙kg1) and CA (97.9 mg∙kg1). Surprisingly, EDDS (88.4 mg∙kg1) leached the least.

In contrast Pb had the profile EDTA EDDS ≈ CA Hacac with an

Table 2. Complexation formation constants (LogKML) with cations [42] [43] [44] [45] [46].

*nd: Not determined.

average of 17.7% and a range of 45.4 to 1.9. EDTA (702 mg∙kg1) leached the most followed by EDDS (207 mg∙kg1) and CA (150 mg∙kg1) with Hacac (30 mg∙kg1) leaching the least. EDTA extracted between 4 times and 20 times as much as the rest of the extractants. This result was to be expected due to the much stronger complexation of PbEDTA compared to other metal complexing extractants [43].

Finally, Zn displayed a profile that was similar to Cd but the EDTA extracted Zn about 1.5 times better than CA and the Hacac and EDDS arbitrarily changed places. The average extraction efficiency was 16.8% and ranged from 26.9% to 6.0%.

It is further noted from Table 1, that overall, EDTA outperformed the other extractants and average efficiency of 36.4 ± 6.7 was calculated across the 5 metals of interest. The other extractants had similar efficiencies overall (20.2%, 18.6%, 17.7% for Hacac, CA and EDDS, respectively). However, the extraction behaviour observed indicated a possibility to recover certain metals, using sequential extraction approaches, due to preferential leaching. For example, Cu and Ni can be separated from the rest using Hacac because of their structure, acidic properties and ability to form complexes [40]. This can be followed by a CA leach which will preferentially remove Cd. The Pb and Zn can then be separated from the matrix by an EDTA leach.

3.3. Column Leaching

In-situ extraction leaching was performed on SS by using column approach and a solid liquid ratio of 1:10 to investigate the extraction of the metal species of interest. To illustrate the elution trends, the leaching concentrations (mg∙kg1) of metals from SS after 30, 60, 90, 120, and 150 minutes contact time with extractants (EDTA, EDDS, Hacac and CA) were chosen. The results (indicating the mass of metal per kg SS extracted after 150 min, as well as the % extraction efficiency for each metal) are summarised in Table 3. From the data, it is evident that specific metals reported different extraction efficiencies across the 4 extractants investigated.

For Cd the order of leaching efficiency was different to the batch study: EDTA ≈ EDDS > CA > Hacac, with an average efficiency of 19.8% (23.8 - 12.4) which is significantly lower than what was observed for the batch process. EDTA and EDDS leached the most Cd (11.9 mg∙kg1), followed by CA (10.2 mg∙kg1) and Hacac (6.2 mg∙kg1).

Table 3. Extractability of Cd, Cu, Ni, Pb, and Zn in artificially contaminated SS by a column extraction with selected extractants. The standard deviation on the values reported are in the range ± (0.37 - 2.62) (n = 3).

Cu leaching data showed very little difference between the extractants, with Hacac and CA reporting slightly lower extraction efficiencies and significantly different from the batch process as presented in Table 3. The leaching efficiency was observed to follow the order EDTA ≈ EDDS > Hacac ≈ CA with an average efficiency of 19.0% (20.8 - 17.3). EDTA and EDDS leached 114.4 mg∙kg1 and Hacac (97.3 mg∙kg1).

For Ni, extraction efficiency differed considerably from Cd and Cu and was observed to follow the order EDDS ≈ EDTA > Hacac > CA, with an average efficiency of 39.3% (47.3 - 26.9), which was much higher than the batch process average. EDDS leached 307.2 mg∙kg1 and CA 174.6 mg∙kg1.

For Pb, extraction efficiency was in the order of CA EDTA > EDDS > Hacac, with an average efficiency similar to the batch process of 19.6% (50.8 - 3.2). CA (807.7 mg∙kg1) leached the most, followed by EDTA (211.5 mg∙kg1) and EDDS (173.1 mg∙kg1) with Hacac (51.2 mg∙kg1) leaching the least.

Zn displayed a leaching profile that was similar to Cu however, CA leached Zn much better than Hacac and as such, extraction efficiency followed the order EDTA ≈ EDDS ≈ CA > Hacac, with an average efficiency similar to the batch process of 15.9% (18.4 - 10.7). EDTA (397.2 mg∙kg1) leached the most with Hacac (231.3 mg∙kg1) leaching the least.

Overall, the extraction efficiencies of EDTA, EDDS and CA (24 ± 12; 24 ± 13; 26% ± 14%, respectively) across the 5 metals of interest, were nearly double that of Hacac (16% ± 13%). The data suggest specificity of the metals for extractant as well as process, if we compare it with the batch process. For example, CA extraction of Pb with the batch process was only 10.5% effective, but with the column process the extraction efficiency was 5 times higher and outperformed the highest extraction efficiency for Pb obtained by the batch process (EDTA at 45%). On the other hand, Cd showed similar extraction efficiencies with EDTA and CA, but extraction in the batch process was 1.5 times higher, indicating that the process plays a role in the efficiency. These findings, therefore, suggest that these metals may be removed from contaminated soil, using a battery of processes and different extractants.

3.4. Heap Leaching

To further compare a dynamic perculating process with the batch process, reported in 3.2, a heap leaching experiment with a solid liquid ratio of 1:10 were used to investigate the leaching behaviour of Cd, Cu, Ni, Pb, and Zn bound to SS as well. As before, the elution profile over time (30, 60, 90, 120, and 150 minutes) was monitored with the selected extractants (EDTA, EDDS, Hacac, and CA). The results (indicating the mass of metal per kg SS extracted after 150 min, as well as the % extraction efficiency for each metal) are summarised in Table 4. It was observed that the specific metals reported considerably different extraction efficiencies across the four extractants examined.

For Cd, the leaching efficiency followed the order EDTA ≈ EDDS > CA > Hacac, with an average efficiency of 36.3% (48.2 - 21.4) across all extractants, exceeding both previous processes by 33 and 46%. EDTA and EDDS leached the most (24.1 mg∙kg1), followed by CA (16.2 mg∙kg1) and Hacac (10.7 mg∙kg1). The data suggests, as seen for the column leaching, that Cd extraction is mainly driven by the process, with heap leaching outperforming the other two processes.

For Cu, the extraction efficiency was similar to the batch process, with Hacac > EDTA ≈ EDDS > CA but with a lower average efficiency of 20.6% (28.7 - 15.4). Hacac leached the most (157.7 mg∙kg1 and CA the least (84.6 mg∙kg1). Based on formation constants, this result is unexpected (Table 2). The enhanced Cu extraction efficiency by Hacac is only observed for the batch and heap leaching processes. Therefore, it seems as though the process again plays a significant role in the recovery of the metals.

Contrary to the other processes, the Ni extraction efficiency was in the order Hacac > EDTA ≈ EDDS > CA, similar to the Cu, with an average efficiency of 27% (30.5 - 22.4). There was, however, not a big difference in the efficiency of the Hacac, EDTA, and EDDS. Hacac (198.2 mg∙kg1) leached the most and CA leaching the least (145.7 mg∙kg1) in terms of normalized values. The effectiveness of the three leaching agents, Hacac, EDTA and EDDS, is seemingly not

Table 4. Extractability of Cd, Cu, Ni, Pb, and Zn in artificially contaminated SS by a heap extraction with selected extractants. The standard deviation on the values reported are in the range ± (1.35 - 5.69) (n = 3).

dependent or only partially dependent on their respective formation constants (displayed in Table 2), since this is in the order of Ni-EDTA > Ni-EDDS > Ni-Acac. Clearly, other factors are also at play here.

For Pb, the extraction efficiency did not follow the order of the column process and resembled that of the batch process, namely EDTA > CA EDDS > Hacac with an average efficiency of 14.2% (24.6 - 5.1), a bit lower than what was reported in the two previous processes. EDTA leached the most (24.6 mg∙kg1) and Hacac leached the least (5.1 mg∙kg1). The efficient removal of Pb by EDTA treatment can be explained considering the much higher stability constant of Pb-EDTA (LogK = 18.8) if compared to the rest of the extractants (Pb-EDDS [LogK = 12.7], Pb-CA [LogK = 4.1] and Pb-Hacac (for which no constant is available) [41] [47]. However, this presumption is not applicable for the percieved efficiency of CA over EDDS considering their formation constants. Such a result may be due to lower stability of Pb-EDDS complexes [48] or better still, the acid effect of the CA, which can reduce the soil pH and form soluble complexes with Pb [35]. Hacac is less efficient for Pb recovery because of its poor stability complexes.

Zn extracted noticeably poorer with this process regardless of the extractants used. The extraction efficiency was similar in magnitude for all extractants used and was in the order EDTA ≈ EDDS ≈ CA ≈ Hacac, with an average efficiency of 6.5% (7.3 - 5.5) which is much less (about 3-fold) than the other two processes. The low extraction efficiency of this process on Zn contaminated soil is in line with previous findings by Tandy [43] it can be said that in the case of Zn, the extraction process is the main factor in determining its recovery.

Overall, it was further observed from Table 4 that EDTA (25% ± 15%) and EDDS (22% ± 15%) had similar efficiencies, calculated across the 5 metals of interest, and marginally outperformed the other extractants. The other extractants yielded 18% ± 12% and 19% ± 10% for Hacac and CA respectively.

3.5. Comparison of the Three Processes

To investigate the leaching process efficiency of the 5 metals of interest at three times their respective intervention concentrations from a SS, a static (batch) and two dynamic (column and heap) processes were investigated We appreciate that direct comparison between the three processes are influenced by technical and dynamic differences (for example, flow velocity variations, mass transfer effects), however, by keeping other parameters (pH, solid/liquid ratio) constant, an indirect comparison of the leaching tests could give insight in formulating a predictive leaching trend for the targeted metals released from a contaminated soil.

3.5.1. Extractant Efficiency vs Metal Release

In order to compare the potential to recover the metals of interest, using the 4 leaching agents (extractants) and the three different processes; the batch study (BS), column study (CS) and heap study (HS), data presented in Table 5 and Figure 1 were used. The important oservations will be noted for each metal in the section below.

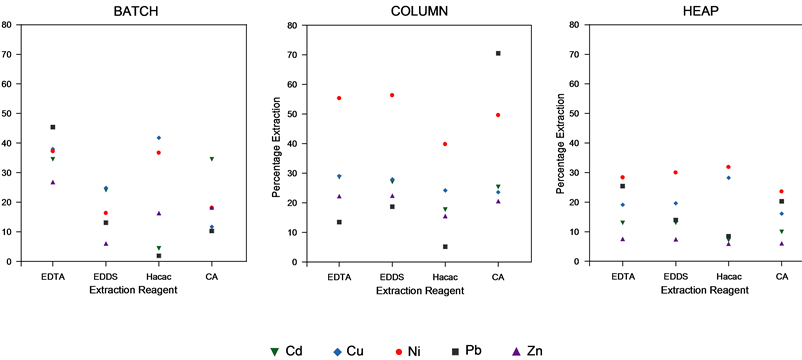

Figure 1. Influence of the three process techniques (BS, CS, and HS) on the leaching efficiencies of metals of interest (Cd, Cu, Ni, Pb, and Zn) calculated across the four selected extractants (EDTA, EDDS, Hacac, and CA).

The efficiency trends of the three processes shown in Figure 1, displayed significant differential behaviour for the different metals extracted, as expected due to the different properties of metals and their different leaching mechanisms during soil washing [31]. The process efficiency for the three processes followed the order BS ≈ CS > HS with average efficiency of 22.3% (range: 23.2 - 20.9). The lower process efficiency exhibited by HS was also reported in literature [4] [49]. However, the process efficiencies of the CS and the BS were similar (calculated across the 4 extractants). This is contrary to a study reported by Hauser [50] where it was stated that column leaching, using a chelating agent (EDTA in their case), was better suited especially for Zn and Pb removal from contaminated soils.

Cd: The HS showed higher average process efficiency (36.0% ± 12%) taken across the extractants, than BS (24.5% ± 14.6%) and CS (20.3% ± 5.0%). It has to be borne in mind that a large variation in the data was observed. In the same vain, the highest efficiency is reported for leaching with EDTA. We can, therefore, conclude that Cd may be best extracted with EDTA using the heap process.

Cu: Cu extraction was favoured by the BSwith average process efficiency across the extractants of 30.3% ± 13.3%, while the CS and the HS were 19.3% ± 2.1% and 21% ± 5.6%, respectively. Table 5 also reveals that Hacac was the leaching agent that achieved the highest extraction efficiency.

Ni: The highest process efficiency, calculated across all leaching agents were for the CS and was 45% ± 7.7%, while the BS and HS were 27% ± 11.6% and 26.6% ± 2.4%, respectively. The leaching agent providing the highest efficiency was EDTA. Therefore, the data suggested that a column leaching with EDTA will provide the best recovery for Ni.

Pb and Zn: The average process efficiency for these two metals were the highest with the BS and CS (BSPb 17.5% ± 18.9%; CSPb 19.8% ± 21.2%) and (BSZn 16.8% ± 8.6%; CSZn 15.8% ± 3.3%). For Pb the highest extraction efficiency was with CA and for Zn with EDTA. This suggests that Pb be best extracted by column percolation and CA, while Zn would be best with the batch process and EDTA.

3.5.2. Extractant Efficiency vs Process Used

In order to compare the influence of the 4 leaching agents (extractants) on the process efficiency of the batch study (BS), column study (CS) and heap study (HS), the data presented in Table 5 and Figure 2 are used.

Figure 2 provides a graphical data summary, including the median, quartiles, skewness of distribution as well as the mean percentage extraction in a comparison of the different processes (BS, CS, and HS) studied. The data were averaged over all the metals. It is first noticed that the HS showed the most variation for EDTA and EDDS, but for Hacac and CA the variation was most for the BS and CS, respectively. For the EDTA plot, each of the operations illustrated different trends in skewness pattern. The batch operation is skewed to the left, the heap operation is skewed to the right, and the column operation appeared to be literally symmetric.

The EDDS plot showed similar trends than the EDTA except that the average efficiency for the BS was lower. Hacac as leaching agent showed the largest 50 percentile variation for the batch process data, which may point to lower confidence as a predictive tool. On the other hand, large variability lends itself to selective leaching. The three processes are skewed to the right. The mean values for the batch (20.3%) and HS (21.2%) were comparable while CS (14.2%) differed by a factor of 1.5 For CA, both the column and heap systems were skewed to the right as well as displayed larger variability when compared to the batch system that literally remained symmetric with minimal variability. However, the BS had a mean value of only 8.6%, while the HS (32.4%) and CS (24.2%) were significantly more efficient.

Following the extraction trends, the data suggests that EDTA on average provides the highest extraction efficiency across all metals, using the heap leaching process. Due to the large variations observed across the metals for each of the leaching agents for one or two of the processes, selective leaching can be achieved by designing a multi-step contaminant specific process.

4. Conclusion

The effect of three different leaching processes and four different leaching extractants on the extraction of five metals of interest from an artificially contaminated simulated soil has been evaluated. The batch study in this context revealed that for artificially contaminated SS, the best extractant across all the metals investigated was EDTA. Cd could be extracted with CA to the same efficiency as EDTA but showed much lower efficiencies for all other metals. Similarly, Cu and Ni reported slightly higher efficiencies with Hacac using this process. The column process revealed that extraction efficiency of Pb with CA was highest in

Figure 2. Box plots comparing BS, CS, and HS processes for percentage metal (Cd, Cu, Ni, Pb, & Zn) leaching using selective solvent reagents calculated across 5 metals. The lines inside the boxes represent the median values; the red dots represent the mean values; and the lower and upper boundaries of the box indicate 25 and 75 percentiles of the sample size (n = 5).

comparison to all other process and extractants used. Ni showed preferential recovery with Hacac and was comparable to the recovery using batch method. In the heap process, Cd was recovered with the highest efficiency when compared to BS and CS. Overall the leaching test results have demonstrated that the recovery of the five metals was significantly and differently influenced by both the leaching agents, as well as the leaching process. Therefore, an efficient selective leaching process could be attained if a multi-step contaminant specific process for a full-scale recovery purpose is designed.
