Energetic Macroscopic Representation of an Electrically Heated Building with Electric Thermal Storage and Heating Control for Peak Shaving

Cristina Guzman, Kodjo Agbossou, Alben Cardenas

Hydrogen Research Institute and The “Département de Génie Électrique et Génie Informatique”, Université du Québec à Trois-Rivières, Trois-Rivières, Canada

Email: guzman@uqtr.ca, kodjo.agbossou@uqtr.ca, cardenas@uqtr.ca

Copyright © 2015 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

http://creativecommons.org/licenses/by/4.0/

Received 11 February 2015; accepted 13 April 2015; published 14 April 2015

ABSTRACT

As a part of the Smart Grid concept, an efficient energy management at the residential level has received increasing attention in lately research. Its main focus is to balance the energy consump- tion in the residential environment in order to avoid the undesirable peaks faced by the electricity supplier. This challenge can be achieved by means of a home energy management system (HEMS). The HEMS may consider local renewable energy production and energy storage, as well as local control of some particular loads when peaks mitigation is necessary. This paper presents the mo- deling and comparison of two residential systems; one using conventional electric baseboard heat- ing and the other one supported by Electric Thermal Storage (ETS); the ETS is employed to optim- ize the local energy utilization pursuing the peak shaving of residential consumption profile. Simulations of the proposed architecture using the Energetic Macroscopic Representation (EMR) demonstrate the potential of ETS technologies in future HEMS.

Keywords:

Home Energy Management, Energetic Macroscopic Representation, Building Modeling, Electric Thermal Storage

1. Introduction

Smart grid concept brings within the scope of implementing more efficient and performing technologies to improve the electricity system. Modern and attractive technologies would also motivate residential clients to be- come managers of their own consumption as a better way for the energy use [1] .

Local energy production systems, local energy storage and residential load management are new challenges pursuing the efficiency improvement of the grid without the stress engendered by the unbalance between energy production and consumption. Among the many initiatives to improve the residential energy efficiency and commercial buildings, some of them propose local renewable electricity generation as photovoltaic, and electrical or thermal local storage systems [2] - [4] .

Electric Thermal Storage (ETS) systems are inspired from an ancient technology used by aboriginal arctic populations, which employed heated stones as storage medium. This technology has lately emerged as a good option to improve the energy utilization, and can be employed for water-heating systems, space heating/cooling systems of buildings and off-peak electricity storage systems [5] - [8] . In the residential environment this option is quite easy to carry out, however some limitations and rejection arise taking into account, the space and the quite high weight of such storage systems. In sensible heat technologies [9] [10] , when water heater is employed as storage medium, the temperature must remain between 60˚C and 82˚C (140˚F - 180˚F). Otherwise when solid materials are employed, as ceramic and brick, temperatures can go up to 700˚C (1300˚F). In latent heat technologies phase change materials (PCM) are employed which permit to store heat using a narrow temperature range without employing high temperatures [11] - [13] .

Electric Thermal Storage (ETS) typically use high density ceramic bricks as storage element. The bricks are placed inside a cabinet which can weight hundreds of pounds [14] . For residential use, ETS is well adapted to be supplied by renewable energy local generation (as photovoltaic or wind power) or taking advantage of cheap off-peak power [15] . The use of ETS might be a good alternative to shave the unwanted peak of energy con- sumption, when this peak is mostly caused by the heating utilization and, can be appropriate for cold climate countries like Canada. As matter of facts, it could be a practical choice taking into account that heating power represents more than 60% of energy consumption in Canadian residential buildings.

The Energetic Macroscopic Representation (EMR) has been introduced as a graphical descriptor approach offering a macroscopic energetic view of multiphysics system [16] - [18] . EMR offers an inversion-based control contributing to the controller design and the implementation of energy management strategies.

This paper presents the development of the EMR of a residential system with electric thermal storage. The main parts of the system have been represented and a simulation model has been implemented by using MATLAB/ Simulink. Simulation results using a classic management strategy show the potential of the electric thermal sto- rage for peak shaving during winter grid peak periods. The remainder of this paper is organized as follows, Sec- tion 2 presents the EMR of the studied system; Section 3 presents the simulation results for a system with and without electric thermal storage; and the conclusion of the paper will be presented in Section 4.

2. EMR of Residential System with Electric Thermal Storage

2.1. General Description of Studied System

The studied system consists of an electrically heated detached house. In the base case, the system comprises the Electric Heating System (EHS) composed of resistive baseboards, represented as a single aggregated unit and the critical loads. A second case considers additionally the use of Electric Thermal Storage (ETS) as illustrated in Figure 1. The modeling of the thermal envelope of the building and the behavior of the external and the in- ternal temperatures are important features in the management of this kind of systems which become essentials for the study.

Figure 2 represents a simplified view of the energetic macroscopic representation of the residential system, which is coupled to the utility grid as the main Energy Source (ES). Through the distribution panel three subsystems are connected: the Space Heating System (SHS), the Electric Thermal Storage (ETS) and the Critical Loads (water heater, lighting and home appliances). The subsystems are denoted DS-1, DS-2 and DS-3 respectively.

The utility grid is represented as the electric source ES, the utility voltage and main current are denoted as and respectively. The main current of the system is represented by:

(1)

where, is the current of critical loads, is the current of the SHS and is the current of the ETS. As il-

Figure 1. Simplified EMR representation of residential system with electric thermal storage.

Figure 2. Simplified EMR representation of residential system with electric thermal storage.

lustrated in Figure 2 the distribution panel is modeled as a coupling block, and the voltages applied to each subsystem are the action variables, in counterpart the currents are the reaction variables.

2.2. Space Heating System

Residential heating systems in Quebec are essentially electric systems, and in this study it is supposed that all heating needs are supplied from the electric source. The EMR representation of the SHS is depicted by Figure 3, there, the Electric Heater, normally an assembly of baseboard systems, is controlled by means of a thermostatic control which is connected to the voltage source. The control signal of the thermostatic control is called and permits to modulate the power sent to the baseboard assembly. The mean voltage applied to the electric heater is defined by

(2)

The reaction to the applied voltage is the current which is defined by

(3)

where, is the equivalent electric resistance of the electric heater assembly. Then, the current from the main source can be defined by

(4)

Notice that the electric heater is represented by a multi-physical conversion element. This representation because, the left side there is an electric system and at the right side there is a thermal system. According to the

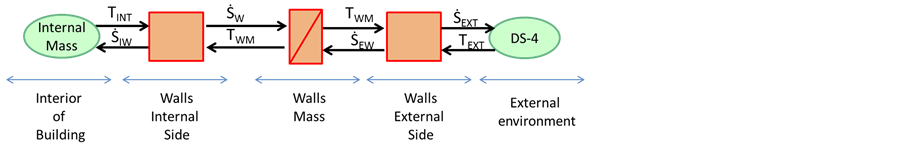

Figure 3. EMR representation of residential space heating system (SHS).

second law in thermodynamics conservation the entropy flow rate is found [19] . Then, the power at each side of this block can be computed as

(5)

where, is the entropy flow rate of heating in [W/˚K] and is the internal temperature of the residential building in [˚K].

An energy storage element is employed to represent the internal thermal mass of the building (internal walls, air mass and home furniture). The differential equation of the internal thermal mass and the internal temperature can be written as

(6)

where

, and is the heat capacity of the internal thermal mass in [W∙s/˚K]. The output entropy flow rate is defined by

(7)

where is the entropy flow rate from the internal side of the walls (coming from the thermal envelope), and is the entropy flow rate from the energy thermal storage system.

It is to remark that in the coupling system three entropic flow rates are defined, the first for the internal thermal mass, the second for the thermal envelope and the third one for the ETS. A common temperature is at the three sides of coupling block corresponding to the internal temperature of the residential building.

2.3. Building Thermal Envelope

Canadian homes are built using materials with high thermal resistance looking to reduce the heat losses during winter time. These construction characteristics impose a modeling of the walls as a resistive part (thermal insulation) and a thermal capacity part. The EMR of the building envelope is depicted in Figure 4. There, the internal layer of walls is represented by a mono-physical conversion element connecting the interior of the building (internal thermal mass) and the thermal mass of the walls. The power at each side of the conversion block are defined by

(8)

(9)

(10)

where, is the entropy flow rate from internal layer of walls to the internal thermal mass; is the entropy flow rate to the thermal mass of the walls from the internal layer of the walls. is the equivalent ther- mal resistance of the internal side layer of walls.

Figure 4. EMR representation of building thermal enveloppe.

The thermal mass of the walls is represented by an energy storage element connected to the internal and ex- ternal layers of the walls; the differential equation of this storage element can be written as

(11)

where, is the entropy flow rate from external layer of the walls, is the temperature inside the walls; is the heat capacity of the walls mass.

The external layer of the walls, like the internal one, is also represented by a mono-physical conversion element with an equivalent thermal resistance denoted. This element connects the thermal mass of the walls with the external environment. The external environment which imposes a variable temperature is denoted as DS- 4 in Figure 3. Then, the power at each side of the conversion element can be written as

(12)

The entropy flow rate to the environment is defined by the difference of temperature between the walls and the environment, and can be written as

(13)

The windows and doors are represented as a mono-physical conversion element, as the resistive layers of the walls. The power at each side of the conversion element can be written as

(14)

The entropy flow rate to the environment is defined by the difference of internal mass temperature and the environment, and can be written as

(15)

where corresponds to the equivalent thermal resistance of the doors and windows.

2.4. Electric Thermal Storage System

The electric thermal storage system normally consists of a heat storage control, an electric heater (heating element), a thermal mass, and a heating blower (forced air heating). The EMR of this subsystem is depicted in Figure 5. The heat storage control permits to modulate the voltage applied to the electric heater according to a modulation index. In most of cases, is considered a binary input which imposes an ON/OFF control of the electric heater. The voltage and currents of the control block can be defined by

(16)

(17)

(18)

Figure 5. EMR representation of the electric thermal storage system (ETS).

As in the space heating system case, the electric heater is modeled as a multi-physical conversion element. The differential equation of this element can be written as

(19)

(20)

where is the heat capacity of the thermal mass of the storage system. is the entropy flow rate from the electric heater; is the entropy flow rate from the storage system (transferred to the internal mass of the building).

The forced air heating system is modeled similarly to the heat storage control, that’s as a mono-physical conversion element. The input and output powers can be written as

(21)

The heating power transferred from the ETS to the internal mass of the building is controlled by means of the input and the nominal heating power; a constant power representing the heat leaks of the storage system is also included using

(22)

2.5. Critical Loads

As illustrated in Figure 2 critical loads are considered in the system. They are simulated using hourly typical residential profiles of energy consumption, measured from a Quebec residence by means of a commercial energy monitoring system [20] . The total current of critical loads is computed using the load profile and the input voltage. The complete EMR of the studied residential system with ETS is presented in Figure 6, where all the explained modeled subsystems are coupled.

3. Simulation Results

The system described in previous section has been implemented in MATLAB/Simulink. Two systems have been implemented, one including the ETS and the other without it, as illustrated in Figure 7, the two systems have similar characteristics and their parameters are presented in Table 1. These parameters correspond to a single family house (detached house) of Quebec as explained before. It is to remark that only the temperature effect has been studied being the most important parameter for this Nordic locations; e.g. solar radiation gains and internal gains have been neglected.

For simulation purposes a classic proportional and integral (PI) controller is employed to control the internal temperature which is set to 21˚C during the day period (from 6H to 22H) and at 19.5˚C at night. The proportional and integral gains of controllers are also presented. The external temperature used in this study has been obtained from the SIMEB Hydro-Quebec website [21] for the winter period of 2013-2014 (November 2013 to April 2014).

The ETS is controlled considering the “heat storage” at “off-peak periods” and the “heat discharge” at peak period; in the “off-peak period” the load current at the distribution panel is measured and used to obtain the total power of the residential building, then the storage power is computed according to the actual power not exceeding 6 kW. The storage is enabled from November to March, months during which larger amount of heating is usually required. The “peak period” is considered fixed for weekdays between 6H and 10H and between 16H

Figure 6. EMR representation of residential system with electric thermal storage.

Figure 7. Model implemented in Simulink/MATLAB.

Table 1. System parameters.

and 20H, weekend period is considered off-peak. During the “peak period” the internal temperature of the building is controlled by means of two PI controllers, one driving the ETS and the other one driving the classic space heating system.

Simulation results are plotted in Figures 8-10, where Figure 8 presents the internal and external temperature during the simulation period (November 2013 to April 2014) and the total power of the two systems; it is to re-

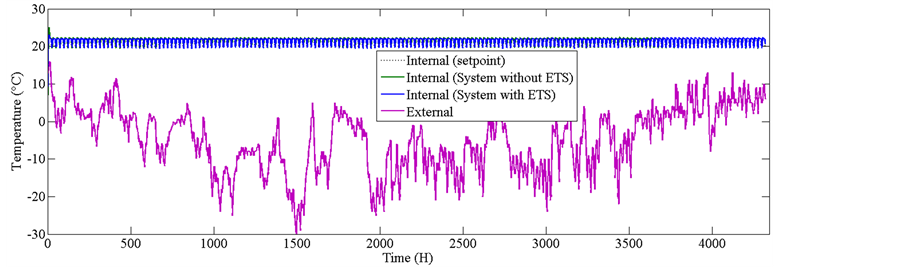

Figure 8. External temperature at Trois-Rivieres Canada and instantaneus power of each simulated residential building (from November 2013 to April 2014).

Figure 9. External temperature at Trois-Rivieres Canada and instantaneus power of each simulated residential building (3 days on January 2014).

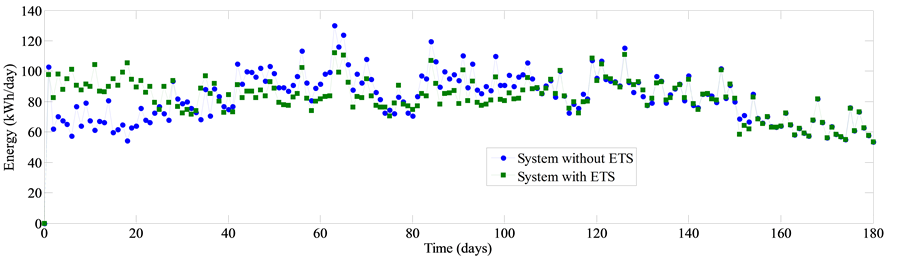

Figure 10. Energy consumption of each simulated residential building (from November 2013 to April 2014).

Figure 11. Distribution of peak power for each simulated residential building (from November 2013 to April 2014).

mark that the coldest period corresponds to the January and February months. Results corresponding to 3 days of cold period (January 2014) are plotted in Figure 9. It is observed that the peak of consumption is shaved using the electric thermal storage while the control of temperature is maintained. Morning peaks are encircled in Figure 9 in order to better illustrate the peak shaving. In Figure 10 the total energy consumption in kWh/day is plotted, showing that the peak of daily energy in the coldest period is also smoothed. Notice that the two systems use the same energy during the simulation period. The distribution of peak power per day for each system is presented in Figure 11, where the maximal frequency appears at 9.67 kW (62 days) and at 5.8 kW (45 days) for the system using classic heating and for the one with ETS respectively.

4. Conclusion

This paper has presented the modeling of two residential systems: one using conventional electric baseboard heating and the other one supported by Electric Thermal Storage. The models have been built using the Energetic Macroscopic Representation (EMR) which permits the description of multiphysic systems using simple blocks interconnected with power exchanges links. The implemented models, using MATLAB, have permitted to validate the concept of Electric Thermal Storage and its potential for peak shaving; in fact peak power reduction without negative effects on the temperature regulation has been obtained by simulations. This model could be employed to study control strategies for Demand Side Management (DSM).

Acknowledgements

This work was supported in part by the LTE Hydro-Québec, the “Bureau de l’Efficacité et de l’Innovation Éner- gétiques du Québec” and Natural Science and Engineering Research Council of Canada.
