ABSTRACT

Studies on surface analysis of carbon steel protected from corrosion in low chloride and nearly neutral aqueous environment by a synergistic mixture containing N,N-bis(phosphonomethyl) glycine (BPMG), zinc ions and citrate ions are presented. The effect of addition of citrate to the binary system, BPMG-Zn²⁺, is quite significant and is well explored through various studies. The surface protective nature is maintained in the pH range 5 - 9. Potentiodynamic polarization studies inferred that the ternary inhibitor is a mixed inhibitor. Impedance studies of the metal/solution interface indicated that the surface film is highly protective against the corrosion of carbon steel in the chosen environment. X-ray photoelectron spectroscopic (XPS) analysis of the surface film showed the presence of the elements namely iron, phosphorus, nitrogen, carbon, oxygen and zinc. Deconvolution spectra of these elements in the surface film inferred the presence of oxides/hydroxides of iron(III), Zn(OH)₂ and [Fe(III), Zn(II)-BPMG-citrate] heteropolynuclear multiligand complex. This inference is further supported by the reflection absorption Fourier transform infrared spectrum of the surface film. Analysis by scanning electron microscopy (SEM) is presented for both the corroded and protected metal surfaces. Based on all these results, a plausible mechanism of corrosion inhibition is proposed.

1. Introduction

Application of inhibitors is a widely used method for corrosion control of carbon steel, the primary material used in the construction of cooling water systems and other industrial water distribution systems. Due to environmental restrictions imposed on heavy metal ion based corrosion inhibitors, the focus has been shifted to environmentally friendly corrosion inhibitors [1]. Phosphonate-based formulations are well-known for corrosion inhibition of carbon steel [2-12] and the impact of phosphonic acids on environment was reported to be negligible at the concentration levels used for corrosion inhibittion [13,14]. Phosphonic acids show synergistic effect with zinc ions and form complexes [1,4-6,9,10]. A phosphonated aminoacid namely N,N-bis (phosphonomethyl) glycine (BPMG), was reported to be an environmentally friendly compound and also an effective corrosion inhibitor in combination with metal ions like Zn²⁺ [12,15]. BPMG is also known to form complexes with metal ions like Fe²⁺, Fe³⁺, Zn²⁺, etc. [16]. In order to develop the inhibitor formulation containing relatively low concentration of BPMG, addition of one more synergist to the binary system, BPMG-Zn²⁺, has been thought of in the present study. For this purpose, an environmentally friendly organic compound namely trisodium citrate was chosen as the second synergist for the following reasons. It consists of three carboxylic acid groups and one hydroxyl group. Citrate can form complexes with metal ions like Fe²⁺, Fe³⁺, Zn²⁺, etc. [17-19]. The objectives of the present study are to investigate the inhibitive properties of the surface film formed by the ternary inhibitor system, BPMG-Zn²⁺-citrate on carbon steel in the presence of chloride and nearly neutral aqueous environment using electrochemical and surface analytical techniques and to discuss the mechanistic aspects of corrosion inhibition. For all these studies, 200 ppm of sodium chloride solution has been chosen as control because of the following reason. Water used in cooling water systems is generally either demineralized water or unpolluted surface water. In either case, the aggressiveness of the water does not normally exceed that of 200 ppm of NaCl solution.

2. Experimental Section

2.1. Materials

For all the studies, the specimens taken from a single sheet of carbon steel of the following composition were chosen: C: 0.1% - 0.2%, P: 0.03% - 0.08%, S: 0.02% - 0.03%, Mn: 0.4% - 0.5% and the rest iron. Prior to the tests, the specimens were polished to mirror finish with 1/0, 2/0, 3/0 and 4/0 grade emery polishing papers respectively, washed with distilled water, degreased with acetone and dried. For gravimetric measurements, the polished specimens of the dimensions, 3.5 cm × 1.5 cm × 0.2 cm, were used while for electrochemical and surface analytical studies, the dimensions of the specimens were 1.0 cm × 1.0 cm × 0.1 cm. Electrochemical studies were carried out at an optimum immersion period of 1 h and for the surface analytical studies, the immersion period is 7 days. N,N-bis(phosphonomethyl) glycine (BPMG) obtained from Aldrich Chemical Company Inc., USA, was used as such in the present study. Trisodium citrate (Na₃C₆H₅O₇∙2H₂O), zinc sulphate (ZnSO₄∙7H₂O), sodium chloride and other reagents were analytical grade chemicals. The molecular structures of BPMG and trisodium citrate are shown in Figures 1 and 2 respectively. All the solutions were prepared using triple distilled nondeaerated water. pH values of the solutions were adjusted using 0.01 N NaOH and 0.01 N H₂SO₄ solutions. An aqueous solution consisting of 200 ppm of sodium chloride has been used as the control throughout the study.

2.2. Gravimetric Measurements

For all the gravimetric experiments, the polished specimens were weighed and immersed in duplicate, in 100

mL control solution in the absence and presence of inhibitor formulations of different concentrations, for a period of seven days. Then the specimens were reweighed after washing, degreasing and drying. During the studies, only those results were taken into consideration, in which the difference in the weight-loss of the two specimens immersed in the same solution did not exceed 0.1 mg. Accuracy in weighing up to 0.01 mg and in surface area measured up to 0.1 cm², as recommended by ASTM G31, was followed [20]. The immersion period of seven days was fixed in view of the considerable magnitude of the corrosion rate obtained in the absence of any inhibitor after this immersion period. The immersion period was maintained accurately up to 0.1 h in view of the lengthy immersion period of 168 h. Under these conditions of accuracy, the relative standard error in corrosion rate determination is of the order of 2% or less for an immersion time of 168 h [21]. Inhibition efficiency values (IE_g) of the inhibitor formulations were calculated using the formula,

(1)

where (CR)_O and (CR)_I are the corrosion rates in the absence and presence of inhibitor respectively.

Gravimeric studies were carried out on the ternary system containing BPMG (20 - 30 ppm), Zn²⁺ (20 - 40 ppm) and citrate (0 - 200 ppm) to establish minimum concentrations of both BPMG and Zn²⁺ in presence of citrate for effective inhibition. The selected concentrations of BPMG and Zn²⁺ for the ternary formulation are based on previous study reported in literature [15]. During these studies, the inhibition efficiencies of citrate alone and of BPMG-citrate combination were also determined. The effect of pH on inhibition efficiency was determined in case of the effective ternary inhibitor formulations.

2.3. Electrochemical Studies

Both the electrochemical impedance spectroscopic (EIS) studies and potentiodynamic polarization studies were carried out using Electrochemical Workstation Model IM6e Zahner-electrik, GmbH, Germany and the experimental data were analysed by using the Thales software. The measurements were conducted in a conventional three-electrode cylindrical glass cell with platinum electrode as auxiliary electrode and Saturated Calomel Electrode (SCE) as reference electrode. The working electrode was carbon steel embedded in epoxy resin of polytetrafluoroethylene so that the flat surface of 1 cm² was the only surface exposed to the electrolyte. The three-electrode set up was immersed in control solution of volume 500 mL both in the absence and presence of various inhibitor formulations and allowed to attain a stable open circuit potential (OCP). The pH values of the solutions were adjusted to 7.0 and the solutions were unstirred during the measurements.

Polarization curves were recorded in the potential range of −650 to −150 mV with a resolution of 2 mV. The curves were recorded in the dynamic scan mode with a scan rate of 2 mV/s. The ohmic drop compensation has been made during the studies. The corrosion potential (E_corr), corrosion current density (I_corr) and anodic Tafel slope (b_a) and cathodic Tafel slope (b_c) were obtained by extrapolation of anodic and cathodic regions of the Tafel plots. The inhibition efficiency values (IE_p) were calculated from I_corr values using the equation [22],

(2)

where i_corr and are the corrosion current densities in case of the control and inhibitor solutions respectively.

Impedance spectra in the form of Nyquist plots were recorded at OCP in the frequency range from 60 kHz to 10 mHz with 4 to 10 steps per decade. A sine wave, with 10 mV amplitude, was used to perturb the system. The impedance parameters viz. charge transfer resistance (R_ct), constant phase element (CPE) and CPE exponent (n) were obtained from Nyquist plots. The inhibition efficiency values (IE_i) were calculated using the equation,

(3)

where R_ct and are the charge transfer resistance values in the absence and presence of the inhibitor respectively.

2.4. Surface Analysis by X-Ray Photoelectron Spectroscopy (XPS)

XPS measurements of the surface films were carried out with Kratos analytical photoelectron spectrometer model AXIS 165 with monochromated Al K_a X-ray source (1486.6 eV) operated at 100 W and with a resolution of 0.1 eV. Both the survey spectra and deconvolution spectra were recorded at four spots on each specimen. The average of the four measurements is reported. The spectra were collected at an electron take-off angle of 90˚. Analyser pass energy was 80 eV, with a step of 0.1 eV for the elements of interest namely Fe 2p, P 2p, N 1s, C 1s, O 1s and Zn 2p. Binding energies for the deconvolution spectra were corrected individually for each measurement set, based on a value of 285.0 eV for the C-C component of C 1s.

2.5. Fourier Transform Infrared Spectroscopic Studies (FTIR)

FTIR spectra were recorded using FTIR spectrophotometer from Thermo Electron Corporation, USA, model Nexus 670 with a resolving power of 0.125 cm⁻¹. The detector is temperature stabilised DTGS (KBr window) and liquid nitrogen cooled MCT-A and the beam splitter is XT-KBr. FTIR spectrum of pure BPMG and pure trisodium citrate were recorded using KBr pellet method. The reflection absorption FTIR spectra of the surface films were recorded in the wave number range of 4000 - 400 cm⁻¹. The measurements were made at a grazing angle of 85˚.

2.6. Surface Analysis by Scanning Electron Microscopy (SEM)

SEM images were recorded using FEI Quanta FEG 200 High Resolution Scanning Electron Microscope for the specimens immersed in the control as well as in the inhibitor solution at two different magnifications.

3. Results and Discussion

3.1. Gravimetric Studies

Figure 3 presents the results of gravimetric studies of citrate alone as an inhibitor. The inhibition efficiency increases gradually with increase in concentration of citrate, reaches the highest value of only 43% at 350 ppm and gets reduced upon further increase of citrate concentration up to 500 ppm. Thus, citrate alone does not function as an effective inhibitor even at higher concentrations. Results of several studies on the binary system consisting of BPMG and citrate ions (in the absence of Zn²⁺) proved that this combination does not show any inhibition efficiency at different compositions of mixtures of BPMG and citrate ions in the concentration range 20 - 200 ppm (results of these studies are not presented here). On the other hand reports [23] are available that mixtures of Zn²⁺ and citrate ions at relatively higher concentrations of both offer some inhibition efficiency, which is far less than the inhibition efficiency obtained by the mixture of BPMG and Zn²⁺ at comparable concentrations.

Figure 4 shows the inhibition efficiency of the ternary system, BPMG-Zn²⁺-citrate, as a function of concentration of citrate at different concentrations of BPMG and Zn²⁺. From the figure, it can be observed that in case of all these ternary formulations at pH 7, as the concentration of citrate is increased, the inhibition efficiency increases, reaches a maximum at an optimum concentration of citrate and then decreases. In order to achieve an inhibition efficiency > 90%, the required minimum concentrations of BPMG and Zn²⁺ are 20 ppm and 30 ppm respectively in presence of citrate. While the binary system consisting of 20 ppm BPMG and 30 ppm Zn²⁺ accelerates corrosion, with the addition of 100 ppm of cit-

rate, the inhibition efficiency of the ternary formulation is 91%. Further increase in the concentration of citrate ions, say to 150 ppm and 200 ppm reduced the inhibition efficiency to 39%. In case of the binary system containing 30 ppm each of BPMG and Zn²⁺, the inhibition efficiency is 68%, which is increased to 91% by the addition of 100 ppm of citrate. On further increase in the concentration of citrate, say to 150 ppm and 200 ppm, the inhibition efficiency is reduced to 82% and 30% respectively. When the binary system containing 30 ppm BPMG and 40 ppm Zn²⁺ is considered, the observed inhibition efficiency is 83%, which is increased to 91% by the addition of 50 ppm of citrate and at higher concentrations of citrate from 100 - 200 ppm, the inhibition efficiency is 95%. From these results, an observation is made as follows. When the concentrations of Zn²⁺ ions and/or BPMG are lower, an increase in the concentration of citrate up to 100 ppm increases the inhibition efficiency and when the concentration of citrate ions is greater than 100 ppm, say 150 ppm or 200 ppm, there is a drastic decrease in inhibition efficiency. This can be explained as follows. In case of the ternary system consisting of BPMG, Zn²⁺ and citrate, the system containing optimum concentration of each of the components gives the highest inhibition efficiency. In other words, optimum amounts of each of the three components must be adsorbed on the surface of the metal, so that each one of them plays its own role in formation of protective film either through complex formation or through formation of Zn(OH)₂ on cathodic sites, covering the entire metal surface. At higher concentrations of citrate ions viz., 150 ppm and above in the bulk, more citrate is reaching the surface of the metal at the cost of the required optimum concentrations of BPMG and Zn²⁺ on the surface and therefore the necessary optimum concentrations of BPMG and Zn²⁺ required for the formation of protective film, is not available on the surface. Hence the observed decrease in the inhibition efficiency of the ternary system at concentrations of citrate ions ³ 150 ppm. It may be mentioned here that the molar ratio of BPMG: Zn²⁺: citrate is 1:6.3:7 to exhibit excellent synergism. The role of each synergist is explained under mechanistic aspects of corrosion inhibition later in this paper.

The influence of pH on the inhibition efficiency values of various compositions of the ternary system, BPMGZn²⁺-citrate, in the pH range, 4.0 to 9.0 is shown in Figure 5. No adverse effect on the inhibition efficiency is observed with a decrease of pH from neutral to acidic i.e. from pH 7.0 to 5.0 when the concentrations of citrate ions are low say at 50 ppm and 100 ppm. A slight decrease in the inhibition efficiency both at pH 6.0 and pH 5.0 is observed, when the citrate concentration is greater than 100 ppm. When the pH is increased from neutral to

slightly alkaline region, say pH 8.0, the inhibition efficiency is slightly decreased except at a composition of 30 ppm each of BPMG and Zn²⁺ and 100 ppm of citrate. At pH 9.0, the ternary inhibitor system with the composition BPMG (30 ppm), Zn²⁺ (40 ppm) and citrate (150 ppm) shows an inhibition efficiency of 92% and the system with 30 ppm each of BPMG and Zn²⁺ and 100 ppm of citrate shows an inhibition efficiency of 80%. From these results it may be concluded that the ternary system, BPMG-Zn²⁺-citrate, is effective in the pH range 5.0 to 9.0. The reasons for decrease in IE in more alkaline and more acidic environments are explained under mechanistic aspects.

3.2. Potentiodynamic Polarization Studies

The potentiodynamic polarization curves of carbon steel electrode in 200 ppm NaCl solution at pH 7 in the absence and presence of various inhibitor combinations are shown in Figure 6. The Tafel parameters derived from these curves and the inhibition efficiency values (IE_p) arelisted in Table 1. The corrosion potential (E_corr) in case of the control is −323.4 mV vs. SCE and the corresponding corrosion current density (i_corr) is 12.84 μA/cm². The combination of BPMG (40 ppm) and Zn²⁺ (30 ppm) significantly decreased both the anodic and cathodic current density values when compared to the control. It is, thus, evident that this formulation acts as an effective mixed type inhibitor. There is a slight shift in corrosion potential to cathodic side and the shift in cathodic Tafel slope is greater than the shift in anodic Tafel slope. The corrosion current density is significantly decreased from 12.84 to 1.38 μA/cm², corresponding to an inhibition efficiency of 89.25%. Although similar results were obtained with the combination of BPMG (20 ppm) and Zn²⁺

Table 1. Tafel parameters for carbon steel in 200 ppm NaCl environment in the absence and presence of inhibitor formulations.

a: BPMG; b: Zn²⁺; c: Citrate.

(30 ppm), the i_corr value is decreased from 12.84 to 7.11 μA/cm², corresponding to an inhibition efficiency of only 44.62%. By the addition of 100 ppm of citrate to the above formulation, the corrosion potential is shifted towards more cathodic side i.e., −373.2 mV vs. SCE and the corrosion current density is decreased from 12.84 to 0.65 μA/cm². Such significant reduction in corrosion current density indicates the decrease in corrosion rate in presence of the ternary inhibitor system and exhibits an inhibition efficiency of 94.94%. In case of the ternary formulation also, the shift in cathodic Tafel slope is higher than that in anodic Tafel slope. All these results indicate that the ternary inhibitor formulation retards both the anodic dissolution of carbon steel and oxygen reduction at cathodic sites in the corrosion inhibition process. Nevertheless, the effect on cathodic reaction is more pronounced. Similar phosphonate-based formulations were reported to be mixed inhibitors in the literature [6,8,9,24]. Thus, the results of potentiodynamic polarization studies infer the synergistic effect of citrate as well as the synergistic effect of the ternary inhibitor formulation in corrosion control of carbon steel.

3.3. Electrochemical Impedance Studies

Nyquist plots for carbon steel immersed in 200 ppm of NaCl solution at pH 7 in the absence and presence of various formulations are shown in Figure 7. In case of the control as well as in presence of various formulations, the Nyquist plots are found to be depressed semicircles instead of ideal semicircles. This kind of phenomenon is called dispersing effect [25]. When the complex plane impedance contains a depressed semicircle with centre below the real axis, which is characteristic for solid electrodes, it is often attributed to roughness and inhomogeneities of the solid surface [26]. It is also attributed to the distribution of active sites, adsorption of inhibitor molecules and formation of porous layers [27].

In such cases, the parallel network charge transfer resistance-double layer capacitance (R_ct-C_dl) is a poor

approximation especially for systems where an efficient inhibitor is present. Due to the fact that the double layer does not behave as an ideal capacitor in presence of the dispersing effect, a constant phase element (CPE) is substituted for the capacitor to fit the impedance behavior of the electrical double layer more accurately [28-31]. CPE can thus be regarded as a non-ideal capacitance [32]. The admittance and impedance of a CPE are, respectively defined as

(4)

(5)

where ω is the angular frequency, Y_o is the modulus which represents different quantities, depending on the value of CPE exponent, n. A is the proportional factor, which is the reciprocal of modulus [29-31,33]. For a highly polished electrode, the value of n is close to 1.0. The lower the value of n, the rougher is the electrode surface. It can be seen that when n = 1, the element CPE becomes an ideal capacitor. The value of n is also related to the inherent physical and chemical heterogeneous nature of the solid surface, the presence of a porous corrosion product layer and non-uniform distribution of current density on the surface [34-36].

All the Nyquist plots obtained in the present study are characterized by single time constant. The experimental data obtained from these plots are fitted by the equivalent electrical circuit shown in Figure 8. Such an equivalent circuit was also discussed by several researchers [30,31, 37], who obtained similar depressed semicircles with single time constant. The impedance parameters viz., charge transfer resistance (R_ct), constant phase element (CPE) and CPE exponent (n) obtained from the Nyquist plots and the calculated inhibition efficiency values (IE_i) are shown in Table 2. Charge transfer resistance (R_ct) and the non-ideal capacitance (CPE) are the two important parameters related to corrosion processes at the metal/solution interface. The former one is directly related to the rate of corrosion reaction at the interface

Table 2. Impedance parameters for carbon steel in 200 ppm NaCl environment in the absence and presence of inhibitor formulations.

a: BPMG; b: Zn²⁺; c: Citrate.

while the latter is related to the structure of electrical double layer at the interface. During corrosion inhibition by the adsorption of inhibitor molecules, high R_ct values can be obtained due to slower corroding system [38,39]. Consequently, the decrease in CPE can result from the decrease of the local dielectric constant and/or from the increase of thickness of electrical double layer, which suggests an adsorption of the inhibitor molecules on the metal surface [40]. Hence, for an effective inhibition process, there will be an increase in R_ct and decrease in CPE.

In the present study, in the presence of the control alone, a small semicircle with an R_ct value of 2575 Ω is observed. When the combination of 40 ppm of BPMG and 30 ppm of Zn²⁺ is considered in the presence of control, a large depressed semicircle is observed from high frequency to low frequency regions in the Nyquist plot, indicating that the charge transfer resistance becomes dominant in the corrosion processes due to the presence of protective film on the metal surface. This result is supported by the significant decrease in CPE and an increase in n value. The semicircle obtained in presence of BPMG-Zn²⁺ represents the R_ct value of 17469 Ω, which is about six times greater than that observed in case of the control. The CPE value at the metal/solution interface is found to decrease from 13.41 μF/cm² in case of the control to 7.52 μF/cm² in case of the binary inhibitor formulation. The value of n is increased to 0.863 in presence of the binary inhibitor system. When the combination of 20 ppm of BPMG and 30 ppm of Zn²⁺ is considered, the value of R_ct obtained is 4420 Ω, corresponding to an inhibition efficiency of only 41.74%. But when 100 ppm of citrate is added to this formulation, a very high charge transfer resistance of 36,002 Ω is obtained, which is more than twice the R_ct value obtained in case of the effective binary combination of BPMG-Zn²⁺. The CPE value is found to decrease from 13.41 μF/cm² in case of the control to 3.83 μF/cm² in case of the ternary inhibitor formulation. This is because of the replacement of water molecules in the electrical double layer by the organic molecules having low dielectric constants [41]. The value of n is considerably increased to 0.879 in presence of the ternary inhibitor system suggesting the decrease of inhomogeneity of the interface during inhibition. All these results indicate that there is formation of a protective film in the presence of the ternary inhibitor formulation. Several authors, who studied the inhibitory effects of phosphonate-based corrosion inhibitors, also reported that there is formation of thick and less permeable protective film on the metal surface [5,6,8]. They also concluded that the protective film consists of phosphonate-metal complexes. The impedance results of the present study also infer the synergistic action operating between BPMG, Zn²⁺ and citrate ions. This inference is in agreement with the inferences drawn from gravimetric studies and potentiodynamic polarization studies. It may be noted that the inhibition efficiency values obtained from impedance studies are in agreement with those values obtained from polarization studies.

3.4. X-Ray Photoelectron Spectroscopic Studies

The XPS deconvolution spectra of the individual elements present in the surface films formed in control solution in the absence and presence of the inhibitor formulation are shown in Figures 9-14. The interpretation of all these spectra is done with the help of the data of the elemental binding energies reported in literature and also with the help of the reports published on the analysis of XPS spectra of the surface films.

The Fe 2p deconvolution spectrum in case of the control is shown in Figure 9(a). Two peaks are observed, one at 710.8 eV corresponding to Fe 2p_3/2 and the other one at 724.2 eV corresponding to Fe 2p_1/2 electron. The peak due to Fe 2p_3/2 is interpreted for the determination of chemical state of iron in the surface film. The peak of Fe 2p_3/2 at 710.8 eV is the one, shifted from 707.0 eV, the characteristic elemental binding energy of Fe 2p_3/2 electron [42]. Such a large shift of 3.8 eV suggests that iron is present in Fe³⁺ state in the surface film. In the literature [8,43], the peak at 711.0 eV was ascribed to the presence of FeOOH and Fe(OH)₃. The binding energy of Fe 2p_3/2 due to g-Fe₂O₃ was reported to be 711.0 ± 0.15 eV [44]. It was also reported that the mean binding energy of Fe 2p_{3/2 in} a-FeOOH is 711.0 ± 0.2 eV [44]. Maroie et al. reported that the binding energy value of 711.0 eV for Fe 2p_3/2 is due to ferric oxide species [45]. Thus, the presence of a peak due to Fe 2p_3/2 observed in case of the control at 710.8 eV can be ascribed due to the presence of iron in the form of g-Fe₂O₃, Fe₃O₄ and FeOOH. In the case of the inhibitor system, the XPS (Figure 9(b)) shows the Fe 2p_3/2 peak at 710.0 eV and the Fe 2p_3/2 peak at 722.7 eV. Thus, the peak positions obtained in case of the inhibitor formulation infer the presence of oxides and hydroxides like Fe₂O₃, Fe₃O₄, FeOOH and also involvement of Fe³⁺ in the complex formation with the inhibitor molecules. No peak is observed due to elemental iron in the case of control and ternary inhibitor formulation. This result infers the formation of thick films in both the cases. The film is non-protective in the case of control and highly protective in the presence of inhibitor molecules. If the intensities of Fe 2p_3/2 peaks are compared, they are 4600 cps for control and only 400 cps for the ternary inhibitor system. Such a large decrease in the intensity of Fe 2p peak in the presence of the inhibitor formulation can be understood because of formation of protective film and consequently less corrosion of iron and less amount of iron oxide. The binding energy of Fe²⁺ state in iron oxides is reported to be around 708.5 eV [46]. The absence of any peak in this region in the present study also supports that iron does not exist in Fe²⁺ state.

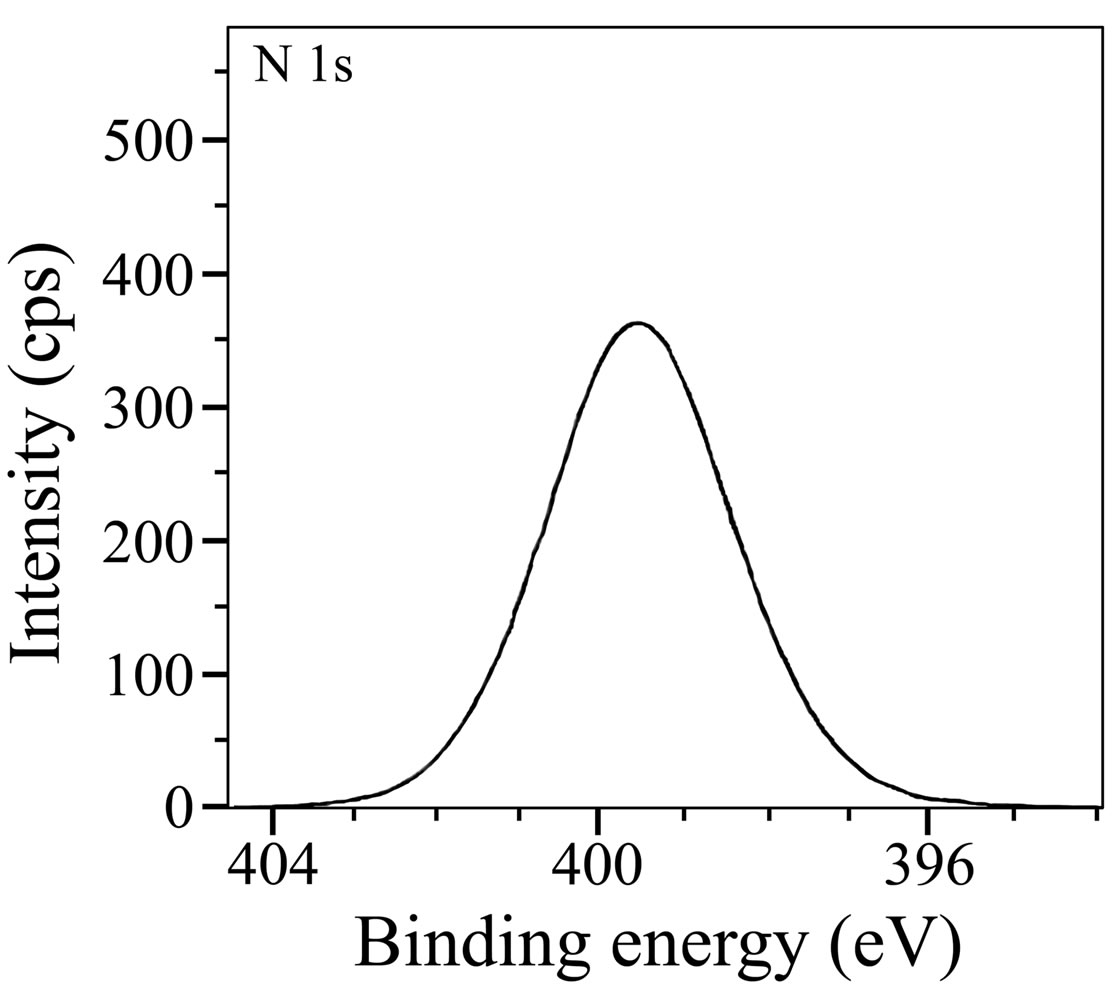

The XPS spectrum of phosphorus is shown in Figure 10. Two P 2p peaks are observed one each at 132.4 eV

and 133.2 eV. In the literature [47], it was reported that the P 2p peak could be observed in the range of 132.9 to 133.8 eV, for iron or steels immersed in the solutions containing phosphonates, orthophosphates and polyphosphates. Nakayama obtained a P 2p peak at 133.0 eV and attributed it to the presence of phosphonate compounds [48]. Felhosi et al. observed a P 2p peak at 132.1 eV in the XPS of the surface film formed on carbon steel when immersed in a solution containing Zn²⁺ and HEDP [5]. They interpreted this peak due to the presence of [Zn-HEDP] complex in the surface film. In the studies on the mixtures of salts of phosphonocarboxylic acids and fatty amines as inhibitors for corrosion of carbon steel, it was reported that the P 2p peak was observed at 132.1 eV and was interpreted it due to the presence of phosphonate group in the surface film [49]. In the light of these reports, the P 2p peaks observed in the present study suggest the presence of BPMG in the surface film formed in the case of the inhibitor. Figure 11 shows the XPS spectrum of N 1s with a single peak at 399.5 eV. This peak is shifted from 398.0 eV, the characteristic elemental binding energy of N 1s electron [42]. The shift may be attributed to the presence of BPMG molecules in the surface film probably in the form of a complex with Fe(III) and Zn(II). It was reported in the literature [50] that N 1s peak observed at 399.7 eV could be assigned to the presence of (=N-) in the molecule adsorbed on the metal surface. Meneguzzi et al. reported that the peak at 399.9 eV could be attributed to the neutral imine (-N=) and amine (-N-H) nitrogen atoms [51].

The XPS spectra of C 1s are shown in Figure 12. C 1s spectrum in case of the control shows a single peak at 284.6 eV. This peak is due to contamination from the vacuum system and chamber during the analysis [52]. In case of the inhibitor formulation, the C 1s spectrum contains three peaks, one is the high intense peak at 284.4 eV and the other two are low intense peaks at 285.9 eV and 288.2 eV. Ochoa et al. in their studies on the mixtures of salts of phosphonocarboxylic acids and fatty amines as inhibitors for corrosion of carbon steel reported the C 1s peak at 284.5 eV [49]. This signal was

accounted for by the presence of the inhibitor molecules on the steel surface. Gunasekaran and Chauhan studied the corrosion inhibition of mild steel by a plant extract and they obtained C 1s peaks at 285, 287 and 288.6 eV [31]. They interpreted these peaks due to C-C, C-O and C=O bonds because of the organic molecules present in the plant extract. Aramaki and Shimura obtained a peak of organic carbon at 284.5 eV and they inferred that it is due to adsorbed organic inhibitor molecules on the surface [53]. BPMG and citrate have various carbon environments and hence the three peaks observed in presence of the inhibitor formulation indicate the presence of inhibitor species in the surface film.

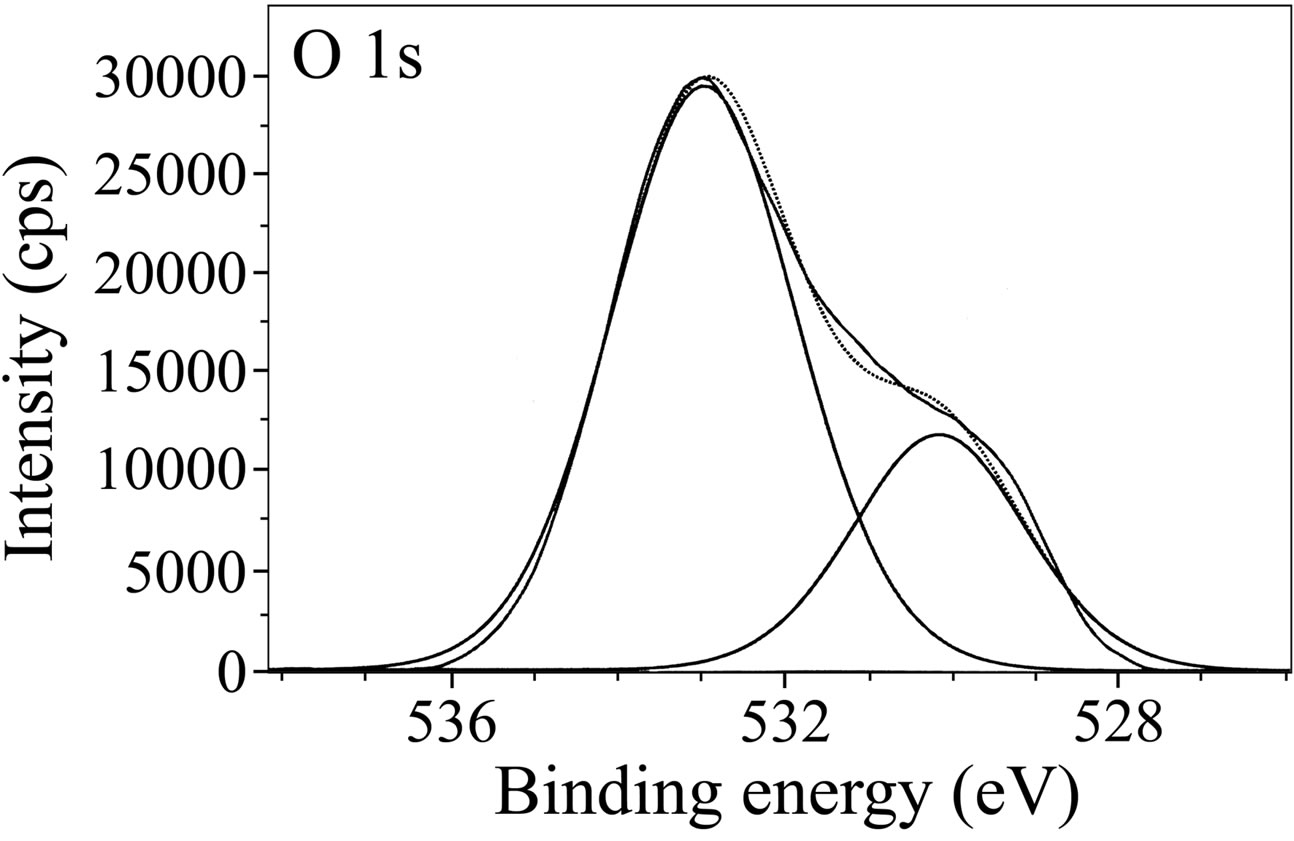

The XPS spectra of O 1s are presented in Figure 13. In case of the control (Figure 13(a)), two peaks corresponding to O 1s are observed, one at 530.1 eV and the other one at 533.0 eV. The latter peak is due to adsorbed water on the surface [46,48,49,54]. O 1s peak observed at

530.1 eV is due to O². Pech-Canul and Bartolo-Perez obtained O 1s peak at approximately 529.8 eV and attributed it to O²⁻ [8]. Karman et al. studied the role of oxide layer formation during corrosion inhibition of mild steel in neutral aqueous media [54]. They assigned the O 1s peak at ~530 eV to O²⁻. In the present study, the presence of O^2– in the surface film formed in the presence of control may be in the form of oxides/hydroxides of Fe(III). In case of the inhibitor formulation, a single O 1s peak of high intensity positioned at 531.5 eV is observed. Fang et al. ascribed the O 1s peak observed at 531.3 eV to the complex formed between iron and phosphonate [55]. Pech-Canul and Bartolo-Perez observed the O 1s peak at 531.3 eV, which was ascribed to OH^– from hydrous iron oxides and to the complex formed between iron and phosphonate group [8]. It was also mentioned in their paper that such hydrous ferric oxides consist of Fe(OH)₃ and FeOOH. Felhosi et al. studied the effects of bivalent cations on corrosion inhibition of steel by HEDP [5]. They mentioned that the O 1s peak at 531.4 eV is due to Fe-OH bond. Asami et al. observed O 1s peak at 531.5 eV in their study and attributed it to oxygen with a kind of Fe-O-H bond [46]. In the light of these results and interpretations reported in literature, the O 1s peaks of high intensity observed in the present study may be interpreted as follows. The XPS of surface films show that besides oxygen, there is presence of carbon, nitrogen, phosphorus, iron and zinc in the surface film. That means BPMG is present on the surface, zinc is present as Zn²⁺ and the interpretation given above in case of Fe 2p indicates the presence of Fe₂O₃, Fe₃O₄ and FeOOH. Hence, O 1s peaks can be ascribed to the presence of Zn(OH)₂, Fe₂O₃, Fe₃O₄, FeOOH and oxygen of BPMG as well as citrate in the surface film. The disappearance of peak around 533.0 eV in case of the inhibitor formulation indicates the absence of water molecules in the surface film as they have been completely replaced by the inhibitor molecules. A comparison of intensities of O 1s peak in the control and in the presence of ternary inhibitor system is of interest. In comparison to the intensity of 29,500 cps in control, the intensity of O 1s peak increases to around 50000 cps in the presence of the inhibitor system. This increase is to be considered along with the high intensity of zinc (Figure 14), of carbon (Figure 12(b)) and of phosphorus (Figure 10). The intensity of O 1s peak is related mainly to oxygen in two phosphonate and one carboxylate groups of BPMG, oxygen of citrate ion, −OH group of Zn(OH)₂ and to small amounts of oxides/hydroxides of iron.

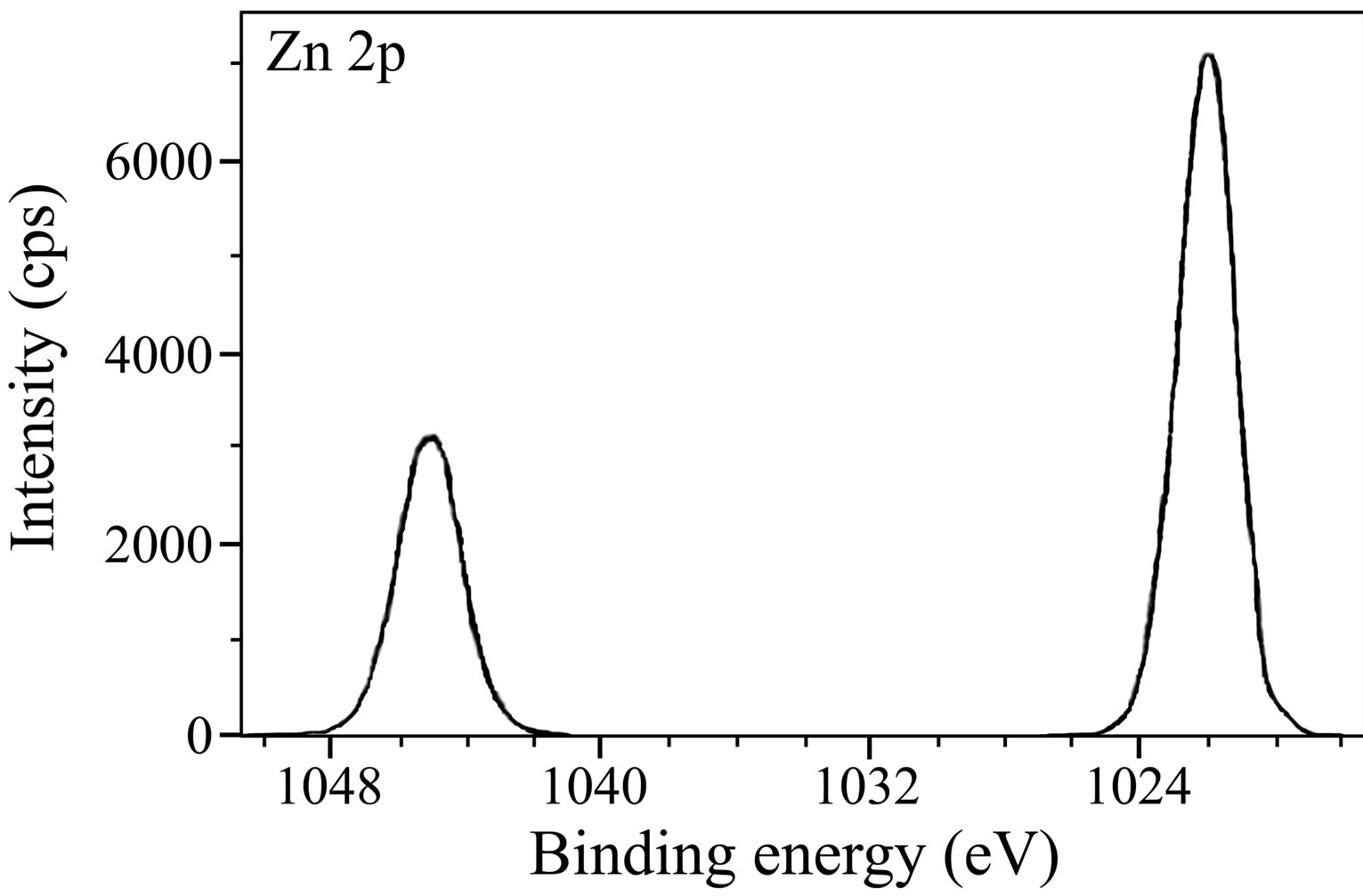

Figure 14 presents the XPS deconvolution spectrum of zinc. The Zn 2p_3/2 peak is observed at 1022.0 eV and the Zn 2p_1/2 peak at 1045.2 eV. Zn 2p_3/2 peak is normally interpreted. The high intensity of the Zn 2p_3/2 peak may be ascribed to the presence of Zn(OH)₂ in the surface film and also to the involvement of Zn²⁺ in the complex formation with the inhibitor molecules. It was reported in literature that the Zn 2p_3/2 peak at 1022.8 eV was due to the presence of Zn(OH)₂ in the surface film [56]. Felhosi et al. interpreted from the XPS analysis that there is formation of [Zn-HEDP] complex on the mild steel surface when immersed in a solution consisting of a mixture of HEDP and Zn²⁺ [5]. Along with the elements discussed above, the survey spectrum (not included in the paper) in case of the control has a low intensity chlorine peak at 200.0 eV. This is because some chloride ions reach the metal surface and are responsible for corrosion of the metal. The chlorine peak is not observed in the survey spectrum of the inhibited surface film, which indicates

that the protective film does not allow the aggressive ions to reach the metal surface. After consolidating all the inferences drawn from the XPS of individual elements present in surface film, it is suggested that the surface film in case of the inhibitor system consists of mainly [Zn(II)-BPMG-citrate] complex, Zn(OH)₂ and small amounts of oxides/hydroxides of Fe(III). The complex may be chemisorbed on the metal surface and get attached to the Fe(III) ions.

3.5. Interpretation of FTIR Spectra

The reflection absorption FTIR spectra of the surface films formed on carbon steel in the absence and presence of the inhibitor formulation are shown in Figure 15. These spectra are interpreted by comparing with the FTIR spectra of pure BPMG and pure trisodium citrate (not shown here) as well as with the help of literature reports. In the FTIR spectrum of BPMG, multiple bands in the region, 900 - 1200 cm⁻¹ were assigned to phosphonate group stretching frequencies. The peak at 1181 cm⁻¹ can be assigned to -PO₃ antisymmetric (n_as) stretching while the peak at 1080 cm⁻¹ is assigned to symmetric (n_s) stretching of -PO₃. The peak observed at 933.5 cm⁻¹ can be attributed to the P-OH stretching vibrations. In case of the inhibitor system, the -PO₃ stretching is observed near 1110 cm⁻¹. The P-OH stretching located at 915.3 cm^‑1 is observed to be weak. These results can be interpreted in terms of interaction between P-O⁻ present in the phosphonate with metallic species, viz. Zn(II) and Fe(III) to form P-O-Zn and P-O-Fe bonds. This interpretation was also given by several authors, who worked on corrosion inhibition of carbon steel by phosphonates [6,57,58]. Carter et al. found that FTIR spectra obtained with an organic phosphonate on a steel substrate are consistent with the phosphonate reaction on steel to produce a metal salt [59]. It also suggests that phosphonates are coordinated with metal ions resulting in the formation of [metal-phosphonate] complexes on the metal surface. A weak band observed around 1325 cm⁻¹ indicates the

presence of zinc hydroxide in the surface film [58,60,61]. An intense band at 1732 cm^{−1 in the FTIR spectrum of BPMG is the characteristic of uncoordinated, protonated carboxylate carbonyl group in BPMG. In the FTIR spec}- trum of pure trisodium citrate, the C=O stretching frequency is observed at 1591.0 cm⁻¹. Small peaks at 1690 cm⁻¹ and 1560 cm^{−1 in the reflection absorption FTIR spectrum of the surface film indicate the presence of both BPMG and citrate ions in the surface film. The shifts in the stretching frequency are resulted due to the involve}- ment of these ions in the complex formation. A band at 1050 cm^{−1 in case of the inhibitor system is due to C}-N stretching vibration shifted from 1157 cm⁻¹ observed in case of pure BPMG. The shift towards lower wave number indicates the formation of a coordinate bond between metal ions and phosphonate molecule. There are several bands in the region, 1200 - 400 cm⁻¹, in both the spectra of surface films. Many of these peaks imply the presence of various oxides and hydroxides of iron like Fe₃O₄, FeOOH and Fe₂O₃ [48,53]. Shi Yee and Gan Moog Chow obtained peaks at 570 cm⁻¹ and 630 cm⁻¹ and assigned them to amorphous oxides of Fe₂O₃ and Fe₃O₄ [62]. Amar et al. obtained absorption peaks between 750 - 1100 cm⁻¹, in the spectra of metal surfaces in presence of 3% NaCl solution [58]. They interpreted them to corrosion products of ferric hydroxide (g-FeOOH) and magnetite (Fe₃O₄). A moderately intense and a broad band formed at 3540.8 cm⁻¹, in case of the control, can be assigned to the presence of -OH group on the surface. This hydroxyl group may be in the form of FeOOH and/or Fe(OH)₃ [63]. Such peaks are observed in the spectra of the inhibited surface film also. These peaks can be assigned to the -OH groups present in the inhibitor molecules, to Zn(OH)₂ and a small contribution of hydroxide of Fe(III) present in the inhibited film. Thus, the reflection absorption FTIR spectrum of the surface film formed in presence of the ternary inhibitor formulation infers the presence of [Zn(II)-BPMG-citrate] complex, Zn(OH)₂ and small amounts of oxides and hydroxides of Fe(III).

The XPS spectrum and the reflection absorption FTIR spectrum of the surface film infers the presence of Fe(III), Zn(II), BPMG and citrate in the surface film. The shifts in binding energies of various elements and shifts in the absorption band frequencies of various functional groups inferred that BPMG and citrate are involved in the complex formation with Zn²⁺ and Fe³⁺. This inference is further supported by several studies reported in literature [6,64-66]. Based on all these literature reports on various phosphonates and the requirement of optimum concentration of zinc ions for effective inhibition and also on the high intensity Zn 2p peaks obtained from XPS spectrum, it can be inferred that Zn(II) and Fe(III) are involved in the complex formation with BPMG and citrate to form [Fe(III), Zn(II)-BPMG-citrate] polynuclear multiligand complex, which plays significant role in making the surface film protective.

3.6. Surface Analysis by SEM

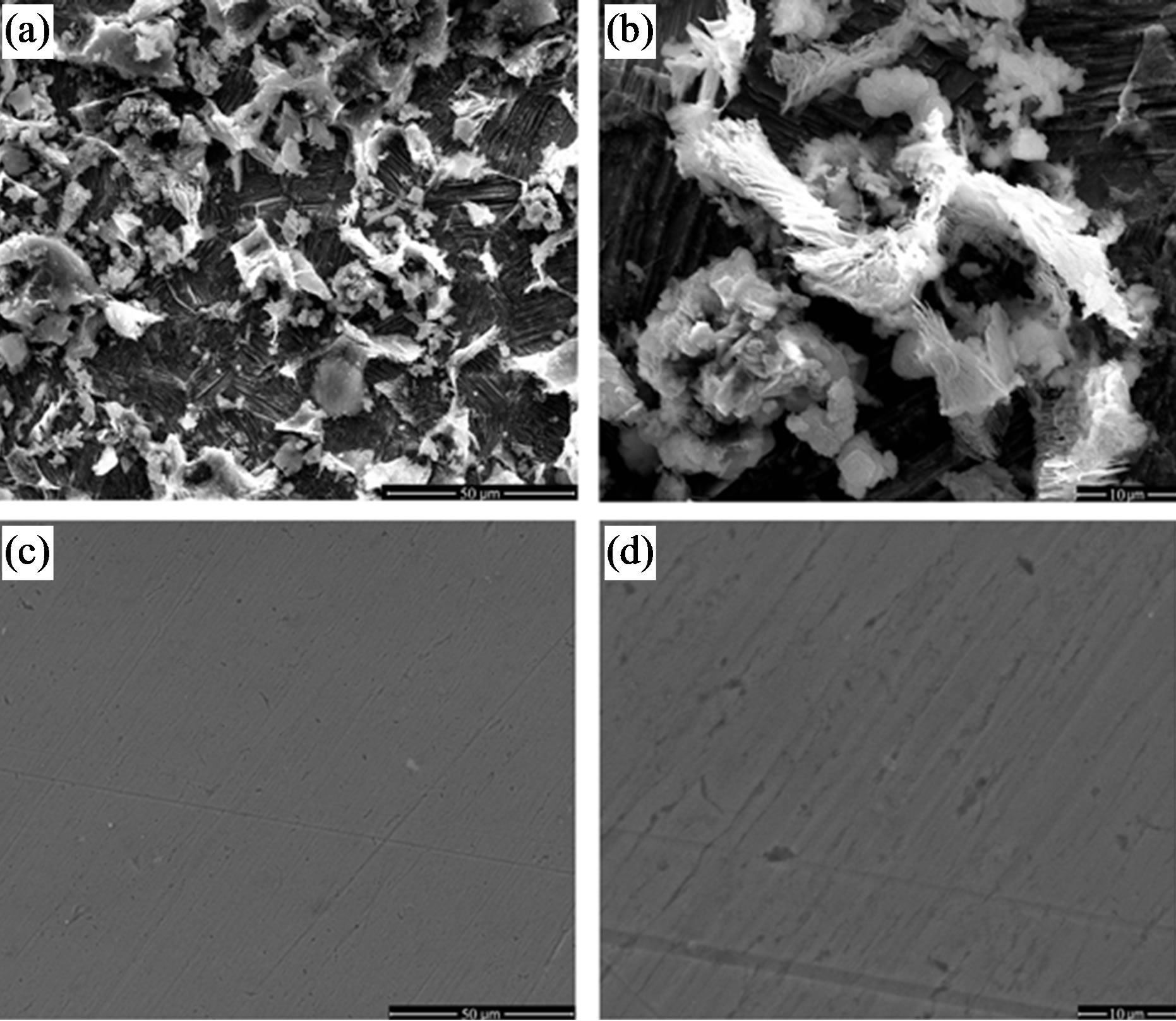

Figure 16 shows the high resolution SEM images of the surfaces of carbon steel immersed for 7 days in the control in the absence and presence of the inhibitor, BPMG (20 ppm) + Zn²⁺ (30 ppm) + citrate (100 ppm). Figure 16(a) reveals that the surface is severely corroded and there is formation of different forms of corrosion products (iron oxides) on the surface in the absence of the inhibitor. The entire surface is covered by a scale-like black corrosion product, on which there is growth of another corrosion product appearing in the form of white clusters at several sites. A very few of such clusters are shown at sub-micron level in Figure 16(b). The morphological features of the inhibited surface are shown in Figures 16(c) and (d). The corrosion product deposits observed in case of the control are not present on the inhibited surface. It indicates that the penetration of Cl⁻ ions of the environment on to the substrate is controlled effectively through good surface coverage by the inhibittor film. The higher magnification (×5000) SEM image (Figure 16(d)) of the inhibited surface contains some low depth inhomogeneities on the surface. But the closer look at such sites reveals that the inhomogeneities are due to the structural defects of the metal substrate and that these sites are also covered by the inhibitor film. Thus, the inhibitor film covers the entire metal surface.

This observation also accounts for the high inhibition efficiency values obtained during the gravimetric studies of the inhibitor system. From the SEM analysis it can be inferred that the surface film formed by the ternary inhibitor system exhibits good protective properties for carbon steel in low chloride media.

3.7. Mechanism of Corrosion Inhibition

In order to explain all the experimental results, a plausible mechanism of corrosion inhibition is proposed as follows:

1) The mechanism of corrosion of carbon steel in nearly neutral aqueous media is well established. The well-known reactions are mentioned below.

(6)

Fe²⁺ further undergoes oxidation in the presence of oxygen available in the aqueous solution [O₂].

(7)

The corresponding reduction reaction at cathodic sites in neutral and alkaline media is

(8)

Fe³⁺ ions produced at anodic areas and OH^– ions produced at cathodic areas combine to form Fe(OH)₃, (Fe₂O₃∙H₂O) which gets precipitated on the surface of the metal due to its very low solubility product.

2) When BPMG, Zn²⁺ ions and citrate ions are added to the aqueous solution, both BPMG and citrate react with Zn²⁺ to form a ternary complex, [Zn²⁺-BPMG-citrate]. It diffuses to the metal surface and binds to Fe(III) ions present on the surface. The cross-linkage and reorganization of such complex ions on the surface will produce a polymeric network structure. The resulting polynuclear complex, [Fe(III), Zn(II)-BPMG-citrate] covers the anodic sites and controls the corresponding anodic reaction.

(9)

3) Free Zn²⁺ ions are available in the bulk of the solution because of relatively higher molar concentration of Zn²⁺ in the inhibitor mixture. These Zn²⁺ ions diffuse to the metal surface and react with OH^– ions produced at the cathodic sites to form a precipitate of Zn(OH)₂.

(10)

The precipitate of Zn(OH)₂ gets deposited on the cathodic sites and controls the cathodic partial reaction of corrosion process.

4) The inhibitor formulation is effective in the pH range, 5 - 9. At pH 10 and above, higher concentration of OH⁻ ions are available both in the bulk of the solution and on the surface. In such an environment, there is greater interference of OH^– ions in the complexation [67] leading to the formation of [Zn(II)-BPMG-citrate-OH] complex, which may not contribute to the formation of protective film on the metal surface. In acidic medium at pH £ 4, the ligand will be in the protonated form and do not coordinate with Zn(II) as effectively as the deprotonated ligands. Secondly, enough amount of Zn(OH)₂ will not be formed on the cathodic sites. Hence, the inhibitor is not effective at pH £ 4.

5) Thus, BPMG, Zn²⁺ and citrate play very important role in the synergistic effect in controlling corrosion through the formation of protective film on the metal surface. It is inferred that the film may consist of various oxides/hydroxides like Fe₂O₃, Fe₃O₄∙H₂O, FeOOH, Zn(OH)₂ and a polynuclear multiligand complex, [Fe(III), Zn(II)-BPMG-citrate]. Each of these constituents contributes itself to make the film highly protective.

4. Conclusions

1) The ternary inhibitor system, BPMG-Zn²⁺-citrate, exhibits excellent synergism in the corrosion control of carbon steel in nearly neutral aqueous environment. The synergistic effect of citrate is established through the present study.

2) Optimum concentration of each of the components of the ternary inhibitor system is required for an effective inhibition.

3) The ternary inhibitor system is effective in the pH range 5 - 9, which is generally applicable for cooling water systems.

4) The ternary inhibitor formulation acts as mixed type inhibitor controlling both the anodic and cathodic reactions.

5) Electrochemical impedance studies indicated the significant modification of the metal/solution interface by the formation of a dense and protective film in presence of the ternary inhibitor formulation.

6) The protective film consists of mainly [Zn(II)- BPMG-citrate] complex, Zn(OH)₂ and small amounts of oxides/hydroxides of Fe(III). Presence of optimum amounts of all these compounds is required at a given pH value to make the surface film protective.
