Journal of Power and Energy Engineering, 2014, 2, 68-75
Published Online April 2014 in SciRes. http://www.scirp.org/journal/jpee
http://dx.doi.org/10.4236/jpee.2014.24011
How to cite this paper: Qin, J., Qu, J., Song, J.R., Song, Z.N., Zhang, W.D., Shi, Y.X., Zhang, T., Xue, X., Zhang, R.P., Zhang,
H.Q., Zhang, Z.Y. and Wu, X. (2014) The Optical Properties of Black Coatings and Their Estimated Cooling Effect and Cooling
Energy Savings Potential. Journal of Power and Energy Engineering, 2, 68-75. http://dx.doi.org/10.4236/j pe e .2014.24011
The Optical Properties of Black Coatings and
Their Estimated Cooling Effect and Cooling
Energy Savings Potential
Jie Qin1, Jian Qu1, Jianrong Song1, Zhongnan Song1, Weidong Zhang1*, Yunxing Shi1,
Tao Zhang1, Xiao Xue2, Rongpu Zhang1, Hongqiang Zhang1, Ziying Zhang1, Xiong Wu1
1Technical Center, China State Construction Engineering Co., Ltd., Beijing, China
2Department of Chemistry, Renmin University of China, Beijing, China
Received Novemb er 20 13
Abstract
The optical properties of coatings pigmented with different black colorants were systematically
investigated and their surface temperatures and cooling energy savings were estimated. The black
coatings pigmented with chromite iron nickel black and manganese ferrite black spinel colorants
are not cool enough to be energy efficient cool black coatings. The cool black coatings pigmented
with NIR-transmitting perylene black and dioxazine purple colorants possess a green shade and a
violet shade, respectively. The estimated surface temperature reduction values and annual cooling
energy savings in Beijing range from 3.0˚C and 1.21 kWhm−2yr−1 for the black coating pigmented
with chromite iron nickel colorant to 13.8˚C and 5.52 kWhm−2yr−1 for the black coating pigmented
with dioxazine purple colorant, respectively.
Keywords
Solar Reflectance; Thermal Emittance; Pigmen t; Black Coating ; Cooling Effect; Cooling Energy
Savings
1. Introduction
Generally speaking, the coolest white roof coatings are conventionally not accepted by owners of homes with
flat and/or low slop roofs, who often prefer non-white roofs for aesthetic and visual reasons [1-7]. Of the availa-
ble cool colored coatings, the cool black coating is one option in China. However, a coating must at least absorb
practically the entire spectrum of visible light to show a black appearance. In some circumstances, the black
coatings, such as those pigmented with carbon black and copper chromite black colorants, not only absorb all
the incident visible light (VIS) but also nearly the entire near infrared (NIR) rays, greatly rising the roof surface
temperature [1]. Apparently, pigments exert the principal influence on the optical and near-infrared properties of
coatings [8] and play a very important role in formulating the cool black coatings.
*Corresponding author.

J. Qin et al.
69
In a previous study [9], the NIR properties of 87 single-pigment paint films were characterized. Among the
selected black pigments, chromite iron nickel black (C. I. pigment black 30), perylene black (C. I. Pigment black
32) and dioxazine purple (C. I. Pigment violet 23) were identified to be NIR-transmitting colorants, showing
both strong NIR backscattering and weak NIR absorption in a binder of refractive index 1.5 [9]. In addition, in
the preparation of cool black coatings, we found that manganese ferrite black spinel (C. I. Pigment black 26) is a
colorant that is cooler than carbon black and copper chromite black colorants.
In this paper, the optical properties of the cool black coatings pigmented with the above four cool black pig-
ments are investigated and compared with the black coatings pigmented with carbon black and copper chromite
black colorants. Their cooling effects and cool energy savings in Beijing are estimated and discussed.
2. Experimental
2.1. Selection of Materials
To prepare the conventional and cool black coatings, a pure acrylic emulsion and commercially available carbon
black, copper chromite, chromite iron nickel black, manganese ferrite black spinel, perylene black and dioxazine
purple pigments were selected. Talcum was also selected as extender pigment since it is transparent and
non-reflective throughout the visible and near-infrared regions and thus does not interfere the performance of
other pigments [8,10]. In addition, appropriate paint additives, such as a wetting agent, a dispersant, an anti-
foaming agent, a leveling agent and a coalescent were also selected to improve the quality and performance of
the coatings. All the above materials were used as received to prepare the conventional and cool black coatings.
The composition of these coatings is listed in Table 1.
2.2. Preparation of Conventional and Cool Black Coatings
The preparation process of the conventional and cool black coatings was as follows: the acrylic emulsion and
talcum were first added into the mixing setup, followed by the addition of the wetting agent, dispersant and
leveling agent. The mixture was stirred at high speeds for 30 min and then the prefabricated black pigment dis-
persion was pumped into paint mixing setup. At this stage, the antifoaming agent and coalescent were added and
the mixture was continuously mixed at high speed for 30 min. Finally, the water was added to adjust the viscos-
ity of the coatings.
2.3. Preparation of Conventional and Cool Black Coating Samples
To study the optical properties of the conventional and cool black coatings, the above coatings were sprayed on
to bare aluminum alloy substrates and those painted with a self-manufactured cool white basecoat, whose optical
Table 1. The composition of the conventional and cool black
coatings.
Component Content by weight (%)
Pure acrylic emulsion 54.5
Black pigmenta 5.0
Talcum 25.0
Wetting agent 0.5
Dispersant 0.5
Antifoaming agent 0.5
Leveling agent 0.5
Coalescent 0.5
Water 13.0
aThe black pigment might be carbon black, copper chromite, chromite iron
nickel black, manganese ferrite black spinel, perylene black or dioxazine
purple.

J. Qin et al.
70
and physicochemical properties were described in detail somewhere else [11-13]. The coating thickness ranged
from 100 to 150 µm.
2.4. Spectral Reflectance and Lightness Measurements
According to ASTM E903-96 (Standard test method for solar absorbance, reflectance and transmittance of ma-
terials using integrating spheres), the spectral reflectance of conventional and cool black coatings over white
basecoats and/or bare aluminum alloy substrates was measured using a UV/VIS/NIR spectrophotometer (Perkin
Elmer Lambda 750) equipped with an integrating sphere (150-mm diameter, Lab sphere RSA-PE-19). The solar
reflectance was computed by integrating the measured spectral data weighted with the air mass 1.5 beam-normal
solar spectral irradiance.
The lightness (also referred to as hue, saturation and brightness) of the conventional and cool black coatings
were measured using a color reader (CR-10, Konica Minolta Sensing, Inc.).
2.5. Thermal Emittance Measurements
The thermal emittance of the black coatings was measured using a portable differential thermopile emissometer
AE1 (Devices & Serv ices Co., Dallas, TX) according to ASTM C 1371 (Standard test method for determining
the emittance of materials near room temperature using portable emissometers).
3. Results and Discussion
3.1. The Optical Properties of Black Coatings
Figure 1 shows the spectral reflectance curves for the black coatings pigmented with carbon black and copper
chromite black colorants over bare aluminum alloy substrates and cool white basecoats, whose solar reflectance
is approximately 0.89. The corresponding computed solar and spectral reflectance values, along with the light-
ness of the coatings, are summarized in Table 2. As shown in Figure 1 and Table 2, for both the coatings pig-
mented with carbon black and copper chromite black pigments, the spectral reflectance curve of the coating over
an aluminum alloy and that over a cool white basecoat overlap and they show very low reflectance over the en-
tire solar spectrum (250 - 2500 nm), indicating that both pigments are completely solar absorptive (or non-spec-
trally selective) pigments. As expected, both the coatings show jet black appearance and possess similar solar
reflectance. Unexpectedly, the black coating pigmented with copper chromite black colorant shows lower ultra-
violet (UV) and VIS reflectance and lightness but higher NIR reflectance than those of the black coating pig-
mented with carbon black. The appearance of the coating pigmented with copper chromite black colorant is
darker.
The spectral reflectance curves for the black coatings pigmented with chromite iron nickel black, manganese
ferrite black spinel black, perylene black and dioxazine purple colorants over bare aluminum alloy substrates
and white basecoats are presented in Figure 2. The computed solar and spectral reflectance values and the
measured lightness of these four black coatings are listed in Table 3. As indicated in Figures 2(a) and 2(b) and
Table 3, the black coatings pigmented with chromite iron nickel black and manganese ferrite black spinel black
Figure 1. Spectral reflectance curves for the black coatings pigmented with (a) carbon black and (b)
copper chromite black colorants over bare aluminum alloy substrates and white basecoats.

J. Qin et al.
71
Table 2. Spectral and solar reflectance values as well as lightness for the black coatings pigmented with carbon black and
copper chromite black colorants over aluminum alloys and white basecoats.
Samples Reflectance Lightness
Solar UV VIS NIR L* a* b*
Carbon black Over aluminum 0.049 0.053 0.050 0.048 26.2 -2.4 1.6
Over white 0.049 0.053 0.050 0.047 25.1 -2.5 1.4
Cu-Cr black Over aluminum 0.049 0.052 0.047 0.051 25.6 -2.7 1.0
Over white 0.049 0.052 0.047 0.051 25.7 -2.7 1.0
Table 3. Spectral and solar reflectance values as well as lightness for the black coatings pigmented with chromite iron nickel
black, manganese ferrite black spinel, perylene black and dioxazine purple colorants over aluminum alloys and white base-
coats.
Samples Reflectance Lightness
Solar UV VIS NIR L* a* b*
Cr-Fe black Over aluminum 0.115 0.058 0.058 0.194 27.0 -1.5 1.3
Over white 0.113 0.057 0.058 0.190 27.0 -1.5 1.4
Mn-Fe black Over aluminum 0.126 0.058 0.058 0.221 27.6 -0.8 1.5
Over white 0.124 0.055 0.056 0.219 26.9 -0.8 1.7
Perylene black Over aluminum 0.262 0.055 0.060 0.538 25.2 -2.7 1.1
Over white 0.307 0.053 0.062 0.640 25.9 -2.9 1.2
Dioxazine
purple
Over aluminum 0.298 0.054 0.098 0.572 25.6 1.3 -3.4
Over white 0.334 0.054 0.107 0.644 26.0 0.8 -1.1

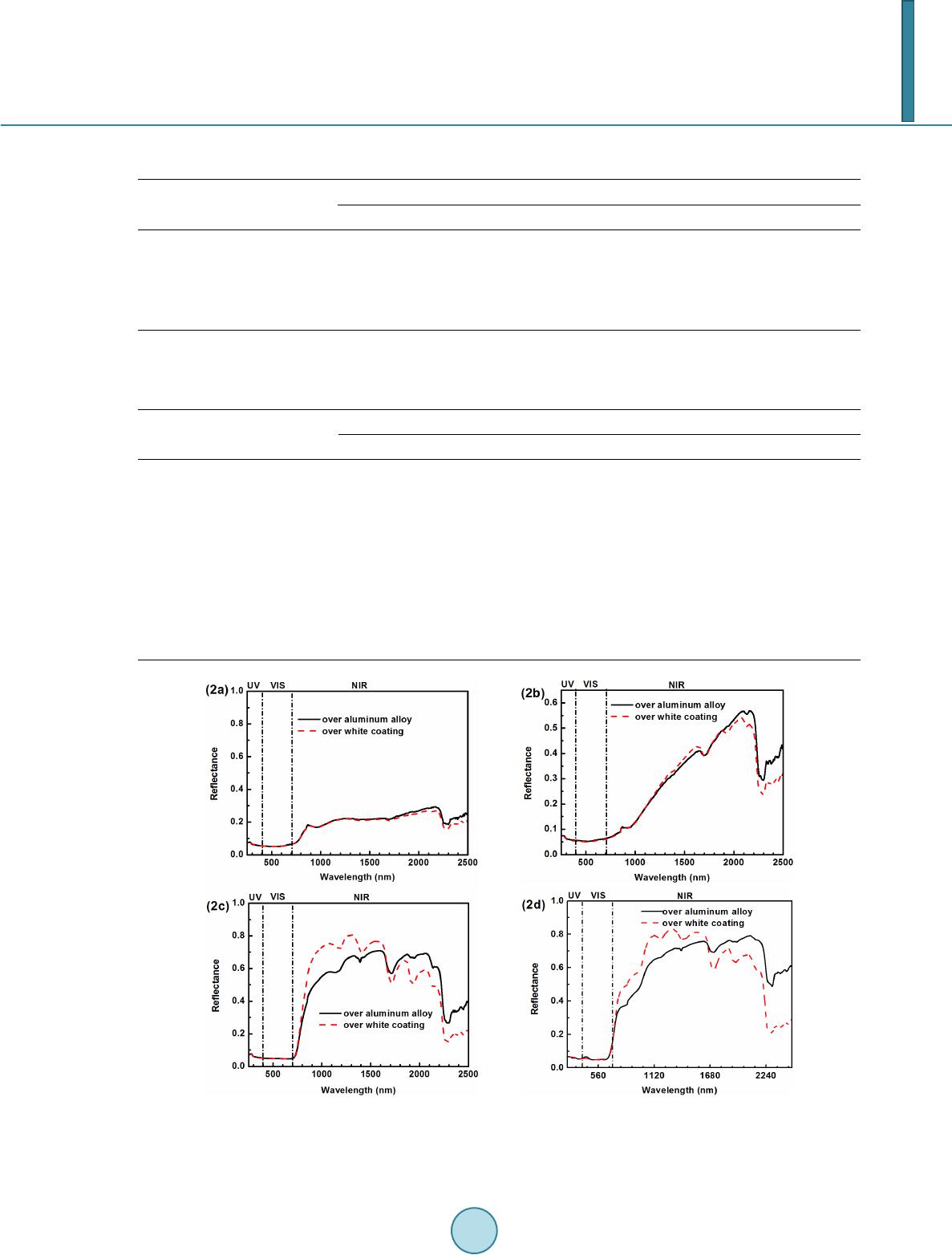

Figure 2. Spectral reflectance curves for the black coatings pigmented with (a) chromite iron nickel
black, (b) manganese ferrite black spinel black, (c) perylene black and (d) dioxazine purple colorants
over bare aluminum alloy substrates and white basecoats.

J. Qin et al.
72
colorants have higher solar, VIS and NIR reflectance and lightness than those of the black coatings pigmented
with carbon black and copper chromite black colorants. As specified by China building industrial standard JG/T
235-2011 (architectural solar reflective thermal insulation coatings), for the cool coatings with lightness L*
smaller than 40, their NIR reflectance should not be smaller as 0.4. Although the solar reflectance of the black
coatings pigmented with chromite iron nickel black and manganese ferrite black spinel black colorants is higher
than that of the black coatings pigmented with carbon black and copper chromite black colorants, their NIR ref-
lectance is far smaller than 0.4 (Table 3) and thus they cannot be viewed as qualified cool black coatings with-
out modifications of the coatings’ formulations.
Unlike what is observed in Figures 2(a) and 2(b), in the wavelength region from 700 to 1700 nm, the NIR
reflectance of the black coatings pigmented with perylene black and dioxazine purple colorants over white ba-
secoats is higher than that over aluminum alloy substrates, while the NIR reflectance of the black coatings pig-
mented with perylene black and dioxazine purple colorants over white basecoats is lower than that over alumi-
num alloy substrates. Because half the NIR solar energy (a quarter of the total solar energy) lies within the
shorter NIR wavelengths (700 - 1000 nm) and 30% lies within 1000 - 1500 nm [10], the NIR reflectance over
the entire NIR region and consequently the solar reflectance of these two black coatings over cool white base-
coats are much higher than those over bare aluminum alloy substrates. The VIS reflectance and lightness of the
black coatings pigmented with perylene black and dioxazine purple colorants over white basecoats are higher
than those over aluminum alloy substrates. Obviously, perylene black and dioxazine purple colorants are NIR-
transmitting pigments because the NIR reflectance of NIR-transmitting colorants highly depends on NIR- re-
flecting background [9-10]. As indicated by the a﹡and b﹡values in Table 3, when used as tints, the black
coatings pigmented with perylene black and dioxazine purple colorants have a green shade and a violet shade,
respectively. Because the lightness of the black coatings pigmented with perylene black and dioxazine purple
colorants is much smaller than 40 but their NIR reflectance is much higher than 0.4, these two black coatings are
apparently cool coatings according to China building industrial standard JG/T 235-2001, although only a meta-
meric match to the desired black color is made. According to complementary color theory, to yield a
non-metameric match to the desired jet black color, a colorant such as red or yellow iron oxide, respectively,
should be added to the green shaded and violet shaded black coatings to re-establish a true black shade.
In a previous study [14], the NIR and solar reflectance of the cool non-white coatings pigmented with NIR-
transmitting colorants were found to increase as the coating thickness and pigment concentration decrease. As
mentioned above, the thickness of the black coatings developed in this work was between 100 and 150 µm. The
solar reflectance of the cool black coatings pigmented with perylene black and dioxazine purple colorants may
be further improved by reducing the coating thickness and pigment concentration.
3.2. Estimated Surface Temperatures and Cooling Effect
Two ways may be employed to assess the true cooling effect of a coating. One way is to measure the surface
temperature of the coating in the sun in a sunny calm summer day. However, it is not always available and the
measurement conditions change over time. An alternative is to estimate the surface temperature of the coating
following ASTM E 1980-01 (standard practice for calculating solar reflectance index of horizontal and low
sloped opaque surfaces) under the following conditions: insolation = 1000 W/m2, sky temperature = 300 K, am-
bient air temperature = 310 K and convection coefficient (medium wind) = 12 W/(m2 K). The estimated surface
temperatures of the black coatings and surface temperature reduction values relative to that of the black coating
pigmented with carbon black and/or copper chromite black colorants are tabulated in Table 4.
As indicated in Table 4, under the standard conditions specified by ASTM E 1980-01, the surface tempera-
ture reduction values of the black coatings pigmented with chromite iron nickel black and manganese ferrite
black spinel black colorants are approximately 3.0˚C and 3.6˚C, respectively. The surface temperature reduction
values of the black coatings pigmented with perylene black and dioxazine purple colorants over bare aluminum
alloy substrates are 11.2˚C and 12.0˚C, respectively, while over cool white basecoats, these two values are
12.4˚C and 13.8˚C, respectively. In good agreement with what observed above, the black coatings pigmented
perylene black and dioxazine purple colorants are cool coatings.
3.3. Estimated Cooling Energy Savings of the Coatings in Beijing
In this section, the most commonly used DOE-2 computations will be used to estimate cooling energy savings in

J. Qin et al.
73
Table 4. Estimated surface temperatures of the black coatings and surface
temperature reduction values relative to that of the black coating pigmented
with carbon black and/or copper chromite black colorants.
Samples Surface temperature
(K) Temperature reduction (˚C)
Carbon black Over aluminum 355.6 -
Over white 355.6 -
Cu-Cr black Over aluminum 355.6 -
Over white 355.6 -
Cr-Fe black Over aluminum 352.5 3.1
Over white 352.6 3.0
Mn-Fe black Over aluminum 351.9 3.7
Over white 352.0 3.6
Perylene black Over aluminum 345.4 11.2
Over white 343.2 12.4
Dioxazine purple Over aluminum 343.6 12.0
Over white 341.8 13.8
Beijing due to the applications of black coatings on the roofs. The simulation was based on a simplified model
[15] correlating the cooling energy savings and heating penalty to annual cooling degree days (base 18˚C,
CDD18) and heating degree days (base 18˚C, HDD18). The simulation is the energy savings relative to a black
coating with solar reflectance of 0.05 and thermal emittance of 0.9. The measured thermal emittance of all the
black coatings was approximately 0.9.
Assuming that the roof insulation of the prototypical model house used in this paper is R-5 (0.87 m2·KW−1),
as is common for the old, flat concrete houses in Beijing, and that the coefficient of performance (COP) of the
cooling air conditioner is an average value of 2.0, the simulated cooling energy savings due to the applications
of the black coatings pigmented with chromite iron nickel black, manganese ferrite black spinel, perylene black
and dioxazine purple colorants over white basecoats in Beijing are compared in Table 5. The simulated annual
cooling energy savings in Beijing are 1.21 kWhm−2yr−1 for the coating pigmented with chromite iron nickel
black colorant, 1.35 kWhm−2yr−1 for the coating pigmented with manganese ferrite black spinel colorant, 4.98
kWhm−2yr−1 for the coating pigmented with perylene black colorant and 5.52 kWhm−2yr−1 for the coating pig-
mented with dioxazine purple colorant.
Beijing is located in northern China with latitude of approximately 40˚N and in the warm temperate continen-
tal monsoon climate zone. It is common knowledge that the cooling energy savings due to the applications of
cool roof coatings positively correlate with the ambient temperature at the constant solar reflectance and thermal
emittance of the applied cool coatings and the constant roof insulation and COP. Therefore, it is reasonable to
expect a larger cooling energy savings for the places in the subtropical monsoon climate zone and tropical mon-
soon climate zone in China, where the monthly average ambient temperatures in the summer are higher than
those in Beijing.
4. Conclusions
Based on the new findings in this work, the following conclusions may be drawn:
• The black coatings pigmented with chromite iron nickel black and manganese ferrite black spinel colorants
in this work are actually not cool coatings, although their solar reflectance is higher than that of the black
coatings pigmented with carbon black and copper chromite black colorants.
• The black coatings pigmented with NIR-transmitting perylene black and dioxazine purple colorants are cool
black coatings, although they have a green and a violet shade, respectively.
• The surface temperature reduction values of the black coatings pigmented with perylene black and dioxazine
purple colorants over bare aluminum alloy substrates are 11.2˚C and 12.0˚C, respectively, while these two
values are 12.4˚C and 13.8˚C over cool white basecoats, respectively.

J. Qin et al.
74
Table 5. Estimated cooling energy savings for the cool black roof coatings
pigmented with chromite iron nickel black, manganese ferrite black spinel,
perylene black and dioxazine purple colorants over white basecoats in Beijing.
Coatings Annual cooling energy savings (kWhm-2yr-1)
Cr-Fe black 1.21
Mn-Fe black 1.35
Perylene black 4.98
Dioxazine purple 5.52
• The estimated energy savings due to applications of black coatings in Beijing range from 1.21 kWhm−2yr−1
for the coating pigmented with chromite iron nickel black colorant to 5.52 kWhm−2yr−1 for the coating pig-
mented with dioxazine purple colorant.
Acknowledgements
This work was performed under the “Water-Borne Cool Coatings for Building Energy Efficiency” project with
funding from the Technical Center of China State Construction Engineering Co., Ltd.
References
[1] Akbari, H., Levinson, R., Miller, W. and Berdahl, P. (2005) Cool Colored Roofs to Save Energy and Improve Air
Quality. Passive and Low Energy Cooling for the Built Environment, Santorini, 19-21 May 2005, 89-100.
[2] Levinson, R., Berdahl, P., Akbari, H. , Miller, W., Joedicke, I., Reilly, J., Suzuki, Y. and Vondra, M. (2007) Methods of
Creating Solar-Reflective Nonwhite Surfaces and their Application to Residential Roofing Materials. Solar Energy
Materials and Solar Cells, 91, 304-314. http://dx.doi.org/10.1016/j.solmat.2006.06.062
[3] Levinson, R., Akbaria, H. and Reilly, J.C. (2007) Cooler Tile-Roofed Buildings with Near-Infrared-Reflective
Non-White Coatings. Building and Environment, 42, 2591-2605. http://dx.doi.org/10.1109/mitp.2008.113
[4] Santamouris, M., Synnefa, A. and Karlessi, T. (2011) Using Advanced Cool Materials in the Urban Built Environ-
mentto Mitigate Heat Islands and Improve Thermal Comfort Conditions. Solar Energy, 85, 3085-3102.
http://dx.doi.org/10.1016/j.solener.2010.12.023
[5] Synnefa, A., Santamouris, M. and Apostolakis, K. (2007) On the Development, Optical Properties and Thermal Per-
formance of Cool Colored Coatings for the Urban Environment. Solar Energy, 81, 488-497.
http://dx.doi.org/10.1016/j.solener.2006.08.005
[6] Uemoto, K. L., Sato, N.M.N. and John, V.M. (2010) Estimating Thermal Performance of Cool Colored Paints. Energy
and Buildings, 42, 17-22. http://dx.doi.org/10.1016/j.enbuild.2009.07.026
[7] Hellring, S.D. and Mcquown, S.G. (2012) Coating Compositions That Transmit Infrared Radiation and Exhibit Color
Stability and Related Coating Syst e ms. EU Patent No. WO2012170230.
[8] Brady, R.F. and Wake, L.V. (1992) Principles and Formulations for Organic Coatings with Tailored Infrared Properties.
Progress in Organic Coatings, 20, 1-25. http://dx.doi.org/10.1016/0033-0655(92)85001-C
[9] Levinson, R., Berdahl, P. and Akbari, H. (2005) Solar Spectral Optical Properties of Pigments-Part II: Survey of
Common Colorants. Solar Energy Materials and Solar Cells, 89, 351-389.
http://dx.doi.org/10.1016/ j.solmat.2004.11.013
[10] Bendiganavale, A.K. and Malshe, V.C. (2008) Infrared Reflective Inorganic Pigment s. Recent Patents on Chemical
Engineering, 1, 67-79. http://dx.doi.org/10.2174/2211334710801010067
[11] Shi, Y., Song, Z., Zhang, W. , Song, J., Qu, J., Wang, Z. , Li, Y., Xu, L. and Lin, J. (2013) Physicochemical Properties
of Dirt-Resistant Cool White Coatings for Building Energy Efficiency. Solar Energy Materials & Solar Cells, 110,
133-139. http://dx.doi.org/10.1016/j.solmat. 2012.12.011
[12] Song, Z. , Zhang, W. , Shi, Y., Song, J., Qu, J., Qin, J., Zhang, T., Li, Y., Zhang, H. and Zhang, R. (2013) Optical Prop-
erties across the Solar Spectrum and Indoor Thermal Performance of Cool White Coatings for Building Energy Effi-
ciency. Energy and Buildings, 63, 49-58. http://dx.doi.org/10.1016/j.enbuild.2013.03.051
[13] Zhang, W., Song, Z., Shi, Y., Song, J., Qu, J., Qin, J., Zhang, T., Li, Y., Xu, L. and Xue, X. (2013) The Effects of
Manufacturing Processes and Artificial Accelerated Weathering on the Solar Reflectance and Cooling Effect of Cool
Roof Coatings. Solar Energy Materials and Solar Cells, 118, 61-71. http://dx.doi.org/10.1016/ j.solmat.2013.07.039

J. Qin et al.
75
[14] Song, Z., Qin, J., Qu, J., Song, J., Zhang, W., Shi, Y., Zhang, T., Xue , X., Zhang, R., Zhang, H., Zhang, Z. and Wu, X.
(Unpublished) A Systematic Investigation on Factors Affecting The Spectral Reflectance of Cool Non-White Coatings.
[15] Wilkes, K.E. (1989) Model for Roof Thermal Performance. Oak Ridge National Laboratory.
