ABSTRACT

The previously optimized crude alkaline protease from the haloalkaliphilic Bacillus circulans L. was partially purified using ammonium sulphate fractionation and dialysis. The best specific activity (27.7 U/mg protein) was obtained at 80% saturation. The optimum reaction temperature and reaction pH was 47˚C and 9, respectively. The enzyme activity was enhanced with Ca and K chlorides but suppressed with HgCl₂ and EDTA. The partially purified protease showed strong proteolytic activity on sheep wool and chicken feather. Also, the enzyme was compatible with the common detergent Tide and could improve its cleaning power in removing blood stain. These findings support the application of the present alkaline protease in biotechnological industries.

1. INTRODUCTION

Proteases are hydrolytic enzymes that degrade protein into polypeptides, dipeptides and then to amino acids [1]. In particular, bacterial alkaline proteases play an important role in the industrial biotechnological processes and they are one of the highest value commercial enzymes as they have broad applications in food, pharmaceutical, detergent, and dairy industries [2]. Of them, Bacillus species are considered the most efficient for such purpose as they produce large quantities of the enzyme [3-5].

Purification and biochemical characterization of enzymes, used in industry, are urgent to optimize their activity. Enzymes can be partially purified by precipitation with ammonium sulphate which was used to precipitate protease from Bacillus subtilis [6], B. cereus [7,8] and another Bacillus sp. [9].

In addition to their wide applications, alkaline proteases have received an increasing importance in degradation of different waste materials like sheep wool, dehairing and leather processing [10] and degradation of feathers resulted from chicken processing [11]. Such degradation can minimize the environmental pollution resulting from disposal of these wastes. Moreover, alkaline proteases could be exploited in detergent industry, as well [12, 13].

Accordingly, the present work aimed at partial purification and characterization of the previously optimized alkaline protease from the haloalkaliphilic Bacillus circulans L. and its possible use in hydrolysis of sheep wool, chicken feathers as well as its compatibility with a common detergent.

2. MATERIALS AND METHODS

2.1. Organism

The haloalkaliphilic Bacillus circulans L., previously isolated from hypersaline alkaline soil at Al-Madinah Al-Munawarah, KSA, was optimized for alkaline protease production [14]. The optimized medium contained (g%): sucrose, 0.5; NH₄NO₃, 0.1; K₂HPO₄, 0.1; MgSO₄. 7H₂O, 0.02 and NaCl, 10. The medium pH was adjusted to 8.5 (optimum pH). The inoculated flasks (optimum inoculums age was 48 h) were incubated under shaking at 45˚C for 48 h (optimum temperature and optimum incubation period) and the culture filtrate was collected.

2.2. Partial Purification of Protease

The culture filtrate of Bacillus circulans 1 was centrifuged at 3000 rpm for 15 min under cooling and the cell free filtrate (CFF) was collected. A known volume of the CFF was subjected to elevated concentrations of ammonium sulphate (20% - 100% saturation) to precipitate the protein [15]. At each precipitation step, the obtained precipitate was dissolved in 5 ml of 0.5 M borax-NaOH buffer (pH 8.5). The enzyme activity was assayed using casein solution (0.6% casein in 0.5 M Boric acid-NaOH buffer, pH 9.0) as substrate [14,16] and the protein content was estimated [17]. The specific activity was then calculated. The precipitated enzyme preparation obtained from the most suitable level of ammonium sulphate (80%) was dialyzed overnight against sucrose and specific activity was calculated. After dialysis the enzymereaction mixture was investigated for optimum temperature and pH and the effect of some metal ions.

2.3. Protease Characterization

The optimum reaction temperature was determined by incubating the enzyme with substrate (casein) for 30 min at different temperatures 27˚C, 37˚C, 47˚C, 57˚C and 67˚C then protease activity was assayed. The optimum pH for enzyme activity was investigated by adjusting the reaction mixture at different pHs ranging from 6 - 10 using borax-NaOH buffer. Incubation was conducted at 47˚C (the best reaction temperature) for 30 min then protease activity was measured. The effect of chloride salt of some metal ions, as well as EDTA (5 mM) on protease activity was also investigated.

2.4. Proteolytic Activity of the Partially Purified Enzyme on Wool and Feather

Sheep wool and chicken feathers were used as a substrate instead of casein. They were dried, ground well and mixed separately (600 mg) with 100 ml boric acidNaOH buffer at the optimum pH (9). One ml of this mixture was added to 1 ml of enzyme and incubated at 47˚C for 30 min. Then 2 ml of TCA solution was added to stop the enzyme reaction and the proteolytic activity was estimated in the filtrate as previously mentioned [14, 16].

2.5. Compatibility of the Enzyme with the Common Detergent Tide

Application of the partially purified protease as a detergent additive was studied on white cotton cloth pieces (4 × 4 cm) stained with blood. Four blood stained cloth pieces were placed separately in flasks containing 100 ml dist. water. One piece is left without any treatment for comparison (control) and the other three ones were treated separately with either: 1 ml Tide detergent (7 mg/ml), 1 ml enzyme solution or 1 ml Tide detergent (7 mg/ml) + 1 ml of enzyme solution. The flasks were incubated at 60˚C for 15 minutes. Stain removal was observed visually.

2.6. Statistical Analysis

The data presented were means of 3 replicates. The standard error was calculated by Microsoft Excel software. Analysis of variance to determine the significant differences (P < 0.01) between means using SPSS statistical software was applied.

3. RESULTS AND DISCUSSION

3.1. Partial Purification of Protease

In the present study, optimized alkaline protease from B. circulans 1 was partially purified through precipitation with ammonium sulphate which almost had a minimum harmful effect on protein [15]. Ammonium sulfate is costless and efficiently soluble salt, so it is often used for such processes [18].

Ammonium sulfate fractionation pattern of protease revealed that the highest enzyme activity (933.3 U/ml) as well as the total protein (33.7 mg/ml) was obtained by 80% saturation with specific activity 27.7 U/mg protein (Table 1). After dialysis protease activity increased to 935.2 U/ml with 1.02-fold increase (data not shown).

It was observed that the crude enzyme had a higher activity as compared to the partially purified one which suggested the presence of certain compounds in the crude enzyme playing a role in enzyme stability and activity [9].

3.2. Protease Characterization

The present partially purified alkaline protease was investigated for the optimum reaction temperature, where the highest enzyme activity was obtained at 45˚C, 47˚C and 57˚C with an optimum at 47˚C at which an increase of about 1.01-fold of activity at 45˚C (the initial reaction temperature) was achieved (Figure 1). In this regard, the optimum reaction temperature was 55˚C for protease activity of Bacillus sp. JSGT and above it the enzyme

denatured and lost its activity [19] while that of B. cohnii APT5 [20] and B. cereus protease [8] was 50˚C. However, the optimum reaction temperature for a strain of Brevibacillus sp. was 70˚C [21].

Reaction pH plays an important role in the activity of enzymes. The present protease exhibited great activity in the pH range of 6 - 10 (Figure 1) with an optimum at pH 9 (963 U/ml). Similar result was documented [19,22,23]. However, pH 8 and 10 was optimum for protease activity of Brevibacillus sp. [21] and B. cereus [8], respectively.

Interestingly, it was clearly observed that at pH 10 the enzyme activity (695 U/ml) was reduced but it was still more than that recorded at pH 7 (612 U/ml, 1.14-fold increase). These results confirm the alkaliphilic nature of the present enzyme.

It is worthy to mention that, most industrial proteases are produced by Bacillus spp. and are neutral or alkaline. Bacillus spp. are favored in biotechnological industries due to their low generation time, which leads to short growth period, and due to their ability to produce extracellular proteins into the medium [5,24] .

The results of the effect of metal salts and metal chelator EDTA on enzyme activity revealed that EDTA had negatively affected the activity where only 35% of the control has been retained (Table 2). The inhibition exerted by EDTA, which is a chelating agent for calcium

ions, may indicate that the present enzyme belonged to metallo-proteases. The inhibition of EDTA to alkaline protease activity of Brevi bacillus sp. [21], halophilic Halogeometrium boringuenes [25] and Bacillus cohniiAPT5 [20] was reported. Oppositely, the thermostable alkaline protease from Lactobacillus brevis was strongly activated by EDTA [23].

The activity of the present enzyme was stimulated when treated with CaCl₂ or KCl where 106 and 104% increase of the control was achieved, respectively (Table 2). Stimulation of either Ca or K ions was reported for protease of Lactobacillus brevis [23] and another Bacillus sp. [26], respectively. In this regard, calcium ions play a role in stabilization and activation of the halophilic Halogeometrium boringuenes protease [25]. This fact is clear in the present investigation as EDTA (chelating agent for calcium ions) caused a great suppression (65%). In addition, some metal ions can protect enzymes from the harmful effect of temperature and play a role in conserving the active site of the enzymes at higher salt concentrations and higher pHs [27]. Moreover, it is urged to know the convenient metal ions and metal concentration for activation and stabilization of the enzymes which are used in commercial levels [28].

Table 2 also revealed that, while MnCl₂ exhibited slight suppression on enzyme activity (residual activity 97%), Cucl₂ and ZnCl₂ were more suppressive (residual activity 89 and 61%, respectively). Similar result was observed for alkaline protease from Brevibacillus sp. strain PLI-1 where Cu²⁺ and Zn²⁺ could almost completely inhibit the activity of the enzyme [21]. On the contrary, alkaline protease activity of Bacillus cohnii APT5 increased by 53% when treated with Mn²⁺ [20].

On the other hand, the highest suppression on activity was detected by HgCl₂ where only 4% of this activity was retained. Similarly, Hg²⁺ strongly inhibited alkaline protease activity of Bacillus sp. [26] and Lactobacillus brevis [23]. The inhibition exerted by some metal ions as Hg²⁺ might be due to their interference with the enzyme functional group like SH group [26].

3.3. Proteolytic Activity of the Enzyme on Wool and Feather

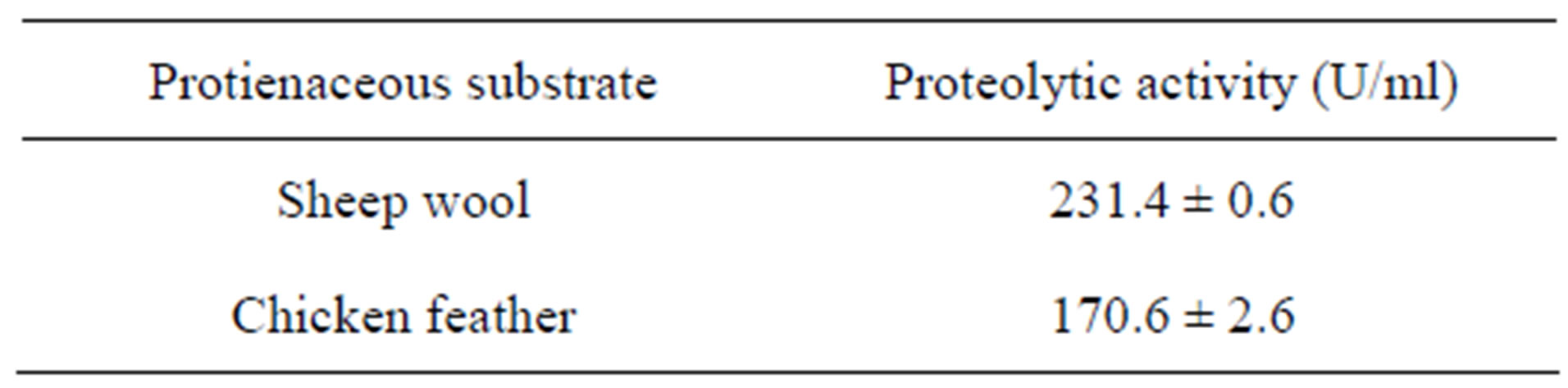

The present enzyme exhibited high proteolytic activity towards both wool and feather substrates, with the former being more digested (Table 3). These findings suggested the application of the present alkaline protease in the dehairing and leather processing [10]. Protease from Kocuria rosea showed high affinity towards feathers than other substrates [11].

3.4. Compatibility of Protease with the Common Detergent Tide

It is worthy to mention that, the present alkaline protease from Bacillus circulans L. was not only stable in presence of Tide detergent but also has a great efficiency in cleaning blood stains from piece of cloth either alone or in mixture with the detergent (Figure 2) but with the latter being more effective and giving the best cleaning

power. Similar result was observed after the addition of protease from B. subtilis PE-11 [27] and B. brevis SSAI [30] and B. cereus [8] to commercial detergents.

In this respect, in 1994 enzymes used in detergent industry was accounted for about 112 million $ of the world markets [29]. Alkaline proteases, particularly those which exhibit optimum activity at high pHs and high temperatures and used in detergent industry are preferred as an eco-friendly phosphate -free detergents [12].

The findings in this study suggest that the ability of the present alkaline protease of B. circulans 1 to hydrolyze sheep wool offering its possible application in removing hair from skin and hides in leather tanning industry, especially under alkaline conditions prevailing in such industry and instead of common chemicals which cause hazard environmental pollution. Furthermore, the present alkaline protease can be exploited in green recycling of feather wastes in poultry which offers cheap, safe and friendly environmental approaches that may help in reduction of pollution problems. The efficiency of B. circulans L. alkaline protease in removing blood stains encourages its possible use as suitable candidate for improving the cleaning property of Tide detergent.
