ABSTRACT

In the present work, the susceptibility of API 5L X52 steel to corrosion processes was evaluated in the presence of high contents of hydrogen sulfide and carbon dioxide. Gravimetric tests and surface analyses were carried out to establish both the corrosion rate and damage type exhibited by the metal. The obtained results indicate that the hydrogen sulfide is the most active gas in the corrosion processes that took place, quite above carbon dioxide. The main observed corrosion products were iron sulfides and the typical damage associated with hydrogen sulfide presence was Sulfide Stress Cracking (SSC). The surface damage evidences the presence of cracks with considerable magnitude and metal loss as consequences of the corrosion processes. Likewise, the presence of oxygen in the system modifies the displayed corrosion type, where corrosion products such as iron oxides and reduction in the number and extent of cracks are observed. On the other hand, the addition of a film-forming corrosion inhibitor based on modified imidazolines eliminates completely the development of cracks, although under certain test conditions, it can favor localized pitting corrosion.

Keywords:

H₂S Corrosion, Cracking, Corrosion Inhibition

1. Introduction

The quality of crude oil transported through pipelines is subjected to constant changes according to the exploitation time of reservoirs. In addition, this quality is also modifi- ed by the incorporation of currents coming from other hydrocarbon production fields.

From the corrosion point of view and more specifically for the case of the Gulf of Mexico region, currently, the transported hydrocarbons present, on average, maximal hydrogen sulfide and carbon dioxide contents in the order of 4% in the gas, in addition to around 20% of formation free water in oil. These fluids are handled under acceptable security conditions throughout the pipeline network already present in the region, which is made mainly of API 5L X52 steel.

In addition, maintenance and inner-corrosion-control prevention systems have been implemented, which consider the dosage of film-forming corrosion inhibitors. Currently, the used product formulation is based on modified imidazolines, being this kind of compounds the most common in the oil industry, due to their high protection efficiency in acid environments and good cost/benefit ratio [1] [2] [3] .

On the other hand, hydrocarbons that are being produced in new fields feature high hydrogen sulfide, carbon dioxide and water contents, which are above those currently handled by far. These fluids have to be transported also through the pipeline network already existent in the region.

Due to this situation, the estimation of hydrogen sulfide and carbon dioxide concentration above 20% and the increasing free water content, there is uncertainty as to the effect that the aforementioned conditions will exert on the corrosion control of API 5L X52 steel. The performance of this material is still being studied under the new operation conditions. Although different studies using high hydrogen sulfide/carbon dioxide concentrations have been carried out, they have been aimed mainly to establish the formation mechanisms of corrosion products on the steel surface [4] - [12] , without taking into account the corrosion type and its effect on the metal integrity. The previously mentioned becomes relevant when oil industry facilities operate under high pressure and temperature conditions are considered.

According to the facts mentioned above, the present research work was performed as a first approach to establish both the magnitude of the variables related to the conditions to which the pipeline steel will be exposed and the performance of the corrosion inhibitor currently dosed in the oil pipelines.

2. Experimental

The experimental design considered 6 corrosion evaluation tests, which were carried out using synthetic brine [13] modified at 10% sodium chloride in a pressured vessel at 70 kg·cm⁻² and flow rate of 600 revolutions per minute (RPM). All the tests were performed for 24 hours.

At first, the hydrogen sulfide/carbon dioxide effect at saturation level was established displacing air with high purity nitrogen (99.99%), which provided an environment with a minimal oxygen content (below 0.005 mg·L⁻¹) to evaluate the corrosion rate at two different temperatures with and without (blanks) corrosion inhibitors as shown in Table 1. Afterwards, tests without air displacement were performed, which resulted in an

oxygen content around 0.1 ± 0.01 mg·L⁻¹. The tests were carried out at 115˚C (Table 2).

Evaluation of the corrosion rate by weight loss. Two rotating cage pieces of equipment [14] [15] connected in a parallel arrangement were used to establish a uniform gas flow (Figure 1) for each test set, one piece of equipment for the reference blank and the other for the corrosion inhibitor.

Preparation and coupons handling. The steel used to carry out the tests had the same specification as the one employed in the construction of pipelines: API 5L X52 steel. Table 3 shows the typical chemical composition of this material.

The corrosion coupons were cut in order to have 75 × 19 × 3 mm dimensions and polished to reach a 1200 abrasive paper finishing. The coupons were conditioned for the tests according to the procedures described in the corresponding standards [16] [17] . Every rotating cage held 8 coupons.

Test conditions. Two liters of synthetic brine [18] (Figure 2) were poured into each piece of equipment and when applicable, air was displaced with nitrogen. Afterwards, hydrogen sulfide and carbon dioxide gases were bubbled simultaneously in order to reach the saturation concentrations, establishing the pH of each solution [19] . Once the corrosive medium was settled, the equipment conditioning was carried out until reaching the specific operation conditions for each test set, starting it with the corresponding flow and temperature conditions and increasing the internal autoclave pressure with nitrogen.

In the case of tests 2, 4 and 6 (Table 1 and Table 2), a modified-imidazoline-based corrosion inhibitor was used. It is considered that this additive is specially designed to be partitioned in the aqueous phase and aimed to controlling the corrosion caused by the combined action of hydrogen sulfide and carbon dioxide present in oil-gas, oil and gas pipelines.

Coupons analyses and weight loss determination. At the end of the tests, the sediments accumulated on the surface of the coupons were removed to be analyzed. Afterwards, chemical cleansing was carried out: a) cleaning with anhydrous acetone, b) cleaning with inhibited acid, c) neutralization of inhibited acid, d) cleaning with rubber

cap and e) dehydration with anhydrous acetone. The coupons were preserved in a desiccator until reaching constant weight to calculate the corrosion rate [16] . The average corrosion rate was calculated as follows:

(1)

where:

K = Constant (8.76 × 10⁴ for mm year⁻¹ and 3.45 × 10⁶ for mpy),

T = Time of exposure in hours,

A = Area in cm²,

W = Mass loss in grams,

D = Density in gcm⁻³ (7.85 for low alloy steels)

Surface analysis. The surface analysis was carried out by scanning electron microscopy, in high vacuum mode and using a secondary electron detector for the image formation without previous sample preparation. A microscope XL30 ESEM (Philips) equipped with a tungsten filament at acceleration voltage of 25 kV was used.

Analysis of corrosion products. Mössbauer Spectroscopy (MS). Transmission Mössbauer spectra were recorded at 27˚C with a conventional constant acceleration spectrometer (Wissel-Electronik), which was equipped with a krypton proportional detector. The γ-radiation source was 57 Co of 925 MBq (25 mCi) within a rhodium matrix maintained at room temperature. The chemical isomer shift (δ) data are given relative to α-Fe. The absorption spectra were fitted using the NORMOS software [20] .

3. Results

Tests 1 and 2.

The pH of the solutions used in the tests was 2.83 in both cases. On the other hand, the corrosion rate was considerably lower in the test carried out with corrosion inhibitor presence, Table 4. The corrosion inhibitor efficiency under the experimental conditions was 94.30%.

Here, the corrosion blanks obtained from Test 1 showed solids adhered to the surface whereas the blanks from Test 2 were found practically clean. This situation was expected, considering the low corrosion rate values exhibited by the steel coupons exposed to the corrosion inhibitor presence.

The corrosion products from Test 1 were analyzed by Mössbauer Spectroscopy (Figure 3), which shows the presence of oxides and iron sulfides, which are commonly observed in the sediments present in pipelines that transport sour hydrocarbons.

The surface morphological analysis was performed by both scanning electron microscopy and elemental chemical analysis by Energy-dispersive X-ray spectroscopy (EDS) (Figure 4). The coupons showed uniform corrosion and numerous points with localized corrosion. Damage displaying important amplitude and depth is observed.

The EDS analysis in Figure 4(e) indicates the presence of oxygen, silicon, chlorine, manganese and iron. The most intense peaks correspond to iron and oxygen, whereas those with lower magnitude are associated with chlorine, silicon and manganese. These elements are considered as alloying metals, with exception of chlorine, which appears as a contaminant coming from brine. Figure 4(f) shows the EDS analysis performed on the dark spots observed on the surface; here, the presence of oxygen, sulfur and iron (residues of corrosion products, which were not completely removed during the blank cleansing) are observed, which indicates that the corrosion products formed on the steel surface are mainly iron sulfides with different stoichiometric ratios.

In addition, it is important to emphasize that a higher magnification of the surface allowed the visualization of cracks with different sizes, orientations and depths (Figure 5). This condition is considered as highly risky for the metal integrity once exposed to the high pressure and temperature conditions. This also would imply an accelerated corrosion process, exposing the steel to riskier situations [21] .

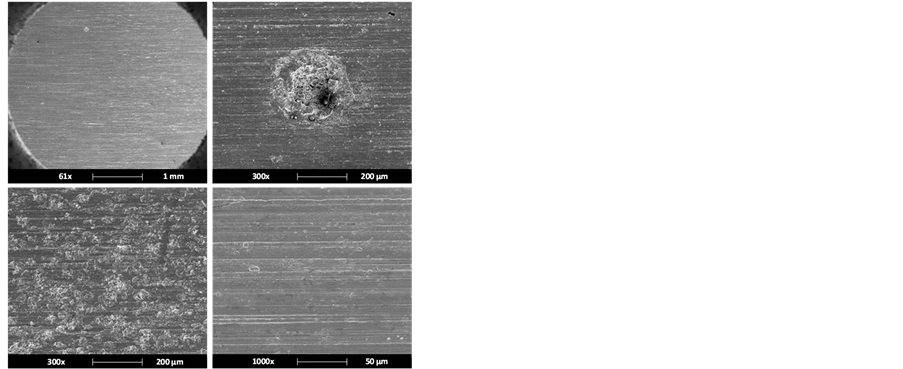

On the other hand, the surface analysis for the steel exposed to the Test 2 conditions (with corrosion inhibitor presence) only showed uniform corrosion (Figure 6(a)) and some more damaged zones (Figure 6(b)). The elements detected by EDS analysis (Figure 6(c)) were iron, oxygen, antimony, silicon and manganese, which are considered as either part of the alloy or impurities of the very metal, except oxygen, which is assumed as part of some oxide present on the surface.

Higher magnified images allowed the observation of both a high density of pitting-type localized corrosion, distributed heterogeneously over the analyzed area and areas affected by corrosion localized on the scratch edges (Figure 7(a) and Figure 7(b)). Figure 7(c) shows the EDS analysis performed on the metal surface, where a typical composition of the used steel type is observed.

Tests 3 and 4.

Tests 3 and 4 were carried out at a higher temperature (115˚C). The pH of the employed solution was 2.8.

The corrosion rate in Test 3 (without corrosion inhibitor) was higher than the one

obtained in Test 4 (Table 5). The average efficiency of the corrosion inhibitor under the test conditions was 84.87%. It is important to mention that the corrosion inhibitor efficiency diminished about 10% with respect to the efficiency obtained in Tests 1 and 2, attributing such diminution to the temperature increase.

For Test 3, corrosion residues suspended in brine were observed, which were filtered to be analyzed. According to the results obtained by Mössbauer Spectroscopy (Figure 8), the presence of mackinawite and marcasite is observed, although pyrrhotite prevails evidently. Likewise, iron carbide or cementite is identified with a considerable percentage of 18.6 %. This compound was not identified in Test 1.

Cementite is part of steel microstructure and occurs as a hard and fragile compound with a hardness value above 68 HRC. Its presence identified during the analyses is due to the flaking of some metal fractions as a consequence of the wearing out process occurring at the grain limits.

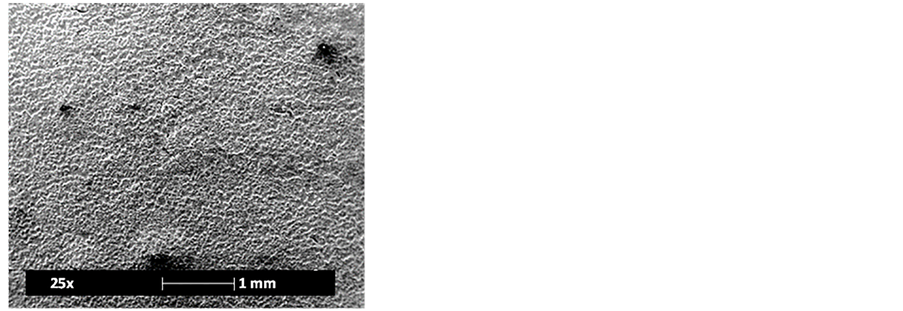

Figure 9 shows surface analysis images. Figure 9(a) features different magnitude elevations, some of them with dark spots, which are assumed as iron sulfides, taking into account the corresponding EDS analysis.

Likewise, most of the surface shows tracks of vanished scratches due to the occurrence of a uniform corrosion process. By means of highly magnified images, the presence of cracks with different shapes and variable orientations is evidenced, as it can be observed in Figures 9(a)-(f). Different EDS analyses were carried out on the cracks, identifying oxygen, carbon, iron, silicon and aluminum.

For Test 4, which was carried out in the presence of corrosion inhibitor, the formation of corrosion products was not enough to perform their analysis. Figure 10 shows metal surface images, where slight uniform corrosion with isolated pitting is observed.

Tests 5 and 6.

These tests were carried out at 115˚C, but the difference with respect to the first four tests was that environment oxygen was not displaced, in order to have an additional corrosive agent (Table 6). The pH of the used solution was 2.88.

The average corrosion rate of the corrosion blanks featured in Test 5 was higher than the one obtained in Test 6. The efficiency of the corrosion inhibitor was lower than those observed in the previous tests, with an average value of 76.61%.

Here, from the corrosion rate perspective, the combination of temperature and oxygen presence exerted a higher effect on the inhibitor performance.

The sediments recovered from Test 5, according to the Mössbauer Spectroscopy (Figure 11), indicate the presence of sulfides and iron oxides as corrosion products. Likewise, once again, the presence of cementite was identified, which is a compound that was found in the residues of Test 3. However, with Test 5, a lower content in the order of 2.5% was detected, which is in contrast with 18.6% reported in Test 3.

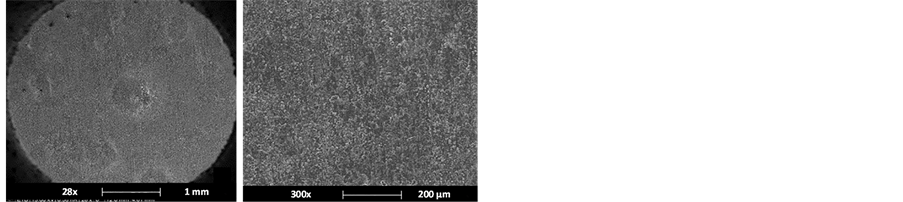

The surface analysis for steel exposed to Test 5 conditions is shown in Figure 12. Here, uniform corrosion all over the blank surface with some localized corrosion spots is shown. With higher magnification (Figure 12(c) and Figure 12(d)), some preferential cracking on the base material is observed, identifying the presence of metal fractures.

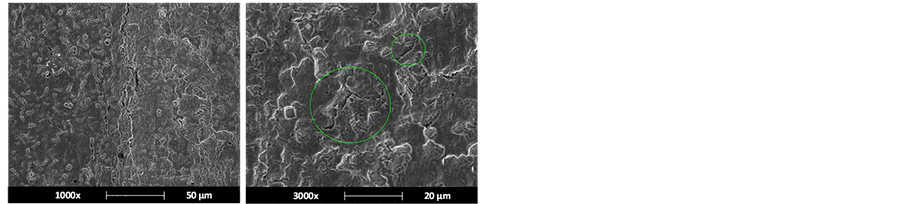

The cracking occurring in Test 5 is apparently of lesser magnitude in comparison with the one observed in Test 3. The extent and depth displayed by the Test 3 cracks allow the deposit of particles inside them, which is not observed in the images of Test 5 cracks.

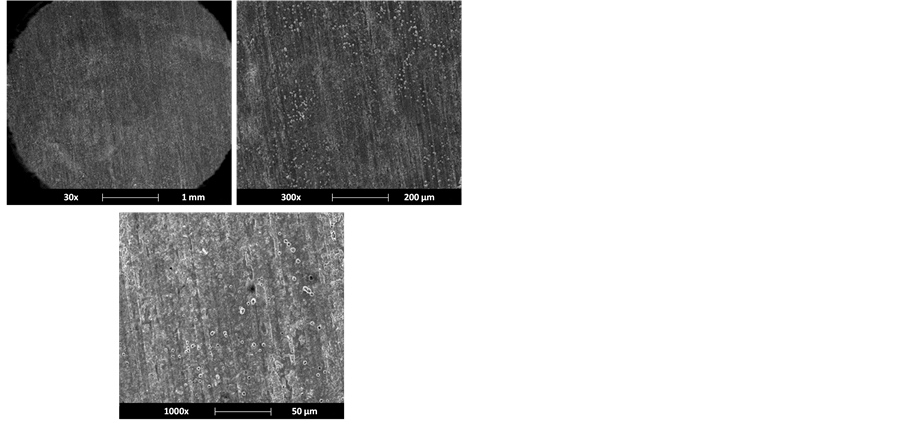

The surface analysis of the steel exposed to Test 6 conditions (with inhibitor presence) only shows slight uniform corrosion (Figure 13) with white spots on some areas that correspond to some material lobes formed on the surface.

4. Discussion

The corrosion rate of the evaluated blanks in corrosion inhibitor absence decreased as the temperature was increased from 70 to 115˚C and it falls lower when oxygen is not displaced from the system, as shown in Figure 14. This fact could indicate that the corrosion products formed on the metal surface are more protective at higher temperatures with oxygen presence.

However, it is worth emphasizing the presence of damage on the steel surface through localized processes such as pitting, fractures or cracking. The aforesaid could limit the meaning and interpretation given to the corrosion rate parameter, as they only consider uniform corrosion.

In environments with hydrogen sulfide/carbon dioxide saturation, the presence of iron sulfides and carbonates would be expected. Nevertheless, as already shown by different studies [22] [23] [24] [25] [26] , the formation of carbonates is not significant under the tested conditions and the formation kinetics of sulfides prevails during the process. Thus, the analysis of the corrosion products formed during the performed tests with hydrogen sulfide/carbon dioxide saturation shows that iron sulfides prevail at both test temperatures, with values above 80 weight%.

However, there are differences among the sulfide species formed at each temperature; although the presence and proportion of mackinawite is constant in both tests with a value around 20%. As it has already been shown by other researchers, this compound is formed extremely quickly and it is considered as the first sulfide formed in hydrogen sulfide environments [27] [28] [29] [30] .

In this way, at 70˚C the presence of sulfides and some oxides that are commonly observed in the sediments present in pipelines transporting sour hydrocarbons occurs; whereas at 115˚C, only three sulfide species are identified, where pyrrhotite prevails remarkably with around 60%.

In addition, it is worth mentioning the presence of cementite or silicon carbide (18%) in the obtained products during the tests performed at 115˚C. This compound is not a corrosion product for it corresponds to the material that is part of the steel microstructure [31] and its presence is attributed to a phase flake resulting from the occurring corrosion process.

On the other hand, when oxygen is not displaced from the system, the presence of oxides is favored, which affects the formation of sulfides. According to Test 5 results, the hematite and magnetite oxides represented around 60% of the obtained products, whereas 40% was constituted by iron sulfides, being pyrrhotite the prevailing sulfide. In addition, under these conditions, the presence of cementite is also observed, although with a lower proportion of 2.5%.

The results of the performed tests show how the corrosion products formed on the surface of the blanks are made up of different species depending on the test conditions. This fact has to be reflected on the surface protection condition.

The corrosion type observed in Tests 1 and 3 seems, at first sight, generalized; however, there are localized corrosion spots. Likewise, the presence of cracks on the metal surface becomes of more interest for the surface analysis. These fractures can be the beginning of more serious damage for the integrity of API 5L X52 steel, when exposed to environments with high hydrogen sulfide contents. Under these conditions, the development of some characteristic corrosion processes such as hydrogen induced cracking (HIC), sulfide stress cracking (SSC) and stress-oriented-hydrogen-induced cracking (SOHIC) [32] [33] [34] has been observed. In this particular case and according to what has been established by some researchers, this corrosion type would seem to be the most common failure for the steel, being the most dangerous mechanism for a metal fracture, as it can occur instantaneously without previous warning [21] .

According to the aforesaid, it is necessary that a suitable corrosion control system be implemented in the field when intending to handle fluids with high hydrogen sulfide and carbon dioxide concentrations through transport pipelines made of API 5L X52 steel. The previous statement stems from the fact that this material seems no to be the most suitable one for this type of fluids.

Corrosion inhibitor efficiency

The performance of the corrosion inhibitor currently used in the transport and distribution pipelines of the Gulf of Mexico region was evaluated. Such corrosion inhibitor is a commercial product based on modified imidazolines which works as a film-forming inhibitor.

The corrosion rates of the coupons exposed to the same conditions used for the three corresponding blanks, but with a chemical additive concentration of 50 mg·L⁻¹, are shown in Figure 15. These data correspond to Tests 2, 4 and 6.

It is evident that the corrosion rates are too low in comparison with those obtained for the blanks. Here, with corrosion inhibitor presence, a behavior that is opposite to the one displayed by the blanks is observed, which has already been reported for inhibitors of the same type [35] . The corrosion rate is lower at 70˚C, which was increased at 115˚C and became higher when oxygen was not displaced.

With the obtained corrosion rates in each pair of tests, the inhibitor efficiency was calculated according to the following equation:

(2)

At 70˚C and with hydrogen sulfide/carbon dioxide presence, the corrosion inhibitor seems to provide good metal protection, obtaining an efficiency of 94 %, whereas by increasing the temperature to 115˚C, the efficiency is decreased to 84 %. Likewise, the inhibitor exhibited poorer performance in the tests where oxygen was not displaced, with 76.3% efficiency (Table 7).

Nevertheless, even when chemical product efficiency is observed, it is worth noting that the estimated data consider a uniform corrosion process all over the surface of the blanks. In this way, the analysis of the protection provided by the corrosion inhibitor becomes relevant.

In the case of the first test set, the obtained efficiency rate is acceptable; however, the surface analysis of the blanks in the presence of corrosion inhibitor evidenced a high pitting density. This fact implies that the corrosion inhibitor is not protecting enough under the tested conditions. Likewise, it is evident that the corrosion process is very different in absence and presence of chemical additive for when it was added neither fractures nor cracks were observed.

For the second test set, the corrosion inhibitor efficiency was diminished, but no cracks or any other localized corrosion phenomenon were observed. Likewise, for the third test set, the corrosion inhibitor efficiency displayed the lowest value, but with better inhibition of cracks and localized corrosion.

In this way, it is worth mentioning that the average field dosage of corrosion inhibitor used in the transport pipelines located in the Gulf of Mexico zone is in the order of 10 to 20 ppm. Likewise, the local normativity applicable in the matter of pipeline internal corrosion control [36] establishes that the efficiency of chemical products has to be evaluated at concentrations ranging from 5 to 50 ppm. The minimal efficiency looked for a chemical product to be used in the field is 90 %, obtained by means of a gravimetric technique and without showing any kind of pitting.

According to the previously mentioned, the employed corrosion inhibitor would not

match the established requisites, even at the highest concentration recommended by the applicable normativity. At this point, it is worth noting that the film-forming corrosion inhibitors have shown in the laboratory efficiencies that are above 90% with concentrations below 25 ppm, according to the applicable normativity. This performance seems to work well under the average conditions that prevail in the hydrocarbon transport pipelines in the Gulf of Mexico region, which take into account hydrogen sulfide and carbon dioxide contents ranging from 2 to 4%, establishing corrosion rates below 0.05 mm·year⁻¹ (2 mpy) in most of the evaluated pipelines.

Notwithstanding, the possible effects exerted on the performance of the corrosion inhibitors for the transport of fluids with higher hydrogen sulfide and carbon dioxide contents, makes compulsory the performance of more detailed studies aimed at establishing new criteria in the evaluation of products in the laboratory. This is in order to make a selection for inhibitor field application and to provide safer conditions in handling hydrocarbons with high acid gas contents.

5. Conclusions

According to the obtained results and considering the test conditions featured in the present work, the hydrogen sulfide content exerts a higher impact on the corrosion processes occurring at the API 5L X52 steel coupons, as the mainly observed corrosion products are sulfides and no carbonate presence is detected. Likewise, when oxygen is not displaced from the system, the formation of iron oxides is favored, which appears with a proportion that is close to 60%, competing with the formation of sulfides.

This sulfide and oxide proportion seems to exert an effect on both the wearing out rate and the corrosion type occurring on the steel surface. The corrosion rate is inversely proportional to the system temperature and the oxygen presence becomes a variable that increases this effect.

Likewise, it is worth noting that the displayed corrosion type also seems to be different depending on the test conditions. With corrosion inhibitor absence and oxygen displacement, an important effect of hydrogen sulfide on the surface metal occurs, where the prevailing corrosion type is SSC. At this point, the observed cracks show a considerable extent and they could even have provoked metal flaking, which is shown by the presence of cementite observed in the tests performed at 115˚C. The development of this type of corrosion damage constitutes a high-risk condition for the integrity of the materials submitted to pressure and temperature conditions.

On the other hand, when oxygen is not displaced, the corrosion type produced by the hydrogen sulfide content is less evident and a uniform corrosion effect on the metal surface is also observed, which prompts the formation of oxides due to oxygen influence. In this way, even when SSC damage still appears, the observed cracks have less extent and depth and the uniform corrosion on the surface of the blanks becomes more evident.

The corrosion inhibitor used in the experiment showed high efficiency at a concentration of 50 ppm when evaluated in presence of hydrogen sulfide/carbon dioxide and at 70˚C. Likewise, although no fractures damage was observed, the blanks suffered severe pitting corrosion. For this reason, the obtained efficiency value has to be dealt with the correspondent considerations and stop being regarded as a corrosion inhibitor performance criterion. It is considered that at this temperature, the corrosion inhibitor does not exhibit the expected behavior.

On the other hand, the corrosion rates of the coupons obtained in the tests carried out at 115˚C, with and without air displacement, displayed good corrosion inhibition efficiency values of 84% and 76%, respectively. Likewise, the surface analysis indicated a suitable control of the SSC-type corrosion processes, only observing generalized corrosion.

After taking into account the performance featured by the corrosion inhibitor, it is necessary that the optimal application conditions be identified, considering both different concentrations and the possible combination with other chemical products [35] [37] .

Likewise, it is necessary to establish the magnitudes of the hydrogen sulfide/carbon dioxide concentration changes, due to the incorporation of currents coming from new wells, to the current transport and distribution systems. In addition, operation condition changes that will be needed to ensure the safe handling and flow of these hydrocarbons will have to be considered. This will give more precise parameters in the evaluation of corrosion inhibitors’ performance, which is required for protection of pipeline systems.

It is important to point out that the hydrocarbons transport and distribution network from the Gulf of Mexico comprise more than three hundred pipelines, handling hydrocarbons with H₂S and CO₂ contents between 2% and 4%. These fluids are handled under acceptable security conditions throughout the pipelines already installed, as long as a corrosion inhibitor dosage is considered. However, because a gradual increment on the concentrations of H₂S, CO₂ and H₂O is expected, a huge impact on the pipelines integrity is estimated.

This situation is not considered as a materials’ selection problem as a replacement of the pipelines is no feasible. Thereby, it becomes necessary to keep a continuous tracking of the steel corrosion rates and pay special attention to the type of corrosion that develops at the metal surface. This is because different damage from the uniform corrosion observed until now may appear.

According with the last, it is recommendable to consider the use and/or development of other corrosion inhibitors, specifically designed for handling fluids with high H₂S, CO₂ and water concentrations.

Cite this paper

Gayosso, M.J.H., Olivares, G.Z., Fragoso, S.B., del Valle, G.E.B., Oidor, D.M.G. and Gómez, V.Á.R. (2016) Corrosion Behavior of API 5L X52 Steel under High Concentrations of H₂S/ CO₂ Gases. Materials Sciences and Applications, 7, 623-643. http://dx.doi.org/10.4236/msa.2016.710051
