ABSTRACT

A stability indicating LC method was developed for the simultaneous determination of Amlodipine and Benazepril capsules in pharmaceutical dosage form. Efficient chromatographic separation was achieved on Symmetry C₁₈ stationary phase with simple combination of amobile phase containing 750 mL of DI Water, 250 mL of Acetonitrile and 2 mL of Octylamine into suitable container with adjusted pH to 2.50 ± 0.05 with the aid of Ortho phosphoric acid delivered in an isocratic mode and quantification was carried out using UV detection at 240 nm at a flow rate of 1.0 mL∙min⁻¹ with an injection volume of 20 μl and ambient column temperature. This method is capable to detect both the drug components of Amlodipine and Benazepril in presence of their degradation products (Amlodipine Imp-A and Benazepril Impurity-C) with a detection level of 0.05%. Amlodipine/Benazepril in their combination drug product were exposed to thermal, photolytic, hydrolytic and oxidative stress conditions, and the samples were analysed. Peak homogeneity data of Amlodipine and Benazeprilis were obtained using PDA detector, in the stressed sample chromatograms, demonstrating the specificity. The method shows excellent linearity over a range of 0.05% - 2.0% for Amlodipine, Amlodipine Impurity-A and 0.05% - 5.0% for Benazepril and Benazepril Impurity-C. The correlation coefficient for Amlodipine and Benazepril is 1. The relative standard deviation was always less than 2%. The proposed method was found to be suitable and accurate for quantitative determination and the stability study of Amlodipine and Benazepril in pharmaceutical preparations. The developed HPLC method was validated with respect to linearity & range, accuracy, precision and robustness.

1. Introduction

The amlodipine besylate component of amlodipine/benazepril capsules is chemically described as 3-ethyl-5-methyl (±)-2-[(2-aminoethoxy)methyl]-4-(2-chlorophenyl)-1, 4-dihydro-6-methyl-3,5-pyridinedicarboxylate, monobenzenesulphonate [1]. Amlodipine is a dihydropyridine calcium antagonist (calcium ion antagonist or slow-channel blocker) that inhibits the movement of calcium ions into vascular smooth muscle cells and cardiac muscle cells.

Amlodipinebesylate is a white to pale yellow crystalline powder, slightly soluble in water and sparingly soluble in ethanol.

Amlodipine besylate has an empirical formula of C₂₀H₂₅ClN₂O₅∙C₆H₆O₃S, and its molecular weight is 567.1, its structural formula is shown in Scheme 1.

Benazepril, the active metabolite of benazepril, is a no sulfhydryl angiotensin-converting enzyme (ACE) inhibitor. Benazepril is converted to benazeprilat by hepatic cleavage of the ester group.

Benazepril hydrochloride is a white to off-white crys-

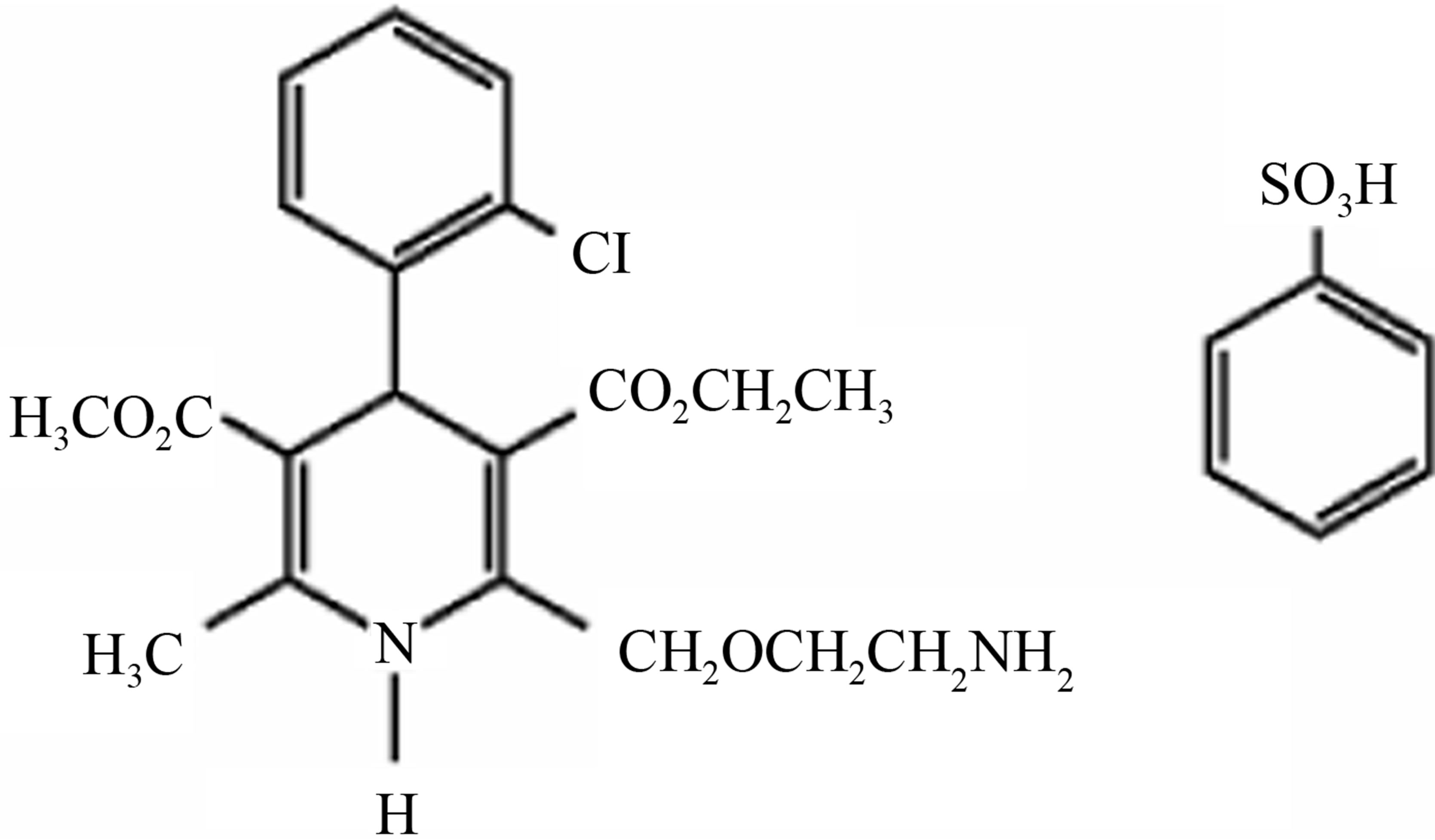

Scheme 1. Amlodipine besylate chemical structure.

talline powder, soluble (>100 mg/mL) in water, in ethanol, and in methanol. Benazepril hydrochloride’s chemical name is 3-[[1-(ethoxycarbonyl)-3-phenyl-(1S)-propyl] amino]-2,3,4,5tetrahydro-2-oxo-1H-1-(3S)-benzazepine-1-acetic acid monohydrochloride Benazepril Hydrochloride has an empirical formula of C₂₄H₂₈N₂O₅∙HCl, and its molecular weight is 460.96 and its structural formula is shown in Scheme 2.

Amlodipine/Benazepril Capsules Brand name is called as Lotrel [2]. Lotrel is a combination drug, containing benazepril (Lotensin) and amlodipine (Norvasc) and is used for treating high blood pressure. Benazepril is an angiotensin converting enzyme (ACE) inhibitor. ACE is an enzyme in the body that is important for the formation of angiotensin II. Angiotensin II causes constriction of the muscles surrounding arteries in the body, thereby narrowing the arteries and elevating blood pressure. ACE inhibitors such as benazepril lower blood pressure by inhibiting the formation of angiotensin II, thus relaxing the muscles and dilating the arteries. Relaxing the arteries not only lowers blood pressure, but also improves the pumping efficiency of a failing heart and improves the pumping of blood by the heart in patients with heart failure. Amlodipine belongs to a class of medications called calcium channel blockers. These medications block the transport of calcium into the smooth muscle cells lining the coronary arteries and other arteries of the body. Since calcium is important in muscle contraction, blocking calcium transport relaxes artery muscles and dilates coronary arteries and other arteries of the body. Relaxing muscles of arteries lowers blood pressure. The FDA approved Lotrel in March 1995.

Amlodipine is official in USP [3] and Benazepril is also official in USP [4] and their combination drug product also official in USP pharmacopoeia.

Lotrel is available in a variety of dosage combinations that can be adjusted to best fit your needs. The Dosage combinations are given as amlodipine besylate equivalent to 2.5 mg, 5 mg or 10 mg of amlodipine, with 10 mg, 20 mg or 40 mg of benazepril hydrochloride providing for the following available combinations: 2.5/10 mg, 5/10 mg, 5/20 mg, 5/40 mg, 10/20 mg and 10/40 mg.

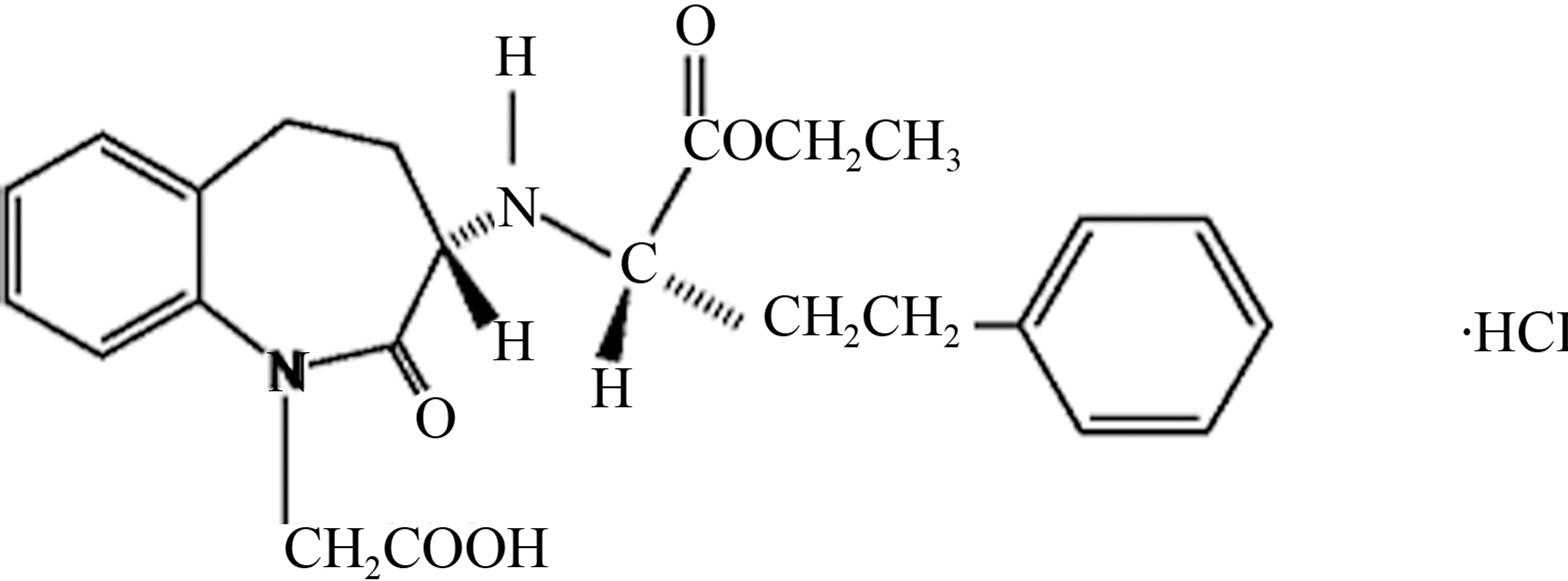

Scheme 2. Benazepril hydrochloride chemical structure.

Even though the products have been captured in USP, an in-house method has been developed and validated as per ICH guideline and monitoring of these impurities with good separation of peaks and quantification of impurities in Amlodipine/Benazepril capsules as shown in Schemes 3 and 4.

Stability testing forms an important part of the process of drug product testing to provide evidence on how quality of a drug substance or drug product varies with time under the influence of a variety of environmental factors such as temperature, humidity, light and enables recommendation of storage conditions, retest periods and shelf life to be established. The two main aspects of drug products that play an important role in shelf life determinations are assay of active drug and degradants generated during the stability study. Stability-indicating methods have been reported for assays of various drugs in drug products containing only one active drug substance. Only few stability-indicating methods are reported for the impurity assay of combination drug products containing two or more active drug substances. The objective of this work was to develop an analytical LC procedure, which would serve as stability-indicating impurity assay method for combination drug products of Amlodipine and Benazepril.

The literature survey reveals that several methods were reported for the individual estimation of Amlodipine and Benazepril. Various methods using HPLC [5-7], RPHPLC [8,9], HPTLC [10,11], LC-MS [12], LCMS/MS [13] and simultaneous UV spectrophotometric methods [14,15] are reported for the estimation of Amlodipine alone or Benazepril alone or in combination with other agents [16]. In USP, the reported analytical procedures describe a method for simultaneous determination of Amlodipine and Benazepril in combined pharmaceutical dosage form in the presence of their degradants with 110 minutes as runtime.

If the reported individual methods are applied for the analysis of the capsules containing Amlodipine and Benazepril, it would require UPLC to have shorter runtime and it’s not possible for all to afford the same and the method would not be rapid, less expensive, or economical, whereas the simultaneous determination of the ingredients of the Capsules would be rapid, stability indicative and also economical and can be afforded by all.

In the present study, attempts were made to develop a

Scheme 3. Amlodipine impurity-A chemical structure.

Scheme 4. Benazepril impurity-C chemical structure.

rapid, economical, precise and accurate method for the simultaneous estimation of the ingredients of this combination in the presence of their degradants.

2. Experimental

2.1. Chemicals & Reagents

Samples of amlodipine Impurity-A and the Benazepril impurity-C were synthesized and characterized at Hetero Drugs and Aarti Industries Limited, India. HPLC grade acetonitrile & Methanol was procured from Honeywell: Burdick & Jackson, Muskegon, MI 49442 and analytical grade Octylamine was procured from Sigma Aldrich Company, 3050 spruce Street, St. Louis, MO-63103, High purity water was generated in-house from Siemens water purification system.

The product Amlodipine Tablets in Benazepril Capsules consists of dibasic calcium phosphate, microcrystalline cellulose, crospovidone colloidal silicon dioxide, magnesium stearate lactose monohydrate, pregelatinized starch and hydrogenated vegetable oil as excipients. The combination drug product samples were provided by InvaGen Pharmaceuticals, Inc. for this work.

2.2. Chromatographic Conditions

The chromatographic system used was Shimadzu LC 2010 HPLC system comprised of degasser, quaternary pump, auto injector, column compartment, UV detector and the system was controlled through EZ chrome software. Symmetry C₁₈, (4.6 × 150 mm), 5 micron or equivalent (Advance Chromatography, USA), maintained at 25˚C using a column oven, eluted with mobile phase at the flow rate of 1.0 mL∙min⁻¹ with Isocratic program.

Mobile Phase: Transferred 700 mL of DI Water, 200 mL of Acetonitrile and 100 mL of Methanol into suitable container, Added 2.0 mL of Octylamine and mixed well. Adjusted the pH to 2.50 ± 0.05 using Ortho Phosphoric acid. Filtered through 0.45 µm nylon membrane filter and degassed.

Measurements were made with injection volume 20 µl and ultraviolet (UV) detection at 240 nm. For standard and sample solution were prepared using the diluent nothing but Mobile phase.

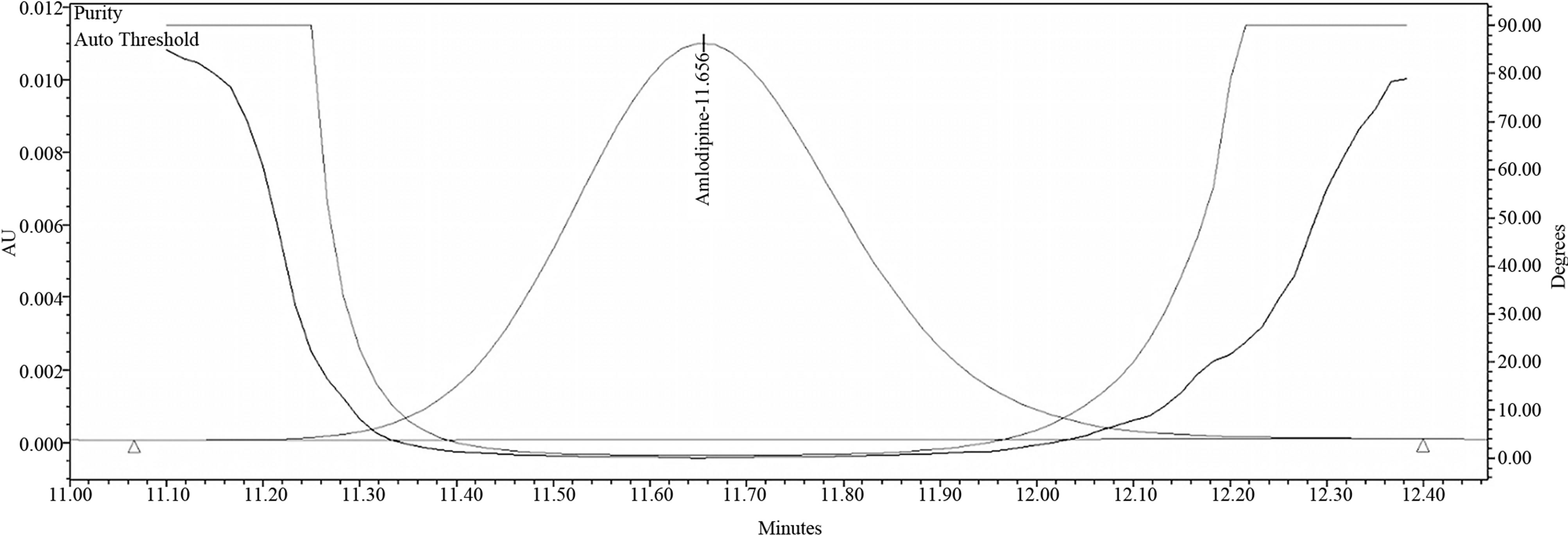

For analysis of forced degradation samples, the photodiode array detector (Model No. 2998) and Empower Software was used in scan mode with a scan range of 200 - 400 nm. The peak homogeneity was expressed in terms of peak purity and was obtained directly from the spectral analysis report using the above-mentioned software.

2.3. Preparation of Solutions

Standard Stock Solutions:

Standard solutions were prepared by dissolving the drugs in the diluent and diluting them to the desired concentration.

Amlodipine:

34.7 mg AmlodipineStandard (99.8%) was accurately weighed, transferred into a 50 mL volumetric flask, and dissolved with diluent.

Benazepril:

100.0 mg Benazepril standard (99.7%) was accurately weighed, transferred into a 100 mL volumetric flask, and dissolved with diluent.

Low Level Standard Preparation:

Transferred 1.0 mL of each above solution in 200 mL flask and diluted with diluent. The concentration of Low levelstandard Preparation contains 0.0003472 mg/mL of Amlodipine Besylate and 0.00050 mg/mL of Benazepril.

Detectability Level Standard Preparation:

Transferred 5.0 mL of the above Low level standard solution in 50mL flask and diluted with diluent. The concentration of Detectability level standard Preparation contains 0.000347 mg/mL of Amlodipine Besylate and 0.00050 mg/mL of Benazepril.

Preparation of Sample:

Weighed 20 capsules and recorded the weight. Emptied the capsules and cleaned the capsule shell with cotton swabs. Weighed the empty capsules and recorded the weight. Determined the average fill weight by subtracting empty capsule weight from filled capsule weight obtained.

A quantity of powder equivalent to 50.0 mg of Amlodipine was transferred into a 100 mL volumetric flask. To this flask, 75 mL of diluent were added, and the solution was sonicated for about 15 minutes with intermittent shaking and with mechanical shaking for about 15 minutes. The solution was cooled to ambient temperature. Then the volume was made up with diluent and centrifuged for about 15 minutes. Then the solution was used for injection.

2.4. Optimization of the Chromatographic Conditions

To develop the stability-indicating method different stationary phases like C18, Discovery HS C18, different mobile phases containing buffers like tri ethylamine in water, Tetra butyl ammonium hydrogen sulfate with different pH (3 - 5) and organic modifier (acetonitrile) were used.

Our objective of the chromatographic method development was to achieve a peak tailing factor <2, Signal to Noise Ratio should be above 10, Theoretical plates should be above 1000 for Amlodipine and Benazepril and % RSD for 5 consecutive injection should be less than NMT 10.0% and very good separation between amlodipine Impurity-A, Benazepril Impurity-C along with drug peak amlodipine and benazepril. As this method is used for quantifying impurities in drug product only degradation products are monitored. This method is capable of separating other process related impurities also but validation was done for only degradation products at this time.

The chromatographic separation was achieved using a Symmetry C₁₈, (4.6 × 150 mm), 5 micron or equivalent. Changing the composition of mobile phase optimized the chromatographic method. Segregation of both peaks (Amlodipine and Benazepril) was observed on any C₁₈ or CN column but it was difficult to separate both drug degradants on these columns (amlodipine Impurity-A and Benazepril Impurity-C). The Symmetry C₁₈ column showed better performance as compared to other columns.

3. Analytical Method Validation

The developed chromatographic method was validated for selectivity, linearity, range, precision, accuracy, sensitivity, robustness and system suitability.

3.1. Selectivity/Specificity

Selectivity of the developed method was assessed by performing forced degradation studies [9-13]. According to ICH [14] stress testing of the drug substance can help the intrinsic stability of the molecule and validate the stability indicating power of the analytical procedure used. Photo stability testing should be an integral part of stress testing. The standard conditions for photo stability testing are described in ICH Q1B [11]. The specificity of the developed LC method for Amlodipine and Benazepril was determined in the presence of its related compounds Amlodipine impurity-A, Benazepril impurity-C.

The stress conditions employed on Amlodipine and Benazepril capsules as degradation study includes acid hydrolysis (5 mL of Conc. HCl), base hydrolysis (2 mL of 2N NaOH), oxidation (2 mL of 3% H₂O₂), photolysis (ICH Q1B) and thermal (80˚C) study.

As such sample provided the Total Impurities level as below reporting limit (BRL) which includes Amlodipine Impurity-A and Benazepril Impurity-C as BRL whereas in acid degration the sample subjected to 5 mL of Conc. HCl for 2 hours and the Total degraded impurities were found 14.85%.

In Base degradation the sample subjected to 2 mL of 2N NaOH for 2 hours which produces the total impurities of 0.29% and the samples under Oxidation with 2 mL of 3% H₂O₂ provides the Total impurities result as BRL.

Under UV treatment of Sample on 3 days provides the Total impurities as 0.05% and in Thermal condition at 80˚C the total impurities were found 0.10%.

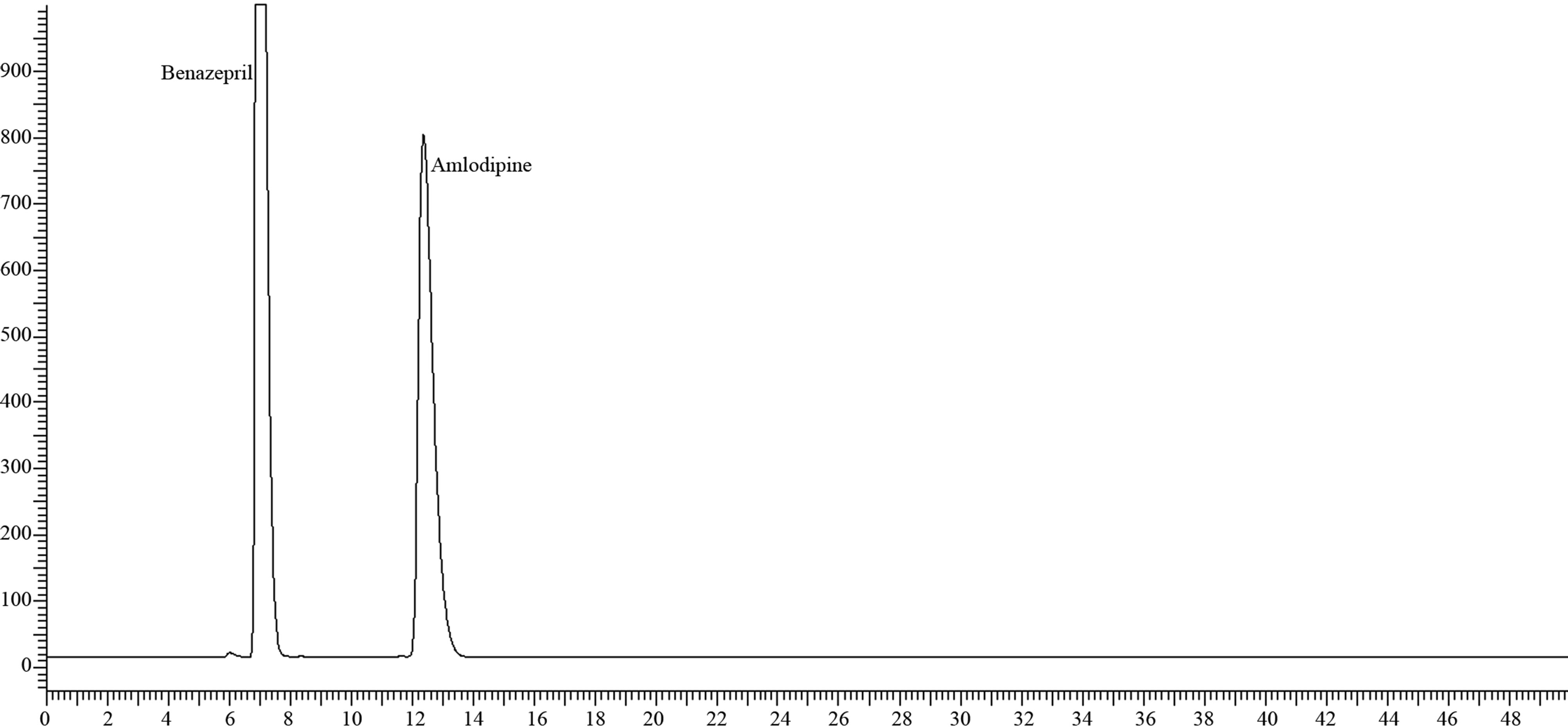

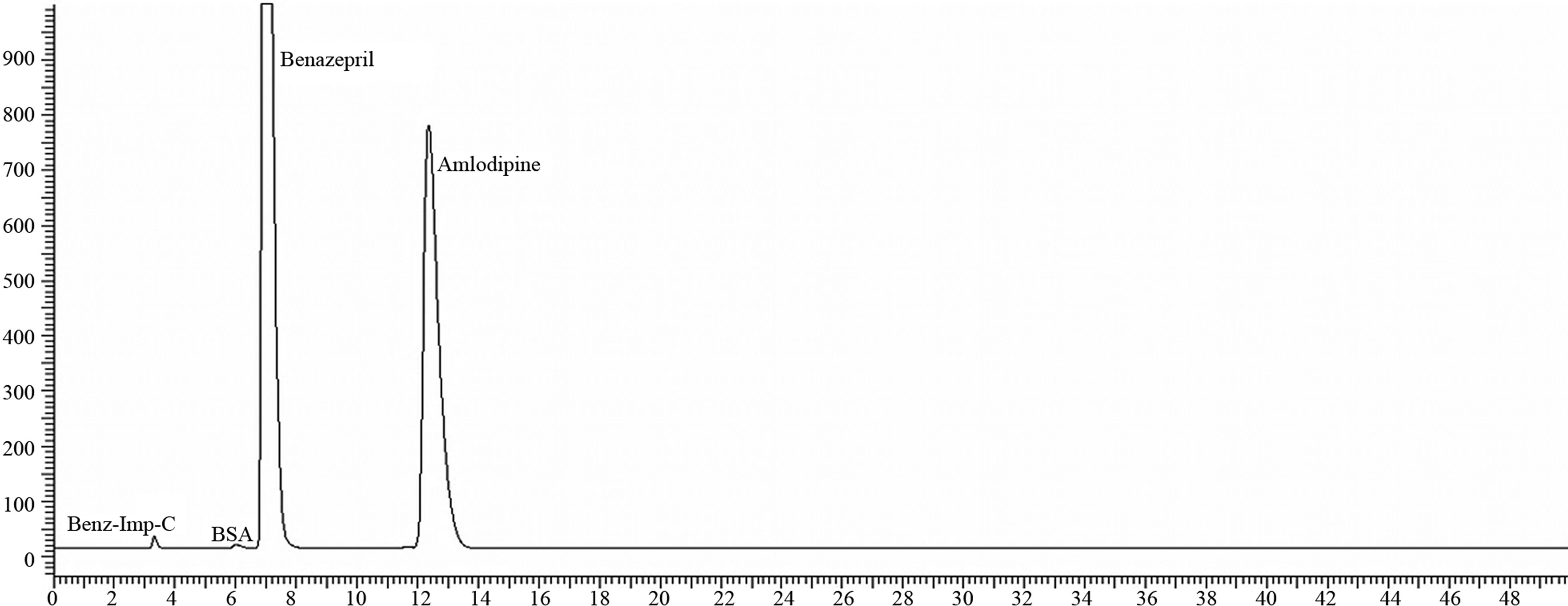

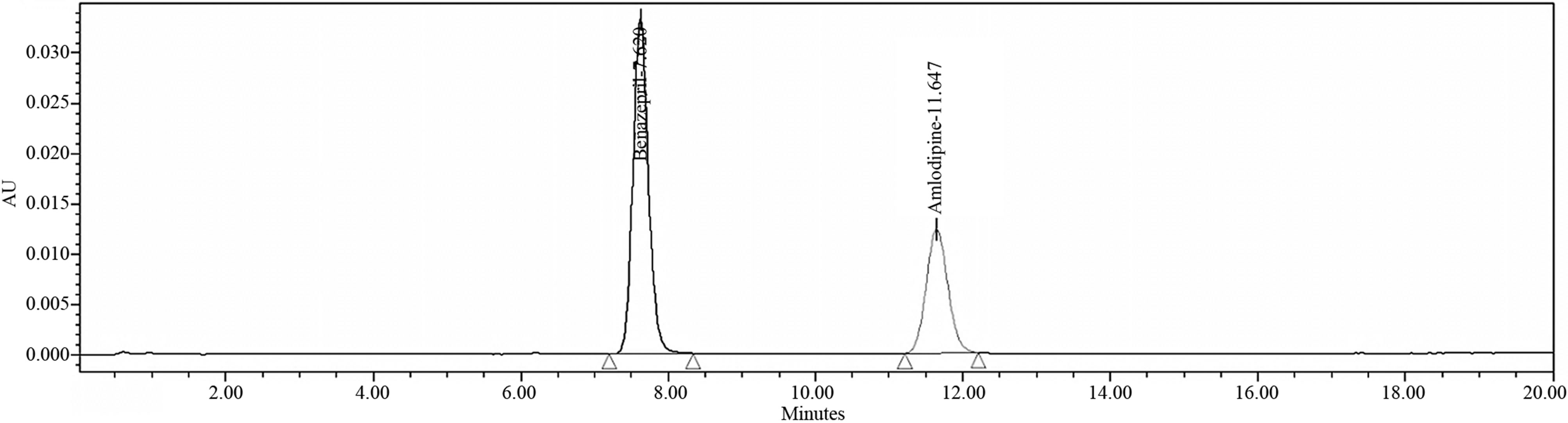

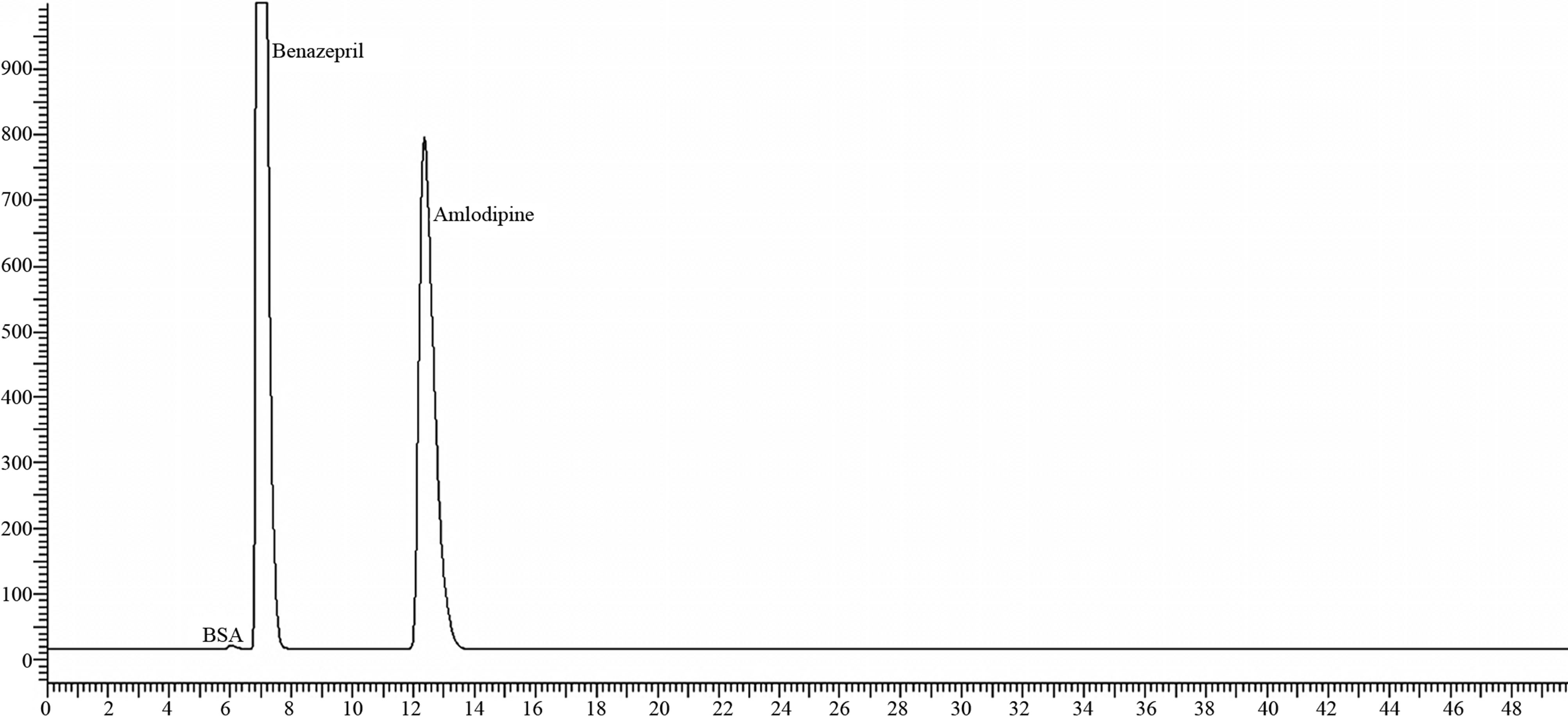

For all the above, degradation studies results were presented in Tables 1(a) and (b) and related chromatograms were represented in Figures 1 through 6.

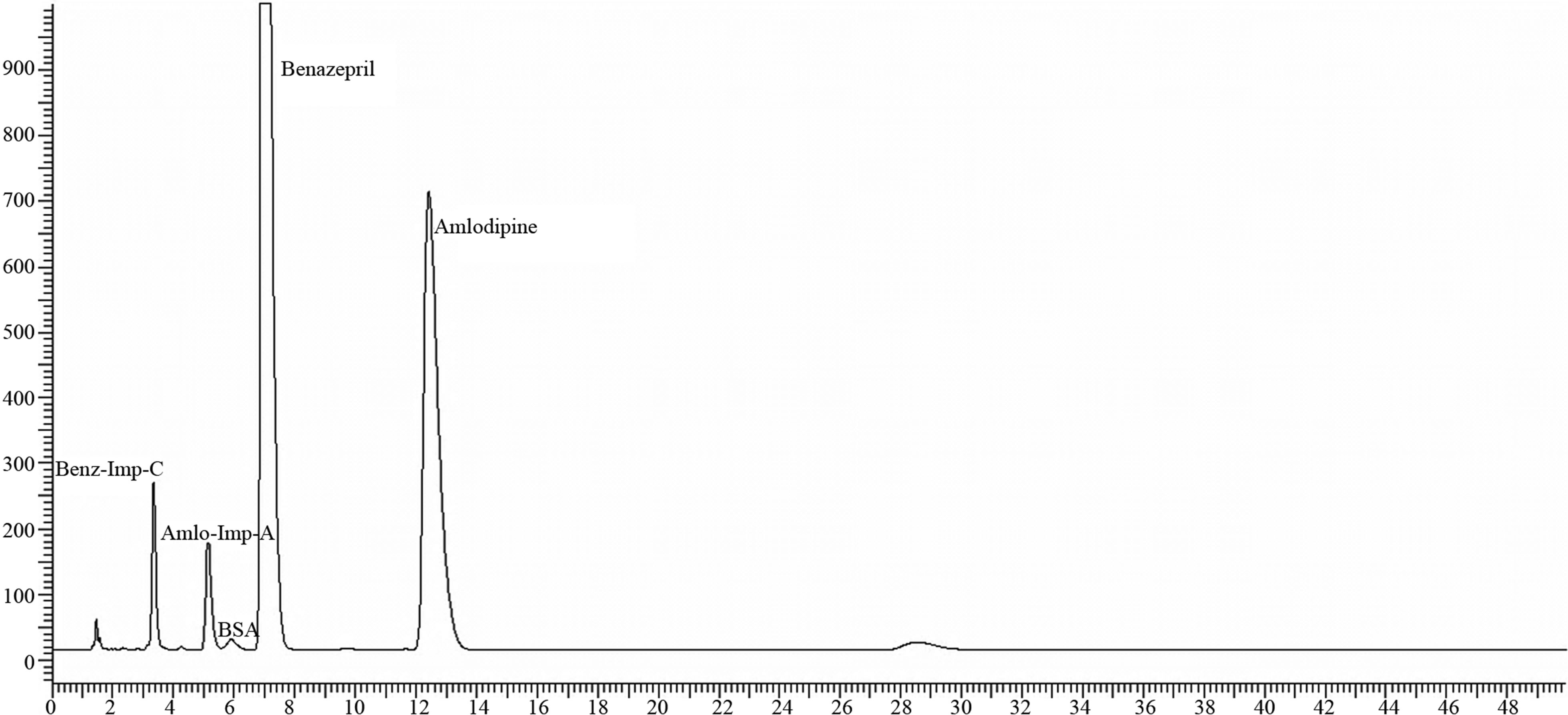

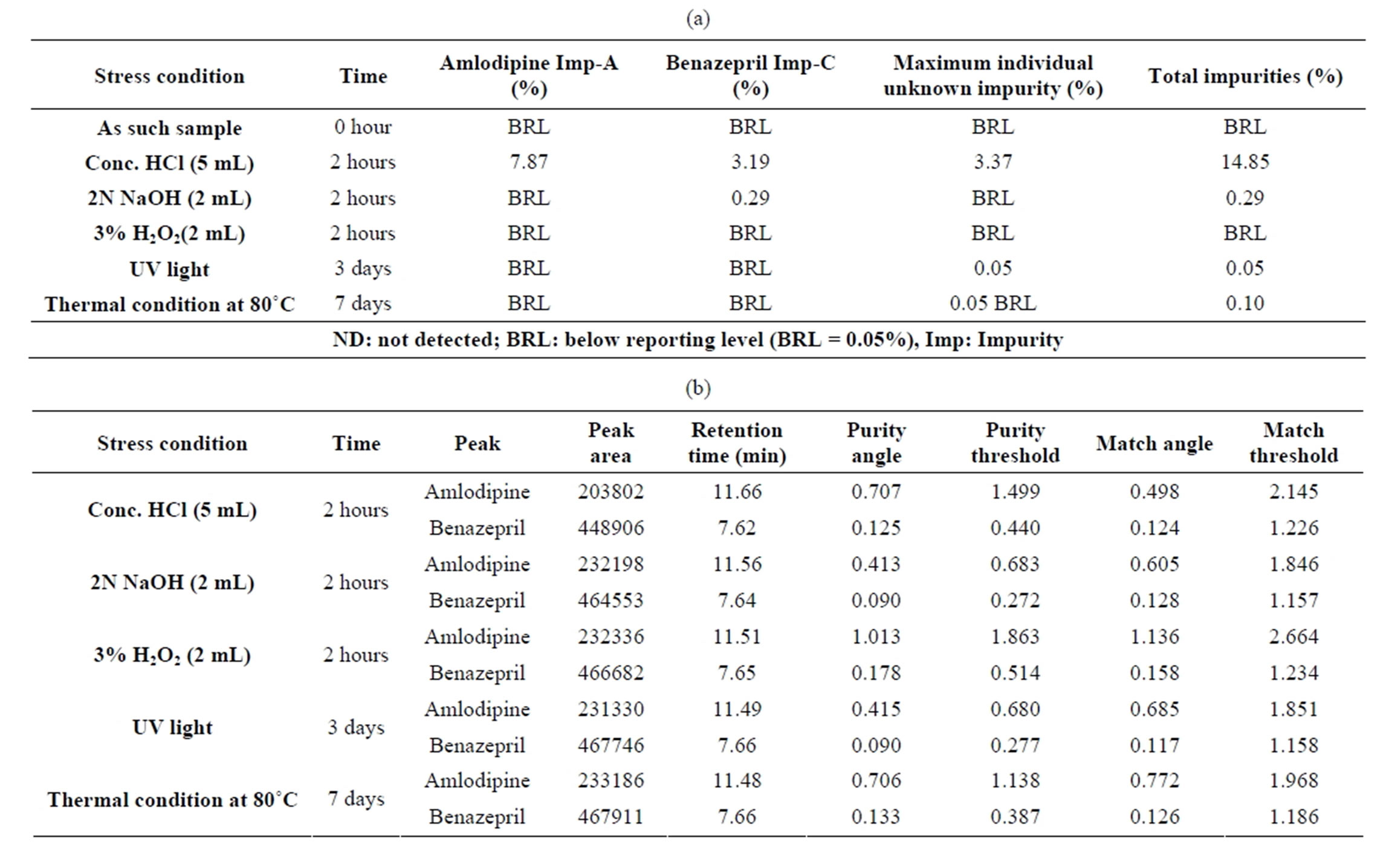

Tables 1(a) and (b) result of analysis of forced degradation study samples using the proposed method, indicating percentage of degradation and peak purity of Amlodipine and Benazepril capsules. Figure 7 refers to Related compound and Assay chromatogram of the combination drug product. Figures 8 and 9 refer to peak purity plot of Amlodipine and Benazepril respectively.

3.2. Results and Discussion

From the development studies, it was determined that using mobile phase as 750 mL of DI Water, 250 mL of Acetonitrile and 2 mL of Octylamine into a suitable container adjusted the pH of the solution to 2.50 ± 0.05 with the aid of Ortho phosphoric acid with Isocratic flow rate of 1.0 mL/min and ambient temperature. The analytes of this combination had adequate retentions, peak shape, less tailing, more resolution between drug and it’s degradantsand the chromatographic analysis time was about 60 minutes. In optimized conditions Amlodipine, Benazepril and their degradants were well separated. Typical retention times of Amlodipine and Benazepril were about 12.58 and 7.52 min and for amlodipine Impurity-A, Benazepril Impurity-C and benzene sulphonic acid were about 5.14 min, 3.57 min and 6.25 min respectively.

The retention time asper USP monograph method was about 110 minutes but as per in-house validated method the retention time was 60 minutes which is reduced to

fifty percent of total run time and at the same time the separations were achieved to greater extent and the methods proved to be stability indicating. No EP methods are available on this combination. Instead of regular HPLC if we use UFLC the retention time can be reduced to another 20 minutes with the same suitability parameters. Development on UFLC is not an option in the present study keeping in view this application for cost effective generic products to help the people with low cost medicines.

During the initial forced degradation experiments, it was observed that acid hydrolysis was a fast reaction for Amlodipine and Benazepril capsules and almost complete degradation occurred when 5 mL of Conc. HCl solution was used.Both drugs showed extensive degradation in acidic condition and indicating homogeneous peaks and thus establishing the specificity of the Impurity assay method.

3.3. Calibration and Linearity

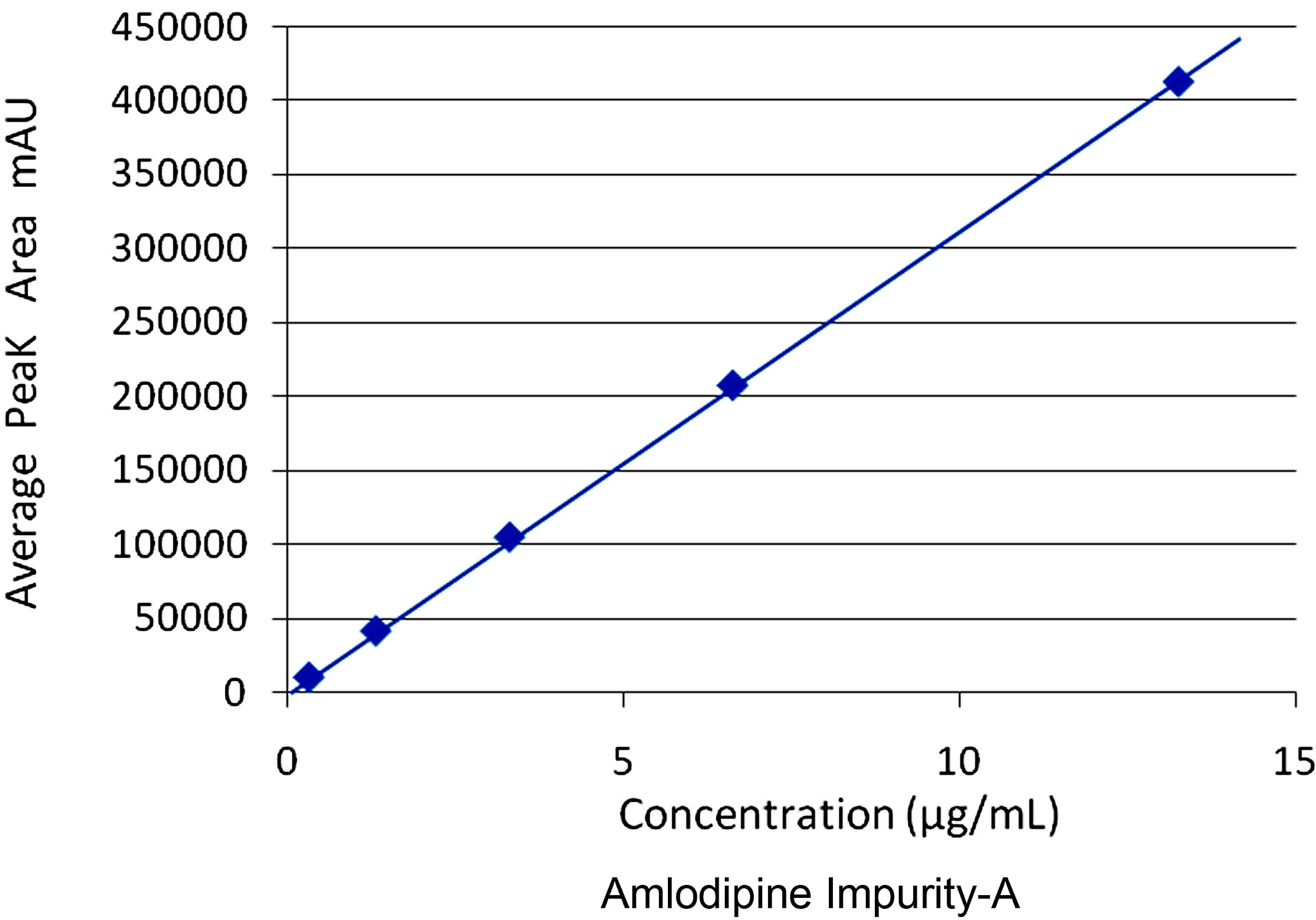

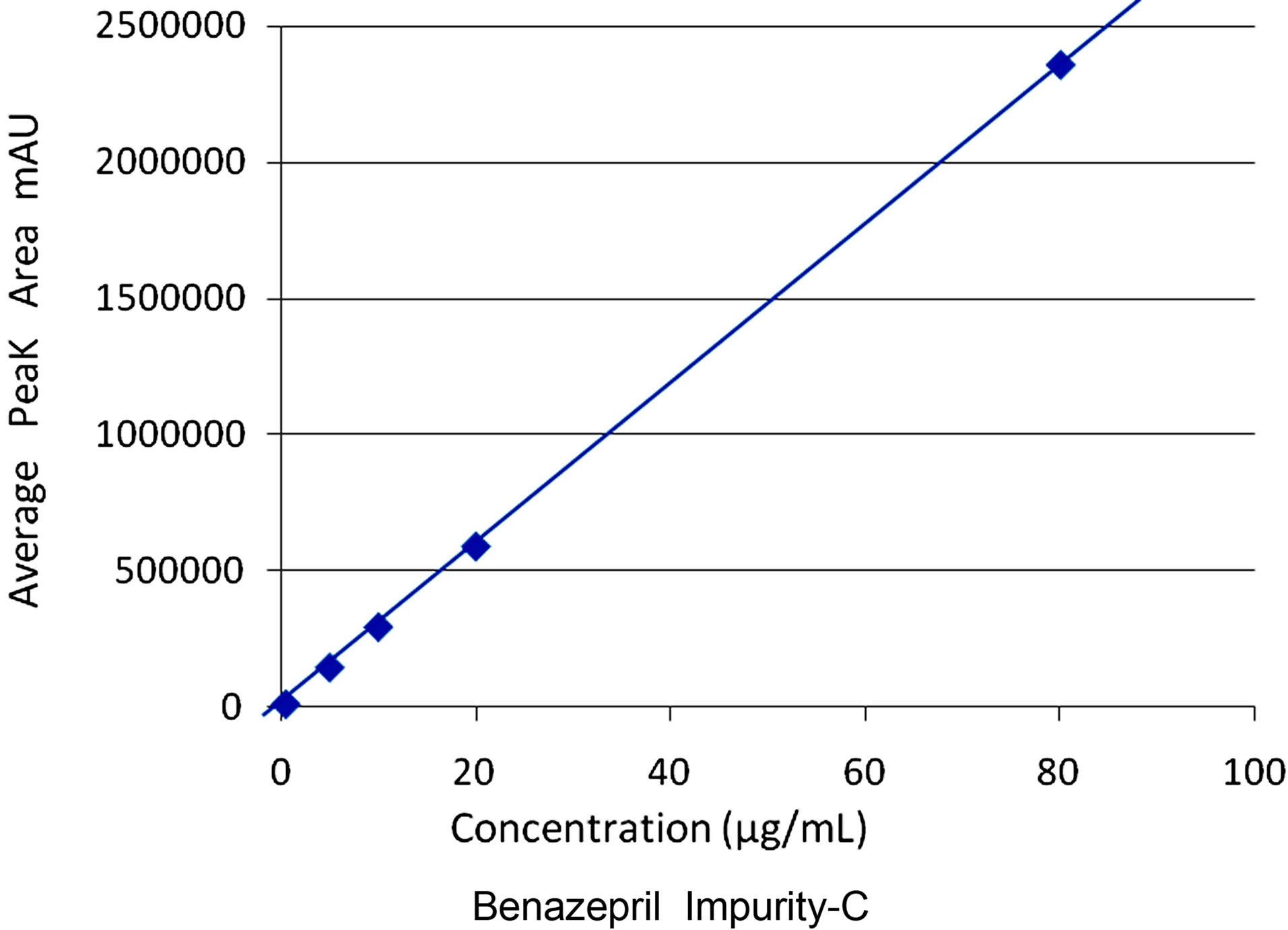

Calibration curve obtained by the least square regression analysis between average peak area and concentration showed linear relationship with a regression coefficient of 0.999 over the calibration ranges tested.

The results of linearity and range obtained for the two potential impurities were tabulated. Linear calibration plot for this chromatographic method was obtained over the calibration ranges tested, i.e. 0.05% to 1.0% for Amlodipine impurity-A and 0.05% to 5.0% for Benazepril impurity-C. The correlation coefficient obtained was greater than 0.999 for the two impurities and the major compounds Amlodipine and Benazepril (Figures 10 and 11). The method exhibited good linearity with correlation coefficient values greater than 0.999.

3.4. Precision (Repeatability)

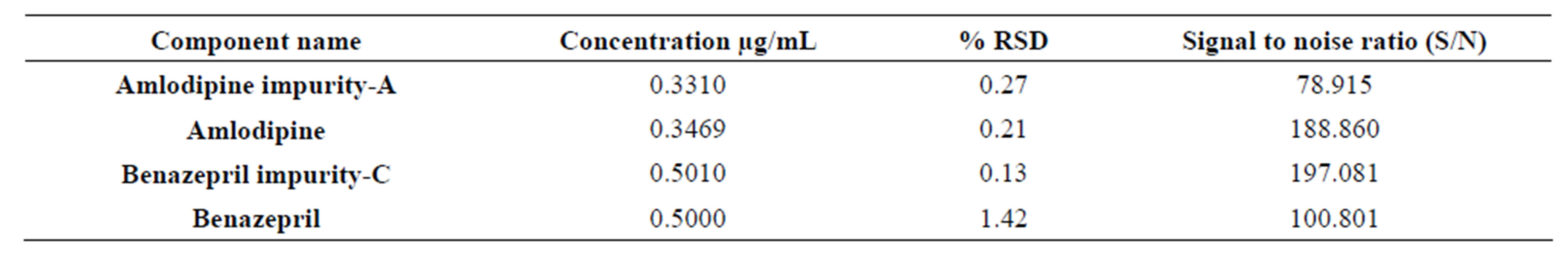

The precision of the method was studied by determining the concentrations of each0.13 and 0.16. The results of the precision study indicate that the method is reliable (RSD% < 10), in Tables 2(a) and (b).

Table 2(a): % RSD of six (6) replicate injections of each impurity should be less than 10.0, theoretical plates should be NLT 1000 and tailing factor should be NMT 2.0 for system precision.
