Properties, Application and Synthesis Methods of Nano-Molybdenum Powder

Pengfa Feng, Weicheng Cao

Jinduicheng Molybdenum Co., Ltd., Xi’an, China

Copyright © 2016 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: August 15, 2016; Accepted: September 24, 2016; Published: September 27, 2016


Nano molybdenum powder has been applied in many industrial fields in forms of lubricant additives, metallurgical additives, powder sintering additives, and one of raw materials of electrical components, cleaner and smoke suppressor. The pro- cesses, mechanisms and prospects of its synthesis methods are comprehensively analysized, including plasma physical vapor deposition technology (PPVD), reduction of MoCl4 vapor, activated reduction technology, electro-explosion of molybdenum wire (Elex process), pulsed wire discharge technology, electron beam irradiating method, hybrid plasma process, vapor phase reduction of MoO3, and microwave plasma che- mical vapor deposition (MPCVD), etc.


Nano Molybdenum Powder, Properties, Synthesis, Application

1. General Instructions

The important microstructural features of metals include a) grain size, distribution, and morphology, b) the nature and morphology of grain boundaries and interphase interfaces, c) the perfection and nature of intragrain defects, d) composition profiles across grains and interfaces, and e) identification of residual trapped species from processing. The structure of the grain boundaries is the same in both nanocrystalline and coarse grained materials. Because of the extremely small dimensions, a large volume fraction of atoms is located at the grain boundaries, which confers that the properties of nanocrystalline materials are very often superior to those of conventional polycrystalline coarse grained materials [1] . Nanocrystalline materials exhibit increased strength/hard- ness, enhanced diffusivity, improved ductility/toughness, reduced density, reduced elas- tic modulus, higher electrical resistivity, increased specific heat, higher thermal expansion coefficient, lower thermal conductivity, and superior soft magnetic properties in comparison with conventional coarse grained materials [1] .

Molybdenum and molybdenum-based materials are widely used in chemical engineering, military, energy, electronics, bio-medicine and agriculture, for the properties of high yielding strength and hardness at high temperature, excellent thermal and electrical conductivities, good erosion-resistance, etc. [2] - [4] . Molybdenum-based nanostructured materials have sparked a worldwide interest because of their unique optical, electronic and mechanical properties and potential applications in nano devices and functional materials [4] .

Nano molybdenum powder is not only a novel family of nano molybdenum materials, but also the raw material or precursor of molybdenum nanostructured materials. Like other nanosized powders, nanosized molybdenum powder has been recognized to possess more attractive properties than its conventional-sized counterpart. For example, nanoparticles comprising molybdenum containing mutlti-metals offer some surprising and unusual benefits as pigments because they ensure homogeneous lattice level mixing of lements, and they are smaller than the visible wavelengths of light (400 - 700 nm), which leads to visible wavelengths interacting in unusual ways with nanoparticles compared to particles with micron scale [5] .

In the paper, the extensive investigations in recent years on properties, synthesis methods and greatly potential applications of nano molybdenum powder are summarized.

2. Intrinsic Properties and Applications

Like other nanosized powders, nano molybdenum powder possesses intrinsic properties including the quantum size effect (Kubo effect), small size effect, surface effect, and macroscopic quantum tunnelling effect [6] . Therefore, both nano pure molybdenum particles and molybdenum-containing compounds have been broadly used in the fields of magnetic materials, electronic materials, optical materials, high relative density sintering, chemical catalysis, and sensing.

1) Lubricant additives. Nanoscale molybdenum comprising substances, including molybdenum nanoparticles, molybdenum oxides and sulfides, are used for lubricant applications in several industries including automotive and defense. Concentrations of around 0.25 wt% molybdenum nanopowder may reduce static or dynamic coefficient of friction (COF) between two surfaces by 5% or more [7] [8] . In certain embodiments such as high precision, tight gap moving surfaces, such lubricating nanoparticles possess the ability to distribute forces more uniformly or lubricate surfaces even at high operating temperatures, and thus may be added to the lubricating fluid, oils, plastic, rubber, coatings, ceramics or powder metal matrices [5] .

2) Metallurgical additives. Nanoparticle of molybdenum, including some of its oxides, has enabled development of new alloys that provide improved corrosion and wear resistance. Incorporation of nanoparticles enhances the thermal properties and homogeneity during processing, resulting in superior material properties. The research shows that the addition of 1 wt% - 4 wt% nano molybdenum powder can enhance the corrosion resistance of stainless steel in corrosion environment [9] . Nano high-purity molybdenum powder prepared by Argonide Corporation is widely used to the products in the aerospace and military fields [10] .

3) Electrical applications: Addition of nano molybdenum powder has been shown to improve the properties of electric interconnects. Incorporation of the particles has been shown to enhance the microstructure, mechanical properties, melting characteristics and creep. Nano molybdenum powders are raw materials of heat sink, electronic contact and nano electronic components. For example, the mixture of nano molybdenum powder and 40% manganese is used in the most common contact of ceramic metal [9] . In Li-ion batteries, the incorporation of molybdenum oxide nanoparticles into porous films has led to profound advancements in state-of-the-art negative electrodes (anodes). Nano-molybdenum is also used in substrates for various photovoltaic cell technologies, including CdTe and organic solar cells.

4) Powder sintering additives. The addition of 3 wt% - 5 wt% ultrafine and nano molybdenum powder can help the sintering temperature of the micron-grade molybdenum and ceramic powders greatly decreased, and get the higher density of P/M products [11] .

5) Environment. Molybdenum ions have been shown to clean up major pollutant at the surface (aerobic conditions), bottom water (semi aerobic conditions) and the sediments (anaerobic conditions) [11] .

6) Smoke suppression. Molybdenum nanoparticle based smoke suppression and fire retardant compositions display longer shelf lives and superior activity [5] .

3. Main Synthesis Procedures

In the conventional route, micron-scale high-purity molybdenum powder can be produced commercially from either ammonium dimolybdate, (NH4)2∙Mo2O7 (ADM) or sublimed MoO3 precursor. The most widely-used conventional processing strategy is comprised of a first-stage and a second-stage flowsheet component, with hydrogen gas employed as the reductant [12] . ADM is processed by an exhaustive chain of pyrometallurgy and hydrometallurgy procedures from molybdenum ore (mainly molybdenite).

Since in 1990, molybdenum nanocrystals (4 nm < particle size < 12 nm) were synthesized by Chow et al. [13] in the vapor by sputtering in a thermal gradient at argon pressure between 0.2 and 0.6 Torr, the preparation methods and mechanisms of the ultrafine and the nanometer molybdenum powders have been attracting much attention. In summary, there are two kinds of synthesis routes, i.e. the physical methods (micron grade molybdenum powder as precursor) and the chemical methods (micron or nanometer molybdenum compounds as precursor).

3.1. Physical Synthesis Procedures

1) Mechanical ball milling

Whether carbon steel, stainless steel, or carbide alloy are produced to milling balls and container, Sanno Ju et al. [14] [15] have fabricated nano molybdenum powder with particle diameter of about 6 nm by mechanical ball milling process. However, the solution of Fe, Cr, Ni, W and Fe in molybdenum, which solution level is several percent, is the most serious problem [16] .

2) Plasma physical vapor deposition technology (PPVD)

A precursor comprising of molybdenum powder and gas solvent is fed and sprayed into a high temperature reactor operating at temperature greater than 3000 K (i.e. DC thermal plasma reactor), wherein the precursor is suspended and inverts into vapor comprising the metal in a process stream with a velocity above 0.25 mach in an in a reductive atmosphere; then the vapor is cooled to nanoscale powders. The powders are then quenched at high gas velocities to prevent agglomeration and growth. The quenched powders are filtered from the gases. The obtained powder has a crystallite size of less than 100 nm and a specific surface area greater than 10 m2/g [5] . Intrinsiq Materials Ltd. has the production capabilities of 1 ton per annual.

3) Electro-explosion of molybdenum wire (Elex process)

In the process, a high power pulse of only a few microseconds duration is applied to a molybdenum wire, which is fed into an argon-filled container. The pulse converts the wire into plasma, which is confined by the extraordinary field created by the high power pulse. The columnar plasma is heated to temperature in excess of 15,000 K and at these temperatures the resistance soars, causing collapse of the field. The high pressure of the metal vapor causes explosive release, producing a shock wave and rapid adiabatic cooling of the metal aerosols that are produced. The powders formed are unique in their structure compared with evaporation and condensation methods, which produce almost defect free and generally spherical crystals of about 100 nm in size [17] . Argonide Corporation has been undertaking great efforts to increase the production rate and complement the facility, but still can not meet the requirements of mass production.

4) Pulsed wire discharge technology

The basic principle of the process is illustrated in Figure 1 [18] . A pulsed current is

Figure 1. The schematic diagram of pulsed wire discharge technology.

driven through a molybdenum wire that is located in an ambient gas. The current deposits electrical energy in the wire due to its finite resistance. This deposited energy melts, evaporates, and ionizes the molybdenum wire resulting in a plasma that expands into the ambient gas. This high temperature plasma gradually cools due to its interaction with the gas, giving rise to a high temperature vapor of molybdenum that condenses uniformly in the ambient gas to nano molybdenum powder with the average powder sizes in the range of 20 - 70 nm. When the discharge is carried out with the peak current of ~10 kA, the pulse length of ~20 μs, and the pulse energy of ~80 J in argon, the powder production rate of 180 g/h is obtained.

Though the basic principle of this process is the same as that of Elex process, the prepared nano molybdenum powder is smaller due to the improvement of the main equipment. This technology is still in the laboratory stage, and the efficiency is very low.

3.2. Chemical Synthesis Procedures

1) Activated reduction technology

In the atmosphere of ammonium chloride, Ammonium heptamolybdate ((NH4)6Mo7O24∙4H2O, APM) is reduced to ultrafine molybdenum powder. The reduction mechanism of the process is as follows:

Ammonium chloride is thermally decomposed: NH4Cl = HCl + NH3

APM is decomposed into molybdenum oxide: (NH4)6Mo7O24∙4H2O = 6NH3 + 7MoO3 + 7H2O

The reaction of MoO3 and HCl: 7MoO3 + 14HCl = 7MoO2Cl2 + 7H2O

7MoO2Cl2 is reduced to ultrafine molybdenum powder by hydrogen: MoO2Cl2 + 21H2 = 7Mo + 14H2O + 14HCl

The above reaction procedures infer that NH4Cl plays a role of catalyst; and that during the reduction process, NH4Cl is completely volatized. The total reaction formula is: NH4Cl + (NH4)6Mo7O24∙4H2O = HCl + 7NH3 + 28H2O + 7Mo.

The reduction temperature of the method is lower about 200 - 300 K [19] compared with the conventional reduction processing, and the processing is only comprised of one reduction stage. The average particle size of the molybdenum powder prepared by this method is 100 nm. The scientists of Five Ridges University in South Korea pro- poses a similar method with the high-purity MoO3 as raw material.

2) Hybrid plasma process

The high voltage DC arc is sprayed on the high frequency plasma jet by the plasma reaction device, thus forming a mixed plasma gas flow of H2 and N2. Wherein the micron molybdenum oxide particles are reduced to the initial ultrafine molybdenum powders, which are cooled immediately by cooling water into nano molybdenum particles with the average size of about 30 - 50 nm and spherical morphologies. The process is applied by NanoProducts Corporation [20] . Due to the high cost of the plasma equipment and low output rate, much attempt will be undertaken for the cheaper production cost.

3) Reduction of MoCl4 vapor

In the process, nano molybdenum powder is prepared by gas phase reaction of MoCl4- H2 mixture [21] . Under 1200˚C, the diameter of molybdenum particle is only 6 - 10 nm. When the temperature is greater than 1200˚C, particles diameter will be increased with increased temperature. Nano molybdenum powder prepared by the method is generally used to produce solder, Monel alloy, solder flux and molybdenum alloy etc.

4) Vapor phase reduction of MoO3

The apparatus used for the powder synthesis is shown in Figure 2 [22] . The reaction tube is made of α-alumina. High-purity MoO3 powder contained in a molybdenum boat is placed and vapored between the pre-heating furnace and the main furnace 1300˚C - 1500˚C. MoO3 vapor is then carried into the reaction zone and deoxidized into nano molybdenum powder using a stream of nitrogen, which is mixed with a stream of an H2 - N2 gas mixture. As-synthesized nano molybdenum powder is trapped in flasks or by a Microtex-F filter. Molybdenum powder consisting of uniform, spherical particles 40 - 70 nm in diameter is obtained by the process. In the process, the parameters are difficultly controlled, in particular the mixing temperature of the MoO3-N2 and H2-N2 streams have a significant effect on the particle size.

5) Microwave plasma chemical vapor deposition (MPCVD)

The microwave plasma chemical vapor deposition (MPCVD) method is a novel chemical synthesis technology of nano molybdenum powder [3] . The MPCVD system for the synthesis of Mo powder is illustrated in Figure 3 [23] . During the synthesis of Mo powder, N2 gas with purity of 99.999% is used as both carrier gas and plasma forming gas. The raw material, Mo(CO)6 powder, is first input in a specially designed feeding equipment (2), and then injected uniformly into the reactor chamber (5) through a reactant injector (4) by the carrier gas at a certain flow rate. In the plasma torch formed in the reactor (5), Mo(CO)6 is thermally decomposed. The products were condensed in the heat exchanger cooled by circular cooling water, separated from the gas by the filter (7), and then collected in the powder collector (8). The mean particle size of the obtained powder was estimated smaller than 50 nm.

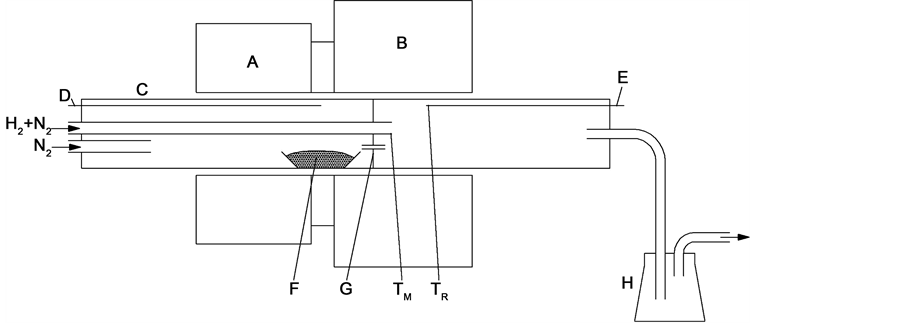

A, pre-heating furnace; B, main furnace; C, reaction tube; D, chromel-alumei thermocouple; E, Pt-Rh thermocouple; F, molybdenum boat; G, molybdenum plate and nozzle; H, fiask

Figure 2.Apparatus for powder synthesis.

1―Gas purifying system; 2―Feeding equipment; 3―Plasmatron; 4―Reactant rejector; 5―Reactor chamber; 6―Heat exchanger; 7―Filter; 8―Powder collector

Figure 3.Schematic drawing of the MPCVD system for synthesizing Mo powder.

6) Electron beam irradiating method

Heated in HRTEM on a room temperature table by electron beam irradiating of more than 1021 e/cm2∙s, micron-sized MoO3 particles are turned into MoO3−x. With irradiating time prolonged, Mo nanoparticles are formed from MoO3−x. Wei et al. [24] propose that oxygen atoms in MoO3 micron particles are separated by means of electron beam energy activation, then the micron molybdenum particles are broken into nanoparticles by electron beam “hammer”. The diameter of molybdenum nanoparticles were measured 2 - 20 nm.

4. Conclusions

1) Nano molybdenum powder has been broadly applied as lubricant additives, metallurgical additives, powder sintering additives, and one of raw materials of electrical components, cleaner and smoke suppressor.

2) Of the synthesis methods, the plasma physical vapor deposition technology (PPVD), reduction of MoCl4 vapor, activated reduction technology, have applied in the industrial production; electro-explosion of molybdenum wire (Elex process), pulsed wire discharge technology, electron beam irradiating method, are still in the laboratory stage; hybrid plasma process, vapor phase reduction of MoO3, microwave plasma chemical vapor deposition (MPCVD), is of exciting promise of application.
