Journal of Crystallization Process and Technology
Vol.3 No.2(2013), Article ID:30890,5 pages DOI:10.4236/jcpt.2013.32010

Synthesis, Spectral Characterization and Crystal Structure of 2-((3-Aminophenyl)(phenyl)methylene) hydrazinecarboxamide

Yi-Chen Chan1, Abdussalam Salhin Mohamed Ali1*, Melati Khairuddean1, Ching-Kheng Quah2

1School of Chemical Sciences, Universiti Sains Malaysia, Penang, Malaysia; 2X-ray Crystallography Unit, School of Physics, Universiti Sains Malaysia, Penang, Malaysia.

Email: *

Copyright © 2013 Yi-Chen Chan et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received March 3rd, 2013; revised April 7th, 2013; accepted April 14th, 2013

Keywords: Semicarbazone; Aminobenzophenone; Benzophenone; Hydrazone


A benzophenone substituted semicarbazone, 2-((3-aminophenyl)(phenyl)methylene)hydrazinecarboxamide (APHC) had been synthesized in good yield by the condensation of 3-aminobenzophenone and semicarbazide hydrochloride. The title compound was elucidated by elemental analysis (CHN), FTIR, 1H and 13C-NMR, 1H-1H COSY, TGA and single crystal X-ray diffraction. The compound crystallized in the orthorhombic crystal system with space group of Pccn, Z = 32, V = 10375.1 (2) Å3, and lattice constants a = 12.3855 (1) Å, b = 34.5746 (5) Å, c = 24.2283 (3) Å and γ = β = α = 90˚. The molecular view shows that APHC contains four molecules of each species in the asymmetric unit, with similar geometries. However, there is no intramolecular hydrogen bond found in the crystal structure of the synthesized compound. X-ray diffraction also reveals that the molecule of the semicarbazone exists as a Z isomer with respect to the C=N.

1. Introduction

Semicarbazones are urea derivatives with versatile structural features having the general formula R1R2C=NNH-(CO)-NH2 formally derive d by condensation of aldehyde or ketone with semicarbazide. In recent years a great number of studies have been devoted to the search for derivatives of semicarbazides and studied their chemical and structural properties due to their chemistry and potentially beneficial biological activities, such as anticonvulsant [1-2], antimicrobial [3-5], antioxidant [6], anticancer [7], etc. They are organic compounds that possess C=N functional group and are considered as one of the important classes of Schiff base compounds parallel with their sulfur analog, thiosemicarbazones. Semicarbazones are among the most relevant nitrogen-oxygen donor ligands that provide potential binding sites for a wide variety of metal ions [8-10]. They usually react as chelating ligands with transition metal ions by bonding through the oxygen and the hydrazinic nitrogen atom. However, their coordination capacity is highly affected by the position of the chelating group present on the aldehyde or ketone part of the semicarbazone compound. In this paper, we report the synthesis, characterization and crystal structure of newly synthesized semicarbazone compound, namely as 2-((3-aminophenyl)(phenyl)methylene)hydrazinecarboxamide, APHC. Figure 1 displays the synthetic route of APHC.

2. Experimental

In the preparation of APHC, all the reagents were used as received. Melting point was determined by Stuart Scientific (UK) apparatus. Elemental analysis (CHN) was carried out on a Perkin Elmer Series II, 2400 analyzer. IR spectrum was recorded as KBr pellets on a Perkin Elmer System 2000 FTIR spectrophotometer in the wavenumber range of 4000 - 400 cm−1. NMR spectra were recorded on a Bruker Avance III 500 MHz spectrometer in DMSO-d6 using tetramethylsilane as an internal standard. Thermogravimetric analysis (TGA) data was recorded by Mettler Toledo TS0801RO Sample Robot (TGA/SDTA- 851e), heating rate of 20˚C/min in the range of 30˚C -

Figure 1. Synthetic pathway of APHC.

900˚C under nitrogen atmosphere.

2.1. Synthesis of 2-((3-Aminophenyl)(phenyl) methylene)hydrazinecarboxamide, APHC

A 5.5 mL ethanolic solution of 3-aminobenzophenone (3 mmol) was added dropwise to an aqueous solution of semicarbazide hydrochloride (3 mmol) and sodium acetate (4.5 mmol). The mixture was stirred well and refluxed till a clear solution was obtained. The solution was kept under controlled evaporation. After few days, brown crystals were formed. Single crystal of APHC suitable for X-ray crystallography was obtained after recrystallization from ethanol. Yield: 79%. m.p.: 196˚C - 197˚C. Anal. Calcd for C14H14N4O: C 66.14, H 5.51, N 22.05%;

found: C 66.10, H 5.57, N 22.02%. Main IR bands (KBr, cm−1): 3471 (m), 3451 (m), 3337 (m), 3192 (m), 1687 (s), 1629 (m), 1582 (s), 1494 (sh), 1450 (s), 1394 (m), 1328 (m), 1032 (w). 1H-NMR 500 MHz, (DMSO-d6, ppm): δ 5.41 (2H, s, Ar-NH2), 6.35 - 6.36 (1H, td, H6), 6.40 (1H, s, H2), 6.70 (2H, s, CONH2), 6.72 - 6.74 (1H, ddd, H4), 7.26 (1H, t, H5), 7.35 - 7.37 (3H, m, H10, H11, H12), 7.61 - 7.63 (2H, m, H9, H13), 7.67 (1H, s, NH). 13C NMR (ppm): δ 112.49, 114.57, 114.74, 126.87, 128.16, 128.82, 130.32, 132.24, 136.99, 147.42 (C=N), 149.87 (C-NH2), 155.65 (C=O).

2.2. X-Ray Structure Determination

Crystals were placed in the cold stream of an Oxford Cyrosystems Cobra open-flow nitrogen cryostat [11] operating at 100.0 (1) K. Crystallographic data was collected using a Bruker SMART APEX II DUO CCD diffractometer [12]. The data were then reduced using SAINT [12] software. SADABS and SAINT software [12] were used for absorption correction and data reduction, respectively. The structure was refined by full-matrix least squares on F2 and solved by direct methods using the SHELXTL [13] software package. N-bound H atoms were located in a difference Fourier map and refined freely [N-H = 0.79 (2) - 1.08 (3) Å]. The remaining hydrogen atoms were positioned geometrically [C-H = 0.95 Å] and were refined using a riding model, with Uiso~(H) = 1.2 Ueq(C). The crystal APHC was an inversion twin with a 0.180 (1):0.820 (1) domain ratio. The details of the crystal data and structure refinements are given in Table 1.

Table 1. Crystal and structure refinemental data of APHC.

3. Results and Discussion

3.1. Description of the Crystal Structure

The molecular view of APHC (Figure 2) shows that APHC contains four molecules of each species in the asymmetric unit, with similar geometries. In each molecule, the benzene rings make dihedral angle of 88.13 (11), 86.22 (10), 82.65 (11) and 78.22 (11)˚, respectively, indicating both rings are essentially perpendicular to each other. The selected bond lengths and bond angles are given in Table 2. There is no intramolecular hydrogen bond found in crystal structure of APHC. In the crystal packing (Figure 3), molecules are linked via intermolecular N-HO and N-HN hydrogen bonds (Table 3) into extended one-dimensional chains along [100]. Adjacent chains are cross-linked via further N-HO inter-

Figure 2. The molecular structures of APHC, showing 30% probability displacement ellipsoids for non-H atoms and the atom-numbering scheme.

Figure 3. The crystal structures of APHC, viewed along the b and a axes, respectively.

Table 2. Selected bond lengths (Å) and bond angles (˚).

actions into two-dimensional networks parallel to (001) plane. The crystal structure is further consolidated by and ring motifs [14].

3.2. FT-IR Spectrum

In the FT-IR spectrum of APHC, the N-H stretching vibrations of NH2 and N-H groups are appeared as medium-intensity bands in the region of 3192 - 3471 cm−1. A strong absorption characteristic of C=O stretching mode of an amide (amide I band) is observed at 1687 cm−1 while the δ(N-H) (amide II band) is observed at 1450 cm−1 [15]. The C=N stretching vibration of an azomethine group is attributed to an absorption at 1582 cm−1 [16] and the ν(N-N) band in APHC is assigned to the vibration at 1032 cm−1 [17].

3.3. 1H-NMR Spectroscopy

Figure 4 illustrates the 1H-NMR spectrum of APHC. Singlets at δ 5.41 and 6.70 ppm are assigned to the aromatic amine protons and the amide protons, respectively, whilst proton in the secondary amine -NHgroup is assigned to a broad singlet at δ 7.67 ppm. The triplet of doublets at δ 6.35 - 6.36 ppm, triplet at δ 6.40 ppm, doublet of doublet of doublets at δ 6.72 - 6.74 ppm and triplet at δ 7.26 ppm are attributed to H6, H2, H4 and H5, respectively. H2, H4 and H6 are meta magnetically coupled to each other. At the same time, H4 is also coupled to H5 with a characteristic ortho coupling constant of 8 Hz. The same goes to the coupling between H6 and H5, where H6 is located at the ortho position towards H5. The aromatic protons H10, H11 and H12 are assigned to a multiplet at δ 7.35 - 7.37 ppm. On the other hand, H9 and H13 which are chemically equivalent are assigned to

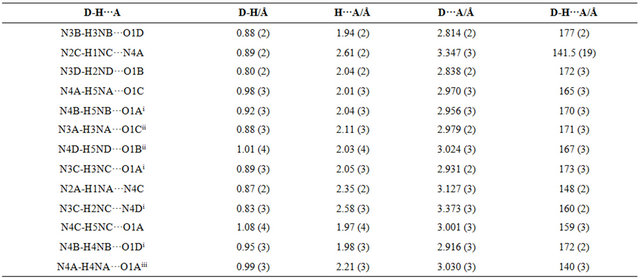

Table 3. Geometries of intermolecular hydrogen bonds in APHC.

symmetry code : (i) x−1, y, z; (ii) x+1, y, z; (iii) x−1/2, −y+1, −z+1/2.

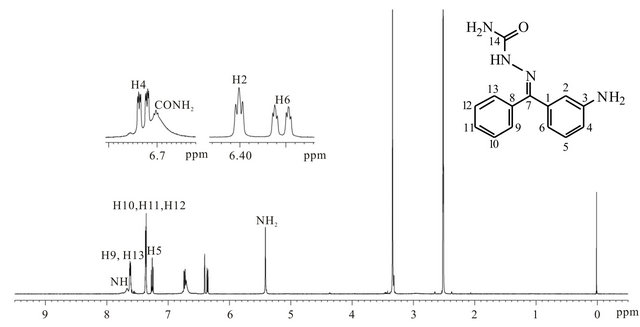

Figure 4. 1H-NMR spectrum of APHC.

a multiplet at δ 7.61 - 7.63 ppm.

4. Conclusion

Semicarbazone substituted 3-aminobenzophenone had been synthesized in good yield. Melting point determination was performed to check the purity of the compound. Results obtained from the elemental, thermal, spectral (FTIR, NMR) and X-ray crystallography had confirmed the proposed structure of the synthesized semicarbazone.

5. Acknowledgements

The authors would like to thank Universiti Sains Malaysia, Science Fund Grant No. 1001/PKIMIA/823003 and RU Grant No. 1001/PKIMIA/811196 for the financial support of this work.
