ABSTRACT

For low cost houses in Pakistan, Reinforced Baked Clay (RBC) is considered to be a potential construction material as a substitute of Reinforced Cement Concrete (RCC). Deflection and cracks are important parameters for design of beams in a building. However, for RBC beams it is still unknown that how the deflection and crack width could be controlled by increasing ratio of reinforcement. This study investigates the effect of ratio of reinforcement on deflection and cracking behaviour of baked clay beams. The results show that by increasing area of reinforcement by 50% in baked clay beams: 1) deflection was decreased to 2.5 times, and 2) crack width was reduced to three times.

Keywords:

Baked Clay, Deflection, Crack Width, Reinforcement, Ultimate Load, Low Cost Houses

1. Introduction

It is financially difficult for low income people of Pakistan to construct their houses due to high cost of aggregates, cement and steel. Therefore, it is need of time to utilize indigenous and low cost materials of building construction. In an initial attempt, pre-cast panels of Reinforced Baked Clay (RBC) beams were manufactured and tested. Literature survey indicates that it is possible to achieve compressive strength of baked clay as high as normal weight concrete. The previous studies suggest that the pre-cast panels of RBC beams can be used as a substitute of RCC beams in a building [1] - [10] .

Cracks in concrete beams occur due to deflection. If the deflection in beams is more than allowable limits specified by codes, it may cause damage to walls, windows, false ceiling etc. [11] . If the cracks are wide, water may enter and cause corrosion of reinforcing bars. Due to corrosion, the strength of a structural member may be gradually decreased.

Baked clay is a brittle material, and like concrete, it is strong in compression and weak in tension. Therefore, steel reinforcement is provided in tension zone of baked clay beams. The available literature is silent regarding the effect of reinforcement on deflection and crack width of baked clay beams. Hence, structural behaviour of RBC beams reinforced with different ratios of reinforcement needs to be investigated. For this purpose, an experimental study was conducted to investigate the effect of increasing reinforcement on mid span deflection and crack width of singly reinforced baked clay beams.

2. Materials and Methods

2.1. Reinforced Baked Clay Beams

Clay and pit sand were quarried locally and were mixed in a ratio of 70:30 by weight. Hereafter, this mixture will be referred to as clay. Twenty-two percentage of potable water was mixed with the mixture in order to form a workable paste. Mixing was carried out in a pan mixer for fifteen minutes. Beams of size 150 mm × 300 mm × 1980 mm were cast in layers using this moist clay mixture. During casting, the beams were compacted at a pressure of 6 MPa in a Mechanized System [12] , as shown in Figure 1. Two steel bars of 25 mm diameter were placed in tension zone of the beams during casting to create perforations for inserting tensile reinforcement after baking. The clay beams were dried in shade and then fired in a commercial Hoffman kiln at a temperature of 1000˚C. Baked clay beams are shown in Figure 2.

Five baked clay beams were singly reinforced using two 12.7 mm diameter steel bars (group A). Another three baked clay beams were reinforced using two 16 mm diameter steel bars (group B). The area of reinforcement used in group B beams is about 50% more than that of group A beams. In order to reduce possibility of bond-slip, the reinforcing bars were welded to steel anchor plates at both ends of beams. The anchor plates were 150 mm square with thickness of 12.7 mm. No shear and compressive reinforcement was provided in these RBC beams.

In order to determine the ultimate load carrying capacity, two RBC beams of group A were tested by applying a point load at mid span. In order to examine the effect of ratio of reinforcement on deflection and crack opening displacement, the beams of group A and B were subjected to midpoint loading equal to 66% of the ultimate load at failure. It is to be noted that 66% of load at failure is considered as total service load [13] .

2.2. Testing Programme

Cubes of size of 150 mm [14] were sawed from these baked clay beams. Compressive strength of the baked clay cubes was determined by Universal Testing Machine (Figure 3). Reinforced Baked Clay Beams were tested for deflection and crack width in Universal Beam Testing Machine (Figure 4). The effective length of the RBC beams was 1780 mm. The beams were placed on roller supports during test.

3. Results and Discussions

3.1. Cube Crushing Strength of Baked Clay

The structural behaviour of singly Reinforced Baked Clay (RBC) beams was studied in terms of 1) cube crushing strength, 2) ultimate load carrying capacity, 3) load versus deflection and 4) load versus crack width. Three of these RBC beams were reinforced with two 12.7 mm diameter bars (group A) and other three RBC beams were reinforced

with 16 mm diameter bars (group B). These RBC beams were tested in flexure. The load on the beams was applied up to two-third (i.e. 66%) of the load at failure.

3.2. Ultimate Load Carrying Capacity of Reinforced Baked Clay Beams

Two RBC beams of group A (singly reinforced with two 12.7 mm diameter steel bars) were loaded at mid span up to ultimate failure. The average ultimate load carrying capacity of the RBC beams of group A was found to be 80 kN. At the time of failure, flexural cracks occurred in tension zone but no shear cracks were observed in the beams. It is to be noted that at the time of failure, no spalling of baked clay occurred at the bottom or sides of the beam. The failure of beams commenced by opening of a single crack at mid span in tension zone. On further loading, this crack widened and propagated upwards to the top of the beam. On further loading, the steel bars failed by necking at an average load of 80 kN. The results suggest that baked clay beams compacted at 6 MPa and fired at 1000˚C, do not need shear reinforcement. This implies that saving in terms of cost of reinforcement can be achieved.

3.3. Deflection and Cracking Behaviour of Reinforced Baked Clay Beams

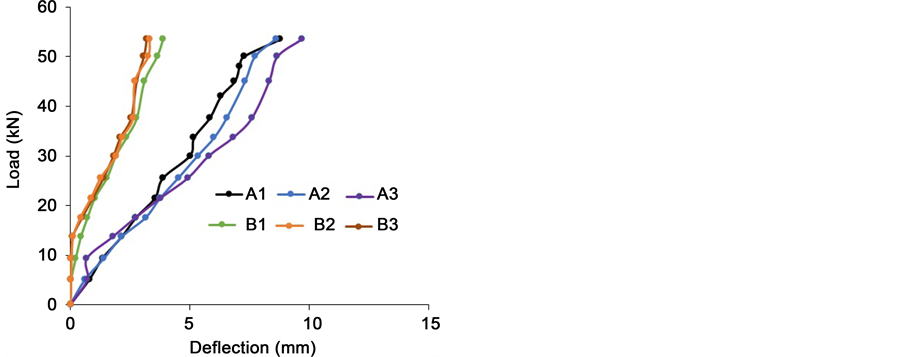

Figure 5 shows the load deflection curves of RBC beams belonging to groups A and B. As expected, the beams with more ratio of reinforcement (group B) showed less deflection as compared to that of the beams reinforced with lesser ratio of reinforcement (group A). The results show that mid span deflection of RBC beams was reduced to 2.5 times by increasing 50% area of steel.

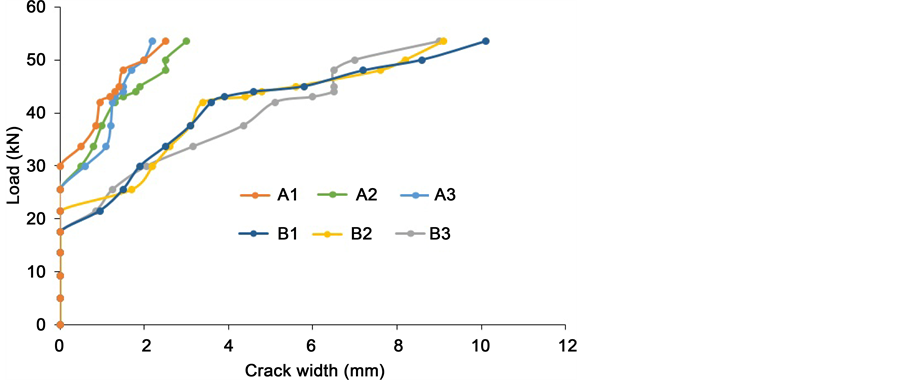

Figure 6 shows the cracking behaviour of the RBC beams reinforced with different ratio of reinforcement. The crack width in RBC beams reinforced with lesser ratio of reinforcement (group A) was observed to be three times more as compared to those reinforced with more ratio of reinforcement (group B). This is a significant result because three times reduction in crack width of RBC beams was achieved by increasing 50% area of steel. Since these baked clay beams were comparatively stronger in com-

pressive strength than normal concrete. The increase in amount of steel resulted in more stiffness of the RBC beams. As a result of this, both the deflection and crack width of RBC beams was decreased.

4. Conclusions

In this paper, the effect of ratio of reinforcement on deflection and cracking behaviour of baked clay beams was investigated. Following conclusions can be drawn:

1) Mid-span deflection of RBC beams was reduced to 2.5 times by increasing 50% area of steel.

2) Crack width in RBC beams was decreased to three times when the area of steel was increased to 50%.

3) Baked clay is considered as homogenous material and its compressive strength used in this study is 1.5 times more that of normal weight concrete. It is suggested that the effect of ratio of reinforcement on variation of neutral axis depth should be investigated.

Acknowledgements

The authors would like to thank Quaid-e-Awam University of Engineering, Science and Technology Nawabshah, for providing access to the Structural Engineering Laboratory to conduct the tests mentioned in this study.

Cite this paper

Lakho, N.A. and Zardari, M.A. (2016) Effect of Reinforcement on Deflection and Cracks in Baked Clay Beams. Engineering, 8, 684-690. http://dx.doi.org/10.4236/eng.2016.810062
