Exploring Deep Reinforcement Learning with Multi Q-Learning

Ethan Duryea, Michael Ganger, Wei Hu ^{ }

Department of Computer Science, Houghton College, Houghton, USA

Copyright © 2016 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

http://creativecommons.org/licenses/by/4.0/

Received: August 9, 2016; Accepted: November 12, 2016; Published: November 15, 2016

ABSTRACT

Q-learning is a popular temporal-difference reinforcement learning algorithm which often explicitly stores state values using lookup tables. This implementation has been proven to converge to the optimal solution, but it is often beneficial to use a function-approximation system, such as deep neural networks, to estimate state values. It has been previously observed that Q-learning can be unstable when using value function approximation or when operating in a stochastic environment. This instability can adversely affect the algorithm’s ability to maximize its returns. In this paper, we present a new algorithm called Multi Q-learning to attempt to overcome the instability seen in Q-learning. We test our algorithm on a 4 × 4 grid-world with different stochastic reward functions using various deep neural networks and convolutional networks. Our results show that in most cases, Multi Q-learning outperforms Q- learning, achieving average returns up to 2.5 times higher than Q-learning and having a standard deviation of state values as low as 0.58.

**Keywords:**

Reinforcement Learning, Deep Learning, Multi Q-Learning

1. Introduction

Reinforcement learning is a form of machine learning in which an agent attempts to learn a policy that maximizes a numeric reward signal [1] . In reinforcement learning, an agent learns by trial and error and discovers optimal actions through its own experiences. Unlike supervised learning, the agent does not learn by comparing its own actions to those of an expert; everything it learns is from its own interactions with the environment. Reinforcement learning attempts to solve optimization problems that are defined by a Markov Decision Process (MDP) [1] . A Markov Decision Process defines the behavior of the environment by mathematically defining the environment’s one- step dynamics. There are three main categories of reinforcement learning algorithms: dynamic programming, Monte Carlo, and temporal-difference (TD) [1] . Temporal- difference learning algorithms are central to the domain of reinforcement learning and will be the focus of this paper.

Q-learning is one of the most popular TD algorithms [1] . Like many other reinforcement learning algorithms, Q-learning is model-free, which means it learns a controller without learning a model. To learn this controller, Q-learning trains an action-value function that returns the expected value for taking action a in state s. The agent will use this function to form a policy which will maximize returns. The Q-value for a state-action pair is given by the Bellman equation

(1)

where r is the observed reward after performing a in s, is a constant discount factor, and is the transition state after performing a in s. Q-learning updates its Q-values by comparing its new estimates to its existing estimates; the new estimate (target) for Q-learning is

(2)

where t is the current time-step during training. Thus, the update for the Q-value of the state-action pair becomes

(3)

where is the learning rate.

Q-learning is a critical algorithm in reinforcement learning and has been successfully applied to a large number of tasks, but it has also been observed that the algorithm will sometimes overestimate the optimal Q-values. This overestimation occurs when the reward function of the MDP is stochastic. Double Q-learning is a variation to Q- learning that addresses this problem [2] . The overestimation is due to Q-learning’s use of the max operator to select and evaluate the actions of the next state. Double Q-learning attempts to fix this issue by using two Q functions, and to decouple the selection and evaluation of the action in the next state. To accomplish this, Double Q-learning uses the value of to update, so the update for becomes

(4)

The roles of and are switched when updating. Double Q-learning often develops better value estimates and achieves greater performance compared to Q-learning on certain stochastic tasks [2] .

Often times, the Q-values of Q-learning and Double Q-learning are stored in a lookup table. It has been proven that Q-learning will converge to the optimal value when the Q-values are stored in this manner [3] . These lookup tables perform well when faced with an environment that has a finite number of states and actions, but due to the curse of dimensionality, they do not scale well for MPDs with continuous states and actions. In the case of a high-dimensional MDP, function approximation is generally used. Q-learning, as well as other off-policy TD algorithms, can be unstable with linear/ non-linear function approximation [4] [5] [6] [7] .

Artificial neural networks are one effective method of function approximation. These neural networks are mathematical models made up of parameters that are tuned using back-propagation. Deep learning is a variety of artificial neural networks and has seen great success in learning from high-dimensional data, specifically image recognition [8] , Natural Language Processing [9] , and facial recognition [10] . The artificial neural networks used in deep learning have many layers of parameters which can be either fully connected, convolutional, or recurrent layers [11] . Coupling deep learning with reinforcement learning allows agents to find optimal policies for complex, high-dimen- sional tasks. This has enabled agents to learn using raw pixels as input, which allows for the agents to learn a variety of tasks without needing to tune parameters or adjust the state representation for each individual task. Deep neural networks have brought us closer to the goal of creating a general purpose artificial intelligence.

AlphaGo is a computer program developed by Deep Mind that utilized deep learning along with a Monte Carlo search tree to play Go [12] . Go is an ancient Chinese game where the number of possible board configurations is 2.08168199382 × 10170. Without the use of deep learning AlphaGo would never have been so successful at playing such a complex game. Apart from AlphaGo, two of most widely-known successes of reinforcement learning are TD-gammon; a program that learned how to play backgammon at a super-human level [13] , and DQN; a Q-learning algorithm that used a deep neural network to achieve a super-human level of play at several Atari 2600 games [14] . Both of these algorithms demonstrated the benefits of using artificial neural networks as value functions.

Deep reinforcement learning has also been successfully applied to continuous control problems. By combining deep neural networks with the actor-critic algorithm [1] , the Deep DPG algorithm was able to learn competitive policies for a variety of physics tasks including cart-pole swing-up, car driving, legged locomotion, and others [15] . The advantages of using deep learning with reinforcement learning are great, which is why it is important to have an algorithm that is capable of remaining stable when using deep neural networks as value functions.

As mention earlier, the instability of value estimates is one of the biggest challenges to overcome when using linear/nonlinear value function approximation. To combat this instability issue, algorithms that use neural networks as their Q functions often train using experiences randomly sampled from an experience replay buffer [15] . By randomly sampling experiences from memory, the behavior distribution is averaged out over the previous states, there by breaking up the correlation between the samples and thus reducing the variance of the updates [16] . Double Q-learning also uses a target Q network to improve stability. The target network is copied from the online Q network after an arbitrary number of steps and is used to give consistent targets during training. There are additional ways to make the Q network more robust, but most depend on adjusting parameters.

Instead of using any of the previously mentioned techniques, we attempt to achieve robust value estimates by introducing a new TD algorithm called Multi Q-learning. Our algorithm outperforms Q-learning and Double Q-learning in our tests and provides more stable Q-values throughout the training process. Multi Q-learning also works well with a diverse range of neural network implementation, making the algorithms beneficial when the ideal network structure is unknown. We find the Multi Q-learning algorithm to be an effective alternative to Q-learning due to its robustness and stability.

2. Methods

In this paper we discuss a new TD algorithm that extends upon Q-learning and Double Q-learning called Multi Q-learning. The main idea behind this new algorithm comes from Double Q-learning’s use of two estimators to find the maximum expected value for each action. Instead of simply using two Q functions: Q^{A} and Q^{B}, Multi Q-learning uses an arbitrary number of Q functions to estimate the action values. The algorithm updates one Q function at each time-step using the average value of all the other Q functions. So when Multi Q-learning contains a list of n Q-functions, and then the update for Q^{A} becomes

(5)

The purpose of using multiple Q functions is to better stabilize the target value. Double Q-learning uncouples the selection and evaluation of an action, creating an unbiased estimate for the value of that action. But any drastic change in one Q function will greatly affect the other. Multi Q-learning addresses this problem by using the average action-value of many Q functions to update a specific Q function. If there is a drastic change in an action-value of one Q function, its effect on the other Q functions will be minimal. This helps when a substantial amount of noise exists in the environment, specifically in the environment’s reward function. Our Multi Q-learning algorithm is presented in Algorithm 1 below.

Algorithm 1. Multi Q-learning.

The algorithm for Multi Q-learning is quite similar to Double Q-learning. The key difference is the use of n Q functions opposed to only two. At each step in a training

episode, we choose a single Q function to update based on the probability so that

each Q function is chosen to be updated with an equal probability. After the training is finished, the Q-value for each state-action pair becomes the average Q-value of all the Q functions.

Similarly to Q-learning and Double Q-learning’s extension to DQN and Double DQN [17] , Multi Q-learning can naturally be extended to utilize deep neural networks. The benefits of deep reinforcement learning have been realized by many studies [11] . Pairing deep neural networks with Multi Q-learning allows for stability while learning complex relationships between the features of a state.

In the original Double DQN algorithm, the weights of a target network were used to estimate the value of the greedy-policy and update the weights of the online network. The target network weights were simply copied from the online network every steps. The target used by Double DQN is

(6)

For the Deep Multi Q-learning algorithm, we created an independent neural network for each Q. This fully decouples the selection and evaluation of an action, unlike Double DQN which only was partially decoupled. The target used by the Deep Multi Q-learning algorithm for a network characterized by weights where is

(7)

For our Deep Multi Q-learning algorithm, show in Algorithm 2 below:

Algorithm 2. Deep Multi Q-learning.

3. Results

In this section, we analyze the performance of Q-learning, Double Q-learning, and Multi Q-learning. The metrics we focus on are the value estimates, the average returns, and the success rates. Our results show the robustness of Multi Q-learning when faced with stochastic rewards and that this robustness increases the performance of the algorithm. We also show the instability of Q-learning and Double Q-learning and how that instability can negatively affect the overall performance of the algorithm.

A 4 × 4 grid world (Figure 1) was used to evaluate the algorithms. Each state has 4 actions, corresponding to the directions the agent can move. The world has 2 terminal states, a pit and a goal, which return rewards of −10 and 10 respectively. A wall was added to the grid which blocks the movement of the agent into that location. If the agent took an invalid action, such as moving into the boundary or wall, the agent did not move and simply remained in the same position. The objective of the agent was to navigate from its starting position to the goal in the shortest amount of moves without falling into the pit. Every non-terminal state returned an average reward with standard deviation. To compare, we show the difference between algorithms for rewards with deterministic distribution, and stochastic distribution of two values where. We also trained the algorithms using two different behavior policies. One policy was strictly exploratory while the other was ε-greedy. For the ε-greedy policy, ε was initialized to 1 and reduce by 1/100,000 at the end of each episode until ε = 0.1.

The grid world was initialized to the same state at the start of every game. A training episode ends when the agent reaches a terminal state, whether it is the goal or the pit. The algorithms trained for 100,000 episodes and at the end of each episode, we ran the learned policy on the task and recorded the total return and the number of steps taken. If the agent fell into the pit, or took more than 10 steps, a 0 was record for the number of steps taken. The results were averaged over every 100 episodes in order to smooth the graphs.

3.1. Neural Network Results

In the following section, we evaluate our algorithm using a neural network with two hidden layers for the value function. One-hot encoding was used to represent the state as a 64 vector where the position of each object corresponded to a 16 element slice of

Figure 1. A 4 × 4 grid world used to test the algorithms discussed in this paper. The grid is initialized in the same state at the start of every epoch. A is the agent, P is the pit, W is the wall, and G is the goal.

that vector. The vector representation of the state was used as the input to our neural network. Both hidden layers were fully connected and consisted of 150 rectifier units. The output layer was a fully connected linear layer with an output for each move. We used the RMSProp gradient descent algorithm [18] to optimize the network and trained after each time-step.

Figure 2(a) and Figure 2(b) show the value estimates of both Double Q-learning and Q-learning. These values estimates are for the initial state of the grid world and were averaged out over every 100 episodes in order to smooth the graph. Both Double Q- learning and Q-learning converged toward the true value of 3.1 quickly when the reward function was deterministic (Figure 2(a)). But when faced with a stochastic reward (), the value estimates contain a substantial amount of oscillation (Figure 2(b)). When using the ε-greedy behavior policy, the oscillation of the value estimates was re-

(a) (b)(c) (d)

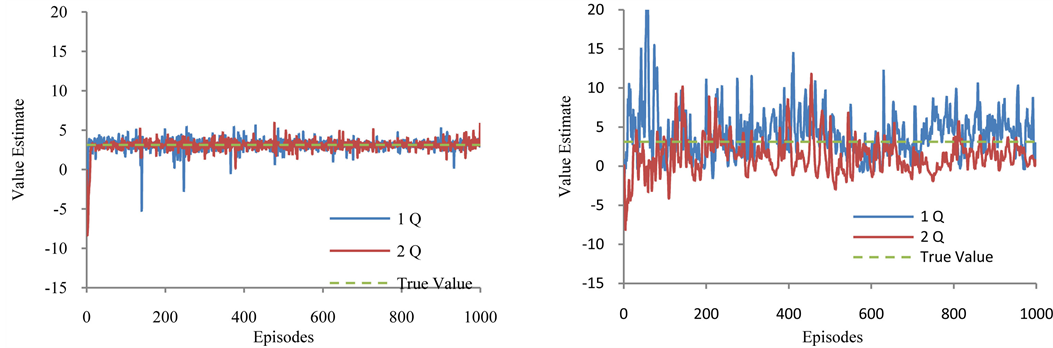

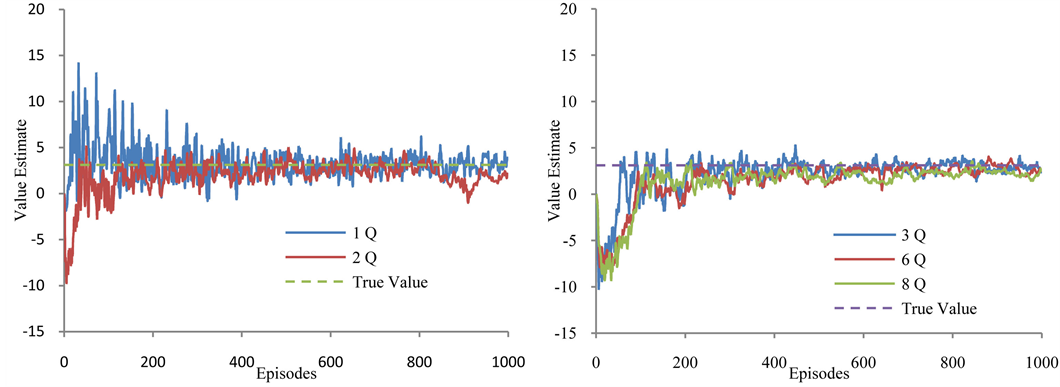

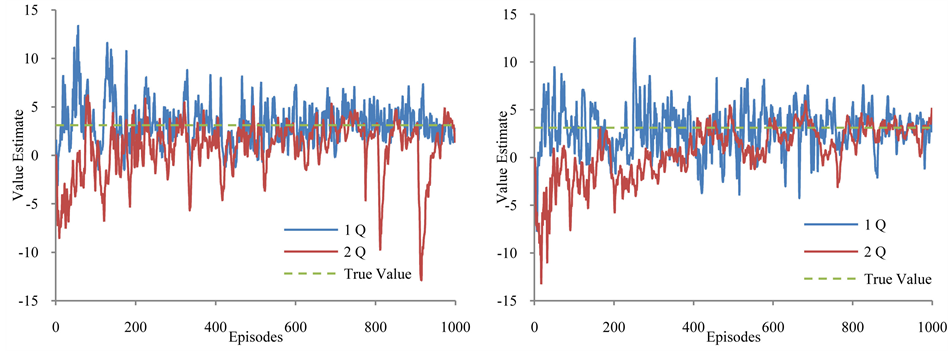

Figure 2. Value estimate for Q-learning, Double Q-learning, and Multi Q-learning. (a) The value estimate of the initial state where, and the behavior policy is random; (b) Value estimate of the initial state where, and the behavior policy is random; (c) Value estimate of the initial state where, and the behavior policy is ε-greedy; (d) Value estimate of 3 Multi Q-learning algorithms of the initial state where, and the behavior policy is random.

duced as the training progressed (Figure 2(c)) due to the decreased amount of exploratory moves taken. Figure 2(d) shows the value estimates of three Multi Q-learning algorithms using the same environment parameters as Figure 2(c). It is easy to see the stability in the value estimates of the Multi Q-learning algorithm; the value estimates quickly converge to the true value of the state, 3.1, and have small amount of oscillation. In the early stages of learning, Figure 2(c) shows the significant amount of oscillation in Q-learning’s value estimates. This oscillation is due to the stochastic reward function. Like Multi Q-learning, Double Q-learning’s value estimate converges quickly to the true value and remains relatively stable throughout the training process. Unlike Multi Q-learning, Double Q-learning’s value estimate starts to decline at around 900 episodes. While this is just a slight oscillation and the value estimate eventually rises back to the true value, it does show that Multi Q-learning has an advantage over Double Q-learn- ing in stability.

When the standard deviation of the reward function was increased, the deviation in the value estimate increased for each algorithm. When using an

It is interesting to compare the graphs of Multi Q-learning with those of Double Q-learning and Q-learning. The graphs in Figure 3(a) and Figure 3(c) were attained by using the same behavior policy and reward function, the key difference between the two were the algorithms that were used; Q-learning and Double Q-learning were used in Figure 3(a) and Multi Q-learning were used in Figure 3(c). The Multi Q-learning algorithms used in Figure 3(c) are clearly more stable than Double Q-learning and Q-learning. In Figure 3(a), Double Q-learning suffers from two plummets in value estimates between 800 and 1000 episodes. These errors in estimation do not occur in the Multi Q-learning algorithms tested on the same grid world environment. The bar chart in Figure 3(e) also shows how little Multi Q-learning deviates after 500 training episodes compared to Double Q-learning and Q-learning, which both have high amounts of deviation. Q-learning’s value estimates suffer from a standard deviation of 1.56 and Double Q-learning’s values estimates have a standard deviation of 2.90. All of the Multi Q-learning algorithms have value estimates with standard deviations of less than 1. These graphs show that Multi Q-learning has more stable value estimates that approximate the true value of a specific state more effectively than Double Q-learning and Q-learning.

(a) (b)(c) (d)(e) (f)

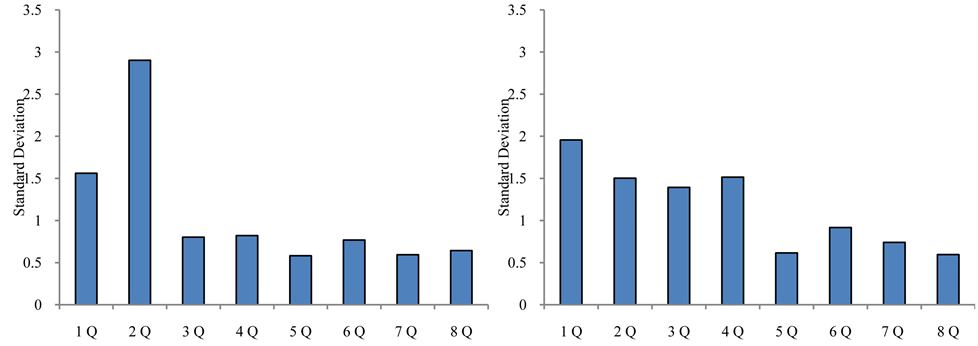

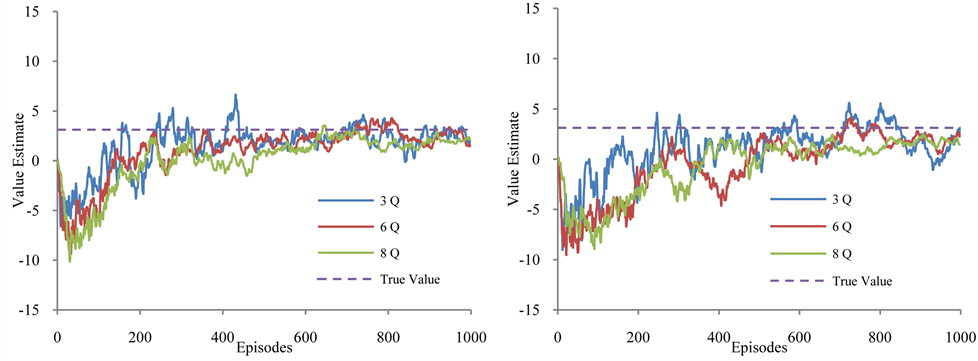

Figure 3. Value estimates and their respective standard deviation of Single Q-learning, Double Q-learning, and Multi Q-learning. (a) (b) Value estimates of Q-learning and Double Q-learning of the initial state where the behavior policy is ε-greedy, and for the respective figures. (c) (d) Value estimates of 3 Multi Q-learning algorithms of the initial state where the behavior policy is ε-greedy, , and for the respective figures. (e) (f) The standard deviation of each algorithm’s value estimate where the behavior policy for each algorithm was ε-greedy, , and for the respective figures.

The oscillation in the value estimates had quite an effect on Q-learning and Double Q-learning’s performance. Figure 4 shows the average return curve of all three algorithms. When the standard deviation of the reward function was 7 and the policy was exclusively exploratory, Q-learning and Double Q-learning both performed poorly. Figure 4(b) shows the return curves of each algorithm when using the ε-greedy policy.

(a)(b)

Figure 4. Average return curves for Q-learning, Double Q-learning, and Multi Q-learning. (a) The average return curve for each algorithm where the behavior policy was random, and; (b) The average return curve for each algorithm where the behavior policy was ε-greedy, and.

There was no noticeable difference between Double Q and Multi Q while Q-learning clearly performed the worst. Multi Q-learning performed noticeably better when a random action was always taken. Q-learning had an average return of 1.1, Double Q’s average return was 2.4, and all the Multi Q algorithms had average returns above 3.5 when the behavior policy always choose a random action. This demonstrates Multi Q’s stability regardless its behavior policy.

The high returns are due to Multi Q’s ability to consistently reach the goal throughout its training. The success rates shown in Table 1 indicate Multi Q-learning performed better than Q-learning and Double Q-learning. For a reward function with and a strictly exploratory behavior policy, Q-learning failed to reach the goal over 50% of the time. Double Q-learning did not fare much better and only succeeded 65.5% of the time, while 8 Q performed very well with a success rate of 94.2%. As stated before, when using an ε-greedy policy, there was no noticeable difference between Double Q-learning and Multi Q-learning. But when was increased, the success rates of Q-learning, Double Q-learning, and Multi Q-learning became clearly different. At the highest reward function deviation we trained on, , Q-learning’s success rate was 60.8%, Double Q-learning’s was 75.8%, and 3 Q-learning’s was 88.1%. We also see that as increased, Multi Q-learning’s success rate decreased at a lower rate than both Q-learning and Double Q-learning. This shows that Multi Q’s stable value estimates result in more successful agents.

It is also interesting to note the smoothness of the return curve as the number of estimators increase. Using 4 or more estimators creates a much smoother curve than using 1, 2, or even 3. This smoothness can again be attributed to the stability of Multi Q’s value function approximation. The algorithm steadily converges to the optimal value estimate and has very little fluctuation.

In addition to the neural networks used above, we used three other network architectures to approximate each algorithm’s value function. We demonstrate the benefit of adding convolutional layers to improve value approximation. The first architecture we used had two fully connected hidden layers, both of size ten. The next network replaced the first hidden layer with a convolutional layer. This convolutional layer had ten filters

Table 1. Success rates for each algorithm with different reward function standard deviations.

all with a length of five. The addition of a convolutional layer slightly improved upon the network’s value estimates, leading to higher average returns. The final neural network had three hidden layers. These hidden layers were all fully connected and had a size of ten. Having three hidden layers did not improve upon any of the algorithms’ average returns. In fact, the addition of another layer actually performed worse than having only two hidden layers. Figure 5 shows the comparison of the different network architectures’ average returns.

The average returns of the algorithms demonstrate an important advantage Multi Q-learning has over both Double Q-learning and Q-learning. The average returns of both Double Q-learning and Q-learning decreased steadily with the different neural network structures used. In our grid world environment, these two algorithms performed the best with two fully connected layers. Using this structure, Q-learning had an average return of 0.59 and Double Q-learning had an average return of 3.19. The algorithms’ performances dropped when a network structure of one convolutional layer and one fully connected layer was used. In this case, Q-learning had an average return of 0.52 and Double Q-learning had an average return of 2.79. The algorithms perform the worst when the network structure was made up of three fully connected layers. With this structure, Q-learning’s average return was 0.02 and Double Q-learning’s average return was 1.86. The decrease in average returns of Q-learning and Double Q-learning is in contrast Multi Q-learning. The Multi Q-learning algorithms did not see any major decrease in average returns when faced with different neural networks. This is a clear advantage of Multi Q-learning compared to Double Q-learning and Q- learning. The Multi Q algorithm is not as easily effected by the type of network structure or function approximator used to estimate the value function.

To further demonstrate the robustness of the Multi Q-learning algorithm, we show the average return of the algorithms with neural networks of increasing depth. Figure 6

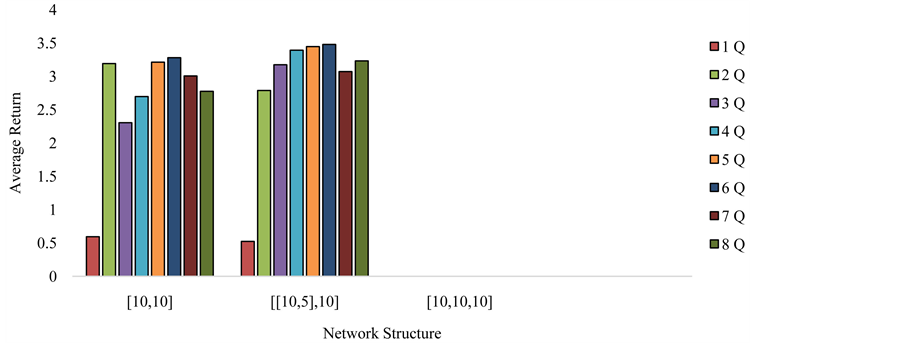

Figure 5. The average return of each algorithm while using different neural network structures. Four different network structures where use, two of which had convolutional layers. The first network had 2 fully connected layers with 10 rectified linear units in each. The second network contained a convolutional layer with 10 filters with lengths of 5. The final neural network had three fully connected hidden layers.

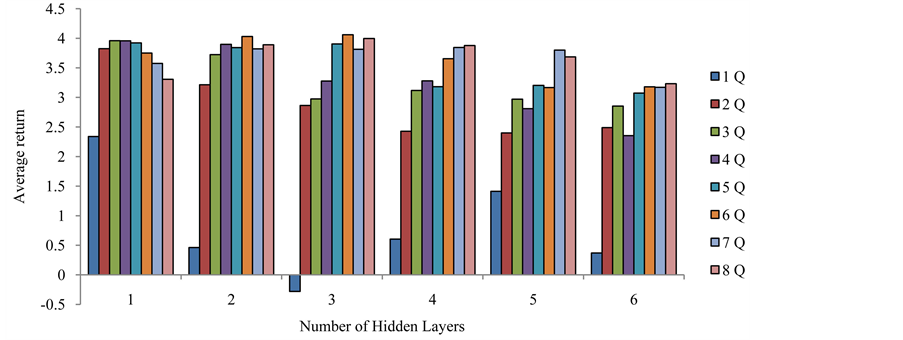

Figure 6. The average return of each algorithm using a neural network to approximate the value function. Each layer of the neural network contains 85 rectified linear units and increases in depth. This graph shows the stability of the Multi Q-learning algorithm regardless of the depth of the network.

shows the average returns of each algorithm as the number of hidden layers in the network increased. The behavior policy during these tests was exclusively random, so the agent always took a random action throughout training. The performance of both Q-learning and Double Q-learning declined as the number of layers in the network increased. Contrarily, the performance of 6 Q, 7 Q and 8 Q remained relatively stable regardless of the number of layers. The returns for 6 Q, 7 Q, and 8 Q began to decrease once the network reached a depth of 5 hidden layers. This poor performance can likely be attributed to the vanishing gradient problem with neural networks. This again shows the stability and robustness of the Multi Q-learning algorithm; despite the depth of the network, Multi Q-learning is still able to solve the problem and achieve high returns.

3.2. Tabular Results

We also ran the Multi Q-learning algorithm using Q-tables in addition to neural networks. The results of using Q-tables were less drastic then those found with the neural networks, but we did find a slight advantage of Multi Q-learning. In the early stages of training, Multi Q-learning appeared to have developed better policies than Q-learning and Double Q-learning. Figure 7(a) shows the average return of each algorithm after 2000 episodes. At 2000 episodes, Q-learning had an average return of −1, meaning that it has failed to reach the goal even once up to this point. Double Q-learning did much better with an average return of 2.2. The performance of 5 Q was the best, having an average return of 3.6 at 2000 episodes.

4. Conclusion

The paper presents and evaluates a new temporal-difference learning algorithm, Multi Q-learning. Multi Q-learning attempts to increase value estimate stability by using multiple action-value function approximations. We tested our algorithm on a grid world environment and have shown the stability of Multi Q-learning compared to

(a)(b)

Figure 7. The average return of Q-learning, Double Q-learning, and Multi Q-learning when using Q-tables. (a) Average return after 2000 episodes of each algorithm using Q-tables. In this experiment and the behavior policy was random; (b) Average return curves of each algorithm from the same experiment as (a).

Q-learning. In our tests, Multi Q-learning achieved better average returns compared to Q-learning, reaching returns up to 2.6 times higher than Q-learning. We also ran Multi Q-learning on various neural network structures, including deep, shallow, and convolutional networks, demonstrating the algorithms ability to remain effective despite its implementation. While Double Q-learning and Q-learning performance decreased with ineffective implementation, Multi Q-learning was still able to retain good returns. We see Multi Q-learning being most useful when the dynamics of a reinforcement learning task are not well known. Multi Q-learning’s improved stability over Q-learning makes it a more generalize algorithm, being able to solve a variety of tasks without the need to tune its parameters.

Acknowledgements

We would like to thank the Summer Research Institute at Houghton College for providing financial support for this study.

Cite this paper

Duryea, E., Ganger, M. and Hu, W. (2016) Exploring Deep Reinforcement Learning with Multi Q-Learning. Intelligent Control and Automation, 7, 129- 144. http://dx.doi.org/10.4236/ica.2016.74012
