World Journal of Nano Science and Engineering
Vol.06 No.01(2016), Article ID:64208,9 pages

Preparation and Characterization of Silver Nanoparticles and Their Use in Catalytic Reduction of 4-Nitrophenol

F. A. Al-Marhaby1, R. Seoudi2,3

1Department of Physics, University College in Qunfudah, Umm Al-Qura University, Makkah, KSA

2Spectroscopy Department, Physics Division, NRC, Dokki, Cairo, Egypt

3Department of Physics, College of Applied Science, Umm Al-Qura University, Makkah, KSA

Copyright © 2016 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

Received 13 December 2015; accepted 29 February 2016; published 4 March 2016


Silver nanoparticles of various sizes were prepared at room temperature using silver nitrate as a precursor, various molar ratios of sodium citrate as a surfactant stabilizing material and sodium borohydride as a reducing agent. The morphology, distribution and sphericity of the particles were assessed in images from a transmission electron microscope (TEM(. The sizes of the particles were calculated as being 9, 11 and 14 nm. The effects of the particles’ sizes on the plasmon bands were confirmed by ultraviolet-visible spectra measurements. The prepared samples were applied in photo catalysis of 4-Nitrophenol (4-NP), and the rate constant was determined as 0.05 s−1, 0.0015 s−1 and 0.00021 s−1 for particles of 9 nm, 11 nm and 14 nm, respectively. Due to their high surface energy, the smaller particle sizes were more active in the photo catalytic application.


Silver Nanoparticles, Surface Plasmon Band, Photocatalyst, Rate Constant

1. Introduction

A nanoparticle is the most fundamental component in the fabrication of a nanostructure. A nanoparticle is bigger than an atom or a simple molecule that is governed by quantum mechanics [1] . Nanoparticle shaves unique properties, especially optical, electronic and biological properties [2] - [5] . Due to their high surface-to-volume ratio, nanoparticles can be used in heterogeneous catalysis [6] [7] . In addition, they are applied in many fields, including photonics, micro-electronics, lithography and surface-enhanced Raman spectroscopy [8] [9] . As noble metal nanoparticles, silver nanoparticles show unique chemical and physical properties. They have excellent conductivity, chemical stability and catalytic activity. These properties are directly dependent on their size, size distribution and shape [10] - [12] . In addition, silver materials with one- and two-dimensional nanostructures, including nanowires and nanocubes, are believed to have great potential applications [13] - [16] . Silver nanoparticles (AgNPs) can be prepared using physical methods that include evaporation-condensation and laser ablation. In particular, these two methods are used to prepare AgNPs in the form of thin films [17] . However, laser ablation can be used to synthesize AgNPs in solution [18] . In addition, AgNPs can be prepared by chemical reduction, such as microemulsion techniques [19] , UV-initiated photo reduction [20] , photo induced reduction [21] , electrochemical synthetic methods [22] , irradiation methods [23] and microwave-assisted synthesis [24] . In a biosynthesis method, AgNPs have been synthesized using bacteria [25] , fungi [26] , algae [27] and plants [28] [29] .

Although 4-nitrophenol (4-NP) is a class of pollutant, stable in the environment and resistant to biodegradation [30] [31] , it can be transformed to safety compound 4-aminophenol (4-AP) by using AgNPs due to their catalytic properties. The aim of the present work is to synthesize various sizes of spherical AgNPs using trisodium citrate as a surfactant material. The particle sizes and plasmon bands were assessed using Transmission Electron Microscope (TEM) images and ultraviolet-visible (UV-VIS) spectra. The results clarified the effect of particle size on the reduction conversion of 4-NP to 4-AP using sodium borohydride (NaBH4) as a model reaction.

2. Experimental

2.1. Chemicals

Silver nitrate (AgNO3 ≥ 99.99%) with a molecular weight of 169.87 g/mol, trisodium citrate (Na3C6H9O9 ≥ 99%) with a molecular weight of 258.06 g/mol and sodium borohydride (NaBH4 ≥ 99.99%) with a molecular weight of 37.83 g/mol were purchased from Sigma-Aldrich (Steinheim, Germany). 4-NP was purchased from Sigma- Aldrich (USA) and used as received without further purification. Distilled, deionized water was used throughout the experiments.

2.2. Preparation of Colloidal AgNPs by the Chemical Method

Stock solutions of silver nitrate with a concentration of metal salt (AgNO3, 2.5 × 10−4 M) and trisodium citrate dihydrate (HOC(COONa)(CH2COONa)2・2H2O, 2.5 × 10−4 M) were prepared in a conical flask and stored in the dark to protect against light. Next, 0.1 M of ice-cold NaBH4 was prepared as a stock solution. To prepare Sample 1 (S1), 5 mL of 2.5 × 10−4 M trisodium citrate dihydrate was mixed with 20 mL of 2.5 × 10−4 M AgNO3 solution under magnetic stirring for 10 min at room temperature before 0.6 mL of ice-cold NaBH4 was added. The colour of the mixture quickly changed to yellow, indicating the formation of AgNPs. Sample 2 (S2) and Sample 3 (S3) were prepared by the same method except that the molar ratio of trisodium citrate dehydrate was changed by adding 20 and 40 mL of HOC(COONa)(CH2COONa)2・2H2O to 20 mL of AgNO3 for S2 and S3, respectively.

2.3. Characterization

The morphology and distribution of the AgNPs samples were analysed using TEM images. The TEM (JEOL- JEM-1011; Japan) was operated at an accelerating voltage of 120 kV. The TEM samples were prepared by depositing one drop of colloidal AgNPs on a carbon-coated standard copper grid (300 mesh) and allowing it to dry before making the TEM measurements. The UV-VIS absorption spectra of the AgNPs were measured at room temperature on a spectrophotometer (Thermo-scientific Evolution 220) in a 1-cm optical path quartz cuvette over a 350 - 700-nm wavelength at a resolution of 2 nm.

2.4. Photo-Catalytic Reduction of 4-NP Using NaBH4 and Colloidal AgNPs

The photo-catalytic reduction of 4-NP was performed in a quartz cuvette 4 cm high and with a 1-cm optical path length. An aqueous solution of 0.03 M of NaBH4 and 2 mmol of 4-NP was prepared and stored at 4˚C. The photo-catalytic reduction was studied by mixing 200 µL (2 mmol) of 4-NP with 2 mL of deionized water in the cuvette and then adding 1 mL of (0.03 M) NaBH4 to the mixture. The UV-visible spectra were measured at various times. The distance between the light source and the cuvette containing the mixture was kept constant at all times during the measurements. The same constituents were carried out again in the cuvette and 300 µL of colloidal AgNPs were added. This was S1.Then, the UV-visible spectra were monitored at various time in situ using a UV-VIS spectrophotometer (Thermo-scientific Evolution 220). Samples S2 and S3 were used at the same volume (300 µL) with fresh mixtures and the same concentrations of 4-NP and NaBH4. The S2 and S3 spectra were also measured at various times. To reduce thermal effects on the catalytic rate, the reaction temperature was held constant at room temperature (20˚C). The time until the reduction began and until it completed varied depending upon the size of the AgNPs.

3. Results and Discussion

3.1. TEM Images of the AgNPs

Figure 1(a)-(c) show TEM images of the AgNPs prepared under varying concentrations of trisodium citrate. The images show that all samples (S1, S2 and S3) are roughly spherical in shape and irregular in distribution. Nevertheless, some aggregation was observed in S3. The diameter of the nanoparticles was determined using a millimetre scale. The number of particles was counted within a bin of 5 mm [15] . As Figure 1(d)-(f) show, the average particle sizes were estimated at 9 nm, 11 nm and 14 nm. These values indicate that the size of the particles increased with increasing trisodium citrate concentration. This may be because the higher concentration of trisodium increased the pH value of the solution, thus increasing the aggregation and particle size of the Ag ions.

3.2. UV-VIS Spectra of AgNPs

Figure 2 shows the absorption spectra of the AgNPs in the wavelength range of 350 - 700 nm. A sharp peak is seen at the wavelengths; 388 nm, 390 nm and 400 nm for samples S1, S2 and S3, respectively. Due to the quantum size effect, the band shifted to higher wavelengths as the size of the nanoparticles increased. These bands are assigned to the surface plasmon bands that correspond to the completely or roughly spherical shape of the AgNPs. These bands express a collective oscillation frequency for the electrons in the conduction band. The electrons correlated to these sizes of AgNPs are much smaller than the incident wavelength. In this case, the electric field induced by light (Eo) is constant and the electrons submit to the electromagnetic field and propagate like a plasmon wave [32] . Considering that the atoms’ nuclei are still, the oscillation of the electrons leads

(a) (b) (c)(d) (e) (f)

Figure 1. TEM images of AgNPs prepared with various concentrations of silver nitrate and trisodium citrate: sample S1 (20:5), S2 (20:20) and S3 (20:40). The average particle sizes estimated from the images were 9, 11 and 14 nm for samples S1, S2 and S3, respectively.

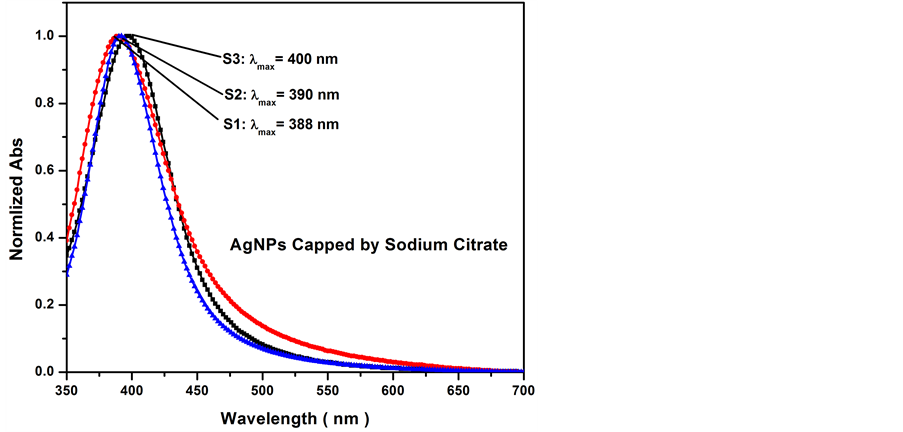

Figure 2. The UV-VIS absorption spectra for the colloidal AgNPs synthesized in various particle sizes: 9 nm (S1), 11 nm (S2) and 14 nm (S3).

to a periodic charge separation and generates oscillating dipoles whose magnitude reaches a maximum at the nanoparticles surface (Figure 3). At resonance, the amplitude of the local electric field in the particle, E1, is enhanced compared to that of the applied field, Eo.

Figure 4 shows the UV-VIS spectra of the 4-NP (2 mmol) with and without NaBH4. One band appeared at 317 nm in the 4-NP spectrum. This band is characterized as the electronic transition n-π*, owing to the lone pair of electrons (oxygen and nitrogen atoms) in the 4-NP structure. This peak shifted to a higher wavelength at 400 nm after the addition of 0.03 M of NaBH4. The solution colour transformed from light yellow to yellow-green. This peak corresponds to the formation of 4-NP ions. This band decreased slightly with increased reduction time and became stable after 45 min without change. This result is in agreement with the previous work by Seoudi et al. [33] and Rashid et al. (2006) [34] .

As shown in Figure 5, The catalytic activity of AgNPs of 9 nm (S1), 11 nm (S2) and 14 nm (S3) in diameter was analysed by measuring the UV-VIS spectrum of 4-NP in the range of 200 - 600 nm at various times in the presence of NaBH4.It is clear that the reduction in the band that appeared at 400 nm for each sample increased depending on the size of the nanoparticles. For S1, the band reduction was measured after 5 min. Usually, this time is ascribed to the diffusion time needed for adsorption of 4-NP onto the surface of the AgNPs. In addition, as mall, new band appeared at about 290 nm. The decrease in the intensity of the band at 400 nm may be due to decreased 4-NP concentration, and the new band at 290 nm may be due to the formation of aminophenol (AP). The appearance of the latter can be explained as follows: NaBH4 reduces water to hydrogen as

The reduction reaction was implemented by the hydrogen, and it involved the production of hydrogen gas, visible as bubbles. The decreased intensity of the peak at 400 nm was caused by the continuous consumption of 4-NP. The reaction mechanism was causative because the inherent hydrogen was adsorbed by AgNPs, which transported the hydrogen between the NaBH4 and the 4-NP. This behavior was expected because AgNPs adsorb hydrogen from the NaBH4 and efficiently release it through the reduction reaction; hence, AgNPs act as a hydrogen carrier in this reduction reaction. The same processes should have occurred during the reduction of 4-NP in the presence of 300 µL of AgNPs in samples S2 and S3. In these samples, the absorption peak at 400 nm decreased with increasing time to complete reduction and a new, very low-intensity band (like a shoulder) appeared at about 290 nm, indicating the formation of 4-AP but incomplete consumption of 4-NP. Furthermore, the intensity of this absorption band at 290 nm was very low. These data indicate that the 4-NP did not completely transform into 4-AP in samples S2 and S3. Figure 6 shows the mechanisms and forms of the reduction reactions for the transformation of 4-NP to 4-AP. The yellowcolourindicates4-NA, and colourless parts indicate the generation of 4-AP.

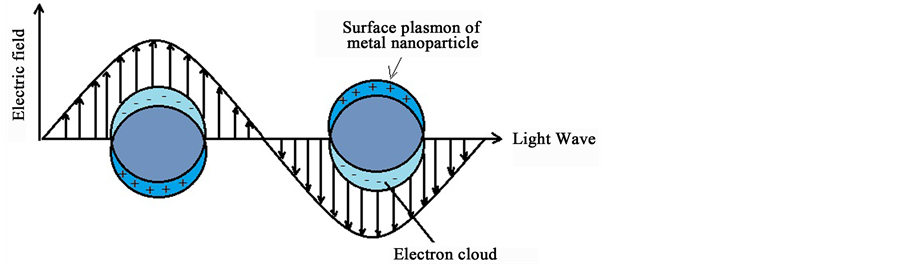

Figure 3. Oscillating dipoles induced by light radiation of the AgNPs.

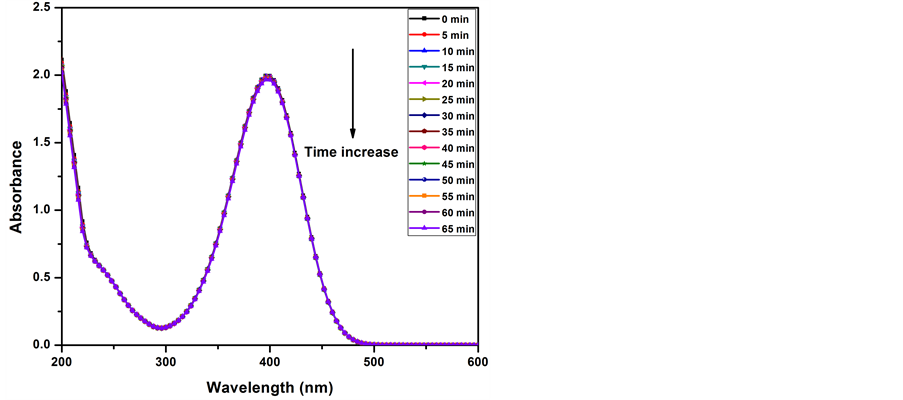

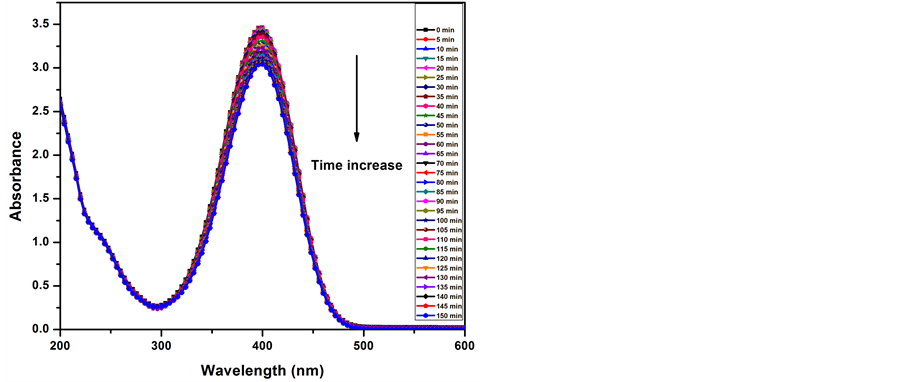

Figure 4. Measurements of the UV-VIS spectra of 4-NP over time with and without sodium borohydride.

Figure 7 shows the kinetic curves of the 4-NP reduction by AgNPs that are 9 nm (S1), 11 nm (S2) and 14 nm (S3) in diameter in the presence of NaBH4. The rate constant of the reaction was calculated from the decrease in intensity of the absorption peak at 400 nm overtime. A linear relation was observed between Ln(A/Ao) and time. As the concentration of sodium borohydride can be considered constant, the change in the ratio Ln(A/Ao) with time corresponds to a first-order reaction kinetics equation, and the reaction can be directly calculated from the linear relation between Ln(A/Ao) and time.

where Ao is the initial absorbance of the reaction system, A is the absorbance at time t and k is the rate constant of the chemical reduction. From this kinetic curve, the rate constant (k, s−1) was calculated at 0.05 s−1, 0.0015 s−1 and 0.00021 s−1 for the AgNPs of diameters 9 nm, 11 nm and 14 nm, respectively. By comparing these rate constants of 4-NP in the presence of various sizes of AgNPs, it can be noted that S1, which contained 9-nm AgNPs, has more catalytic activity because AgNPs with higher particle sizes have lower interaction with4-NP. The reduction of 4-NP by S1 and S2 can be related to the Langmuir-Hinshelwood model of heterogeneous catalyzed reduction [35] . In this model, borohydride ions are adsorbed onto the surface of the nanoparticles, giving them the electrons. At the same time, molecules of 4-NP that are adsorbed onto the surface of the AgNPs lose electrons in the same proportion. After the reduction, the reaction product, 4ـAP, is desorbed from the silver surface.

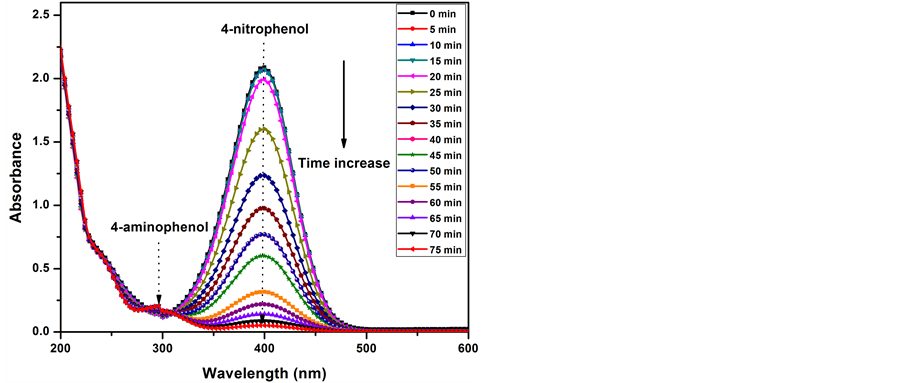

Figure 5. UV-VIS absorbance spectra for the reduction of 4-NP with NaBH4 in the presence of AgNPs with particle sizes of 9 nm (S1), 11 nm (S2) and 14 nm (S3).

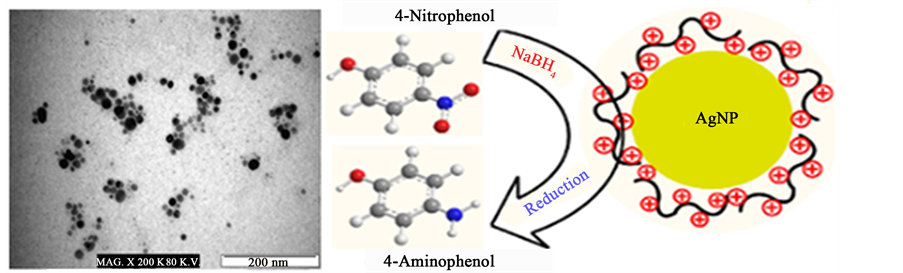

Figure 6. The mechanisms and forms of reduction reaction for 4-NP.

Figure 7. The kinetic curve of 4-NP reduction by AgNPs of (a) 9 nm, (b) 11 nm and (c) 14 nm in diameter in the presence of NaBH4.

4. Conclusion

AgNPs were synthesized in various sizes. The UV-VIS results show that the positions of the surface plasmon- resonance bands depend on the size of the AgNP particles. In the prepared samples, AgNPs as a catalyst redactor transform the reduction of 4-NP to 4-AP. The smallest nanoparticles had the highest catalytic activity, and the rate constant of chemical reduction decreased with increasing size of the AgNP particles.
