Journal of Transportation Technologies
Vol.4 No.1(2014), Article ID:42047,9 pages DOI:10.4236/jtts.2014.41003

An Investigation on Safety Performance Assessment of Close-Following Behavior of Heavy Vehicle Using Empirical-Simulation Technique

Mohamed Rehan Karim1*, Ahmad Saifizul1, Hideo Yamanaka2, Airul Sharizli1, Rahizar Ramli1

1Center for Transportation Research, Faculty of Engineering, University of Malaya, Kuala Lumpur, Malaysia

2Department of Civil and Environmental Engineering, The University of Tokushima, Tokushima, Japan

Email: *

Received October 19, 2013; revised November 22; 2013; accepted December 17, 2013


One of the main causes of rear-end crashes is attributed to close-following and hazardous driving behavior. A study was conducted to investigate the close-following behavior of heavy vehicle under various heavy vehicle categories, travel speeds and gross vehicle weights (GVW). Investigation is based on data obtained from simulation and empirical observations. A safety performance assessment of close-following behavior of heavy vehicles by using empirical-simulation technique is proposed. The simulation, which incorporates vehicle dynamics, is to generate the minimum safe time gap (MSTG) for truck-following-car situations. MSTG is defined as the minimum time required by the following vehicle to decelerate and stop without hitting the leading vehicle when both leading and following vehicles apply the emergency brakes. Based on comparison between the actual time gap data and the MSTG, a safety performance assessment technique that considers vehicle type, vehicle braking characteristics, truck GVW and speed is proposed for truck-following-car situation.

Keywords:Road Safety; Vehicle Overloading; Safety Indicator; Close-Following; Traffic Accidents; Weigh-in-Motion

1. Introduction

Close-following has been identified as one of the main causes of road crashes and associated with a large number of rear-end crashes and hazardous driving risks. Knipling et al. [1] stated that the main causal factors of rear-end collision were inattention and following too closely. Study by Michael et al. [2] also stated that 28.3% of rear-end collisions in Tennesse in 1997 were because of close following. There are many other studies that provide empirical evidence to support the connection between short headway and rear-end collisions [3-5].

Time gap is defined as the time that elapses between the rear of the lead vehicle and the front of the following vehicle. It is important to distinguish time gap from headway, which refers to time separation between the fronts of two successive vehicles passing a point. Time headway consists of the time gap and passage time, which is, the time taken for lead vehicle to pass a point. Because passage time inversely varies with speed [6] and greatly depends on the length of vehicles, the characteristics of headways and time gaps are dissimilar. It is very crucial for drivers to keep a safe following time gap in order to prevent a rear-end collision with the vehicle in front. The time gap should be sufficient for the reaction time and stopping time.

With the increase of in-vehicle electronic gadget for information and entertainment, the risk of rear-end collisions may increase in the near future. Young and Salmon

[7] stated that driver distraction may contribute to errors through a range of means: by affecting cognitive processes such as perception, planning, decision making, and situation awareness, as well as by interfering with vehicle control tasks. Therefore, distractions such as glance to the other side, making phone calls, playing with electronic gadgets and searching for directions should be avoided as it may cause delay in response time and increase the risk of a collision. In addition, a case study found that there was also the effect of behavior compensation: drivers start to take more risks (e.g. higher speeds, shorter distance headways, etc.) because they feel safer in a car with certain safety features [8]. As a result, the advanced safety features may not necessarily be able to protect drivers from involving in crashes.

Theoretically, higher travelling speed requires longer time gap. Piao and McDonald [9] revealed more variability of distance gap between vehicles in high speed situations than in low speed situations. However, heavy vehicles (HVs) usually require larger time gap compared to other types of road users. According to Manitoba Public Insurance [10], the stopping time for trucks using air brake systems consists of one additional variable that is brake lag. Brake lag refers to the time that air takes to travel through a properly maintained air brake system, approximately 4/10 of a second. Dey and Chandra [11] also revealed the maximum desired time gap for tractors in relation to the characteristics of the HVs, such as performance, braking and acceleration capability. Therefore, as mentioned by Sayer et al. [12], depending on its size and weight, the existence of HVs in a traffic stream will definitely cause a significant difference in the vehicle following behavior.

As mentioned by Bixel et al. [13], vehicle weight is one of the essential parameters in vehicle design study that can affect vehicle driving, braking and handling performance characteristics. Furthermore, most of the time vehicle dynamics influence driver behavior in controlling their vehicles [14]. The study by Saifizul et al. [15,16] has obviously shown that heavy vehicle GVW has direct influence on speed, whether the vehicle travel in a vehicle following situation or in free flow condition. Among four main vehicle following pairs (car follows car, car follows truck, truck follows truck, and truck follows car), trucks following passenger car require much more attention on two-lane single carriage roads. Since the extent of vehicle overloading in Malaysia is more alarming in the 2-axle, 3-axle and 4-axle trucks category [17], the focus in this study is on the situation of these trucks following passenger car. This case requires higher level of concern since the car and truck have a huge difference in dynamics capability. The consequences from a collision would be more severe for the car no matter which party is at fault.

Close-following behavior in a traffic stream may be of serious concern when heavy vehicles are involved. Accident data have shown that a significant proportion of fatal accidents involving trucks and buses in Malaysia are the rear-end collision type (see Figures 1 and 2). As so, the objective of this study is to investigate the safety performance of truck-following-car under various truck types, GVWs and travel speeds. The study focuses on two aspects, namely, the frequency of unsafe behavior and the degree of the unsafe behavior of the truck-following-car situation on specific road segments. This can be achieved by comparing the empirical time gap data to the minimum safe time gap (MSTG) required for a truck of a certain GVW travelling at a particular speed in a truck-following-car situation. The concept of MSTG will be further explained in the next section. Based on this approach, a possible safety performance assessment technique is proposed.

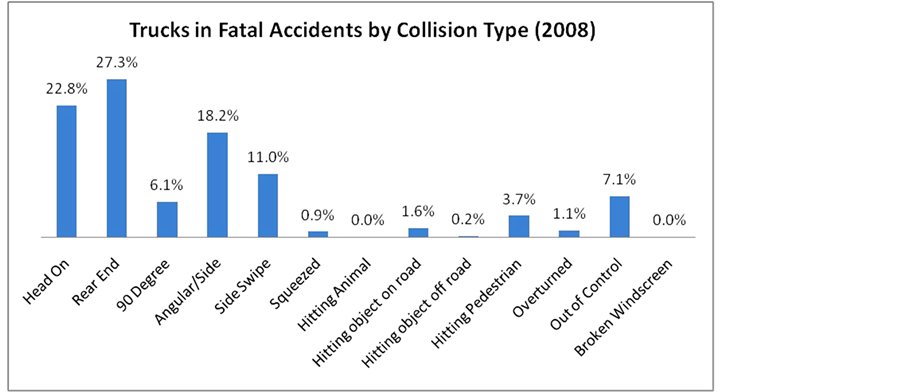

Figure 1. Trucks in fatal accidents by collision type (2008).

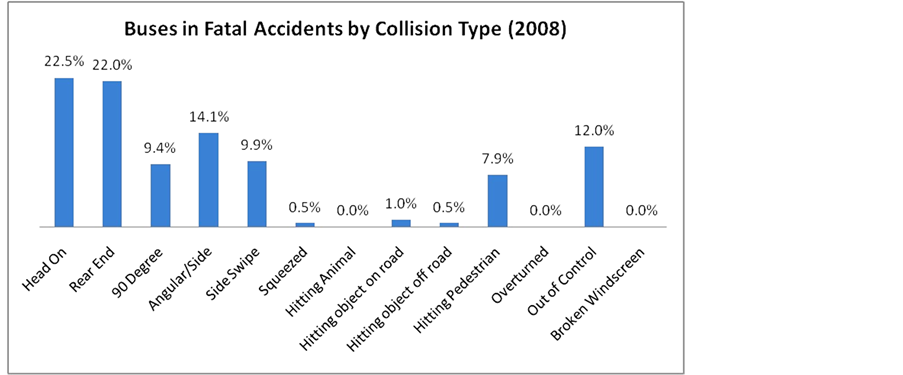

Figure 2. Buses in fatal accidents by collision type (2008).

2. Proposed Empirical-Simulation Safety Performance Assessment Technique

The proposed safety performance assessment technique is introduced to investigate the safety performance in vehicle following situation. The main vehicle parameters which have not been explicitly considered in previous safety indices, namely the gross vehicle weight (GVW) and vehicle braking performance will be included in the analysis and development of the safety performance assessment technique.

Keeping a safe following distance from the front vehicle is critical for mitigating rear-end crashes in truckfollowing-car situation since it allows the truck sufficient time to stop, and to stop gradually. Thus, in this paper the concept of minimum safe time gap (MSTG) is introduced. The MSTG is defined as the minimum time required by the following vehicle to decelerate and safely stop without hitting the leading vehicle when both leading and following vehicles apply the emergency brakes due to unforeseen circumstances.

The value of MSTG (as illustrated in Figure 3) is obtained by considering the braking time of the following truck (BTFV) and the leading car (BTLV) as well as the perception-reaction time of the truck driver (RT). Both the braking time of the following truck and leading car are generated from simulation using the MSC ADAMS software which incorporates vehicle characteristics including vehicle type and braking performance. As such, the MSTG considers both the truck drivers characteristics as well as the truck characteristics (such as truck type, braking performance, GVW and speed). Changes in truck characteristics, say for example the truck GVW, will affect the truck braking performance and its ability to safely stop in an emergency situation, hence affecting the BTFV and MSTG. Similarly, the truck driver’s physical and mental condition will affect the perception-reaction

Figure 3. Concept of mean safe time gap (MSTG).

time (RT), hence affecting the MSTG.

The MSTG incorporating GVW and travel speed of trucks following passenger car can be expressed as follows:


whereRT is truck driver’s reaction time (1.5 seconds will be adopted)BTFV and BTLV are braking time of following truck and leading car, respectively.

Actual time gap data for truck-following-car is obtained through empirical study on specific locations along a road network. The empirical time gap data for various following truck type, GVW and speed will be analysed for the purpose of comparison with the respective MSTG data.

In the interest of measuring safety performance related to close following behavior in a selected traffic stream, the concept of safe vehicle-following behavior (actual time gap is more than MSTG) and unsafe vehicle-behavior (actual time gap is less than MSTG) may be explained through the sketch of the empirical-simulation plot shown in Figure 4.

The frequency of unsafe behavior in truck-follow-

Figure 4. Sketch of empirical-simulation plot for time gap and MSTG.

ing-car situation is based on the comparison between the numbers of cases where the actual time gap is less than the MSTG. The degree of unsafe behavior in truck-following-car situation is based on the comparison of the deviation of mean time gap from the MSTG for each cluster of vehicle class, speed and truck GVW. The frequency of unsafe behavior referred to as “unsafe occurrence” (UO) and the degree of the unsafe behavior referred to as “unsafe deviation” (UD) on specific road segments may be assessed.

Based on Figure 4, the unsafe occurrence (UO) may be calculated by dividing number of points in the unsafe region by total data points as given in Equation (2).


The value of UD is calculated as follows:


whereUO is in percentage and UD is in secondsMUTG is the mean unsafe time gap in seconds.

3. An Illustrative Example

To illustrate the application of the proposed safety performance assessment technique, a case study was conducted on a rural two-lane highway in the state of Selangor in Malaysia. The empirical data is collected for a four months period using a weigh-in-motion system and the simulation data is obtained using the MSC ADAMS software.

3.1. Simulation Data and Analysis

Close following has been identified as one of the most important contributors to rear-end collisions. Most of the time vehicle dynamics influence driver behavior in controlling their vehicles. Thus, braking performance parameters such as stopping time, stopping distance and deceleration are essential parameters in close-following study. In a truck-following-car situation, there are significant dissimilarities in terms of braking performance characteristics.

The brake performance of vehicles can be analyzed in several different ways. This can be through an actual experimental work or through vehicle dynamics simulation packages. Obviously, the process of building and instrumenting the prototype for actual experimental testing involves significant engineering time and expense. Furthermore, some actual testing is quite dangerous and difficult to implement such as determination of safe following gap time in a vehicle following situation.

As computers have gotten faster, and software user interfaces have improved, commercial simulation packages such as MSC ADAMS have become widely used in industry for rapidly evaluating hundreds of test conditions much faster than real time. In addition to testing, simulation provides substantial time and cost savings. MSC ADAMS software is a kind of virtual prototyping software for simulating vehicle dynamics and currently used by many major auto manufacturers.

In this study, MSC ADAMS software has been used to generate stopping time data for passenger cars and trucks under various loading and speed condition. Since the aim of the study is to investigate the safety performance of truck drivers in an actual truck-following-car situation, it is important to develop more realistic simulated truck model. Thus, in this study, the truck model and its specification for 2-axle, 3-axle and 4-axle truck has been developed in accordance to prevalent truck type available on the road. Simulation was carried out under the assumption that the vehicle has reached a steady state condition and stay on the road at a constant speed before the brakes are applied at 285 N. Furthermore, the trucks with air drum brake and parabolic leaf spring suspension have adequate braking force. The road profile is flat and straight road condition where differences in road materials and stiffness are not significant.

Simulation data on leading car braking time (BTLV) is shown in Table 1 while the following truck braking time (BTFV) for 2-axle, 3-axle and 4-axle trucks are shown in Tables 2-4 respectively.

Using Equation (1) the respective values of MSTG are determined for the different truck types travelling at three different speeds with different GVWs. As would be expected the MSTG varies for the different combinations of truck type, truck GVW and travel speed. In general, it is worth noting that for a particular truck type, say the 3-axle truck, travelling at a particular speed, say 60 km/h

Table 1. Braking time of passenger car (sedan).

the truck braking time (BTFV) will increase as the GVW increases. It means that as the GVW of the truck increases it needs longer time to stop safely after the brakes are applied. Consequently, the MSTG also increases as the GVW increases implying that for a particular truck following a car, the minimum safe time gap will be longer than usual if the truck is carrying higher payload than usual. The truck driver would need to understand this in order to avoid rear-end collision in emergency situation.

3.2. Empirical Data Collection and Analysis

Time gap data together with all other traffic and vehicular data such as GVW, wheelbase and vehicle class were obtained from a weigh-in-motion (WIM) system installed on Route 54 in the state of Selangor in Malaysia. The WIM system was installed next to a static weight station operated by the Road Transport Department of Malaysia. The road type is rural single carriageway with standard width and layout and having a straight geometry in a flat

Table 2 . BTFV and MSTG for 2-axle trucks.

Table 3. BTFV and MSTG for 3-axle trucks.

terrain as shown in Figure 5. Further elaboration of the WIM system is presented in Saifizul et al. [18].

In this study, data was collected for four months from the system. In order to remove the influence of the surroundings and focus on the driver behavior and vehicle performance capability in a vehicle following situation, data were filtered based on the following conditions:

● Dry weather condition

● Daytime from 7 am (after sunrise) and before 7 pm (before sunset)

● No change in the infrastructure and surrounding at the site

● Time headway less than 4 s [16]

By limiting the number of samples consisting of small relative speed between leading and following vehicle, the time gap data for 2-axle, 3-axle and 4-axle trucks that passed the filtering stage of this study consisted of 3743

Table 4 . BTFV and MSTG for 4-axle trucks.

Figure 5. The data collection site with WIM system installation.

observations. The time gap data are then grouped according to leader-follower pair composition, GVW and vehicle class (the heavy vehicle is classified based on their number of axles). In this study, only truck following passenger car pairs will be investigated. The analysis of results is presented based on the assumption that all the vehicles travel in one lane without overtaking.

For the case of 2-axle trucks following cars, the occurrence and frequency of unsafe time gap (UO) are shown in Table 5 while cases involving 3-axle trucks and 4-axle trucks following cars are shown in Tables 6 and 7 respectively. As explained earlier, the UO is obtained by comparing the actual time gap and the MSTG for each vehicle class (truck type), speed range and GVW range, and all actual time gaps which are less than the MSTG will be considered unsafe time gap (UO). The mean of the unsafe time gaps (MUTG) for each truck type, speed range and GVW range are also given in Tables 5-7.

From the observed data it is quite apparent that for each truck type and speed range, both the UO percentage and MUTG increases as the truck GVW increases. This means that there are relatively more occurrences of unsafe time gaps as the truck GVW increases. This implies that the truck driver is generally insensitive to the need to adjust his/her driving behavior (in this case, truck following car behavior) as the truck GVW increases. It may also imply that the truck drivers are over confident in their ability to handle the truck even though they are carrying higher payloads than usual. The MUTG will be compared with the respective MSTG to determine the degree of deviation of MUTG from the MSTG and this will be discussed in the next section.

4. Discussion

The frequency of occurrence of unsafe time gap (UO) and degree of unsafe time gap (UD) for 2-axle trucks following cars is given in Table8 The UO varies between 58.3% and 75.0% for mean speeds of 50 km/h to 70 km/h and mean GVW of 20 tons to 30 tons. The mean

Table 5 . Unsafe occurrence (UO) and mean time gap of UO cases for 2-axle trucks.

UO of 65.6% indicates that a significant proportion of the trucks are following cars at time gaps below the minimum safe time gap (MSTG) and the trucks will not be able to avoid hitting the leading car in an emergency situation. The degree of unsafe time gap (UD) indicates that the deviation of the mean unsafe time gap is 1.09 seconds below the MSTG. The mean unsafe time gap is 35.4% below the MSTG. In the case of an emergency situation, not only does the truck hit the leading car, it

Table 6 . Unsafe occurrence (UO) and mean time gap of UO cases for 3-axle trucks.

Table 7. Unsafe occurrence (UO) and mean time gap of UO cases for 4-axle trucks.

Table 8. Unsafe occurrence (UO) and unsafe deviation (UD) cases for 2-axle trucks.

may end up as a fatal accident.

A similar characteristic is observed for the case of 3-axle trucks following cars wherein the mean UO is 67.7%, mean UD is 1.02 seconds and deviation of the mean UD below the MSTG is 33.2% (Table 9). Although the occurrence of unsafe time gap is slightly higher as compared to the 2-axle trucks following cars, the degree of unsafe time gap is slightly lower for the case of 3-axle trucks following cars. The case of UO and UD for 4-axle trucks is given in Table 10.

The proposed safety performance assessment technique allows the investigation on vehicle following considering vehicle type, speed and GVW. In this study, the technique is illustrated for the case of truck following car situation. The value of UO indicates the high frequency of unsafe driving among the truck drivers in car-following situation. Results of UD indicate that significant proportion of truck drivers follow the leading car well below the minimum safe time gap. The results also indicate that on the whole an assessment of the safety level on any stretch of road should consider vehicle type, GVW and speed. It is proposed that UO and UD may be used as indicators on the potential of rear-end collisions along a specific stretch of road.

For this case study, the mean UO is found to be 64.5% while mean UD is 0.98 sec. Hence, this means that 64.5% of all truck drivers are following cars at 0.98 seconds less than the minimum safe time gap! This could probably explain why rear-end fatal accidents involving heavy vehicles are alarming in Malaysia, i.e. resulting in 27% of all fatal accidents involving trucks in Malaysia (see Figures 1 and 2 earlier).

5. Conclusions

This study aims to investigate safety implications of driver behavior in truck-following-car situation considering truck type, time gap, gross vehicle weight and speed. A new approach on safety performance assessment involving empirical-simulation technique is suggested. The minimum safe time gap (MSTG) is proposed

Table 9 . Unsafe Occurrence (UO) and Unsafe Deviation (UD) Cases for 3-Axle Trucks.

Table 10. Unsafe occurrence (UO) and unsafe deviation (UD) cases for 4-axle trucks.

as an indicator to be employed in the safety performance assessment technique. The frequency of occurrence of unsafe time gap (UO) and degree of unsafe time gap as measured by the deviation of the mean unsafe time gap from the MSTG (UD) are suggested as indicators for safety performance in truck-following-car situation. The proposed safety indicator, MSTG, requires data from simulations, and it is influenced by the factors associated with the driver (e.g. gender, age, fitness etc.), vehicle (e.g. vehicle type, GVW, speed etc.), road (e.g. wet/dry, pavement type etc.) and the surrounding conditions (e.g. rain, day/night, fog etc.) as shown in Figure 6.

To illustrate the application of this technique, empirical data were obtained under near optimal driving conditions characterized by dry weather, daytime, and no changes in surrounding, and small relative speed using the developed weigh-in-motion-based transport datacollection system, which has been installed on one of the federal roads in Malaysia. The findings of this research highlight the importance of considering the truck type, truck GVW and speed in a truck-following-car situation. Based on this safety performance assessment technique, hazardous vehicle-following behavior of truck drivers may be established for any road segment.

With advancement of computer technology and simulation techniques, more accurate simulation data can be easily achieved at much lower cost. More accurate and comprehensive data on vehicle characteristics and performance can be achieved through advanced simulation software which may be quite difficult to obtain by using other means.

Nevertheless, without accurate empirical data, a proper assessment on safety performance could not be done even though accurate simulation data are available. This safety performance assessment technique requires both simulation data (as benchmark) and empirical data (as depicting the actual situation).

The safety performance assessment should go beyond the traditional/conventional methods which may sometimes lead to over simplification of the complexity of situation such as involving vehicle dynamics. Considering only kinematics is not enough to explain the actual situation in road safety, heavy vehicles are involved.

A major outcome of this study indicates that truck overloading would be a problem in truck-following-car situation when emergency situation arises, and this is rather common in developing countries like Malaysia. Proper monitoring and weight control enforcement strategies may be a step forward in addressing this issue. Use of weigh-in-motion systems for road safety studies needs

Figure 6. Significant factors influencing MSTG.

to be considered and enhanced as it has proven to be beneficial. Proper and adequate education of the truck drivers may also be necessary to increase their knowledge and awareness on the need to adjust their driving habits and time gaps when they carry higher payloads than usual, especially when the leading vehicle has superior dynamic performance capability.


The authors would like to acknowledge assistance from the flagship research grant FL020-2012 awarded by the University of Malaya.


  1. R. R. Knipling J. S. Wang and H. M. Yin, “Rear-End Crashes: Problem Size Assessment and Statistical Description,” NHTSA Technical Report DOT HS 807 994, 1993.

  2. P. G. Michael, F. C. Leeming and W. O. Dwyer, “Headway on Urban Streets: Observational Data and an Intervention to Decrease Tailgating,” Transportation Research Part F Vol. 3, No. 2, 2000, pp. 55-64.

  3. L. Evans and P. Wasielewski, “Do Accident-Involved Drivers Exhibit Riskier Everyday Driving Behavior?” Accident Analysis and Prevention, Vol. 14, No. 1, 1982, pp. 57-64.

  4. R. L. Postans and W. T. Wilson, “Close-Following on the Motorway,” Ergonomics, Vol. 26, No. 4, 1983, pp. 317- 327.

  5. S. H. Fairclough, A. J. May and C. Carter, “The Effect of Time Headway Feedback on Following Behaviour,” Accident Analysis and Prevention, Vol. 29, No. 3, 1997, pp. 387-397.

  6. J. H. Banks, “Average Time Gaps in Congested Freeway Flow,” Transportation Research Part A: Policy and Practice, Vol. 37, No. 6, 2003, pp. 539-554.

  7. K. L. Young and P. M. Salmon “Examining the Relationship between Driver Distraction and Driving Errors: A Discussion of Theory, Studies and Methods,” Safety Science, Vol. 50, No. 2, 2012, pp. 165-174.

  8. SWOV, “Fact Sheet: Intelligent Transport Systems (ITS) and Road Safety,” 2010.

  9. J. Piao and M. McDonald, “Low Speed Car Following Behaviour from Floating Vehicle Data,” Proceedings of Intelligent Vehicles Symposium on IEEE Intelligent Vehicles Symposium, Columbus, 9-11 June 2003, pp. 462-467.

  10. Manitoba Public Insurance, “Air Brake Manual,” 2008.

  11. P. P. Dey and S. Chandra, “Desired Time Gap and Time Headway in Steady-State Car-Following on Two-Lane Roads,” Journal of Transportation Engineering, Vol. 135, No. 10, 2009, pp. 687-693.

  12. J. R. Sayer, M. L. Mefford and R. W. Huang, “The Effect of Lead-Vehicle Size on Driver Following Behavior,” (Report number UMTRI-2000-15). The University of Michigan Transportation Research Institute, Ann Arbor, 2000.

  13. R. A. Bixel, G. J. Heydinger, N. J. Durisek and D. A. Guenther, “Effect of Loading on Vehicle Handling,” SAE Paper 980228, SAE International Congress and Exposition, 1998.

  14. J. Y. Wong, “Theory of Ground Vehicle,” John Wiley & Sons Inc., Hoboken, 1993.

  15. A. A. Saifizul, H. Yamanaka and M. R. Karim, “Empirical Analysis of Gross Vehicle Weight and Free Flow Speed and Consideration on Its Relation with Differential Speed Limit,” Accident Analysis and Prevention, Vol. 43, No. 3, 2011, pp. 1068-1073.

  16. A. A. Saifizul, H. Yamanaka, M. R. Karim and M. Okushima, “Empirical Analysis on the Effect of Gross Vehicle Weight and Vehicle Size on Speed in Car Following Situation,” Proceedings of the Eastern Asia Society for Transportation Studies, Vol. 8, 2011, pp. 305-317.

  17. A. A. Saifizul, H. Yamanaka and M. R. Karim, “Development of Integrated Data Collection and Enforcement System,” Proceedings of the 17th ITS World Congress, Busan, 25-29 October 2010, 11 p.

  18. A. A. Saifizul, H. Yamanaka and M. R. Karim, “Prospect of Using Weigh-in-Motion Based System for Enhancing Vehicle Weight Enforcement—A Case Study of Malaysian Roads,” Proceedings of the 17th ITS World Congress, Busan, 25-29 October 2010, 11 p.


WIM—weigh-in-motion GVW—gross vehicle weight MSTG—minimum safe time gap MUTG—mean of the unsafe time gaps UO—occurrence of unsafe time gaps UD—deviation of MUTG from MSTG STFV—stopping time of following vehicle STLV —stopping time of leading vehicle
