Journal of Agricultural Chemistry and Environment
Vol.06 No.01(2017), Article ID:73077,24 pages

Review Paper: The Fundamentals of Biochar as a Soil Amendment Tool and Management in Agriculture Scope: An Overview for Farmers and Gardeners

Tawheed Mohammed Elhessin Shareef1,2*, Baowei Zhao1

1School of Environmental and Municipal Engineering, Lanzhou Jiaotong University, Lanzhou, China

2Department of Agriculture Engineering, Faculty of Agriculture, University of Khartoum, Khartoum, Sudan

Copyright © 2017 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: November 22, 2016; Accepted: December 25, 2016; Published: December 28, 2016


Improving the soil and biomass with coal is estimated at the international level as a way to enhance soil productiveness, fertility and also to mitigate climate change. Biochar employed to improve land scope and impound carbon, is attracting a great deal of attention. Its characteristics of chemical, physical and biological properties, containing big surface area, CEC (Cation Exchange Capacity), high water-holding capacity, size of pore, volume, distribution, and element composition, affect its recognized influences, particularly on microbial communities. These are discovered in the agriculture lands, lands remediation and composting. However, incomplete information existed about biochar for several farmers or peasants in agriculture scope. Therefore, farmers or peasants and gardeners are facing new opportunities and defiance each day, from feeding global extending and expanding population, whilst meeting severe new emissions requirements, to create more food on fewer land area while reducing their environmental emissions. Widespread application and utilization of biochar in agricultural scope, forestry production, energy, environmental protection and additional areas, has interested awareness by scientists and investigators inside and/or outside the country. The objective of this paper is to provide a guide for the farmers or peasants and gardeners with an essential information about biochar and what the ability of biochar can be achieved in the soil, and which can provide the scientific reference for the biochar application, and to get high yield and good quality of crops in all of different soils.


Biochar, Pyrolysis Methods, Agricultural Advantages, Environmental Impacts

1. Introduction

Agriculture has to address at the same time three intertwined challenges: en- suring food safety through increased income and productivity, adapting to climate change and contributing to climate change mitigation [1] [2] [3] [4] [5] .

This challenge, worsening global pressure on normal resources, mainly on water, will need essential changes in our food classifications. To treat these challenges, feeding systems have to be simultaneously, additional effective and flexible, at each level from the farm to the worldwide level. They have to develop more effectively in reserve employment and become more capably to adapt to variations and impacts. For example in 1990s, livestock and cultivation increasing were the most important sources to make living in the Sudan for nearly 61% of the working inhabitants [6] [7] . More than one third of the overall area of Sudan is appropriate for agricultural improvement and development. Therefore, it is necessary to inform the farmers or peasants of the importance of biochar to improve soil and increase productivity by improving water and nutrient retention [8] .

The motivation to study biochar came from the soil possibility to remedy many of the challenges fronting the today’s world: waste administration, renewable energy, soil declination, and climate change. Different several other stages for the extraction renewable energy from feedstocks, biochar build up soil fertility and food availability rather than act as a challenging benefit. If suitably understood and applied, biochar has the possibility for generating several dissimilar win conditions with a few disadvantages [9] .

The concept to use biochar as a soil amendment may seem recent but it really comes from the study of very ancient soils in the Basin of Amazon. It is known that “Terra preta de Indio”, or “black soil of the Indians” was designed by indigenous peoples since thousands of years ago when they amassed charcoal and a different wastes, nutrient trash like animal bones and fish bones [10] [11] [12] .

Until today, black soil or ‘‘Terra preta’’ soils remain more fertile than neigh- bouring or surrounding, unmodified soil. Researchers see that the biochar in these soils, is the one that keeps them so fertile over such extensive stages in an environment that rapidly filters nutrients out of soil and where organic materials decomposes so quickly [11] [12] .

2. Biochar

The definition of biochar it is the carbon products, gained while the raw materials, like forest, animal compost, and plant residues, is heated in a closed storage place without air. in many technical and clearer standards, biochar is created by seeming thermal decomposition of organic substance below incom- plete supply of (O2) oxygen, and at comparatively low temperature (<700˚C). [13] .

The feedstock’s heats up to the point at which pyrolysis starts. At this point, the reaction becomes exothermic, that means it starts to create heat and no longer consumes it [11] [12] . The expression “Biochar” is a moderately contemporary improvement, evolving in combination with soil managing, carbon confiscation or sequestration matters, and immobilization of contaminants [14] .

The properties of biochar can change extensively, depending on what the biochar is prepare from and how it is complete. Some biochars can have characteristics which make them an excellent amendment in one soil but not another or the biochar can be simple awful [12] . Peasants or farmers must be aware of this, and this paper addresses the variability in biochar materials. Biochar retains the formation or structure of the biomass and can be very porous with a very great surface area; according to previous study SEM micrographs of Biochar CS (cotton (Gossypium herbaceum) straw) and Biochar PS (potato (Solanum tuberosum) straw), the structure porous of biochar shown in Figure 1 [15] .

3. Power of Biochar

Powerful of biochar it’s attention-grabbing because it has been established and demonstrated to progress crop outgrowth and quality of soil, while confiscating or sequestering C in soil and providing other environmental advantages. As such, it represents a tool management for quality of soil on the long period, with climate change mitigation. Presently, scientific of research, on the environmental advantages and agricultural scope of biochar is being published at growing rate. However, biochar is the main ingredient in a new carbon-negative strategy to resolution numerous critical current ecological, economic and energy defies. If properly made and used, biochar can relieve climate change and other environ- mental effects: 1) Rise soil fertility & agricultural yields; 2) sequester carbon; 3) enhance soil structure, water penetration & aeration; 4) decrease use of pesticides and synthetic fertilizers; 5) reduce methane emission from soil and nitrous oxide; 6) decrease farm chemicals leaching into watersheds and nitrate; 7) create or Produce renewable fuels from feedstock’s; 8) change green & brown residues into valuable resources; 9) decrease dependence on imported oil; 10) support local, distributed energy production and distribution; 11) increase energy security and community food; 12) construct local jobs and economic cycles.

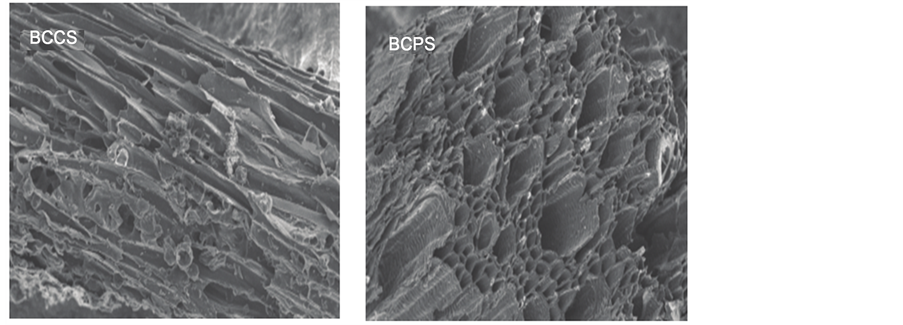

Figure 1. Show the porous structure of biochar (Photomicrograph from Scanning Electron Microscopy (SEM)) [15] .

3.1. Agricultural Advantages

In a lot of pot and field studies, biochar has been shown to get better crop yields when compared to suitable controls where biochar was not applied. Represen- tative results from short-term studies are presented in Table 1. Biochar has caused in very high yield enhancements on very meagre or poor soils such as acidic humid and tropical soils, in some instance increasing yields by factors of two or more. In more fertile soils, more modest developments in the range of 10% are common. Biochar does not comprise any appreciable quantities of existing nitrogen, but does comprise some decomposable carbon [10] [11] . So, if biochar is applied and deficient nitrogen is supplied, nitrogen immobilization can happen and decrease crop yields. This also occurs with compost, for example: if the ratio of carbon to nitrogen (C:N) is too high. Biochar is a soil improvement that is to be used along with applicable sources of nutrients, like animal composts, green manures, composts and fertilizers. It is not a replace for these inputs. Though the ash in biochar fixes improves nutrients to plants, several biochars comprise only small quantities of ash. Also, any nutrients in ash not used by plants in the year after application are finally lost from the soil, sometimes quickly, for example by leaching.

Table 1. Agricultural influences of biochar.

Then how does biochar enhance crop yields? Yield improvements with biochar have been qualified to the following effects: 1) Increase in pH, the pH of biochar is often high (e.g. >9). This is beneficial in soil were the pH is lesser than optimal for the intended use, but not if the pH is higher than best; 2) Immediate or direct addition of nutrients. Ash in biochar contributes some nutrients to soil, but this is a short-term effect; 3) Retention of nutrients substances. With the passing of time, biochar surfaces advance an ability to retain nutrients in soil. This is a lengthy -period advantage of biochar and sets it apart from other forms of biological materials in soil, which also help retain nutrients but decompose relatively quickly; 4) Potential improvement of soil physical properties. Biochar has an extremely low density & highly porous; 5) Biochar may provide suitable situations for advantageous microbes soil, for example N-fixing Rhyzobia and Mycorrhizal fungi [10] [11] . Table 2 shows crop yield variations when applying biochar. [16] is also from Table 2. Corn yield improved after addition dissimilar varieties of biochar. The increase amount yield of crop depended on the quantity and types of additional biochar. Dissimilar biochar had dissimilar influence on dissimilar crops [16] . In short, biochar has the potential to provide or supply profits for quality of soil both on the short and long term. But on the other hand, biochar amelioration unhelpful permanently in agricultural production regardless of the biochar to be a high degree of carbon material with unparalleled properties. possibility disadvantages attached to biochar, soil contain: 1) Oversupply of nutrients; 2) Binding nutrients in soil); 3) Rise in pH and soil Electrical Conductivity EC; 4) effect on growth and soil bioprocesses; 5) liberation of toxicants [17] .

3.2. Composting with Biochar

Biochar is firm substance achieved with organized carbonization of feedstock’s. Prepared biochar is a constant form of a hard black material (charcoal) that has several of the helpful characteristics of activated charcoal, at a modest price, and a beneficial product for positive manure or compost operators. Excellent aera-

Table 2. Crop yield variations when applying biochar.

*SFWB = Secondary Forest Wood Biochar, BB = Branch Biochar, RHB = Rice husks biochar, CCB = Corn Cob Biochar, BBC = Biological Black Carbon, PMSB = Paper Mill Sludge Biochar, CSB = Corn Stover Biochar.

tion, compost organization and hard non-pile configuration are well recognized and applied methods to fertilizer odor manage.

Biochar is an operative adding to existing greatest practices for these kinds of manure odors [18] . Biochar decreases smells from volatile oily acids [19] [20] . NH3 (Ammonia) and N (nitrogen) smells or odors (both in the first and last stages of composting) [21] [22] . Lab studies point out that biochar decreases H2S (Hydrogen Sulfide) and S (Sulfur) founded odors [22] [23] . Field area studies by10% biochar shows CH4 (methane) decrease by 1/3 [24] .

3.3. Environmental Benefits and Impacts

Many studies have found that biochar stays in soil for centuries to millennia. This is because the mass of the material is extremely resistant to decomposition by microbes. Throughout pyrolysis, the structure of molecular biomass is reorganized, to a form that is extremely constant in soil. Carbon that was in the atmosphere gets combined into biomass by plant wastes, plants are pyrolyzed, and biochar placed in soil. Thus biochar can be employed as an instrument to sequester or seize carbon in soil in a safe system. Not just is there no possibility that the carbon in biochar will suddenly “escape or leak” back into the atmosphere, but having biochar in soil also offers advantages in terms of quality of soil.

Biochar can offer additional environmental advantages, containing: 1) Decrease nutrient pollution in water bodies; 2) Biochar may decrease the production of greenhouse gases by soil; 3) Impacts of biochar on the bio-availability and movement of heavy metals have been extensively reported [25] [26] [27] [28] . So biochar can decrease the bio-availability and mobility of pesticides and heavy metals in soil [11] [12] . Biochar can be a Straightforward yet vigorous tool to fight climate change. As biological materials decompose, gases of greenhouse, such as carbon dioxide (CO2) and CH4 (methane), are released into the atmosphere. Through carbonizing the biological sustenance, a lot of the carbon (C) becomes “steady” into additional unchanging constant form, and when the outputting biochar is applying to soils, (C) carbon is efficiently isolated or sequestered [29] . It is assessed that employ of this technique to “tie up” (C) carbon has the possibility to decrease current universal carbon releases or emissions by more than10% [30] .

4. Generation of Charcoal or Biochar

Charcoal or biochar is generated by heating organic substance under conditions of incomplete oxygen [31] . Biochar is generated via heating biological substance below conditions of incomplete oxygen. There are several methods to attain this result. The varieties of feedstock or organic substance that is employed and the conditions below which a biochar is created extremely affect its relative quality as a soil improvement [32] [33] . Biochar are made from range of biomasses that have dissimilar chemical & physical properties as the original biomass can be subjected to a collection of analyses with a view to supply the essential physico- chemical properties of every raw and pyrolyzed material. These chemical and physical characterizations are showed in Figure 2.

The properties of each biomass feedstock are significant in thermal conversion processes, mainly the proximate examination or analysis (moisture content & ash), caloric value, portions of fixed carbon, and volatile ingredients [34] ; percentage of lignin, cellulose, and hemicelluloses [35] ; percentage and composition of inorganic substance, mass, true density, particle size, and moisture content.

Wide feedstock’s have been used in the production of biochar [34] , such as bio energy crops (willows, miscan thus, and switch grass) [36] [37] , forest residues (sawdust, grain crops, and nut shells) [38] , organic waste (green yard waste and animal manure) [39] [40] , agricultural waste [41] - [46] , kitchen waste, and sewage sludge [47] .

In all cases, biochar makers should strive to protect their own health and that of the environment by guaranteeing they make biochar in a fresh or clean and safe method. Some traditional ways of making charcoal, for example in earthen hills, are not safe and are poorly effective. Indeed, they produce large amounts of smoke which represents a health risk and is an environmental pollutant, and one obtains only small amounts of biochar from the initial biomass [48] .

4.1. Physico-Chemical Characterisation of Biochar

Anaerobic thermal transformation of feedstock can be completed in three dissimilar processes: gasification; liquefaction and pyrolysis or carbonization. Altogether give outputs in 3 stages: a) solid; b) liquid; c) gas, with the product composition dependent on procedure situations. Therefore, pyrolysis is distinguished by long residence times and temperate temperatures, liquefaction happens beneath high heating rates, however gasification is defined by great temperatures, regularly with additional, though sub-stoichiometric, oxygen. Pyrolysis typically creates a solid, organized or structured, carbonaceous sub-

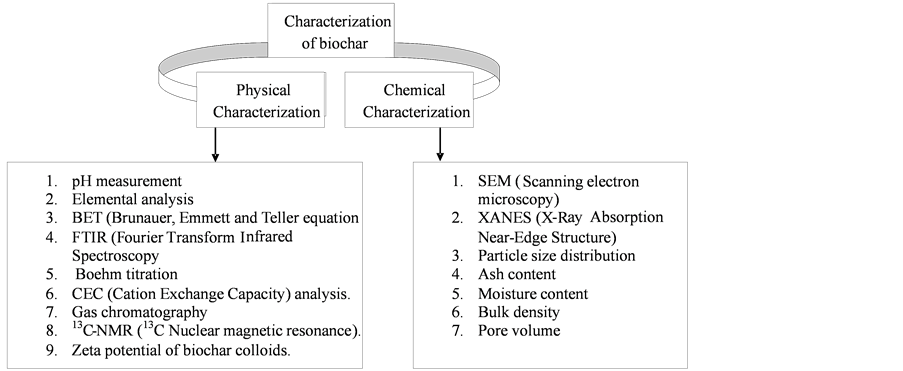

Figure 2. Show the outline of proposed characterization of biochar including physical and chemical characterization.

stance which, compared to the biomass, displays a great surface area [49] , decreased oxygen & hydrogen content [50] , and a concentration of nutrients [51] [52] .

Main properties of biochar, like (SA) surface area, pH, ash, (BD) bulk density, volatiles, (WHC) water holding capacity and (PV) pore-volume, are sensitive purposes of pyrolysis biomass and procedure conditions. Surface area is easily noticeable through classical adsorption mechanisms, such as nitrogen adsorp- tion investigated by the (BET) Brunauer-Emmett-Teller, adsorption isotherm [53] [54] , whilst proximate analysis offers quantification of fixed carbon, volatile and residual ash [55] . Some previous studies for example, assessments by [56] [57] recapitulated the impact of pyrolysis temperature on these characteristics and consequent interactions in soil.

The chemical environment of the fixed carbon can be investigated or probed by a diversity of solid phase C13 nuclear magnetic resonance mechanisms or techniques [58] [59] [60] . Biochar chemistry and surface functionality can be evaluated by different methods and techniques including spectroscopically by vibrational techniques such as infrared [58] [59] , electron energy loss [61] spec- troscopies and titrimetrically [62] . Such examinations establish that biochar properties are a difficult purpose of biomass nature and pyrolytic situations. Both quantity or mass yield and the grade of aromaticity are purposes or functions of pyrolysis conditions and biomass. Temperature, sweep gasstream rate, feedstock particle size and heating rate, are all factors that touch the mass yield of biochar. [63] explored the effect of heating rate; maximum treatment temperature and sweep gas flow rate in a 23 factorial scheme trial and found that temperature was the leading parameter. Comparable or similar temperature- induced yield reductions have been stated for pyrolysis of animal wastes [64] [65] , sunflower cake [66] , rapeseed [67] , cottonseed cake [68] , pinewood bark [69] , and sugarcane bagasse [70] . Increased heating rate, increased sweep gas streamor flow rate and reduced particle size all lead to reduced biochar production [71] . This shows that reaction yield is ruled by reaction kinetics, mass transfer considerations and thermal.

Temperature [59] and time at temperature [72] , rise the extent of aromatic construction creation in biochar. Aromaticity is a significant factor of biochar quality in specific situations. Little aromaticity and minor aromatic cluster size infers great surface functionality compared to substance characterized by greater aromatic areas, and leads to greater cation exchange capacity in soil [73] . This contrasts the increased water holding capacity of raised temperature material due to upper or higher surface area.

On the other hand, a rise in biochar aromaticity leads to greater resistance or recalcitrance in soil with concomitantly extended sequestration potential. Also, great temperature biochar exhibits high surface area and porosity, both of which can be exploited in adsorption-based remediation technologies. Just as pyrolysis conditions time alter the properties of the biochar, so too does the feedstock.

Biochar have been created by pyrolysis of wastes or residues of rapeseed [74] , rape & sunflower [75] beneath an assortment of temperatures and heating rates, whereas agricultural residues of relevance in a Turkish have been studied extensively [63] [76] [77] . As well, pyrolysis of sewage sludge has been presented to create a best quality of biochar [78] [79] whereas casein [80] gives an extremely porous product (content of porosity = 20%) using a high nitrogen content (9.02% w/w). Even microalgae have been proved to create great yields (>1/3 by mass) [81] . In addition to traditional pyrolysis procedures for biochar generation, alternate methods have been discovered. Comprises: 1) pressurized pyrolysis [82] ; 2) hydrothermal carbonization [83] [84] [85] ; 3) microwave pyrolysis [86] . These latter procedures have potential as ways to resources with properties external the range of usual pyrolysis products and greater energy efficiency.

4.2. Pyrolysis Methods of Preparation Biochar

Production and preparation of biochar distributed to pyrolysis, microwave carbonization technique and hydrothermal carbonization technique according to the dissimilar techniques of heating [48] . Figure 3 shows the process of preparation biochar. Therefore, Pyrolysis methods used to operation raw materials can be classified, to four kinds: a) slow; b) fast; c) flash and d) gasification pyrolysis methods. Table 3 shows the types of pyrolysis techniques. All types vary in expressions of modifications to structure of raw material (feedstock’s), temperatures & heating rates, that outcome in the production of various quantities of every product (like biochar, biooil & syngas) [87] [88] .

Various feedstock’s and a large device (reactors) are utilized to make biochar through pyrolysis. Usually employed reactors contain: bench scale fixed bed, well swept fixed bed, fluidized bed and auger vertical tubular kinds [89] . An ex-

Figure 3. Show the process flowchart for the production of biochr.

Table 3. Feedstock products under different kinds of pyrolysis methods.

tended effort to enhance the procedure efficiency & optimization of biochar generation by adjusting or controlling the operating conditions has not been widely because of past competition from bioenergy production. Carbonised organic matter can essentially have dissimilar physical and chemical properties based on the technology used for its production [90] .

Some previous studies have compared the properties of more than a few types of biochars prepared through slow pyrolysis and found that pyrolysis tempe- rature and biomass type are important factors in determining the most suitable application for biochars. Example, (Uchimiya et al.) discovered that pyrolysis methods can have an influence on the presence of surface practical groups on biochars and thus manage or control their heavy metal sequestration capability in soils [91] . Yao. et al. [92] reported biochars made from different biomass feedstock’s show large differences in adsorbing phosphate from aqueous solutions. Moreover, biochar can be used as a low-cost adsorbent for wastewater treatment, especially with regards to processing or treating heavy metals in wastewater. Several studies have expounded effective removal of heavy metals from aqueous solutions by biochar and, in some situations, demonstrated the advantage of biochars to activated carbons [93] .

Recent studies have also suggested that production/conversion methods can also play an important role in controlling biochar properties [94] . Example, biochars produced by hydrothermal carbonization, which is also called hydro- char, show unique characteristics and can be used for different applications, such as innovative materials and soil amelioration [94] [95] .

On the other hand, Biomass pyrolysis or raw materials into biochar have been Carried out on olive pomace, oak bark, oak wood, pine wood, apple wood, corn stover, wheat straw, sugarcane bagasse, canola straw, compost, rice husk, dairy manure, bamboo, orange waste, peanut straw and switch grass [89] [96] [97] [98] [99] . Nearly every form of feedstock comprises plant residues; yard wastes, forestry wastes, animal manure, sewage sludge wastes and industrial wastes can be treated or in a pyrolyzer. Hence, not all biological litters are appropriate for making biochar that can be employed in agricultural scopes. This is due to certain creation conditions and biomasses generate biochar that cannot keep nutrients efficiently, and are liable to microbial decompose [100] . Pyrolysis methods can be well-known via the residence time, pressure and size of adsorbent, pyrolytic temperature of the pyrolysis substance and heating rate and method [101] [102] . Table 3 shows the particular technique of characteristics and parameters of pyrolysis methods.

From Table 3, slow and middle pyrolysis can create greater yield of biochar, while fast methods can create additional liquid products and flash methods can create additional gas. Therefore, in order to obtain additional biochar, slow methods and middle methods pyrolysis is additional appropriate.

4.3. How to Make Biochar Stove for Small Farms?

Stove of biochar provide out 2 aims: it creates biochar and it lets to cook food on peak of it though it is creating the biochar. Flame created by a biochar stove is detergent and fewer contaminating than the flames that several kinds of stoves produce. It burns an extensive range of fuel than modest wood stoves do. It also creates biochar, which can utilize as a soil improvement and amendment. In addition a biochar stove is also small and easy to create. Figure 4 and Figure 5 show very simple a Top-Lit Up Draft (TLUD) biochar maker, whether you concerns: 1) Smoke reduction; 2) Biochar for your garden; 3) Fields; 4) Animal feed; 5) Stop stink and flies. This machine is good and design to be: 1) Inexpensive; 2) Easy to make (no especial tools, no especial training ); 3) Easy to use ; 4) Effective (no smoke, good biochar); 5) Portable; 6) Efficient (you don’t spend a lot of time, collecting biomass, and then haven’t reduce to handful of biochar, this thing you will give you about 30% efficiency [103] .

Figure 4. Show a vertical cross-section of the (TLUD) stove. TLUD allows for a clean burn [33] .

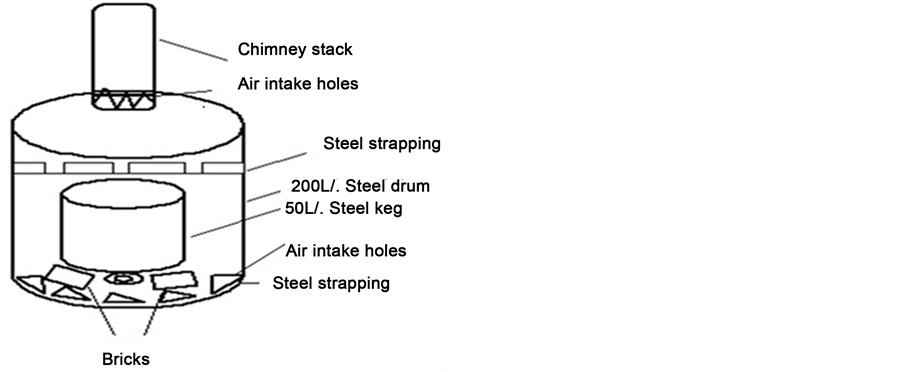

Figure 5. Show simple biochar stove of production biochar in small area.

4.4. Materials and Tools Needed to Make Stove

Some simple materials & tools will be needed to make stove such as: 1) Large iron drums or steel keg (e.g. 55/gallons ); 2) sheet metal screws gauge rebar tie wire; 3) Hammer and a big; 4) sharp nail; 5) Tin snips; 6) File; 7) Opener; 8) Compass; 9) Pencil; 10) Sharpie marker; 11) Ruler; 12) Screwdriver; 13) Pliers; 14) Scribe line for cutting; 15) disk-cutter; 16) Scribe lines for the covers at 120 degree sections. The steps for make simple LTUD stove to made biochar in small farms and gardens as follow: 1) Remove the bottom cover; 2) Bare vessel; 3) Punch inside process air holes; 4) Punch outside process air holes; 5) Punch combustion air holes in base; 6) Make top holes; 7) Accessories; 8) Insert Vessel Into Paint Can; 9) Ready to Run. (For more information on this LTUD stove see [103] .

5. Frequently Asked Questions and Important Points

5.1. What Do Farmers Need to Be Acquainted with about Biochar?

What Is in Biochar?

Biochar comprises stable matter, ashes, unstable matter & moisture. Ashes comprise plant nutrients which can advantage plant growing in short period. The quantity or amount of ash in biochar can differ a lot. Biochars made from animal manures generally contain great sizes or proportions of ash, compared to biochars made from plant parts. Care must be taken when working with high- ash biochars. It is probable or possible to induce salt stress in the crop if too much is applied at once. Stable substance in biochar remains in soil over the long term and offers nutrient retention and other benefits to soil quality. Unstable substance decomposes in the months and years after biochar is added to soil.

5.2. Studies Showing Improved Plant Growing with Applications of Biochar

Several studies in temperate climates and tropical have established biochars capability to enhance plant growing, decrease discharge or leaching of nutrients, raise retention of water, and augment microbial activity. In Colombian Oxisol many studies are completed (type of soil also found widely in Hawai‘i), total belowground plant feed stocks improved via 189% when biochar was applied at an amount of 23.2 ton/ha [104] . Research point to that biological (N) nitrogen fixation and helpful mycorrhizal relations in widespread beans (Phaseolus vulgaris) are improved through biochar applications [105] [106] . In Brazil, occurrence of local plant kinds augmented with 63% in areas where biochar was applied [104] . Several studies have exposed that the properties of biochar most significant to plant growing can enhance over time after its combination into soil [59] [107] [108] .

On the other hand, many studies indicating undesirable effects of biochar on plant growing, negative or neutral effects on yields were also gained. It is very important to know that biochar is not an actual fertilizer. Biochar constantly contains some ash and ash can provide nutrients to plants, for example (Ca) calcium, (k) potassium, and (Mg) magnesium. These nutrients are frequently limiting in very poor soils. Majority cases of reduced plant growing due to biochar utilization can be imputed to provisional levels of pH, (MM) mobile matter and imbalances associated of nutrient with new biochar [32] .

Biochar frequently can have a firstly high (alkaline) pH, which is attractive when employed with acidic, degraded soils; however, if pH value becomes too alkaline, plants might undergo nutrient insufficiencies. “Volatile” indicates to resins, types of tar, and other short period materials that stay on the biochar surface forthwith after production and can stop plant growing [32] [33] . High- quality production practices can reduce the quantity of MM in the biochar. Microbial action can decompose and convert the carbon rich (MM) into nutrients for plants; however, in the procedure, the microorganisms need (N) nitrogen &additional soil elements, making them provisionally unavailable for uptake by plants. These transitional imbalances are afterwards corrected as mobile matter (MM) decomposes, unavailable nutrients are released and pH neutralizes. On the other hand, some study has demonstrated that biochar improvement to soil can outcome in a release of dissolved organic matter from soil as well as change the dissolved organic matter composition towards greater aromaticity. A rise in soil pH upon the addition of alkaline biochar, probable affected by alkaline ash found in biochar, clarified most of the observed release of dissolved organic matter [109] .

5.3. How Much Biochar Is Supposed to Be Applied?

Most favorable application amount for biochar depends on the particular type of crop management and soil [10] [11] . And to note that not all biochar is the same, so it is imperative and significant point. The main physical and chemical properties of biochar are really affected by the kind of biomass being heated and the conditions of the pyrolysis method. For instance, biochar prepared from compost will have a greater nutrient substance or content than biochar prepared from wood. However, biochar prepared from wood might have a better grade of stability. Two several of biochars will look comparable but will behave com- pletely in a different way. Several biochar resources, for example bones and manures, are mostly composed of ashes, and thus can provide considerable quantities of nutrients to crops. On the other hand, the carbon (C) content of great in organic ash biochars is low (<10%), therefore longer period nutrient retention purposes will be less for a given quantity of substance. Variability in soils and biochar resources, employers of biochar should think about analyzing different amounts of biochar application on a few amounts before setting out to apply it on big areas [108] . At this time there is insufficient data available to allow the determination of perfect biochar application rates in dissimilar soils and cropping systems. Many researches indicate that minor application quantities yielded affirmative outcomes [110] . Also biochar can be applied incrementally and included with manure applications or fertilizer regimens applications. In field experiments published to date, rates of 2 - 22 t/ac (5 - 50 t/ha) have given favourable or positive results. The maximum end of this range may not be feasible or practical in terms of biochar sourcing and incorporation to the soil and have considerably been used effectively or successfully [110] .

5.4. Biochar Application to Soils

The aim of applying biochar to soil fundamentally falls into four broad catego- ries [111] : a) Agricultural profitability; b) Management of pollution and eutrophication hazard to environment; c) Reconquest of degraded land; d) Sequestration of carbon from the atmosphere.

In nature happening biochar made from grassland and forest wastes, means that biochar can persist for thousands years with a few decompose. Therefore biochar has a long-lasting effect in soil, and that beneficial effects improve over time. Studies lab employing the modern methods evaluate that biochar has a mean residence time in soils to many thousand years [29] [107] . Biochar can be applied to soil by hand or using conventional machinery such as manure spreaders and lime, and should be thoroughly incorporated into the soil by tillage. In many cases, like perennial crops and other fruit orchards where plowing is not an option, biocharit can be: 1) used to the soil surface and, preferably, enclosed with other biological resources; 2) used mixed with compost or mulch; 3) used as a liquid slurry if delicately ground (on a big measure). However, biochar can rise microbial action and decrease nutrient damages through fertilizing or composting [112] .

In the procedure, the biochar come to be “charged” with nutrients, wrapped with pH-balanced and microbes and content of MM (mobile matter) is decay into nutrients of plant. Irrespective of the application techniques, it is very significant to be careful when dealing with dryish biochar, which is very dusty and should not be prevalence in conditions of wind. This can be simply treated by moistening the biochar earlier application. In order to respiratory protection should be worn dust mask when handling the dry substance.

5.5. What Type of Biochar Is the Most Excellent and How to Obtain It?

The majority significant procedures of the quality of biochar contain adsorption, mobile matter (MM), cation exchange capacity (CEC), (resins, tars, and other compounds) and kind of biological substance biomass employed. Over time, adsorption capacity of biochar reductions, while it’s CEC rises [106] , progresses porosity [48] , and lowers bulk density thus creating root permeation easier. MM can prevent the porous and first adsorption but is extremely vulnerable to organic decompose, which can alleviate those effects. Biochar might also provide some quantity of nutrients [113] [114] and supply a liming influences to soil [115] . Structure physical of the biomass, mainly its size of pore, which very much controls water retention, surface area and organic employment of biochar created, is a basically protected into form through “modification thermal” While a larger fraction of microspore’s might yield a greater surface area, and thus greater capability of nutrient retention, various soil microbes are too big to employ such minor spaces and advantage from some quantity of bigger sizes pore [106] .

From where of rising plant growing, biochar with many sizes of pore might be most an excellent fitted to improve the physic-chemical and biological properties of soils. On the other hand, the procedure by which a biochar is created is a significant part influencing its quality. While several processes have constantly created small quality of biochar, other procedures, when done correctly, can yield great quality of biochar.

Biochar is a new product, and it can be very hard for farmers or peasants to find it in larger quantities, at an affordable price. Also, as of yet anyone can sell anything as biochar. This is why farmers or peasants and gardeners must be conscious that biochar can have a range of features or characteristics, and can potentially have positive, negative or unfavorable effects in their soil. It is suggested and recommended that you get as much information as possible from the provider, containing results of any plant growth examinations or tests they have done, and how these tests were conducted.

6. Conclusion

Biochar that has upgraded extensively is promoted to improve a range of soil properties and can be derived from a wide range of forest residue, sewage sludge, organic and agricultural wastes biomass feedstock, at different pyrolysis conditions and also can be made in simple or complex pyrolysis units and can be made in your backyard or on your farm. The properties of biochar specified by chemical and physical processes reveal the infrastructure of biochar. Biochar defined by its useful application to soil, is expected to enhance an advantage from enduring chemical and physical properties. Studies of charcoal tend to suggest stability in the order of many years in the normal environment, and various analytical methods inform quantification and an understanding of turn over processes. For large surface area and porosity of biochar, they can raise the capacity of water holding of soil and the absorption of nutrients with a view to decrease loss and an augment soil structure, so biochar might progress fertility of soil and raise crop yields in future if it is applied to soil with a suitable application rates.


Firstly, I render my prayers and thank the most Gracious and Merciful “Allah” who helped me to carry out this paper successfully. This paper was conducted and supported by the School of Environmental and Municipal Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China. In great indebtedness and gratitude I would like to express my deepest appreciation to my supervisor Prof. Baowei Zhao, for his generous assistance, keen interest and his useful guidance.
