Spatial Variability of Ground Water Quality Using HCA, PCA and MANOVA at Lawspet, Puducherry in India

N. Suresh Nathan, R. Saravanane, T. Sundararajan

Department of Civil Engineering, Pondicherry Engineering College, Puducherry, India

Copyright © 2017 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: February 21, 2017; Accepted: June 24, 2017; Published: June 27, 2017


In ground water quality studies multivariate statistical techniques like Hierarchical Cluster Analysis (HCA), Principal Component Analysis (PCA), Factor Analysis (FA) and Multivariate Analysis of Variance (MANOVA) were employed to evaluate the principal factors and mechanisms governing the spatial variations and to assess source apportionment at Lawspet area in Puducherry, India. PCA/FA has made the first known factor which showed the anthropogenic impact on ground water quality and this dominant factor explained 82.79% of the total variance. The other four factors identified geogenic and hardness components. The distribution of first factor scores portray high loading for EC, TDS, Na+ and Cl (anthropogenic) in south east and south west parts of the study area, whereas other factor scores depict high loading for, Mg2+, Ca2+ and TH (hardness and geogenic) in the north west and south west parts of the study area. K+ and (geogenic) are dominant in south eastern direction. Further MANOVA showed that there are significant differences between ground water quality parameters. The spatial distribution maps of water quality parameters have rendered a powerful and practical visual tool for defining, interpreting, and distinguishing the anthropogenic, hardness and geogenic factors in the study area. Further the study indicated that multivariate statistical methods have successfully assessed the ground water qualitatively and spatially with a more effective step towards ground water quality management.


HCA, PCA, FA, MANOVA, Spatial Variability, Puducherry, India

1. Introduction

Water covers 78% of the earth’s surface, yet its availability for human use is limited. Ground water is the primary source of drinking water, and it plays a fundamental role in human life and development. Safe potable water is absolutely essential for healthy living. It is ultimate and most suitable fresh water resource for human consumption in urban as well as rural areas. In many areas, ground water is the only available source for drinking purposes. Further it is a finite resource, essential for agriculture, industry and human existence and it plays a key role in meeting the water needs of various user-sectors in India. To sustain and maximize the benefit of this resource, knowledge about the natural hydro-geological and geo-chemical processes, as well as associated human effects on the ground water resource is a must for a comprehensive and complete scientific understanding of the vulnerability of the aquifers to pollution. In this context, rapid increase in human population coupled with expanding urbanization and industrialization has led to a greater imbalance between water availability and demand [1] . As worldwide extraction of ground water is accelerated to meet increasing demand, the significance of the chemical quality of ground water also increases relative to its economic value and usefulness. In recent years, ground water contamination has become an important environmental issue especially in urban areas. Ground water contamination is always the result of human activity in areas where population density is high and human land use is intensive [2] . Virtually any activity whereby chemicals or wastes released to the environment either intentionally or accidentally, has the potential to pollute ground water. When once aquifer becomes contaminated, it is very difficult, expensive and time consuming affair to clean up and may remain unusable for decades. Deterioration of ground water quality due to different geogenic and anthropogenic activities is of great concern, especially in an alluvial aquifer in a coastal area like Puducherry, India [3] [4] . Against this background at Lawspet area in Puducherry, India, the following two human induced activities play a critical role in the ground water contamination scenario [5] .

1) Unscientific and indiscriminate Municipal Solid Waste (MSW) dumping and

2) Partially treated or Secondary Wastewater (SWW) land application.

The urban and peri urban areas of Puducherry have been divided into various zones for comprehensive water supply schemes. Being a coastal town, Puducherry entirely depends on ground water for its water supply, as there are no surface water sources. The Puducherry District population was around 9.50 lakhs as per 2011 census and nearly 70% of this population lives in the urban areas and the population growth was close to 28.08% between 2001 and 2011. Presently the population explosion and urbanisation are at peak in Puducherry.

Over drawl of ground water is the only result consequent to these two social events. Due to over exploitation of ground water, all the coastal borewells had been affected and abandoned. Of late Lawspet area in Puducherry which is at a higher elevation, has been identified as a potential source to meet the future water supply requirements. But on the contrary, it is feared that the above said two anthropogenic activities viz., in discriminant MSW dumping and SWW land application may make the ground water unsuitable for domestic purposes in Lawspet area.

Hence it is pertinent to examine the spatial and temporal variations of ground water attributes and to interpret the results of the same to determine the factors affecting the hydro-geochemistry of ground water, so that suitable remedial measures could be suggested to conserve and sustain ground water resources.

2. Study Area and Current Status

The study area is bounded by latitude 11˚58'16"N and longitude 79˚48'11"E and is located at Karuvadikuppam in Lawspet on the northern part of Puducherry, India. Location map of study area is shown in Figure 1. The ground falls from 53 m to 6 m (Figure 1) within a radial distance of 2.5 km. Alluvial aquifer is probably, the dominant type of aquifer in the study area. Lawspet area receives its major rainfall from the north east monsoon (65%), and also gets some rainfall from south west monsoon (35%). The rainy season is from October to December. The study area receives an annual rainfall of about 1200 mm [5] .

The existing Sewage Treatment Plant (STP) at Karuvadikuppam, consists of four facultative oxidation ponds connected in series and the treatment efficiency is about 65%. After treatment the partially treated 12.5 MLD, SWW is discharged directly into a recharge pond located inside STP campus for the past 35 years. Besides, a portion of STP is used as a MSW dump site for the past 10 years. Here MSW has been dumped indiscriminately and unscientifically in an irregular fashion. So it can be said that in the study area, co-disposal of MSW and partially treated SWW are taking place simultaneously within the same campus [5] . The present work therefore focuses

1) To understand the process of controlling components which govern the chemical constitution of ground water;

2) To distinguish the ground water quality evolution process;

3) To determine the spatial variability of ground water quality using Multivariate Statistical Analysis like Hierarchical Cluster Analysis (HCA), Principal Component Analysis (PCA), Factor Analysis (FA) and MANOVA.

3. Methodology

3.1. Sampling and Testing

Due to spatial and temporal variations in ground water chemistry, a monitoring programme that will provide a representative and reliable estimation of the quality of ground water is necessary. So to accurately represent the groundwater quality, a sampling strategy was designed to cover a wide range of borewells at the key locations. Nearly 125 water supply and agrarian borewells are located within a radial distance of 2.5 Km from STP and MSW landfill. Out of which, 20 Public Works Department (PWD) borewells supply drinking water to Muthialpet and Lawspet areas. The remaining are private domestic borewells or agricultural borewells.

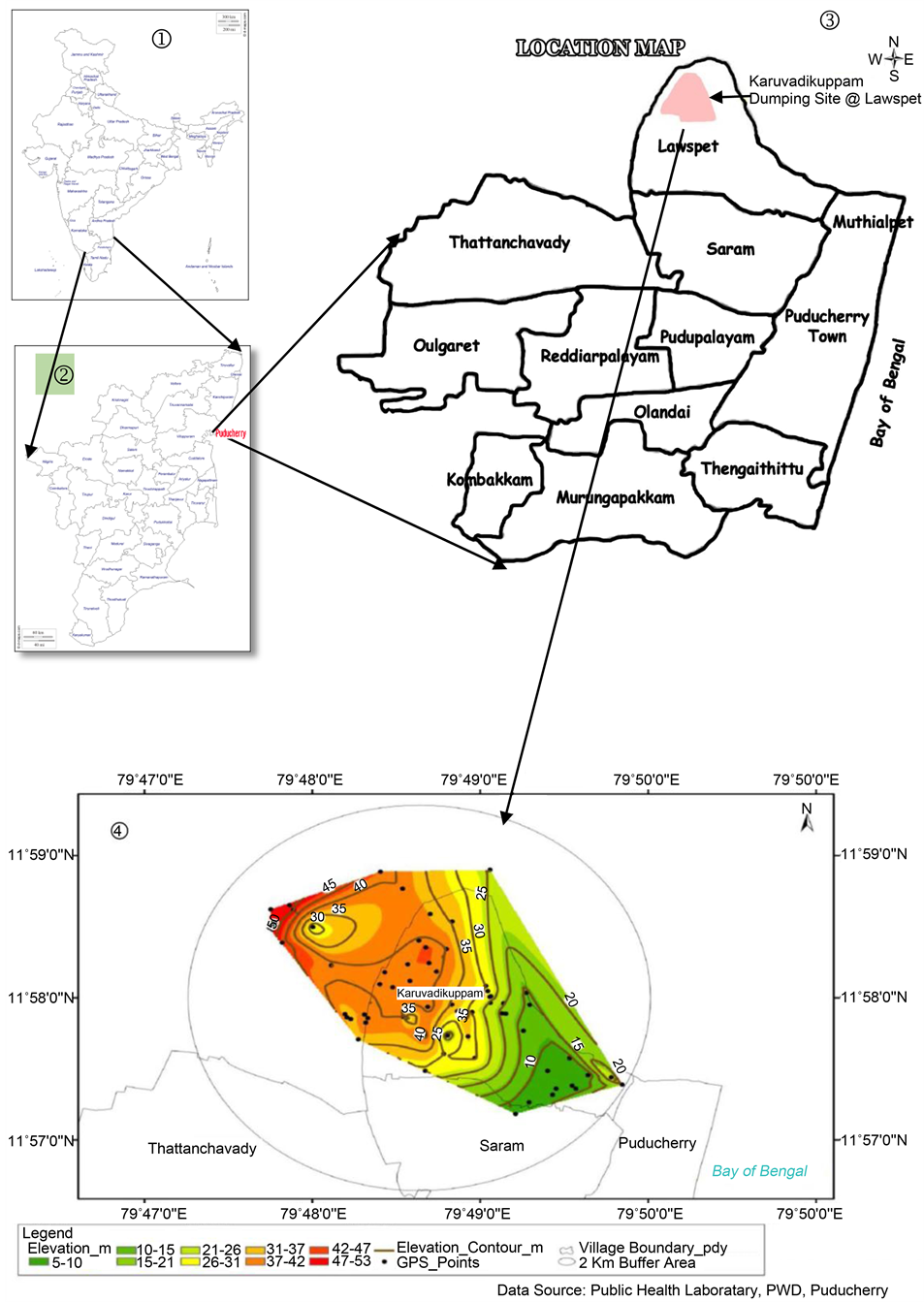

Figure 1. Elevation and location of borewells in study area.

Totally 68 borewells (GPS points) were identified in solid waste dump area, recharge pond area, sewage farm area (existing) and peripheral area (private & Govt.) in order to study the seasonal and spatial variations, as detailed below and depicted in Figure 1.

1) Solid Waste Dump area 2 borewells (newly sunk);

2) Recharge Pond area 5 borewells (newly sunk);

3) Sewage Farm area 3 borewells (existing);

4) Peripheral area 58 borewells (private & Govt.).

All the 68 borewells had been considered for investigation and water samples were collected from the borewells after pumping for 15 minutes. The samples were analysed in the Public Health Laboratory, PWD, Puducherry, India. In Toto 1065 water samples were collected and tested for 17 physio-chemical and 4 bacteriological parameters viz. EC, pH, TDS, Alkalinity, Bicarbonate, Total Hardness, Calcium, Magnesium, Iron, Chloride, Sulphate, Nitrate, Sodium, Fluoride, Potassium, Phosphate, Silica, B.O.D, C.O.D, total coliforms and faecal coliforms. Eventhough the water samples were tested for all physio-chemical and bacteriological parameters, the study was confined to the pollution aspects of ten significant physio-chemical parameters only viz., EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+, and K+ [5] .

3.2. Multivariate Statistical Analyses

The sampling and testing strategyso designed involved frequent water samplings and examination of large number of physicochemical parameters, thereby producing a large data matrix, which needs a complex data interpretation. The application of different multivariatestatistical approaches for the interpretation of these complex data matrices offers a better comprehension of water quality and ecological status of the studied systems, and it allows the detection of the possible factors/sources that control the ground water systems and suggests a useful tool for dependable supervision of water resources as well as quick solutions to pollution related problems. The basic aim of such an analysis is to study the hydro-geochemistry of an aquifer using various statistical methods and to assess and ascertain the deterioration of ground water quality [6] [7] . Further these multivariate statistical techniques also verify the spatial and temporal variations which are brought out by natural and anthropogenic factors.

In the present study an effort has been made to carry out detailed and systematic investigation of hydro geochemical parameters and spatial variability of the ground water quality using multivariate statistical methods like HCA, PCA/FA, and MANOVA without losing important information [8] - [18] .

3.2.1. Hierarchical Cluster Analysis (HCA)

The object of HCA technique is to group ground water samples into clusters based on their squared Euclidean distance which is used most commonly as the adopted measure of distance, samples of the same cluster are characterized by high homogeneity whilst samples belonging to different clusters are characterized by high heterogeneity between them [19] [20] [21] [22] . The levels of the similarity at which observations are merged, are used to construct dendrogram. The dendrogram provides a visual summary of clustering process, presenting a picture of groups and their proximity, with a dramatic reduction in dimensionality of the original data. The most important ten hydro-chemical parameters viz., EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+, and K+, for 68 borewells, were chosen for HCA in the study area.

3.2.2. Principal Component Analysis (PCA) and Factor Analysis (FA)

PCA and FA have been widely used in environmental sciences and hydro geochemical research and it is a multivariate statistical technique that embodies linear combinations of variables through a correlation-centred approach. PCA and FA are both variable reduction techniques. The PCA is used when variables are highly correlated and reduces the number of observed variables to a smaller number of principal components which account for most of the variance of the observed variables whereas, the FA is a variable reduction technique which identifies the number of latent factors and the underlying factor structure of a set of variables. It also, estimates factors which influence responses on observed variables. The PCA extracts the eigenvalues and eigenvectors from the covariance matrix of original variables. The eigenvalues of the PCs are the measures of their associated variance, the participation of the original variables in the PCs is given by the loadings, and the coordinates of the objects are called scores. In other words, PCA includes correlated variables with the purpose of reducing the numbers of variables and at the same time it explains the same amount of variance with fewer variables (principal components), while FA estimates factors, i.e. underlying structure that cannot be quantified directly.

The purpose of FA is to ascertain the minimum number of new variables necessary to replicate various attributes of the data by cutting down the original data matrix from one having (n) variables necessary to describe the (N) samples into a matrix with (m) factors (m < n). It also aims at converting the variables so that the axes become orthogonal, which then admits new independent variables. By this way, the first factor is selected to account for the total variance of the observations to the maximum extent, the second factor to describe the maximum possible residual variance, so on and so forth. In other words, the first factor is evaluated such that the sum of squares of the projections of the points on the factor is highest (factor loadings). Next, to specify the second factor, the points are projected on a plane orthogonal to the first factor and so on for the other factors, each exhibiting less and less of the total variance. On the other hand, the sum of squares of the factor loadings for each variable is the communality and it deliberates the proportion of the total variability of each variable accounted for by the factoring. FA follows three main measures 1) extraction of initial factors 2) rotation of factors and 3) calculation of each factor scores [23] [24] [25] . In this research work PCA/FA are implemented to the hydro-chemical data in the study area to extract principal factors analogous to different sources of variation in the data and to detect the possible source of contamination spatially.

3.2.3. Multivariate Analysis of Variance (MANOVA)

As the ground water samples were collected at various locations and at different points of time, as the borewells are wide spread radially in all directions, as the borewells are positioned within a radial distance of 2.5 kms from the anthropogenic sources and as the ground level drastically falls for more than 47 m, the analysis on the spatial variability was considered very important. Hence, MANOVA was carried out to evaluate the significant effects of spatial differences (variability) on mean concentration of selected physio-chemical variables of ground water [26] [27] . The intention of performing MANOVA is to address the following queries:

1) What are the influences of independent variables (observation spots/clusters) on the dependent variables (mean concentrations of physio-chemical parameters including EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+, and K+)?

2) What are the interactions among the independent variables?

To execute MANOVA the following procedure is to be adopted:

1) Descriptive analysis covering average, standard deviation, minimum and maximum values for EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+, and K+, is to be carried out.

2) MANOVA test using Pillai’s Trace, Wilks’ Lambda, Hotelling’s Trace and Roy’s Largest Root are to be performed. The aim is to test whether there are differences in the average levels of physio-chemical compounds in ground water samples between the clusters at α = 5%.

The model for MANOVA with one factor is: Xij = μ + τI + ?sub>ij


X = vector of dependent variable (physio-chemical parameters);

µ = overall mean vector;

τ = factor effect/spatial variability vector;

?/span> = error vector; i = level of effect, i = 1, 2, ・・・, I; j = the replication, j = 1, 2, ・・・, J.

The F and p values from the results of the MANOVA are used for testing of significance and Ho is rejected if F > F(df1, df2, α) or p value < α. In this research the dependent variables are EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+, and K+. The factor is cluster i.e. the independent variables are Clusters 1, 2 and 3.

4. Results and Discussion

4.1. Descriptive Statistics

As the borewells are wide spread in all directions and as the ground level difference is more than 47 m in the study area, the data about hydro-geochemistry of the parameters, is very important. As such during this study selected physiochemical properties of the borewells were acquired and considered. Eventhough, the main aim of the study was to statistically establish the spatial variability of ground water quality, it is significant to detail the current status of ground water quality so that the study will be worthwhile to the authorities who are in charge of ground water management and control. Vital physio-chemical attributes viz., EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+, and K+ affected by MSW and SWW exercises, taking into consideration the geology and environmental conditions, were statistically evaluated and documented in Table 1. Correlation Co-efficient matrix has also been generated in order to identify the inter-parameter relationships and presented in Table 2.

4.2. Spatial Similitude and Clustering

HCA was performed on borewells as well as on the selected ten physio-chemical parameters, to determine the spatial similarities and qualitative affinity among the parameters. Elements belonging to the same cluster are likely to have originated

Table 1. Descriptive statistics of chemical parameters.

Note: EC, µS/cm, all other parameters, mg/L.

Table 2. Correlation matrix between the variables.

from a common source. The R-mode HCA (parameter clustering) retains four main clusters for analysed parameters. Cluster 1 includes EC and TDS which may be explained by a combination of point sources like MSW dumping and SWW land application. Cluster 2 includes parameters like TH and and this cluster reflects hardness component indicating the influence of SWW land application. Cluster 3 consists of Na+ and Cl which represents the anthropogenic activities viz., MSW dumping and SWW land application. Cluster 4 involves parameters like Ca2+, Mg2+, K+ and indicating the geogenic nature of ground water and this may be interpreted as due to weathering of rocks and dissolution of minerals. The resulted parameter dendrogram is shown in Figure 2.

The Q-mode HCA (borewell clustering) has been employed to discover the spatial hydro-chemicalresemblance among the borewells. The borewells which are grouped in a particular cluster share similar characteristics in relation to the investigated parameters. The resulted borewell dendrogram (Figure 3) grouped all the 68 borewells into three statistically significant clusters. The cluster wise designated borewells, the regional distribution of borewells and the profile plot of clusters are presented in Table 3, Figure 4 and Figure 5. Cluster 1 consists of 28 borewells and falls in the “polluted” category. Cluster 2 includes 8 borewells and can be termed as “highly polluted” and the balance 32 borewells are incorporated in Cluster 3 and this cluster is “non polluted”.

In Clusters 1 & 2, on the basis of overall chemical composition, characterised by the ion abundances the order of anions and cations is Cl > > = Na+ > Ca2+ > Mg2+ > K+. Cl and Na+ dominate these two clusters and the distribution of borewells lies in South-East and South-West directions of the study area. In Cluster 3, the order of affinity in ground water is > Cl > = Ca2+ > Na+ > Mg2+ > K+. and Ca2+ dominate this cluster

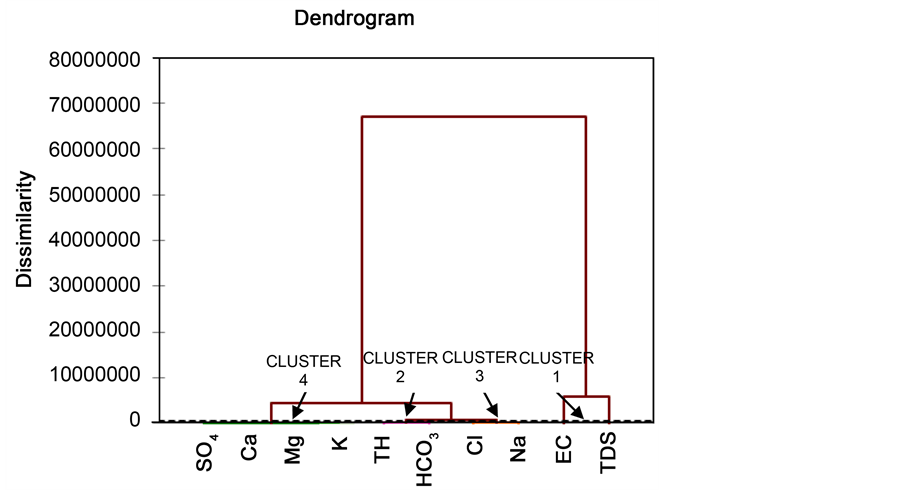

Figure 2. Parameter dendrogram.

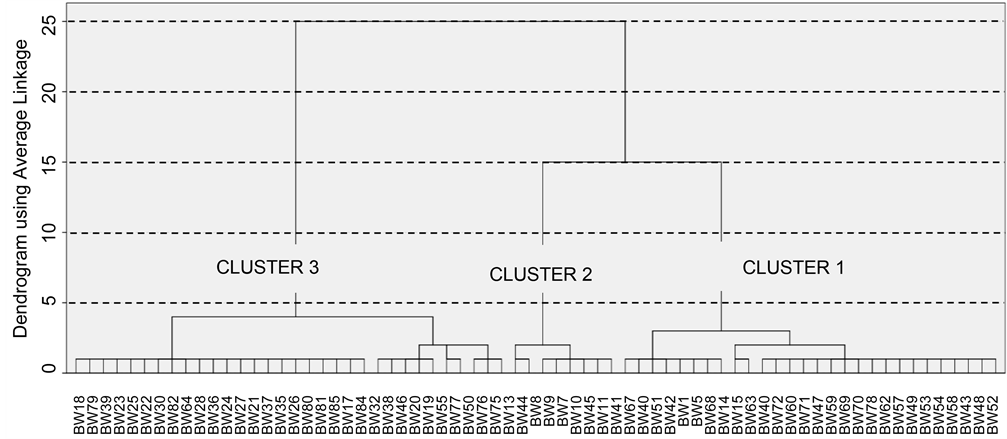

Figure 3. Borewell dendrogram.

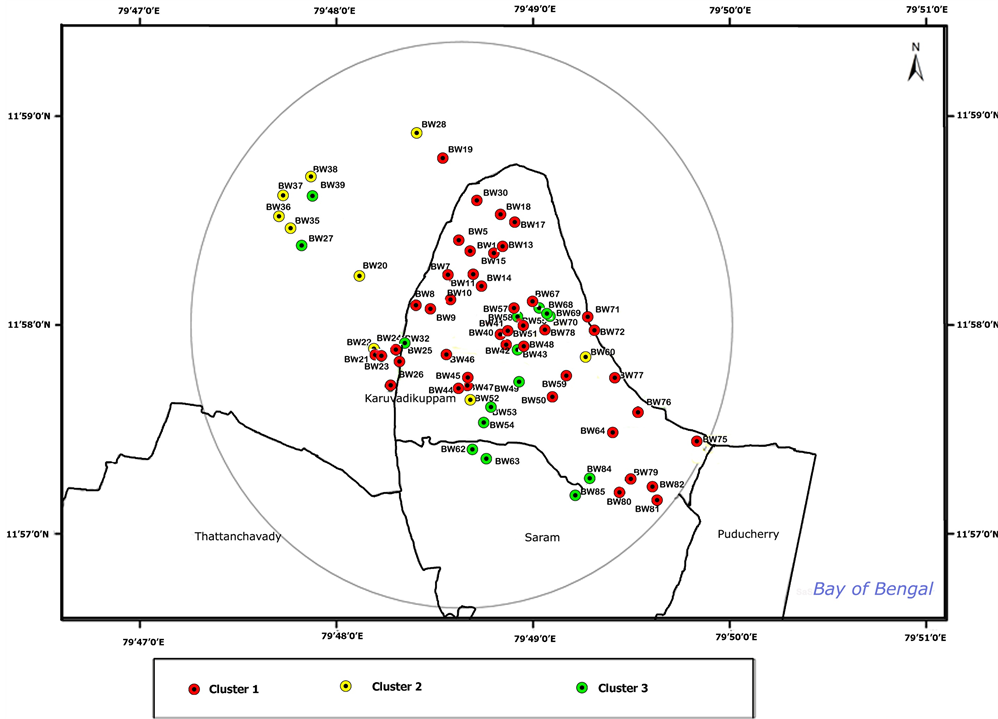

Figure 4. Borewell locations in different clusters.

and the source of and Ca2+ is geogenic and attributed to natural processes suchas dissolution of carbonate minerals in the presence of soil CO2. This cluster shows spatial variation in North-East, North-West, South-East,

Figure 5. Parameter profile plot.

Table 3. Cluster classification.

South-West parts of study area.

4.3. Sampling Adequacy and Bartlett’s Sphericity Test

Before FA, the Kaiser Meyer Olkin (KMO) and Bartlett tests were carried out to determine the applicability of the data for FA. KMO is a measure of sampling adequacy and it shows the proportion of variance reflected by the underlying factors. The size of KMO value is not statistically critical, however larger the KMO value more factors are suitable for FA. KMO value > 0.8 is very good and the value < 0.5 is not suitable for FA. Similarly Bartlett’s test denotes whether correlation matrix is an identity matrix which would imply that the parameters are unrelated. In a nutshell, it provides the presence of a common factor between relevant matrixes of the parent population, and its statistical significance tests the suitability of the data for FA. The KMO and Bartlett’s test results are presented in Table 4 and interpreted as follows:

Test interpretation:

H0 : There is no correlation significantly different from 0 between the variables.

H1: At least one of the correlations between the variables is significantly different from 0.

As the KMO value is >0.8 and the computed p-value (Bartlett’s test) is lower than the significance level α = 0.05, the null hypothesis H0 is rejected and the alternative hypothesis H1 is accepted. So FA is effective in reducing the dimensionality.

4.4. Source Identification of Ground Water Contamination

PCA/FA has been used to determine the interdependence among different sets of ground water physio-chemical data and for identifying different sources which are responsible for ground water contamination and to condense the data with a minimum loss of information. PCA estimates the amount of variation in each parameter explained by the factors. PCA/FA was performed using XLSTAT version 2014 software.

Eigenvalues are the amount of variance explained by each factor, each parameter had a variance of 1 with a total variance of 10 (for the selected ten variables) for the entire data set. Factor with eigenvalue > 1 explains more total variation in the data than individual parameter, and factor with eigenvalue < 1 explains less total variation. Therefore only factors with eigenvalue >1 are retained for the interpretation and the retained factors are subjected to varimax rotation. Varimax rotation is an orthogonal rotation method that minimizes the number of variables that have high loading on each factor. The VariFactor (VF) coefficient greater than 0.75 is considered to be strong and indicates high proportion of variance explained by the factor, between 0.50 and 0.75. It is considered as moderate loading while 0.30 - 0.50 as weak significant factor loading, indicating much of that attribute’s variance remains unexplained and it is less important.

Primarily R-mode PCA/FA was applied for all the borewells as a whole in the study area. The scree plot (Figure 6) has been utilized to distinguish the number of PCs to be employed to comprehend the rudimentary parameters’ structure. The computed percentage of variance with cumulative percentage explained by each factor together with factor loadings after varimax rotation are listed in Table 5 and Table 6. The positive scores demonstrate that all the water samples are

Table 4. KMO measures and Bartlett’s test of Sphericity.

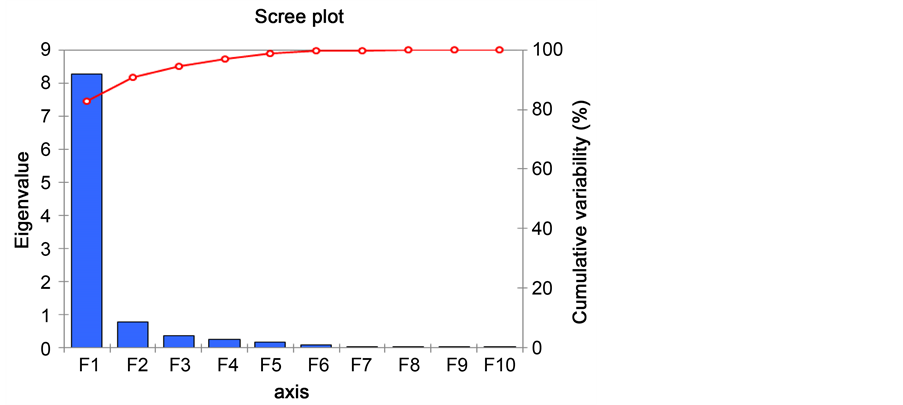

Figure 6. Scree plot.

substantially influenced by the presence of extracted loads on a specific component. Only one factor with eigenvalue > 1 has been extracted from the ground water data matrix, which represents 82.79% of the total variance (Table 5) i.e. the first principal component (PC1) explains more than 82.79% of the total variance. VF1 is loaded with EC, TDS, Na+ and Cl (Table 6). The parameters Na+ (0.797) and Cl (0.822) are heavily loaded and this factor represents the human induced activities, such as MSW dumping and SWW application on land. In all other components the eigenvalues are <1 indicating that these components are less significant. Consequently all the parameters except Na+ and Cl do not contribute much to the hydro-chemistry of the study area. However, it may be seen from Table 5 and Table 6 that PC2 explains 7.94% of the total variance with VF2 showing strong loading for (0.848) and moderate loading for Mg2+ (0.524) indicating the geogenic nature of the groundwater and PC2 can be designated as geogenic component. PC3, PC4 and PC5 together contribute only 7.97% of the total variance and VF3, VF4 and VF5 are associated heavily with K+ (0.811), (0.787) and Ca2+ (0.800), showing that these factors are geogenic in nature. Further VF5 exhibits moderate loading with TH (0.672) reflecting the geogenic and hardness components.

The scatter plot between VF1 and VF2 of the variables and the score plot between VF1 and VF2 of the borewells is presented in Figure 7.

As the borewells are located within a radial distance of 2.5 kms. from the polluting sources and as ground elevation falls from 53 m to 6 m, it was decided to perform cluster wise PCA/FA in order to study the inherent characteristic structure of the polluting parameters. R-mode PCA/FA was employed to Clusters 1, 2 and 3 and PCAs, whose eigenvalues > 1 were chosen for study purposes. The variance and cumulative variance of the principal components in all three clusters are presented in Table 7. Similarly after varimaxrotation, the factor loadings of the significant factors of all the three clusters are given in Table 8. In Cluster 1, the first PC explained 51.46% of the total variance. From Table 8 for

Table 5. Principal component analysis for 68 borewells (R-mode).

Table 6. Factor loadings after varimax rotation for 68 borewells (R-mode).

Table 7. Principal component analysis (cluster wise R-mode).

Figure 7. Scatter plot of VF1 vs. VF2.

Cluster 1, it can be seen that the Varifactor 1 (VF1) is heavily loaded with EC(0.937), TDS (0.932), Na+ (0.892) and Cl (0.934) indicating the anthropogenic nature of component/factor. VF2 is heavily loaded with TH (0.954) and Ca2+ (0.972) and moderately loaded with (0.703) and Mg2+ (0.734). So VF2 can be designated as geogenic component. VF3 is represented with K+ (0.987) and can be regarded as geogenic in nature. In Cluster 2, the first 3 components explained 85.787% of the total variance (Table 7) and from Table 8, it can be seen that VF1 is loaded heavily with EC (0.803), TDS (0.783), TH (0.932) and Mg2+ (0.816) and moderately loaded with Cl (0.703). In VF1 the human induced activities and hardness play a crucial role and VF1 can be thought of a combination of anthropogenic and hardness components. VF2 and VF3 are loaded with (0.822) and K+ (0.975) which are geogenic in nature.

In Cluster 3, first 2 components accounted for 85.214% of the total variance (Table 7). VF1 (Table 8) is described heavily with TH (0.945), (0.815), Ca2+ (0.967) and Mg2+ (0.894), here geogenic and hardness components play a significant role. However, VF2 is loaded with Na+ (0.929) and Cl (0.944) which reflects human induced activities in ground water contamination.

4.5. Spatial Change Detection

Q-mode PCA/FA was implemented for the selected ten variables as a whole in the study area to investigate the spatial variability of ground water quality particularly to examine and locate the borewells which contribute to the ground water contamination and to find out the contaminant movement direction [28] [29] [30] [31] . The factor scores after varimax rotation are furnished in Table 9. As discussed earlier, VF1 (Table 6) corresponds to anthropogenic component in which Na+ and Cl are the contributing parameters to the ground water contamination and when correlated to factor scores of VF1 (Table 9) it may be

Table 8. Factor loadings after varimax rotation (cluster wise R-mode).

Table 9. Factor scores after varimax rotation (Q-mode).

seen that many borewells in Clusters 1 and 2 are affected by excess Na+ and Cl.

Even though all the five vari factors in Table 9 were considered for study purposes, only VF1 is reckoned to be important from the point of view of % variance explained and eigenvalue > 1. In Cluster 1, out of 28 borewells, 23 borewells (82%) in VF1 show positive scores and are affected by the anthropogenic activities viz., MSW dumping and SWW land application. Similarly in Cluster 2, 7 borewells (88%) in VF1 are affected out of 8 borewells. Again in Cluster 1 the worst affected borewells whose positive scores > 0.75 are BW40, BW41, BW42, BW43, BW48, BW49, BW51, BW52, BW53, BW57, BW67, BW68 and BW78 (13 borewells). But in Cluster 2 all the 7 affected borewells show positive scores > 0.75, indicating that they are highly polluted.

Next Q-mode VF2 (Table 9) is related to R-mode VF2 (Table 6) which demonstrate and Mg2+ as geogenic component. The worst affected borewells are BW14 in Cluster 1, BW11 in Cluster 2, BW19, BW20, BW32, BW36, BW38 and BW46 in Cluster 3. Similarly VF3 (Q-mode) relates to K+ which is geogenic in nature. The borewells which are badly affected by this, are BW69 and BW70 in Cluster 1. VF4 (Q-mode) corresponds to and the borewells which are affected badly are BW75, BW76 and BW81 in Cluster 3. Lastly VF5 (Q-mode) reflects TH and Ca2+ and borewells like BW24 and BW35 in Cluster 3 are affected to some extent.

The results of PCA/FA for Q-mode (borewells) in comparison to R-mode (parameters) are summarized in Table 10, which exhibits the overall picture of the borewells that are affected by excess chemical components. The very purpose of using PCA/FA is to address the following questions:

Table 10. Spatial variability of borewells with positive factor scores.

1) Which chemical component is responsible for contamination?

2) What are the borewells that are badly affected?

3) How the contaminated borewells are distributed? and

d) What is the direction of the contaminant movement?

Table 10 answers all the above questions.

4.6. Sources of Contamination

Conclusively PCA/FA had been applied to the parameters as a whole in the study area and also cluster wise, further different PCs/VFs were investigated and many factors viz., 1) Anthropogenic 2) Geogenic and 3) Hardness responsible for ground water contamination were identified. Next thing is to find out the source of the contamination based on these PCs and VFs. Consequently the following reasons may be attributed to the sources of contamination.

4.6.1. Anthropogenic Component

The excess Cl in ground water is generally considered as an index of ground water contamination and is mainly due to anthropogenic activities in the study area viz.

1) Non-engineered and unplanned Municipal Solid Waste (MSW) dumping and

2) Partially treated or Secondary Wastewater (SWW) application on land.

From the field observations it was ascertained that mean Cl in MSW leachate and SWW are 1350 mg/L and 639 mg/L. Similarly the mean Na+ is 838 mg/L in MSW leachate and 232 mg/L in SWW.

Also from the correlation analysis it can be seen that a very good correlation exists (r = 0.982) between Na+ and Cl. From this, it is observed that MSW dumping and SWW land application are the main causes for excess Cl and Na+ in ground water in the study area.

4.6.2. Geogenic Component

・ The primary source of is the dissolution of minerals like calcite (CaCO3) and dolomite (CaMg (CO3)2). From Table 2, it can be seen that there is very good relationship between and Ca2+ (r = 0.793), and Mg2+ (r = 0.822). So it can be concluded that excess is due to calcite and dolomite dissolution, which is geogenic in nature.

・ A good correlation between and Ca2+ (r = 0.629) indicates that gypsum (CaSO4・2H2O) and anhydrite (CaSO4) are major sources of excess Ca2+ which is geogenic in nature.

・ Also the “r” value of 0.734 between and Mg2+ suggests weathering of Mg-sulphate minerals.

・ Generally K+ is derived from K-feldspar.

・ The correlation between Na+ and (r = 0.819) indicates the dissolution of Na-sulphate minerals.

4.6.3. Hardness Component

Generally cations like Ca2+ and Mg2+ and anions such as and are mainly responsible for the hardness of water. From the field study the following observations were reported.

As discussed earlier there is very good correlation among, Ca2+ and Mg2+. Also there is good relationship among the variables, Ca2+ and Mg2+. Further from Table 11 and correlation analysis it can be concluded that hardness of water in the study area is mainly due to human induced activities such as MSW dumping and SWW recharge in addition to leaching from minerals like calcite, gypsum, anhydrite and dolomite.

Primarily it can be said that anthropogenic activities played a very critical role in deteriorating the ground water quality in the study area. Consequent to human induced activities, there is excess Cl in many borewells and the contaminant movement is in the south east and south west directions following the ground profile. Secondly the variables like TH, , Ca2+ and Mg2+ played a significant role in the ground water chemistry in the north west and south west parts of the study area. Parameters like K+ and are predominant in the south eastern part of the study area.

Conclusively it is observed that the anthropogenic component is significant in south east and south west directions following the ground elevation. The geogenic and hardness components play a major role in northwest and south west directions. Also one very important observation is that the ground water in north eastern part of the study area is generally not affected either due to anthropogenic activities or due to geogenic/hardness factors.


Firstly MANOVA was measured to establish the effects of three independent variables i.e. Clusters 1, 2 and 3 on the dependent variables (physio-chemical parameters). Relevant tests were done through tests like Pillai’s Trace, Wilks’ Lambda, Hotellings Trace and Roy’s Largest Root.

The hypothesis used is:

Ho: There are no significant differences in the mean values of physio-chemical parameters like EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+ and K+ with respect to Clusters 1, 2 & 3.

H1: There are significant differences in the mean values of physio-chemical parameters in relation to Clusters 1, 2 & 3.

Decision making is the rejection of Ho if p value < 0.05 (α). It can be concluded, if Ho is rejected, then H1 is accepted indicating that there are differences in the mean values of EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+ and K+ between the clusters. The MANOVA test statistics are presented in Table 12

Table 11. Characteristics of MSW and SWW.

Note: All values are in mg/L.

and Table 13. To evaluate whether one way MANOVA was statistically significant, Wilks’ Lambda row needs to be examined along with significance column. Wilks’ Lambda test is an appraisal to show how well each function separates cases into groups. It is equal to the proportion of the total variance in the discriminate scores not explained by difference among the groups.

Smaller values of Wilks’ Lambda tests indicate greater discriminatory ability of the function. From Table 12, it can be seen that Wilks’ Lambda value is 0.042

Table 12. MANOVA tests.

Table 13. Tests of between-subjects effects.

with a significance of 0.000 at p < 0.005 and F (20, 112) = 21.71. It implies that there is a statistically significant difference in the mean values of physio chemical parameters based on the formation of clusters. This shows that these physio chemical parameters have high variations in terms of spatial distributions in the study area. In other words spatial variability is significantly dependent on parameters like EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+ and K+, across all the three clusters and shows good discriminatory ability with the ground water quality parameters.

To establish how the independent and dependant variables interact, the tests between the subjects effects, is given in Table 13. It can be seen from Table 13, that clusters (spatial distribution) has a statistically significant effect on all the physio-chemical parameters, for example for EC, F (2, 65) = 302.28, p < 0.005. Similarly for all other parameters it can be interpreted in the same manner based on the values in Table 13. Table 13 clearly indicates that there is significant interaction effect of EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+ and K+ in relation to various clusters (spatial distribution) as p values are <0.005. Further as the p values of all the parameters are <0.005, there is no need to perform post-hoc tests.

Precisely the results of MANOVA indicate that there are significant differences exist in the mean values of physio-chemical parameters (dependant variables) in three location variables (clusters) spatially. This phenomenon can be explained in two ways. Firstly anthropogenic activities viz., 1) Indiscriminate MSW dumping and 2) Land application of SWW in the name of ground water recharge which are mainly responsible for the increase in the concentration of EC, TDS, Na+ and Cl. Secondlygeogenic and hardness factors i.e. weathering of rocks and dissolution of rock minerals like calcite, dolomite, gypsum, anhydrite, feldspar etc., which are chiefly responsible for increase in the concentrations of parameters like Ca2+, Mg2+, , K+, and TH.

4.8. Geo-Statistical Mapping

Ordinary Kriging (OK) is an effective tool for initial decision making of ground water quality management. OK interpolation technique has been employed using ArcGIS (version 10.2) for developing spatial distribution maps of ground water data set (n = 68 borewells) based on PC/VF scores (Table 9). Spatial distribution of VF1 scores in Figure 8 reveals high scores (EC, TDS, Na+ and Cl) in south east and south west parts of the study area. The high scores correspond to anthropogenic activities in and around STP. Spatial distribution of VF2 and VF5 in Figure 9 and Figure 10 shows high scores (, Mg2+, TH and Ca2+) in northwest and south west parts of study area, indicating hardness and geogenic origin. Figure 11 and Figure 12 exhibit scores (K+ and) for components VF3 and VF4 in the south eastern part of the study area and the origin is geogenic. Thus the spatial distribution maps of water quality parameters (VF1 to VF5) have contributed a functional and robust visual tool for Environmental Engineers and hydro-geologists towards specifying and adoptive steps.

Figure 8. Spatial variability of Na+ and Cl.

Figure 9. Spatial variability of and Mg2+.

5. Conclusions

Different multivariate statistical techniques like HCA, PCA/FA and MANOVA were applied in this research work to investigate the spatial variability of ground water quality and to detect the main factors and sources of contamination for effective ground water management at Lawspet area, Puducherry, India. HCA identifies 68 borewells into three well defined clusters reflecting different physio-chemical processes. Based on this information available, it is easy to

Figure 10. Spatial variability of TH and Ca2+.

Figure 11. Spatial variability of K+.

work out an optimal strategy to reduce the number of borewells (sampling points) and recurring costs. PCA/FA was used to examine the interdependence of the physio-chemical data and for distinguishing various sources which are accountable to ground water contamination and to summarize the data with least information loss. PCA/FA discloses that anthropogenic, geogenic and hardness factors are responsible for ground water pollution and these factors explained more than 82.79% of the total variance. The Q-mode PCA/FA identified the borewells which are badly affected by the pollution. In other words, the spatial variability of ground water quality has been established. Anthropogenic

Figure 12. Spatial variability of.

contamination due to increase in the concentration of EC, TDS, Na+ and Cl is mainly due to MSW dumping and land application of SWW, which was differentiated by high factor loading of EC, TDS, Na+ and Cl in PCA/FA. Natural processes like weathering of rocks and dissolution of rock minerals (geogenic and hardness factors) such as calcite, dolomite, anhydrite, gypsum, feldspar etc., are accountable for higher concentrations in Ca2+, Mg2+, K+, , and TH.

Convincingly, it is established that anthropogenic operations affected the ground water sources in south east and south west parts of the study area, following the ground elevation. The geogenic and hardness factors affected the ground water in northwest and south west directions. By and large, the north eastern portion of the study area is unaffected. The one-way MANOVA test revealed that there are significant mean differences between EC, TDS, , TH, Ca2+, Mg2+, Cl, , Na+ and K+, at p < 0.005. The mean differences between Clusters 1, 2 and 3 also show that they are significantly different for all physio-chemical parameters.

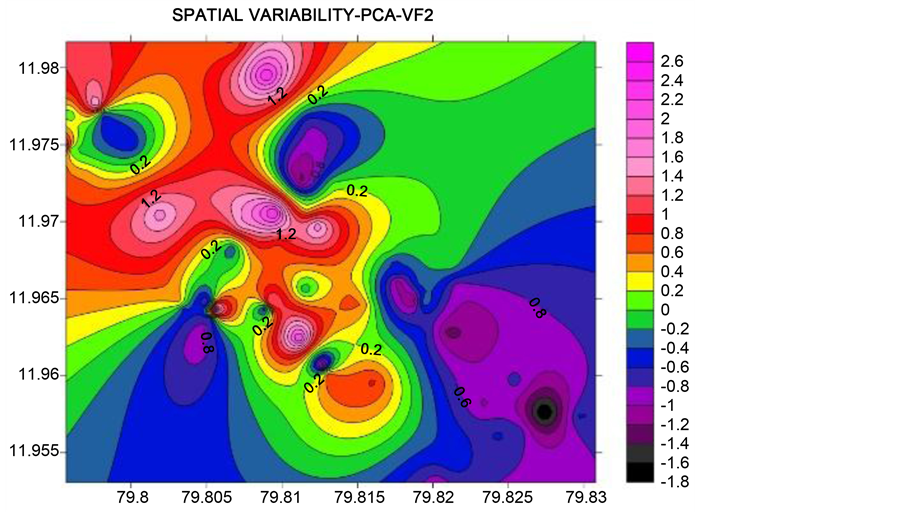

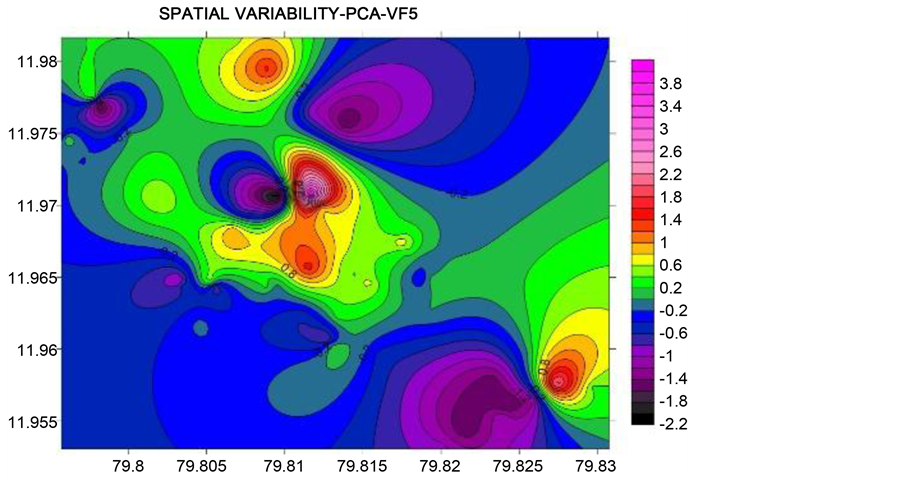

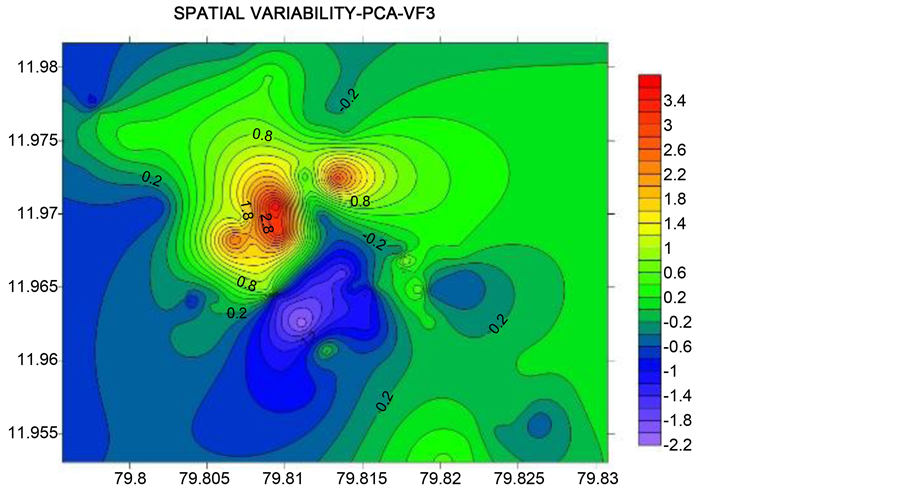

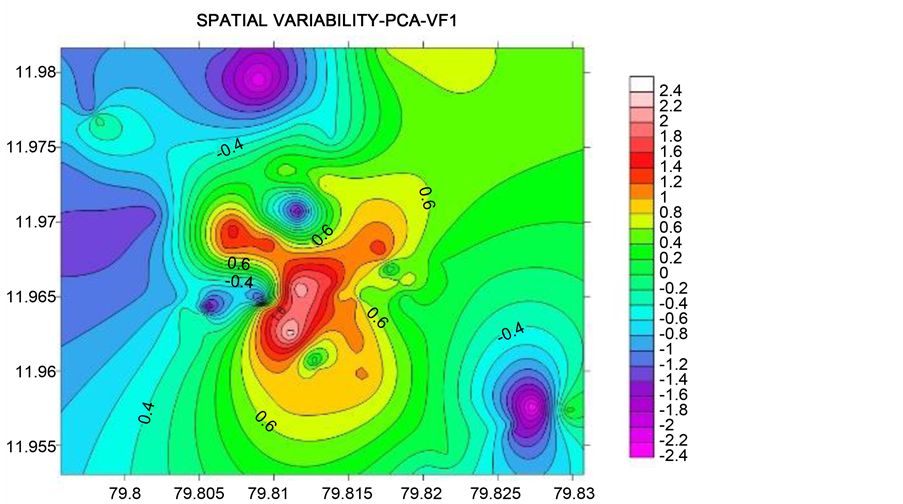

The resulting spatial distribution maps based on Q-mode factor scores provide a beneficial and powerful visual tool for researchers and decision makers towards specifying adaptive procedures. This study contributes background information on physio-chemical parameters, polluting chemicals, contaminating factors, potential sources and spatial variation in ground water quality at Lawspet, Puducherry, India.
