**Open Journal of Civil Engineering** Vol.3 No.2(2013), Article ID:32273,8 pages DOI:10.4236/ojce.2013.32009

Modelling and Analysis of Base Isolated Structures with Friction Pendulum System Considering near Fault Events

Department of Civil Engineering, University of Salerno, Salerno, Italy

Email: petti@unisa.it, fabriziopolichetti@email.it, alodato@unisa.it, palazzo@unisa.it

Copyright © 2013 Luigi Petti et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received February 21, 2013; revised March 22, 2013; accepted April 1, 2013

**Keywords:** Base Isolated Structures; Friction Pendulum Slide Bearings; Spatial Seismic Demand

ABSTRACT

The seismic behavior of base isolated structures with friction pendulum slide bearings devices subjected to near fault events characterized by significant vertical ground motion components is investigated. In particular, in order to evaluate the effects of vertical components on seismic response, non-linear dynamic analysis, carried out by using several numerical models, have been performed by considering two near-fault seismic events, L’Aquila 2009 and Emilia Romagna 2012. The obtained results show that increasing vertical seismic motion base shear significantly increases while relative displacements increase very little.

1. Introduction

In the last years, along with multilayer elastomeric bearings, more new isolator types, such as friction pendulum systems, have been developed taking advantage of a different approach like the friction systems. Within this, the friction pendulum slide bearings (FPBs) are rather widely applied nowadays leading to both affordability and very high fundamental periods. Moreover, characteristics of high rigidity to wind and minor earthquake loads, and high vertical load capacity and stability make FPBs suitable for many different situations.

The friction pendulum bearings consists of a spherical sliding surface which realize a pendulum system whose fundamental period is related essentially to the length of the pendulum, otherwise the radius of curvature of the spherical sliding surface. Observing that the dynamic response of the bearing is strictly related to the friction behavior, differently from elastomeric ones, the behavior of FPBs is affected by normal force and therefore vertical component of the ground motion could play a fundamental role.

Seismic codes, like the Italian NTC 2008, generally allow to use linear and/or non linear analysis by considering two main horizontal directions but no particular requirements for the vertical ground motion component are considered.

In this within, several studies can be found in literature for the case of multilayer elastomeric bearings. For the case of FPBs some research was done by Constantinou [1] showing that there is some interaction between the orthogonal components of the frictional force at the sliding interface.

Many numerical tests on a rigid frame model were conducted by Whittaker [2], showing that the effect of vertical shaking on the force and displacement response is negligible. In 2009, Khoshnoudian and Hagdoust [3] showed that the interaction between the stiffness of the two horizontal directions reduces structural shear and base shear, and that vertical component of an earthquake considerably affect lateral responses.

The study aim is to investigate two aspects of Friction Pendulum Bearings behavior: the influence of the vertical component of seismic motion in case of near-fault events; to analyze the seismic response of these systems subjected to tridimensional ground motions. For this purpose several non linear numerical models are comparatively considered to near fault events of L’Aquila 2009 and Emilia Romagna 2012 considering an ideal isolated system characterized by a perfect rigid superstructure neglecting lateral-torsional effects. In particular, the results obtained by SAP2000 [4], 3D models, are compared to the ones obtained in MATLAB [5], 2D models without considering vertical components. The results obtained in MATLAB are represented by using polar spectra [6,7].

Results have been carried out and compared with those obtained by using single component of the excitations by varying radius of curvature and friction of FPBs, examining the effect of vertical component on the base relative displacement, base shear and effective fundamental vibration period.

2. Principles of Friction Pendulum Bearings

The FPBs consists of a spherical sliding surface and an articulated slider which is faced with a high pressure capacity bearing material. The bearing, which realize a pendulum system, may be installed also upside-down with the spherical surface facing down rather than up. In both installation methods the behavior is identical. A cross section view of an FPBs is shown in the following Figure 1.

In particular, a friction pendulum system is constituted by a swivel slider that oscillates around the center of curvature of a concave spherical surface whose radius R is equivalent to the pendulum length (Figure 2).

One of the most important properties of FPB isolated systems is that the fundamental period of vibration of the isolated system is independent of the overall mass [8] and can be evaluated by the pendulum behavior as:

(1)

The lateral force provided by an FPBs is directly proportional to the weight W it carries and, thus, generally the isolation system force always develops at the center of mass of the supported structure if overturning effects and vertical behavior are neglected. For the single bearing, the friction force is equal to:

(2)

which leads, by considering the rotational equilibrium, to the following horizontal restoring force F:

(3)

where is the dynamic friction coefficient, D the horizontal displacement, W the vertical load and R the radius of the curvature of the bearing.

In the case of small oscillations, low values of the ratio, the relationship between the restoration force and displacement (Figure 2) can be write as:

(4)

As Figure 2 shows, real FPB device presents initial elastic stiffness due to the constitutive material behavior. Instead, the secant stiffness can be evaluated in correspondence of the maximum displacement as:

(5)

Therefore, the effective fundamental vibration period

Figure 1. Friction pendulum system [9].

(a)(b)

Figure 2. (a) Equilibrium of the pendulum; (b) Dynamical characteristics of an FPS.

does not coincide with the reference period evaluated from pendulum behavior being:

(6)

The effective damping provided by a friction isolator is equal to the integer of the hysteresis cycle area [10] :

. (7)

3. Considered Seismic Events

To evaluate the effects of the vertical ground motion components on the seismic behavior of isolated systems with FPBs the L’Aquila 2009 and Emilia Romagna 2012 near fault events have been considered. In the following, Magnitude and Peak Ground Acceleration (PGA) for horizontal (X and Y) and vertical (Z) components are represented in Table 1.

A plot of the acceleration spectra along the three main directions, for the two stations, is showed in the Figures 3 and 4:

Table 1. Considered events, seismic parameters.

Figure 3. Acceleration spectra (L’Aquila event).

Figure 4. Acceleration spectra (Emilia Romagna event).

The considered seismic events are characterized, as shown in [6,7], by strong local directivity effects. In the following, polar spectrum in terms of pseudo-acceleration (PSA) and displacement (SD) are represented in the Figures 5 and 6 for both the case. In particular, the plots represent the seismic spectra demand in each horizontal direction by means of graduated color maps. In correspondence to each radius the in-plan projection of the spectrum response evaluated along that direction is represented. Instead, in correspondence to each circumference the spectral demand for a fixed period is plotted for each direction being considered. In the represented Polar Spectra, the periods 0.5, 1.0 and 1.5 are marked by thin black circumferences and the origin corresponds to 0 sec period.

(a)(b)

Figure 5. Polar spectrum for AQK station in terms of: (a) Pseudo-accelerations; and (b) Displacements [6].

(a)(b)

Figure 6. Polar spectrum for MRN station in terms of: (a) Pseudo-accelerations; and (b) Displacements [7].

Polar Spectra show that for the AQK station the maximum spectral demands generally are reached in the NW-SE direction for periods around 1.5 sec and 0.2 - 0.7sec respectively for SD and PSA demands. In the case of MRN station the maximum response generally is attained in the NNW-SSE direction for periods around 1,5 sec for SD and 0.3 and 0.7 sec for PSA demands. Moreover PSA presents high values around 0.45 sec in the EW direction.

4. Mathematical Models

Two models are considered in the paper to evaluate the response of base isolated system. The first one is carried out by Matlab procedures and consists of a SDOF system with friction layer representing the FPBs. The equation of motion of the considered system, neglecting the vertical component of motion, is expressed as:

(8)

where m, c, x and respectively represents the overall mass of the isolated system, the damping coefficient, the relative displacement and the ground displacement. The equation of motion could be writing, by dividing by mass, also as:

(9)

where represents the damping factor. For the research purpose, analyses have been carried out with and without considering the terms which represents the hardening effects in the model due to the uplift of the mass in the pendulum model.

The second model is represented by a 3-DOF system described in SAP 2000. For the purpose of the research the overall system is described by a concentrated mass with no rotational degree of freedom. The model uses a biaxial friction pendulum isolator (Figure 7) that leads to coupled friction properties for the two horizontal shear deformations, post slip stiffness in the shear directions due to the pendulum radii and gap behavior in the axial direction. The friction forces are directly proportional to the compressive axial force and the element cannot carry axial tension.

The friction model is based on the hysteretic behavior proposed by Wen and Park [11], Wen and Ang [12], and recommended for base isolation analysis by Nagarajaiah, Reinhorn and Constantinou [13].

The results obtained from the two different models are comparatively analyzed in the following to validate the results and underline the application limits of the sliding systems with regard to seismic motions for which the vertical component play a fundamental rule in the building design.

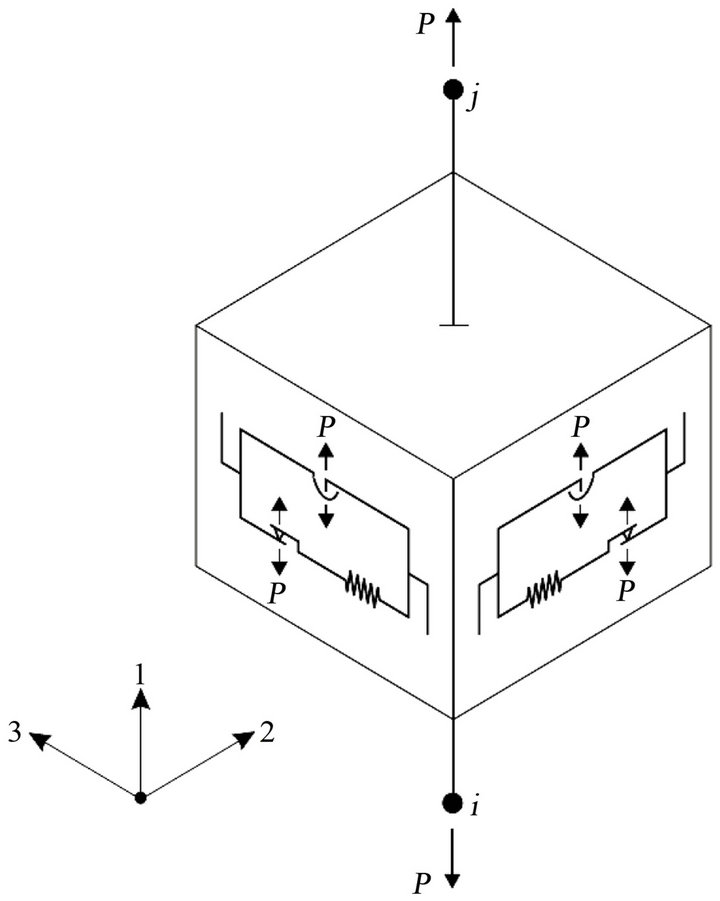

Figure 7. Friction pendulum isolator property [4].

5. Non-Linear Analysis

A wide set of non linear dynamic analysis has been carried out to analyze seismic response of isolated systems by means of FPBs. In the following, to preliminary characterize the system behavior, the response in terms of spectral displacements by considering the 2D numerical model in MATLAB is plotted by using polar representation [6,7]. In particular, spectra of displacement evaluated in the periods range 0 - 5 sec are obtained by changing FPB radius according to the pendulum formulation. Results for the AQK and MRN stations are represented in the Figures 8 and 9 by neglecting the vertical ground motion component.

Results first of all show that in the case of hardening behavior the maximum displacement response is attained in the NW-SE direction for periods range 1.5 - 4 sec in the case of AQK station and in the NE-SW direction for periods range 1.5 to 5 sec in the case of MRN. Instead, for the case without hardening behavior the maximum response, attained in the same directions, seems to be independent from the periods.

To investigate the effects on the seismic behavior of the vertical ground motion components several non-linear dynamic analysis have been carried out by SAP 2000 model by considering for FPBs three radii R (1, 2 and 4 m) and three friction coefficients μ (0.025, 0.05 and 0.10). The Figures 10-17 describe the results obtained alternatively for AQK and MRN stations with (3-D) and without (2-D) vertical ground motion components.

In particular, Figures 10 and 11 represent the maximum relative displacements d_{max}, Figures 12 and 13 the ratios between the maximum base shear S_{max} and the overall weight of systems W, Figures 14 and 15 the ra-

(a)(b)

Figure 8. Non-linear polar spectrum of displacement with (a) and without (b) hardening effects, AQK station.

tios between the maximum absolute accelerations a_{abs} and g and Figures 16 and 17 the ratios between the effective vibration periods and the reference ones T_{r}.

Analysis of results show that the seismic behavior of the isolated systems with FPBs is generally considerably affected by the vertical ground motion components. In particular base shear and absolute acceleration increase for considered events up to the double for the case of MRN station. Instead, the maximum relative displacements generally increase less and, finally, no remarkable differences are found on effective periods. Usually, the response worsen by decreasing the radii of FPBs. Moreover, the case with radius equal to 1 m presents a trend inversion with regard to the higher considered radii. Finally, the effective vibration periods decrease slightly by increasing the friction coefficient and the radii of FPBs.

To better investigate the effects of vertical ground motion components, the Figures 1-25 describe the seismic response by varying the PGA of vertical components scaling the original records for AQK and MRN stations. In particular, Figures 18-21 describes the ratios between the maximum relative displacements d_{max} obtained with (3D) and without (2D) the vertical ground motion in the case of 0.025 and 0.10 friction coefficients. The Figures 22-25 represent instead the ratios between the base shear

(a)(b)

Figure 9. Non-linear polar spectrum of displacement with (a) and without (b) hardening effects, MRN station.

Figure 10. Maximum displacement d_{max} (m), AQK site.

Figure 11. Maximum displacement d_{max} (m), MRN site.

Figure 12. Ratio S_{max}/W, AQK site.

Figure 13. Ratio S_{max}/W, MRN site.

Figure 14. Ratio a_{abs}/g, AQK site.

Figure 15. Ratio a_{abs}/g, MRN site.

Figure 16. Ratio T_{eff} /T_{r}, AQK site.

Figure 17. Ratio T_{eff} /T_{r}, MRN site.

Figure 18. Ratio d_{max} (3D)/d_{max} (2D), AQK site.

Figure 19. Ratio d_{max} (3D)/d_{max} (2D), MRN site.

Figure 20. Ratio d_{max} (3D)/d_{max} (2D), AQK site.

Figure 21. Ratio d_{max} (3D)/d_{max} (2D), MRN site.

Figure 22. Ratio S_{max} (3D)/S_{max} (2D), AQK site.

Figure 23. Ratio Sm_{ax} (3D)/S_{max} (2D), MRN site.

Figure 24. Ratio S_{max} (3D)/S_{max} (2D), AQK site.

Figure 25. Ratio S_{max} (3D)/S_{max} (2D), MRN site.

evaluated with (3D) and without (2D) the vertical ground motion for the same cases.

The analysis of results show that in the case of 0.025 friction coefficient, with exception of radius equal to 1m, there are no practically increase of the relative displacements, while the base shear ratio increase linearly with vertical PGA up to 1.75 in correspondence of PGA equal to 1.3 g.

In the case of 0.10 friction coefficient the displacement ratio reaches 1.25 for the radius equal to 1m and the base shear ratio increases up to 2.10 in correspondence of PGA equal to 1.1 g.

6. Conclusive Remarks

The effects of taking into account vertical seismic component on the overall behavior of isolated structures with FPBs in case of near fault events, is investigated in this paper.

In particular, to investigate the potential performance that could be achieved by FPBs, the study considered an ideal isolated system characterized by a perfect rigid superstructure neglecting lateral-torsional effects. To assess the seismic response to near fault events, like L’Aquila 2009 and Emilia Romagna 2012, a non-linear 3-DOF system was implemented in SAP 2000. Moreover, nonlinear polar spectra responses were obtained by means of MATLAB neglecting the vertical component of seismic motion.

The obtained results by 2D model in MATLAB validate the ones carried out with the 3D model in SAP2000. Results generally show a great relevance of the vertical ground motion, most of which on the base shear, with a linear increase of the response up to the double of the case without vertical seismic component when PGA_{V} reaches 1 g. Instead, the relative displacements substantially are not highly influenced by the vertical ground motion with exception for small radius of curvature, where the increment reaches the 20% when PGA_{V} reaches 1 g.
