Received 8 July 2015; accepted 13 August 2015; published 17 August 2015

ABSTRACT

Quarrying is an activity contributing to the vitality of the Moroccan economy. However, most of these quarries were abandoned at the end of extraction and became dump and later a place of uncontrolled landfills. The number of restored or rehabilitated quarries is limited and this threatens several aspects of the environment, especially, the quality of surface and ground water, landscape, forests, etc. This also gives rise to increased erosion risk. The study identifies plant species covering 10 abandoned quarries in the region of Rabat, especially the Bouregreg River and its affluent Akreuch in order to define a strategy for their restoration or rehabilitation. Field surveys were led to locate and map 10 abandoned quarries and to sample plant species. Herbaria were established and species were identified and classified. The results of the study distinguished 46 different plant species spread over 45 genera and 27 botanical families. The most dominant family in the quarries visited is Asteraceae. These results will allow us to study the vegetation dynamics in these abandoned lands and serve as a basis, in the selection of appropriate species in eventual restoration or rehabilitation projects.

Keywords:

Akreuch, Bouregreg, Flora, Quarries, Rehabilitation, Restoration

1. Introduction

In the Mediterranean countries, extractive activities increase pressure on soil and water resources already limited, which accelerates the process of erosion and subsequent destruction of existing arable lands [1] . The Rabat- Sale-Zemmour-Zaer Region is rich of quarries; according to the national inventory of quarries published by the Ministry of Transport in October 2012 [2] , this region counts 117 quarries among the 1885 quarries spread over Morocco. 41% are abandoned including two quarries declared rehabilitated, 49% active and 10% suspended.

Quarry exploitation is defined as a temporary land occupation; rehabilitation must allow the impacted land to regain its former position, or to be intended for a new use. In terms of restoration planning, analysis of the natural regeneration process is a good starting point for the selection of appropriate species to use [3] . Native plants are adapted to the soil, temperature, and the regime of their environment. They are genetically adapted to the local ecology [4] . This study identifies the flora of 10 limestone and marl abandoned quarries in the region of Akreuch and falls within the definition of a strategy for their redevelopment.

2. Material and Methods

2.1. Study Area

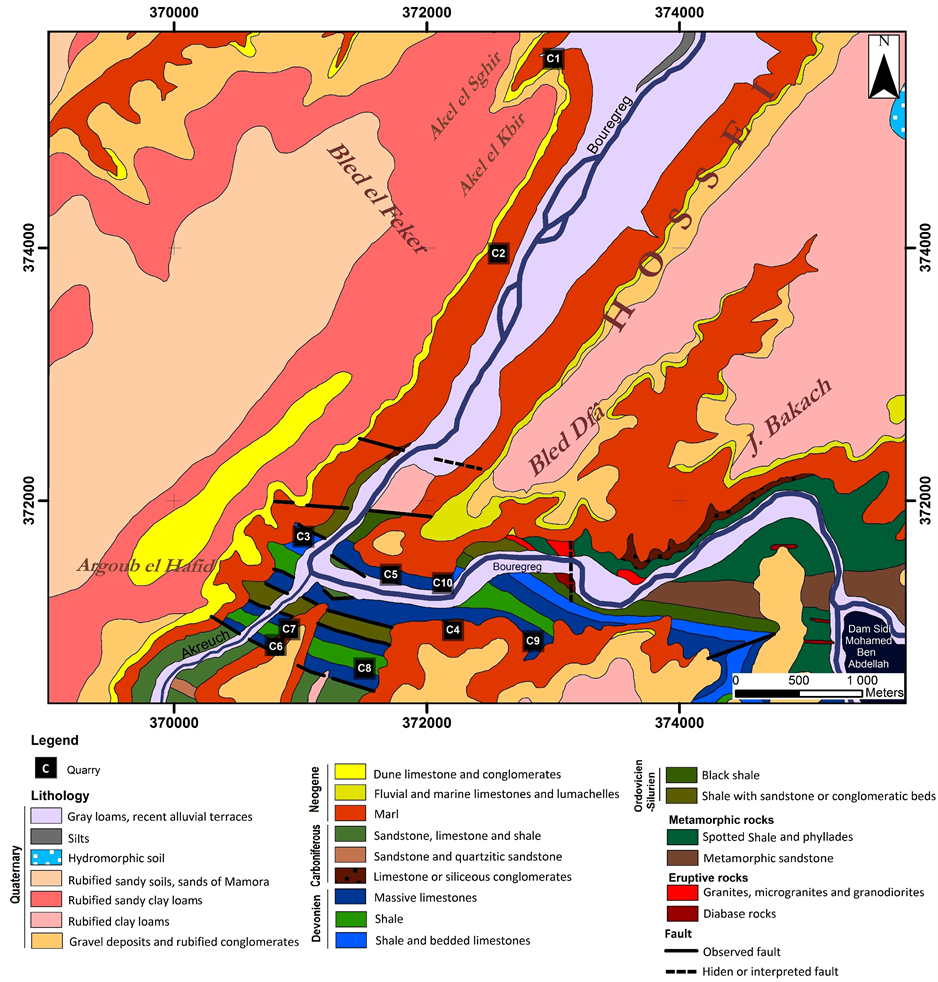

The abandoned quarries explored (Table 1) are located on the Atlantic coast in the Rabat-Sale-Zemmour-Zaer Region and belong to the private domain. They are between the mouth of Akreuch, the dam of Sidi Mohammed Ben Abdellah and the Bouregreg River (Figure 1). The normal average temperatures in the region vary from 7˚C in winter to 26.4˚C in summer [5] . The annual rainfall has a normal rate of 560 mm. The study area is characterized by Paleozoic terrains ranging from the Ordovician to Carboniferous with shale, sandstone, quartzite and compact limestone facies; the Cenozoic overlies on the Paleozoic by a major unconformity. Cenozoic materials are represented by Neogene sandstone and marl facies. The sedimentary series underlies Quaternary limestone [6] ; (Figure 2).

2.2. Flora Balance Sheet

The study of the flora of the 10 abandoned sites is based on field surveys conducted in 2014 (spring/summer). Floristic inventories have been developed in a systematic way in order to be as exhaustive as possible.

The choice of targeted sites is based on their concentration in a sensitive environment because of their proximity to urban areas, the Bouregreg River and its affluent Akreuch. These Quarries are prone to uncontrolled waste sites, which may affect the surrounding areas as they represent a breeding ground for pollution and a risk to the sanitation and the health of neighboring residents and local wildlife.

Field campaigns carried out in the region of Akreuch between the end of May and the end of June 2014 have led to the establishment of a floristic inventory of plant species in 10 abandoned quarries. These quarries were geolocalized and accompanied by a mapping using GIS and satellite images (Landsat 8) dating back to April 2013 and rechecked using a Magellan GPS. The latter has allowed the delimitation of the land concerned and the

specification of their area that is estimated to 491,100 m² (Table 1) and also the organization of the different layers of information that formed the basis for the collection of vegetation data.

Quarries surfaces were covered and photos were taken for each collected plant species. The collection was done in a systematic way, herbaria were established and the sampled species growing on the floors and walls of quarries were determined in the Department of Natural Resources and Environment-IAV Hassan II, Rabat (Morocco) and have been classified by quarry, life form, family, genera and class, endemic species and very rare species have been specified according to taxonomic keys and previous studies [7] -[11] .

3. Results and Discussion

In order to better know the flora colonizing the abandoned quarries, tables of identified species were developed for each quarry including their characteristics (Tables 2-11). The number of species sampled and identified is 130 species.

C1 quarry, located on the right bank of the Bouregreg River, is a former marl quarry, with a height of 43 meters, mostly dominated by the family Asteraceae. Dicotyledons occupy 86% of the overall total including two endemic species to Morocco; they are listed as very rare and belong to the geographical division Maamoura- Zemmour-Zaer [9] [10] ; it comes to the species Phagnalon saxatile and Centaurium umbellatum (Figure 3). Therophytes are best represented in this quarry (Table 2).

C2 quarry is a former exploitation of marl with a height of about 52 meters, located on the right bank of the Bouregreg River. Surveys carried out in this quarry have revealed 11 different species in which the Asteraceae family ranks first. Dicotyledons are strongly represented and include an endemic species to Morocco classified very rare; the species Phagnalon saxatile. The most common life form in this abandoned land is Therophyte (Table 3).

C3 quarry is an old clay pit, located 40 meters from the Bouregreg River with a height of 70 meters. 23 species were identified, including the species Phagnalon saxatile and the species Centaurium umbellatum; classified very rare and endemic to Morocco, they are specifically associated to the North Atlantic Moroccan geographic division. This division has 200 very rare taxa [9] [10] . The quarry is characterized by the presence of 18 different families of which 83% belong to Dicotyledons. The most dominant life forms are respectively Hemicryptophyte (8 species) and Phanerophyte (6 species) (Table 4).

C4 quarry is the largest one in the study area, called Doukkala, after the name of the company that was exploiting the Devonian limestone. With a height of 70 meters and a length of over 900 meters, C4 has 7 different families including the very rare species Phagnalon saxatile, and the species Diplotaxis catholica endemic to Morocco and the Iberian Peninsula. The latter is classified as extinct or with a dubious presence (Figure 4) and belongs to the Brassicaceae family.

The class of Monocotyledons is not widespread: only two species of the Poaceae family: Avena alba and Vulpia fasciculata belonging to the Therophyte life form (Table 5).

C5 quarry is an abandoned limestone farm situated on the left bank of the Bouregreg River in the Hssaine municipality. With a height of 65 meters, this quarry is occupied by 7 different families with 83% belonging to the Dicotyledons class and is mostly dominated by the Therophyte life form. Phagnalon saxatile species has been recorded in this quarry (Table 6).

C6 is a former limestone quarry with a height of 70 meters, mostly occupied by the Poaceae family followed by the Asteraceae family. Dicotyledons class is the most present with a rate of 55%. It is noted in this quarry that the life form Hemicryptophyte and Geophyte are the most important with the same attendance rate. The quarry also recorded the species Phagnalon saxatile (Table 7).

C7 is a former limestone quarry, with a height of 60 meters. Its exploitation affected the water table which favored the appearance of some species typical of wetlands [12] (Figure 5); Juncus maritimus of the Juncaceae family, Marrubium vulgare of the Lamiaceae family and Rumex pulcher of the Polygonaceae family.

The quarry counts 9 different families in which Asteraceae is the most dominant, two species classified very rare and endemic to Morocco, namely the species Phagnalon saxatile of the Asteraceae family and Centurium erythraea of the Gentianaceae family. Therophytes and Hemicryptophytes are best represented in this quarry (Table 8).

The former limestone quarry C8 reaches 50 meters in height. The extraction exposed the water table and spawned the emergence of a source in the quarry, which has promoted the development of some hygrophilous species Juncus maritimus, Phragmites australis and Centaurea calcitrapa [13] . Families showing the largest number of species are Poaceae followed by Asteraceae. Monocotyledons are best represented in this quarry with a rate of 60% of the overall total (Table 9).

C9 quarry is a former limestone exploitation of a height of 70 meters, dominated by Asteraceae and Poaceae. The life form Therophyte is the most common (5 species from a total of 13 species). Dicotyledons are strongly represented including the very rare species Phagnalon saxatile (Table 10).

C10 is an abandoned limestone quarry about 30 meters high. Asteraceae and Poaceae represent two-thirds of the overall total that includes the species typical of wetlands: Cynodon dactylon, Phragmites australis and Polypogon monspeliensis of Monocotyledons class. In more or less dry areas of the quarry, species Polypogon monspeliensis is gaining ground; this plant is pollinated by wind and water and is transported by wool and skin of animals [14] ; (Table 11).

3.1. Results and Discussion

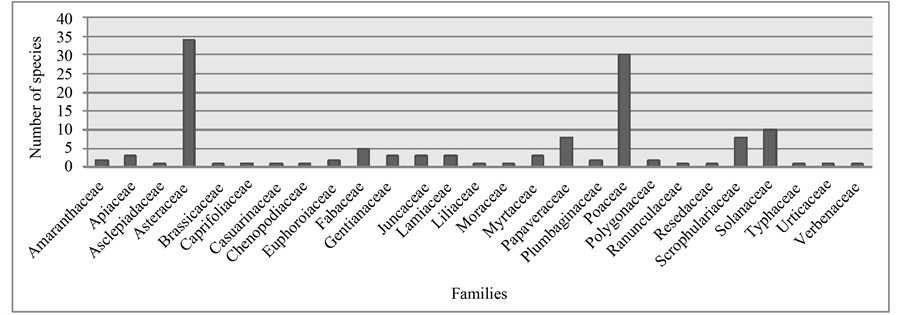

Statistical analysis conducted on the resulting tables shows that the Asteraceae is the most dominant with 34 species and 34 genera of the flora of the 10 quarries (26% of the overall total), followed by Poaceae with 30 species and 30 genera (23% of the overall total). The latter is leading in the ranking of the flora of Moroccan wetlands [15] . The family that occupies the 3^rd rank is Solanaceae with 10 species and 10 genera (8% of the overall total); (Figure 6). The first three families of Moroccan vascular flora are always identical and in the same order: Asteraceae, Fabaceae and Poaceae. They totalize 1329 species, which is over a third of the national specific inventory [10] . In the elaborated inventory, the order is different; the family Fabaceae occupies the 5^th rank with 5 species and 5 genera (4% of the overall total) after the families Papaveraceae and Scrophulariaceae with 8 species and 8 genera (6% of the overall total) each.

Dicotyledons, the best ranked class, include 95 species belonging to 36 different genera and 23 different families while Monocotyledons class is present with 9 species belonging to 9 different genera and 4 different families.

The species recorded in all quarries is Dittrichia viscosa. This plant, mainly distributed in the western Mediterranean countries, [16] is present in degraded sites [4] . Species Nicotiana glauca, Scolymus hispanicus and Phagnalon saxatile are recorded in 9 quarries, while other species are recorded in less than 9 quarries.

3.2. Systematic Aspect

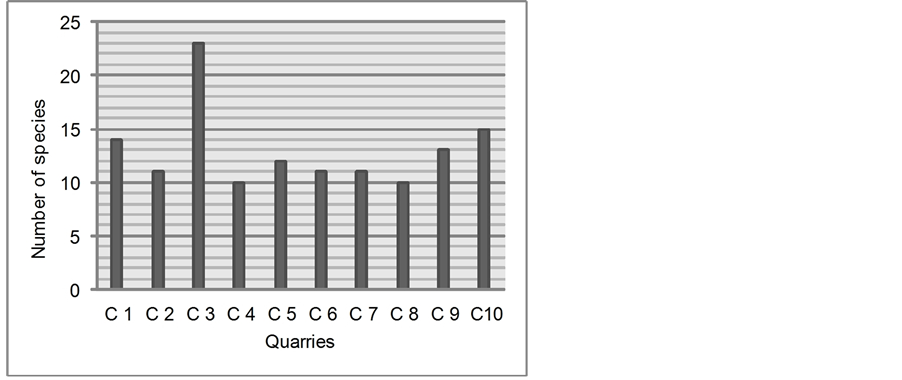

Quarries that recorded the highest number of different species are C3 (23 species, 23 genera and 18 families all

different), followed by C10 (15 species, 15 genera and 6 families all different). Other quarries have less than 15 different species (Figure 7 and Figure 8).

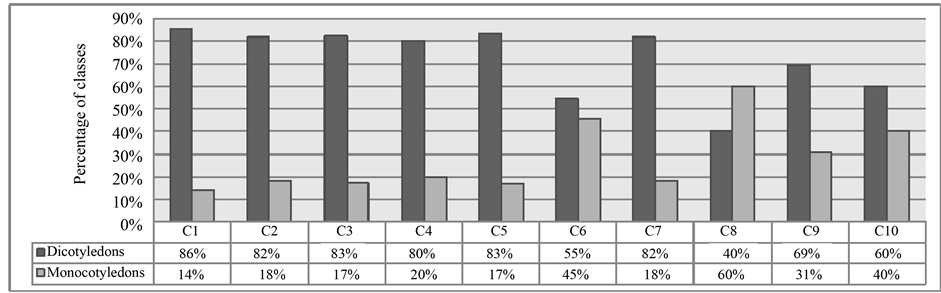

The class of Dicotyledons dominates in all the quarries except C8 quarry where the class of Monocotyledons dominates with 60% of the overall total (Figure 9).

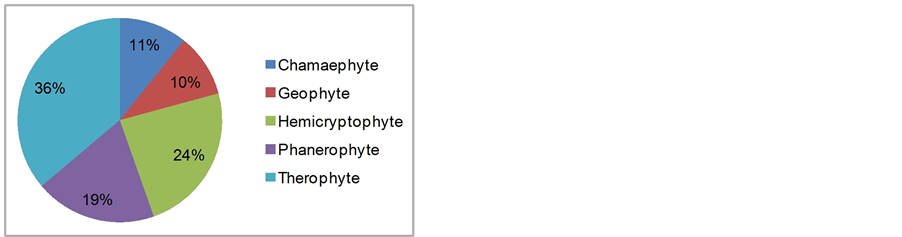

The life forms of identified species were classified according to the Raunkiaer system [17] . The latter classifies plants according to the position of their perennating buds in relation to the soil surface and also to their adaptation to unfavorable seasons. According to the spectrum of life forms (Figure 10), it is evident that the type Therophyte is the predominant and is represented by 36% of the total flora. The type Hemicryptophyte represents 24% of all species; these two types characterize the flora of Moroccan wetlands [15] . The Phanerophytes represent 19%, the Chamaephytes11% and the Geophytes 10% of total flora.

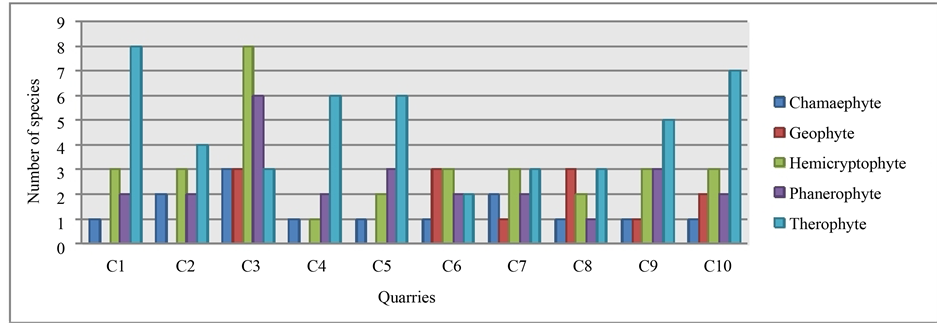

Quarries that sheltered the largest number of species of Therophyte are C1 (8 species), C10 (7 species), C4 (6 species) and C5 (6 species). The Hemicryptophyte life form is more dominant in the C3 quarry (8 species) followed by Phanerophyte (6 species) whereas it doesn’t exceed 3 species in other quarries. No Geophyte species were found in C1, C2, C4 and C5 (Figure 11).

3.3. Environmental and Ecological Aspects

From the results, the most dominant species is Dittrichia viscosa of the Asteraceae family, many studies have shown that this plant grows in limestone or silica sol [18] , it often locates in abandoned lands, on rocky coasts or screes of mountains, and it is characterized by a pioneering character when there is no competition among plants [16] , followed by Nicotiana glauca known for its productivity of large amounts of seeds easily dispersible by the wind and for its resilience to a broad range of environmental conditions [19] , Phagnalon saxatile the very rare species endemic to Morocco having a preference for calcareous soils [20] , and Scolymus hispanicus which is common in poor soils waste places and abandoned agricultural lands [21] .

The proximity of the Bouregreg River and its affluent Akreuch as well as the accumulation of rainwater and the attainment of the water table have favored the emergence of a few native wetland plants: Marrubium vulgare, Scabiosa atropurpurea, Phragmites australis, Typha latifolia, Vitex agnus castus, Juncus maritimus and Cynodon dactylon.

Therophytes have registered a large presence in the entire inventoried flora; this life form has an invader character and represents an indicator of hyperdegradation [22] [23] .

4. Conclusion

From botanic studies conducted, it can be concluded that:

1) Quarries shelter several plants with characteristics of Mediterranean species.

2) The majority belongs to the families Asteraceae and Poaceae that occupy 49% of the flora of all quarries, followed by Solanaceae, Scrophulariaceae, Papaveraceae and Fabaceae.

3) The frequency of the dominance of some species is explained by the ease of dispersion of their seeds by wind or animals.

4) The existence of the Bouregreg River and its affluent Akreuch contribute to biodiversity in this region.

5) The floristic analysis has revealed that 73% of the species inventoried are part of the Dicotyledons class and the life forms Therophyte (36%) and Hemicryptophyte (24%). Dicotyledons are largely dominant with 95 species including very rare, extinct or with a dubious presence species.
