ABSTRACT

Sulfonation of aromatic compounds (Phenols, Anilines) is triggered by Vilsmeier Haack (VH) reagent (DMF/POCl₃) or (DMF/SOCl₂) in the presence of NaHSO₃ under Sonication and conventional stirred conditions at room temperature. The reactions afforded corresponding Sulfonic acid derivatives in very good yields. The results obtained under Sonication were enhanced when compared with the yields of the conventional method.

1. Introduction

Aromatic sulfonation is an electrophilic substitution in which a hydrogen atom on arene is replaced by SO₃H group [1]. Aromatic sulfonic acids are intermediates for the preparation of dyes and pharmaceuticals. These acids are much stronger acids than the corresponding carboxylic acids. For instance, p-toluene sulfonic acid (pKa of −2.8), is about a million times stronger acid than benzoic acid (pKa of 4.2); while methane sulfonic acid (pKa = −1.9) is about one million times stronger acid than acetic acid. Even though both alkyl and aryl sulfonic acids are well known in literature, there has been an up surging interest in the synthetic chemistry of aromatic sulfonic acids most of the applications are associated with the aromatic derivatives. The amides of p-amino benzene sulfonic acid and related compounds are known to form a large group of sulfa drugs. Sulfonation is major industrial chemical process used to make a diverse range of products, color intensifiers, pigments, medicinal, pesticides and organic intermediates. Petroleum sulfonates are widely used as detergent additives in lubricating oils. Additionally, every year paper pulp produces about a half (0.5) million metric tons of lignin sulfonates as a byproduct. Sulfonation of aniline produces p-amino benzene sulfonic acid or sulfanilic acid which is a zwitterion with an unusual high melting point. Sulfonation of polystyrene can be used to prepare sodium polystyrene sulfonates. Similar to other forms of molecular modification, sulfonation is also a vital procedure, and disruptions in the process can have significant pathophysiological ramifications and developmental consequences. The addition of sulfonates creates a negatively charged molecular environment at any physiological pH that can induce conformational changes, alter solubility, and promote ionic interactions, all of which can significantly influences the biological activity [2,3]. Among various sulfonating agents sulfuric acid [2,3], oleum [4,5] and SO₃ [6] are widely used, but some of them could cause polymer chain degradation during the reaction due to their high reactivity and toxicity level. The presence of oleum leads to more diacid formation than the use of sulfuric acid. SO₃ is an aggressive electrophile (sulfonating agent) that rapidly reacts with any organic compound containing an electron donor group. A perusal of literature shows that sulfonation with SO₃ is a difficult reaction to perform on an industrial scale because the reaction is rapid and highly exothermic; releasing approximately 380 kJ/kg SO₃ reacted. Most of the organic compounds form a black char on contact with pure SO₃ due to the rapid reaction and heat evolution. Highly aggressive reactivity of SO₃ could be controlled by diluting and/or complexing the SO₃ to moderate reactivity level. Over the past decade, our group has also been actively involved in designing a variety of ecofriendly materials using micelleforming surfactants as catalysts and unconventional energy sources (such as microwave irradiation and ultrasound) to assist Vilsmeier-Haack (VH) reactions [7,8] and Hunsdiecker reactions [9,10]. Therefore, it has been proposed to develop an alternate path way for sulfonation of aromatic compounds using (DMF + Oxychloride)/NaHSO₃. And the reactions not only reduce the reaction times but also enhanced the yields under sonication (solution phase).

2. Results and Discussion

The Vilsmeier Haack (VH) reaction [11-25] is widely used for formylation. It can be applied to introduce an acetyl group on activated aromatic or hetero aromatic compounds, many other conversions can be achieved with this technology. It is one of the most versatile reactions in organic synthesis of aromatic Sulfonic acid derivatives. In general, (DMF/POCl₃) or (DMF/SOCl₂) are used to generate an iminium salt intermediate salt can be used in the synthesis of a large number of heterocyclic compounds. Recently our group reported that bromo derivatives with KBr or NBS and nitro derivatives with KNO₃ or NaNO₂ using Vilsmeier-Haack reagent [7,8]. Encouraged by this result, we tried to use VH reagent (DMF/SOCl₂ and DMF/POCl₃) in presence of NaHSO₃ for sulfonation reactions.

Aromatic compounds, such as phenols and amines, underwent sulfonation when treated by VH reagent (DMF/ SOCl₂ and DMF/POCl₃) in the presence of NaHSO₃, affording the corresponding aromatic sulfonic acid derivatives in good yields under conventional stirred conditions at room temperature. In this study, NaHSO₃ were used as reagent for the generation of SO₃H⁺ ions.

To check the generality of the reaction an array of aromatic compounds were used as substrates as shown in Scheme 1.

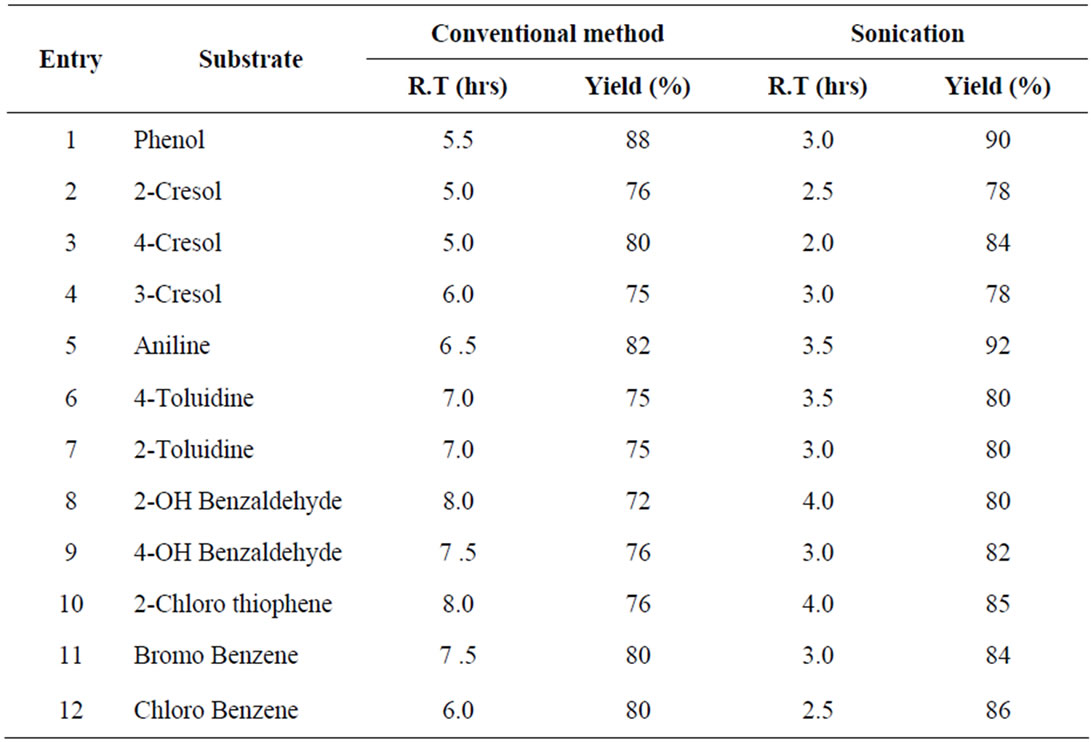

The reaction rapidly afforded high yields of the corresponding Sulfonic acid derivatives. All the products were compared with physical data and analyzed by 1H NMR spectra with authentic samples. When aromatic phenols and amines were reacted with (POCl₃ + DMF) in the presence of NaHSO₃, the reaction indicated corresponding sulfonic acid derivatives. Data summarized in Tables 1 and 2, clearly demonstrate that the reaction proceeded rapidly with (POCl₃ + DMF)/NaHSO₃ over (SOCl₂ + DMF)/NaHSO₃ to afford high yields of the corresponding sulfonic acid derivatives. This may be because the active electrophile (SO₃H⁺) is released faster in the case of the (POCl₃ + DMF)/(NaHSO₃) system and is available for favorable Nitration over the (SOCl₂ + DMF)/(NaHSO₃) system. The reaction of DMF with phosphorus and sulfur oxychlorides produces an electrophilic iminium cation. The ease of formation of such electrophilic iminium cation is faster with POCl₃ than that with SOCl₂ because POCl₃ is relatively stronger Lewis acid than SOCl₂. This could be attributed to the fact that phosphorus contains less electron density than sulfur and thus tends to have a faster tendency to bind with DMF than sulfur. The electrophilic iminium cation thus formed consequently forms SO₃H⁺ ion in the same order in presence of NaHSO₃.

It is interesting to note that the reaction times under conventional stirred conditions are too long even though

the yields are fairly appreciative. However, the reaction times decreased substantially and rate enhancements were observed in the case of ultrasonically assisted reactions. The observed rate accelerations could be explained due to cavitation, a physical process that creates, enlarges, and implodes gaseous and vaporous cavities in an ultrasonically assisted (irradiated) liquid. Cavitation induces very high local temperatures in the reaction mixture and enhances mass transfer [26-28].

3. Conclusion

In summary, the authors developed a methodology for the synthesis of aromatic sulfonic acids using VilsmeierHaack Reagent/NaHSO₃ from aromatic compounds (Phenols and anilines) under Sonication and conventional stirred conditions. The developed protocol offered several advantages such as rate accelerations, excellent yields with simple work up procedure.

4. Experimental Details

All the solvents and chemicals were procured either from Aldrich, Merck, Loba or SD fine Chemicals. Progress of the reactions was monitored by thin layer chromatogramphy using Merck Silica gel 60 F254 pre-coated TLC plates. Ultrasonically assisted reactions were conducted in an Ultrasonic Sonicator bath (Bio-Technics, India: ISO. 9001-2000).

4.1. General Procedure for the Preparation of Vilsmeier Haack Reagent

The Vilsmeier Haack (VH) adduct is always prepared fresh from POCl₃ (or SOCl₂) and dimethyl formamide (DMF) at chilled temperatures. Chilled DMF (50.0 mmol) was added slowly and drop wise (at –5˚C) to POCl₃ or SOCl₂ (50.0 mmol) in 50.0 mL acetonitrile (Me CN), under stirred conditions, which resulted in slurry indicating the formation of VH reagent. The reagent thus obtained is kept under cold conditions (at –5˚C).

4.2. General Procedure for the Synthesis of Aromatic Sulfonicacids Using Vilsmeier Haack Reagent under Conventional Method

Organic substrate (phenols, anilines) (10.0 mmol), about 15.0 mmol of VH reagent and 10.0 mmol NaHSO₃ and 20.0 mL solvent (Me CN) were taken in a previously cleaned in a round bottom flask and stirred for about 5 to 8 hours at room temperature. After completion of the reaction, as confirmed by TLC, the reaction mixture is treated with 5% hypo solution, followed by the addition of ethyl acetate. The organic layer was separated, dried over Na₂SO₄ and the solvent is recollected by distillation using Rotavapor. The resultant compound was further purified with column chromatography using ethyl acetate: hexane (7:3) as eluent to get pure product. Hexane and ethyl acetate are also distilled using Rotavapor according to standard procedures.

4.3. General Procedure for Ultrasonically Assisted Synthesis of Aromatic Sulfonic Acids Using Vilsmeier Haack Reagent

For ultrasonically assisted synthesis of aromatic sulfonic acids the reaction flask containing organic substrate (phenols, anilines) (10.0 mmol), about 15.0 mmol of VH reagent, 10.0 mmol of NaHSO₃ and 20.0 mL solvent (Me CN) was placed in a Sonicator bath at room temperature. After completion of the reaction, as confirmed by TLC, the reaction mixture is further processed for the isolation of product as detailed in earlier section.

4.4. Spectral Data of Certain Compounds

4-Hydroxy Benzene Sulfonic Acid: ¹H NMR: 7.23 δ (5, 1H, dd J = 7.0 Hz, J = 1.5 Hz) 7.27 δ (6, 1H, dd, J = 8.0 Hz, J = 1.5 Hz), 7.78 δ (7, 1H, dd, J = 8.0 Hz, J = 1.0 Hz), 7.94 δ (8, 1H, dd, J = 8.0 Hz, J = 1.5 Hz) 9.84 δ (OH);

13C NMR: 158.56 δ, 136.54 δ, 127.22 δ, 114.40 δ.

4-Amino Benzene Sulfonic Acid: ¹H NMR: 7.0 4 δ (5, 1H, dd, J = 8.0 Hz, J = 1 Hz), 7.21 δ (6, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.92 δ (7, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.91 δ (8, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 9.68 δ (s OH) 10.0 δ (s NH);

¹³CNMR: 146.5 δ, 131.90 δ, 126.90 δ, 122.25 δ.

4-Chloro Benzene Sulfonic Acid: ¹H NMR: 7.54 δ (5, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.83 δ (6, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.85 δ (7, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.54 δ (8, 1H, dd, J = 8.0 Hz, J = 0.5 Hz);

¹³C NMR: 142.05 δ, 137.5 δ, 130.00 δ, 127.95 δ.

4-Bromo Benzene Sulfonic Acid: ¹H NMR: 7.64 δ (5, 1H, dd, J = 8.0, Hz J = 0.5 Hz), 7.65 δ (6, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.85 δ (7, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.73 δ (8, 1H, dd, J = 8.0 Hz, J = 0.5 Hz);

¹³C NMR: 139.25 δ, 135.25 δ, 130.00 δ, 127.95 δ.

4-Toulidine, 2-Sulfonic Acid: ¹H NMR: 2.45 δ (1, 3H), 7.54 δ (6, 1H, dd, J = 8.0 Hz, J = 1.5 Hz), 7.13 δ (7, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.74 δ (8, 1H, dd, J = 1.5 Hz, J = 0.5 Hz);

¹³C NMR: 140.10 δ, 137.85 δ, 131.0 δ, 127.95 δ, 125.25 δ, 124.20 δ, 20.50 δ.

2-Toluidine, 4-Sulfonic Acid: ¹H NMR: 2.35 δ (1, 3H), 7.12 δ (6, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 8.05 δ (7, 1H, dd, J = 8.0 Hz, J = 2.0 Hz), 7.12 δ 8(8, 1H, dd, J = 2.0 Hz J = 0.5 Hz);

¹³C NMR: 146.65 δ, 131.60 δ, 130.80 δ, 128.25 δ, 124.15 δ, 122.20 δ, 16.70 δ.

p-Toluene Sulfonic Acid: ¹H NMR: 1.67 δ (1, 3H), 6.66 δ (5, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 6.66 δ (6, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.12 δ (7, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.10 δ (8, 1H, dd, J = 8.0 Hz, J = 05 Hz);

¹³CNMR:141.99 δ, 139.02 δ, 129.05 δ, 124.94 δ, 20.13 δ.

4-Hydroxy-3-methylbenzenesulfonic Acid: ¹H NMR: 2.45 δ (1, 3H), 7.04 δ (6, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.05 δ (7, 1H, dd, J = 8.0 Hz, J = 2.0 Hz), 7.95 δ (8, 1H, dd, J = 2.0 Hz, J = 0.5 Hz);

¹³C NMR: 156.5 δ, 136.35 δ, 128.23 δ, 124.45 δ, 123.25 δ, 113.65 δ, 15.75 δ.

2-Hydroxy-5-methylbenzenesulfonic Acid: ¹H NMR: 2.45 δ (1, 3H), 6.94 δ (6, 1H, dd, J = 8.0 Hz, J = 1.0 Hz), 7.0 δ (7, 1H, dd, J = 8.0 Hz, J = 0.5 Hz), 7.75 δ (8, 1H, dd, J = 10 Hz, J = 0.5 Hz);

¹³C NMR: 147.25 δ, 128.35 δ, 126.52 δ, 122.83 δ, 120.35 δ, 117.56 δ, 18.42 δ.

4-Hydroxy-2-methylbenzenesulfonic Acid: ¹H NMR: 2.35 δ (1, 3H), 7.04 δ (6, 1H, dd, J = 8.0 Hz, J = 3.0 Hz), 7.96 δ (7, 1H, dd, J = 8.0 Hz, J = 1.0 Hz), 7.02 δ (8, 1H, dd, J = 3.0 Hz J = 1.0 Hz);

¹³C NMR: 158.36 δ, 134.28 δ, 125.26 δ, 128.76 δ, 125.65 δ, 113.92 δ, 20.82 δ.

3-Formyl-4-hydroxybenzenesulfonic Acid: ¹H NMR: 10.01 δ (6, 1H), 7.28 δ (7, 1H, dd, J = 8.0 Hz, J = 2.0 Hz), 7.85 δ (8, 1H, dd, J = 8.0 Hz, J = 2.0 Hz), 8.74 δ (9, 1H, dd, J = 2.0 Hz, J = 2.0 Hz) 10.25 δ (s OH);

¹³C NMR: 135.45 δ, 168.65 δ, 135.56 δ, 125.95 δ, 138.82 δ, 117.75 δ, 190.12 δ.

5-Formyl-2-hydroxybenzenesulfonic Acid: ¹H NMR: 10.02 δ (6, 1H), 7.24 δ (7, 1H, dd, J = 8.0 Hz, J = 1.0 Hz), 7.63 δ (8, 1H, dd, J = 7.0 Hz, J = 1.5 Hz), 8.75 δ (9, 1H, dd, J = 1.5 Hz, J = 0.5 Hz) 9.98 δ (s OH);

¹³C NMR: 135.25 δ, 159.75 δ, 130.25 δ, 117.75 δ, 139.25 δ, 190.12 δ.
