Geomaterials, 2012, 2, 49-56 Published Online July 2012 (
Modified FILTERSIM Algorithm for Unconditional
Simulation of Complex Spatial Geological Structur es
Peyman Mohammadmoradi, Mohammadreza Rasaei*
Institute of Petroleum Engineering, School of Chemical Engineering,
College of Engineering, University of Tehran, Tehran, Iran
Email: *
Received May 10, 2012; revised June 13, 2012; accepted June 21, 2012
Facies and fracture network modeling need robust, realistic and multi scale methods that can extract and reproduce
complex relations in geological stru ctures. Multi Poin t Statistic (MPS) algorithms can be used to model these high order
relations from a visually and statistically explicit model, a training image. FILTERSIM as a pattern based MPS method
attracts much attention. It decreases the complexity of computation, accelerates search process and increases CPU per-
formance compare to other MPS methods by transferring training image patterns to a lower dimensional space. The
results quality is not however as satisfactory. This work presents an improved version of FILTERSIM in which pattern
extraction, persisting and pasting steps are modified to enhance visual quality and structures continuity in the realiza-
tions. Examples shown in this paper give visual appealing results for the reconstruction of stationary complex struc-
Keywords: FILTERAIM; MPS; Pattern Persisting; Training Image; Entropy Plot
1. Introduction
Static modeling of complex reservoirs calls for more than
two point statistics. Certain features of these objects such
as curvilinearity cannot be expressed via two-point rela-
tions [1]. Multi Point Statistics (MPS) is used to produce
realistic realizations of complex structures after the pio-
neer work of Strebelle who applied image processing
concepts for this purpose [2]. MPS based on image pro c-
essing techniques and proposes image construction ap-
proach. In this approach, the patterns of the final image
to be constructed (facies, fracture network…) are ob-
tained from a training image that depicts relevant geo-
logical patterns expected to be found in the subsurface
[1]. Furthermore, MPS modeling has the potential to im-
prove estimation in addition to simulation and the so
called E-type average value at each node is taken as a
local estimated value if training image is appropriate [3].
Training Images (TIs) provide spatial relations, exist-
ing patterns and degree of connectivity which must be
reproduced in the reconstructed images. The goal is not
to reproduce the training image, but to simulate a model
that shares some of the mult ivariate characteristics of the
true distribution [4]. Achieve the most appropriate TI rise
several challenges like: statistical rich ness of the training
image, the scale of the training image, the grid definition
of the simulated model, and the univariate distribution of
the training image. In this area, Boisvert selects the most
data representative TI by comparing the distribution of
runs and the multiple point density fu nction from TIs [5].
Boogaart applied variography as an auxiliary element to
choose TIs which represent the true joint distribution of
the field under consideration [6].
Pattern to point SNESIM method is the first algorithm
for MPS modeling [7,8]. SNESIM is a combination of
traditional sequential simulation with a search tree con-
cept. Multiple point statistics (observed patterns) of a
certain size of training images are stored in a tree struc-
ture; Node properties of realizations are then assigned
one by one in a search process loop. Search tree is ex-
tremely memory demanding. Straubhaar proposed a list
approach modification of SNESIM [9]. Several case stu-
dies of successful application of the method are reported
[10-14]. Okabe also modified SNESIM for pore network
reconstructi o n [1 5].
Pattern to pattern methods such as SIMPAT [1] FIL-
TERSIM [16] and DisPAT [17] are completely isolated
from two-point statistics and eliminate the probabilistic
paradigm in MPS algorithms. These methods inherently
take the probabilities o f the whole multiple p oint pattern s
conditioned to the same multiple point data event from
the training image [18]. SIMPAT produces visual ap-
pealing realizations; however complete search in pattern
*Corresponding a uthor.
opyright © 2012 SciRes. GM
database is needed. This makes the process of finding the
most similar pattern too complex and CPU time con-
suming. FILTERSIM reduces pattern dimensions by ap-
plying spatial filters and transferring patterns to a lower
dimensional space. Coded patterns are then clustered and
a prototype is chosen for each bin. This accelerates the
search process and decreases run time compared to
SIMPAT by means of reducing number of analogy loops.
Structures continuity in FILTERSIM method however is
not preserved as it is in SIMPAT.
Dimensional reduction in patterns is done by applying
directional filters [16] or wavelet decomposition on
training image [19]. Honarkhah proposed a distance
based algorithm DisPAT and automatic information the-
ory based algorithms for selection of optimum template
size and dimension of patterns target space [17].
In this paper, we proposed an improved version of
FILTERSIM method. Modifications are made to the
template size and pattern selection algorithm so that fea-
tures connectivity enhance in realizations. Although
computation cost increases marginally compare to the
original method, results quality is far better in our Modi-
fied FILTERSIM approach.
2. Training Image Processing
Processing of training images consists of gridding, scan-
ning and persisting the corresponding multiple point
vectors in a database as shown in Figure 1. Pattern ex-
traction can be performed by templates in different sizes.
Template size affects the extracted statistics, CPU time
and scale of structures in results. A pattern of training
image is defined as and includes a specific mul-
tiple point vector of tvalues within a template T
centered at node u (Equation (1)).
ti u
ti u
vectors define the geometry of the template
nodes; T
1,, n
and Tis the template size. Content
of pattern with a frequency component, based on its oc
currence frequency in TI, are stored in pattern database
as the following vector (Equation (2)):

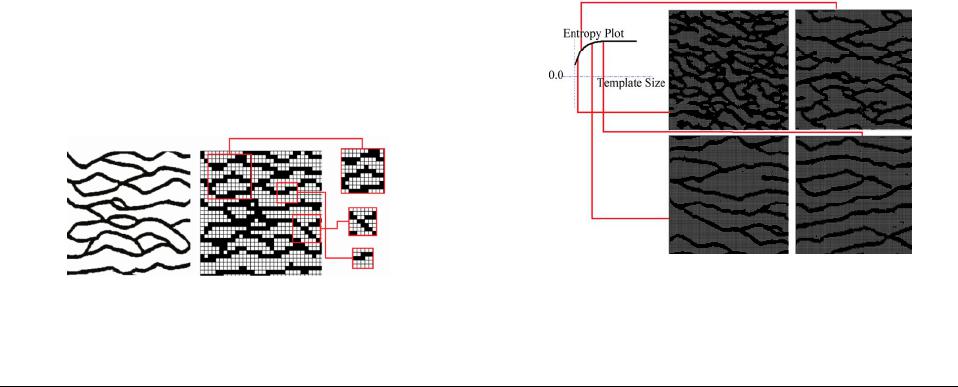

Figure 1. Schematic of training image preprocessing steps
consist of gridding, scanning and pattern extraction (As
template size increases, pattern stores larger scale spatial
Frequency component of T has the advantage of
accelerating selection of appropriate pattern in simulation
process. This achieves by elimination of repeated pat-
terns and consequently repeated calculations. Pattern
stores larger scale spatial information as the template size
increases with the cost of simulation uncertainty and
complexity. To find the optimum template size in a sin-
gle grid simulation, Shannon’s entropy versus template
size plot is used [20]. In order to calculate entropy in
different template sizes, the following equation is ap-
where K = number of possible outcomes of the random
variable, and pi represents the probability mass function.
Two different behaviors are expected with increasing the
template size. In the first stage, entropy will sharply in-
crease since the average number of nodes needed to
guess the remaining nodes in the patterns is increased. At
a later stage, where the template size has passed the op-
timal range in an elbow that represents the stationary
features of the training image, entropy would increase
slowly. This is because the information needed for en-
coding a large pattern with some stationary features is
approximately equal the information of the stationary
feature of the training image itself [17]. Mathematical
details are discussed extensively by Honarkhah [17]. As
shown in results of FILTERSIM automation in Figure 2,
spatial statistics of the results are fixed with the passing
of the Elbow in entropy plot.
By applying frequency component and optimum tem-
plate size concepts, training image is scanned with the
optimum template after which the responses of patterns
Figure 2. Effect of template size on simulation results
(where the template size has passed the optimal window,
stationary features in realizations are approximately equal
the information of the stationary feature of the training
 
t n
tiutiu htiu htiu htiu h
  (1)
 
,,,,,, Frequency
kkk kkk
pat patpatpatpat
hh hh
 (2)
Copyright © 2012 SciRes. GM
to six directional filters are measured. These filters are
listed in Table 1. Each filter score is divided into five
categories in order to cluster the patterns into bins.
Many of these created bins are empty and will be elimi-
nated in the search process which is only done on se-
lected prototypes for the filled bins. Each prototype is
binary average pattern of patterns in a specific bin.
dev u
Table 2 shows the TI processing steps of our Modified
FILTERSIM approach.
Having processed the TI and filled the pattern database
as just described, reconstruction of realizations can per-
formed in unconditional and conditional situations. Un-
conditional simulation procedure is discussed in detail in
the next section.
3. Unconditional Simulation Algorithm
Simulation begins by defining a random path on realization
nodes. Data event in the template is extracted in each node
and its similarity to the existing patterns is then measured.
Data even t vector T is a set of previously informed
nodes in unconditional simulation while hard data is also
added to T in conditional simulation. We used the
following single point manhattan distance function:
iii ii
dxyd xyd x,
yx y
Having the random path defined, a search among the
prototypes is done for each visited node to select the
most similar prototype which shows minimum distance
function ,dxy with da ta event as below:
Table 1. Directional filters for dimension reduction of pat-
terns [16].
Name Filter Equation
N-S directional average
1,1, ,,
uvv nn
E-W directional average
uvu n n
 
N-S directional gradient
fuv n
E-W directional gr ad i en t
N-S directional curvature
E-W directional curvature
Table 2. Training image preprocessing steps of the Modified
FILTERSIM approach.
Training Image Processing
1. Load and mesh training image to the desired grid network
size ti
2. Find optim um template size (Entropy plot).
3. Scan TI and store all patterns in patdb along with the fre-
quency of each pattern as the last component of k
pat vec-
4. Apply filters to patterns and c a lc u la t e respon se s .
5. Cluster patterns according to node scores.
6. Eliminate empty bins.
7. Select a prototype for each filled bin.
  
ddevuPrototype hddevu hPrototype h
 
The bin of selected prototype contains the most similar
patterns to the visited data event. FILTERSIM routine is
to select a random pattern among these patterns and set it
as realization node. This obviously is not the best proce-
dure and may lose the feature connectivity as is a known
drawback of this method. Here we modified the proce-
dure and performed a second searching step to find the
most similar pattern to data event in the selected bin
(Figure 3). Pattern selection in candidate cluster is based
on the followin g di st ance fu nction:
ddev upatddev uhpath
Only the pattern node s with known values are consid ered in the above relation.
,0if orisunk
xy xy
dx yxy
 
The pattern with minimum distance function is then
pasted entirely on realization nodes. If some patterns
have the same distance to the data event vector, the one
with the most frequency is selected. Random selection of
patterns is only allowed when they all have the same
frequency. This pattern selection strategy has improved
the FILTERSIM performance and connectivity features
of reconstructed realizations compare to the original me-
thod. This will be fully explored in the results section.
Table 3 shows the stepwise procedure of Modified FIL-
TERSIM approach described above.
The last but not the least point is the updatable region
of pasted pattern on realization nodes which is used for
the first time by Arpat in SIMAPT [1]. The selected pat-
tern after imposing on the visited node of realization is
not entirely fixed and some outer parts of it can be re-
placed by future pasted patterns as shown in part 4 of
Table 3. This provides the opportunity of superior reali-
zations with closer features of connectivity to those of TI.
(Figure 4).
Copyright © 2012 SciRes. GM
Figure 3. Schematic of searching between prototypes in
Step#1 and between selected cluster patterns in Step#2 (In
Modified FILTERSIM , Step#1 choose 2nd column and
Step#2 chooses the red pattern while in the FILTERIM
Step#2 is performed in random).
Table 3. Procedure steps of unconditional Modified FIL-
TERSIM approach.
Unconditional Modified FILTERSIM
1. Training image prepr o c e s s i n g .
2. Define a random path on re
G grid of realization re.
3. At every node u, extract the data eventdev ()
Tu from realiza-
tion re and find the most similar prototype that mini-
mizes dev (),
Once the most similar bin is found, search most similar pattern in
that bin to maximize similarity sd , if some patterns
have the same distance to the data event vector, most frequent of
them is selected and if all of them have the same frequency, selec-
tion will be done randomly.
4. Paste the entire selected pattern to updatable data event:
= patTα
h. Set inner nodes as fixed and outer
nodes as updateable.
5. Move to the next updatable node of the random path and re-
peat the above steps until all grid nodes are fixed.
4. Results and Discussion
Modifications are made to the original FILTERSIM al-
gorithm in several ways of optimizing template size,
considering pattern frequency component in database and
pattern distance function ranking in candidate bin instead
of random selection. Performance of this modified algo-
rithm is investigated in this section by applying the me-
thod on several binary 2D training images with grid
(a) (b) (c)
Figure 4. Effec t of updatable nodes on structures continuity.
(a) Training image; (b) Realization with updatable region;
(c) Realization without updatable region.
Figure 5. CPU Time Qualitative Comparison of SIMPAT,
FILTERSIM and Modified FILTERSIM methods.
size of 128 × 128. Figures 6 and 7 compare recon-
structed realizations of 2 different TIs at 3 template sizes
with unconditional algorithms of FILTERSIM, SIMPAT
and Modified FILTERSIM. Better visual continuity of
the Modified FILTERSIM results is clear in all these
cases. Entropy changes of the two TIs at various template
sizes are shown in Figure 8. Elbows are around the op-
timum template size which is consistent with th e superior
results of these sizes in Figures 6 to 7. For example, for
the first training image in Figure 6, the best template size
of 13 × 13 is obtained from entropy plot (Figure 8). This
template size preserves the TI features more precisely in
the generated realization comp are to other template sizes
of 9 × 9 and 17 × 17 as shown in Figure 6.
Performance of modified FILTERSIM is also investi-
gated by applying the method for a continuous 2D train-
ing image with grid size of 128 × 128 (Figure 9). In this
case better visual continuity of our algorithm is clear
which is obtained the optimum template size of 15.
5. Summary
We proposed a Modified FILTERSIM algorithm to si-
mualte 2D binary stationary structures. We modified the
original algorithm with introd ucing optimum template size
for each training image, a pattern frequency parameter in
database, and additional search among stored patterns in
the selected bin. Shannon entropy concept was applied in
FILTERSIM and used to in f e r op t i mum t emp l a t e si z e that
can capture local structures in each template. Frequency
Copyright © 2012 SciRes. GM
Copyright © 2012 SciRes. GM

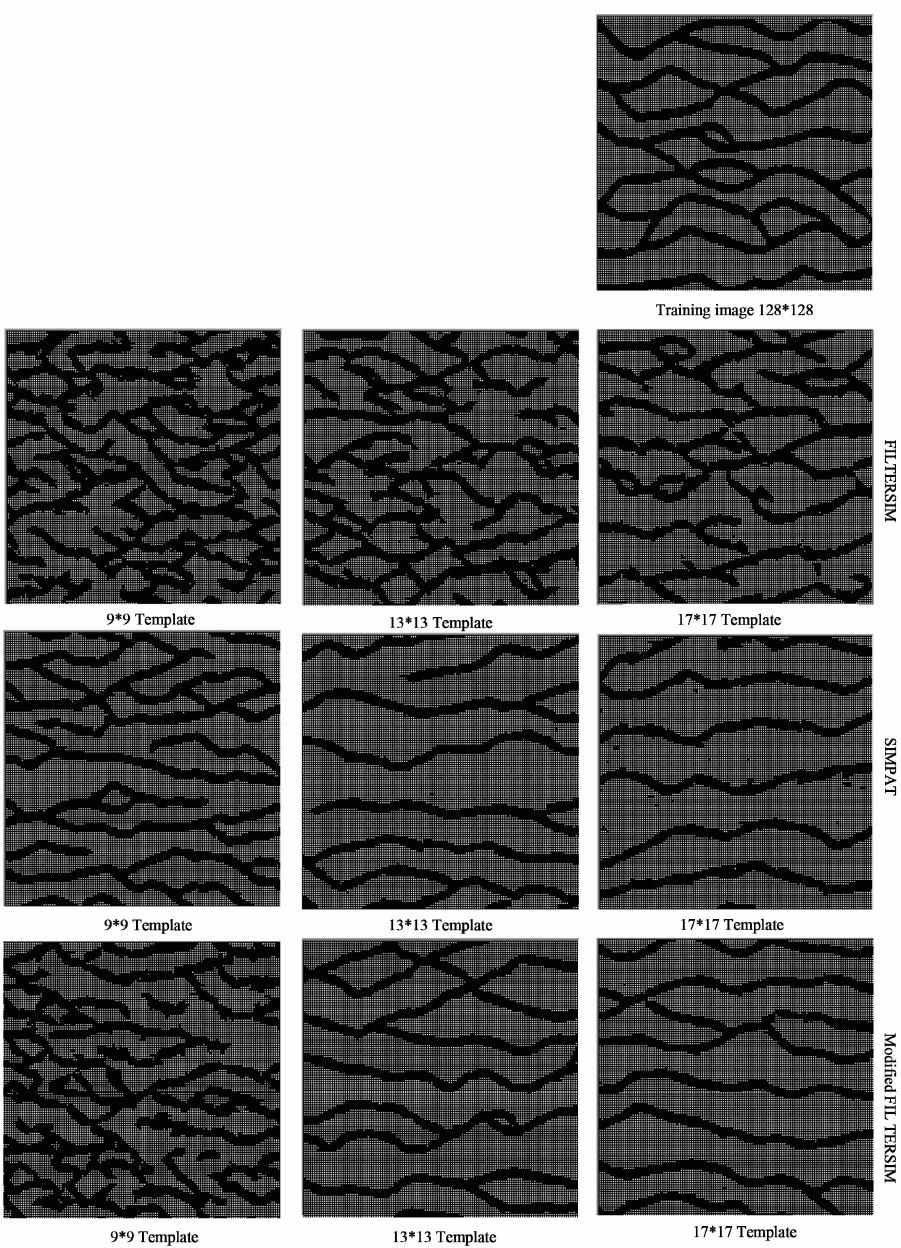

Figure 6. Simulation results with three different template sizes by applying SIMPAT, FILTERSIM and Modified FILTESIM
Figure 7. Simulation results with three different template sizes by applying SIMPAT, FILTERSIM and Modified FILTESIM
methods (2D thin section image is used as a training image).
Copyright © 2012 SciRes. GM
Copyright © 2012 SciRes. GM
Figure 8. E-Type realization obtained from 14 realizations by optimum sized template.
Figure 9. 2D continuous training image and simulation result (Optimum Template Size is 15).
component increase the chance of more repeated patterns
to be selected; and prototypes and patterns are chosen
based on their minimum manhatan distance function with
data events within the realization under construction.
These modifications considerable improved the algo-
rithm performance and produced more visual appealing
images compare to FILTERSIM. These improvements
add marginal computation cost to FILTERSIM and yet
still much faster than SIMPAT.
Our algorithm, SIMPAT and original FILTERSIM
have been implemented in C#. We have made our code
stand alone and provided a user interface for uploading
training and hard data to disp lay simulation results. In the
future, we plan to extend Modified FILTERSIM algo-
rithm to reconstruction of non-stationary images and 3D
pore space structures. The later will be based on 2D real
thin section images.
[1] G. Arpat and J. Caers, “A Multiple-Scale, Pattern-Based
Approach to Sequential Simulation,” GEOSTAT 2004
Proceedings, 7th International Geostatistics Congress,
Banff, October 2004.
[2] S. Strebelle, “Conditional Simulation of Complex Geo-
logical Structures Using Multiple-Point Statistics,” Mathe-
matical Geology, Vol. 34, No. 1, 2002, pp. 1-21.
[3] A. G. Journel and T. Zhang, “The Necessity of a Multi-
ple-Point Prior Model,” Mathematical Geology, Vol. 38,
No. 5, 2006, pp. 591-610.
[4] J. Ortiz, “Characterization of High Order Correlation for
Enhanced Indicator Simulation,” PhD Thesis, University
of Alberta, Edmonton, 2003.
[5] J. Boisvert, M. J. Pyrcz and C. V. Deutsch, “Multiple-
Point Statistics for Training Image Selection,” Natural
Resources Research, Vol. 16, No. 4, 2007, pp. 313-321.
[6] K. G. Boogaart, “Some Theory for Multiple Point Statis-
tics: Fitting, Checking and Optimally Exploiting the
Training Image,” International Association for Mathe-
matical Geology XIth International Congress, 2006.
[7] F. Guardiano and M. Srivastava, “Multivariate Geostatis-
tics: Beyond Bivariate Moments,” In: A. Soares, Ed.,
Geostatistics Troia, Kluwer Academic Publications,
Dordrecht, 1993, pp. 133-144.
[8] S. Strebelle, “Sequential Simulation Drawing Structures
from Training Images,” Ph.D. Thesis, Stanford University,
Stanford, 2000.
[9] J. Straubhaar, P. Renard, G. Mariethoz, R. Froidevaux
and O. Besson, “An Improved Parallel Multiple-Point
Algorithm Using a List Approach,” Mathematical Geo-
sciences, Vol. 43, No. 3, 2011, pp. 305-328.
[10] J. Caers, “Geostatistics: From Pattern Recognition to
Pattern Reproduction,” Developments in Petroleum Sci-
ence, Vol. 51, 2003, pp. 97-115.
[11] X. Y. Liu, C. Y. Zhang, Q. S. Liu and J. Birkholzer,
“Multiple-Point Statistical Prediction on Fracture Net-
works at Yucca Mountain,” Environmental Geology, Vol.
57, No. 9, 2004, pp. 1361-1370.
[12] M. J. Ronayne, S. M. Gorelick and J. Caers, “Identifying
Discrete Geologic Structures That Produce Anomalous
Hydraulic Response: An Inverse Modeling Approach,”
Water Resources Research, Vol. 44, 2008, Article ID:
W08426, 16 p. doi:10.1029/2007WR006635
[13] M. Stien, P. Abrahamsen, R. Hauge and O. Kolbjørnsen,
“Modification of the Snesim Algorithm,” EAGE, Petro-
leum Geostatistics, 2007.
[14] M. Huysmans and A. Dassargues, “Application of Multi-
ple-Point Geostatistics on Modelling Groundwater Flow
and Transport in a Cross-Bedded Aquifer,” GEOENV VII
—Geostatistics for Environmental Application, Vol. 16,
2010, pp. 139-150.
[15] H. Okabe and J. Blunt, “Pore Space Reconstruction Using
Multiple-Point Statistics,” Journal of Petroleum Science
and Engineering, Vol. 46, No. 1-2, 2005, pp. 121-137.
[16] T. Zhang, P. Switzer and A. Journel, “Filter-Based Clas-
sification of Training Image Patterns for Spatial Simula-
tion,” Mathematical Geology, Vol. 38, 1, 2006, pp. 63-80.
[17] M. Honarkhah and J. Caers, “Stochastic Simulation of
Patterns Using Distance-Based Pattern Modeling,” Mathe-
matical Geosciences, Vol. 42, No. 5, 2010, pp. 487-517.
[18] M. Honarkhah and J. Caers, “Classifying Existing and
Generating New Training Image Patterns in Kernel
Space,” 21st SCRF ALIATE Meeting, Stanford University,
[19] S. Chatterjee, R. Dimitrakopoulos and H. Mustapha, “Di-
mensional Reduction of Pattern-Based Simulation Using
Wavelet Analysis,” Mathematical Geosciences Work to
be Submitted, 2011.
[20] Shannon, “A Mathematical Theory of Communication,”
Bell System Technical Journal, Vol. 27, 1948, pp. 379-
423, 623-656.
Copyright © 2012 SciRes. GM
