The Comparative Study of the Temperature Distribution of Fiber Laser with Different Pump Schemes

^{1}Hassan II Casablanca University, Faculty of Sciences-Ain Chok, Laboratory of Theoretical and Applied Physics, Casablanca, Morocco

^{2}Chouaib Doukkali University, Faculty of Science, Laboratory of Condensed Matter of Physics, El Jadida, Morocco

Email: ^{*}mmabouricha@yahoo.fr, ^{*}n.habib1980@gmail.com

Copyright © 2013 Mostafa Abouricha et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received August 6, 2013; revised September 6, 2013; accepted October 13, 2013

**Keywords:** Pump Scheme; High Power Fiber Laser; Temperature Distribution

ABSTRACT

Based on the structure of the long fiber laser (YDCFLs) with different pump schemes using high pump power, the nonlinear coupled and heat dissipation equations are solved numerically. Using the finite-difference method, we have determined the temperature distribution along the radial and axial directions of the fiber laser (YDCFLs) for the forward pump schemes of 200 W with reflection R_{p}_{2}, backward pump schemes of 200 W with reflection R_{p}_{1} and for bidirectional pump scheme of 100 W each side. The results are: the temperature distribution for bidirectional pump mode is more even than that for forward pump with reflection R_{p}_{2} and than that for backward pump with reflection R_{p}_{1}. The results show that the maximum temperature difference between different schemes is 57.51˚C, and when the air-clad width decreases, the temperature in the core regions also decreases and does not affect to the cladding radius regions. We summarize that the temperature in the core and in cladding radius regions decreases when the outer radius cladding increases.

1. Introduction

The double-clad fiber laser (DCFLs) have several applications in modern telecommunication, medical instruments, military, defense and material surface processing, because of some unique advantages including high conversion efficiency, excellent beam quality, less thermal effect [1-3]. The continuous wave emission up to kWlevel has been reported [4,5]. A new type of photonic crystal fibers (PCFs) has opened numerous axes in research; this is due to its unique properties such as endlessness.

Thermal effect in Single mode guiding in high-power fiber laser has attracted much attention in recent days [6, 7]. Also, the developments of cladding-pumped fiber technology and high brightness semiconductor diode pump lasers enabled have been used to save energy [8]. The evolution of the temperature and the influence of the core, inner-clad, air-clad and outer clad, on the shape of optical fiber have been studied [9].

Numerically, Shang [8] has investigated the output power characteristics of YDCFLS with different pump schemes, finding the bidirectional pump scheme is compatible with the backward with R_{p}_{1} = 0 and forward pump scheme with R_{p}_{2} = 0. However, the backward pumped YDCFL with R_{p}_{1} = 0.98 has the highest conversion efficiency; while the forward pumped YDCFL with R_{p}_{2} = 0.98 has maximum output power per meter.

In this paper, we have investigated numerically the theoretical and numerical analysis of 2D Temperature field by solving the transient heat conduction equations comparing in detail the temperature distributions in the backward pump schemes with R_{p}_{1}, forward pump schemes with R_{p}_{2} and bidirectional pump scheme. The results show that the maximum temperature in the two-end pump is 96.89˚C, in the forward pump is 148.4˚C and in the backward pump is 154.4˚C. Thus, the temperature distributions for two-end pump mode is more even than that for forward pump with reflection R_{p}_{2} = 0.98 and backward pump with reflection R_{p}_{1} = 0.98 mode.

2. Theoretical Analysis

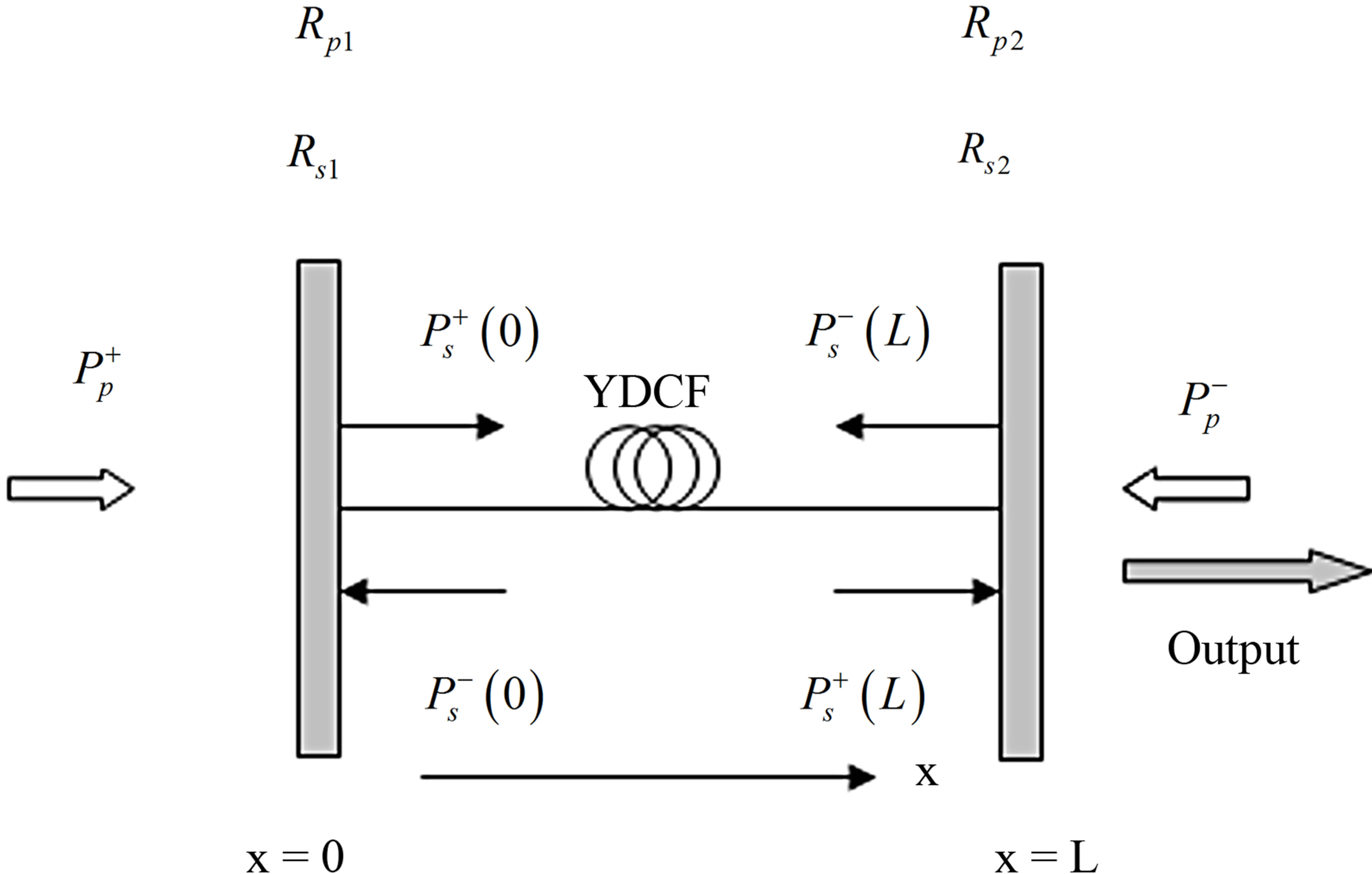

Figure 1 demonstrates the schematic of YDCFL. For the convenience of analysis, the pump light and output laser

Figure 1. Schematic demonstration of ytterbium-doped double-clad fiber laser.

are assumed to be narrow spectra and regarded as single wavelength, ignoring the non linear effects and influences of amplified spontaneous emission on the inverse population. Using the rate-equation theory under the steady state conditions, we can be governed the propagations of the light wave power in fiber cavity as follows [7]:

(1)

(2)

(3)

Equations (1)-(3), N_{yt} is the concentration of Yb^{3+}, N_{b}(x,t) is the upper laser level population density, and represent the power of forward and backward propagation pump light, respectively. and represent the power of forward and backward propagation laser power, respectively. Γ_{p} and Γ_{s} are power filling factors. σ_{as} and σ_{es} are the laser absorption and emission cross section, σ_{ap} and σ_{ep} are the pump light absorption and emission cross-section respectively. τ is the lifetime of Yb^{3+} in upper level, α_{p} and α_{s} represent scattering loss coefficients of laser light and pump light respectively. The above Equations (1)-(3) at fiber front (x = 0) and fiber rear end (x = L) satisfy the boundary conditions for the laser as follows:

(4)

Where R_{s}_{1} = 0.98 and R_{s}_{2} = 0.04 the power laser reflectively of the reflector at x = 0 and x = L, respectively. And the boundary conditions for the pump propagation equation can be expressed as follows [8]:

(5)

(6)

(7)

Where P_{p}_{01} the launched pump power into the front end (x = 0) and P_{p}_{02} the launched pump power into the back end (x = L). R_{p}_{2} and R_{p}_{1} represent the reflectivity at pump wave length in forward and backward pumped fiber laser, respectively.

In the YDCF, heat is generated in the fiber core, and this heat is transferred from the fiber core to the inner clad by thermal conduction, and by thermal conduction and radiation to air-clad, in air clad no convection because the width air-clad is very small, which justified by Grashof number G_{rδ} in air clad given by [10] and by thermal conduction and radiation to other clad, and dissipated from the fiber surface to ambient air by convective and radiative heat transfer. Therefore the transverse temperature distributions in the YDCF at room temperature are governed by following thermal conductive equations in symmetric cylindrical coordinates [11].

(8)

Then we find:

(9)

(10)

(11)

(12)

Where a, b_{1}, b_{2} and b represent the radii of the core, inner clad, air-clad and outer clad respectively. T_{1}(r), T_{2}(r), T_{3}(r) and T_{4}(r) represent the temperature in fiber core, inner clad, air-clad and outer clad, respectively. Q(x) represents the heat power density along the axial direction of the fiber core. Which mainly depends on the scattering and loss of pump light and given by:

(13)

Where, is absorption coefficient, and S is the quantum efficiency whose theoretical value is λ_{p}/λ_{s}. However, it cannot reach the theoretical value in practical applications. In Other regions of the fiber, the value of Q(x) is zero. Supposing perfect thermal connection among the cladding and inner core, the temperature and their derivatives are continuous at the boundary (r = a), therefore, the boundary conditions can be expressed as follows [12]:

For r = 0 we have:

(14)

For we have:

(15)

For we have:

(16)

For we have:

(17)

In Figure 2, we have demonstrates the temperature difference between the ambient air and the fiber surface is determined by the convective and radiation heat flow, and thus the boundary condition cross the fiber other cladding and the ambient air is given by the Newton’s law and the Stefan-Boltzmann law [13].

(18)

Where k_{2} is the thermal conductivity of air, k_{1} is the thermal conductivity of material, T_{c} is the temperature of ambient air, ε is the emissivity, σ is the Stefan-Boltzman constant and h_{c} is the convective coefficient which can be calculated by [14].

(19)

(20)

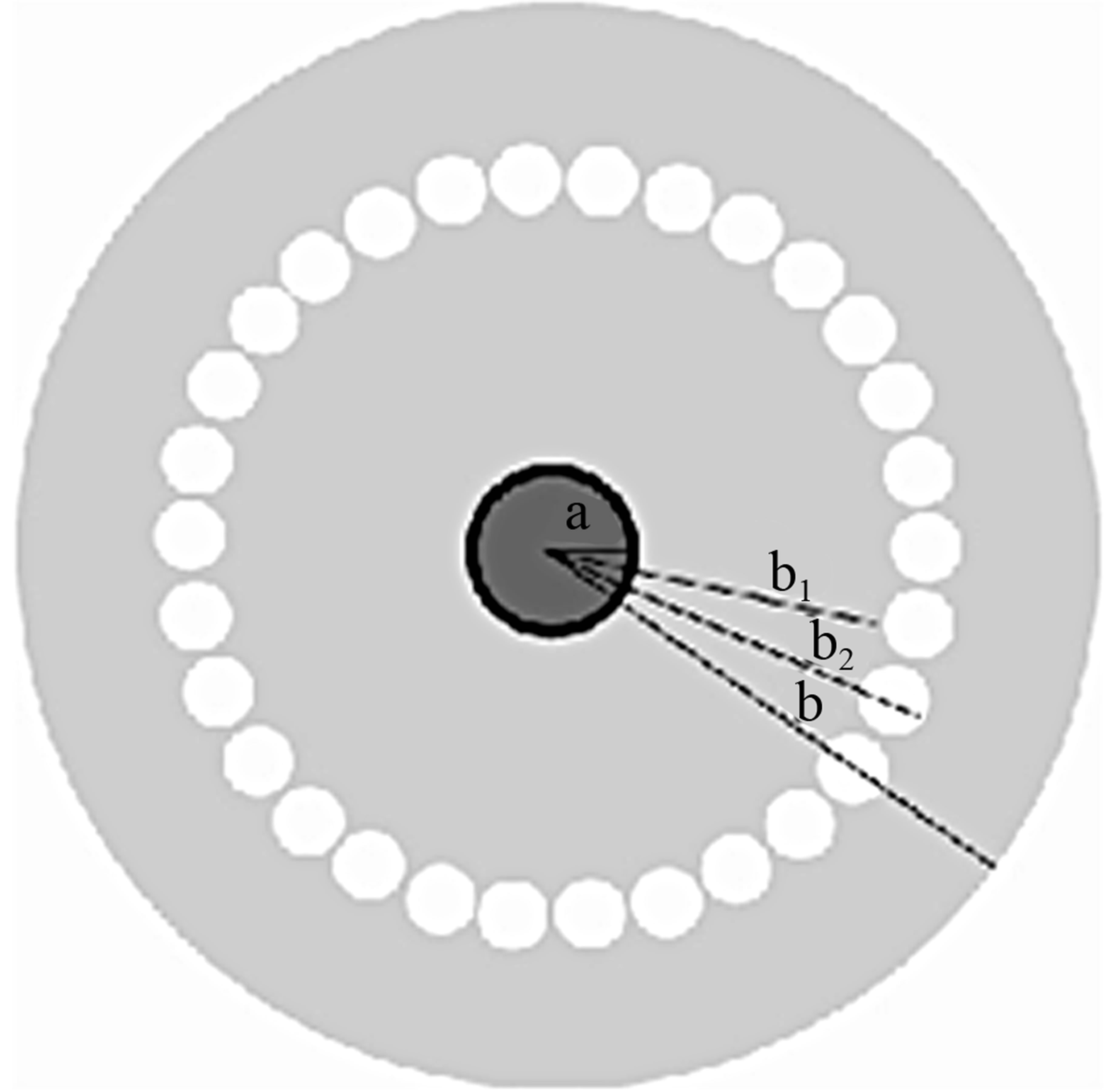

Figure 2. Heat dissipation model of PCF [9].

(21)

Where N_{u}, P_{r} and Gr are Nusselt, Prandtl numbers and Grashof, respectively. g and ν are the acceleration and Kinematic viscosity, the temperature in regions core, inner clad, air-clad and other clad can be derived by using Equations (9)-(12) subject to the boundary conditions (14)-(17) as follows:

(22)

(23)

(24)

(25)

Where T_{0} represents the temperature of fiber axis (r = 0). Using Equations (22)-(25) subject to boundary condition (18), the relationship between the temperature of fiber surface T_{4}(b) and the ambient air T_{c} is given by Equations (26):

(26)

Substituting Equation (26) into Equations (22)-(25), we can obtain the temperature distributions in fiber core and other regions.

3. Simulation and Discussion

In our simulation, we have used the Common parameters given in the Table 1" target="_self"> Table 1. Figure 3 illustrates the output power as a function of fiber length (YDCL) for different pump schemes. It is shown that the increasing output power reaches the maximum value 174.7 W, for length l = 5 m in the forward pump scheme with reflection R_{p}_{2} = 0.98. In the backward pump scheme with reflection R_{p}_{1} = 0.98 the value reached is 178.7 W for the length l = 6.4 m, the maximum value 171.7 W, for length l = 7.4 m in the forward pump scheme with reflection R_{p}_{2} = 0, in the backward pump scheme with reflection R_{p}_{1} = 0, the value

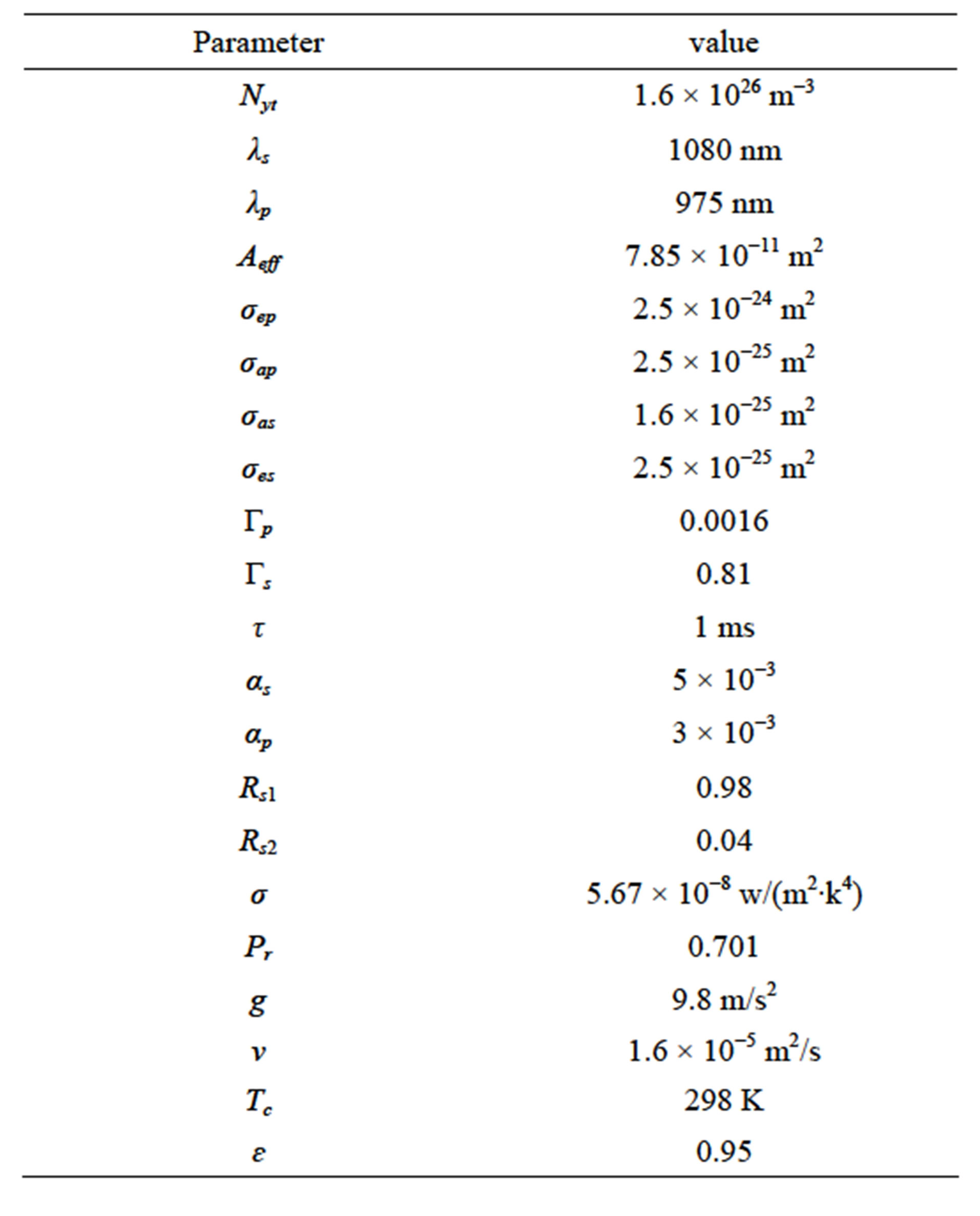

Table 1. Common Parameters Used in the Simulation.

reached is 177.7 W for the length l = 10.1 m and it is reaches the value 174.7 W for l = 10 m in the bidirectional pump scheme. Therefore, the forward pump with reflection is in good scheme to minimize the length of YDCF and the backward pump with reflection is the most suitable scheme to minimize the pumping energy.

The heat dissipation along axial, calculated by using Equation (13) and the axial distribution of temperature (r = 0) for different pump schemes have reported, respectively in Figures 4 and 5.

It is shown that the maximum temperature for the bidirectional pump scheme T_{max} = 90.89˚C is lower than that for the forward pump with (reflection R_{p}_{2} = 0.98 and R_{p}_{2} = 0) as T_{max} = 148.4˚C and than that the backward with (reflection R_{p}_{1} = 0.98 and R_{p}_{1} = 0) as T_{max} = 154.4˚C. The maximum difference is 57.51˚C.

The difference between the maximum and the minimum is: 40.14˚C in the case of bi-directional pumping, 109.19˚C in the case of pumping forward with R_{p}_{2} = 0.98, 115.38˚C in the case forward with R_{p}_{2} = 0, 115.19˚C in the case backward with R_{p}_{1} = 0.98 and 121.12˚C in the case back with R_{p}_{1} = 0. Therefore, the reflectivity of the pump has a role crucial is to minimize the temperature difference.

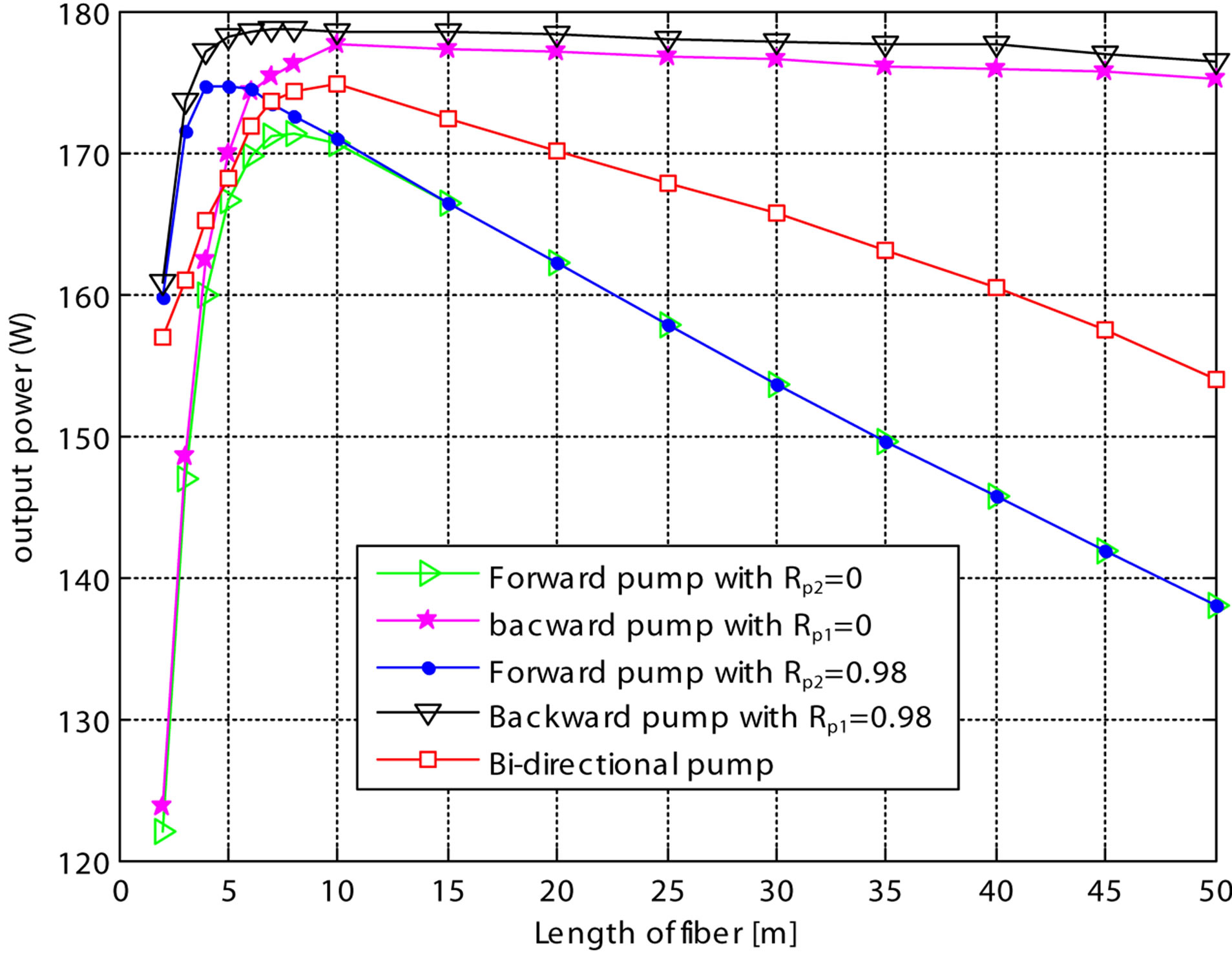

Figure 3. Evolution of output powers a function the YDCF length in different pump schemes for the launched pump power of 200 W.

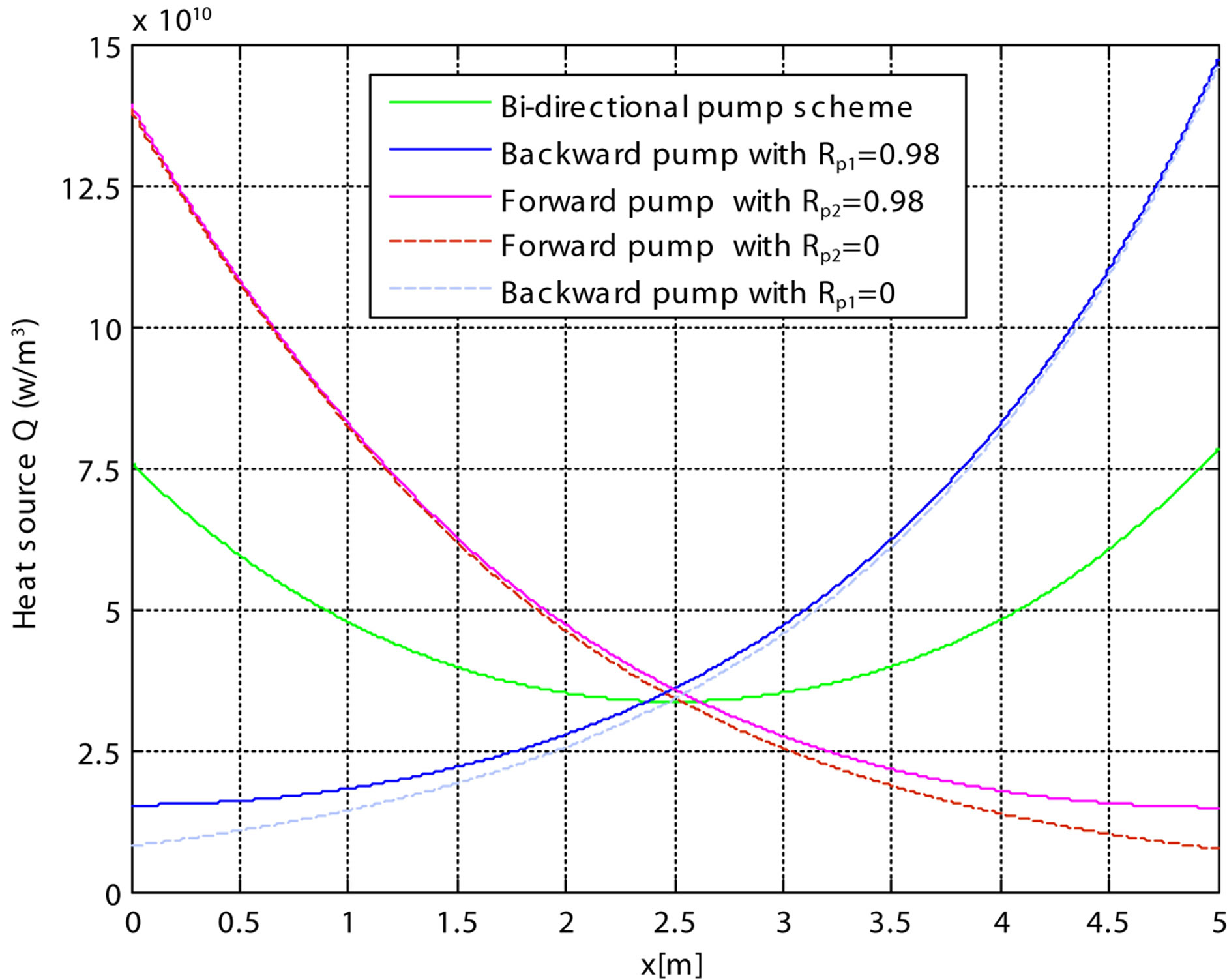

Figure 4. Evolution of heat power density along the fiber in forward pump with R_{p}_{2} = 0.98, backward pump with R_{p}_{1} = 0.98, forward pump with R_{p}_{2} = 0, backward pump with R_{p}_{1} = 0 and bi-directional pump mode.

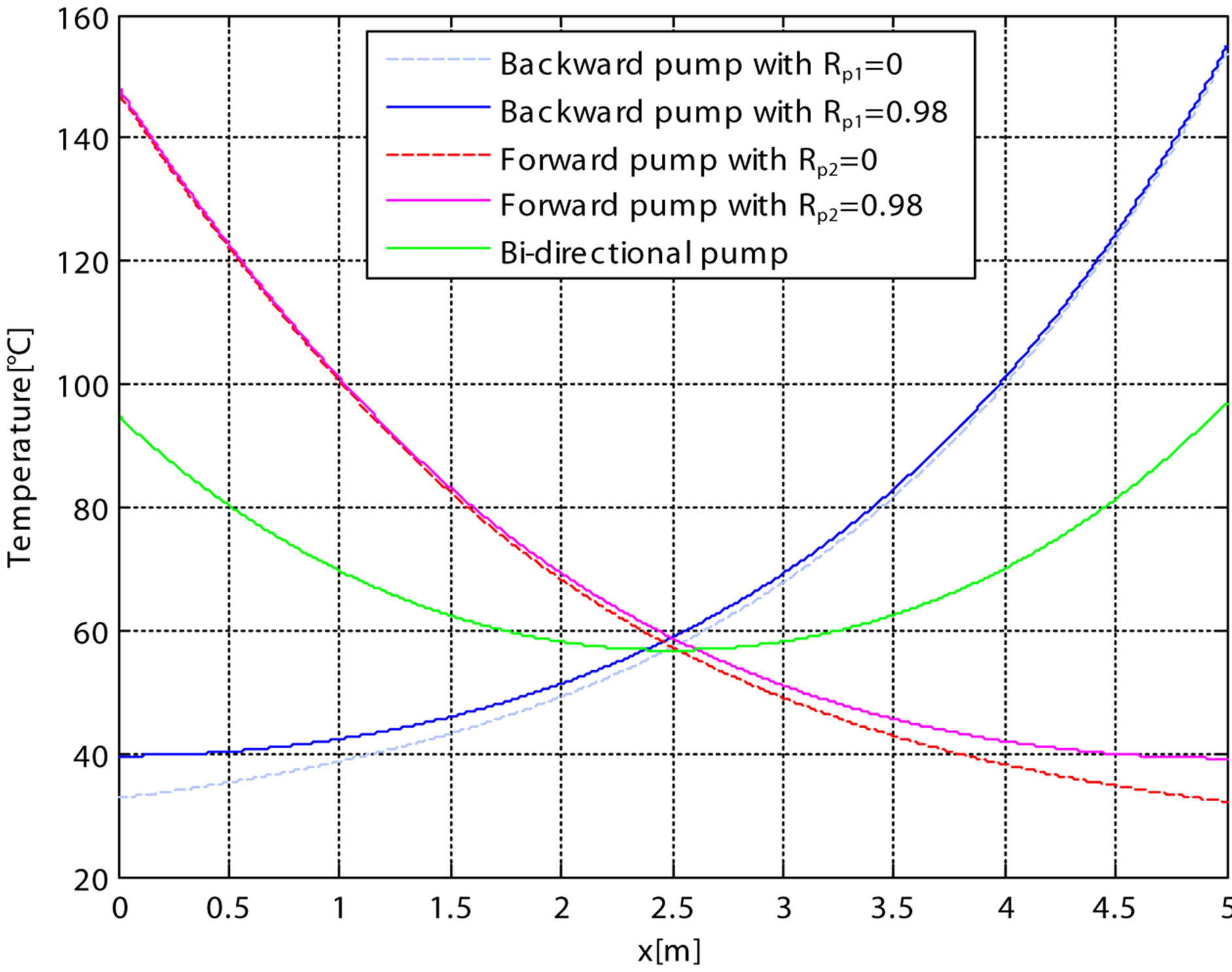

Figure 5. Temperature distribution along the fiber in forward pump with R_{p}_{2} = 0.98, forward pump with R_{p}_{2} = 0, backward pump with R_{p}_{1} = 0.98, backward pump with R_{p}_{1} = 0 and bi-directional pump mode.

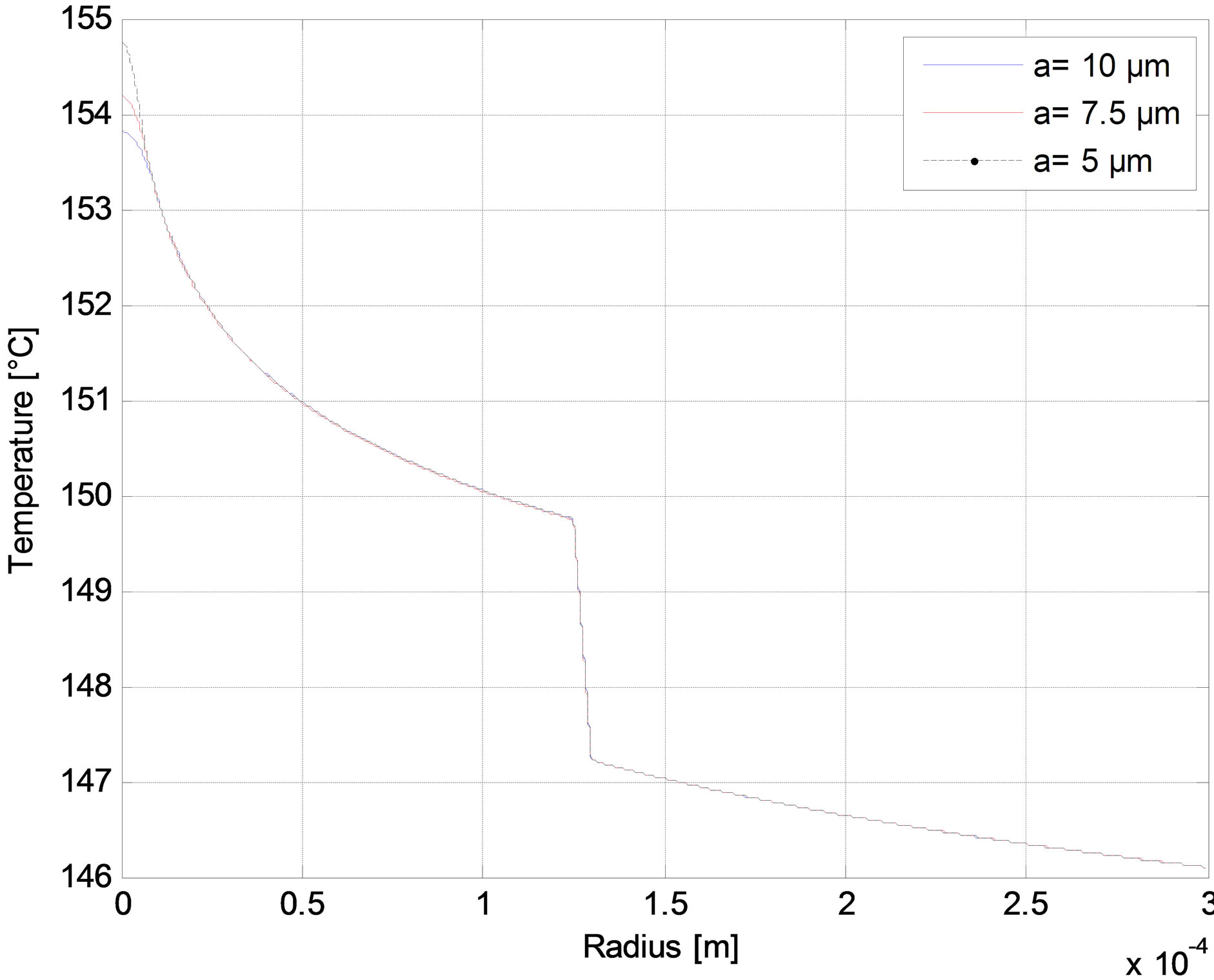

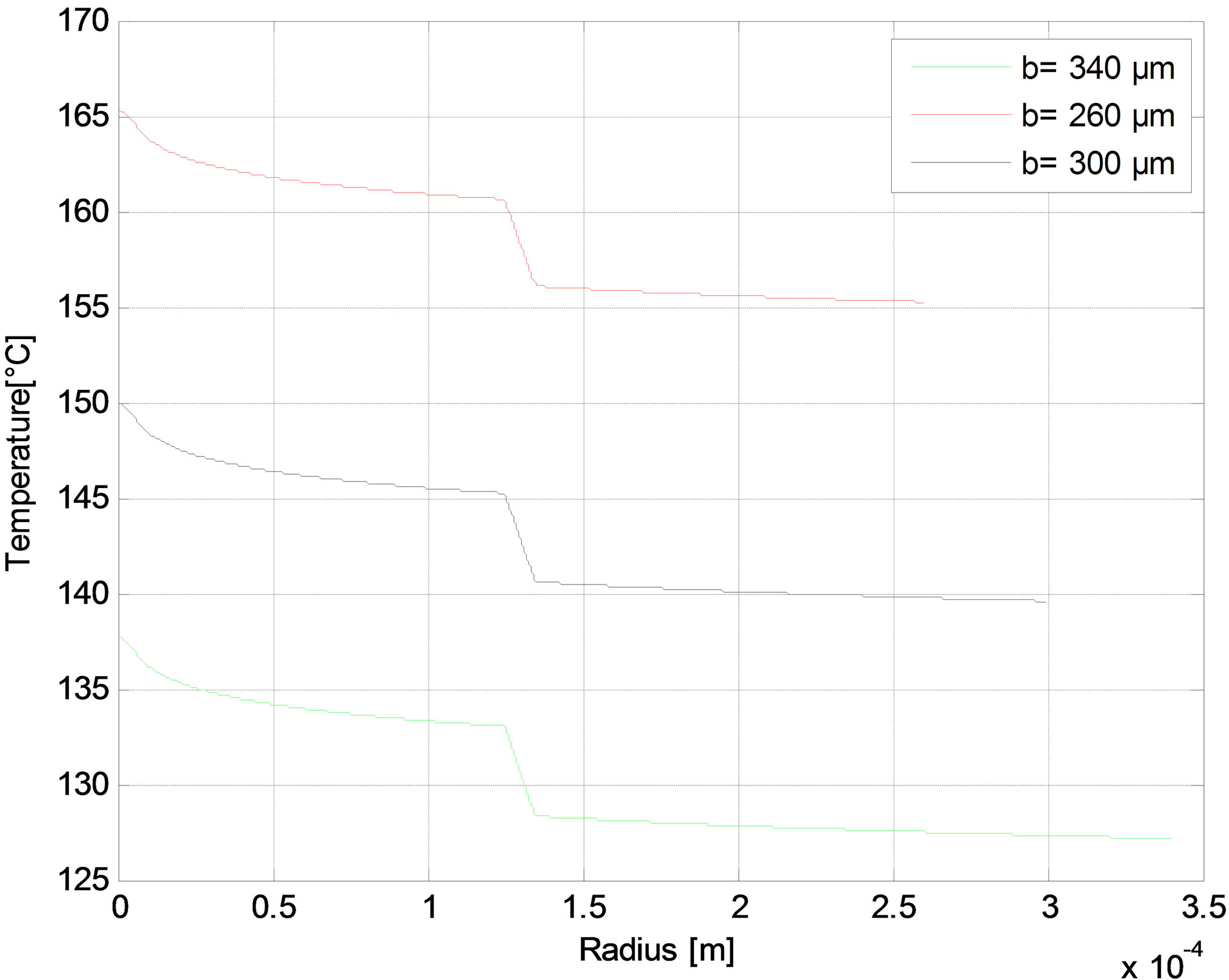

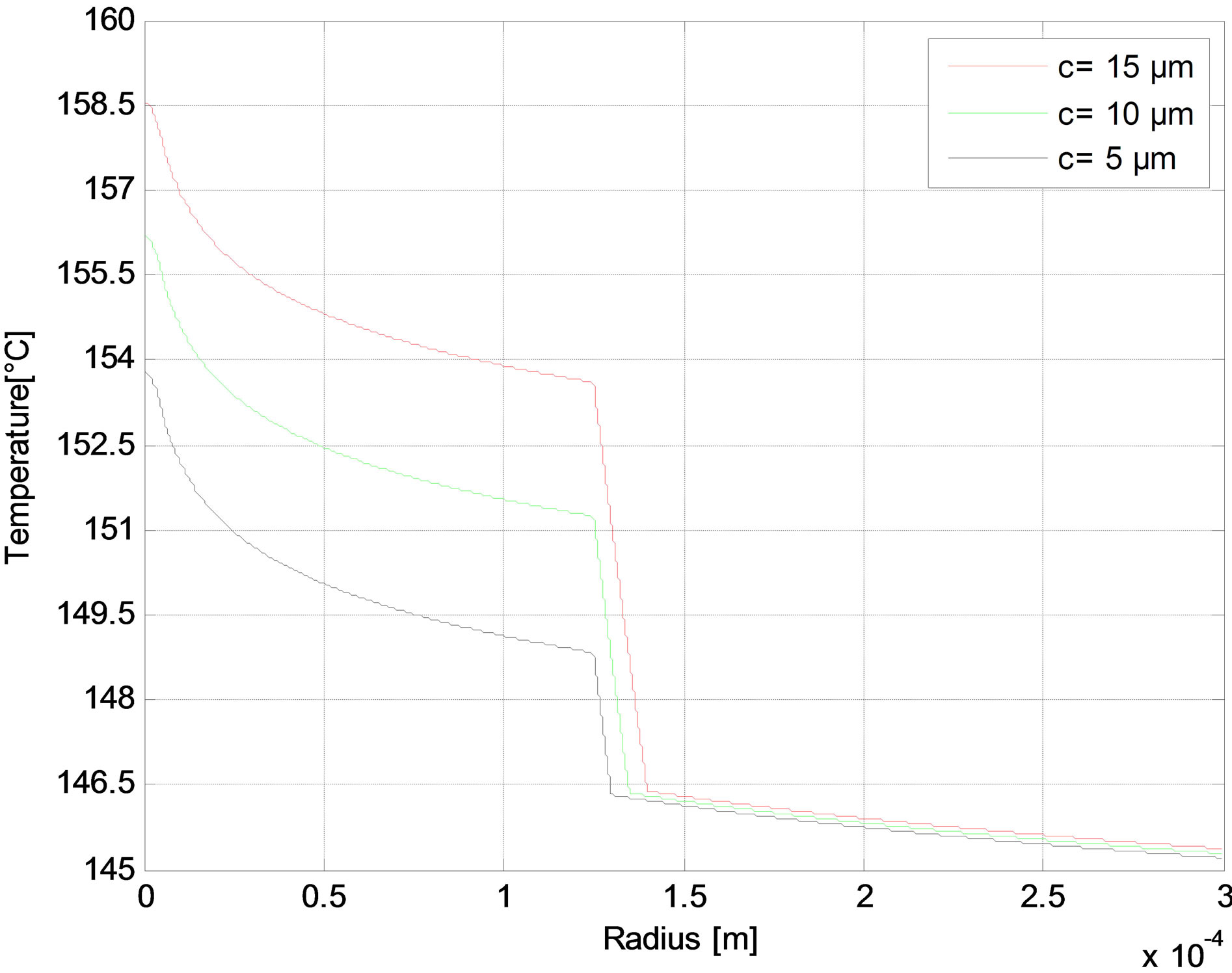

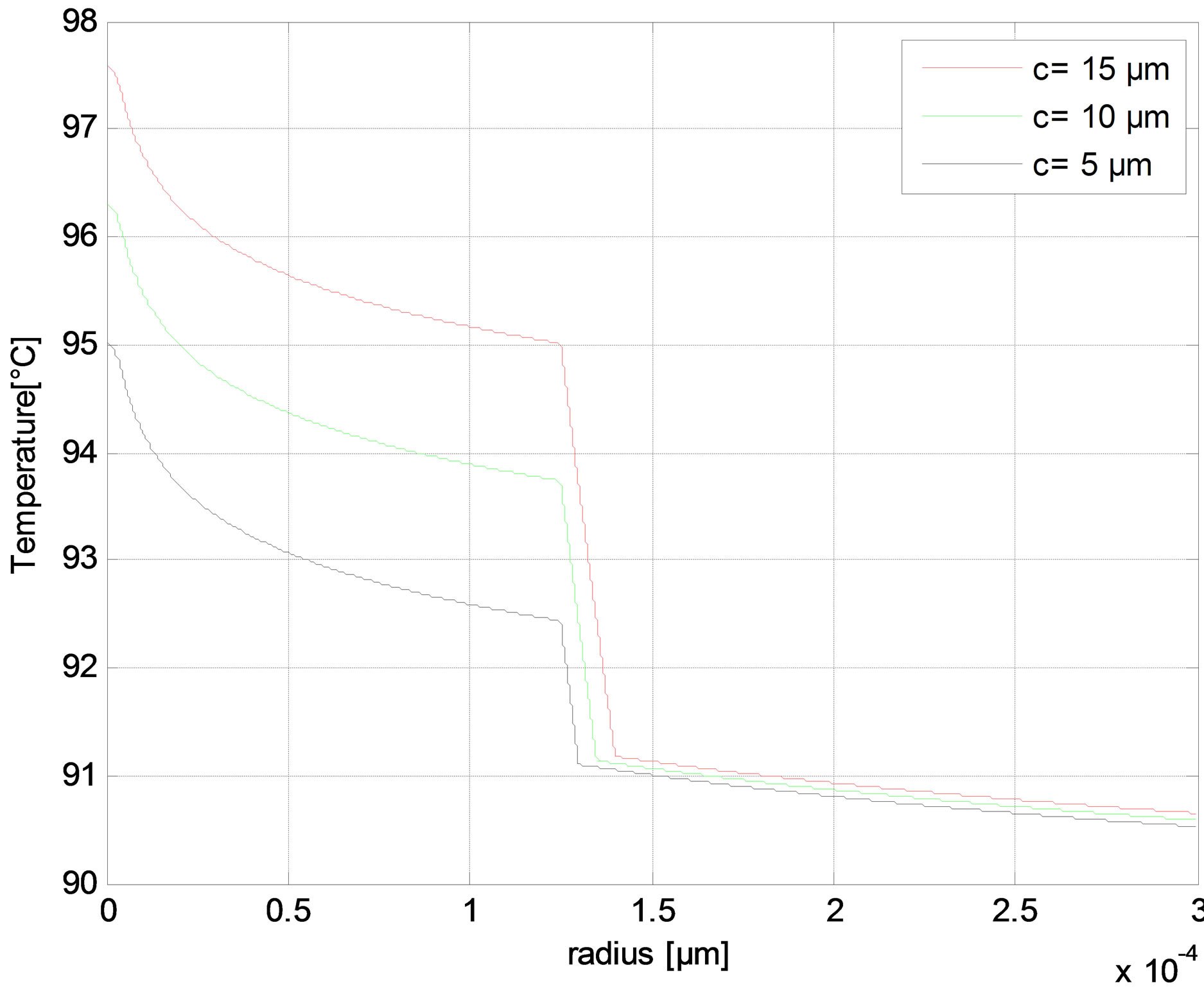

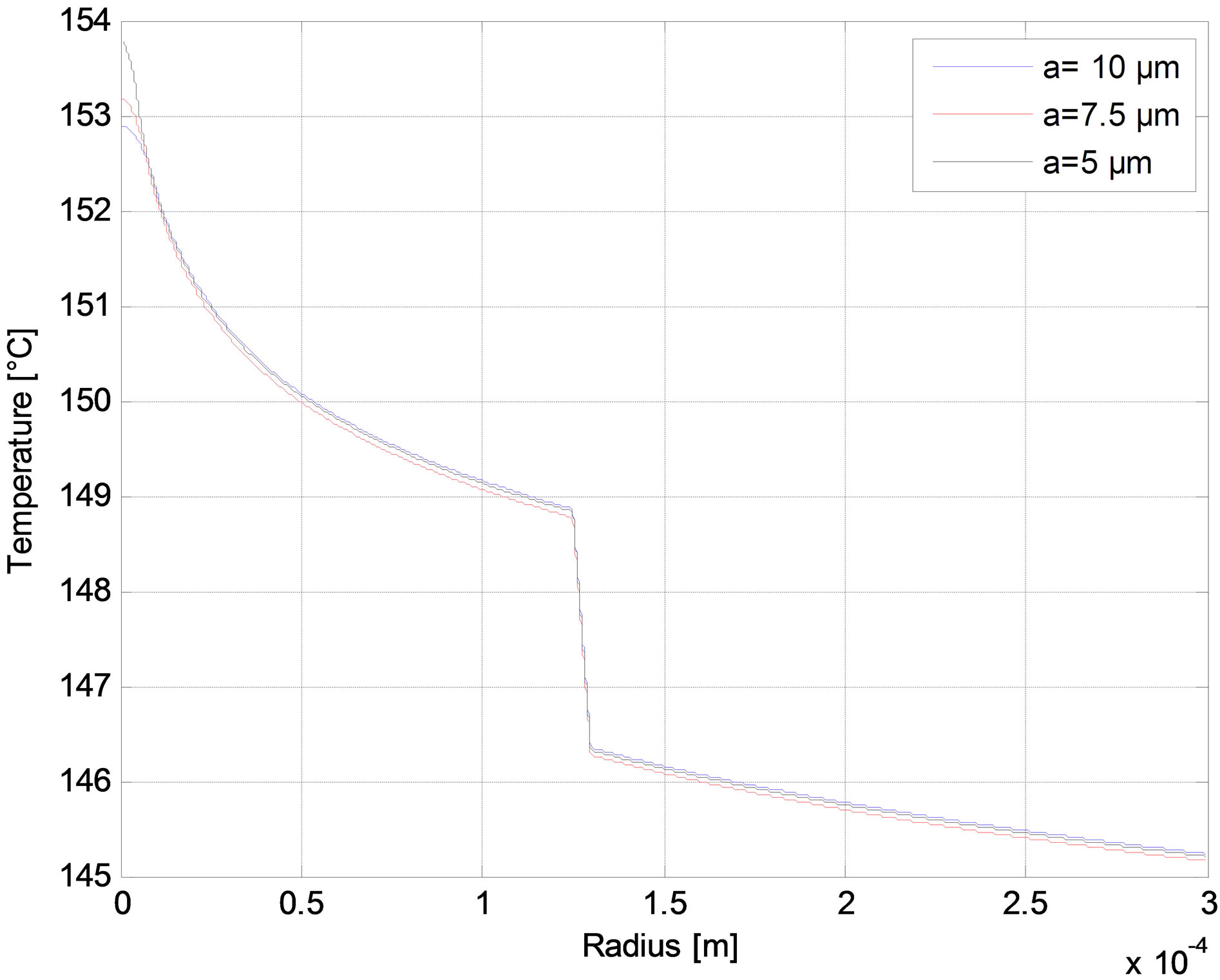

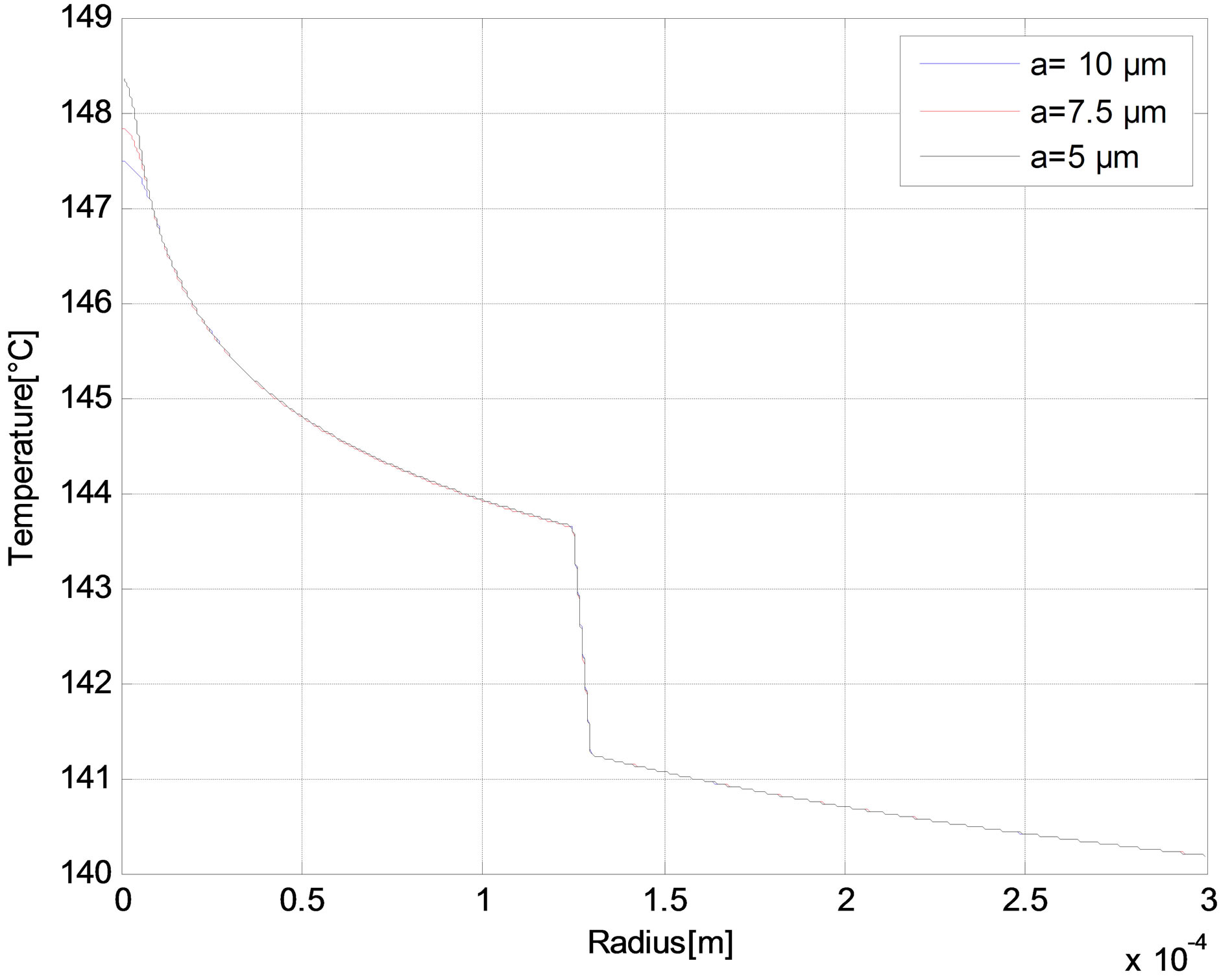

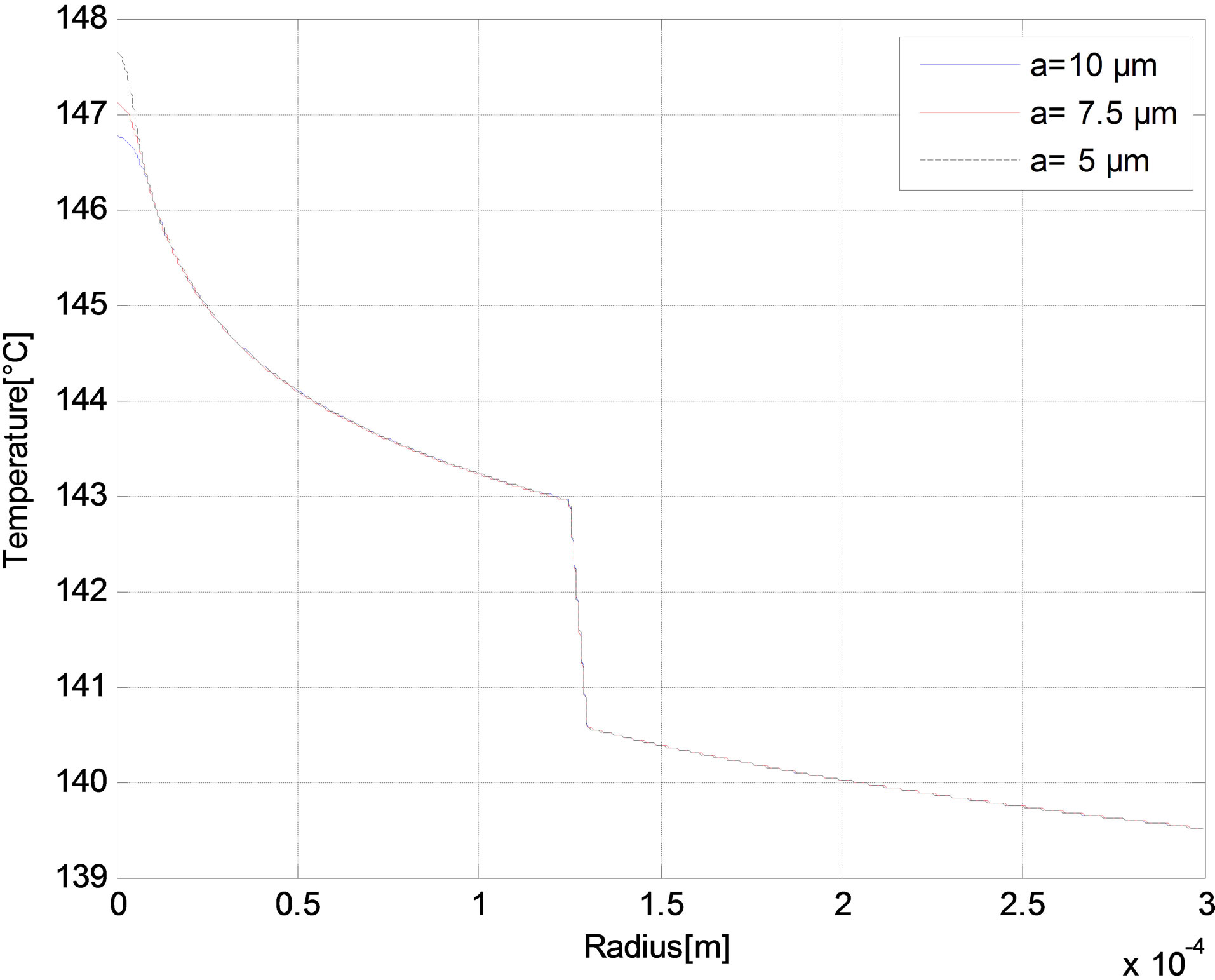

The radial distribution of the temperature is reported in Figures 6-10 as function of core radius for different pump schemes. Consequently, the effect of the radius core is negligible and the maximum temperature difference between a = 5 and a = 10 µm does not exceed 1˚C in (r = 0) for different pump schemes Figures (a). But in Figures (b), we have shown that the temperature distributions at the fiber in (r = 0) increases when the air-clad increases for different pump schemes. In Figures (c), we can see another scenario as the temperature of the fiber increases when the outer cladding radius increases.

4. Conclusion

In this paper, we have compared in detail the heat dissi-

(a)(b)(c)

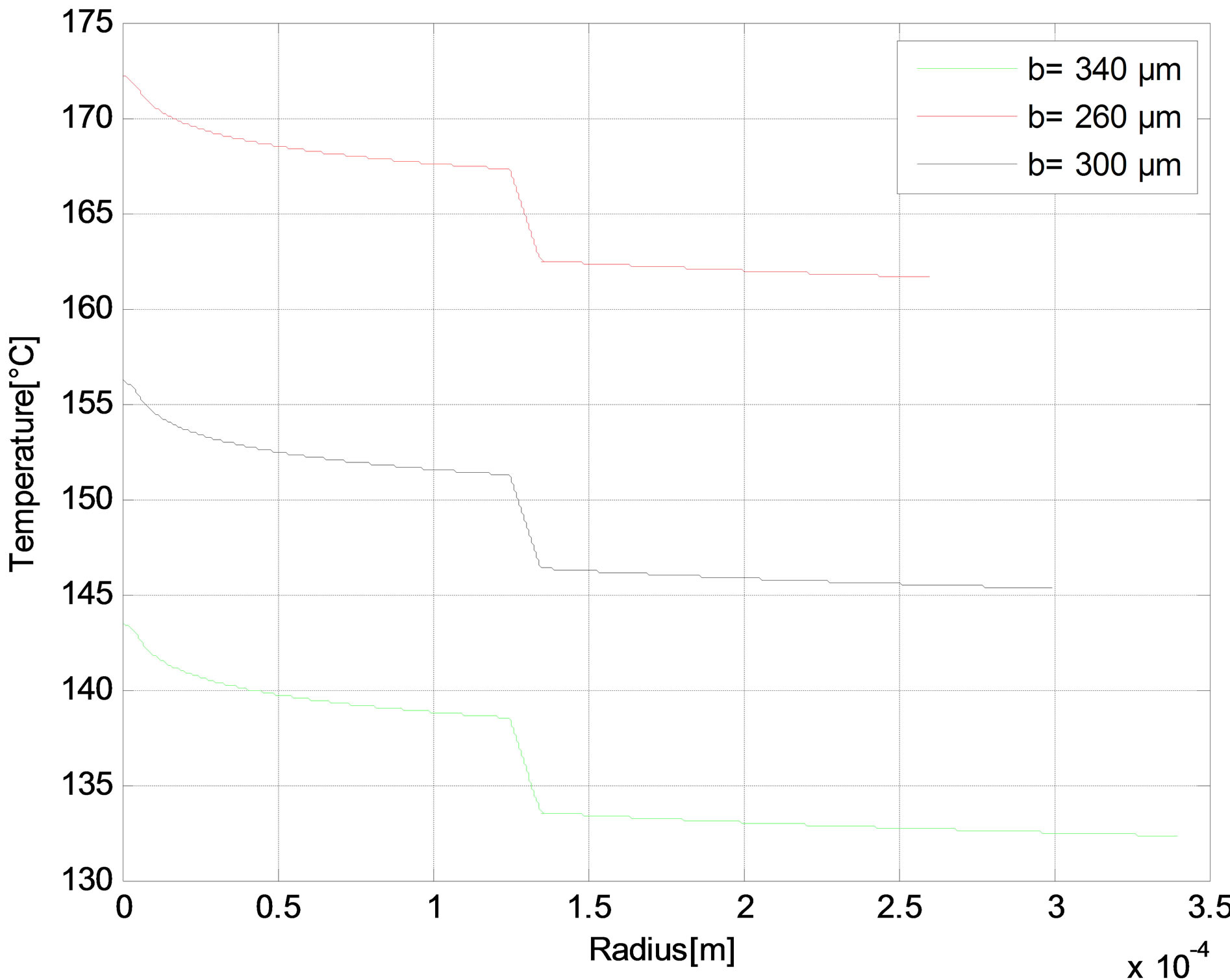

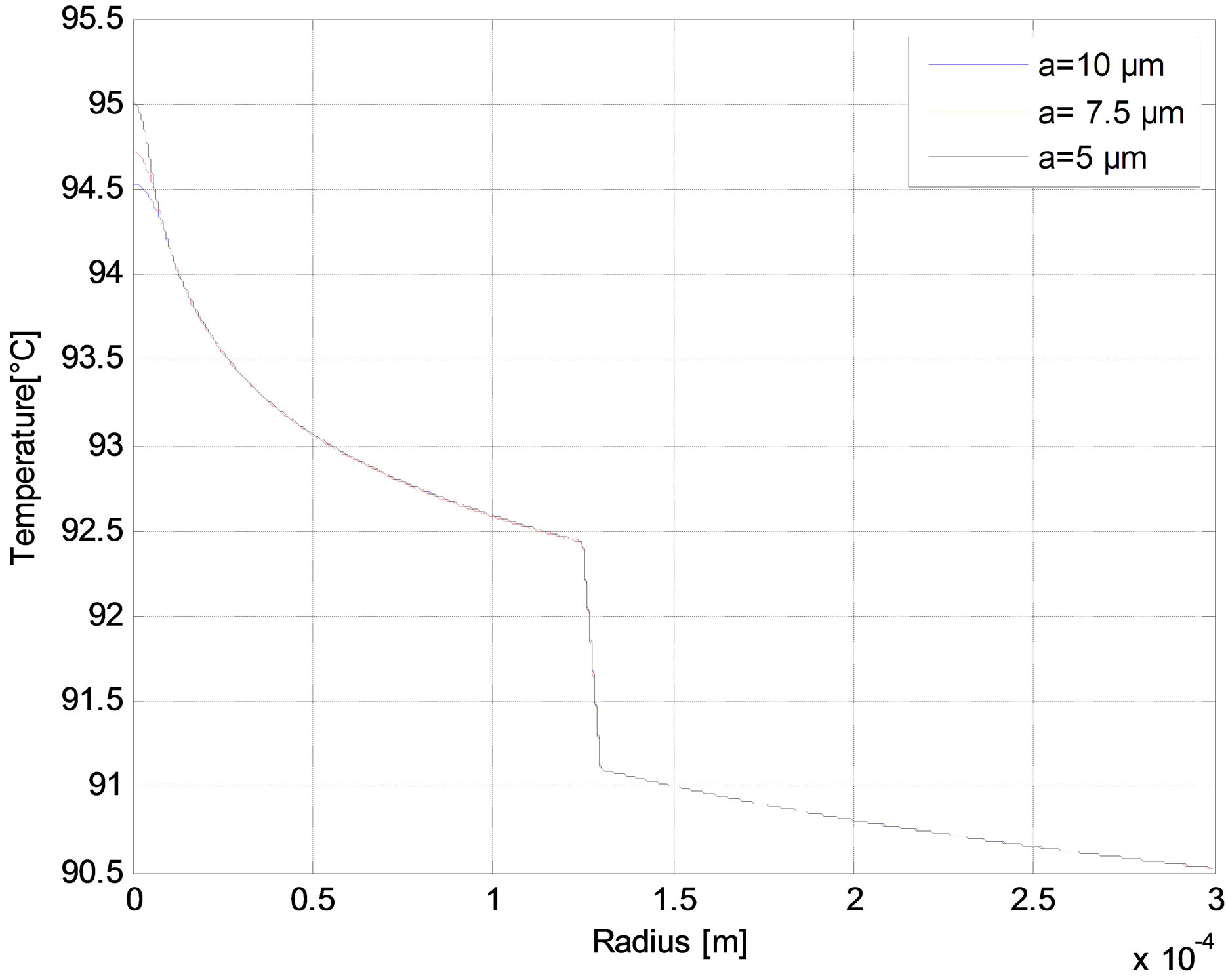

Figure 6. Temperature distributions in Bi-directional pump mode at (a) The fiber input side for different core radius; (b) The fiber input side for different air-clad width; and (c) The fiber input side for different cladding radius in bi-directional pump mode.

(a)(b)(c)

Figure 7. Temperature distributions in the Backward pump with R_{p}_{1} = 0. At (a) The fiber axis output side for different core radius; (b) The fiber input side for different air-cladding width; and (c) The fiber output side for different cladding radius.

(a)(b)(c)

Figure 8. Temperature distributions in the Backward pump with R_{p}_{1} = 0.98 at (a) The fiber axis output side for different core radius; (b) The fiber input side for different air-clad width; and (c) The fiber output side for different cladding radius.

(a)(b)(c)

Figure 9. Temperature distributions in the forward pump with R_{p}_{1} = 0 at (a) The fiber axis input side for different core radius; (b) The fiber input side for different air-clad width; and (c) The fiber input side for different cladding radius.

(a)(b)(c)

Figure 10. Temperature distributions in the Forward pump with R_{p}_{1} = 0.98 at (a) The fiber axis input side for different core radius; (b) The fiber input side for different air-clad width; and (c) The fiber input side for different cladding radius.

pation and the temperature distribution for different pumps schemes. The results show that the temperature distribution for bidirectional pump mode is more even than that the forward pump with reflection R_{p}_{2} and backward pump with reflection R_{p}_{1}. These two latter schemes are in agreement for saving pump powers and YDCF length. Moreover, the forward pump with R_{p}_{1} = 0.98 and the backward pump with R_{p}_{2} = 0.98 in less length resulting in high output power are thermally acceptable. Further experimental and theoretical studies are needed to explain the temperature distribution of fiber laser with different pump schemes.

REFERENCES

- J. Limpert, A. Liem, H. Zellmer and A. Tunnerman, “500 W Continuous-Wave Fiber Laser with Excellent Beam Quality,” Electronics Letters, Vol. 39, No. 8, 2003, pp. 645-647. http://dx.doi.org/10.1049/el:20030447
- Y. Wang and C.-Q. Xu, “Modeling and Optimization of Q-Switched Double-Clad Fiber Laser,” Applied Optics, Vol. 45, No. 9, 2006, pp. 2058-2071.
- R. Paschotta, J. Nilsson, A. C. Tropper and D. C. Hanna, “Ytterbium-Doped Fiber Amplifiers,” IEEE Journal of Quantum Electronics, Vol. 33, No. 7, 1997, pp. 1049- 1056. http://dx.doi.org/10.1109/3.594865
- Y. Jeong, J. K. Sahu, D. N. Payne, et al., “YtterbiumDoped Large-Core Fiber with 1.36 KW of ContinuousWave Output Power,” Optics Express, Vol. 12, No. 25, 2004, pp. 6088-6092. http://dx.doi.org/10.1364/OPEX.12.006088
- D. Gapont, “Quasi-Single-Mode Fiber Laser Nears 2 kW Output with High-Quality Beam,” Laser Focus World, Vol. 41, No. 6, 2005, pp. 9-11.
- S. Baek, D. B. S. Soh, Y. Jeong, J. K. Sahu, J. Nilsson and B. Lee, “Acladding-Pumped Fiber Laser with PumpReflecting Bragg Grating,” IEEE Photonics Technology Letters, Vol. 16, No. 2, 2004, pp. 407-409. http://dx.doi.org/10.1109/LPT.2003.823135
- I. Kelson and A. Hardy, “Srongly Pumped Fiber Lasers,” IEEE Journal of Quantum Electronics, Vol. 34, No. 9, 1998, pp. 1570-1577. http://dx.doi.org/10.1109/3.709573
- L. Shang, “Comparative Study of the Output Characteristics of Ytterbium-Doped Double-Clad Fiber Lasers with Different Pump Schemes,” Optik, Vol. 122, No. 21, 2011, pp. 1899-1902.
- J. F. Li, “Theoretical Analysis of the Heat Dissipation Mechanism in High Power Photonic Crystal Fiber Laser,” Optik, Vol. 121, No. 13, 2010, pp. 1243-1250. http://dx.doi.org/10.1016/j.ijleo.2009.01.015
- W. M. Rohsenow, J. P. Hartnett and Y. I. Cho, “Handbook of Hear Transfer,” McGraw-Hill, New York, 1998.
- B. David, “Therma, Stress, and Thermo-Optic Effects in High Average Power Double-Clad Silica Fiber Lasers,” IEEE Journal of Quantum Electronics, Vol. 37, No. 2, 2001, pp. 207-217.
- J. F. Li, “Theoretical Analysis and Heat Dissipation of Mid-Infrared Chalcogenide Fiber Raman Laser,” Optics Communications, Vol. 284, No. 5, 2011, pp. 1278-1283. http://dx.doi.org/10.1016/j.optcom.2010.10.062
- P.-X. Li and C. Zhu, “Theorecal and Experimental Investigation of Thermal Effects in a High Power Yb
^{3+}-Doped Double-Clad Fiber Laser,” Optics and Laser Technology, Vol. 40, No. 2, 2008, pp. 360-364. http://dx.doi.org/10.1016/j.optlastec.2007.06.011 - J. P. Holman, “Heat Transfer,” 8th Edition, McGraw-Hill, New York, 1997.
