Calculation Method for Forced-Air Convection Cooling Heat Transfer Coefficient of Multiple Rows of Memory Cards

Takayuki Atarashi^{1,2*}, Tetsuya Tanaka^{1}, Shigeyasu Tsubaki^{3}, Shigeki Hirasawa^{2}

^{1}Hitachi, Ltd., Infrastructure Systems Company, Toshima, Tokyo, Japan

^{2}Department of Mechanical Engineering, Kobe University, Kobe, Japan

^{3}Hitachi, Ltd., Information and Telecommunication Systems Company, Hatano, Japan

Email: ^{*}takayuki.atarashi.of@hitachi.com

Copyright © 2014 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

Received 1 July 2014; revised 1 August 2014; accepted 30 August 2014

ABSTRACT

Forced-air convection cooling of high-power electronic devices is widely used, but it has a problem that a rise in temperature of the air used to cool the upstream devices decreases the cooling capability for the downstream devices. In this study we made an experimental apparatus including a memory card array and measured the effect of the rise in temperature of the air on the heat transfer coefficient of the memory cards that were downstream in the air flow. Using these measurements, we devised a simple calculation model, called the thermal diffusion layer model, to calculate the heat transfer coefficient of multiple rows of memory cards. The rise in temperature of downstream memory cards due to higher temperature air can be evaluated with a parameter representing the delay of thermal mixing for air. The heat transfer coefficient calculated with the thermal diffusion layer model agreed with our experimental results.

**Keywords:**

Forced Convection, Heat Transfer Performance, LSI Cooling, Memory Array

1. Introduction

The heat density of high-load electronics, such as high-performance servers and the inverters used in vehicles, has been increasing as a result of higher processing speeds and higher power outputs. Focusing on the heat density of high-performance server-CPU (Central Processing Unit) modules, the trend in development since 2000 has been away from bi-polar devices and toward low-power-consumption CMOS (Complementary Metal Oxide Semiconductor) devices. However, continued demand for higher performance has reversed the trend, and the heat density of CPU modules has begun to rise again. The method used to cool electronic devices depends on the heat generation level and the operating environment, whereas the available methods include natural convection cooling [1] , forced-air convection cooling, heat pipe cooling [2] , and liquid cooling. Forced-air convection cooling is the most often used because of its practical advantages in cost, installation, and maintenance. For these reasons, we have been developing a forced-air convection cooling structure to cool multiple LSI (Large Scale Integration) packages and memory arrays that are mounted on a flat wiring board in electronic equipment. A parallel flow method is used in which the LSI packages and arrays are cooled sequentially by air that flows parallel to the wiring board. A problem with this method is that the heat from the upstream devices raises the temperature of the cooling air so that its cooling capability is decreased remarkably for the downstream devices. Yanagida [3] analyzed the temperature distribution of air after heating devices and proposed a method that used the thermal diffusion layer model to calculate temperature distribution of LSI packages on a printed wiring board. The authors developed highly efficient cooling methods using inclined strip fins and air-jet cooling methods that were not affected by an increase in the temperature of the cooling air [4] [5] . Kheirandish et al. [6] analyzed forced convective laminar flow in a channel with a heated obstacle attached to one wall. Recently, Nakayama [7] reviewed various cooling methods of electronic devices. In this work we study forced-air convection cooling of multiple rows of memory cards placed on a printed wiring board. Each memory card has many DRAM-LSIs (Dynamic Random Access Memory LSIs) mounted on both sides (Figure 1). Some studies [8] on this topic reported on the cooling performance of a single memory card, but very few have dealt with rows of memory cards.

In this study, we made an experimental memory card apparatus with four rows in the flow direction and eight rows in the parallel direction. We measured the effect of a rise in the temperature of the air on the heat transfer coefficient of the downstream memory cards. Using these measurements, we then devised a simple model for calculating the heat transfer coefficient of multiple rows of memory cards. We compared the calculation and experimental results and found their values to be in good agreement.

2. Experimental Apparatus

Figure 2 shows the experimental apparatus. The test section is placed in an acryl duct. The outside of the duct is thermally insulated with 50-mm-thick of glass wool. Cooling air from a blower flows into the test section after flow rate G and temperature T_{ain} are measured in chambers 1 and 2. Figure 3 shows the test section. Memory cards are four rows in the flow direction and eight rows in the parallel direction in the duct. Each memory card has five model-LSIs mounted on both sides. In the heat transfer experiment, any one of the four rows in the flow direction is replaced with heating model-LSIs and others are non-heating model-LSIs. The heating model-LSI is aluminum block with a stainless steel heater with heating rate Q of each model-LSI is 0.2 W. The surface temperature T_{s} of the heating model-LSI was measured with a T-type thermocouple, and the heat transfer coefficient h was obtained using Equation (1).

(1)

Here, T_{ain} is the inlet air temperature, and A_{s} is the surface area. Also, the surface temperatures of non-heating model-LSIs were measured with thermocouples. In this paper, the number of rows of memory cards in the flow

Figure 1. Memory card.

Figure 2. Experimental apparatus.

Figure 3. Test section of memory card array.

direction is expressed as N_{card} = 1 - 4 and number of rows of the memory LSIs in each card is expressed as N_{lsi} = 1 - 5.

3. Experimental Results of Temperature Rise of LSIs and Thermal Diffusion Layer Model

First, we measured the temperature rise of non-heating LSIs when they were heated by the air flow from the upstream memory card. Figure 4 shows the experimental results of the temperature rise ΔT_{a} of the non-heating LSIs at the N_{lsi} = 1 or 5 position on the downstream memory cards at the N_{card} = 2 - 4 positions when the heating memory card was placed at the N_{card} = 1 - 3 positions. Figure 5 shows the parameter α_{t} = ΔT_{a}/ΔT_{m} which means the delay of thermal mixing in air, ΔT_{a} is the measured temperature rise of the non-heating LSI, and ΔT_{m} is the calculated temperature rise of completely mixed air. The temperature rise ΔT_{m} was calculated with the air flow rate and heating rate of the LSI. When the air is not mixed completely, α_{t} is larger than 1. The parameter α_{t} decreases downstream and comes close to 1 at all heating memory card positions, N_{card}.

Figure 6 shows the relation between the delay of thermal mixing in air α_{t} and the distance from the heat source X for various heating positions and flow velocities. We can obtain the relationship between the parameter α_{t} and the distance from the heat source X, similar to the thermal diffusion layer model proposed by Yanagida [3] .

Figure 7 shows the thermal diffusion layer model for our experimental apparatus. The dimensions of the heating LSI were as follows: height a = 1 mm, width b = 21 mm, and length L = 10 mm. The area of the thermal diffusion layer A is wider than the front area of the LSI (a ´ b) by the thermal diffusion thickness δ_{t}. Hence, we can write A = (a ´ b) + (2a + b) ´ δ_{t}. The delay in thermal mixing in the air flow α_{t} = ΔT_{a}/ΔT_{m} can be calculated with A_{0}/A, where A_{0} is the cross-sectional area of the air duct. The thermal diffusion thickness δ_{t} is proportional

Figure 4. Temperature rise of LSIs.

Figure 5. Delay of thermal mixing in air.

Figure 6. Relation between delay of thermal mixing in air and distance from heat source.

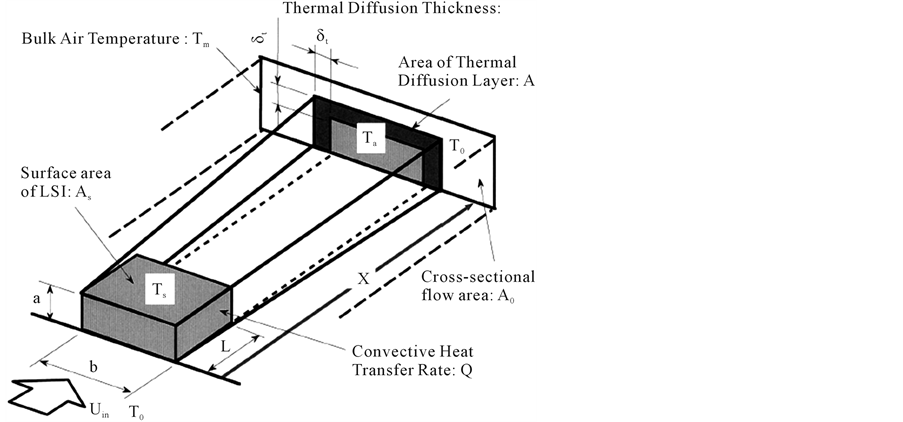

Figure 7. Thermal diffusion layer model.

to, and the proportionality constant is obtained using our experimental data shown in Figure 6, as follows:

(2)

The parameter α_{t} and the distance from the heat source X have following relationship using Equation (2):

(3)

Calculation results with Equation (3) agree with the experimental results in Figure 6.

4. Experimental Results of Heat Transfer Coefficient and Comparison with Calculation Using Thermal Diffusion Layer Model

Figure 8 shows the experimental results of the heat transfer coefficient h of LSIs at the N_{lsi} = 1 - 5 positions on the memory card at the N_{card} = 1 position with a change in the inlet air velocity u_{in} when the heating memory card was placed at the N_{card} = 1 position. We see that the heat transfer coefficient h of the downstream LSIs is lower than that of the upstream LSIs, because of the temperature rise in the air flow.

The heat transfer coefficient h_{S} on a flat surface of a single LSI can be calculated with the following equations

[9] by using the Reynolds number,:

(4)

Here, u_{max} is the air velocity above the LSI’s surface, L is the length of LSI, n_{a} is the dynamic viscosity of air, Pr_{a} is the Prandtl number of air, and l_{a} is thermal conductivity. The broken line in Figure 8 shows the result of calculation h_{S} using Equation (4), and it agrees with the experimental results of the N_{lsi} = 1 data.

Next, we calculated the heat transfer coefficient h_{N} coupled with the temperature rise in air using α_{t}. The heat transfer coefficient h_{N} can be calculated with the following equation:

(5)

Here G is the air flow rate, and C_{p} is the specific heat of air. The solid lines in Figure 8 show the results of the calculation h_{N} with Equation (5), and they agree with the experimental results of the N_{lsi} = 2 - 5 data.

Figure 9 and Figure 10 show the experimental results of the heat transfer coefficient h of the LSIs at the N_{lsi} = 1 - 5 positions on the memory cards at the N_{card} = 2 and 4 positions with a change in the inlet air velocity u_{in} when the heating memory card was placed at the N_{card} = 2 and 4 positions. The heat transfer coefficient h in Figure 9 and Figure 10 is almost same as that in Figure 8, and the calculations h_{S}, h_{N} using Equations (4) and (5) agree with the experimental results.

Figure 11 shows the experimental results of the overall heat transfer coefficient h_{overall} of the LSIs at the N_{lsi} = 1 and 5 positions on the memory cards at the N_{card} = 2 and 4 positions when all memory cards at the N_{card} = 1 - 4 positions are heating. The results of the calculation with Equation (5) agree with the experimental results. Therefore, the thermal diffusion layer model of Equation (5) is a precise calculation of heat transfer coefficient of multiple rows of memory cards, despite that it is very simple. Our proposal of the thermal diffusion layer model of Equation (5) is thus very practical.

5. Conclusions

We made an experimental apparatus including a memory card array and measured the effect of a rise in the temperature of air on the heat transfer coefficient of memory cards at downstream positions in the air flow. Using these measurements, we proposed a simple calculation model of the heat transfer coefficient of multiple rows of memory cards. The following results were obtained.

Figure 8. Heat transfer coefficient of LSIs N_{lsi} = 1 - 5 on memory card N_{card} = 1.

Figure 9. Heat transfer coefficient of LSIs N_{lsi} = 1 - 5 on memory card N_{card} = 2.

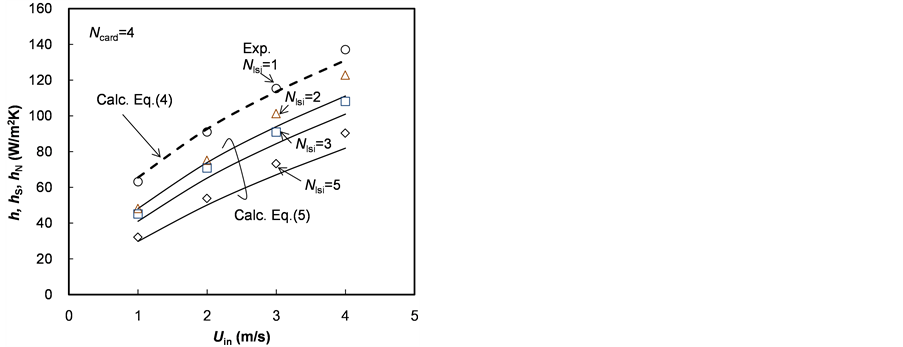

Figure 10. Heat transfer coefficient of LSIs N_{lsi} = 1 - 5 on memory card N_{card} = 4.

Figure 11. Overall heat transfer coefficient.

1) The rise in temperature of the downstream LSI resulting from a temperature rise in the air heated by an upstream heating source can be evaluated with a parameter called the delay of thermal mixing in air, α_{t}. The parameter α_{t} decreases downstream and comes close to 1 at a large distance from the heat source X and α_{t} does not depend on the heating position or flow velocity.

2) The heat transfer coefficient coupled with the rise in temperature of the air through the parameter α_{t} can be calculated with Equation (5) and the thermal diffusion layer model. The calculation agreed with the experimental results. There results indicate that the thermal diffusion layer model is a simple and precise method of calculating heat transfer coefficient of multiple rows of memory cards.
