Journal of Modern Physics
Vol.06 No.04(2015), Article ID:55163,10 pages
10.4236/jmp.2015.64055

Measurements of Natural Radioactivity of Industrial Raw Materials from the West of Saudi Arabia (Arabian Shield)

Safia H. Q. Hamidalddin

Physics Department, Girls Faculty of Science, King Abdulaziz University, Jeddah, Saudi Arabia

Email: Shamidaddin@kau.edu.sa, Safiahqh@yahoo.com

Copyright © 2015 by author and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

http://creativecommons.org/licenses/by/4.0/

Received 1 October 2014; accepted 27 March 2015; published 30 March 2015

ABSTRACT

Rock samples of industrial raw materials that are used in the building, from the West of Saudi Arabia (Arabian Shield), have been investigated using X-ray diffraction to identify the mineral chemical composition. The concentrations of Al%, Bi, Pb, Th, U, and K in ppm were measured by atomic absorption analysis. The activity concentrations in Bq/kg dry weight of 226Ra, 232Th and 40K were measured using gamma-ray spectrometry where the range and average were found to be (03.04 - 10.91) 07.90, (03.19 - 13.31) 09.14 and (95.59 - 361.52) 234.81 in Basalt, for Granite (33.81 - 89.13) 80.85, (28.42 - 112.77) 68.50 and (1260.13 - 1629.21) 1376.69, for Gold (00.78 - 11.84) 04.73, (01.48 - 4.69) 02.69 and (13.76 - 445.09) 197.58, for Andesite 05.72, 03.73 and 471.93, and for Marble 01.56, 01.38 and 10.15 respectively. Most results existing within the given values in building materials by UNSCEAR 1993 included Raeq (Bq/kg), D (nGy/h), Deff (mSv/y), Hex and Hin, which meant that it was safe for humans.

Keywords:

Arabian, Shield Industrial Raw Materials, Harrat

1. Introduction

Natural radionuclides have always been present in all building materials such as rocks and soil which contain natural radionuclides, mainly of the 226Ra and 232Th series, and the radioactive isotope of potassium 40K. Their specific activities vary depending on their origin and geochemical characteristics. The use of building materials rich with radionuclides may cause risks to human health. In Saudi Arabia, these building materials are mostly used for floors and external-internal cladding or in manufacture tiles, pipes and other corrosion resistant ceramic applications [1] . The study of radioactivity of building materials is important not only for the assessment of public dose rates and health risks but also for keeping reference-data record to document the possible changes in the environmental radioactivity and the nuclear activities [2] . Natural building stones are made from different types of material. Rocks of magmatic origin have lowest activities, sedimentary rocks such as marbles, limestone and various detrital contain small amounts of natural radionuclides and higher concentrations are generally found in acid magmatic rocks, especially in late-magmatic granites, and in some metamorphic rocks [3] . When uranium- radium (238U - 226Ra) series decay, 222Ra (radon) appears and its activity indoor is determined by building materials, water supply [8] . The presence of the radioisotopes in materials causes external and internal direct exposure to the people who live in the building. Studying radioactivity of industrial raw materials enables us to assess any possible radiological hazard to occupants of the dwelling by the use of such materials. 226Ra and 232Th are present in the Earth’s crust in parts per million. Potassium is also present in the Earth’s crust and 0.0118% of the total amount of potassium is 40K. The measurement of radioactivity due to the presence of these nuclides in industrial raw materials is important for developing standards concerning the use of building materials [5] .

This work presents the study of sixteen rock samples (industrial raw materials: Basalt, Granite, Gold, Andesite and Marble) from nine different sites using XR-D analyzer for the chemical and mineral composition, the analysis by atomic absorption for the Al, Bi, Pb, U, Th and K concentrations and for the radioactivity concentrations of 226Ra, 232Th and 40K by gamma-ray spectrometry. The radioactivity concentrations and their potential radiological hazards (radium equivalent activity Raeq, the total absorbed dose rate D, the effective dose Deff and the external hazard index Hex and the internal hazard index Hin) have been estimated and compared with the worldwide and the recommended limits from UNSCEAR data. These results are very important in the environmental radiological protection study, since such rocks are used as building and ornamental materials in Saudi Arabia.

2. Analytical Technique

2.1. Study Area

The Kingdom of Saudi Arabia occupies an area of more than two million square kilometers and its geological features allowed the formation of mineral deposits over the last billion years. The Arabian Shield is one of the Kingdom’s geology. It is in the west running parallel to the Red Sea, covering one third of the Kingdom and is a major area for precious and basic minerals in addition to some industrial minerals [6] . Harrats cover an area over about 90,000 km2, and extending over parts of the Proterozoic Arabian shield and adjacent Phanerozoic rocks of the Arabian Platform and Red Sea basin. Most of industrial raw materials which used in building have been found in these harrats where Basalt samples were collected. The Arabian Shield has 4000 probable sites where Gold could be mined, but Mahd Al Thahab and Al Najadi are the most prominent (Gold samples were collected from these two mines). Al Quryyah in the province of Tabuk is characterized by the presence of high concentrations of uranium, thorium, rare elements (Ta, Nb, Zr and Y) and raw material (Granite were collected from this area). Andesite and Marble samples were collected from Bahrahand Madrekah (White Mountain) [7] .

2.2. Sample Collection and Measuring Methods

Sixteen rock samples (7 Basalt, 4 Granite, 3 Gold, 1 Andesite, and 1 Marble) from nine different sites were collected at a randomly chosen point within the site area. Sampling points at each site were selected at a distance of 1 - 2 km from each other in order to cover a large area and to observe variation in radioactivity. The sites under investigation are shown in Figure 1 and their Sites, names, and locations are given in Table 1.

These samples were grounded, sieved by 1 mm × 1 mm, then dried for 24 h to remove moisture to 80˚C not to lose the volatile 137Cs or the natural polonium. Ten gm of the dried samples were analyzed by XRDmodelBurkerXR-DD8 Advance for the chemical and mineral composition; also ten gm of them were used for the analysis by atomic absorption model OPTIMA 4000 DV Series Perkin Elmer for the Al, Bi, Pb, U, Th, and K concentrations. For radiometric analysis, each dried sample was weighed and transferred to 640 cc polyethylene Marinelli beakers then sealed and stored for 2 - 4 month to prevent the escape of Radon gas and to allow the attainment of radioactive secular equilibrium between 238U, 232Th and their progenies. The samples were analyzed non-de- structively, using gamma-ray spectrometry with Canberra high purity germanium (HPGe) coaxial detector with relative efficiency of 25% and FWHM 2.0 keV at 1332 keV, of 60Co. Genie 2000 basic spectroscopic software was installed in the computer for data acquisition and analysis. The system was calibrated for energy and absolute

Figure 1. Represents samples sites.

Table 1. Sites name, and location of samples.

efficiency. The measurements were done for a time period of 82,800 sec. An empty polyethylene Marinelli beaker was placed in the detection system for this time period in order to collect the background count rates. Then, each sample was measured during a same accumulating time

2.3. Calculations

The concentration of 226Ra was determined from the average concentrations of gamma-ray lines of energies 295.09 and 351.87 keV of 214Pb and 609.31, 1120.27, and 1764.49 keV of 214Bi (since there is secular radioactivity equilibrium in 226Ra series). 232Th, which it is in secular radioactivity equilibrium with its short half-life daughters, was determined from the average concentrations of 228Ac (with gamma-ray lines at 338.32, 911.16, and 968.97 kev) and of 212Bi at the line 727 keV, also 208Tl with gamma-ray line 583.10 keV. The analysis of 40K concentrations was based on its single peak in the spectrum at energy 1460.80 kev, Determination of activity concentrations in Bq/kg dry weight was calculated using Equation (1) [8] .

(1)

where: C is the net peak area of specific gamma ray energy (count per second), m is the mass of the samples in (kg), is the transition probability of gamma-decay, is the detector absolute efficiency at the specific gamma-ray energy. Exposure to radiation has been defined in terms of the radium equivalent Raeq Bq/kg which is calculated from Equation (2) [9] .

(2)

where: CRa, CTh and CK are the concentrations in Bq/kg dry weight for radium, thorium and potassium respectively. The total air absorbed dose rate (nGy/h) in the outdoor air at 1 m above the ground due to the activity concentrations of 226Ra, 232Th and 40K (Bq/kg) dry weight was calculated using Equation (3) [10] [11] .

(3)

where: CRa, CTh, and CK are the specific activities (concentrations) of 226Ra, 232Th and 40K in Bq/kg dry weight respectively. The annual effective dose equivalent Deff (mSv/y) in air was calculated using the values of the absorbed dose rate by applying the dose conversion factor of 0.7 Sv/Gy and the outdoor occupancy factor of 0.2 (people spend about 20% of their life outdoor) the Annual Effective Dose (in mSv/y) received by population can be calculated using equation:

(4)

where: D (nG/h) is the total air absorbed dose rate in the outdoor. 8,766 h is the number of hours in 1 year. 106 is conversion factor of nano and milli. To limit the annual external gamma-ray dose to 1.5 Gy for the samples under investigation, the external hazard index (Hex) is given by Equation (5) [12] .

(5)

The internal exposure to 222Rn and its radioactive progeny is controlled by the internal hazard index (Hin), which is given by Equation (6) [13] .

(6)

3. Results and Discussion

3.1. XRD Analysis

X-ray diffraction is a non-destructive analytical technique, which provides detailed information about the atomic structure of crystalline substances, chemical composition, and physical properties of materials. It is a powerful tool in the identification of minerals in rocks and soils [14] . In the present study, the XRD results indicate that the main constituents (major) of these samples are Albite (NaAlSi3O8), Anorthite (CaAl2Si2O8), Augite ((Ca, Na) (Mg, Fe, Al, Ti) (Si, Al)2O6)) in Basalt, Albite (NaAlSi3O8), Microcline (KAlSi3O8), Quartz (SiO2) in Granite, Quartz (SiO2) in Gold, Albite (NaAlSi3O8), Clinochlore (MgFe2+)5Si3Al2O10(OH)8, Quartz (SiO2) in Andesite, and Dolomite CaMg (CO3)2 in Marble. Small amount (Minor) and (Trace) minerals are presented as well. The mineral constituents of 16 samples analyzed by XRD spectrometer are shown in Table 2. Table 3 represents the mineral chemical composition and its description.

3.2. Atomic Absorption Spectroscopy

Table 4 gives concentrations of Al%, Bi, Pb, Th, U, and K in ppm by atomic absorption analysis. For Basalt

Table 2. The mineral constituents of 16 samples analyzed by XRD spectrometer.

samples, the concentrations of aluminum range from 8.17% to 9.42%, the stable Lead (208Pb, 206Pb, and 207Pb) vary from LDL (<7.5) to 9.75 ppm, thorium vary from LDL (<1) to 3.75 ppm (from <4.07 to 15.24 Bq/kg), potassium range from 3240 to 10440 ppm (from 100.31 to 323.22). For Granite, the concentrations of Aluminum range from 6.23% to 6.95%, lead vary from 20.23 to 40.53 ppm, thorium vary from 9.01 to 23.42 ppm (from 36.63 to 95.20 Bq/kg), potassium range from 31,960 to 40,600 ppm (from 989.47 to 1256.66 Bq/kg). For Gold, the concentrations of aluminum range from 1.29% to 2.71%, lead range from <7.5 to 42.86 ppm, thorium vary from <1 to 1.49 ppm (from <4.07 to 6.06), potassium range from 1100 to 10,700 ppm (from 34.06 to 331.27 Bq/kg) For Andesite, values of the concentrations are of aluminum 9.58, lead 11.08, thorium <1 ppm (<4.07 Bq/kg) and 11,800 ppm (365.33 Bq/kg). For Marble, the concentrations are of aluminum 0.04%, Lead <7.5 ppm, thorium <1 ppm (<4.07 Bq/kg) and potassium 140 ppm (4.33 Bq/kg). Both bismuth (209Bi) and uranium are LDL (<10 and <5 ppm respectively) for all samples except sample Gold-12 with value 13.76 ppm and sample Gold-13 with value 14.31 ppm. Conversion factors are 1 ppm = 4.06 Bq/kg for 232Th and 32.3 ppm = 1 Bq/kg for 40K [17] . Table 4 and Table 5 show that atomic absorption analysis results are in a good agreement with those obtained by gamma spectrometry measurements for thorium and for potassium. So, the atomic absorption analysis method is important for geochemical analysis to determine the concentrations of elements appearing in the examined minerals.

Table 3. The mineral chemical composition and its description [15] [16] .

Table 4. Concentrations of Al, Bi, Pb, U, Th and K measured by Atomic Absorption.

Table 5. Activity concentrations in (Bq/kg) dry weight of 226Ra, 232Th and 40K in rock samples and the 226Ra/232Th activity ratio.

3.3. Gamma Spectroscopy

The measured concentrations in (Bq/kg) dry weight of natural radionuclides 226Ra, 232Th and 40K in sixteen studied samples are listed in Table 5 and shown in Figure 2. The concentrations in Bq/kg dry weight of 226Ra range from 03.04 to 10.91 with an average value of 07.90, 232Th concentrations in Bq/kg dry weight range from 03.19 to 13.31with an average value of 09.14, whereas 40K concentrations in Bq/kg dry weight exist in the range from 95.59 to 361.52 with an average value of 234.81 in Basalt samples. For Granite samples, the concentrations in Bq/kg dry weight of 226Ra, 232Th and 40K range from 28.42 to 112.77, from 33.81to 89.13, from 1260.13 to 1629.21 respectively and the average activity of 226Ra, 232Th and 40K are 80.85, 68.50 and 1376.69 respectively. The concentrations in Bq/kg dry weight of 226Ra, 232Th and 40K in gold samples range from 00.78 to 11.84, from 01.48 to 4.69, and from 13.76 to 445.09 respectively. The activity concentrations in Bq/kg dry weight of 226Ra, 232Th as well as 40K for Andesite are 05.72, 03.73, 471.93 and for Marble are 01.56, 01.38, 10.15 respectively. The results showed that, the Granite samples have the highest radiation comparison with other samples, while the Marble sample has the lowest. Also the results showed that, Harrat As Sirat sample (Basalt-3) has the lowest activity concentrations of other Harrat and Al Najadi Gold mine sample (Gold-14) has the highest activity concentrations of MahdAlThahab mine samples (Gold 12 and 13). The results of the activity of 226Ra/232Th ratios

indicate that in Basalt samples, with two exceptions 2 and 3, 232Th is in excess to 226Ra. This is due to weather-

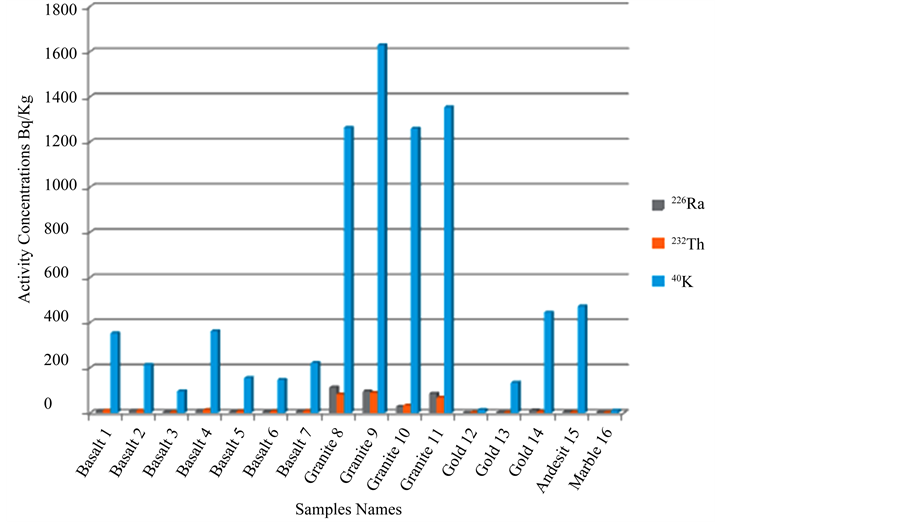

Figure 2. Activity concentrations in (Bq/kg) of 226Ra, 232Th and 40K.

ing processes and water interaction with samples. For Granite samples, 226Ra is in excess to 232Th except sample 10. Gold has low activity of 226Ra/232Th ratios in two samples 12 and 13. Sample 14 (from AlNajadi) is enriched in 226Ra (238U). For Andesite and Marble, activities of 226Ra/232Th ratios are high for 226Ra. In general, all results existed (except granite samples 8, 9 and 11, for 226Ra and 232Th and all Granite samples for 40K) within the given values in building materials by UNSCEAR 1993: (50 Bq/kg for 226Ra), (50 Bq/kg for 232Th) and (500 Bq/kg for 40K) [18] .

3.4. Radiation Hazard Indices

It is important to evaluate the gamma radiation hazards by calculating the different radiation hazard indices. The radium equivalent concept allows describing the gamma radiation from radium, thorium and 40K in samples. Table 6 presents Raeq (Bq/kg), D (nGy/h), Deff (mSv/y), Hex and Hin for studied samples. The radium equivalent activities Raeq (Bq/kg) of samples under investigation ranged from 14.96 to 57.42 with an average value of 36.58 for Basalt, 173.80 to 348.98 with an average value of 284.81 for Granite, 3.96 to 52.82 with an average value of 23.79 for Gold, 47.39 for Andesite and 4.32 for Marble. These calculated values of radium equivalent activities for all samples were below the recommended maximum value of 370 Bq/kg where the highest value is 348.98 Bq/kg from Alquryyah (Granite 9). For Basalt, the absorbed gamma dose rates D (nGy/h) ranged from 07.25 to 27.74 with an average value of 17.61 and for Granite, it ranged between 85.22 and 165.02 with an average vale 135.17. These calculated values were higher than the estimate of average global terrestrial radiation of 55 (nGy/h) UNSCEER. Gold samples had values of the absorbed gamma dose rates D (nGy/h) between 1.82 and 26.55 with an average value of 11.91. Andesite and Marble dose rates D (nGy/h) were 24.25 and 1.97. The annual effective dose rate Deff (mSv/y) ranged from 0.009 to 0.034 for Basalt and from 0.11 to 0.20 for Granite and from 0.002 to 0.033 Gold and for Andesite and for Marble were 0.029756, 0.002418 respectively. The average values were 0.022, 0.17, and 0.015 for Basalt, Granite and Gold. The External hazard index Hex and the internal hazard index Hin average values were 0.099 and 0.118 for Basalt and 0.77 and 0.99 for Granite and 0.065 and 0.077 for Gold and 0.128 and 0.143 for Andesite and 0.012 and 0.016 for Marble. The average values of Hex and of all samples studied in this work were less than unity which means it is safe for human.

The calculated radium equivalent activities of the samples are shown in Figure 3. Maximum Raeq activity was calculated for sample (Granite-9) with 348.98 Bq/kg. The minimum Raeq activity value was calculated for sample (Gold-12) with 3.96 Bq/kg.

Table 6. The Radium equivalent, absorbed dose rate, Annual effective dose rate, Hazard indices of all sites.

Comparison of the activity concentrations of 226Ra, 232Th, 40K and Raeq (Bq/kg) in the present work and other countries are shown in Table 7. It was observed that activity concentrations of Basalt in Yemen showed the greatest concentrations, while Basalt in Iraq, Austria and Saudi Arabia (present work) contained only less of radionuclides. Granite in Iran, Greece and present work showed high concentrations of radionuclides, while Granite in Saudi Arabia (Ryadh) and Egypt contained less of radionuclides. For Marble, the maximum activity value 56.78 (Bq/kg) of 226Ra was in Egypt and the maximum activity values in (Bq/kg) 18.00 and 310.00 of 232Th and 40K were found in Algeria. Marble in Saudi Arabia contained only traces of radionuclides.

4. Conclusion

Sixteen samples of natural raw materials that are normally used in the building industry in Saudi Arabia were analyzed by the XRD analysis. The results indicate that the main constituents (major) of these samples are Albite, Anorthite and Augite) in Basalt, Albite, Microcline and Quartz in Granite, Quartz in Gold, Albite, Clinochlore and Quartz in Andesite, and Dolomite in Marble. The atomic absorption analysis results show that Al% in Basalt samples has almost equal concentrations in ppm, also in Granite samples and Gold samples. For Bi and U, the concentrations in ppm are LDL except Bi in Gold samples 12 and 13. Samples of Granite 8 and Gold 12 have the higher concentrations of Pb. The higher concentrations of Th are observed in samples of Granite 8, 9 and 11; K contains relatively high concentrations in all samples. Atomic absorption analysis results are in a good agreement with those obtained by gamma spectrometry measurements for thorium and for potassium. So, the atomic absorption analysis method is important for geochemical analysis to determine the concentrations of elements appearing in the examined minerals. The activity concentrations of 226Ra, 232Th and 40K have been

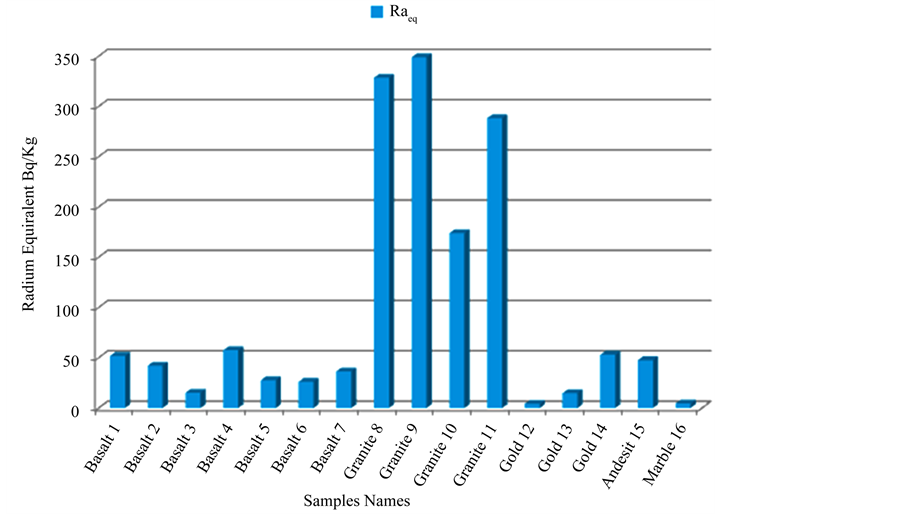

Figure 3. Radium equivalent activity value of each sample.

Table 7. Comparison of activity concentrations of 226Ra, 232Th, 40K (Bq/kg) and Raeq in Saudi Arabia samples and other countries.

*[4] ; ** [3] ; *** [22] ; **** [8] .

found using gamma-ray spectrometry. The concentrations 226Ra and 40K in Granite samples are among the highest measured values, while in Marble, 226Ra, 232Th and 40K are the lowest measured values compared with those of other countries. The average values of external and internal hazard indices of all samples are less than unity. The activity concentrations of these samples produce an average radium equivalent activity between 3.96 and 284.81 which is less than that recommended by UNSCEAR (370 Bq/kg). The highest average value of the absorbed dose 135.17 (nGy/h) is in Granite which is higher than the estimate of average global terrestrial. The effective dose rate (mSv/y) values are less than unity for all samples which are acceptable global values. All results are within the range as given in UNSCEAR.

Acknowledgements

The author is indebted to the Saudi Geological Survey (SGS) for supplying the geological samples, also for their technical help.
