Rutting Resistance of HMA Rehabilitated with Micro-Surfacing

Arbia Garfa^{1*}, Alan Carter^{1}, Anne Dony^{2}^{ }

^{1}École de Technologie Supérieure, ETS, Montréal, Canada

^{2}Ecole Spécial des travaux publics, ESTP, Paris, France

Copyright © 2018 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

http://creativecommons.org/licenses/by/4.0/

Received: January 3, 2018; Accepted: June 26, 2018; Published: June 29, 2018

ABSTRACT

The work presented here is a study on the measurement and prediction of the rutting resistance of previously rutted asphalt mixes rehabilitated with a layer of micro-surfacing manufactured with virgin and recycled aggregates at different stages of aging. The experimental procedure consisted of rutting tests on hot mix asphalt slabs already degraded and repaired with virgin and recycled micro-surfacing. Then, the evolution of the behavior of micro-surfacing cast on the hot mix asphalt slabs is observed according to loading cycles of the pavement rutting tester MLPC. Before rutting tests, slabs are subjected to 24 hours at 50˚C and aged for 2 days and 5 days at 85˚C in the oven. The results showed rutting percentages of 6.3% for hot mix asphalt slabs aged for 2 days and 7.2% for 5 days. These hot mix slabs repaired with virgin micro-surfacing have rutting percentage of about 9.2 % for 2 days of aging and 6.5% for 5 days of aging. While, the HMA slabs repaired with recycled micro-surfacing have rutting percentage of about 8.1% for 2 days of aging and 5.9% for 5 days of aging. These results allowed the development of a prediction model based essentially on three predictor variables including cycle number, rutting state and percentage of water in the micro-surfacing material. The developed model shows a strong correlation between the predicted rutting values and the rutting values measured with the MLPC rut tester. Thermal aging in oven has a positive impact on the resistance to permanent deformation of new asphalt mixes and those rehabilitated with micro-surfacing. The parameters of rutting state and contribution water are significant in the rutting prediction model, while the cycle number remains a non-significant parameter in the model but determinant.

**Keywords:**

HMA, RAP, Micro-Surfacing, Rutting, Aging

1. Introduction

Pavement maintenance can be considered as a method using a long-term preservation strategy that improves pavement performance with an integrated and cost-effective set of practices that extend pavement life, improve safety and meet expectations of motorists [1] . Due to the various deterioration, it is important that the road infrastructure management agencies use the best method of maintenance at the best time [2] . Among the existing techniques of maintenance, a popular one is micro-surfacing. It has been argued that this technique presented a solution to correct slight defects related to small radius rutting [3] . However, it must be applied in several layers. Robati et al. [3] have shown that micro-surfacing with a coarse particle size are less susceptible to rutting than micro-surfacing manufactured with a fine particle size. Studies realized by Robati et al. [4] have also demonstrated that micro-surfacing mixtures formulated with 100% RAP meet the specifications of the ISSA TB 147 (Multilayer Loaded Wheel Test [5] ), while micro-surfacing manufactured with RAS shows a decrease resistance to rutting if the percentage of RAS exceeds 10%. Recent research has been carried out in order to compare the performances of two types of cold surface coatings, namely micro-surfacing and slurry seal and their ability to correct defects caused by the rutting phenomenon [6] . For both materials, degradation caused by abrasion, or the loss of aggregates was observed for both types of treatments after 3 years of service. It is important to state that even if the micro-surfacing can be used to rehabilitate defective pavement with small radius ruts, they cannot correct large radius, exceeding a few decimeters, deformation [7] .

In this study, we evaluated the effectiveness of the micro-surfacing type III material to repair the rutting deformation on the pavement. To do this, we evaluated the rutting resistance of a 0 - 10 mm hot mix asphalt (HMA), named ESG-10, before rehabilitating it with micro-surfacing. The objective is to evaluate the rutting resistance of HMA with and without micro-surfacing and different curing and aging conditions, and to model the rutting resistance of a HMA rehabilitated with micro-surfacing.

In this paper, we discuss the results of a rut resistance measurement study carried out with the MLPC rut tester on the HMA slabs considered separately and the HMA slabs coated with virgin micro-surfacing and others with micro-surfacing formulated with RAP (50% of the aggregates by weight). To simulate the site conditions, it should be noted that hot-mix asphalt plates alone, before being coated with micro-surfacing, undergo a rutting test (30,000 cycles).

This work was carried out with two different materials, a reference micro-surfacing made with virgin aggregates, and a recycled micro-surfacing, under well-defined curing and aging conditions.

2. Material and Methods

The experimental approach of this work was carried out in two complementary parts. The first part consists of performing rutting tests on hot mix asphalt slabs already rutted and repaired with a layer of micro-surfacing formulated with virgin aggregates. The second part consists of using micro-surfacing formulated with RAP to repair the rutted slabs.

A preliminary rutting test (same experimental steps as HMA+ micro-surfacing) is carried out on the HMA slabs considered as reference. Then, the evolution of the micro-surfacing cast on the hot mix asphalt slabs is observed according to the loading cycles.

2.1. Mix Design

The materials used in this study, as well as their origin and composition, are presented in Table 1.

During mix design, mixing begins with a pre-wetting of dried sand in oven to obtain an initial water content of 3.5% (in order to better control the parameters during formulation) to have a homogeneous mixture. A rest period of 30 minutes is observed to ensure homogeneous water absorption. Parallel to this step, the mixture of emulsion, water and adhesion agent is carried out in a container. After the rest period, the cement is added to the sand before mixing manually for 40 seconds with the liquid part (emulsion, water and adhesion agent). For the manufacture of recycled micro-surfacing, a mix design with 50% RAP has been determined, and glass fibers were added to improve the cohesion between recycled binder and aggregates.

In order to validate the formulation of the micro-surfacing, several trials have been carried out, and the mixtures were evaluated with the cohesion test, the abrasion test, the mini rutting test and the Hilt Cohesion Test [8] [9] .

For the Hot mix asphalt, a classical 10 mm surface course mix is used in this study, a standard bitumen of PG 70 - 28 was used. The maximum density of the mix is 2.903 with a binder content of 5.1.

Table 1. Materials used for micro-surfacing mixtures.

2.2. Manufacturing Process of Rutted HMA Rehabilitated by Micro-Surfacing

The rutting phenomenon is influenced by several parameters: temperature, the duration of exposure to stresses, and the binder film thickness [10] .

In this study, 50 mm thick HMA slabs were compacted with the LPC slab compactor to obtain an air voids content of 5%. The HMA were subjected to rutting cycles before being rehabilitated with micro-surfacing in order to simulate site’s conditions. Once the micro-surfacing was installed, the rehabilitated HMA slabs were fast cured in an oven for 24 hours at 50˚C, in order to evacuate water and volatile fractions. Afterwards, the slabs are left at room temperature to stabilize, and they are weighted to measure the loss of mass (loss of water). Generally, a constant mass is reached after the first day.

After this step, the rehabilitated slabs were placed in a draft oven at 85˚C, for a period ranging from 1 to 5 days in order to simulate the evolution of the thermal aging. The thermal aging protocol was inspired by work carried out in the IRC laboratory [9] . The curing and aging temperature were determined on the basis of previous publications [11] .

2.3. Rutting Tests

The rutting test with the LPC rut tester (Figure 1) is a simulation test which consists in applying a 5 kN load with a wheel inflated to 0.6 MPa on the sample at 60˚C, for 30,000 cycles at a frequency of 1 Hz [10] .

Repeated wheel passage leads to the formation of a rut whose depth is the average of the rut depth measured at 15 points on the surface. During the tests, three types of structures were tested: the first one was HMA plate alone. The second one is the HMA slabs rehabilitated by a layer of micro-surfacing formulated with virgin aggregates, and the third one is the HMA rehabilitated with a layer of micro-surfacing formulated with RAP.

The complex (HMA and Micro-surfacing) plate has a total thickness of 50 mm with a micro-surfacing thickness of about 17 mm ± 1 mm. The small variations

Figure 1. LPC rut tester.

in the thicknesses of the micro-surfacing are due to the differences in the rut depths of the HMA slabs before rehabilitation. In order to have 50 mm thick slabs, the HMA rutted slab were saw in their thicknesses to around 33 mm before being covered with micro-surfacing.

The evolution of the rut depths are monitored and measured as a percentage of the initial thickness of the material in function of the number of loading cycles. Initially, rutting tests were carried out on three series of HMA slabs (Table 2). All this slabs of HMA were used as reference. Rutting tests were carried out on these slabs at 60˚C.

The second part of tests consisted of casting micro-surfacing on the hot-mix asphalt slabs and then carrying out the same process of curing/aging on the complex (HMA + virgin micro-surfacing) (Figure 2). Then, the rutting tests were carried out on these at 60˚C (Figure 2). The same process is applied for the third type of structure HMA + recycled micro-surfacing.

3. Results and Analysis

The results are separated into two parts. First, the rutting results on the reference slabs are presented, before analyzing the results obtained on the rehabilitated

Figure 2. Rutted slabs of HMA rehabilitated with Micro-surfacing before and after rutting test (30,000 cycles) (a) Plate of HMA before rutting; (b) Plate of HMA before rutting; (c) Plate of HMA after 10,000 rutting cycles; (d) Plate of HMA after 30,000 rutting cycles.

Table 2. Conditions of rutting test for HMA samples.

slabs. Afterwards, the modeling of the behavior is shown.

3.1. Rutting Test on HMA

As expected, the analysis of the impact of aging on the rutting resistance of the asphalt mixes shown in Figure 3 shows that the longer the aging, the higher the rutting resistance is. Indeed, the aging carried out at 85˚C did results in an accelerated oxidation of the binder. These phenomena are the same that are observed in the PAV and RTFOT aging processes [10] . However, there is no great difference between the resistance to rutting of the hot mix asphalt plates aged for 2 days and 5 days.

3.2. Rutting Test on the Complex Structure HMA + Micro-Surfacing

The rut depth results are shown in Figure 4 (slabs rehabilitated with virgin micro-surfacing) and Figure 5 (slabs rehabilitated with recycled micro-surfacing). The first thing to note on both figures is that from 0 to 30,000 cycles, only the HMA slabs are tested. At 30,000 cycles, the slabs are rehabilitated, which is why the rut depth goes down to zero.

As it can be seen from Figure 4 and Figure 5, the rutting resistance of ESG-10 mixes without micro-surfacing increase with the curing and aging times. The same trend is observed when micro-surfacing is added on top of the ESG-10 mixes. Also, by addition of micro-surfacing, the rutting resistance of ESG-10 mixes was improved. Figure 5 also shows that the rutting resistance of ESG-10 mixes is further improved with the addition of micro-surfacing mixes which consists of 50% RAP as the aggregates in micro-surfacing mixes.

We believe that the rutting resistance is improved due to the existence of aged bitumen in both ESG-10 and micro-surfacing mixes. Also, the rutting resistance is further improved by using the 50% RAP as the aggregates in the micro-surfacing. This can be explained by the existence of high stiffness (very low penetration) of the RAP binder.

Figure 3. Impact of aging on HMA in terms of resistance to rutting.

Figure 4. Impact of aging on HMA/ virgin micro-surfacing in terms of resistance to rutting.

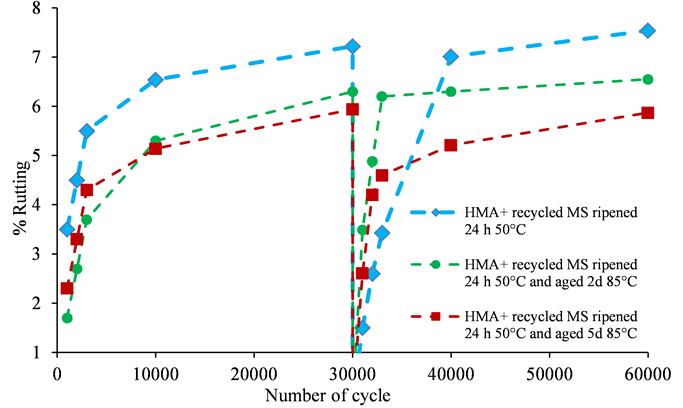

Figure 5. Impact of aging on HMA/ recycled micro-surfacing in terms of resistance to rutting.

The complex structure HMA/virgin micro-surfacing and HMA/recycled micro-surfacing have a deformation memory due to the initial rutting of the asphalt plate. Hence, a higher resistance to rutting was observed for the complex structure HMA/virgin micro-surfacing and HMA/recycled micro-surfacing. Initially, the micro-surfacing fills the initial ruts of the slabs, then it brings a reinforcement of 15-mm thick allowing the whole structure to perform better. It should be noted however that it is necessary that micro-surfacing, conforming to the specifications of the ISSA, do not undergo a heat wave before being well stabilized, since it would results in a structure highly sensitive to rutting.

All tested slabs in this study meet the requirements of NF EN 13108-1 standard since all the complex HMA/virgin micro-surfacing have rutting percentages of less than 10% to 30,000 cycles.

3.3. Prediction of the Rutting of the HMA/Micro-Surfacing Complex

Statistically, the validation of the model will be carried out through the adjusted coefficient of determination
${R}_{a}^{2}$ and the ratio between the standard error S_{e} and the standard deviation S_{y}. These parameters are defined by Equations (1) (2) and (3):

${S}_{e}=\sqrt{\frac{{\displaystyle \sum {\left(Y-\stackrel{^}{Y}\right)}^{2}}}{x-k}}$ (1)

${S}_{y}=\sqrt{\frac{{\displaystyle \sum {\left(Y-\stackrel{\xaf}{Y}\right)}^{2}}}{x-1}}$ (2)

where x is sample size; k is the number of independent variables in the model; Y: values tested;
$\stackrel{^}{Y}$ : predicted values and
$\stackrel{\xaf}{Y}$ is the mean value of the measured rut depth. The lowest the value of S_{e}/S_{y}, the greater the prediction [12] [13] . The coefficient of determination R^{2} is defined by Equation (3):

${R}_{a}^{2}=1-\frac{\left(x-1\right)\times \left(1-{R}^{2}\right)}{x-k-1}$ (3)

Model Development

Analysis of the correlation matrix presented in Table 3 shows that the percentage of virgin aggregate (sand), the percentage of cement and the curing time are not significant with respect to the percentage of rutting. Indeed, they have low correlation coefficients and P > 0.05. Thus, in the prediction of the percentage of rutting, these parameters will not be taken into account.

The prediction parameters considered are the number of cycles, the percentage of added water, the percentage of bituminous emulsion, the percentage of adhesion agent, filler, and fiber. Analysis of the linear regression showed that the statistical calculation can’t estimate the percentage of rutting according to the percentage of bitumen emulsion, adhesion agent, RAP, fiber and filler. Those parameters are not considerate by the prediction model. Only three variables are selected, including the number of cycles, the rutting state before rehabilitation and the percentage of added water. Hence the development of the model (Equation (4)):

$\begin{array}{c}\text{Rutting}\left(\text{\%}\right)=-\text{1}\text{.10}-\left(\text{0}\text{.000024}\times \text{Numberofcycle}\right)\\ \text{\hspace{0.17em}}\text{\hspace{0.17em}}+\left(\text{0}\text{.420}\times \text{Water}\left(\text{\%}\right)\right)+\left(\text{0}\text{.991}\times \text{HMArutting}\left(\text{\%}\right)\right)\end{array}$ (4)

Figure 6 shows a strong correlation between the predicted rutting values and the measured rutting values measured with the LPC rut tester. Indeed, a strong

Table 3. Correlation matrix.

Figure 6. Predicted rutting vs Measured rutting.

adjusted coefficient of determination of R^{2} = 0.65 is obtained with an average dispersion of S_{e}/S_{y} = 0.73.

The Analysis of the variance (Table 4) showed that the rutting state before rehabilitation and the amount of added water are the most significant parameters in the rutting prediction model. The analysis of the variance also shows that the variable rutting state of the pavement has a p-value more significant than the

Table 4. Variance analysis of model prediction variables.

variable percentage of added water. Thus, the parameter “added water” influences less the behaviour of the model. The cycle number is the least significant parameter of the model, its p-value is not significant. However, it remains an important parameter in the prediction of rutting.

4. Conclusions

This article showed that thermal aging in oven has an impact on the resistance to the permanent deformation of bituminous mixes. Indeed, the study of the influence of aging in terms of resistance to rutting of hot mix asphalt showed that their resistance to rutting increased with the aging. Tests done on the complex structure HMA/Micro-surfacing allowed us to show that the longer the aging of the hot-mix asphalt slabs rehabilitated by micro-surfacing is, the higher their resistance to rutting becomes, provided that the HMA coated by micro-surfacing is well stabilized with implementation rather far from the summer heat wave.

These phenomena are essentially due to the oxidation of the bituminous binders contained in these materials and leading them to harden. In addition, a memory phenomenon (summation) of the initial rutting of the bituminous mix is observed. Indeed, the secondary rutting observed on the complex structure HMA/Micro-surfacing is more important than the initial rutting of the HMA slab.

The study also showed that the rut depth before rehabilitation (rutting state) and input water (added water) percentage parameters are significant in the rutting prediction model, while the cycle number remains a non-significant parameter in the model but determinant. The regression analysis showed a strong correlation between the rutting values predicted by the model and the values measured in the laboratory with the LPC rut tester.

Acknowledgements

To Probinord, LCMB and ETSP.

Cite this paper

Garfa, A., Carter, A. and Dony, A. (2018) Rutting Resistance of HMA Rehabilitated with Micro-Surfacing. Open Journal of Civil Engineering, 8, 245-255. https://doi.org/10.4236/ojce.2018.82019
