Similarity Solutions of Unsteady Convective Boundary Layer Flow along Isothermal Vertical Plate with Porous Medium

Md. Yeakub Ali, Mohammed Nasir Uddin, Md. Jasim Uddin, N. M. Ridwan Zahed

Department of Mathematics, Chittagong University of Engineering & Technology, Chittagong, Bangladesh

Received 1 December 2015; accepted 25 December 2015; published 30 December 2015

ABSTRACT

Similarity solution of unsteady convective boundary layer flow along isothermal vertical plate with porous medium is analyzed. The plate surface is reactive with the fluid and generates inert specie which diffuses inside the boundary. The flux of the specie at the plate is proportional to specie concentration at the plate. The governing equations of continuity, momentum, energy and specie diffusion are transformed into ordinary differential equation by using the similarity transformation and solved numerically by using free parameter method along with shooting technique. The dimensionless velocity, temperature and concentration profiles are obtained and presented through figures for different parameters entering into the problem. The local Skin-friction co-eff- icient, Nusselt number and Sherwood number at the plate for physical interest are also discussed through tables.

Keywords:

Similarity Solution, Unsteady Flow, Porous Medium, Convective Boundary Layer Flow, Vertical Plate

1. Introduction

The present problem is to study the similarity solutions of unsteady convective boundary layer flow along isothermal vertical plate with porous medium. Mentioned fluid flow, heat and mass transfer models are parameterized by dimensionless quantities such as Prandtl number, Schmidt number, unsteadiness and Buoyancy parameters, etc. The effect of governing parameters on the velocity, temperature, concentration profile are investigated and analyzed. The local Skin-friction coefficient, Nusselt number and Sherwood number at the plate for physical interest are also illustrated for required parameters.

2. Governing Equations

We consider an unsteady two dimensional flow of a viscous incompressible fluid through porous media along vertical plate. The flux of the specie at the plate is considered proportional to specie concentration at the plate. All the fluid properties assumed to be constant except the effect of buoyancy and the density variation. In addition the electric field, pressure gradient, Hall effects, joule heating terms and induced magnetic field are also neglected. Let the x-axis be taken along the direction of the plate and y-axis normal to it. If the velocity distribution in the potential flow is given by and, where a is a positive constant. Under assumptions mentioned above, the governing boundary layer equations of continuity, momentum, energy and specie concentration can be written as:

(1)

(2)

(3)

(4)

The boundary condition for velocity, temperature and concentration fields are:

(5)

where u and v are the fluid velocity components along x and y-axis respectively, is the kinematics viscosity, ρ is the density of the fluid, β and β* are the thermal and concentration expansion co-efficient respectively, g is the acceleration due to gravity, T is the temperature inside the boundary, is the temperature for away from the plate, C is the species concentration in the boundary layer, is the species concentration of the ambient fluid, is the specific heat, D is the molecular diffusivity of the species concentration, is the permeability of the porous medium. and is the co-efficient of thermal conductivity.

In order to simplify the mathematical analysis of the problem we introduce the flowing dimensionless variables:

(6)

Introducing dimensionless similarity variables into the system of Equation (2) to Equation (4) is reduced to system of ordinary differential equations;

(7)

(8)

and

(9)

It is observed that the Equation (1) is identically satisfied.

The Boundary condition in Equation (5) is reduced to the corresponding boundary condition for velocity, temperature and concentration fields are as:

(10)

at.

where

(Local Temperature Grashof number) =,

(Local Concentration Grashof number) =,

(Permeability parameter) =,

(Schomidt number) =,

(Prandtl number) =

The above equations with boundary condition are solved numerically by using shooting method.

3. Important Physical Parameters

From the engineering point of view, the physical quantities of interest are the local Skin-friction coefficient, local Nusselt number and local Sherwood number respectively defined as

where the wall shear stress, the wall heat flux and the quantity of mass transfer through the unit area of the surface. These are given by

Thus the values of the local skin-friction co-efficient, local Nusselt number and local Sherwood number are proportional to and respectively as Vajravelu et al. [19] .

4. Numerical Solution

Systems of ordinary differential equations together with boundary conditions are nonlinear and coupled. First of all, higher order non-linear differential Equations (7) to (9) are converted into simultaneous linear differential equations of first order and these are further transformed into initial value problem solved numerically by applying a standard initial value solver i.e., the Shooting method namely Nachtsheim-Swigert (1965) iteration technique (guessing the missing value) along with Runge-Kutta integration scheme.

In a shooting method, the missing (unspecified) initial condition at the initial point of the interval is assumed, and the differential equation is then integrated numerically as an initial value problem to the terminal point. The accuracy of the assumed missing initial condition is then checked by comparing the calculated value of the dependent variable at the terminal point with its given value. If a difference exists, another value of the missing initial condition must be assumed and the process is repeated. This process is continued until the agreement between the calculated and the given condition for the specified degree of accuracy.

In the process of iteration the Skin friction coefficient, the Nusselt number and the Sherwood number, are proportional to and also evaluated. The numerical result obtained for several selected values of the established parameter are displayed in figures and tables. These figures and tables show that velocity, temperature, concentration, rate of heat transfer and skin friction coefficient are affected significantly with the variations of the considered controlling parameters.

5. Results and Discussions

In order to get physical insight into the problem numerical solution have been carried out for different values of the considered thermo physical parameters of controlling the fluid dynamics in the flow regime. The value of the Prandtl number are taken to be Pr = 0.71, 01.00 and 07.00 which correspond to air, electrolyte solution such as salt water and fresh water at 25˚C and 1 atm pressure. The values of Schmidt number are chosen to be Sc = 00.22, 00.62 and 02.62 representing diffusing chemical species of most common interest in air like hydrogen, water vapor , and Propel Benzene respectively at 25˚C and 1 atm pressure. Our attention is based on the positive values of the buoyancy parameter (Gr, Gc) in such way that Grashof number Gr corresponds to the cooling problem and solutal Grashof number Gc indicates the chemical species concentration in the free stream region is less than the concentration at the boundary surface. Here it is considered that the value of Suction parameter is 0.06. The cooling problem is often considered in engineering applications for example in the cooling of electronic components and nuclear reactors. For the purpose of discussing the result, the numerical calculations are presented in the form of non dimensional velocity, temperature and concentration.

5.1. Velocity Profiles

The effects of various parameters on the non dimensional velocity profiles in the boundary layer are depicted in Figures 1-9. Generally it is observed in these figures that fluid velocity is lowest at the plate surface and increases gradually to its free stream values far away from the plate surface satisfying the boundary condition for all parameters. Figures 1-4 reveal the effects of unsteadiness parameters A1 and A2 on the dimensionless velocity.

Figure 1. Velocity profile for various values of A1 when, A2 = 0.50, Pr = 0.71, Sc = 0.22, Gr = 05.0, Gc = 05.00, K = 00.60.

Figure 2. Velocity profile for various values of A2 when, A1 = 0.50, Pr = 00.71, Sc = 0.22, Gr = 05.00, Gc = 05.00, K = 0.60.

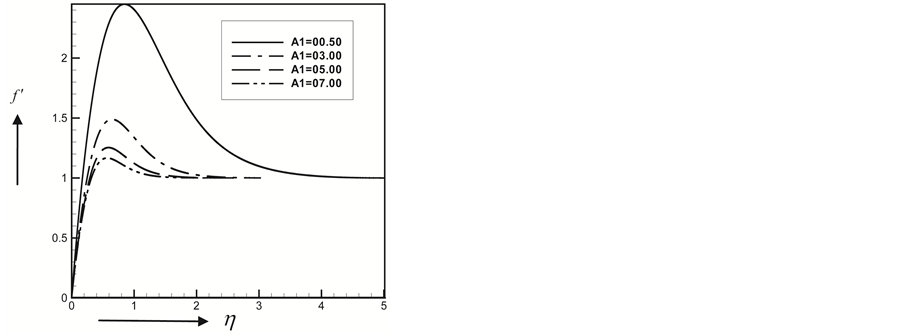

Figure 3. Velocity profile for various values of A1 when A2 = 0.50, Pr = 0.71, Sc = 0.22, Gr = 00.50, Gc = 0.50, K = 0.60.

Figure 4. Velocity profile for various values of A2 when A1 = 0.50, Pr = 00.71, Sc = 0.22, Gr = 05.00, Gc = 05.00, K = 0.60.

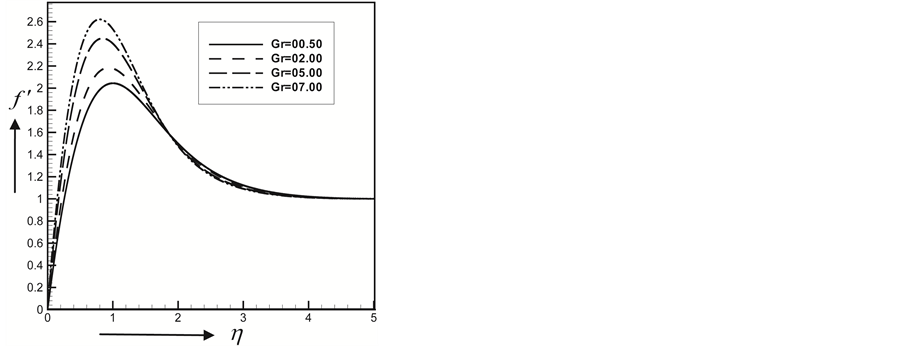

Figure 5. Velocity profile for various values of Gr when A1 = 0.50, A2 = 0.50, Pr = 0.71, Sc = 00.22, Gc = 05.00, K = 00.60.

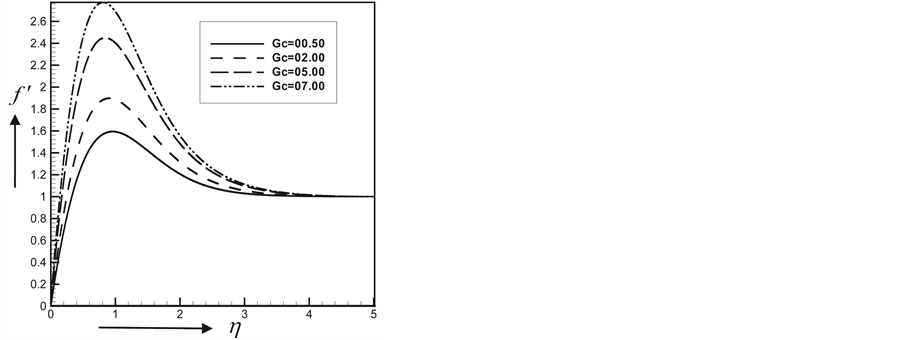

Figure 6. Velocity profile for various values of Gc when A1 = 0.50, A2 = 0.50, Pr = 00.71, Sc = 00.22, Gr = 05.00, K = 0.60.

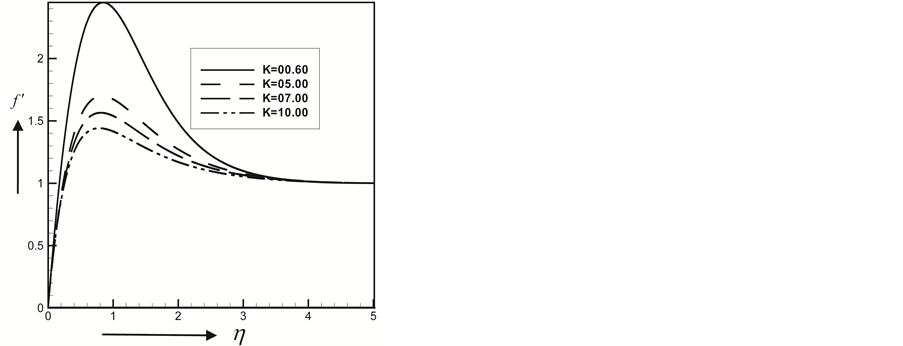

Figure 7. Velocity profile for various values of K when A1 = 0.50, Pr = 00.71, Sc = 0.22, Gr = 05.00, Gc = 05.00, K = 0.60.

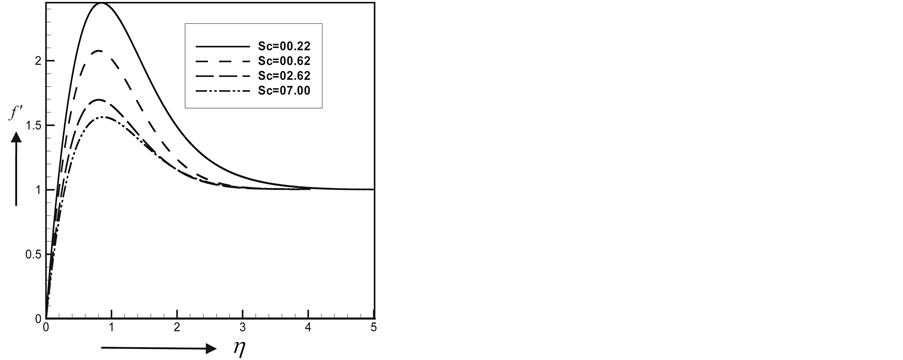

Figure 8. Velocity profile for various values of Sc when A1 = 00.50, A2 = 00.50, Pr = 00.71, Gr = 05.00, Gc = 05.00, K = 00.60.

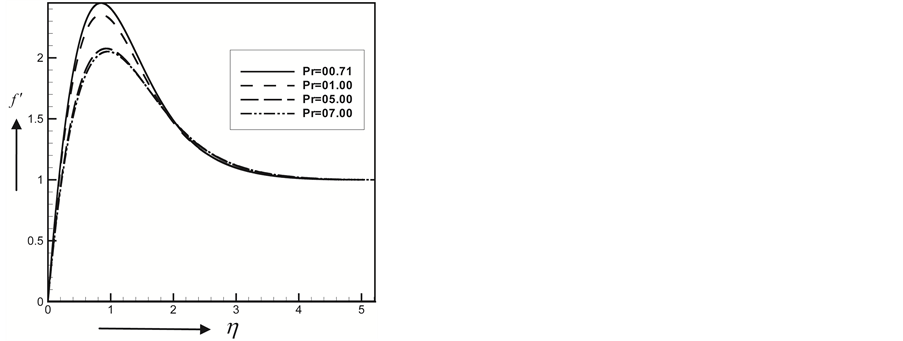

Figure 9. Velocity profile for various values of Pr When A1 = 00.50, A2 = 00.50, Sc = 00.22, Gr = 05.00, Gc = 05.00, K = 00.60.

In Figures 1-3, it is observed that the velocity profile decreases with the increases of A1 and A2. Figure 4 depicts the velocity profile increases with the increases of A2.

Figures 5-6 represent the variation of the velocity profiles with the buoyancy forces parameter (Gr and Gc). In both cases a downward acceleration of the fluid is observed with increasing intensity of buoyancy forces. Furthermore these figures show that increases in buoyancy forces leads to an increases in velocity profile. It is established that increase in buoyancy forces enhance the fluid flow.

Figure 7 display the velocity profile for selected values of permeability parameter K. It is noticed that velocity decreases for increasing values of K but far away from the plate the profiles overlap as shown in this figure.

The influence of the Schmidt number on the velocity profile is shown in Figure 8. It is found that the fluid velocity decreases rapidly with the increases of Schmidt number.

Figure 9 exhibits the effect of the Prandtl number on the non dimensional velocity profiles in the boundary layer. We observed that the velocity profile decreases with the increase of Pr, which is due to fact that as Pr increases the dynamic viscosity of the fluid increases which then slow down the velocity of the fluid.

5.2. Temperature Profiles

Figures 10-16 depict the behavior of the dimensionless temperature profiles for the effect of various thermo physical parameters.

As per the boundary conditions of the flow profile under consideration, the fluid temperature attain its maximum values at the plate surface and decreases exponentially to the free stream zero value far away from the plate.

Figures 10-11 illustrate the effects of unsteadiness parameters A1 and A2 on the dimensionless temperature. It is observed that in both cases the temperature profile decreases with the increases of A1 and A2 as expected.

Figures 12-13 represent the variation of the temperature profiles with the buoyancy forces parameter (Gr and Gc). It is observed that in both cases the temperature boundary layer thickness decreases with an increase in the buoyancy forces parameter (Gr and Gc).

Figure 14 displays the temperature profile for selected values of permeability parameter K. It is noticed that temperature profile slightly increases for increasing values K.

The influence of various values of the Schmidt number Sc on the dimensionless temperature profile is represented in Figure 15. We see that the fluid temperature profile increases monotonically with the increases of Schmidt number.

Figure 16 illustrates the effect of the Prandtl number on the non dimensional temperature profiles in the boundary layer. We observed that the temperature profile decreases smoothly with the increase of Pr.

5.3. Concentration Profiles

Effects of physical parameters variation on the chemical species concentration profiles are depicted in Figures 17-23. It is noteworthy that the chemical species concentration is highest at the plate surface and decreases

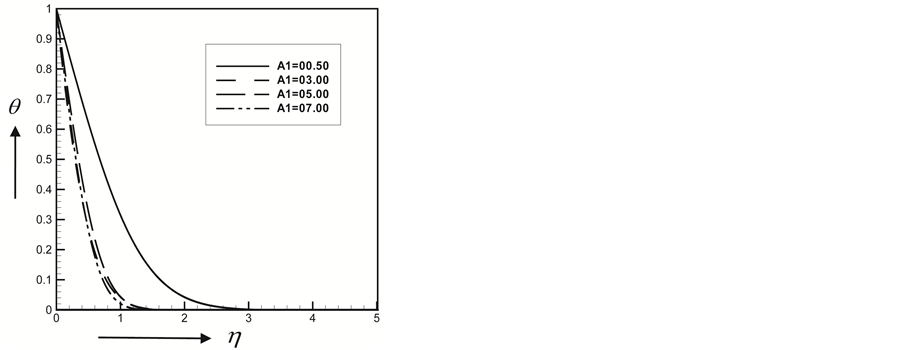

Figure 10. Temperature profile for various values of A1 when A2 = 0.50, Pr = 00.71, Sc = 00.22, Gr = 05.00, Gc = 05.00, K = 00.60.

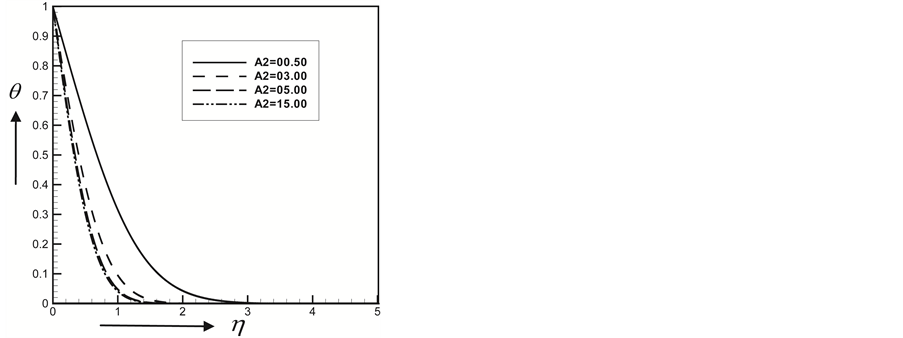

Figure 11. Temperature profile for various values of A2 when A1 = 0.50, Pr = 00.71, Sc = 00.22 Gr = 05.00, Gc = 05.00, K = 0.60.

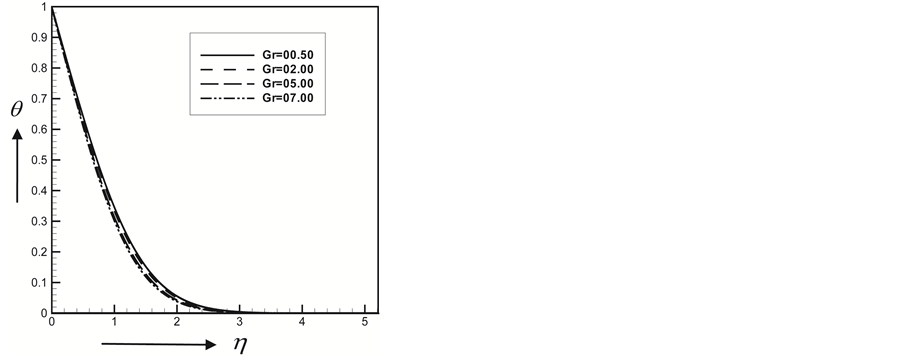

Figure 12. Temperature profile for various values of Gr when A1 = 0.50, A2 = 00.50, Sc = 00.22, Gc = 05.00, Gc = 05.00, K = 0.60.

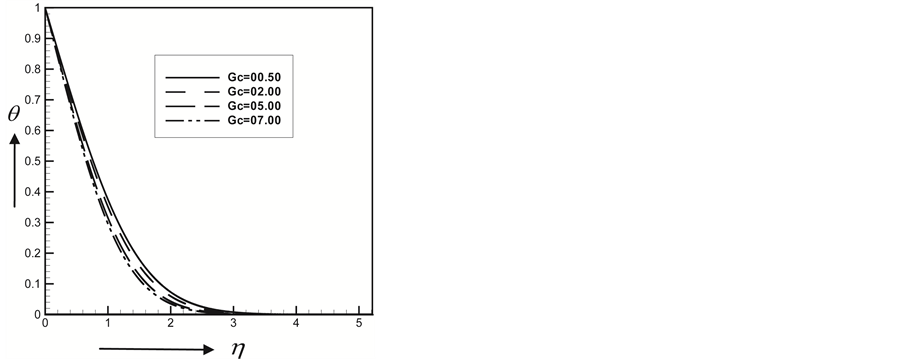

Figure 13. Temperature profile for various values of Gc when A1 = 0.50, A2 = 00.50, Sc = 00.22, Gr = 05. Pr = 00.71. K = 00.60.

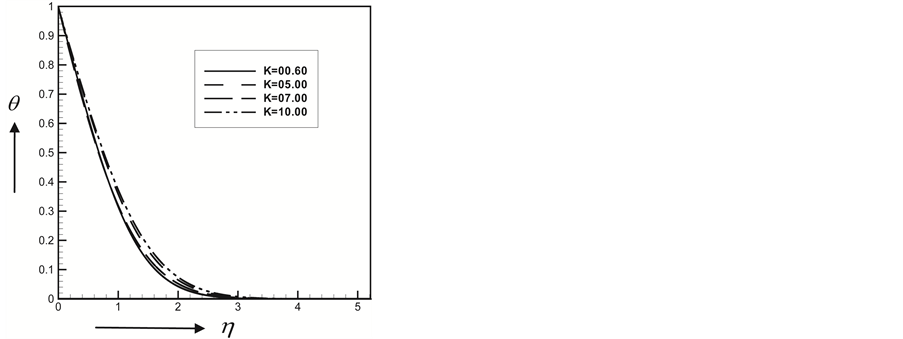

Figure 14. Temperature profile for various values of K when A1 = 0.50, A2 = 0.50, Sc = 00.22 Pr = 00.71, Gr = 05.00, Gc = 05.00.

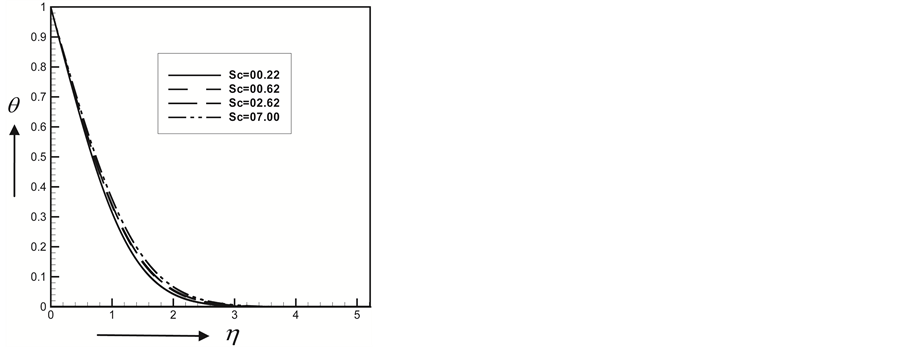

Figure 15. Temperature profile for various values of Sc when A1 = 0.50, A2 = 0.50, Pr = 00.71, Gc = 05.00, Gr = 05.00, K = 0.60.

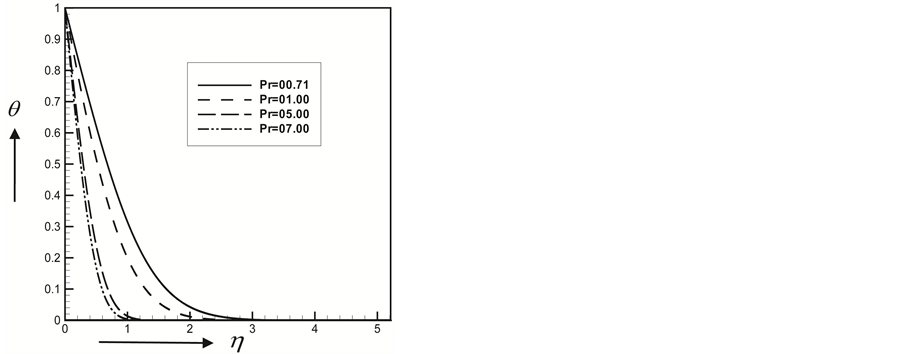

Figure 16. Temperature profile for various values of Pr when A1 = 0.50, A2 = 0.50, Sc = 00.22, Gr = 05.00, Gc = 05.00, K = 0.60.

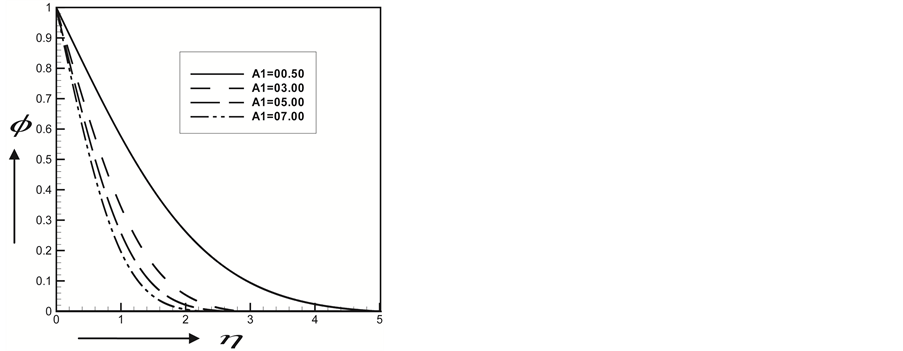

Figure 17. Concentration profile for various values of A1 when A2 = 0.50, Pr = 00.71, Sc = 0.22 Gr = 05.00, Gc = 05.00, K = 0.60.

exponentially to zero far away from the plate satisfying the boundary conditions of the flow profile under consideration.

Figures 17-18 illustrate the effects of unsteadiness parameters A1 and A2 on the dimensionless concentration. It is observed that in both cases the concentration profile decreases with the increases of A1 and A2.

The influence of buoyancy parameters (Gr and Gc) on the concentration profile is illustrated in Figures 19-20. It is noticed that in both cases concentration boundary layer thickness slightly decreases with the increases in the buoyancy forces parameter (Gr and Gc). The decreasing in the concentration profile is not significant and near to coincide due to the increasing values of Gr.

Figure 21 displays the concentration profile for selected values of permeability parameter K. It is noticed that concentration increases gradually for increasing values of K.

The influence of selected values of the Schmidt number Sc on the dimensionless concentration profile is represented in the Figure 22. In this figure we see that the increasing value of The Schmidt number leads to decrease the concentration rapidly as expected. The Schmidt number embodies the ratio of the momentum diffusivity to the mass (Species) diffusivity. It physically relates the relative thickness of the hydrodynamics boundary layer and mass transfer (concentration) boundary layer.

Figure 23 illustrates the effect of the Prandtl number on the non dimensional concentration profiles in the boundary layer. We observed that the concentration profile decreases with the increase of Pr.

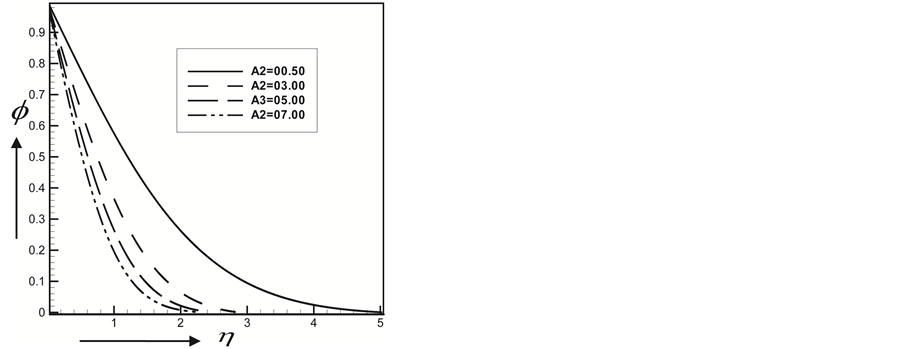

Figure 18. Concentration profile for various values of A2 when A2 = 0.50, Pr = 0.71, Sc = 00.22 Gr = 05.00, Gc = 05.00, K = 0.60.

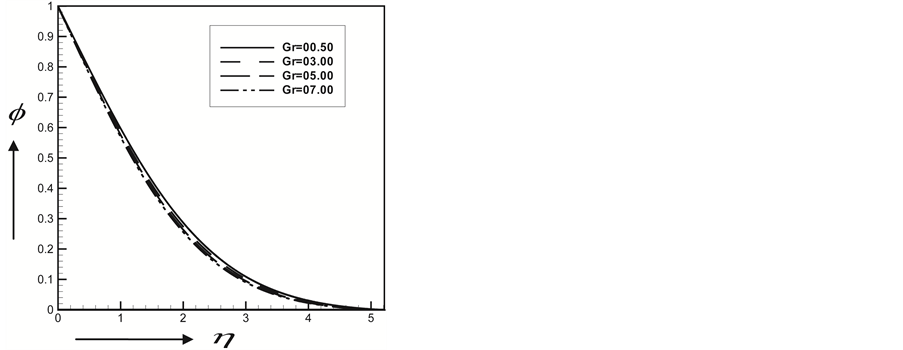

Figure 19. Concentration profile for various values of Gr when A1 = 0.50, A2 = 00.50, Pr = 00.71, Sc = 00.22, Gc = 05.00, K = 0.60.

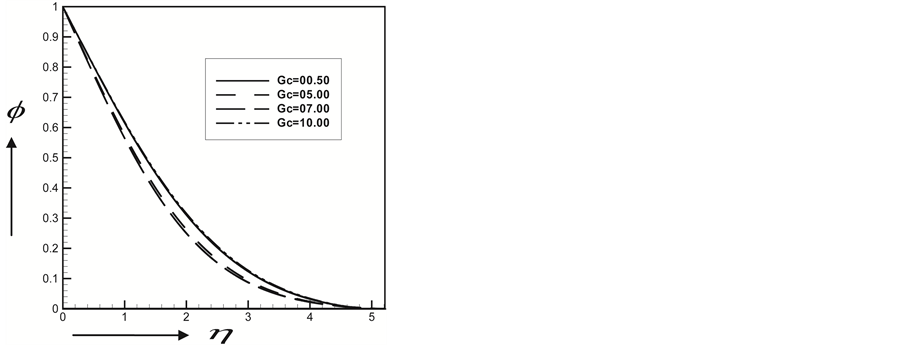

Figure 20. Concentration profile for various values of Gc when A1 = 0.50, A2 = 00.50, Pr = 00.71, Sc = 00.22, Gr = 05.00, K = 0.60.

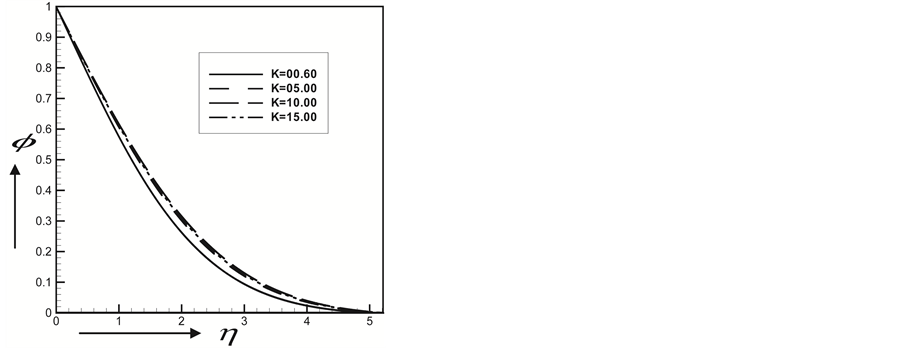

Figure 21. Concentration profile for various values of K when A1 = 0.50, A2 = 0.50, Pr = 00.71, Sc = 00.22 Gr = 05.00, Gc = 05.00.

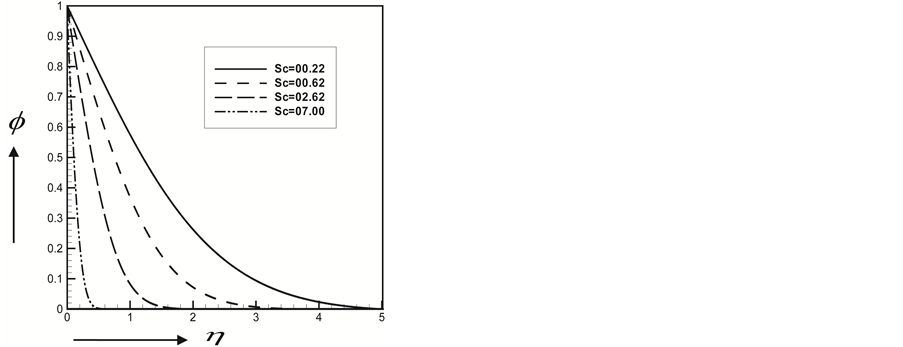

Figure 22. Concentration profile for various values of Sc when A1 = 0.50, A2 = 00.50, Pr = 00.71, Gr = 05.00, Gc = 05.00, K = 0.60.

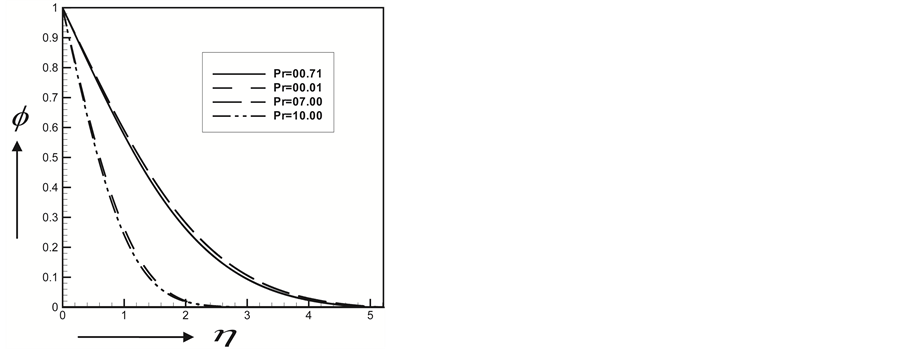

Figure 23. Concentration profile for various values of Pr when A1 = 0.50, A2 = 0.50, Sc = 00.22, Gr = 05.00, Gc = 05.00, K = 00.60.

Table 1. and for different values of A1.

Table 2. and for different values of A2.

Table 3. and for different values of Pr.

Table 4. and for different values of Sc.

Table 5. and for different values of Gr.

Table 6. and for different values of Gc.

Table 7. and for different values of K.

Finally, numerical results are illustrated in Tables 1-7 for the effect of various parameters on the skin-friction co-efficient, Nusselt number and Sherwood number. Table 1 & Table 2 depict that with the increases of the unsteadiness parameters A1 & A2, skin-friction co-efficient decreases while Nusselt number and Sherwood number increases. It is shown in Table 3 that, with the increases of the Prandtl number (Pr), skin-friction co-efficient and Sherwood number decrease while Nusselt number increases. From Table 4, it is observed that with the increases of the Schmidt number (Sc), Skin friction coefficient and Nusselt number decreases while Sherwood number increases. Moreover, Tables 5-7 revel that skin-friction co-efficient increases with the increase of buoyancy forces (Gr and Gc) and decreases with the increases of the permeability parameter (K). It is also seen that Sherwood number increases with an increases of buoyancy forces and decreases with an increases of the permeability parameter (K).

6. Conclusion

In this paper we have studied similarity solutions of unsteady convective boundary layer flow of viscous incompressible fluid along vertical isothermal plate. So far we know, experimental works for the problem are not evaluated ever. We are also expecting that using this solution the present study gives significant result for filling the gap in the existing literature. Numerical calculations are carried out for various values of the dimensionless parameters of the problem. It is concluded that the fluid velocity, temperature and concentration profiles decrease as the unsteadiness parameter increases. Both the Nusselt number and Sherwood number increase whereas Skin friction coefficient decreases with the increasing values of the unsteadiness parameter. The Nusselt number increases as the Prandtl number increases whereas Skin friction coefficient decreases with the increase of the Schmidt number (Sc) and Prandtl number (Pr). It is also revealed that velocity and specie concentration are higher at lower Schmidt number for low Prandtl fluid.
