Aging Effect on Characteristics of Oil Impregnated Insulation Paper for Power Transformers

Loai S. Nasrat1, Nesrine Kassem2, Nadia Shukry2

1Electrical Engineering Department, Faculty of Engineering, South Valley University, Aswan, Egypt

2Cellulose and Paper Department, National Research Center, Cairo, Egypt

Email: loaisaad@yahoo.com

Received September 11, 2012; revised October 10, 2012; accepted October 21, 2012

Keywords: Insulation Paper; Power Transformers; Aging; Breakdown Voltage; Tensile Strength; Water Content

ABSTRACT

This paper deals with experimental investigations of the electrical and physical properties of oil impregnated insulation paper for power transformers at different temperatures. The ac breakdown voltage, tensile strength and water content of insulation papers impregnated in mineral oil for different time periods were investigated. The effect of insulation paper thickness on the electrical and mechanical properties has also been studied. The results showed that the breakdown voltage and the tensile strength decreased with increasing the time of immersion of insulation paper in oil at room temperature, at 5 and at −12◦C. Also, the thermal aging effect on the characteristic of insulation paper has been studied. It was found that high temperatures affect the breakdown voltage and the tensile strength to a great extent.

1. Introduction

Transformers play an important role in providing a reliable and efficient electricity supply and represent the most critical equipments in electric power transmission and distribution systems [1,2]. In the early days, only a few insulation materials were known for low temperature superconducting power applications [3]. Paper was one of the first insulation materials used in high voltage technology [4]. Since winding techniques were common in the cable industry, kraft paper was used in transformers and high capacity cables. The thermal contraction of paper is low enough and elastic elongation at low temperatures is reasonable without leading to mechanical problems. Moreover, paper is very cheap compared to plastic tapes. Recently, other materials have been used in prototypes specifically for large scale high temperature superconductivity (HTS) applications such as transformers [5, 6]. However, paper can still be used in HTS transformers [7].

Oil filled power transformers have a composite liquidsolid insulation structure, where the oil-impregnated papers are used for both mechanical and electrical purposes. Oil impregnated papers gradually age due to thermal stress, moisture and acidity; and their degradation affects the lifetime of the power transformers [8,9].

In this study, the aim is to examine how aging affects the mechanical, electrical and physical characteristics of oil impregnated papers. The study presents experimental results of oil impregnated paper breakdown strength under ac (50 Hz) voltage. Also, physical and mechanical measurements have been investigated namely: moisture content and tensile strength.

2. Experimental

Mineral oil impregnated insulation kraft papers with various thicknesses (0.2, 0.3 and 0.4 mm) have been examined in this study. Two different sets were carried out. In the first set, samples were impregnated in mineral oil for 21, 35, 56 and 77 days at temperatures: 23˚C (Room Temp.), 5˚C and −12˚C. In the second set, the samples were subjected to thermal aging conditions by using an oven. The testing temperatures were controlled and ranged from 110˚C to 170˚C. Three different thermal aging intervals have been selected (48, 72 and 96 hours). Analysis of electrical, mechanical and physical properties of oil impregnated papers was carried out.

2.1. AC Breakdown Voltage of Oil Impregnated Paper

The ac breakdown voltage was measured according to ASTM D 149 using two electrodes which were 25 mm diameter brass cylinder types. A single phase auto transformer having a 5 kVA—100 kV—50 Hz, Terco type HV 9105, has been used. The oil impregnated paper was cut into circular samples with a diameter of 42 mm. For each test, five oil impregnated paper samples were testedand the average value was calculated. The voltage was applied at a rise rate of 2 kV/s until breakdown occurs.

2.2. Water Content of Oil Impregnated Paper [10]

An accurate weight of the air dried sample (W2) is heated at 105˚C till constant weight and then reweighed (W1). The moisture content was calculated using the formula: % Water content = (W2 – W1) × 100/W1.

2.3. Tensile Strength of Oil Impregnated Paper

It is estimated according to the German Standard Method [11] on LLOYD LR 10K instrument. A paper strip of 15 mm wide and 15 cm length was clamped at each end between the two jaws, and an increasing load was applied causing the clamps to move apart until the strip breaks at a certain force. Tensile Strength = Force (N)/Paper thickness × width (mm2).

3. Results and Discussion

In the last decades, dielectric testing techniques are being used and investigated as potential tools for condition assessment of oil-paper insulation. From fields and laboratory investigations, these techniques were found to be highly operating conditions (water content, aging, temperature, etc.) dependent.

3.1. Effect of Low Temperatures on Properties of Oil Impregnated Papers

3.1.1. Effect on AC Breakdown Voltage

The experimental results of ac breakdown voltage for different thicknesses (0.2, 0.3 and 0.4 mm) of oil impregnated papers immersed at various temperatures (RT, 5˚C and −12˚C) up to 77 days are shown in Figures 1-3.

Figure 1 represents the relationship between time of immersing insulation papers (21, 35, 56 and 77 days) with thickness 0.2 mm and breakdown voltages at 23˚C (RT), 5˚C and −12˚C, respectively.

It can be seen from this figure that, as the time of immersed papers in oil increased, the breakdown voltage decreased for all tested temperatures. The value of breakdown of the blank insulation paper is 13.11 kV. The breakdown voltages were 12.14, 11.92, 11.41 and 11.26 kV for times 21, 35, 56 and 77 days, respectively, at room temperature (RT) 23˚C. By decreasing the temperature to 5˚C, the breakdown voltages were 12.31, 12.26, 11.84 and 11.69 kV for times 21, 35, 56 and 77 days, respectively; whereas at −12˚C, the breakdown voltages were 12.64, 12.51, 12.25 and 11.98 kV for the same time intervals.

Figure 2 illustrates the same relationship for impregnating paper having 0.3 mm thickness. The results took the same trend as for samples having 0.2 mm, but with

Figure 1. Breakdown voltage of insulation paper with 0.2 mm thickness immersed in oil at RT, 5˚C and −12˚C.

Figure 2. Breakdown voltage of insulation paper with 0.3 mm thickness immersed in oil at RT, 5˚C and −12˚C.

Figure 3. Breakdown voltage of insulation paper with 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C.

higher values of breakdown voltages. For example, after 21 days, the breakdown voltages were 16.30, 16.81 and 17.12 kV for temperatures RT, 5˚C and −12˚C respectively. After 35 days, the breakdown voltages were 16.2216.70 and 17.06 kV for the same temperatures. Increasing the time to 56 days, the breakdown voltages were 16.04, 16.59 and 16.97 kV for the mentioned temperatures. When the time reached 77 days, the breakdown voltages were 15.55, 16.12 and 16.73 kV. From these results, it can be concluded that, as the temperature decreases from 23˚C (RT) to −12˚C, the breakdown voltage increases for all time periods.

For oil impregnated papers with thickness 0.4 mm, the breakdown voltage against time at RT, 5˚C and −12˚C is plotted in Figure 3.

From this figure, it is clear that the relationship took approximately the same trend, whereas the breakdown voltage was 23.86 kV for the blank specimen. The breakdown voltages were 22, 21.62, 19.82 and 18.31 kV for 21, 35, 56 and 77 days, respectively, at RT. Whereas, at 5˚C the breakdown voltage were 23.22, 22, 20.11 and 19.31 kV for the same time internals. By decreasing the temperature to −12˚C, the breakdown voltages were 23.74, 23.51, 21.39 and 19.88 kV, for 21, 35, 56 and 77 days, respectively. It can therefore be concluded that the breakdown voltage of oil impregnated insulation paper has been affected by thickness of paper, oil temperature and impregnation time.

3.1.2. Effect on Tensile Strength

Paper is essentially cellulose, a linear polysaccharide consisting of many β-D-glucopyranose units linked to each other via (1-4)glycosidic bond to form a polymeric chain. The strength of paper is a result of the oriented linear chains and hydrogen bonding between the chains, which adds to rigidity (Scheme 1). Tensile strength provides a relative indication of the number of intact molecular chains and the degree of hydrogen bonding between the chains. Reduction of tensile strength indicates that scission of these chains has taken place.

The effect of different thicknesses, temperatures and time intervals on tensile strength of oil impregnated paper samples are shown in Figures 4-7. From these figures, it can be seen that the increase of the time of impregnation of samples at RT resulted in a gradual decrease in the tensile strength of paper. The tensile strength decreased by 9.7%, 14.4%, 23.1% and 25% from its original value for samples of 0.2 mm thickness at room temperature for times 21, 35, 56 and 77 days respectively. For samples of 0.3 mm thickness, the decrease was 3.5%, 18.8%, 26.4% and 16.7% from its original value for the same time intervals. The tensile strengths of the samples of 0.4 mm thickness have decreased by 9.6%, 11.1%, 17.8% and 13.3%, respectively for the same time intervals. From the previous values, it can be noticed that when the papers were impregnated for 77 days, they gained a small percentage of the tensile strength may be due to relative decrease in moisture content (will be discussed later).

Scheme 1. Structure of cellulose.

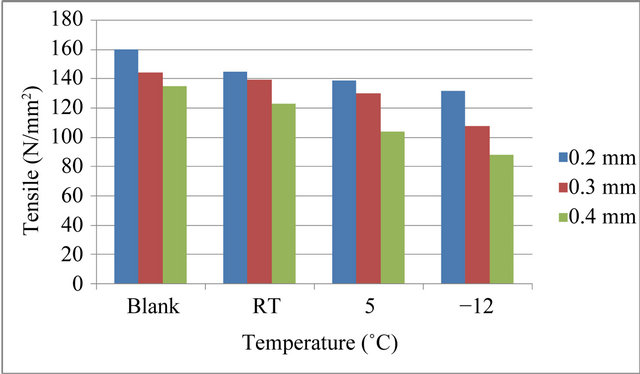

Figure 4. Tensile strength of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 21 days.

Figure 5. Tensile strength of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 35 days.

Also from Figures 4-7, the effect of decreasing the temperature of the impregnation oil is cleared. It can be seen that, as the temperature decreased, the impregnated paper lost a part of its tensile strength.

Figure 6. Tensile strength of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 56 days.

Figure 7. Tensile strength of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 77 days.

The thickness of oil impregnated papers also plays an important role in resisting the impregnation effect. When the impregnation time was short (21 and 35 days), the deterioration of tensile strength was nearly the same for all samples. However, as the impregnation time increased, the higher thicknesses resisted more to degradation. This may be explained that the diffusion of the oil in higher thicknesses is weak and therefore, its effect on the cellulose chains is restricted.

3.1.3. Effect on Water Content

The % water content of oil impregnated papers is shown in Figures 8-11. The principal reactive sites of cellulose are the secondary hydroxyl groups located at positions C-2, C-3 and the primary OH at C-6 [12]. Water migrates to these sites and disrupts the hydrogen bonds between the cellulose molecules, destabilizing the paper matrix. It is well known that moisture moves between the insulation paper and dielectric fluid to reach equilibrium in terms of relative saturation [13,14]. In mineral oil/insulation paper system, the paper which has very low water content (~5%) will absorb water from oil at the beginning in order to keep equilibrium between oil and paper. However, when the oil and the air being relatively drier

Figure 8. Water content of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 21 days.

Figure 9. Water content of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 35 days.

Figure 10. Water content of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 56 days.

than the paper, there is always a migration of water from the paper to the oil and then to the air [15]. This may confirm the result that the water content of paper shows a decline as the water content of paper left for 77 days

Figure 11. Water content of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at RT, 5˚C and −12˚C for 77 days.

showed a decrease, and, accordingly, its tensile strength slightly increased. From Figures 8-11, it is clear that the water absorption decreased as the temperature decreased. This may be due to the higher viscosity of oil at low temperatures, which inhibited its diffusion in the paper. It is also clear that the difference in thicknesses between the insulation papers has almost a negligible effect on water absorption.

3.2. Effect of Thermal Aging Properties of Oil Impregnated Insulation Paper

To examine the ability of insulation paper for withstanding the environmental thermal conditions, all paper specimens were immersed in mineral oil at different temperatures 110˚C, 130˚C, 150˚C and 170˚C for 48, 72 and 96 hours at each temperature.

3.2.1. Effect on AC Breakdown Voltage

Figure 12 shows the effect of increasing the temperatures from 110˚C to 170˚C on the breakdown voltage of oil impregnated insulation papers. The results plotted are those for specimen of insulation paper having 0.4 mm thickness for 96 hr. From this figure, it can be observed that, as the temperature increased, breakdown voltage decreased. Measurement at 170◦C could not be carried out because the paper was separated to small pieces. Breakdown voltages are 13.75, 12.50 and 11.81 kV for thermally aged paper at temperatures 110˚C, 130˚C and 150˚C, respectively.

Aging time plays an important role on breakdown voltage of oil impregnated papers. The relationship between thermal aging times (48, 72 and 96 hr) and breakdown voltages for oil impregnated papers with different thicknesses (0.2, 0.3 and 0.4 mm) at 110˚C is presented in Figure 13.

It can be observed from this figure that, as the aging time increased, breakdown voltage decreased for each

Figure 12. Breakdown voltage versus temperature for 0.4 mm thickness of oil impregnated paper for 96 hr.

Figure 13. Thermal aging times against breakdown voltage of oil impregnated paper with different thicknesses at 110˚C.

paper thickness. Values of breakdown voltage were 8.03, 7.11 and 5.23 kV for times 48, 72 and 96 hr, respectively at 0.2 mm thickness of insulation papers. Values of breakdown voltage were 12.75, 10.83 and 9.43 kV for times 48.72, 96 hr, respectively, at 0.3 mm thickness of insulation papers. Also, values of breakdown voltage were 17.01, 14.75 and 13.75 kV for same times at 0.4 mm thickness of insulation papers. The failure of breakdown voltage for the insulation paper at high aging temperature occurs due to the gradually damage of the cellulose surface, known as creep discharge [1].

Variation of paper thicknesses affected the breakdown voltage behavior at different thermal aging temperatures. Figure 14 shows values of breakdown voltages for various insulation paper thicknesses (0.2, 0.3 and 0.4 mm) at 110˚C, 130˚C and 150˚C after 72 hours. It can be seen that increasing the thickness of insulation paper caused an increase in the breakdown voltage at each temperature. For example, increasing the thickness of paper from 0.2 mm to 0.3 mm and 0.4 mm at 110˚C led to an increase in the breakdown voltages from 7.11 to 10.83 and 14.75 kV respectively, while breakdown voltages were 5.69, 10.01 and 13.31 kV for thicknesses 0.2, 0.3 and 0.4 mm respectively, at 130˚C. Also, breakdown voltages were 4.03, 8.13 and 12.73 kV for insulation paper thickness 0.2, 0.3 and 0.4 mm respectively, at 150˚C. It can be noticed that, increasing the temperature from 110˚C to

Figure 14. Oil impregnated paper thicknesses against breakdown voltage) at various temperatures for 72 hr.

130˚C and 150˚C led to a decrease in the breakdown voltage of all insulation paper thicknesses.

It can therefore be concluded that thermal aging drastically affected the electrical performance of oil impregnated papers. Breakdown voltage of oil impregnated insulation paper decreased with aging time, which may be due to the degradation of paper [9].

3.2.2. Effect on Tensile Strength

Figures 15 and 16 show the effect of thermal aging on tensile strength of oil impregnated papers. It is clear that the increase in temperature caused a decrease in the tensile strength for all samples. High temperature led to cellulose degradation which consequently destroyed the interfibre bonding [16] and caused loss of mechanical properties. It is noticed also that the thickness of the paper has a negligible effect on the resistance of tensile strength to high temperatures. Moreover, it is clear that the deterioration in tensile strength slightly increased as the time of impregnation increased. Also, the temperature of the impregnation oil has a great effect on the tensile strength of paper. Impregnating the samples at 110◦C for 48, 72 & 96 hr resulted in a loss of 26.25%, 35% and 39% respectively of its original value. At 130◦C, the loss was 28.25%, 37.5% and 40% from its original value. It must be mentioned that higher temperatures were used (150◦C and 170◦C) for different times, but in all cases, the resulting paper was too brittle to be tested, which means that the insulation paper reached end-of-life.

3.2.3. Effect on Water Content

Figures 17 and 18 show the effect of high temperatures (110˚C and 130˚C) on the water content of oil impregnated insulation paper. It is clear that, for all samples, the water content increased by increasing the oil temperature. However, the water absorption at 110˚C was higher than that at 130˚C. It can also be seen that the effect of the paper thickness on water content may be neglected. Figures 17 and 18 also show that the water content increased by increasing the time of impregnation from 48

Figure 15. Tensile strength of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at 110˚C for different times.

Figure 16. Tensile strength of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at 130˚C for different times.

Figure 17. Water content of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at 110˚C for different times.

to 72 and 96 hr.

4. Conclusions

This study has focused on the electrical and physical properties of oil impregnated insulation paper under different aging conditions. The results can be summarized as follows:

Figure 18. Water content of insulation paper with 0.2, 0.3 and 0.4 mm thickness immersed in oil at 130˚C for different times.

1) AC breakdown voltage of insulation paper used for power transformers slightly increased at low temperature.

2) Thermal aging at 110˚C, 130˚C and 150˚C drastically affected the electrical and mechanical performances of mineral oil impregnated papers. Breakdown voltage decreased by 14.11% for 0.4 mm thickness of paper insulation, when temperature increased from 110˚C to 150˚C.

3) Thickness of insulation paper (0.2, 0.3 and 0.4 mm) played an important role on the electrical characteristics of oil impregnated papers.

4) Tensile strength resisted to a certain extent to impregnation of paper for long times at low temperatures, but it is very much affected by high temperatures. At 130˚C, the loss in tensile strength was 28.25˚C, 37.5˚C and 40% from its original value for 48, 72 and 96 hours, respectively.

5) Water content is an effective parameter in studying the mechanical properties of insulation paper. It is inversely proportional to the tensile strength.
