Petrology and Geodynamic Context of Metabasic Rocks of Nemba Complex in the West Congo Fold Belt (Republic of Congo)

Louis Marie Joachim Djama1, Ulrich Verne Matiaba Bazika1,2, Florent Boudzoumou1,2*, Kinga Mouzeo1

1Université Marien Ngouabi, Département de Géologie, Brazzaville, Congo

2Institut de Recherches en Sciences Exactes et Naturelles (IRSEN), Avenue de l’Auberge de Gascogne, Cité Scientifique, (Ex-ORSTOM), Château d’Eau, Brazzaville, Congo

Copyright © 2017 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: October 20, 2017; Accepted: January 9, 2018; Published: January 12, 2018


The West Congo belt contains Paleoproterozoic and Neoproterozoic Units which are deformed during Panafrican event. The Neoproterozoic Unit contains rift and post rift deposits. The rift formation is made of metabasite, volcanic and volcano-sedimentary rocks. The metabasite constitutes the Nemba Complex which is considered put into place in a continental or oceanic context. Samples from Nemba Complex collected along the “Congo ocean railway realignment” are analyzed. Major elements indicate a low potassic subalkaline affinity of the samples. Classification diagrams based of major elements shows that the rocks are a tholeiitic serie constituted of andesitic basalts, sub-alkaline andesitic basalts and a sub-alkaline to alkaline basalts. Some samples with a calc-alkaline signature indicate a crustal contamination. The traces elements plots indicate that the rocks are the MORB. The spectrum of multi-elements is characteristic of continental rocks with a lithospheric origin. This is an agreement with many works on the Nemba Complex and the alkali plutons and acid volcanic rocks associated which attribute there a rift context.


West Congo, Neoproterozoic, Tholeiite, Andesitic Basalts, Basalts, MORB, Continental Rocks

1. Introduction

The west Congo belt (Figure 1) outcrops along the Atlantic eastern margin from South Gabon to the North Angola around 1400 km in length and 150 to 300 km

Figure 1. Main structural units of the West Congo modified after Boudzoumou and Trompette (1988), Affaton et al., 2015; Fullgraf et al., 2015. The inset in the upper right-hand corner illustrates the location of the Araçuai-West Congo orogen in Africa and South America.

in width. It represents the east part of the Araçuài-West Congo (A-WCO) belt. The west Congo belt is made of Paleoproterozoic and Neoproterozoic units deformed during Panafrican event. The Neoproterozoic formations are considered put into place, there is 1000 Ma, during the Rodinia breakup and deformed during Panafrican orogenesis [1] [2] [3] .

The Araçùai belt includes arc magmatic type, syn to post collisional granites and a suture oceanic zone. Paleoproterozoic units of the west Congo belt are represented by Guéna formation and Loukoula and Bikossi groups [4] [5] called Premayombian Group [5] . It included granitoid and metasedimentary rocks reactive during Panafrican orogenic event. Neoproterozoic is made of rift and post rift deposits represented from bottom to top by Sounda Group (Nemba Complex, Kakamoeka Subgroup, Mvouti Subgroup) and Mayombe Group (Moussouva Subgroup, Lower Tillite formation and Louila Subgroup) [5] .

The Nemba Complex and Kakamoeka Subgroup contain magmatic rocks which are used to determine the geodynamic context of the West Congo fold belt. The Nemba Complex is made of metabasite which is considered put into place in continental context [5] [6] [7] [8] [9] or in oceanic context [10] . For [10] , the Nemba Complex is an ophiolite witness and the west Congo fold belt is a collisional belt which take place at around 1000 Ma. For [5] [6] [7] [8] [9] , there is no evidence of oceanic suture and chemical analyses from Nemba Complex and its equivalent in RDC and Gabon, shows that rocks are continental tholeiite. These basic rocks and the acid rocks of Kakamoeka Subgroup and Neoproterozoic plutonic rocks associated are the witness of rifting stage.

In this study, we presented geochemistry data gotten on meta-basic rocks of Nemba Complex outcropping along the “Congo ocean railway realignment”, between Pk 12 and Pk 13 from Nkougni to Dolisie town. Data gotten are showing that metabasite of Nemba Complex are a tholeiite which take place in continental context.

2. Geological Setting of the Mayombe

The geology of the Mayombe fold belt is made of added Paleoproterozoic and Neoproterozoic units.

The Paleoproterozoic is represented by Loémé Unit (or Guéna) in Congo, Kimezian Unit in DRC and Loukoula and Bikossi Groups. The Loémé Unit is made of tonalitic gneiss containing locally xenoliths of biotite gneiss and cross cutting by granitoids. The tonalitic gneiss are dated between 2129 ± 68 Ma and 1920 ± 10 Ma [4] [5] [11] [12] [13] .

The Paleoproterozoic granitoids were dated between 2129 ± 68 Ma and 1952 ± 77 Ma [4] [14] [15] [16] [17] . The Loukoula Group is made of biotite paragneiss, orthogneiss, magnetite micaschists, schists, amphibolites and quartzites intruded locally by granitoids and dolerite. The zircon of paragneiss yield paleoproterozoic age [4] [5] . The Saras granodiorite which intrude the Loukoula Group is dated at 2000 ± 80 Ma by U/Pb on Zircon methods [13] and 1920 ± 10 Ma by Pb/Pb single zircon methods [18] . The Bikossi Group is made of quartzite rich on magnetite and muscovite, locally conglomeratic at the lower part and micaschists, garnet schists and amphibolites in the upper part [8] [10] [19] [20] . Zircon of quartzite yielded age between 2200 Ma and 2000 Ma [4] [5] . The amphibolites whose some are described like metagabbro are considered by [5] as the syn-rift witness of Neoproterozoic age [SHRIMP age of 915 ± 8 Ma gotten from meta-gabbro zircon by [5] and are dissociated of Bikossi Group and attached in the lower part of Sounda Group of Fullgraf et al. (2015, [5] ).

The Neoproterozoic consist of aulacogen type formation [8] [21] or rift and passive margin [5] . The rift formations are represented by Sounda Group containing from bottom to top, the Nemba Complex, the Kakamoeka and Mvouti Subgroups [5] . The Nemba Complex consists of metagabbros, metabasalts, amphibolites, and green schists. The Kakamoeka Subgroup is made of volcanic and volcano-sedimentary rocks (conglomerates, quartzites, graphitic schists, ignimbrites, rhyolites, tuffs, metabasic rocks) whose equivalent is dated in DRC between 920 ± 8 Ma and 917 ± 14 Ma [7] . TheMvouti Subgroup is constituted by black schists, chlorito-schists, quartzites, meta-arkoses and meta-sandstones.The post rift is represented by the Mayombe Group which contains the Moussouva Subgroup, the lower Tillite Formation and the Louila Subgroup. The Moussouva Subgroup is made of quartzites and schists. The lower Tillite is a glaciogenic formation with a black calcareous shale matrix and a doleritic sills intercalations in DRC. The Louila Subgroup contains meta-gres locally conglomeratic, quartzites, quartzo-schists and schists with intercalation of limestones and calcshists [8] [19] [22] [23] . The whole formation is intruded in the western domain by rifting contemporaneous granites (Mfoubou and Mont Kanda granites in Congo and Noqui granite in Democratic Republic of Congo).

The paleoproterozoic formations are deformed by eburnean phase generating a fold oriented NE-SW [8] [13] [20] which are reactive during the Panafrican orogenic events (West-Congolian) building a D1 and D2 folds oriented NW-SE associated respectively by cleavage (S1) verging to the NE and crenulation cleavage (S2) often straighten and without clear verging [20] [21] [24] . A third tardy-orogenic phase characterized by a second crenulation cleavage (S3) oriented NE-SW folding a D1 and D2 structures is described in the Loémé Formation (or Guéna Subgroup) [8] [21] . In the Mayombe, deformation is also accompanied by thrust pulling the formation of internal domain stacked upon the formation of the external domain. The intensity of deformation decreases from SW (internal domain) to the NE of the belt (external domain).

The metamorphism is an amphibolite facies grade in the internal domain. It decreases to the NE where it becomes greenschist facies grade in the external domain and anchizone facies grade near the adjoining Niari basin.

3. Sampling

21 samples are collected along the “Congo ocean railway realignment”, between the Pk 12 and Pk 13 from Nkougni to Dolisie town. In this area outcrops largely the Nemba Complex formation with intercalation in small part of Loukoula Subgroup.

The Nemba Complex formation is essentially made of amphibolites and greenschists (Figures 2(a)-(c)). The amphibolites are in massive hard beds and the greenschists are strongly cleavage. Locally the two facies contains veins filled by quartz or calcite. The associated fold are long flank and short flank and a slight NE verging. The whole rocks shown a crenulation cleavage (S2) strongly straightens. The quartzo-schists (Figure 2(d)) are essentially made of quartzo-feldspathic levels alternating with wealthy muscovite levels. The shows also a

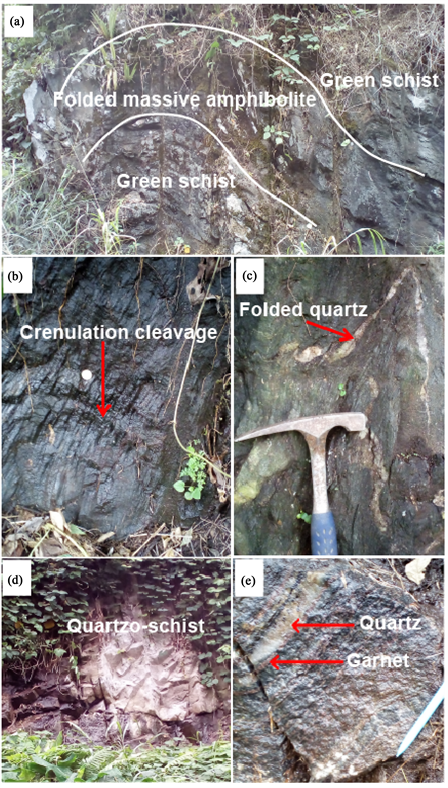

Figure 2. Outcrops of basic Nemba Complex formation and Loukoula quartzo-schist along the “Congo ocean railway realignment”: (a)-(c) metabasite rocks; (d) quartzo-schist; (e) migmatite bearing garnet.

crenulation cleavage (S2) oriented N162˚-88˚ toward the SW and N160˚-77˚ toward the NE.

Locally between the Nemba Complex formation and the quartzo-schists is measured an inverse fault with direction of N156˚-25˚ toward to the SW. A migmatite bearing garnet on centimetric layer (Figure 2(e)) has been also observed on place.

4. Analytical Procedures

Geochemical analyses of major, trace and rare earth elements were done to evaluate the petrogenesis of rocks. Major, trace and REE elements were determined after powdered samples in fusion with LiBO2 and dilute by HNO3 and performed by inductively coupled plasma-mass spectrometry (ICP-MS) and inductively coupled plasma atomic emission spectrometry (ICP-AES) in the “Centre de Recherches Pétrographique et Géochimique” (CRPG) of Nancy, France.

5. Results

5.1. Microscopic Description

Samples of Nemba Complex show lepidoblastic, lepido-granoblastic and grano-lepidoblastic texture.

The amphibolites (Figures 3(a)-(c)) contain green hornblende, biotite,

Figure 3. Photomicrographs of basic rocks of Nemba Complex formation and quartzo-schist of Loukoula Group: (a) sample NE11, basalt showing biotite, amphibole, plagioclase and epidote; (b) sample N20, andesitic basalt showing chlorite substitute amphibole in some case; (c) samples NE21, andesitic basalt containing accessory calcite; (d) Sample N22, quartzo-schist with quartz, feldspar, muscovite and accessory calcite. Am―Amphibolite, Bi―Biotite, C―Calcite, Ep―Epidote, Mu―Muscovite, P―Plagioclase, Q―Quartz.

chlorite, epidote, K-feldspar, plagioclase and accessory quartz, calcite, sulphide and opaque mineral in some samples. Chlorite often replaces the biotite. In the sample with crenulation cleavage, chlorite flats occupy S2 cleavage which cut the amphibole. In some samples the core of k-feldspar displays a damourite alteration. Quartz, plagioclases and calcite crystallize also in the fissure and the shadow pressure developed in the rock. The will characterize a probable circulation zone of hydrothermal fluids. The greenschists contain chlorite, biotite, epidote, quartz, plagioclase and accessory amphibole, calcite, apatite, zircon, and pyrite. Like the amphibolite, quartz, feldspars and accessory the calcite occurs in the fissures and the shadow pressure. The quartzo-schists (or paragneiss) bear a granoblastic texture (Figure 3(d)). They contain quartz, muscovite, biotite, plagioclases and accessory epidote and calcite.

5.2. Geochemistry and Petrographic Classification

Representative analyses are given in Table 1.

Table 1. Major and trace elements analysis.

5.2.1. Major Elements

Major elements (Table 1) give value SiO2 (40.25% - 57.71%), Al2O3 (11.13% - 18.19%), MgO (2.66% - 9.37%), CaO (7.3% - 20.02%), Na2O (0.39% - 4.44%) and TiO2 (0.61% - 2.42%). The LOI values (0.57 - 2.83) are low to medium and rendered a partially to medium weathering which could lead a secondary hydration of minerals. SiO2, MgO contents and total alkalinity (0.31- 4.44) displays a low-K sub alkaline affinity. These rocks rich in Al2O3 and CaO and lightly poor in TiO2 show a character of orogenic lavas [25] . The classification diagram based on major elements [26] [27] [28] plots the rocks in tholeiitic serie (Figures 4(a)-(c)).

The tholeiitic series is constituted of andesitic basalts (NE 16, 17, 21, 26, 27, 31, 3518, 19, 20, 25, 30, 32, 34) certain of high-Ti (NE 26, 27, 34, 35), a sub-alkaline andesitic basalts (NE 15,33) and sub-alkaline to alkaline basalts (NE 10,11, 12, 13, 14), certain of high Mg (NE 11,13,14). The Harker diagram (Figure 5) of major elements shows a dispersion data with weak correlation coefficient. The K2O vs. MgO displays a linear correlation in the majority of the samples [except

Figure 4. Geochemical characterization of Nemba samples: (a) (FeOt + TiO2) − Al2O3 − MgO diagram de Jensen (1976); (b) K2O vs. SiO2 diagram de Peccerillo and Taylor (1976); (c) Na2O + K2O vs. SiO2 diagram de Tas (Cox et al., 1979).

Figure 5. Harker diagrams of some major elements of Nemba Complex showing dispersal elements.

the NE 34 which is richer in K2O (1.49%)]. The Na2O vs. MgO shows a positive correlation in the rocks with a tholeiitic signature although rocks with calc-alkaline signature don’t indicate any correlation. The CaO vs. MgO display a negative correlation. The others major elements like the SiO2, Al2O3, MnO, TiO2 and P2O5 vs. MgO displays a dispersal data with a weak coefficient of correlation.

5.2.2. Traces Elements

Trace elements diagram Zr/TiO2 vs. Nb/Y from [29] displays a predominance of the rocks in the basalt/andesite domain and the minority of rocks in the sub-alkali basalts domain (Figure 6). Ti vs. Zr diagram of [30] plots the samples in MORB (NE 10, 11, 12, 13, 27, 30, 31, 32), Island Arc lavas (NE 14, 15, 16, 17, 18, 19, 20, 21, 25, 34), and intraplate (NE 26, 33, 35) domains (Figure 7(a)). The Th/Yb vs. Nb/Yb diagram of [31] plots some samples in the EMORB domain while the major part is situated above this domain with a weak dispersion (Figure 7(b)). Any sample fall in the N-MORB and OIB-MORB. Compatible trace elements like Co, Cr shows a positive correlation with the MgO, while the Ni didn’t show any correlation. The mobile incompatible elements, Rb, Sr and Ce don’t show any significant tendency. On the other hand, Ba vs. MgO show a Ʃpositive correlation. Immobile incompatible elements, Nb, Zr, Nd, Th, Y and Hf presents one majority group with a weakly concentration and a group of tree samples with a high concentration. REE normalized to chondrites [32] displays sample enriched relative to LREE/HREE ((La/Yb)N : 3.57 - 7.49) with a majority group weakly poor in HREE and accompanied of Eu positive anomaly (except NE 34 which contains Eu negative anomaly) and a group of tree samples(NE 26, 33, 35) showing higher REE (ƩREE = 149 - 183) concentration and contains Eu negative anomaly (Figure 8(a)). Spectrum of multi-elements normalized at primitive mantle of [33] shows also the bimodal comportment of samples with

Figure 6. Zr/TiO2 vs. Nb/Y diagram of Winchester and Floyd (1977) showing a majority samples in the andesite/basalt and a few samples in subalkaline basalt.

Figure 7. Plotted samples in discrimination diagrams; (a) Ti vs. Zr of Pearce (1982) showing a distribution of samples in Island Arc Lavas, MORB and Within Plate Lavas; (b) Th /Yb vs. Nb/Yb of Pearce (2008) displaying a distribution in the E-MORB domain and in the top in arc array Volcanic domain.

the majority group which possess a Ba, Pb, Sr positive anomalies and Rb, Zr, Ti, Nb-Ta negative anomalies, except tree samples (NE 11-13) which shows a Pb and Sr negative anomalies and Ti positive anomaly, and the minor group (NE 26, 33, 35) with a positive anomalies in Th and La and a negative anomalies in Nb-Ta, Sr, except NE 26 which show a Sr positive anomaly (Figure 8(b)).

6. Discussion

The studied basic samples come from the Nemba Complex now considered synrift Neoproterozoic formation dated at 915 ± 8 Ma age SHRIMP gotten from meta-gabbro zircon, [5] and associated with volcanic (rhyolite) and volcano sedimentary rocks of Kakamoeka Subgroup whose equivalent called Mayumbian Group is dated in DRC between 920 ± 8 Ma and 917 ± 14 Ma [7] .

6.1. Petrogenesis

6.1.1. Magmatic Signature

Major elements data (Table 1) shows a low potassic subalkaline affinity of the samples. [26] [29] diagrams (Figure 4) plots samples in their majority in tholeiite domain. These rocks are andesitic basalts and sub-alkaline basalts. [5] describes basalts of Nemba like sub-alkaline tholeiite.

6.1.2. Crustal Contamination

The LOI data of the geochemistry analysis are low to medium and shows that rocks are a weak weathering. Nevertheless the rocks contain a vein filled by quartz, feldspar and calcite which could characterize a hydrothermal weathering in relation to the deformation. This possibility is showing by the little migmatite zone seen on the outcrop (Figure 2(e)). Just has, geochemistry diagrams of studied meta-basalts displays a possible contamination of magmas by post-magmatic process.


Figure 8. Spectrum of Rare Earth elements of Nemba Complex: a) normalized to chondrites of Nakamura (1974); b) normalized to the primitive mantle of McDonough and Sun (1995).

Precambrian meta-basalts are supposed to be products by magma from the enriched mantle, modified by the crustal contamination [34] [35] [36] . The basic rocks affected by the crustal contamination during subduction process may have negative anomalies in Nb-Ta and a positive anomaly in Sr with a spectrum of enriched LREE [37] [38] [39] [40] . This is the case of Nemba meta-basalts which displays negatives anomalies in Nb-Ta, Ti and positives anomalies in Sr and Ba which point out the possibility of crustal contamination. This hypothesis is confirmed in Nb/Yb vs Th/Yb diagram of [31] (Figure 7(b)) which shows a weak dispersion of samples. Here samples are distributed between Arc volcanic and MORB domains and follow a tendency which indicate the crustal contamination (CA). This modification could be owned to the metasomatism of the mantle by process linked to subduction event. The contamination is also revealed by hydrothermal weathering characterized by the presence of fluids deposited quartz, feldspar and calcite in the vein crosscutting the rocks. Hydrothermal weathering is also described by [5] in the Nemba Complex. We can conclude that Nemba basalts are derived from primitive mantle (PM).

The spectrum of normalized multi-elements at primitive mantle of [33] displays (Figure 8(b)) a melting of enriched crustal component on showing negative anomalies in Nb-Ta and Ti and positive anomalies in Ba and Sr, typical of continental rocks. Impoverishment is high pronounced in the basic andesite. Tholeiite samples mark a difference with the calc-alkaline samples by the lower concentration in Th rendering the evolution from tholeiitic tendency to calc-alkaline tendency. The spectrum of multi-elements is characteristic of continental rocks with a lithospheric origin and is in agreement with a filiation of tholeiitic/calc-alkaline transition.

6.2. Geodynamic context

The Zr vs. Ti diagram of [30] displays that a majority of samples plots in the Arc Island lavas and MORB (Figure 7(a)). Tree samples are situated in the Within-Plate lavas. The meta-basalts with low-Ti are produced in intra-cratonic environment and the meta-basalts with high Ti are alimented by melting produced in the modified mantle in subduction across the oceanic crust [34] . [41] shows that active continental margin is characterized by basic rocks with high concentration in K, Sr, Ba, HFSE. The samples of calc-alkaline group displays a high concentration in K, Sr, Ba and HFSE which suggest that they are take place in active continental margin. The geochemistry characteristic of Nemba meta-basalts point out that the region source has been modified by the implicate process in the lithospheric plate. This modification may be produced by the métasomatose of the mantle by the process linked at the subduction. In the active continental margins, the magma exchanges from the tholeiite to calc-alkaline and alkaline compositions in the fosse [41] [42] [43] .

A similar picture is observed for the Nemba meta-basalts where the samples show tholeiite and calc-alkaline association. The Nemba meta-basalts could be supplied by a partial melting of sources enriched of Mantle with a crustal contamination of magma sources. Basalts and andesitic basalts of Nemba may be considered links to subduction type event with a contamination of the crust of Arc insular type. [5] suggests the assimilation of crustal component made of rocks associated with an insular arc build during eburnean event or anterior events. However, different works on the Nemba Complex and the magmatic associated rocks (alkali plutons and acid volcanic rocks) attribute there a rift context [5] [7] [11] [12] [44] although [10] have interpreted the basic rocks of Nemba like oceanic suture of the Mayombe belt. In Gabon, the equivalent of Nemba Complex is considered like MORB in mantle become poorer [45] . In DRC, basaltic sequence of Gangila of Zadinian Group dated between 930 Ma and 920 Ma is described like flood continental basalt put into place in rift context [6] . In Brazil, in Araçuài belt, the time between 920 Ma and 900 Ma will correspond to the development of continental rift in which were take place basalts of Macaùbas and Dom Silvério [46] .

Data presented in this study shows that the majority of samples from Nemba situated between Pk12 and Pk13 have tholeiite signature and a few samples havecalc-alkaline signature but both have continental affinity. Isotopic data are necessary to complete chemical study in Nemba Complex to solve the geodynamic context of the west Congo fold belt.

7. Conclusion

The studied Nemba meta-basalts display a geochemistry composition in tholeiite majority. The evolution of the trace and rare earth elements shows a put into place in subduction context with a contamination by lithospheric crust of Insular Arc type. However, the association of the basic Nemba Complex with the plutonic rocks (Mfoubou and Mt Kanda granites) and effusive rocks (rhyolite and pyroclastic) of Kakamoeka Subgroup suggest the put into place in rift context. This assumption is in agreement with data gotten in the whole Araçuài-West Congo (A-WCO) belt.
