Nanoparticles of In2O3/SnO2 (90/10) and (80/20) at Two Different Proportions and Its Properties

Abbas Ayeshamariam1*, Vinodh Sundar Vidhya2, Thangavel Sivakumar3, Ramasamy Mahendran4, Ramasamy Perumalsamy5, Nallasamy Sethupathy6, Muthurulandi Jayachandran7

1Department of Physics, Khadir Mohideen College, Adirampattinam, India

2Department of Chemistry, Chendhuran College of Engineering and Technology, Pudukottai, India

3Department of Electronics, RVS College of Arts and Science, Sulur, Coimbatore, India

4Department of Electronics, Government Arts College, Kulithalai, India

5Department of Physics, Sir Theagaraya College Higher Secondary School, Chennai, India

6Department of Physics, Arignar Anna Government Arts College, Namakkal, India

7Electro Chemical Material Science Division, (CSIR) Central Electro Chemical Research Institute, Karaikudi, India

Email: *,

Copyright © 2013 Abbas Ayeshamariam et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received March 25, 2013; revised April 25, 2013; accepted May 3, 2013

Keywords: XRD; UV-Vis-NIR; Photoluminescence and SEM


ITO nanoparticles were obtained by combustion reaction of urea as fuel. The gel form structures were fired at 350˚C in furnace for 20 min to yield powdery products and these products were calcined to five different temperatures from 100˚C to 500˚C for an hour to yield ITO powders. From the scanning electron microscopy (SEM) photographs and particle size analysis the average sizes of the cubic particle of powders are found to be less than 15 nm and less than 20 nm respectively. The ratio of doping concentration In/Sn is 90/10 and 80/20. The X-ray diffraction (XRD) data were evaluated by Scherer equation for the estimation of the average crystal size of the powders (less than 20 nm) for 90/10 and (less than 25 nm) for 80/20. The synthesized ITO powder characterized by XRD, UV-Vis-NIR and PL shows high specific surface area and possesses small primary crystallite size and good optical band gap.

1. Introduction

Tin-doped indium oxide (ITO) nanoparticles and nano thin films are being extensively prepared because of the useful properties they could have, such as a low resistivity, transparency in the visible region of the electromagnetic spectrum and high infrared reflectivity. ITO has a cubic structure, characteristics of semiconductors, and is used in automobile measuring instruments, surface acoustic devices, optoelectronic devices and solar cells [1]. Nanoscale particles possess different physical and chemical properties compared to bulk materials. Nowadays, many methods are generally being used to obtain nanosized oxide powders, and combustion method is one of them. ITO is recently used for various optical coatings, most notably infrared-reflecting coatings for automotive, and sodium vapor lamp glasses. Also its uses include gas sensors, antireflection coatings and electro-wetting on dielectrics.

S. Deki et al. reported the liquid-phase methods include liquid phase precipitation, hydrothermal (high temperature hydrolysis), Sol-gel (colloidal chemistry), radiation chemical synthesis, and so forth [2]. A. Nakata et al. reported about the ITO nanoparticles, which will be used in spray coating of ITO thin film, are prepared by liquid-phase co-precipitation with indiumchloride and tin chloride as main raw material [3]. A. Soliman et al. reported that ITO films prepared by sol-gel technique present are latively high resistance. The reasons for the lowconductivity of sol-gel processed ITO films may result from their considerable porosity even after sintering at a high temperature [4]. The aim of this study was to see the effect of the heat treatment conditions in air atmospheres and the structural, optical properties of ITO particles.

2. Experimental

The starting materials for In2O3-SnO2 powder were prepared with indium in (NO3)2·3H2O, ingots (>99.9%, Sisco research laboratory) and Sn(NO3)2·2H2O (98% LobaChemie). A stock solution of indium in (NO3)2·2H2O, ingots (>99.9%, Sisco research laboratory) and Sn(NO3)2·3H2O (98% LobaChemie) was prepared by dissolving shredded indium and tin ingots in concentrated nitric acid (35.4% AR, sd fine chem.) so as to obtain a concentration of 0.48 M In3+. For the preparation of 90:10 and 80/20 In/Sn oxide powders, a calculated quantity of In (NO3)2·2H2O and Sn(NO3)2·3H2O was dissolved in the required amount of water. The resulting mixed solution was added to (CO (NH2)2) (AR, sd fine chem.). The volume ratio of the mixed salt solution/organic solvent was 9:1 and 8:2. This precursor was aged under a room temperature for 24 hrs. Precipitation as a mixed hydrous oxide was effected at a pH of 8 - 9 with the addition of urea as reducing agent. The solution was heated under constant stirring at a temperature of about 100˚C in a Pyrex vessel on a hot plate. Then the concentration of the solution slowly became higher. Eventually a gel form precursors are formed, when the temperature of the hot plate was raised to about 100˚C, the precursor underwent a strong self sustaining combustion reaction with evolution of gases in a large volume and swelled into voluminous and foamy ashes. The resulting ashes were then fired at a temperature higher than 350˚C until complete decomposition of the residues was achieved. The above procedure was repeated for 80/20 ratio of different experimental conditions. The dried powders were calcined at various temperatures 100˚C, 200˚C, 300˚C, 400˚C and 500˚C for 1 h to examine the crystallization behaviour.

2.1. Mode of Synthesis

The Combustion method is a useful technique that has been shown to be good preparation route for ITO nanopowders. It is based on exothermic and usually very rapid chemical reaction between metal nitrates as an oxidizer and an organic fuel, such as Urea, glycine and so on. A key feature of the method is that heat is required to maintain the chemical reaction supplied from the reaction itself that is not from an external source but from an internal one. Therefore to achieve an optimized combustion reaction condition, many chemical reaction parameters must be considered. Among these, the main parameters which influence the reaction include, type of fuel to oxidizer ratio, uses of excess oxidizer ignition temperature, and water content of the precursor mixture, [5] among known fuels we used the urea which had the versatility of Combustion synthesis methods by showing successful preparation of a large number of well crystallized multicomponent oxides. In this study, the amount of urea was fixed at 24 g/mol. The ratio 90:10, 80:20 was taken in a Pyrex vessel and this ratio was mixed with pure water. The solution was heated under constant stirring at a temperature of about 100˚C in a Pyrex vessel on a hot plate. Then the concentration of the solution slowly became higher. Now the vessel was placed in a furnace and the temperature was raised to about 350˚C, the precursor underwent a strong, self sustaining Combustion reaction with evolution of gases in a large volume and swelled into voluminous and foamy ashes. The entire combustion process ended in a few seconds. The resulting ashes were then fired at a temperature higher than 350˚C until complete decomposition of the residues was achieved. Stoichiometric amounts of the starting material were thoroughly stirred.

According to cooper et al., we can define the oxygen Balance OB of the reaction


AW = Atomic weight of oxygen FW = Formula weight of the mixture gO2 = Molar number of oxygen The modes of combustion for preparing ITO in this present study is fuel-lean regime smoldering Combustion Synthesis (SCS) taken place, an excess amount o oxygen in the reactant mixture is present and stifled the reaction. This mode is characterized by slow and flameless reaction. SCS used all over the world to prepare oxide materials for a variety of application. An oxide material prepared by rapidly heating aqueous solutions containing stoichiometric amounts of respective metal nitrate (oxidize) and fuels like urea. Source of carbon (C) and hydrogen (H) on combustion form CO2 and H2O and liberate heat.

ITO particle were synthesized by the modified combustion of aqueous solutions containing stoichiometric amounts of the corresponding metal (Indium and tin) nitrates with fuel CH2(NO)∙CH2 urea. The precursors have been introduced in such quantities insuring the right stoichiometry is obtained after combustion. We can calculate the numerical coefficients corresponding to a stoichiometric reaction from the total oxidizing and reducing valences of the reactants. Trivalent and divalent metals and the elements C, H, O have respectively valences of +3, +2, +4, +1 and −2. Since during the combustion reaction, a conversion of nitrate in molecular nitrogen takes place, nitrogen is considered to have a valency of zero.

According to this analysis, the total oxidizing valency of In(NO3)3·3H2O is (−15) and Sn(NO3)2·2H2O is (−8) and Urea (+6). The molar number y can be calculated using the ratio of combustible/oxidant ratio. In order to obtain one mole of tin nitrate 2 moles of Indium nitrate y moles of fuel are then added.

y = Total valences of element in the fuel/Total valences of elements in nitrates


Adiabatic flame temperature Tf of the combustion reaction is


ΔHf = Enthalpy of formation of the products or the reactants respectively.

Cp = Heat capacity of the products at constant pressure and at 298 K.

g = Molar number. The flame temperature was calculated as 855 K.

This formula shows that the flame temperature not only depends on the nature of the fuel but also on the fuel to nitrate ratio (depending on the value of y).

When the reaction occurs, it is well known that the measured flame temperature is much lower than the calculated one because of non-adiabatic conditions (heat loss in ambient air).

Use of suitable raw material in combustion synthesis ensures stability of the chemical composition and high quality of products. This work has done with (NH2∙ CONH2) urea as fuel its Combustion heat (−2.98 kcal/g) [6]. Indium nitrate and tin nitrate are utilized in this study because of its dual role of being the Indium and tin as source and the oxidant. ITO product and gases of CO2, H2O and N2 can be formed directly from the reaction between fuel and oxidizer without the necessity of getting oxygen from outside.

2.2. Physical Characterization of the Powders

Thermal characteristics of the precursor material were studied on a Netzsch TG/DTA (409˚C) unit at a heating rate of 10˚C/min. The visible transmission was recorded on a Hitachi S3400NSpectro Photometer. The calcined powders were further characterized by particle size analysis (Autosizer IIC Malvern) and powder X-ray diffraction (XRD) X-ray diffractometer (XRD) with monochromation CuKα target (1.5406 A˚) at a scan rate of 2˚/min. Unit cell parameter was calculated from the observed “d”-spacing, which was accurately measured with the help of silicon as an internal standard. Varian Cary Eclipse spectrophotometer employing 15 W Xe flash lamp was used for the photoluminescence studies. The transmittances and band gaps of the ITOs were measuredby using an UV visible spectrometer.

3. Results and Discussion

3.1. TGA and DTA Analysis

There is an endothermic peak at 105.51˚C corresponding to the evaporation of OH. There is an endothermic peak at 191.8˚C, too which is shown in Figures 1 and 2. This is due to the existence of organic solvent CO, OH desorption. The exothermic peak at 201.38˚C is heat release by decomposition of organic substance. There is an endothermic peak at 461.47˚C corresponding to decomposition of indium and tin nitrate and heat absorbing action. The amorphous phases changed into cubic crystal structure cause exothermic peaks at 601.98˚C, 687.31˚C. because no impurity is introduced in the experimental process, SnO2 is considered to enter into In2O3 crystal lattice. The final mass loss percent is 24% in the TGA graph. Indium tin oxide nanosized composite powder is obtained by sintering ITO powders at 350˚C for 20 min [7]. Butin 80/20 there is an endothermic peak at 78.8˚C corresponding to the evaporation of OH. There is an endothermic peak at 242.24˚C, too which is shown in figure (A and B). This is due to the existence of organic solvent CO, OH desorption. The exothermic peak at 281.39˚C is heat release by decomposition of organic substance. There is an endothermic peak at 456.47˚C corresponding to decomposition of indium and tin nitrate and heat absorbing action. The amorphous phases changed into cubic crystal structure cause exothermic peaks at 510.66˚C, 615.6˚C. Because no impurity is introduced in the experimental process, SnO2 is considered to enter into In2O3 crystal lattice. The final mass loss percent is 29% in the TGA graph. Indium tin oxide nanosized composite powder is obtained by sintering ITO powders at 370˚C for 20 min.

3.2. X-Ray Diffraction Studies

XRD measurements revealed that the ITO film showed a cubic bixbyte structure of indium oxide. The angles at which the peak intensities occur Figures 3 and 4 are related to the inter-planar distances of the atomic structure of In2O3 according to Bragg’s law: nl = 2dsinq. Where k is the wavelength of X-ray radiation used, q is the peak position angle and d is the inter-planar distance. Therefore the ITO films retain the bulk structure of In2O3 (a = 10.12 A˚) but exhibit a slight increase in the lattice constant (a =10.22 A˚) which was found to be in agreement with the literature [8]. The lattice constant depends on the deposition of parameters and varies for ITO from 10.118 to 10.31 A˚. These two different proportions have exhibit a strong (222) orientation, revealed by the X-ray studies in the present work.

This indicated complete formation of the cubic phase in both samples at the furnace temperature (500˚C), and

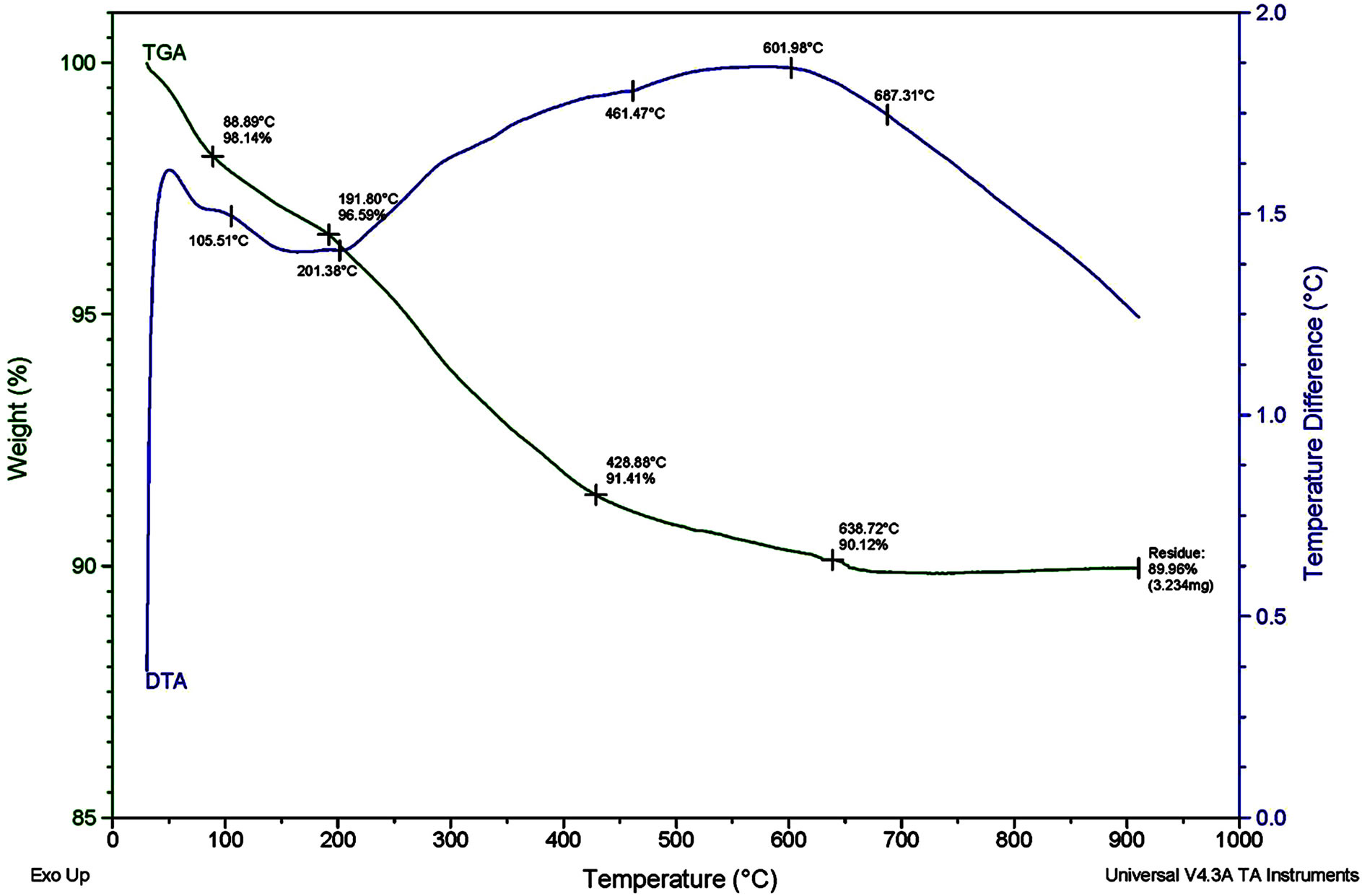

Figure 1. DSC and TGA analysis of In2O3 90% SnO2 10%.

Figure 2. DSC and TGA analysis of In2O3 80% SnO2 20%.

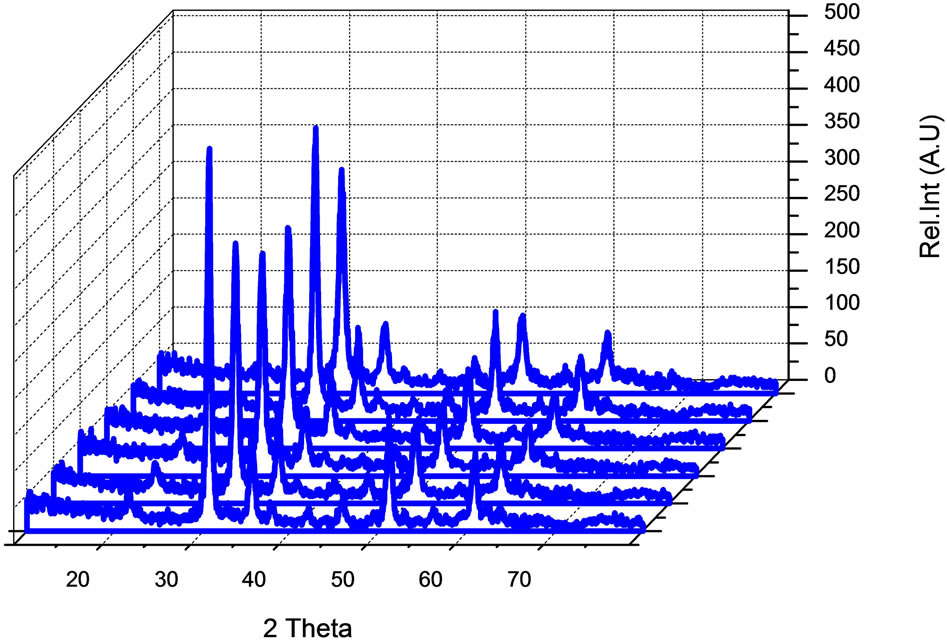

Figure 3. XRD analysis of In2O3 90% SnO2 10%.

Figure 4. XRD analysis of In2O3 80% SnO2 20%.

no further calcinations treatment was necessary.

The average grain sizes of the powders were calculated with the Scherer Equation (3):


where is the X-ray wavelength (0.15406 nm), is the full width at half-maximum intensity (FWHM) of the diffraction line, and is the Bragg angle. The average grain sizes were 16 nm and 17 nm sample 1 and sample 2, respectively.

The lattice parameter was calculated with Equation (4)


where, h k l are the Miller indices, for the same crystallattice planes as were used to calculate D.

3.3. Optical Studies

J. C. Huang et al. [9] reported that a high transparency for the ITO thin films in the visible wavelength region is required in applications such as transparent electrodes in optoelectronic devices. Here an optical transmission spectrum of 10 wt% and 20 wt% tin doped ITO nano sized powders are shown in Figures 5 and 6. As can be seen, the optical transmission of ITO powders in the visible wavelength region improved with decreasing doping concentration of Sn. A given material can exhibit a direct or indirect band-to-band transitions which depends on its crystalline structure. The energy gap for direct transition, span the 200 - 1200 nm range, which were annealed at different temperature. In the whole cases direct transitions were most probable than the indirect transitions. The whole band-gaps of the tin doped In2O3 powders can be determined by plotting (ahg)n versus hy, and extrapolating the linear region of the plot toward low energies. Here, n = 2 is for allowed direct, n = 1/2 for allowed indirect, n = 1/3 for forbidden indirect and n = 2/3 is for forbidden direct optical transitions. This method is approximate for allowed direct electronic band-to-band transitions in semiconductors. For heavily doped semiconductors, this simple method is not valid

Figure 5. UV-Vis-NIR studies of In2O3 90% SnO2 10%.

Figure 6. UV-Vis-NIR studies of In2O3 80% SnO2 20%.

since the lowest states in the conduction band are blocked, and transitions can take place only to energies above the Fermi energy. Thus, the calculated band-gap may be taken only as a rough estimate. Ignoring the reflectivity, which is expected to be low, the absorption coefficient (a) may be determined from the particle transmission [10].

The optical properties of the ITO nanoparticles were analyzed with PL spectroscopy. The PL spectra (excitation at 312 nm) of the 10 atom% Sn doped and 20 atom% Sn doped nanoparticles with five different temperatures are provided in Figures 7 and 8. The positions of the emission edges were calculated from the peak positions of the spectra, (90:10, and 80:20). The peaks appeared for (Sample-1) as prepared to different temperatures from 100˚C to 500˚C excitation energies are shown in Tables 1 and 2. The observed blue shifts of the peaks confirmed the results of ITO particles which are in nano size. The optical band gap of the nanocrystalline particles depends on the particle radius due to quantum confinement. The

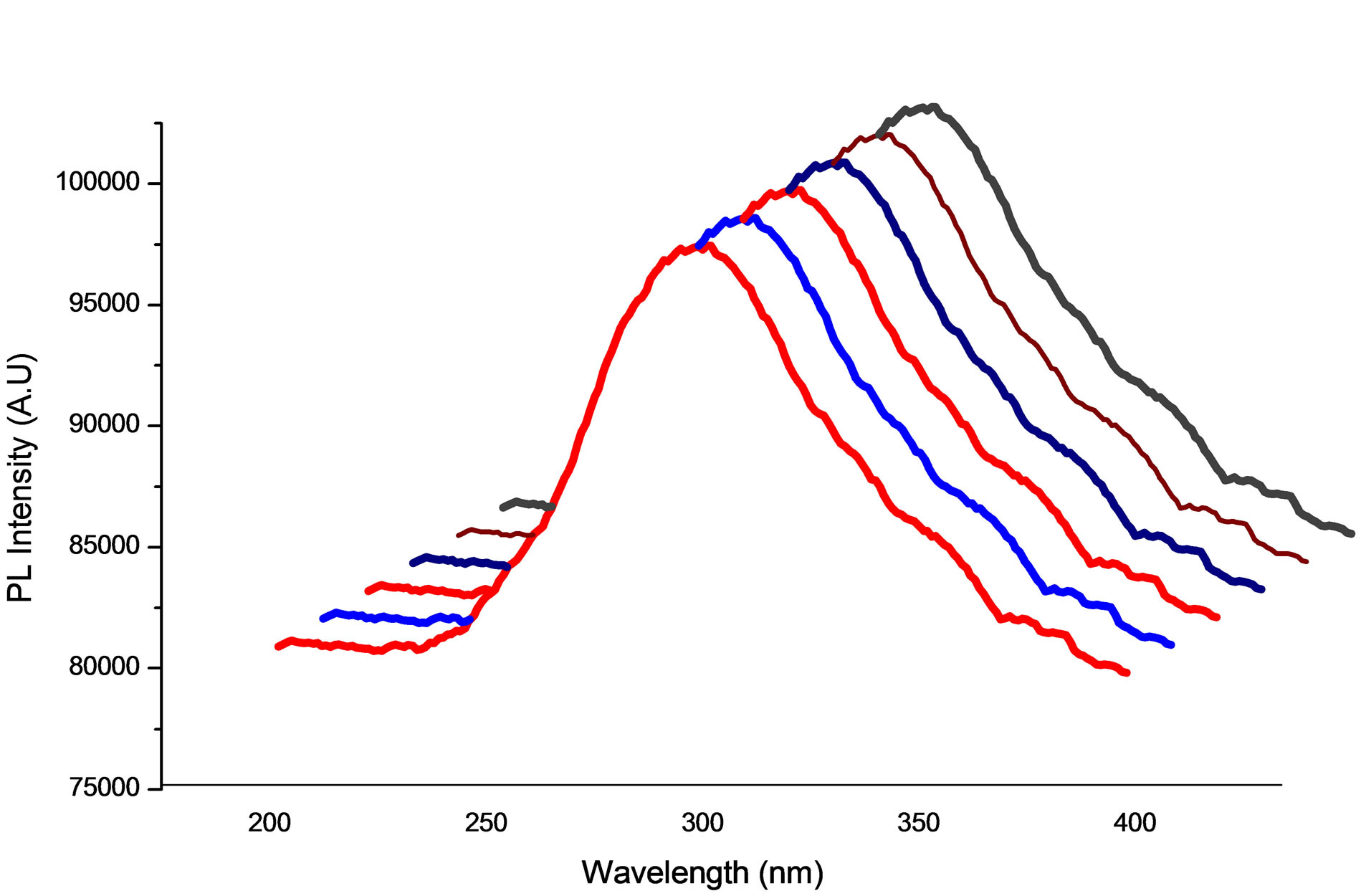

Figure 7. Photoluminescence studies of In2O3 90% SnO2 10%.

Figure 8. Photoluminescence studies of In2O3 80% SnO2 20%.

Table 1. Band gap values of UV-Vis studies.

Table 2. Band gap values of photoluminescence studies.

approach to quantitative determination of the size dependence of the band gap energy (Eb) is based on the effective mass approximation (EMA). The increase in optical band gap (DEb) of a nanocrystalline semiconductor may be represented as


where Eeff is the band gap of the nanocrystalline material, Ebulk is the band gap of the material in bulk form, m is the electron-hole effective mass and e is the dielectric constant and is equal to 9 for ITO [11]. The first term in the Equation (5) represents the particle in-box quantum localization energy and had simple dependencewhere R is the particle radius; the second term represents the Coulomb energy with dependence. The radii of the nanocrystals of ITO calculated from Equation (5) match reasonably well with the previously calculated values. The blue shift is observed as the temperature of the particle increases, indicating that the nanoparticles arein the quantum confinement regime [12]. As the Sn content increases, the PL emission maxima (In2O3 80% SnO2 20%) become blue shifted. The UV-Vis absorption spectra reveal a similar trend in absorption maxima according to Sn content.

4. Conclusion

Structural, optical and electrical properties of two proportions (10 atom%, 20 atom%) tin doped indium oxide powders with < 25 nm and < 25 nm in grain size which annealed in a furnace of 1 hr at five different temperatures range from 100˚C to 500˚C in air atmosphere were studied. The XRD results showed that the crystallinity of ITO powder was improved with annealing < 25 nm in grain size obtained at different temperature which slowly increases with respect to temperature insteps of 100˚C. The allowed direct band gap energies were calculated and were in good agreement with published values of ITO powders and thin films. The absorption length calculation indicates that indirect band to band transitions mostly take place. The results also show that by increasing annealing temperature, the conductance of ITO powders was increased. Further, from the results we may conclude that the annealing temperature plays a major role in controlling the optical transmittance of the nanoparticle.
