Optical Functions, Band Structure and Effective Masses of Electrons and Holes in InGaTe_{2}

Eldar Gojaev^{1*}, Ulker Abdurahmanova^{1}, Zakir Dzhakhangirli^{1,2}, Shafiga Mehdieva^{1}

^{1}Azerbaijan Technical University, Baku, Azerbaijan

^{2}Institute of Physics, ANAS, Baku, Azerbaijan

Email: ^{*}geldar-04@mail.ru

Copyright © 2014 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

Received 12 December 2013; revised 13 January 2014; accepted 20 January 2014

ABSTRACT

This paper has presented results of calculations of optical functions for e||c and e^c polarizations in 0 - 12 eV energy interval, band structure and effective masses of electrons and holes of ternary compound InGaTe_{2}. Genesis of valence band was investigated by using group-theoretical analyses. The main features of spectra of optical functions, the parameters of transition and their theoretical nature were found out. Identified interband transitions are responsible for the main peaks in the optical functions. Calculated results are in good agreement with the known experimental data.

**Keywords:**

Optical Functions, Effective Mass, Band Structure, Optical Conductivity, Compound InGaTe_{2}

1. Introduction

It is known that search of new semiconductor materials is usually conducted in the direction of expansion of crystal structure group of already known materials. In particular interpretation of crystal structure of TlSe, it is revealed that this phase differs from extreme specific features. The lattice of TlSe is made of two independent structural units from eight-vertex polyhedron with ionic nature of binding of Tl^{+}-Se and a tetrahedron with covalent binding between Tl^{3+}-Se and therefore, the chemical formula of TlSe should be written as Tl^{+}Tl^{3}^{+}Se_{2}. Thus, by replacement of trivalent atom of thallium corresponding trivalent atoms, in particular, gallium and indium in a lattice of TlSe are received a new class of semiconductor compounds of type. X-ray diffraction researches [1] - [3] showed that part of these compounds has chain structure, and other parts have layered structure. Compounds with chained structure crystallize in a tetragonal syngony, space group (I4/mcm). On researches of crystal and band structure, optical properties of compounds of TlInSe_{2} (Te_{2}), TlGaTe_{2}, InGaSe_{2} (Te_{2}) in domestic and foreign literature there are many data [4] - [10] . However, calculation of band structure with use of modern methods and programs, the system analysis, identification of results of band of InGaTe_{2} having chained crystal structure weren’t carried out.

In this work, results of calculation of optical functions and effective masses of electrons and holes of compound InGaTe_{2} crystallizing in a tetragonal syngony have been presented. In these calculations the pseudo-po- tential method is used.

Semiconductor compound InGaTe_{2} crystallizes in a tetragonal lattice with space group. The unit cell of a crystal contains two formula units. In a crystal lattice monovalent atoms of In are surrounded with eight atoms of Te while trivalent atoms of Ga are in a tetrahedral environment of atoms of Te, and form chains of atoms extended along an optical axis. The growth, the photoemission spectra and properties of single crystals of InGaTe_{2} are investigated in [11] . So far the band structure and optical characteristics practically are not studied.

2. Method of Calculation

The band structure and optical functions of InGaTe_{2} were calculated using pseudopotential method. Calculation of an electronic structure was carried out by DFT, with the help ABINIT software package, using Troiller-Mar- tins pseudopotentials in basis of plane waves. In expansion of wave function plane waves with the maximum kinetic energy of 30 Ry were used. Lattice parameters were defined by total energy minimization and structure parameters were optimized by means of Gelman-Feynman forces.

Minimization process was carried out until. The optimized lattice parameters and chalcogen parameter: а = 8.3945 Å, с = 6.8352 Å, х = 0.1730 Å.

Band structure calculation was carried out in symmetric points Г, T, N, P and on the lines connecting these points. The table of irreducible and double irreducible representations of wave vector groups for space group (I4/mcm) were obtained in [12] . Here also are demonstrated condition of compatibility between irreducible representations of simple groups and double-group and Brillouin zone for volume-centered tetragonal lattice.

In [13] stated band structure of InGaTe_{2}. The lowest subband consisting of four states, about ~6 eV are remote from the others with wide energy gap. Group-Theoretical Analysis shows that these bands located about −10 - −11 eV are obliged by the origin to 5 s-states of Te. The following group of four valence bands located at about −5 eV energy region, comes generally from s-states of atoms of In and Ga. The remained big group consisting of ten bands with 5 eV wide occurs from р-states of atoms of In, Ga and Te. The X-ray photoemission structure of a valence band is given in [13] . It is revealed that the photoemission structure consists of three pronounced areas. Authors attributed peak at −11.5 eV to 5 s-states of Te, peak about −4 eV to Ga-Te bonds, and a complex features about −5 - 0 eV to Ga-Ga and Ga-Te bonds that are accordance with our band structure calculation and the group-theoretical analysis. Energy gap from our calculations turns out 0.56 eV.

Optical functions were calculated by the way described in [14] . For calculation of spectral dependence of imaginary part of complex dielectric permeability we used:

(1)

Here, the integral taken over the unit cell volume and is impulse operator; indexes v and c number indicates valence and conduction bands, respectively, е-vector of polarization.

In summation over Brillouin zone in (1) elementary cell of the reciprocal lattice is divided into 64 equal parts on volume, and in them k points were chosen randomly. Calculations were carried out at 3000 k points for smooth histogram. N is defined from a normalization condition

where -plasma frequency of electrons, -the average density of electrons in a crystal.

The histogram was constructed with 0.2 eV energy step and covered all interband transitions v ® c up to 12 eV. Further ε_{i}(E) dependence was extrapolated by known formula. Transitions from the lowermost zones belonging to Te-5 s, apparently, get to the studied spectral area. These states are located far from others and according to our investigations, the broadening of the spectral region, and thus involvement greater energy transitions from the high-lying regions in the conduction state does not lead to contribution in the dielectric constant, so not differs considerably from extrapolation.

The real part of dielectric permeability is defined from cramers-kronig relations in Equation (2)

(2)

here the symbol P is principal value of integral.

3. Results and Discussion

Results of calculations of spectral functions ε_{r}(E) and ε_{i}(E) for e||c and e^c polarizations are given in Figure 1. As can be seen from Figure 1(a) in the energy range of 1.6 - 3.15 eV in e||c polarization functions increases rapidly to a maximum. According to these figures the maximum of the main peak in the spectrum of ε_{r}(E) in the polarization e||c (Figure 1) is located at an energy of 3.15 eV, and for e^c (Figure 1) at 2.61 eV, and the main maximum in the ε_{i}(E) in both polarizations, which we associate with the transitions from the top of the valence band to the bottom of the conduction band are at 3.15 eV. In the spectrum of ε_{i}(E) and in the e^c polarization there are three peaks with the energies of 4.02, 5.9, 6.2 and 7.47 eV.

In e||c the polarization additional peaks located at energies of 3.9, 6.2 and 7.8 eV, but they, especially the last, are weak. The maximum value in e||c polarization is 15.1, and in e^c polarization is 12.8, such difference in value for different polarizations is characteristic for chained crystals with strong anisotropy.

Limiting value of ε_{r}(E = 0) is equal to 7.88 in e||c polarization and 7.21 in e^c polarization.

The main part of refraction index was determined by Equation (3):

, (3)

Figure 2(a) shows the energy dependence of the main index of refraction. In e||c energy dependence of begins with the value and reaches maximum at energy 3.15 eV (3.62) and a pronounced minimum at the energy 2,61 eV (2.87) and one more minimum at the energy 8.35 eV (0.17) and further growth of up to 9.60 eV (0.5). In e^c polarization, the refractive index first increases monotonically reaching at 2.66 eV (3.4), then the weak structure at 3.65 eV (2.5) and again decrease, and a pronounced maximum at 6.23 eV (4.7), weak minimum at 6.89 eV (1.1) and a weak peak at 7.47 eV (1,2).

The imaginary part of the refractive index is defined as (4),

(4)

In Figure 2 spectral dependence of imaginary part of the refractive index of InGaTe_{2} is presented.

(a) (b)

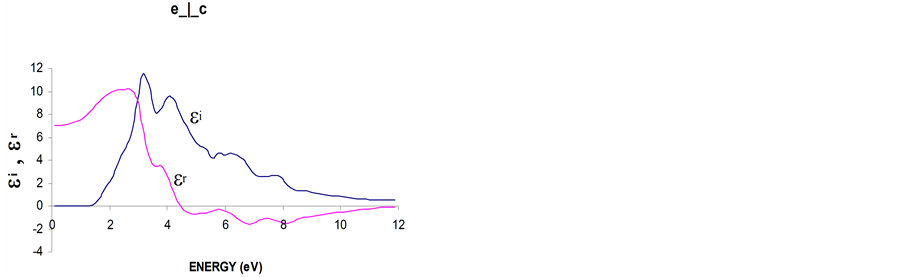

Figure 1. Spectral dependence of imaginary (a) and real (b) parts of dielectric constant of InGaTe_{2} for e^c and e||c polarizations.

(a)(b)

Figure 2. Energy dependence real (a) and imaginary (b) parts of indicators of refraction of InGaTe_{2} in e||c and e^c polarizations.

For polarization e||c dependence begins with 2.1 eV, then there is an increase in imaginary part of coefficient refraction reaching a maximum at energy of 3.9 eV (2.53), then monotonous reduction and a minimum at energy of 8.3 eV (0.39) and increase to 9.6 eV (0.52) other areas of dependence. In e^c polarization dependence begins with very small energy of equal 0.12 eV, at 3.15 eV (1.93) and 4.02 eV (1.99) two maxima are observed, at energy of 3.65 eV (1.7) and between maxima there is a minimum further dependence monotonously the pronounced maximum decreases and observed at 6.23 eV (4.72) a minimum at 6.88 eV (1.11), a maximum at 7.47 eV (1.19) and further reduction with increase in energy.

For e e||c polarization dependence begins with an energy 2.1 eV, then there is an increase of the imaginary part of the refractive index with the maximum at an energy of 3.9 eV (2.53), followed by a monotonic decrease and then minimum at 8.3 eV (0.39) and increase of up to 9.6 eV (0.52 ) in other energy regions. In the e^c polarization dependence starts with a very low energy equal to 0.12 eV, at 3.15 eV (1.93) and 4.02 eV (1.99) there are two peaks, at energy 3.65 eV (1.7) between the peaks there is minimum, further monotonically decreases and there is a bright pronounced maximum at 6.23 eV, (4.72) minimum at 6.88 eV (1.11), the maximum at 7.47 eV (1.19) and further decrease of with increasing energy.

The reflection coefficient at normal incidence of light is defined by a Formula (5):

(5)

Spectral dependence of Reflectivity of InGaTe_{2} is given in Figure 3 (and) for e||c and e^c of polarization. The maximum of reflection in polarization parallel to optical axis of a crystal is at energy of »3.9 eV (0.46), and two minima located at energy of »2.61 eV (0.30), »5.93 eV (0.29). In polarization perpendicular to optical axis the main maxima are at »3.15 energy eV (0.4), »6.23 eV (0.66), and minima at »5.98 eV (0.29), »6.89 energy eV (0.22).

Figure 3(a) shows the spectral dependence of the reflection coefficient of InGaTe_{2} for e||c and e^c polarizations. The maximum of the reflection coefficient in the polarization parallel to the optic axis is at an energy »3.9 eV (0.46), and two minima at energies »2.61 eV (0.30), »5.93 eV (0.29). In polarization perpendicular to the optical axis of the crystal main peaks occur at energies »3.15 eV (0.4), »6.23 eV (0.66), and minima at the energies »5.98 eV (0.29), »6.89 eV (0.22). The Characteristic Electron Energy Loss function was shown by (6)

(6)

The spectral characteristic of imaginary part of an inverse value of complex dielectric permeability

(a)(b)

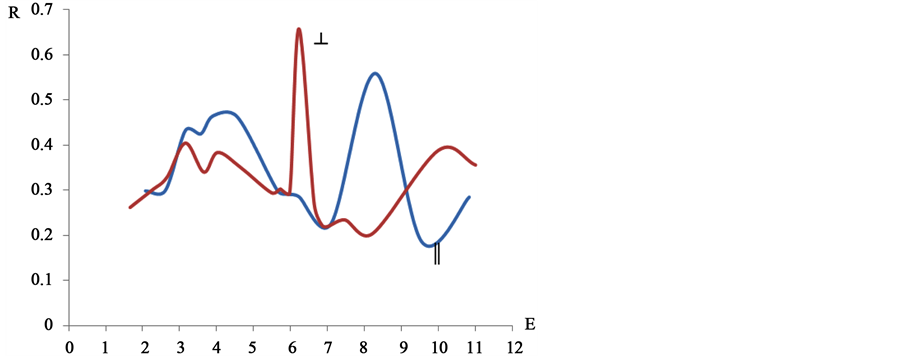

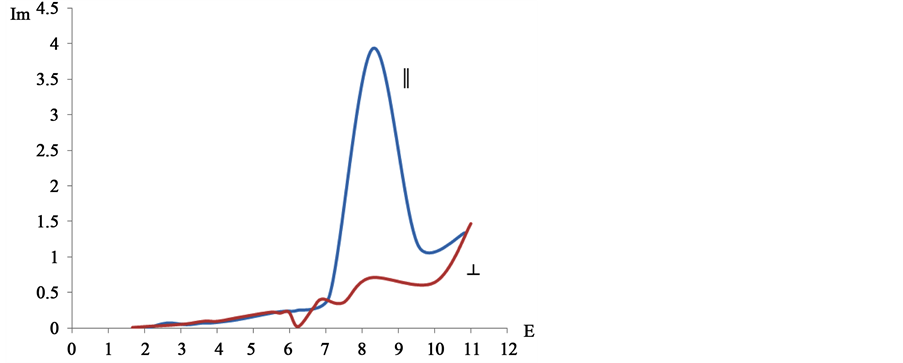

Figure 3. Spectral dependences of coefficient of reflectivity and imaginary part of an inverse value of complex dielectric permeability InGaTe_{2} compound in e^c and e||c polarizations.

is presented in Figure 3. As seen from figure in e||c polarization are observed two maxima at energy 7.096 eV (0.45) and a minimum at 8.3 eV (3.93).

In polarization e^c maxima appear at energy of 6.89 eV (0.41) and 8.2 eV (0.71), and minima at energy of 1.66 eV (0.01) 6.22 eV (0.02).

Real and imaginary parts of optical conductivity were defined by Formula (7):

(7)

Dependence are presented in Figure 4 (and) where for e||c of polarization pronounced maxima are observed at energy 3.15 eV (34.61) and a minimum at 3.90 eV (37.75), and minimum of 3.57 eV (34.48) and 4.57 eV (25.41) and further monotonous reduction of dependence, a minimum at 8.3 eV (0.81) and further increase. For e^c of polarization four maxima are observed at energy of 3.15 eV (29.6) and 4.02 eV (29.4), 6.23eV (206.7) and 7.47 eV (15.6), and between them is minima at energy 3.65 eV (23.4) and 6.9 eV (12.5). In Figure 4 dependence is presented.

From here two bright minima are visible at energy of 2.61 eV (13.27), 4.57 eV (−8.6) and pronounced maxima at energy of 3.15 eV (21.18), (e||c).And for polarization e^c, the weak minimum here is observed at 3.65 eV (9.79), the bright maximum at 2.66 eV (21.15) and for both polarization occurs further weak reduction.

Components of inverse effective mass tensor were determined by the formula

(a)(b)

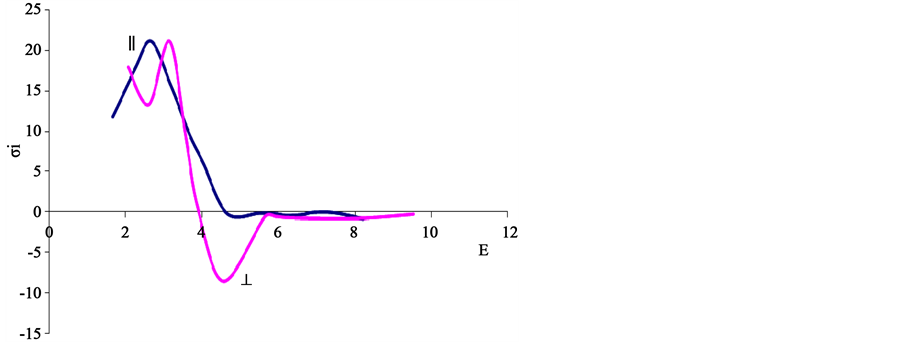

Figure 4. Spectral dependences real and imaginary part optical conductivity of InGaTe_{2} compound in e^c and e||c polarizations.

m_{0}-electron rest mass: -kroneker delta symbols, is the matrix element of momentum

operator at the extremum point k_{0}, and -electron bands, is the wave function of electrons

V-volume of elementary cell, E_{n}(k_{0}) and are energy and wave function determined from the Schrodinger equation at k_{0} _{ }

—the fourier transform of pseudopotential.

Calculation of band structure shows that maximum of valence and minimum of conduction bands are located at high symmetry point T of k_{0} = 0.5b_{1} − 0.5b_{2} + 0.5b_{3} (b_{1}, b_{2}, b_{3}). Here b_{1}, b_{2}, b_{3} are translation vectors of reciprocal lattice.

In our calculations components of tensor of inverse effective mass of electron were calculated with an accuracy to 0.01 m_{0}._{ }

Components of tensor of inverse effective mass of holes is given by

As can be seen tensors of inverse effective mass of both electrons and holes have diagonal form and therefore isoenergetic surfaces are described by rotational ellipsoids that is corresponds to symmetry of crystal.

4. Conclusion

So, in this report the spectra of optical fundamental functions of the semiconductor InGaTe_{2} have been calculated for two polarizations e||c and e^c in 0 - 12 eV energy range for the first time. Parameters have been defined, effective masses of electrons and holes of compound InGaTe_{2} were calculated on the basis of the band structure. The results obtained allow a detailed analysis of the optical properties and electronic structure of InGaTe_{2}.
