Open Journal of Composite Materials
Vol.05 No.02(2015), Article ID:55733,7 pages

The Effect of Epoxy Concentration and Fibre Loading on the Mechanical Properties of ABS/Epoxy-Coated Kenaf Fibre Composites

Hafsat R. Saliu1*, U. S. Ishiaku1, M. K. Yakubu1, E. G. Kolawole1, S. S. Adefila2, M. B. Abu Bakar3, Z. A. Moh’d Ishak3

1Department of Textile Science and Technology, Ahmadu Bello University, Zaria, Nigeria

2Department of Chemical Engineering, Ahmadu Bello University, Zaria, Nigeria

3School of Materials and Mineral Resources Engineering, Engineering Campus, Universiti Sains Malaysia, Penang, Malaysia

Email: *

Copyright © 2015 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY).

Received 20 January 2015; accepted 13 April 2015; published 16 April 2015


In this work, thermosetting resin, epoxy and fibre loading were used in optimizing the strength at which ABS/epoxy coated kenaf fibre (EKF) composites would perform apparently during mechanical stress. Kenaf bast fibres were resin coated before incorporated into engineering thermoplastic ABS at its processing temperature (230˚C), cured in-situ at internal mixer and later compression moulded at 210˚C under 65 kg/cm2 pressure. The results showed the optimum level of tensile strength with thermoset and fibre loading as well as increase in strong interfacial bonding while the hardness values increased with increasing thermosetting and fibre contents. Both the tensile and flexural modulus apparently increased as the fibre contents increased.


Thermosetting Resin, Kenaf Fibre, Engineering Thermoplastic, ABS

1. Introduction

Epoxy resins are one of the most important thermosetting polymers, which find extensive use as coatings, matrix resins for composite materials and high performance adhesives. They have various desirable properties such as high tensile strength and modulus, good thermal and chemical resistance and dimensional stability by Hedrick et al. [1] . However, in many applications they have the major drawbacks of being very brittle, poor thermal cycling behaviour and fairly low impact and fracture strengths. They also show high moisture absorption, which limits their performance. Another approach has been taken to modify the epoxy resins which seem to provide better improvement in the overall properties of the resulting networks without any significant loss in the modulus. Tough, ductile, chemically and thermally stable engineering thermoplastics such as polyethersulfones and polyether-imides have been utilized. These materials have no reactive functional groups so they simply physically blend into the epoxy resin to be cured. It has been reported that some improvement in the fracture toughness is obtained provided that a phase separation with good interfacial adhesion is achieved (Hedrick et al., [1] ). The fibre surface treatment before introducing the matrixmaterial can modify the interphase region and alter the adhesion between the fibre and the matrix. The adsorption of the epoxy resin on the jute fibre surface is ensured, which is a prerequisite condition for creating the interphases (George et al., [2] ).

The inherent polar and hydrophilic nature of lignocellulosic fibres and the non-polar characteristics of most thermoplastics result in compounding difficulties leading to non-uniform dispersion of fibres within the matrix which impairs the efficiency of the composite. This is a major disadvantage of natural fibre reinforced composites. The combination of a plastic matrix and reinforcing fibres gives rise to composites having the best properties of each component. Since the plastics are soft, flexible and lightweight in comparison to fibres, their combination provides a high strength-to-weight ratio to the resulting composite. Bos and Donald [3] explained that the properties of the fibres were determined by the physical, mechanical and chemical properties of the morphological constituents and their interfaces as agreed by Thakur and Singha [4] . These same properties have been found to be the most trusted tools in determining the overall behaviour of polymer composites.

The interest in natural fibre-reinforced polymer composite materials is rapidly growing both in terms of their industrial applications and fundamental research (Kozlowski and Wladyka-Przybylak [5] [6] ; Bledzki and Gassan [7] and Thomas [8] ). They are renewable, cheap, completely or partially recyclable, and biodegradable. Plants, such as flax, cotton, hemp, jute, sisal, kenaf, pineapple, ramie, bamboo, and banana, as well as wood, used from time immemorial as a source of lignocellulosic fibres, are more often applied as the reinforcement of composites. The natural fibre-containing composites are more environmentally friendly, and are used in transportation (automobiles, railway coaches, aerospace), military applications, building and construction companies (ceiling panelling, partition boards), packaging, consumer products, etc.

Kenaf plant is an annual plant that can be harvested 2 - 3 times a year. It can grow to reach 3 - 4 meters within 4 - 5 months and has three layers―bast, core, and pith. Kenaf bast fibre has been reported to have superior mechanical properties than the other parts of the plant (Aji et al., [9] ). The kenaf bast fibre has high potential as a reinforcing fibre in thermoplastic composites because of its superior toughness and high aspect ratio in comparison with other fibres. The kenaf bast fibre is a composite made up of a crystalline, thermoset polymer matrix (lignin and the hemicelluloses). The chemical modification of the fibre was studied by Rowell et al., [10] to make it more hydrophobic, and it improved its compatibility with non-polar thermoplastics. Sanadi et al. [11] studied the potential of kenaf as a reinforcing fibre in the PP matrix. El-Shekeil and co-researchers [12] studied the development of new kenaf bast fibre-reinforced thermoplastic polyurethane composite, and reported that the thermoplastic polyurethane (TPU) had unique properties when compounded with natural fibres and it was established that the kenaf filled composites showed high tensile strength, break strain and modulus of elasticity properties, but least absorbed water (Karina et al., [13] ). Anuar and Zuraida, [14] studied the thermal properties of Injection moulded poly lactic acid/kenaf fibre (PLA/KF) biocomposite and found that the biocomposite remained amorphous with the fibre content.

Thitithanasarn [15] sandwiched engineering thermoplastics (rPET, PC and Nylon 6) with epoxy and unsaturated polyestertreated jute after cured with room temperature curatives to improve the thermal degradation and interphacial bonding which later failed due to the room temperature curatives used.

In this study, the effects of thermosetting resin cured in-situ and fibre loading of kenaf fibre in engineering thermoplastic poly(acrylonitrile-butadiene-styrene) (ABS) composites were examined physically and mechanically.

2. Experimental

2.1. Materials

ABS pellets were purchased from Chi Mei Company Malaysia, 3 mm kenaf fibres (KF) produced from Kenaf Fibre Industries Sdn. Bhd. (KFI) Malaysia, sodium hydroxide, 100% acetic acid, epoxy, curing agent (4,4-di- aminodiphenyl sulfone, DDS) and chloroform. All materials were supplied by Science and Engineering Research Centre (SERC) of Engineering Campus, Universiti Sains Malaysia, Nibong Tebal, Malaysia.

2.2. Surface Treatment and Coating

Kenaf fibres cut to 3 mm length were oven dried in the laboratory at 37˚C for 48 hrs prior to being immersed in 6% NaOH for 3 hrs. They were then washed and neutralized with 100% acetic acid and finally washed thoroughly with distilled water until neutral pH was obtained. The NaOH treated fibres were oven dried at 80˚C for 16 hrs. The treated fibres were later coated with 30, 40 and 50 wt% epoxy resin of very low viscosity thinned with chloroform. The epoxy coated fibres (EKF) were first oven dried between 30˚C - 40˚C for 16 hrs and then at 80˚C for 8 hrs to dry finally.

2.3. Thermoplastic Preparation

The engineering thermoplastic ABS was dried in a vacuum oven at 90˚C for 3 hrs.

2.4. Compounding and Compression Moulding

The constituent materials (ABS/KF) after being dried were melt-mixed using fibre loading of 12%, 30% and 50% in an internal mixer (Haake PolyDrive R600) cured with4% 4,4-diaminodiphenyl sulfone (DDS). The mixing process was performed for 10 mins at a temperature of 230˚C using a rotator speed of 40 rpm. The melt-mixed composites were dried at 60˚C for 3 h before they were moulded into sheets with a compression moulding machine (GT 7014-A30C, GOTECH). The composites were pre-heated for 5 mins and compressed at 65 kg/cm2 pressure for 5 mins at 210˚C. The samples were then cooled under pressure at ambient temperature for 3 mins.

2.5. Tensile Test

The specimens of 140 × 25 × 1 mm were prepared for tensile test by cutting with a band saw and tensile test was conducted using the Universal Testing Machine, Instron 3366 at 23˚C ± 2˚C and 50% ± 5% relative humidity in accordance to ASTM D882-97 with a gauge length of 100 mm and cross-head speed of 1 mm/min. Five measurements were carried out on each sample.

2.6. Flexural Test

Three-point bending flexural testing was performed on composites using the same Instron 3366 at 23˚C ± 2˚C and 50% ± 5% relative humidity in accordance to ASTM D790, with a support span length of 50 mm and cross- speed of 5 mm/min. Five measurements were carried out on each sample.

2.7. Impact Test

Izod impact test of un-notched composites samples were performed by using Pendulum Impact Machine (Zwick Roell Group, Germany) according to ASTM D256 with pendulum energy of 7.5 J. The impact strength (kJ/m2) was calculated by dividing the recorded absorbed impact energy by the cross-sectional area of the samples. Five measurements were carried out on each sample.

2.8. Hardness Test

The hardness of the composites was determined according to ASTM D2240 D. The hardness of compression moulded flat shaped samples with dimensions (width―22 mm and thickness―1 mm) was determined with the use of the TECLOCK GS-702G TYPE D (Japan) Automatic Digital Hardness Tester. Five measurements were carried out on each sample.

3. Results and Discussion

3.1. The Effect of Epoxy Concentration on Tensile Properties

The mechanical properties of polymer composites have been found to depend solely on both extent of fibre- matrix bonding and load transfer frommatrix to reinforcement. The performance of naturalfibre reinforced polymer composites is controlled by the properties of the fibre-matrix adhesion/bonding (Thakur and Singha, [4] ). Figures 1-3 show the effect of thermosetting resin, epoxy on tensile properties of ABS/EKF composites. From Figure 1, it can be observed that tensile strength of composites increase with increasing thermoset loading to a maximum at 40% concentration, this may be as a result of quality adhesion/bonding between epoxy-fibre but with a 10% increase, the strength decreased indicating an excessive coating which has in turn reduced the intermolecular bonding between fibre and matrix.

The tensile strain was found to follow almost the same trend if not for 0% that was with the highest strain indicating a higher strain required when fibres are not resin coated (Figure 2).

Figure 3 shows similar trends with that of tensile strength where epoxy concentrations have increased the modulus from 0% to 40% optimum level and thereafter decreased when increased to 50% epoxy concentration.

Figure 1. Effect of epoxy concentration on Tensile strength of ABS/ EKF composites.

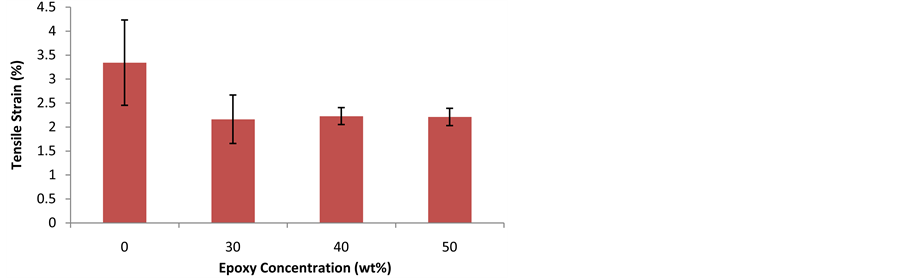

Figure 2. Effect of epoxy concentration on the tensile strain of ABS/ EKF composites.

Figure 3. Effect of epoxy concentration on tensile modulus of ABS/ EKF composites.

3.2. The Effect of Fibre Loading on Tensile Properties

The tensile strength showed optimal value at 30% with addition of fibres from 0% (Figure 4), indicating that with further addition of fibres up to 50%, the strength reduced from 73 MPa to 62 MPa. This might be due to the strong interfacial bonding built before the increase to 50% has reduced. Figure 5 relates the tensile strain where the strain decreased with increasing fibre loading while the tensile modulus increased progressively with increasing fibres (Figure 6). This result is as expected and can be attributed to increasing in fibres which is the property that mostly have impact on modulus. Ramakrishna and Rai [16] , in their findings from mechanical properties of kenaf fibre-polypropylene composites showed that on increasing the filler content, the tensile strength and modulus of all their composites were found to increase. Also in line with the observation of Huang and Chiou [17] in their study―The Effect of Reprocessing on the EMI shielding effectiveness of Conductive fibre reinforced ABS Composites.

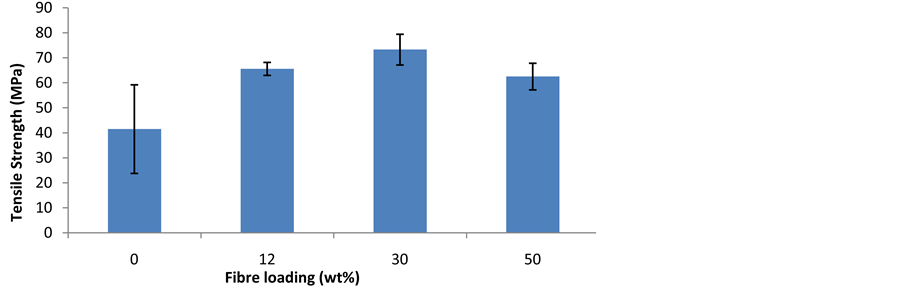

Figure 4. Effect of fibre loading on tensile strength of ABS/EKF composites.

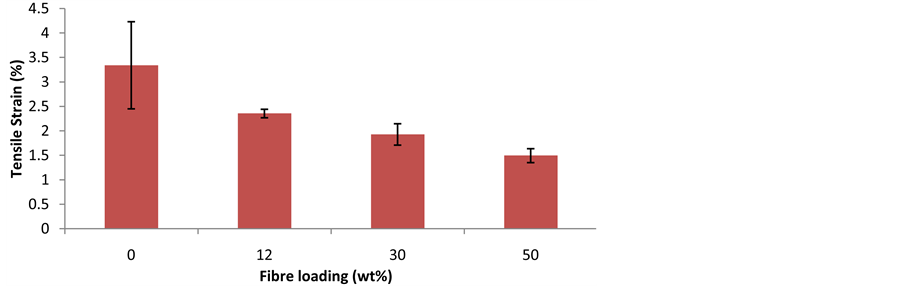

Figure 5. Effect of fibre loading on tensile strain of ABS/EKF composites.

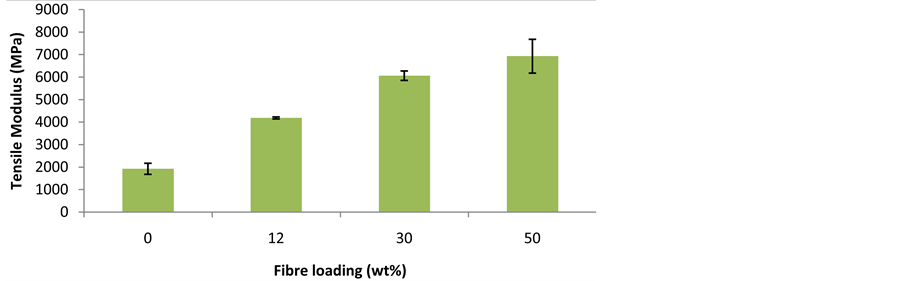

Figure 6. Effect of fibre loading on tensile modulus of ABS/EKF composites.

3.3. The Effect of Fibre Loading on Flexural Properties

The effect of fibre loading on flexural properties (Figure 7 and Figure 8) showed significant reduction and improvement of flexural strength and modulus respectively from 12 to 50 wt% fibre loading. The flexural strength of the composites from Figure 7, decreased with increasing fibre loading which might be due to insufficient wetting of the incorporated fibres by the thermoplastic matrix in the presence of fibre bundles and more fibre- fibre interactions as the loading increases. Rowell et al., [10] explained that it is usually the lignin that is responsible for the combination of individual fibre together to make fibre bundles. Moh’d Ishak et al., [18] further explained that fibre-fibre adhesion in fibre bundles reduces the contact area between fibres and the matrix which can cause poor stress transfer from the matrix phase to the dispersed fibres. The modulus increased with increasing fibre loading as expected, the result is depicted in Figure 8. This may be as a result of the same reason that fibres increased the modulus of composites. Similar observations were made by Dhal and Mishra [19] and Ku et al., [20] but in contrast to Elbadry et al., [21] .

3.4. Impact and Hardness Properties of the Composites

When a composite is subjected to an impact, rapid crack propagation is initiated through the material. When this type of crack propagation encounters filler particles in the filled composites, the filler particles can absorb the energy and stop the propagation, if filler matrix interaction is strong (Ramakrishna and Rai, [16] ). Figure 9 and Figure 10 indicate the impact and hardness values of the composites. From Figure 9, the values of impact do not exhibit a phenomenal trend during the fibre loading as it has the highest value, 24.14 kJ/m2 at 12 wt% fibre loading, decreased to 15.12 for 30 wt% and later increased marginally to 16.71 kJ/m2 when at 50 wt% loading. This might be attributed to the fact that at 12% fibre loading, more energy might be absorbed during the impact failure than other loadings and the matrix related energy absorbing mechanism might probably dominates than that of the energy absorbing mechanism of the composite. Also agglomeration of fibres at higher loading can be

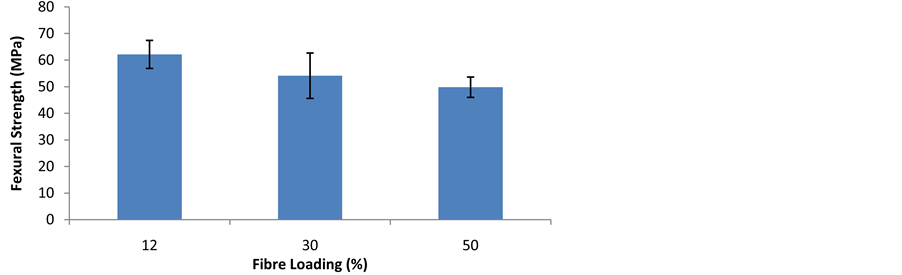

Figure 7. Effect of fibre loading on flexural strength of ABS/EKF of cured composites.

Figure 8. Effect of fibre loading on flexural modulus of ABS/EKF of cured composites.

Figure 9. Effect of fibre loading on impact strength and hardness of ABS/ EKF cured composites.

Figure 10. Effect of epoxy concentration on impact strength and hardness of ABS/EKF composites.

resulted (Tay et al., [22] ). As regarding hardness, there were proportional increases with increasing fibre loading. This may be due to stronger interface bonding between the fibres and cured epoxy resin.

However, with the epoxy concentration in Figure 10, the impact strength increased with increasing thermoset (epoxy). These can be due to the encapsulation of fibres by epoxy which bind the fibres together to prevent their free movement. In the case of hardness, there was proportional increase with increasing thermoset concentration which can be attributed to the intermolecular bonding between epoxy and fibre.

4. Conclusion

The mechanical properties of cured epoxy coated KF-engineering thermoplastic ABS composites while increasing the epoxy and fibres content were studied in this research with these findings. Coating of bast KF with epoxy resin had made the natural fibre to withstand higher temperature without degradation of the fibres during compounding at the internal mixer if epoxy treated. Tensile strength has increased with increase in both epoxy and fibre loadings to a maximum point. Impact increased with epoxy loading as hardness increased with both parameter loadings. The optimum tensile strength was observed at 40 wt% epoxy and 30 wt% fibre loading. It has been established that epoxy coated KF can be incorporated into a higher processing temperature engineering thermoplastic, ABS without degradation of the fibres.


The authors acknowledged the support of this work from Science and Engineering Research Centre (SERC) of Universiti Sains Malaysia, Engineering Campus for providing all the research materials and equipment. Also appreciate Ahmadu Bello University, Zaria Nigeria for supporting the study.
