Journal of Encapsulation and Adsorption Sciences
Vol.08 No.01(2018), Article ID:83271,17 pages

Retention Profile of Zn2+ and Ni2+ Ions from Wastewater onto Coffee Husk: Kinetics and Thermodynamic Study

Basma G. Alhogbi*, Zarifah F. Al-Enazi

Department of Chemistry, Faculty of Science, King Abdulaziz University, Jeddah, KSA

Copyright © 2018 by authors and Scientific Research Publishing Inc.

This work is licensed under the Creative Commons Attribution International License (CC BY 4.0).

Received: January 25, 2018; Accepted: March 23, 2018; Published: March 26, 2018


In this work, Coffee husk (CH) was used as a solid phase extractor (SPE) for removal and/or minimization of Zn2+ and Ni2+ ions in aqueous media. XRD, FESEM and FTIR analysis of the SPE were performed for surface morphology and function groups characterisation. Batch mode adsorption studies were performed by varying the operational parameters such as adsorbent dose, solution pH, initial analyte concentration and contact time. The equilibrium data of both analytes was found a better fit with the Langmuir and Freundlich isotherm models. The qm of Langmuir for Zn2+ and Ni2+ ions were 12.987 and 11.11 mg/g, respectively. The adsorption capacities of the CH adsorbent towards Zn2+ and Ni2+ resulted of 12.53 and 10.33 mg/g, respectively. In addition, the kinetic data of Zn2+ and Ni2+ ions uptake revealed that the present system fitted well with pseudo-second-order kinetic model (R2 > 0.99). Thermodynamic studies showed that the retention step was exothermic, and spontaneous in nature. The results indicated that the coffee husk provides an effective and economical approach in highly reducing or almost eradication of both metals Zn2+ and Ni2+ from the aqueous solution.


Coffee Husk Adsorbent, Zn2+ and Ni2+ Ions, Kinetic and Isotherm Models, Polluted Water

1. Introduction

Pollution of the aquatic environment by heavy metal ions is progressing and becoming a major challenge due to its silent toxicity and pathological impact to human’s general health [1] . The main sources of water contamination are when it contains high quantities of Zn and Ni from industrial activities e.g. zinc base casting, electroplating, storage battery industry, and silver refineries have been reported [1] [2] . In drinking water, the permissible level of zinc set by World Health Organization (WHO) does not exceed 0.01 mg/L [2] [3] [4] whereas the maximum allowable level of nickel must be lower than 10 μg/L [5] . Exceeding the permissible level of zinc becomes toxic to the human body and may cause nausea, diarrhea, growth deficiency, and lethargy [6] [7] . Nickel concentration in water greater than the legislative standard level set by the US Environmental Protection Agency (USA-EPA) [5] leads to a variety of abnormalities e.g. dermatitis, dizziness, rapid respiration, and headache [8] . Nickel is also known to have carcinogenic characteristics [8] [9] .

In aquatic environment, released metal ions accumulate in the living tissues through food chains. Thus, minimization of their concentrations to acceptable tolerable levels into the aquatic environment is of prime importance [10] [11] . Physical, oxidation and/or reduction [10] , ion exchange [11] , electrochemical treatment, reverse osmosis [12] , evaporation, biological methodologies [13] and adsorption [14] [15] have been reported for lessening and/or removal of trace toxic metal ions in water. In recent years, there are more great attention given to the biomaterials (byproducts, the wastes of industrial processes and agricultural waste materials e.g. priceless agricultural waste) [9] [15] [16] [17] [18] [19] .

Recently, many articles have studied the utilization of solid waste with two fold approaches: i) reduction of solid waste generation and ii) use as a low cost solid phase extractor (SPE) for removal of phenols, heavy metal ions [19] , and other pollutants in industrial wastewater samples and liquids e.g. Calotropis procera [9] , grass, leaf, rice husk [17] , sugarcane bags, orange peel [20] , hazelnut shells [21] , cotton seed hulls, waste tea leaves [22] , Pb(II) removal by coffee husk [23] , grapes stalks [24] , sugar beet pulp [25] , sunflower stalks [26] , and peanut hulls [27] .

Based on the International Coffee Organization (ICO), the estimated number of coffee consumed was 151.3 million of 60 kg bags of coffee/year in 2015/2016 [28] [29] . Hence, this article focuses on the: i) characterization and utilization of the coffee husk CH solid waste as an efficient, inexpensive and sustainable SPE, ii) studying the retention characteristics of Zn2+ and Ni2+ from aqueous solution onto the CH, and finally iii) designating the kinetics, isotherm models, and thermodynamic behavior of Zn2+ and Ni2+ uptake by the used SPE.

2. Materials and Methodology

2.1. Reagents and Chemicals

Zn(CH3CO2)2∙2H2O and Ni(CH3CO2)2 were purchased from BDH chemicals (Poole, England) and utilized. Stock solutions (1000 mg/L) of Zn2+ and Ni2+ ions were prepared individually in deionized water from their acetate salts. More diluted solutions of Zn2+ and Ni2+ ions were prepared in deionized water.

2.2. Apparatuses

A Perkin Elmer Inductively Coupled Plasma―Optical Emission Spectroscopy (ICP-OES) model 7000 DV was used for analysis of trace metal concentrations. A JEOL-JSM-6380 model Field Emission Scanning Electron Microscopy (FESEM) and Philips PW1398 model X-ray powder diffractometer (XRD,) with a Cu-K radiation source were used for studying the surface morphology and degree of crystallinity of the coffee husk, respectively. Recording the characterization spectra of the SPE was performed by the usage of A Shimadzu FTIR spectrometer (IRAffinity-1, Japan) equipped with ATR-8200H (PIKE Technologies). The samples were grinded with high speed FOSS Cyclone mill (CT 193 Cyclotec™). A digital pH meter (Mettler Toledo MP220) and micropipette (Transferpette 0.5 - 5 mL) were used for pH measurements and preparation of more diluted solutions, respectively.

2.3. Preparation of Adsorbent

In the solid phase extractor (SPE) the coffee husk (CH) was washed initially with tap water until the washing solutions were found clear and colourless. The SPE finally washed with distilled water, dried at room temperature for 10 days due to the thickness of the CH, then ground and sieved to obtain a fraction of the particle size (<180 µm). The CH dried powder was stored in a plastic bag for it to be used.

2.4. Batch Adsorption Process

Batch mode of separation was critically applied to study the uptake of Zn2+and Ni2+ from the test aqueous solutions by the proposed CH. The different adsorption parameters were performed at various metal concentrations (50 - 400 mg/L) at a shaking time of 120 min for Zn2+ and Ni2+ at 300 rpm in a 25 mL aqueous solution at pH 6 ± 0.1, and 25˚C ± 0.1˚C. After establishment of the equilibrium, SPE was separated out by filtration through Whatman No. 2 filter paper. Zn and Ni in the aqueous phase was analysed by ICP-OES. Following these procedures, the influence of adsorbent dose (0.3 - 2.0 ± 0.01 g) was also studied. The collected samples were analysed in triplicate (average ± standard deviation 5%) for metal ion concentrations. The adsorbate analyte retained (qe) and the extraction percentage (%E) on the SPE was evaluated as reported [23] [30] . The analytical parameters e.g. pH, shaking time, adsorbent dose, temperature and analyte concentrations were studied following these procedures. Linear isotherm parameters and the kinetic modelling were accomplished using Windows Microsoft Excel 2013.

3. Results and Discussion

3.1. Surface Characterization

SEM micrographs for the unloaded coffee husk and loaded Zn2+, and Ni2+ ions are presented in Figures 1(a)-(c). It shows the substantial extent of crevasses

Figure 1. SEM images of (a) unloaded (b) Ni2+-loaded and (c) Zn2+-loaded CH adsorbent.

and bumps, due to the heterogeneous, rough, and spiked nature of the CH [6] [29] . The XRD patterns from 20˚ to 80˚ (2θ/1min/cm) with a step size of 0.05˚ is shown in Figure 2. It presented that the CH is an amorphous phase in nature of cellulosic material [31] .

FTIR spectra of coffee husk before and after adsorption of Zn2+ and Ni2+ ions are demonstrated in Figure 3. The observed peaks in the range 3526.07 - 3000 cm−1 suggested the existence of the hydroxyl and amide -NH groups whereas the peaks at 2917.9 and 1720 cm−1 are assigned to C-H of alkyl and C=O groups, respectively. The peaks at 1639.7, 1233.8, 1023.4 cm−1 were also attributed to -C=C- of the aromatic ring, peak (C-O), (OH) of the carboxy groups and alcohols

Figure 2. XRD diagram of CH.

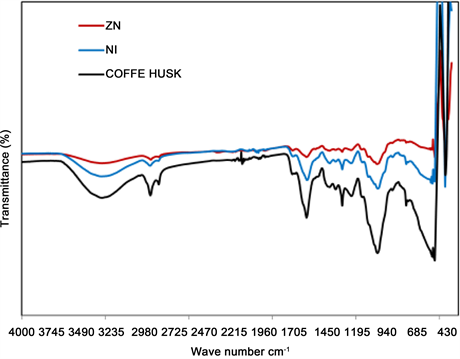

Figure 3. Spectra of FTIR for unloaded, Zn2+-loaded, and Ni2+-loaded CH adsorbent.

groups, respectively. On metal uptake by the used sorbent, these peaks began to decay (Figure 3) suggesting electrostatic interaction and/or binding between the available active centres on surface adsorbent and the analyte [32] [33] [34] [35] .

3.2. Analytical Parameters

3.2.1. pH and Adsorbent Dose Effect

The influence of extraction media pH on the analyte (400 mg/L) uptake by the coffee husk was performed in a range of pH (2.0 to 9.0 ± 0.10). The adsorption (% removal) achieved maximum at a pH of 7.0 and 6.0 for the Zn2+ and Ni2+ ions respectively, while the minimum uptake was achieved at lower pH Figure 4(a). The decrease in % removal at lower pH perhaps due to the fact that the surface

Figure 4. Influence of different (a) pH (b) mass dose (c) residence times (d) metal ion concentrations on the adsorption of Zn2+ and Ni2+ at 25˚C onto CH.

of the SPE is associated with hydroxonium ions (H3O+) at low pH which hindered the analyte uptake by the adsorbent surfaces [36] [37] [38] [39] [40] . At higher pH, above 6 and 7 the percentage removal decreases because the surface of the SPE became more negatively charged possibly due to the hydroxide ions absorbed on the surface.

The influence of SPE varying dose (0.3 - 2.0 ± 0.05 g) on analyte retention was also investigated at 400 mg/L initial concentrations of Zn2+ and Ni2+ with a controlled 90 min shaking time as demonstrated in Figure 4(b). At 2.0 g, the percentage removal reached 93.09% and 90.75% for Zn2+ and Ni2+, respectively. The amount of percentage removal of (Zn2+, Ni2+) and the SPE dose were directly proportion due to the increase of the available active sites of the SPE.

3.2.2. Influence of Residence Time and Analyte Concentration

The residence time has an impact on analyte uptake by the SPE. The data are demonstrated in Figure 4(c). The metal removal rate was rapid in the initial stage, the uptake was fast, and a slight increase was noticed on increasing time. Within 30 min the equilibrium time achieved maximum capacity of 9.18 mg/g and 12.13 mg/g for Zn2+ and Ni2+, respectively. Nickel(II) is d8 while Zinc(II) is d10, thus ability of nickel to form complexes with the available active sites is high compared to zinc and account for the observed trend of data. The increased uptake was attributed to the active binding sites on the surface of the SPE. The slow metal removal in the later stage was likely due to the saturation of the active sites [41] .

The influence of metal ions concentration on the removal efficiency is illustrated in Figure 4(d). Zn2+ and Ni2+ adsorbed by CH increased from 1.96 mg/g to 12.44 mg/g and from 2.55 mg/g to 10.83 mg/g with increasing the concentration from 50 mg/L to 400 mg/L, respectively. The adsorption increase as initial metal ions concentration increases eventually until on further change. The increase in the analytes concentration leads to increasing the equilibrium capacity of the adsorption because of the decrease obstruction to mass transfer between aqueous and solid phase [6] [42] .

3.3. Kinetic Characteristics

Zn2+ and Ni2+ ions uptake from the aqueous solution onto the CH were subjected to kinetic models to understand the dynamic of the retention process. The pseudo-first-order and pseudo-second-order kinetic models were applied in this study. The linearized form of pseudo-first-order model is expressed by the following equation [43] :

ln ( q e q t ) = ln q e k 1 t (1)

The values of qe and qt represent the analyte (mg/g) adsorbed capacity at equilibrium and at time t (min), respectively. k1 is the overall rate constant (1/min) of pseudo-first-order. The plot of log ( q e q t ) vs. (t) shown in Figure 5(a) was used for determining the values of k1 and qe as reported in literature [44] [45] [46] . The results were also studied by pseudo-second-order kinetic model [47] :

t q t = 1 k 2 q e 2 + 1 q e t (2)

where k2 represents the rate constant (g/mg min) of pseudo-second-order rate model [48] . A plot of (t/qt) vs. t gave a straight-line Figure 5(b) with an intercept of 1 / k 2 q e 2 and slope of 1/qe. Table 1 shows the values of the adsorption for both kinetic processes of Zn2+ and Ni2+. The pseudo-first-order model did not provide a good fit, according to the results the correlation coefficient (R2 ≤ 0.8) and (qe,cal) values were below expectations. The pseudo-second-order data

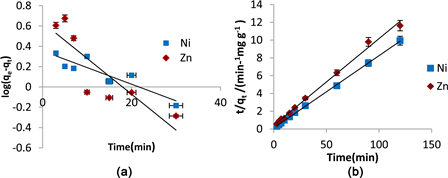

Figure 5. Kinetic adsorption parameters of the (a) Pseudo-first-order model and (b) Pseudo-second-order model of Zn2+ and Ni2+ (400 ppm) onto CH (0.5 g) at 25˚C.

Table 1. The parameters of kinetic models for Ni2+ and Zn2+ adsorption onto the used biomass.

agreement for (R2 > 0.99) and the theoretical (qe,cal) values agreed with the actual (qe,exp) values for both Zn2+ (9.18 mg/g, 10.33 mg/g) and Ni2+ (12.13 mg/g, 12.53 mg/g). This indicated that the sorption of Zn2+ and Ni2+ fitted well by pseudo- second-order kinetic model. In the previous study the same indication was found using coffee husk as effective SPE for eliminating Pb (II) in water purification [23] . Moreover, the rate limiting stage of the adsorption involved valence forces through electrostatic attraction between analyte with the solid phase extractor.

3.4. Adsorption Isotherm

The equilibrium adsorption isotherm is fundamental in describing the retention of a substance from the aqueous media to a solid phase. Describing the regression correlation coefficient variations (R2) of Ni2+ and Zn2+ adsorbed onto the CH by using the Langmuir and Freundlich isotherm models [49] [50] [51] [52] . The Langmuir model expresses that the uptake of metal ions is monolayer sorption on a homogenous surface [53] . Moreover, Freundlich model presumed a multilayer sorption on a heterogeneous surface on the SPE active sites with different energy [54] . The Langmuir isotherm and its linearized forms are expressed in Equations ((3)-(4)) [51] :

q e = ( q m k L C e ) 1 + k L C e (3)

C e q e = 1 K L q m + ( 1 q m ) C e (4)

where KL = Langmuir equilibrium constant (L/mg) related to the free energy of analyte uptake, qm = Langmuir maximum adsorption capacities (mg/g), and Ce is the instantaneous concentration (mg/L) [49] . The Freundlich isotherm model and its linearized forms are presented in Equations ((5)-(6)) [55] :

q e = k F C e 1 / n (5)

log q e = ( 1 n ) log C e + log K F (6)

The KF ((mg/g(L/mg))1/n and 1/n are related to the adsorption constant capacity, and the heterogeneity factor related to the intensity of the adsorption, respectively [27] . The range of 1/n is between 0 and 1 which means the adsorption favorable at the studied conditions, but if 1/n value is above one that indicates cooperative adsorption [48] .

Langmuir and Freundlich isotherm parameters were determined from the plots of Ce/qe vs. Ce, and logqe vs. logCe Figure 6(a) & Figure 6(b), respectively. The calculated data of Langmuir and Freundlich isotherm model were summarized in Table 2. The Langmuir maximum adsorption capacities (qm) for Zn2+ and Ni2+ ions were 12.987 mg/g and 11.11 mg/g, respectively, which is close to the experimental values. Furthermore, the determination of correlation coefficients (R2 > 0.99) for both isotherm models was fitted well with the experimental data [52] . In the presented study the 1/n value for Ni2+ and Zn2+ is near to zero that indicated the surface of the SPE was more heterogonous. Based on these data and the available functional groups (C=O, OH groups) on the surface of CH as indicated from the IR data and SEM, it can be concluded that, a dual mode of separation involving “surface adsorption” and an added component for absorption of analyte is most likely proceeded. These indicated that, the sorbent occurred as homogeneous monolayer and heterogeneous multilayer coverage, therefore the nature adsorption process is favorable of Ni2+ and Zn2+ ions on CH [27] .

3.5. Thermodynamic Characteristics

To calculate the essential energy involved during analyte uptake and the nature of the adsorption the thermodynamic parameters were applied.

The activation energy (Ea, J/mol), the Arrhenius equation for analyte uptake can be expressed as follow [27] :

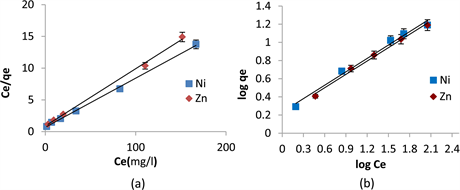

Figure 6. (a) Langmuir and (b) Freundlich sorption isotherms linear regression analysis of Zn2+ and Ni2+ adsorption onto CH.

Table 2. Langmuir and Freundlich adsorption isotherm models for the adsorption of Ni2+ and Zn2+ ions onto the biosrpent.

ln K 2 = ln A E a R T (7)

where k2 = the rate constant of pseudo-second-order model for adsorption (g/mg∙min), A = the temperature-independent Arrhenius factor (g/mg∙min), T = the solution temperature (K), and R = the gas constant (8.314 J/mol∙K). The plot of lnk2 vs. 1/T is shown in Figure 7. The calculated values of Ea for Ni2+ (0.693 kJ/mol) and Zn2+ (3.158 kJ/mol) were lower than 8 kJ/mol. This finding showed the adsorption of Ni2+and Zn2+ were physisorption processes [55] .

Vant Hoff equation [56] was used to calculate the thermodynamic enthalpy (∆H0) and entropy (∆S0) as follows:

ln K D = ( Δ S 0 R ) ( Δ H 0 R T ) (8)

Δ G 0 = Δ H 0 T Δ S 0 (9)

where KD is the Langmuir equilibrium constant of the adsorption. The plots of lnKD vs. 1/T were linear (Figure 8) with good correlation coefficients (R2). The

Figure 7. Activation energy for the adsorption of Zn2+ and Ni2+ onto CH.

Figure 8. Vant Hoff’s for plot lnKD vs. 1/T (K−1) for Zn2+ and Ni2+ onto CH.

positive value of ΔS0 was 53.457 J/mol K for Zn2+ and 53.189 J/mol K for Ni2+, indicating increase of the randomness at the solid/solution interface [27] . The negative values of ΔH0 for Zn2+ (−5.468 kJ/mol) and Ni2+ (−0.669 kJ/mol) signified that the adsorption was exothermic in nature and it was physisorption due to the low ΔH0 value between (1 - 93 kJ/mol). ΔG0 values confirmed that the adsorption steps were spontaneous in nature at 298, 318, 328 K due to the negative values (−23.735, −17.079, −17.612 kJ/mol) for Zn2+ and (−15.924, −16.987, −17.519 kJ/mol) for Ni2+ [48] .

The experimental data revealed that adsorption process for Zn2+ and Ni2+ adsorbates onto CH SPE was found to be a predominantly electrostatic interaction between the SPE and adsorbate. Moreover, thermodynamic studies exposed that the retention step is also random, exothermic, physisorption and spontaneous in nature [47] [61] . The adsorption capacity of CH in this study was compared with those found in previous studies using different biosorbents, as shown in Table 3. Thus, coffee husk has moderately higher adsorption capacity for Zn2+ and Ni2+ in aqueous solution; therefore, it is preferable and more attractive than other biosorbents. The regeneration of the SPE with recovery of the metal ion using selective eluting agent, is economically inefficient as it is costly [19] .

4. Conclusion

Coffee husk has great potentials in being used as an efficient, cost-effective, and green SPE for Zn2+ and Ni2+ removal from environmental water samples. An excellent adsorption capacity of Zn2+ (12.13 mg/g) and Ni2+ (9.18 mg/g) was achieved at 0.5 g mass dose, 30 min time, 25˚C temperature, and pH 7. Analyte uptake is satisfactorily described by pseudo-second-order kinetic model. As a

Table 3. Maximum adsorption capacities of Zn2+ and Ni2+ by the used biomass and other biosorbents.

result, the Langmuir and Freundlich adsorption isotherms (R2 > 0.99) fitted well for analytes uptake. The sorbent process was exothermic and spontaneous in nature depending on the value of ΔH0 and ΔG0. Therefore, CH SPE offers an optimal green alternative approach for the removal of Zn2+ and Ni2+ ions from environmental effluents before their discharge into the environment. The significant results suggest a rationale techno-economic sense for an organization to a prudent environmental management program to assess the environmental impacts of global coffee industries are of great importance.


The authors would like to thank King Abdulaziz University, Jeddah, Saudi Arabia for the facilities provided.

Cite this paper

Alhogbi, B.G. and Al-Enazi, Z.F. (2018) Retention Profile of Zn2+ and Ni2+ Ions from Wastewater onto Coffee Husk: Kinetics and Thermodynamic Study. Journal of Encapsulation and Adsorption Sciences, 8, 1-17.


  1. 1. Cempel, M. and Nikel, G. (2006) Nickel: A Review of Its Sources and Environmental Toxicology. Polish Journal of Environmental Studies, 15, 375-382.

  2. 2. Bhatti, H.N., Khalid, R. and Hanif, M.A. (2009) Dynamic Biosorption of Zn(II) and Cu(II) Using Pretreated Rosa gruss an teplitz (Red Rose) Distillation Sludge. Chemical Engineering Journal, 148, 434-443.

  3. 3. Ulmanu, M., Marañón, E., Fernández, Y., Castrillón, L., Anger, I. and Dumitriu, D. (2003) Removal of Copper and Cadmium Ions from Diluted Aqueous Solutions by Low Cost and Waste Material Adsorbents. Water, Air, & Soil Pollution, 142, 357-373.

  4. 4. Tirumalaraju, D. and Mishra, S. (2011) Removal of Zinc from Aqueous Solution on HCl Impregnated Sponge Iron Plant Waste: Optimization by DOE. International Journal of Environmental Science and Development, 2, 285.

  5. 5. Current, T.U.A. (2012) Removal of Nickel from Drinking Water by Electrocoagulation Technique Using Alternating Current. Current Research in Chemistry, 4, 41-50.

  6. 6. Deniz, F. and Karabulut, A. (2017) Biosorption of Heavy Metal Ions by Chemically Modified Biomass of Coastal Seaweed Community: Studies on Phycoremediation System Modeling and Design. Ecological Engineering, 106, 101-108.

  7. 7. Pereira, F.V., Gurgel, L.V.A. and Gil, L.F. (2010) Removal of Zn2+ from Aqueous Single Metal Solutions and Electroplating Wastewater with Wood Sawdust and Sugarcane Bagasse Modified with EDTA Dianhydride (EDTAD). Journal of Hazardous Materials, 176, 856-863.

  8. 8. Mulware, S.J. (2013) Trace Elements and Carcinogenicity: A Subject in Review. 3 Biotech, 3, 85-96.

  9. 9. Pandey, P.K., Choubey, S., Verma, Y., Pandey, M., Kamal, S. and Chandrashekhar, K. (2007) Biosorptive Removal of Ni(II) from Wastewater and Industrial Effluent. International Journal of Environmental Research and Public Health, 4, 332-339.

  10. 10. Devi, P., Das, U. and Dalai, A.K. (2016) In-Situ Chemical Oxidation: Principle and Applications of Peroxide and Persulfate Treatments in Wastewater Systems. Science of the Total Environment, 571, 643-657.

  11. 11. Kunin, R. (1966) Ion Exchange as a Purification Tool. Annals of the New York Academy of Sciences, 137, 127-134.

  12. 12. Shenvi, S.S., Isloor, A.M. and Ismail, A. (2015) A Review on RO Membrane Technology: Developments and Challenges. Desalination, 368, 10-26.

  13. 13. Kurniawan, T.A., Chan, G.Y., Lo, W.-H. and Babel, S. (2006) Physico-Chemical Treatment Techniques for Wastewater Laden with Heavy Metals. Chemical Engineering Journal, 118, 83-98.

  14. 14. Çeçen, F. and Aktas, Ö. (2011) Activated Carbon for Water and Wastewater Treatment: Integration of Adsorption and Biological Treatment. John Wiley & Sons, Hoboken, NJ.

  15. 15. Erto, A., Giraldo, L., Lancia, A. and Moreno-Piraján, J. (2013) A Comparison between a Low-Cost Sorbent and an Activated Carbon for the Adsorption of Heavy Metals from Water. Water, Air, & Soil Pollution, 224, 1531.

  16. 16. Barakat, M. (2011) New Trends in Removing Heavy Metals from Industrial Wastewater. Arabian Journal of Chemistry, 4, 361-377.

  17. 17. Ajmal, M., Rao, R.A.K., Anwar, S., Ahmad, J. and Ahmad, R. (2003) Adsorption Studies on Rice Husk: Removal and Recovery of Cd(II) from Wastewater. Bioresource Technology, 86, 147-149.

  18. 18. Hughes, S.R., López-Núñez, J.C., Jones, M.A., Moser, B.R., Cox, E.J., Lindquist, M. and Gast, F. (2014) Sustainable Conversion of Coffee and Other Crop Wastes to Biofuels and Bioproducts Using Coupled Biochemical and Thermochemical Processes in a Multi-Stage Biorefinery Concept. Applied Microbiology and Biotechnology, 98, 8413-8431.

  19. 19. Gupta, V.K., Nayak, A. and Agarwal, S. (2015) Bioadsorbents for Remediation of Heavy Metals: Current Status and Their Future Prospects. Environmental Engineering Research, 20, 001-018.

  20. 20. Hamza, I.A., Martincigh, B.S., Ngila, J.C. and Nyamori, V.O. (2013) Adsorption Studies of Aqueous Pb(II) onto a Sugarcane Bagasse/Multi-Walled Carbon Nanotube Composite. Physics and Chemistry of the Earth, Parts A/B/C, 66, 157-166.

  21. 21. Cimino, G., Passerini, A. and Toscano, G. (2000) Removal of Toxic Cations and Cr (VI) from Aqueous Solution by Hazelnut Shell. Water Research, 34, 2955-2962.

  22. 22. Ahluwalia, S. and Goyal, D. (2005) Removal of Heavy Metals by Waste Tea Leaves from Aqueous Solution. Engineering in life Sciences, 5, 158-162.

  23. 23. Alhogbi, B.G. (2017) Potential of Coffee Husk Biomass Waste for the Adsorption of Pb(II) Ion from Aqueous Solution. Sustainable Chemistry and Pharmacy, 6, 21-25.

  24. 24. Villaescusa, I., Fiol, N., Martínez, M., Miralles, N., Poch, J. and Serarols, J. (2004) Removal of Copper and Nickel Ions from Aqueous Solutions by Grape Stalks Wastes. Water Research, 38, 992-1002.

  25. 25. Aksu, Z. and İşoğlu, İ.A. (2005) Removal of Copper(II) Ions from Aqueous Solution by Biosorption onto Agricultural Waste Sugar Beet Pulp. Process Biochemistry, 40, 3031-3044.

  26. 26. Sun, G. and Shi, W. (1998) Sunflower Stalks as Adsorbents for the Removal of Metal Ions from Wastewater. Industrial & Engineering Chemistry Research, 37, 1324-1328.

  27. 27. Ali, R.M., Hamad, H.A., Hussein, M.M. and Malash, G.F. (2016) Potential of Using Green Adsorbent of Heavy Metal Removal from Aqueous Solutions: Adsorption Kinetics, Isotherm, Thermodynamic, Mechanism and Economic Analysis. Ecological Engineering, 91, 317-332.

  28. 28. International Coffee Organization (2016) World Consumption, Production and Stock Change (2012/13-2015/16).

  29. 29. Oliveira, W.E., Franca, A.S., Oliveira, L.S. and Rocha, S.D. (2008) Untreated Coffee Husks as Biosorbents for the Removal of Heavy Metals from Aqueous Solutions. Journal of Hazardous Materials, 152, 1073-1081.

  30. 30. Farooq, U., Kozinski, J.A., Khan, M.A. and Athar, M (2010) Biosorption of Heavy Metal Ions Using Wheat Based Biosorbents—A Review of the Recent Literature. Bioresource Technology, 101, 5043-5053.

  31. 31. Köseoğlu, E. and Akmil-Başar, C. (2015) Preparation, Structural Evaluation and Adsorptive Properties of Activated Carbon from Agricultural Waste Biomass. Advanced Powder Technology, 26, 811-818.

  32. 32. Díaz-Mu ñoz, L.L., Bonilla-Petriciolet, A., Reynel-ávila, H.E. and Mendoza-Castillo, D.I. (2016) Sorption of Heavy Metal Ions from Aqueous Solution Using Acid-Treated Avocado Kernel Seeds and Its FTIR Spectroscopy Characterization. Journal of Molecular Liquids, 215, 555-564.

  33. 33. Nasrullah, A., Khan, H., Khan, A.S., Man, Z., Muhammad, N., Khan, M.I. and Abd El-Salam, N.M. (2015) Potential Biosorbent Derived from Calligonum polygonoides for Removal of Methylene Blue Dye from Aqueous Solution. The Scientific World Journal, 2015, Article ID 562693.

  34. 34. Verma, A., Kumar, S. and Kumar, S. (2016) Biosorption of Lead Ions from the Aqueous Solution by Sargassum filipendula: Equilibrium and Kinetic Studies. Journal of Environmental Chemical Engineering, 4, 4587-4599.

  35. 35. Rehman, M.A., Yusoff, I., Ahmmad, R. and Alias, Y. (2015) Arsenic Adsorption Using Palm Oil Waste Clinker Sand Biotechnology: An Experimental and Optimization Approach. Water, Air, & Soil Pollution, 226, 1-13.

  36. 36. AzharulIslama, M.A., Benhouria, A., Asif, M. and Hameed, B. (2015) Methylene Blue Adsorption on Factory-Rejected Tea Activated Carbon Prepared by Conjunction of Hydrothermal Carbonization and Sodium Hydroxide Activation Processes. Journal of the Taiwan Institute of Chemical Engineers, 52, 57-64.

  37. 37. Dubey, A., Mishra, A. and Singhal, S. (2014) Application of Dried Plant Biomass as Novel Low-Cost Adsorbent for Removal of Cadmium from Aqueous Solution. International Journal of Environmental Science and Technology, 11, 1043-1050.

  38. 38. Malik, R. and Dahiya, S. (2017) An Experimental and Quantum Chemical Study of Removal of Utmostly Quantified Heavy Metals in Wastewater Using Coconut Husk: A Novel Approach to Mechanism. International Journal of Biological Macromolecules, 98, 139-149.

  39. 39. Hu, L.-Q., Dai, L., Liu, R. and Si, C.-L. (2017) Lingnin-Graft-Poly(Acrylic Acid) for Enhancement of Heavy Metal Ion Biosorption. Journal of Material Science, 52, 13689-13699.

  40. 40. Foroughi-Dahr, M., Abolghasemi, H., Esmaili, M., Shojamoradi, A. and Fatoorehchi, H. (2015) Adsorption Characteristics of Congo Red from Aqueous Solution onto Tea Waste. Chemical Engineering Communications, 202, 181-193.

  41. 41. Peng, J.-F., Song, Y.-H., Yuan, P., Cui, X.-Y. and Qiu, G.-L. (2009) The Remediation of Heavy Metals Contaminated Sediment. Journal of Hazardous Materials, 161, 633-640.

  42. 42. Zhang, X. and Wang, X. (2015) Adsorption and Desorption of Nickel(II) Ions from Aqueous Solution by a Lignocellulose/Montmorillonite Nanocomposite. PLoS ONE, 10, e0117077.

  43. 43. Subramani, S. and Thinakaran, N. (2017) Isotherm, Kinetic and Thermodynamic Studies on the Adsorption Behaviour of Textile Dyes onto Chitosan. Process Safety and Environmental Protection, 106, 1-10.

  44. 44. Surchi, K.M.S. (2011) Agricultural Wastes as Low Cost Adsorbents for Pb Removal: Kinetics, Equilibrium and Thermodynamics. International Journal of Chemistry, 3, 103-112.

  45. 45. Drweesh, S.A., Fathy, N.A., Wahba, M.A., Hanna, A.A., Akarish, A.I., Elzahany, E.A. and Abou-El-Sherbini, K.S (2016) Equilibrium, Kinetic and Thermodynamic Studies of Pb(II) Adsorption from Aqueous Solutions on HCL-Treated Egyptian Kaolin. Journal of Environmental Chemical Engineering, 4, 1674-1684.

  46. 46. Boparai, H.K., Joseph, M. and O’Carroll, D.M. (2011) Kinetics and Thermodynamics of Cadmium Ion Removal by Adsorption onto Nano Zerovalent Iron Particles. Journal of Hazardous Materials, 186, 458-465.

  47. 47. Matouq, M., Jildeh, N., Qtaishat, M., Hindiyeh, M. and Al Syouf, M.Q. (2015) The Adsorption Kinetics and Modeling for Heavy Metals Removal from Wastewater by Moringa pods. Journal of Environmental Chemical Engineering, 3, 775-784.

  48. 48. Yao, Z.-Y., Qi, J.-H. and Wang, L.-H. (2010) Equilibrium, Kinetic and Thermodynamic Studies on the Biosorption of Cu(II) onto Chestnut Shell. Journal of Hazardous Materials, 174, 137-143.

  49. 49. Das, D., Vimala, R. and Das, N. (2015) Removal of Ag(I) and Zn(II) Ions from Single and Binary Solution Using Sulfonated Form of Gum Arabic-Powdered Mushroom Composite Hollow Semispheres: Equilibrium, Kinetic, Thermodynamic and Ex-Situ Studies. Ecological Engineering, 75, 116-122.

  50. 50. Gusain, D., Srivastava, V., Sillanpää, M. and Sharma, Y.C. (2016) Kinetics and Isotherm Study on Adsorption of Chromium on Nano Crystalline Iron Oxide/Hydroxide: Linear and Nonlinear Analysis of Isotherm and Kinetic Parameters. Research on Chemical Intermediates, 42, 7133-7151.

  51. 51. Karri, R.R., Sahu, J. and Jayakumar, N. (2017) Optimal Isotherm Parameters for Phenol Adsorption from Aqueous Solutions onto Coconut Shell Based Activated Carbon: Error Analysis of Linear and Non-Linear Methods. Journal of the Taiwan Institute of Chemical Engineers, 80, 472-487.

  52. 52. Açıkyıldız, M., Gürses, A., Güneş, K. and Yalvaç, D. (2015) A Comparative Examination of the Adsorption Mechanism of an Anionic Textile Dye (RBY 3GL) onto the Powdered Activated Carbon (PAC) Using Various the Isotherm Models and Kinetics Equations with Linear and Non-Linear Methods. Applied Surface Science, 354, 279-284.

  53. 53. Nagy, B., Manzatu, C., Măicăneanu, A., Indolean, C., Barbu-Tudoran, L. and Majdik, C. (2014) Linear and Nonlinear Regression Analysis for Heavy Metals Removal Using Agaricus bisporus Macrofungus. Arabian Journal of Chemistry, 10, S3569-S3579

  54. 54. Saha, A., Bhaduri, D., Pipariya, A. and Kumar Ghosh, R. (2017) Linear and Nonlinear Sorption Modelling for Adsorption of Atrazine onto Activated Peanut Husk. Environmental Progress & Sustainable Energy, 36, 348-358.

  55. 55. Doğan, M., Alkan, M., Demirba ş, Ö., Özdemir, Y. and Özmetin, C. (2006) Adsorption Kinetics of Maxilon Blue GRL onto Sepiolite from Aqueous Solutions. Chemical Engineering Journal, 124, 89-101.

  56. 56. Barathi, M., Kumar, A.S.K., Kumar, C.U. and Rajesh, N. (2014) Graphene Oxide—Aluminium Oxyhydroxide Interaction and Its Application for the Effective Adsorption of Fluoride. RSC Advances, 4, 53711-53721.

  57. 57. Jones, B.O., John, O.O., Luke, C., Ochieng, A. and Bassey, B.J. (2016) Application of Mucilage from Dicerocaryum eriocarpum Plant as Biosorption Medium in the Removal of Selected Heavy Metal Ions. Journal of Environmental Management, 177, 365-372.

  58. 58. Kamari, A., Yusoff, S.N.M., Abdullah, F. and Putra, W.P. (2014) Biosorptive Removal of Cu(II), Ni(II) and Pb(II) Ions from Aqueous Solutions Using Coconut Dregs Residue: Adsorption and Characterisation Studies. Journal of Environmental Chemical Engineering, 2, 1912-1919.

  59. 59. Ramana, D.V., Reddy, D.H.K., Yu, J.S. and Seshaiah, K. (2012) Pigeon Peas Hulls Waste as Potential Adsorbent for Removal of Pb(II) and Ni(II) from Water. Chemical Engineering Journal, 197, 24-33.

  60. 60. Singh, S. and Shukla, S.R. (2017) Theoretical Studies on Adsorption of Ni(II) from Aqueous Solution Using Citrus limetta Peels. Environmental Progress & Sustainable Energy, 36, 864-872.

  61. 61. Amer, M.W., Ahmad, R.A. and Awwad, A.M. (2015) Biosorption of Cu(II), Ni(II), Zn(II) and Pb(II) Ions from Aqueous Solution by Sophora japonica Pods Powder. International Journal of Industrial Chemistry, 6, 67-75.

  62. 62. Schwantes, D., Gonçalves Jr, A.C., Miola, A.J., Coelho, G.F., Dos Santos, M.G. and Leismann, E.A.V. (2015) Removal of Cu(II) and Zn(II) from Water with Natural Adsorbents from Cassava Agroindustry Residues. Acta Scientiarum Technology, 37, 409.

  63. 63. Hossain, M., Ngo, H., Guo, W., Nghiem, L., Hai, F., Vigneswaran, S. and Nguyen, T. (2014) Competitive Adsorption of Metals on Cabbage Waste from Multi-Metal Solutions. Bioresource Technology, 160, 79-88.

  64. 64. Nacke, H., Gonçalves, A.C., Campagnolo, M.A., Coelho, G.F., Schwantes, D., dos Santos, M.G. and Zimmermann, J. (2016) Adsorption of Cu(II) and Zn(II) from Water by Jatropha curcas L. as Biosorbent. Open Chemistry, 14, 103-117.
