Performance Study of 1 Tbits/s WDM Coherent Optical OFDM System

Khaled Alatawi, Fahad Almasoudi, Mohammad A. Matin

Department of Electrical and Computer Engineering, University of Denver, Denver, USA

Email: khaledbs@hotmail.com

Copyright © 2013 Khaled Alatawi et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received June 5, 2013; revised July 7, 2013; accepted August 3, 2013

Keywords: WDM; QAM; CO-OFDM; BER; OSNR

ABSTRACT

This paper investigates the architecture of Tbits/s Wavelength Division Multiplexing (WDM) system by using a Coherent Optical Orthogonal Frequency Division Multiplexing (CO-OFDM) with 4-QAM for long haul transmissions of 1800 Km SM. A simulation of 20 WDM channels spaced at 50 GHz, and 20 OFDM signals each with 50 Gbits/s bitrate to produce data rate of 1 Tbits/s is built. The system performance is studied by observing the constellation diagram of the signal and the relationship of BER and OSNR with regard to transmission distance. The results show that the BER increases as the transmission distance increases. Also, as the transmission distance increases, the OSNR needs to be increased to maintain BER in less than 10−3.

1. Introduction

The demand for high data rate and high capacity in the optical communications field has motivated researchers to try different modulation formats that can support this demand. Among this was Coherent Optical OFDM which got special attention due to its tolerance to Chromatic Dispersion (CD) and Polarization Mode Dispersion (PMD) [1]. In addition, CO-OFDM has a great potential when it comes to receive sensitivity and spectral efficiency. Tbits/s transmission rate is available through the WDM (Wavelength Division Multiplexing) transmission system; but, this system has a low spectral efficiency due to wavelength spacing [2-4]. However, integrating WDM with CO-OFDM will produce a system with high spectral efficiency; better tolerance to PMD and CD; and, significantly high data rate. Because of the great potential of CO-OFDM, it is considered the solution to upgrade todays’ 10 Gbits/s transmission rate to over 100 Gbits/s [5-8].

This paper demonstrates the architecture of Tbits/s WDM-CO-OFDM system. In this experiment, we studied a WDM system by using CO-OFDM with 4-QAM (Quadrature Amplitude Modulation). 20 WDM channels are used with a 50 GHz wavelength space and 20 OFDM signals, each with 50 Gbits/s to produce a net data rate of 1 Tbits/s. To study the performance of the system, we focused on the constellation diagram of the system and the relationship of the BER (Bit Error Rate) and the OSNR (Optical Signal to Noise Ratio) with regard to transmission distance.

2. System Design

The WDM CO-OFDM system is simulated and studied using an OptiSystem V.11 simulation tool. The simulation diagram is shown in Figure 1. The design consists of three main parts: CO-OFDM Tx (Transmitter), optical fiber link and CO-OFDM Rx (Receiver). In the WDM system, 20 channels with 50 GHz channel spacing are used to support 20 OFDM bands, each with a 50 Gbits/s bitrate to reach 1 Tbits/s data rate. Important simulation parameters are shown in Table 1.

2.1. CO-OFDM Tx Design

Figure 2 shows the CO-OFDM transmitter design; the bit stream is generated by a PRBS generator and mapped by a4-QAM encoder. The resulting signal is modulated by an

Table 1. Simulation global parameters.

Figure 1. WDM CO-OFDM system design.

Figure 2. CO-OFDM transmitter design.

OFDM modulator; the parameters are shown in Table 2. After that, the resulting electrical signal is modulated to the optical signal using a pair of Mach-Zehnder modulators (MZM). Figure 3 shows the in-phase and quadrature parts of the OFDM signal, where Figure 4 shows the signal after the two MZMs which will be fed to the optical link. The laser source has a line width of 0.15 MHz and launch power of −5 dBm [9,10].

2.2. Optical Fiber Link

The optical link consists of 15 spans of 100 Km SMF, with a dispersion coefficient of 16 ps/nm/Km, nonlinearity coefficient of 2.6 × 10−20; and, attenuation of 0.2 dB/Km. SMF parameters are shown in Table 3. Fiber dispersion is compensated by the Dispersion Compensation Fiber (DCF) of 20 Km with a -80 ps/nm/Km coefficient in each span; DCF parameters are shown in Table 4. The attenuation of SMF and DCF are balanced by optical amplifiers with 4 dB noise figure in each span.

2.3. CO-OFDM Rx Design

Figure 5 shows the CO-OFDM receiver design; to recover the I/Q component of the OFDM signal, two pairs of balanced PIN photodetectors and LO (Local Oscillator) lasers are used. The balanced detectors perform the I/Q optical to electrical detection and help perform the noise cancellation. Electrical amplifiers are used to adjust the signal intensity [11,12]. After the balanced detectors the

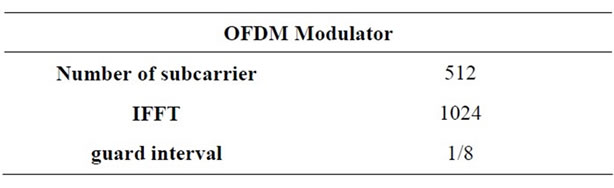

Table 2. OFDM parameters.

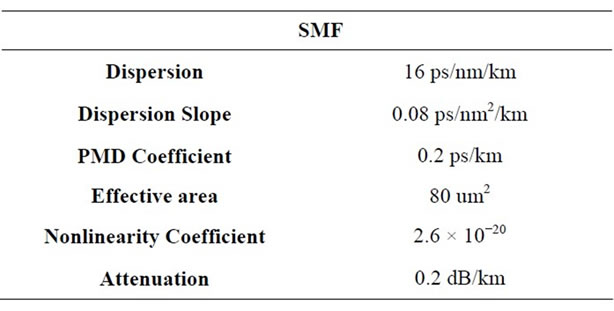

Table 3. SMF parameters.

Table 4. DCF parameters.

Figure 3. OFDM I/Q spectrum.

Figure 4. OFDM Signal after the two MZMs.

resulting signal is demodulated using the OFDM demodulator with similar parameters as the OFDM modulator, the guard interval is removed. After that the signal is fed into a 4-QAM decoder, and the BER is calculated at the end [12-16].

3. Results and Discussion

Figure 6 shows the RF spectrum of the signal at the transmitter side, where the power of the RF is approximately −12 dBm. Figure 7 shows the RF spectrum at the receiver side after 1800 Km SMF. The power of the RF is decreased to −22 dBm, this decrease in power is because of the increase in fiber length which increases the attenuation.

Figure 8 shows the spectrum 20 OFDM signal after the WDM multiplexer. 20 WDM channels start from 193.05 THz to 194 THz with 50 GHz of channel space.

The constellation visualizer is an important tool to find if the signal is recovered correctly. The constellation diagram can determine the interference and distortion that happened to the signal. Figure 9 shows the electrical constellation diagram of the 4-QAM digital modulator at the transmitter side.

Figure 10 shows the constellation diagram after 1800 SMF and before using the DCF. It is clear that the chromatic dispersion and the nonlinearity impairments affect the system. So, to improve the signal and remove chromatic dispersion that occurs because of the increase in transmission distance and the data rate, DCF is used. Figure 11 shows the constellation diagram of the signal after using the DCF.

To study the performance of the system for the high data rate, the relationship of the BER and the OSNR with regard to the transmission distance is studied. Figure 12 shows the relationship of the BER and the transmission distance. As can be seen, the BER of short distances is good. However, the BER increases as the transmission distance increases. This happens because of the fiber dispersion which causes the optical pulse to be broadened and produces Intersymbol Interference.

Figure 13 shows the relationship of the BER and the OSNR for different transmission distances. As can be seen

Figure 5. CO-OFDM receiver design.

Figure 6. RF spectrum of the signal at the transmitter side.

Figure 7. RF spectrum of the signal at the receiver side.

Figure 8. 20 WDM CO-OFDM channels.

Figure 9. 4-QAM constellation diagram at the transmitter side.

Figure 10. Constellation diagram after 1800 Km before using the DCF.

Figure 11. Constellation diagram after 1800 Km after using the DCF.

from the figure, as the transmission distance increases, larger OSNR is required to maintain a BER of less than 10−3. However, increasing the OSNR will increase the nonlinearity effects in the fiber which will make the system worse.

4. Conclusion

In this paper, the architecture of Tb/s WDM systems is studied by using Co-OFDM. The simulation was designed by 20 WDM channels spaced at 50 GHz, and 20 OFDM signals, each with 50 Gbits/s bitrate to produce 1 Tbits/s

Figure 12. Constellation diagram after 1800 Km after using the DCF.

Figure 13. The relationship of BER and OSNR for different transmission distance.

data rate. The proposed system gives clear results to prove it to be reliable. The results show that as the transmission distance increases, the BER increases. Also, when the transmission distance increases, larger OSNR is needed to maintain a BER in less than 10−3. However, increasing the OSNR will increase the nonlinear effects on the fiber. In the future study of the system, higher order modulations such as: 16-QAM and 32-QAM, will be used to improve the system performance.
