Circuits and Systems, 2011, 2, 45-52
doi:10.4236/cs.2011.21008 Published Online January 2011 (http://www.SciRP.org/journal/cs)
Switchable PLL Frequency Synthesizer and
Hot Carrier Effects*
Yang Liu, Ashok Srivastava, Yao Xu
Department of El ect ri cal and C om pute r E ngineering Louisian a Stat e University, Baton Rouge, U.S.A
Received October 7, 2010; revised October 20, 2010; accepted December 7, 2010
Abstract
In this paper, a new strategy of switchable CMOS phase-locked loop frequency synthesizer is proposed to
increase its tuning range. The switchable PLL which integrates two phase-locked loops with different tuning
frequencies are designed and fabricated in 0.5 µm n-well CMOS process. Cadence/Spectre simulations show
that the frequency range of the switchable phased-locked loop is between 320 MHz to 1.15 GHz. The expe-
rimental results show that the RMS jitter of the phase-locked loop changes from 26 ps to 123 ps as output
frequency varies. For 700 MHz carrier frequency, the phase noise of the phase-locked loop reaches as low as
−81 dBc/Hz at 10 kHz offset frequency and −104 dBc/Hz at 1 MHz offset frequency. A device degradation
model due to hot carrier effects has been used to analyze the jitter and phase noise performance in an open
loop voltage-controlled oscillator. The oscillation frequency of the voltage-controlled oscillator decreases by
approximately 100 to 200 MHz versus the bias voltage and the RMS jitter increases by 40 ps under different
phase-locked loop output frequencies after 4 hours of stress time.
Keywords: CMOS Phase-Locked Loop, Voltage-Controlled Oscillator, Hot Carrier Effects, Jitter, Phase
Noise
1. Introduction
Phase-locked loops (PLLs) have been widely used in
high speed data communication systems. The design,
underlying principle of operation and applications are
described in numerous publications and text books [1-8].
Present day frequency synthesizers need a broad tuning
range for the PLL which sometimes limit the operation
of the communication systems. In this paper, we propose
a switchable PLL, which combines two relatively narrow
bandwidth PLLs into a single chip and uses a frequency
detector to decide which PLL to choose according to the
reference frequency. As a result, the switchable PLL can
work over a wide tuning range and at a high frequency. It
also achieves a short locking time without sacrificing the
jitter and phase noise performance.
In submicron CMOS devices, the performance of
integrated circuits is influenced by the hot carrier effect
due to increased lateral channel electric field which
results in circuit degradation. Thus, jitter and phase noise
may also be affected. Xiao and Yuan [9] have studied hot
carrier effects on the performance of voltage-controlled
oscillator (VCO). More detailed studies on hot carrier
effects in CMOS VCO which is one of the modules of
the PLL have been conducted by Zhang and Srivastava
[10,11]. In this work, hot carrier effect has been con-
sidered and its effect on phase noise and jitter of the
CMOS phase-locked loop integrated circuit has been stu-
died.
2. Switchable PLL Design
The design of a switchable PLL is shown in Figure 1. Two
PLL frequency synthesizers are integrated in a single chip
design, one is working in high frequency range and the
other is working in low frequency range. Both PLLs in-
clude phase-frequency detector (PFD), charge pump (CP),
second order loop filter, current starved VCO and 1-by-8
divider. The input range is from 40 MHz to 144 MHz and
output range is from 320 MHz to 1.15 GHz. The charge
pump and second order low pass loop filter are used to
make the system stable and minimize the high frequency
noise. The phase frequency detector is designed by using
NOR gates and D-flip flops.
*Part of the work is reported in Proc. GLSVLSI, pp. 481-486, 2009.

Y. LIU ET AL.
46
The current starved single-ended voltage control ring
oscillator is shown in Figure 1. The MOSFETs M1 and
M4 operate as an inverter. MOSFETs M7 and M8
operate as a current source, which control the current
flowing into the inverter. The oscillation is obtained by
charging and discharging the capacitance in each stage of
the VCO. To investigate hot carrier effects, VCO circuits
in both PLLs are using two modes of operations. The two
operation modes are the stress mode and the oscillation
mode. Vmode control signal realizes the switches of the
two operation modes. In both modes, VDD is 5 V. When
Vmode = 0 V, VCO is working in oscillating mode and is
like a normal one. When Vmode = 5 V, the transistors con-
nected to Vmode are on and act as switches. Thus, a 5 V
voltage appears at the drains of transistors M1-M6 as a
Vstress and hot carriers are injected into their drains. The
VCO is not oscillating in stress mode at this stage. After
a certain period of stress time, the measurements of jitter,
phase noise and oscillation frequency can be obtained
and compared by switching between oscillating and
stress modes.
The divider-by-2 cell circuit is built in C2MOS, which
is implemented with only 9 transistors as shown in
Figure 2 [12]. Three inverting buffers are used to drive
the divider after VCO. There are three cells of
divider-by-2 which are connected in series to make
1-by-8 divider work. It can work up to a maximal
frequency of 1.5 GHz clock signal.
As shown in Figure 3, the switch includes a local os-
cillator, frequency detector (FD) and a two input multip-
lexer (MUX). The same kind of VCO as used in PLL
design is working as a local oscillator but the difference
is that local VCO doesn’t have stress mode and the os-
cillation frequency is locked at 80 MHz. The FD com-
pares the signal from the local VCO with the input ref-
erence signal. When the input frequency is higher than
80 MHz, the output of the FD is high which means the
M1 M2 M3
M5
V
DD
V
bias
V
mod e
V
stress
DD
V
V
out
M4 M6
M7
M8

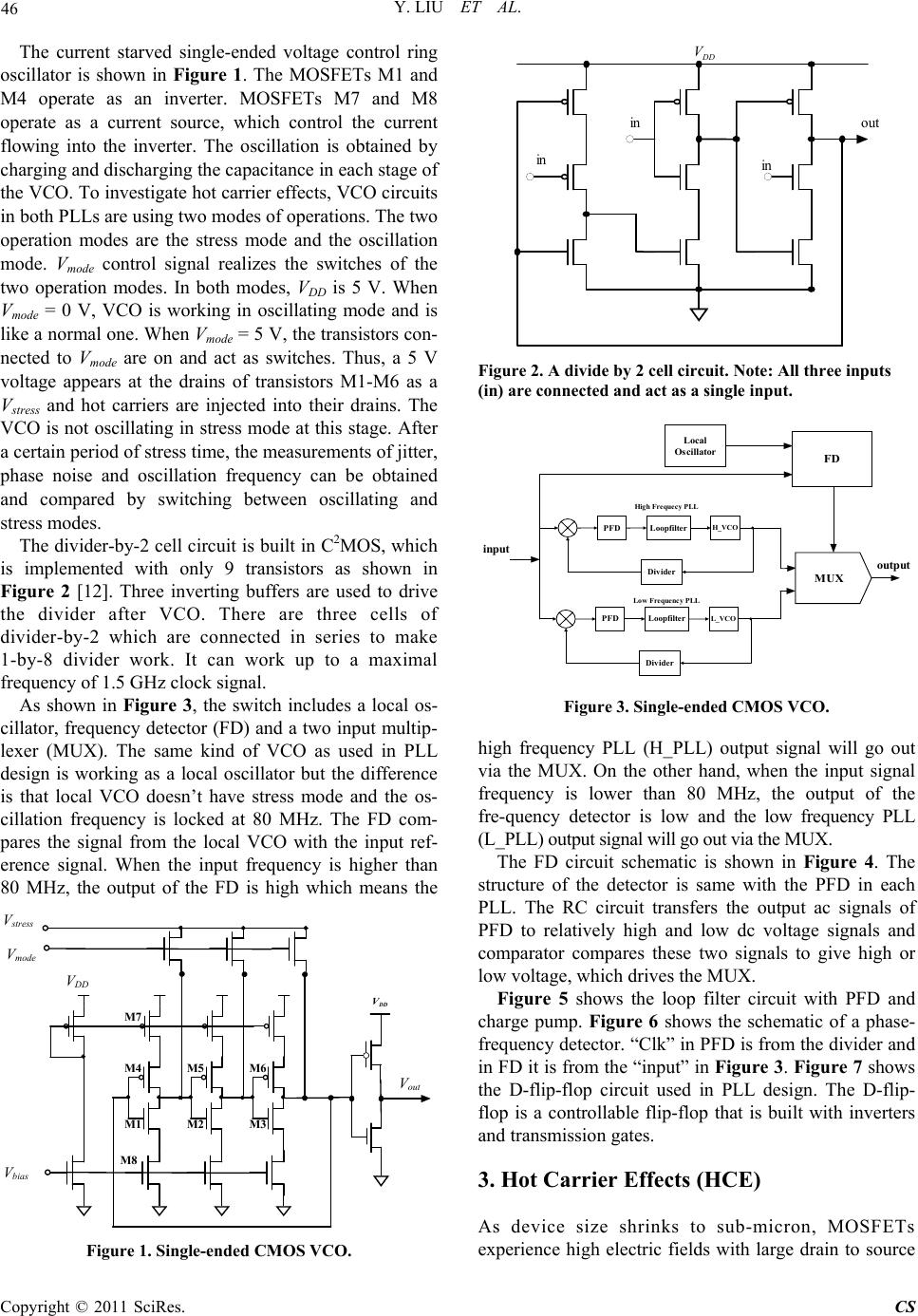

Figure 1. Single-ended CMOS VCO.
in
in
in
out
DD
V
Figure 2. A divide by 2 cell circuit. Note: All thr e e inputs
(in) are connected and act as a single input.
PFD Loopfilter H_ VCO
Divider
input
High Frequecy PLL
PFD Loopfilter
L_ VCO
Divider
Low Fr equency PLL
MUX output
Local
Oscillator
FD
Figure 3. Single-ended CMOS VCO.
high frequency PLL (H_PLL) output signal will go out
via the MUX. On the other hand, when the input signal
frequency is lower than 80 MHz, the output of the
fre-quency detector is low and the low frequency PLL
(L_PLL) output signal will go out via the MUX.
The FD circuit schematic is shown in Figure 4. The
structure of the detector is same with the PFD in each
PLL. The RC circuit transfers the output ac signals of
PFD to relatively high and low dc voltage signals and
comparator compares these two signals to give high or
low voltage, which drives the MUX.
Figure 5 shows the loop filter circuit with PFD and
charge pump. Figure 6 shows the schematic of a phase-
frequency detector. “Clk” in PFD is from the divider and
in FD it is from the “input” in Figure 3. Figure 7 shows
the D-flip-flop circuit used in PLL design. The D-flip-
flop is a controllable flip-flop that is built with inverters
and transmission gates.
3. Hot Carrier Effects (HCE)
As device size shrinks to sub-micron, MOSFETs
experience high electric fields with large drain to source
V
s
tress
Vmode
Vout
V
bias
V
D
D

Y. LIU ET AL.
47

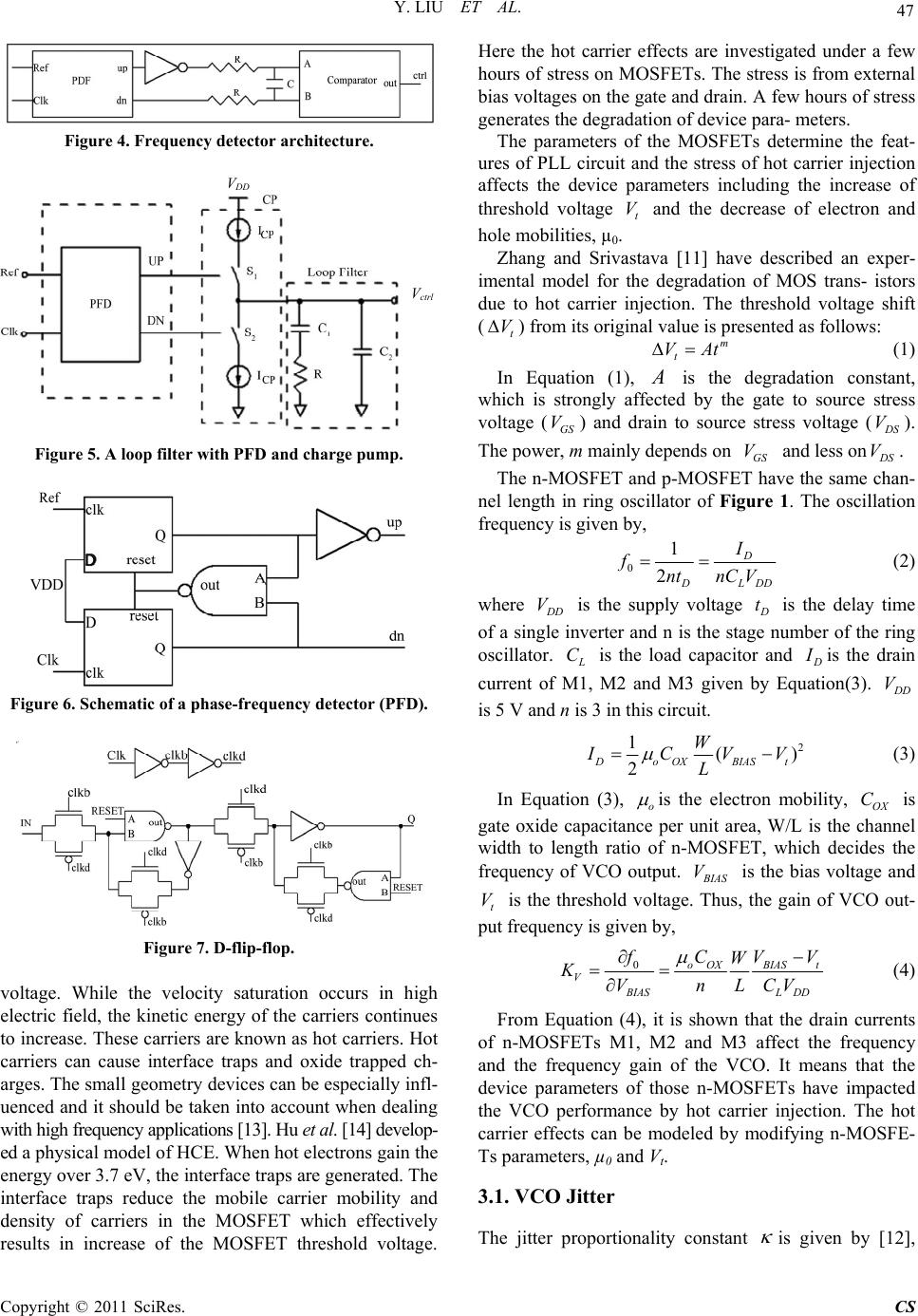

Figure 4. Frequency detector architecture.
Figure 5. A loop filter with PFD and charge pump.
Figure 6. Schematic of a phase-frequency detector (PF D).
Figure 7. D-flip-flop.
voltage. While the velocity saturation occurs in high
electric field, the kinetic energy of the carriers continues
to increase. These carriers are known as hot carriers. Hot
carriers can cause interface traps and oxide trapped ch-
arges. The small geometry devices can be especially infl-
uenced and it should be taken into account when dealing
with high frequency applications [13]. Hu et al. [14] develop-
ed a physical model of HCE. When hot electrons gain the
energy over 3.7 eV, the interface traps are generated. The
interface traps reduce the mobile carrier mobility and
density of carriers in the MOSFET which effectively
results in increase of the MOSFET threshold voltage.
Here the hot carrier effects are investigated under a few
hours of stress on MOSFETs. The stress is from external
bias voltages on the gate and drain. A few hours of stress
generates the degradation of device para- meters.
The parameters of the MOSFETs determine the feat-
ures of PLL circuit and the stress of hot carrier injection
affects the device parameters including the increase of
threshold voltage t V and the decrease of electron and
hole mobilities, µ0.
Zhang and Srivastava [11] have described an exper-
imental model for the degradation of MOS trans- istors
due to hot carrier injection. The threshold voltage shift
(t V

) from its original value is presented as follows:
m
t
VAt (1)
In Equation (1),
A
is the degradation constant,
which is strongly affected by the gate to source stress
voltage (GS V) and drain to source stress voltage (
D
S
V).
The power, m mainly depends on GS V and less on
D
S
V.
The n-MOSFET and p-MOSFET have the same chan-
nel length in ring oscillator of Figure 1. The oscillation
frequency is given by,
0
1
2
D
D
LDD
I
fntnCV  (2)
where
D
D
V is the supply voltage
D
t is the delay time
of a single inverter and n is the stage number of the ring
oscillator.
L
C is the load capacitor and
D
I
is the drain
current of M1, M2 and M3 given by Equation(3).
D
D
V
is 5 V and n is 3 in this circuit.
2
1()
2
Do OXBIASt
W
I
CVV
L
  (3)
In Equation (3), o

is the electron mobility, OX C is
gate oxide capacitance per unit area, W/L is the channel
width to length ratio of n-MOSFET, which decides the
frequency of VCO output.
B
IAS
V is the bias voltage and
t
V is the threshold voltage. Thus, the gain of VCO out-
put frequency is given by,
0oOXBIAS t
VBIASL DD
f
CVV
W
KVnLCV




 (4)
From Equation (4), it is shown that the drain currents
of n-MOSFETs M1, M2 and M3 affect the frequency
and the frequency gain of the VCO. It means that the
device parameters of those n-MOSFETs have impacted
the VCO performance by hot carrier injection. The hot
carrier effects can be modeled by modifying n-MOSFE-
Ts parameters, µ0 and Vt.
3.1. VCO Jitter
The jitter proportionality constant

is given by [12],
V
D
D
Vctrl

Y. LIU ET AL.
48
8
3
D
D
char
V kT
PV
  (5)
where T is the temperature in Kelvinand k is the
Boltzmann constant.

is the proportionality constant
relating the delay of the VCO which is 0.75 for sub-
micron MOSFETs. char V is the characteristic voltage of
the device, char VV

 .

is the noise ratio between
the saturation and linear regions, and is 4/3 for a short
channel device. V is the overdrive voltage on the ga-
te given by,
2
DD t
VVV V  (6)
P is the power dissipation given by,
D
DDD
PnVI (7)
The variability of VCO jitter accumulates as a func-
tion of T, interval time between the reference clock
and the observed clock. T is equal to 6.7 ns due to
difference in delay between the signal input of oscillo-
scope and the trigger input. We use the threshold cross-
ing time, T

 to quantitatively denote the deviation of
the jitter as follows,
TT

 (8)
3.2. VCO Phase Noise
Jitter and phase noise are different ways to express the
same phenomenon. The method described in subsection
3.1 can be used to model VCO phase noise. For CMOS
single-ended VCO, the expression of phase noise is giv-
en by [15,16],


2
0
2
8
3
DD
char
f
kT V
Lf PV
f


 
  (9)
4. Analysis
Figure 8 shows the output of the switchable PLL at
different frequencies where 320 MHz waveform is the
low frequency PLL (L_PLL) output and 1.12 GHz
waveform is the high frequency PLL (H_PLL) output.
Figure 9 shows the variation of PLL output frequency
versus control voltage, with and without hot carrier ef-
fects. Both the oscillation frequency and frequency range
of the PLLs decrease. For the worst case, the over-lapp-
ing frequency range, which is 250 MHz without hot car-
rier effects, decreased to 200 MHz.
The function of RC in the frequency detector is to
translate the FD output pulses into dc voltages, which are
shown in Figure 10. If the input frequency is less than
the reference frequency, which is output of the local
oscillator defined as 80 MHz, the output is at low level;
while if the input frequency is higher than the reference
Figure 8. Switchable PLL outputs at differe nt freque ncies.
Figure 9. Hot carrier effects on frequency synthesizer.
Figure 10. Frequenc y detector output.
frequency, the output is at high level. But if the input
frequency is closer to the reference frequency it will take
more time to obtain the dc output. Figure 11 shows this
phenomenon.

Y. LIU ET AL.
49
Figure 11. Frequency detector stabilizing time versus
frequency.
When the input frequency equals the reference fre-
quency, the output will be oscillating and the stable time
will be infinity as shown in Figure 11. To deal with this
problem, the frequency over-lapping range of the two
PLLs is expanded.
It can be noticed that the over-lapping range is at least
200 MHz in Figure 9. Thus, if the input frequency is
close to reference frequency (80 MHz) the control vol-
tage of the local oscillator can be adjusted to change the
reference frequency higher or lower. The large over-
lapping range guarantees that the difference between the
input frequency and the local oscillator frequency is
large enough so that the stabilizing time is smaller than
200 ns, which is the stabilizing time of the high frequen-
cy PLL. As a result, the stabilizing time of the switchable
PLL is decided by the PLLs, while the operation range is
much larger than that of the single PLL.
5. Simulation and Experimental Results
5.1. Simulation Results for H-PLL VCO due to
Hot Carrier Effects
Figure 12 shows the simulation, modeled and measured
results of the oscillation frequency of open loop VCO in
H_PLL before and after hot carrier stress versus different
bias voltages. The modeled results are in good agreement
with the simulation and measured results. The simulation
results are performed by Cadence/Spectre. It is shown
that at a 4 V bias, the frequency is around 1150 MHz
before stress and it is about 950 MHz after stress. This is
the effect on VCO output frequency due to hot carrier
injection in MOSFETs.
Figure 12 includes experimental data on tuning range
of VCO whose operation frequency is slightly lower than
1.5 22.5 33.5 44.5 5
300
400
500
600
700
800
900
1000
1100
1200
B ias Vol t age (V )
V CO Frequency (MHz )
model ed before stres s
s chemati c before stress
model ed after s tress
measured before stress
s chem ati c aft er s t ress
measured aft er stres s
Figure 12. The degradation of VCO frequency due to hot
carrier effects.
the simulation one. Phase noise and jitter measured under
hot carrier stress for both VCO and PLL are reported in
subsection 5.2. Threshold voltage increases by approx-
imate 120 mV and the electron mobility decreases by
about 80 cm2/Vsec [9] after 4 hours of stress on MOS-
FETs.
Figure 13 shows the decrease of H_PLL VCO fre-
quency gain at 2.5 V bias voltage versus stress time,
which agrees with the Equation (4). After 4 hours of hot
carrier injection, the VCO gain decreases by about 33%,
from 460 MHz to 310 MHz.
Figure 14 shows the simulation result for the variation
of the jitter proportionality parameter,  changing with
the oscillation frequency before and after 4 hours of
stress.

increases by about 10%, which means the
value of the jitter of 3-stage single-ended VCO increases
by about 0.2 Tns due to hot carrier effects from Eq-
uation (5). T

is the time difference between rising
edge of trigger clock and the observed clock. Thus, the
jitter T


mainly depends on  , which varies with
different tuning frequencies.
00.5 11.5 22.5 33.5 4
300
320
340
360
380
400
420
440
460
Stress Tim e ( Hour)
VCO Gain (MHz/V)
Figure 13. VCO gain versus stress time.

Y. LIU ET AL.
50
350400 450 500 550600 650 700 750
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9 x 10
-9
VCO Frequenc y (MHz )
K (sqrt(s))
Before Stress
After Stress

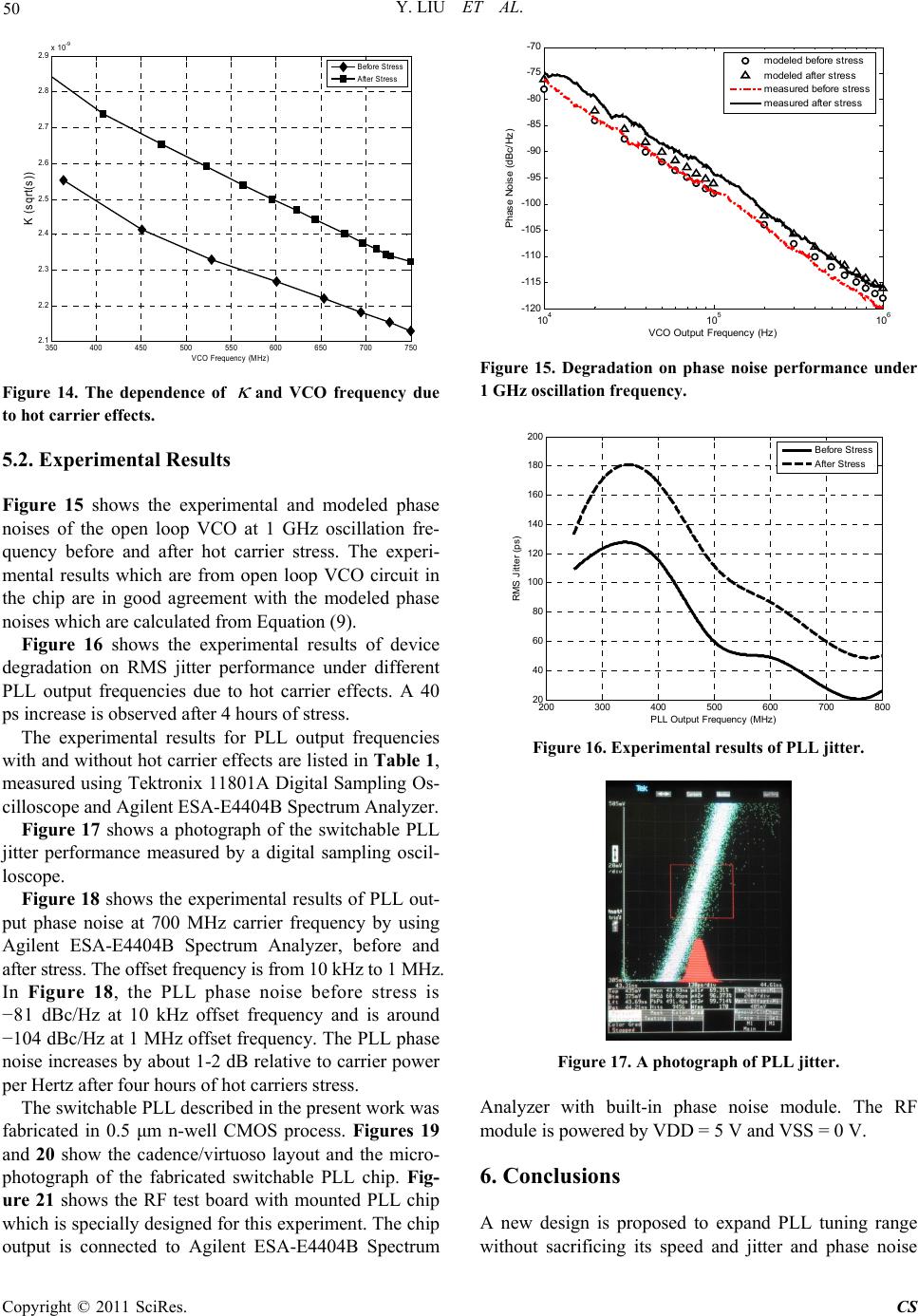

Figure 14. The dependence of

and VCO frequency due
to hot carrier effects.
5.2. Experimental Results
Figure 15 shows the experimental and modeled phase
noises of the open loop VCO at 1 GHz oscillation fre-
quency before and after hot carrier stress. The experi-
mental results which are from open loop VCO circuit in
the chip are in good agreement with the modeled phase
noises which are calculated from Equation (9).
Figure 16 shows the experimental results of device
degradation on RMS jitter performance under different
PLL output frequencies due to hot carrier effects. A 40
ps increase is observed after 4 hours of stress.
The experimental results for PLL output frequencies
with and without hot carrier effects are listed in Table 1,
measured using Tektronix 11801A Digital Sampling Os-
cilloscope and Agilent ESA-E4404B Spectrum Analyzer.
Figure 17 shows a photograph of the switchable PLL
jitter performance measured by a digital sampling oscil-
loscope.
Figure 18 shows the experimental results of PLL out-
put phase noise at 700 MHz carrier frequency by using
Agilent ESA-E4404B Spectrum Analyzer, before and
after stress. The offset frequency is from 10 kHz to 1 MHz.
In Figure 18, the PLL phase noise before stress is
−81 dBc/Hz at 10 kHz offset frequency and is around
−104 dBc/Hz at 1 MHz offset frequency. The PLL phase
noise increases by about 1-2 dB relative to carrier power
per Hertz after four hours of hot carriers stress.
The switchable PLL described in the present work was
fabricated in 0.5 μm n-well CMOS process. Figures 19
and 20 show the cadence/virtuoso layout and the micro-
photograph of the fabricated switchable PLL chip. Fig-
ure 21 shows the RF test board with mounted PLL chip
which is specially designed for this experiment. The chip
output is connected to Agilent ESA-E4404B Spectrum
10
4
10
5
10
6
-120
-115
-110
-105
-100
-95
-90
-85
-80
-75
-70
VCO Out put F requenc y (Hz )
Phase Noi se (dB c/Hz)
model ed before st res s
model ed after s tres s
measured before s tres s
measured afte r st ress
Figure 15. Degradation on phase noise performance under
1 GHz oscillation frequency.
200 300 400 500 600 700 800
20
40
60
80
100
120
140
160
180
200
PLL O utput F requency (MHz )
RMS Jitter (ps)
Before Stress
After Stress
Figure 16. Experimental results of PLL jitter.
Figure 17. A photograph of PLL jitter.
Analyzer with built-in phase noise module. The RF
module is powered by VDD = 5 V and VSS = 0 V.
6. Conclusions
A new design is proposed to expand PLL tuning range
without sacrificing its speed and jitter and phase noise

Y. LIU ET AL.
51
104105106
-105
-100
-95
-90
-85
-80
-75
-70
-65
-60
-55
Frequency (Hz)
Phase Noise (dBc/Hz)
PLL phas e noise after s t res s
PLL phas e noise before s tress
Figure 18. Experimental results of PLL phase noise at
700 MHz carrier frequency.
Figure 19. Layout of switchable PLL frequency synthesizer.
Figure 20. Microphotograph of fabricated switchable PLL.
performances. The two CMOS PLLs are integrated on a
single chip. Cadence/Spectre has been used for post-
layout simulations for jitter, phase noise and switchable
frequency range. The chip is experimentally tested for
Figure 21. Photograph of RF test board with mounted PLL
chip.
jitter, phase noise and switchable frequency range with
and without hot carrier effects. A model is presented to
address the hot carrier effects on the VCO jitter and
phase noise performance. The modeled results are in
good agreement with both the simulation and experi-
mental results. It is demonstrated that the jitter can be
predicted by the jitter proportionality parameter,

. The
measured jitter and phase noise ranges of the PLL are
around 26 to 123 ps and around −69 to −126 dBc/Hz
under the entire PLL tuning frequency, 200 MHz –700 MHz.
7. References
[1] G. C. Hsieh and J. C. Hung, “Phase-Locked Loop Tech-
niques-A Survey,” IEEE Transactions Industrial Elec-
tronics, Vol. 42, No. 6, 1996, pp. 609-615. doi:10.11
09/41.544547
[2] F. M. Gardner, “Phaselock Techniques,” Wiley Inter-
science, Hoboken, 2005.
[3] S. L. J. Gierkink, D. Li and R. C. Frye, “A 3.5-GHz PLL
for Fast Low-IF/Zero-IF LO Switching in an 802.11
Transceiver,” IEEE Journal of Solid-State Circuits, Vol.
40, No. 9, 2005, pp. 1909-1921. doi:10.1109/JSSC.200
5.848175
[4] R. E. Best, “Phase-Locked Loops-Design, Simulation,
and Applications,” 6th Edition, McGraw-Hill, New York,
2007.
[5] W. Rhee, K. A. Jenkins, J. Liobe and H. Ainspan,
“Experimental Analysis of Substrate Noise Effect on PLL
Performance,” IEEE Transactions on Circuits and Sys-
tems-II, Vol. 55, No. 7, 2008, pp. 638-642. doi:10.1109/T
CSII.2008.921582
[6] C. Jeong, D. Choi and C. Yoo, “A Fast Automatic
Frequency Calibration (AFC) Scheme for Phase-Locked
Loop (PLL) Frequency Synthesizer,” Proceedings of
Radio Frequency Integrated Circuits Symposium, San-
Diego, 7-9 January 2009, pp. 583-586. doi:10.1109/R

Y. LIU ET AL.
52
FIC.2009.5135609
[7] C. Hsu and Y. Lai, “Low-Cost CP-PLL DFT Structure
Implementation for Digital Testing Application,” IEEE
Transactions on Instrumentation and Measurement, Vol.
58, No. 6, 2009, pp. 1897-1906. doi:10.1109/TIM.200
8.2005852
[8] Y. Guo and Z. Xie, “Design of PLL Frequency
Synthesizer in Frequency Hopping Communication Sy-
stem,” Proceeding of International Conference on Com-
munications and Mobile Computing, Shenzhen, 12-14
April 2010, pp. 138-141.
[9] E. Xiao and J. S. Yuan, “Hot Carrier and Soft Breakdown
Effects on VCO Performance,” IEEE Transactions on
Microwave Theory and Techniques, Vol. 50, No. 11, 2002,
pp. 2453-2458. doi:10.1109/TMTT.2002.804632
[10] C. Zhang and A. Srivastava, “Hot Carrier Effects on Jitter
and Phase Noise in CMOS Voltage-Controlled Oscilla-
tors,” Proceedings of SPIE-Noise in Devices and Circuits
III, Austin, 23-26 May 2005, pp. 52-62.
[11] C. Zhang and A. Srivastava, “Hot Carrier Effects on Jitter
Performance in CMOS Voltage Controlled Oscillators,”
Fluctuation and Noise Letters, Vol. 6, No. 3, 2006, pp.
329-334. doi:10.1142/S0219477506003446
[12] S. Pellerano, S. Laventin, C. Samori and A, Lacaita, “A
13.5-mW 5-GHz Frequency Synthesizer with Dynamic-
logic Frequency Divider,” IEEE Journal of Solid-State
Circuits, Vol. 39, No. 2, 2004, pp. 378-383. doi:10.1109/
JSSC.2003.821784
[13] E. Takeda, C. Y. Yang and A. Miura-Hamada, “Hot-
Carrier Effects in MOS Devices,” Academic Press, San
Diego, 1995.
[14] C. Hu and S. Tam, et al., “Hot-Electron Induced MOSFET
Degradation-Model, Monitor, Improvement,” IEEE
Transactions on Electron Devices, Vol. ED-32, 1985,
pp. 375-385.
[15] A. Hajimiri, S. Limotyrakis and T. H. Lee, “Jitter and
Phase Noise in Ring Oscillators,” IEEE Journal of
Solid-State Circuits, Vol. 34, No. 6, 1999, pp. 790-804.
doi:10.1109/4.766813
[16] A. Hajimiri and T. H. Lee, “A General Theory of Phase
Noise in Electrical Oscillators,” IEEE Journal of Solid-
State Circuits, Vol. 33, No. 2, 1998, pp. 179-194. doi:10.11
09/4.658619
