ABSTRACT

The aim of this study was to develop a technique for the complete recycling of concrete based on microwave heating of surface modification coarse aggregate (SMCA) with only inorganic materials such as cement and pozzolanic materials (silica fume, fly ash). The mechanical properties of SMCA, which was produced using original coarse aggregate (OCA) and inorganic admixtures, as well as its separation from the cement matrix and recovery performance were quantitatively assessed. The experimental results showed that micro structural reinforcement of the interfacial transition zone, which is a weak part of concrete, by coating the surface of the OCA with cement and admixtures such as pozzolanic materials can help suppress the occurrence of micro-cracks and improve the mechanical performance of the OCA. Microwave heating was observed to cause micro-cracking and hydrate decomposition. Increasing the void volume and weakening the hydrated cement paste led to the effective recovery of recycled coarse aggregate.

Keywords:Recycling, Surface Modification, Interfacial Transition Zone, Pozzolanic Reaction, Microwave, Recovery

1. Introduction

Concrete, which is used in large quantities in civil engineering and building construction, becomes weak with time; thus, old structures must be demolished and replaced [1] [2] . The handling of old concrete is a major problem for society to adhere to the 3R concept (reduce, reuse, and recycle). The accumulation and storage of concrete in huge piles cannot be a long-term solution because of the reduced natural resources and lack of space. Moreover, decreases in road construction work, which is the main use for recycled concrete, are expected to lead to less demand for sub-base coarse material for roads [3] [4] ; in the long term, this calls for measures to expand and diversify the use of recycled concrete waste and to use recycled aggregates for concrete manufacture [5] . Thus, research on recycled aggregates is being conducted from various angles worldwide, and the Japanese Industrial Standards (JIS) has been revised for recycled aggregates [6] . However, there are still problems related to the production of high-quality recycled aggregates such as high energy consumption and the generation of large amounts of fine powder during crushing [7] [8] . On the other hand, using low-quality recycled aggregates can lower the concrete performance, which impedes the spread of recycled aggregate use [9] [10] . Because the aggregate resources that can be newly used are limited, an efficient and reliable mechanism for concrete recycling with low energy consumption is necessary. There are a variety of benefits to recycling concrete rather than dumping or burying it in a landfill [2] [11] :

• Keeping concrete debris out of landfills saves space.

• Using recycled material as gravel reduces the need for gravel mining.

• Recycling 1 ton of cement can save 1360 gallons of water and 900 kg of CO₂.

• Using recycled concrete as the base material for roadways reduces the pollution involved in trucking material.

2. Technical Overview

Concrete recycling via microwave heating is a completely new technique and is shown in Figure 1 [21] [22] . Admixtures (e.g., pozzolanic materials) improve the chemical bonding and mechanical friction between aggregates in the coating layer of the original coarse aggregate (OCA) surface and cement matrices at the interfacial transition zone (ITZ), which is the weak part of concrete. Thus, recycled coarse aggregate (RCA) can be recovered for concrete structures because the mechanical performance of the concrete is improved, as shown in Figure 2(a) and Figure 2(b). This technique involves coating the OCA with iron oxide (Fe₂O₃), which has a high dielectric constant, as a binder and then selectively heating and weakening the aggregate interface with microwaves to manufacture RCA following the dismantling of a structure, as shown in Figure 3(a) and Figure 3(b) [5] . This technique allows almost complete recycling of the aggregates by recovering high-quality RCA while using a small amount of energy [21] [22] . This technique allows for a trade off [9] between improvement in the concrete strength and aggregate recovery rate. Concrete fabricated with this technique comprises OCA, surface modification coarse paste (SMCP), surface modification coarse aggregate (SMCA), and Fe₂O₃, as shown in Figure 1 [5] .

3. Mechanical Performance of OCA-SMCP-Cement Matrix

3.1. Experiment Overview

In general, because the bond strength between the aggregate and paste is less than the individual tensile strengths of either the aggregate or paste, a crack tends to initiate from the aggregate-paste interface (i.e., ITZ) owing to bleeding in the fresh concrete or a load-induced crack in the hardened concrete [12] . Therefore, the bond strength of aggregate-paste is somewhat directly related with the strength of the concrete, and this shear bond strength is generated by chemical and physical adhesion [13] [14] . In order to review the effectiveness of surface modification at improving the OCA-SMCP (interface)-cement matrix in detail, as shown in Figure 2, a shear bond strength experiment was conducted by coating the OCA surface with either cement or an admixture comprising cement and pozzolans. The changes in mechanical properties were assessed.

3.2. Experimental Method

In this experiment, specimens with OCA, SMCP, and a cement matrix structure were fabricated in order to characterize the chemical and physical bonds that form in the interface between the modified aggregate and cement matrices, as shown in Figure 4. The compressive and tensile shear bond strengths were measured at interface angles (α, β) of 30˚, 45˚, and 60˚, and the failure load at each angle was compared and analyzed [15] [16] . The OCA specimens were cut from crushed hard sandstone (standard density: 2.66 g/cm³, water absorption ratio: 0.70%); the compressive and tensile shear specimens had dimensions of 10 cm × 10 cm × 40 cm and 10 cm ×10

cm × 20 cm, respectively (Table 1). The SMCP was mixed based on the mixing ratio presented in Table 2; for the materials, cement and cement substituted with pozzolanic materials (silica fume, fly ash) were used. The W/C ratio for the mortar was set to 55%; this ratio is generally applied in the field to satisfy the general strength condition given in Table3 In the experiment, the modified aggregate specimens were cut in advance to ensure that the interface angle would be 30˚, 45˚, and 60˚; these were installed in the form before SMCP was coated on

Note: Density of each material (unit: g/cm³). C: Cement: 3.16; FA: Fly ash: 2.22; BFS: Blast furnace slag: 2.91; SF: Silica fume: 2.24.

Note: O: OCA concrete; M: SMCA concrete; a^*: Plasticizer.

the specimen surfaces. The specimens were then air-cured for 28 days in a room at constant temperature and humidity (20˚C, 60%RH), and the mortar was placed. In order to prevent failure in the aggregate and cement matrix surface when the specimen was taken out of the form, the specimens were airand water-cured for 5 and 28 days, respectively, in the room at the same constant temperature and humidity. Then, a load was applied at a rate of 1mm/min to measure the bond failure in the interface. In the tensile shear bond strength test, epoxy resin adhesive was used to attach the specimen to the tensile testing instrument, and the load was applied using a round loop to prevent eccentricity. Table 4 presents the experimental levels of the SMCA concrete.

3.3. Compressive Shear Bond Strength

Figure 5 shows the results of the compressive shear bond strength test; the SMCA concrete demonstrated an approximately 50% increase in strength compared to the OCA concrete regardless of the interface angle. The compressive shear bond strength tended to decrease as the interface angle increased; this was deemed to be caused by the sliding effect resulting from the increase in the interface angle irrespective of the bonding surface. On the other hand, adding silica fume to the SMCP led to higher compressive shear bond strength because of the microfiller effect and pozzolanic reaction. A 30% substitution with fly ash resulted in the second-highest compressive shear bond strength following the SMCP containing silica fume. Thus, the pozzolanic reaction caused by the

Note: O: OCA; M: Modified coarse aggregate (SMCA concrete), C: Cement; C + FA: Cement + Fly ash; C + BFS: Cement + Blast furnace slag; C + SF: Cement + Silica fume, N/A: Not applicable; A: Application; P: Performed.

substituted fly ash may improve the strength.

3.4. Tensile Shear Bond Strength

Figure 6 shows the results of the tensile shear bond strength test; all of the modified aggregate specimens had improved shear bond strength compared to the OCA. In addition, the tensile shear bond strength was observed to increase with the interface angle. In other words, a larger bonding surface meant a larger area of the microstructure of ITZ was improved, which in turn improved the shear bond strength. In particular, when a pozzolanic material such as silica fume or fly ash was added to the SMCP, the tensile shear bond strength increased even further; this may be a result of the structural densification caused by the micro-filler effect and pozzolanic reaction. Figure 7(a) and Figure 7(b) show the fracture surfaces and scanning electron microscope images of the ITZ for the OCA and SMCA concretes. As shown in Figure 7(a), failure occurred in the ITZ between the OCA and cement matrices, which were observed to contain calcium hydroxide (C-H) and ettringite. However, failure of the SMCA concrete occurred in the cement matrices and not in the interface, as shown in Figure 7(b). This may indicate that a denser and stronger ITZ with a high level of calcium silicate hydrate (C-S-H) was strengthened by the surface modification treatment and pozzolanic reaction.

4. Weakening between OCA and SMCP by Microwave Heating

4.1. Experiment Overview and Method

An experiment was carried out to measure the weakening between OCA and SMCP caused by microwave heating (frequency of 2.45 GHz and high-frequency output of 1800 W) at heating times of 0, 60, 120, or 180 sin the SMCA concrete, as shown in Figure 3. The microwave heating characteristics and changes in the pores before and after heating were measured by mercury intrusion porosimetry (MIP). The temperature was measured using thermography before and after microwave heating was applied, and the temperature characteristics under each condition were assessed (Figure 8). The experimental specimens were manufactured by selecting O and M-C

from the pozzolanic materials in Section 3. Also, aggregates with a significant amount of cement paste attached were collected from the concrete for use as test specimens in the MIP experiment, as shown in Figure 9.

4.2. Temperature Performance of SMCA by Microwave Heating

Figure 10 shows the experimental results for the OCA concrete. The temperature increased to 110˚C after 60 s, 200˚C, after 120 s, and 280˚C after 180 s. In comparison, the temperature of the SMCA concrete increased to 190˚C after 60 s, 280˚C after 120 s, and 405˚C after 180 s, as shown in Figure 10. The SMCA concrete showed a greater temperature increase of approximately 80˚C - 130˚C compared to the OCA concrete. Thus, microwave heating was determined to have a greater effect on the former. In particular, when the SMCA was heated for 180 s, the increase in temperature was approximately 130˚C, higher than that of the OCA. This may be due to the

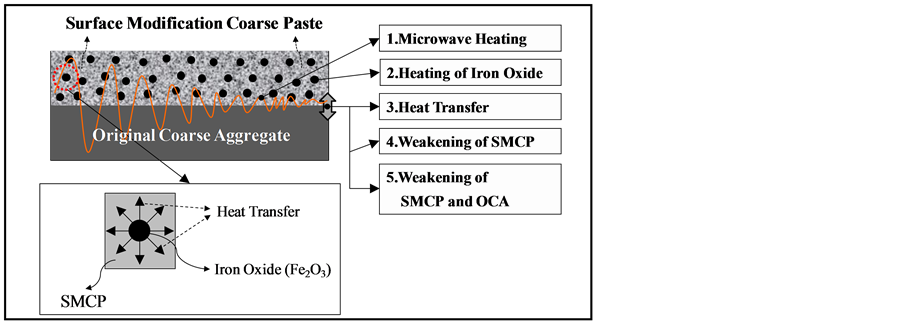

effective heating of iron oxide [17] , which was mixed in the SMCP as a dielectric material, as shown in Figure 11.

4.3. Weakening of SMCA Due to Changes in Void Volume

The experimental results showed that the temperatures of the specimens increased because of the thermal conductivity of the iron oxide being heated by the microwaves, as shown in Figure 12 and Figure 13. The total increase in void volume and peak of the pore distribution moved to the part with the largest void volume. In particular, when the heating time was over 180 s, the number of pores with a diameter of 0.05 μm or less decreased, whereas pores with a diameter of 0.05 - 0.1 μm moved toward spores with a diameter of 0.1 μm as the void volume increased (Figure 13). As shown in Figure 14, when the heating time was over 180 s, the void volume

of the SMCA concrete was slightly higher than that of the OCA concrete. The increase in the concrete porosity [18] [19] because of microwave heating may represent the weakening of the cement paste around the ITZ and aggregate. Thus, the increase in pores in the SMCA concrete because of microwave heating may result from the evaporation of bound water caused by the decomposition of calcium hydroxide and C-S-H hydrates and the occurrence of micro-cracks in the concrete [20] .

5. Performance Review of SMCA Concrete

5.1. Experiment Overview and Method

Concrete is generally composed of cement, water, and fine and coarse aggregates. However, with respect to the SMCA concrete, the surface of the OCA was coated with cement paste. This required that the modified paste be reflected in the mixing design, as shown in Figure 15. In the mixing design, the amount of coarse aggregate coated with an admixture can be increased. Thus, the amount of SMCP coated on the coarse aggregate can be excluded from the amounts of cement and water in the mixing ratio, and the amounts of cement, water, and

OCA for the OCA and SMCA concretes can be the same [5] . In this experiment, OCA and SMCA concrete specimens with a water-cement (W/C) ratio of 55% were compared. In order to achieve equal characteristics for the fresh specimens for the comparison, the W/C ratio of the SMCA concrete and amount of chemical admixture were adjusted as shown in Table5 Using the above method, the same amount of cement was applied to the mixing design for the OCA and SMCA. As the binder for the surface admixture, only cement and cement with admixtures (e.g., pozzolanic material) were used with a W/C ratio of 30%. The mixing percentage of the surface admixture is shown in Table6 Based on the mechanical performance and weakening of the SMCA concrete in Sections 3 and 4, the compressive and splitting tensile strengths of the SMCA concrete were examined in this experiment to assess the improvement in the mechanical properties. The recovery rates of RCA by microwave heating (frequency of 2.45 GHz and high-frequency output of 1800 W) for 0, 60, 120, and 180 s were measured to assess the aggregate recovery characteristics.

For the OCA used in this experiment, the parent materials were collected from a rocky mountain, crushed with a jaw crusher, and sorted by diameter from 5 mm to 20 mm. Then, the particle size distribution was adjusted to satisfy the standard diameter prescribed in JIS A 1102 (standard for aggregate sieving test), and the density and water absorption ratio of the OCA and SMCA specimens (only cement and cement with pozzolanic materials, respectively) were measured in accordance with JIS A 1110 (standard for coarse aggregate density and water absorption test). The results of the preliminary experiment showed that the density of OCA with a modified surface was higher than that with no surface modification by 1% - 1.5%, as shown in Table7 This may be because the SMCP with a low W/C ratio contained high-density iron oxide, which resulted in the ITZ microstructure becoming more compact. On the other hand, the water absorption ratio also increased. This was due to the cement paste forming a thin film on the OCA surface, which resulted in the OCA and SMCP absorbing water. However, the OCA and SMCA in this experiment satisfied the criteria prescribed in JIS A 5021 (standard for concrete using recycled aggregate H) for H class of RCA, which can be used for structural aggregate. Thus, the water absorption ratio was not expected to cause any potential problems in this experiment.

5.2. Mechanical Properties of SMCA Concrete

The compressive and splitting tensile strength tests were performed based on JIS A 1108 and JIS A 1113. For the mechanical properties, the compressive and splitting tensile strengths of each SMCA concrete specimen were higher than those of the OCA concrete specimens by 5% - 12%, as shown in Figure 16 and Figure 17. The

Note: O: OCA concrete; M: SMCA concrete; a^*: Plasticizer.
